GPS mini

GPS mini Watch User Manual

Introduction

Thank you for purchasing the GPS mini Watch. This GPS Watch is packed with personal

Training features like speed, trip time, laps, etc. Watch features include but not limited to the

following:

!12/24H Time format

!World time

!Dual Time T1 and T2

!5 daily Alarms

!RUN mode

!Chronograph mode

!Data mode

!Set modes

"This Watch can communicate with a PC to store and review your

performance.

"This Watch uses a rechargeable battery that can be charged through USB

port of your PC.

Caring for your GPS Watch:

Clean your GPS Watch with a dampened cloth preferably with mild detergent solution. Wipe

dry using a dry cloth. Do not use chemical cleaners and solvents that may damage plastic

components.

Do not store your GPS Watch to prolonged exposure to extreme temperatures as this may

result to permanent damage to your unit.

About GPS:

Global Positioning System (GPS) is a satellite- based navigation system made up of a

network of 24 or more satellites. GPS works best in clear weather condition, anywhere in the

world, 24 hours a day. Tall buildings may interfere with GPS accuracy. When 3 satellite

signals are received, the Watch will have 2D GPS fixed (Latitude and Longitude). When 4 or

more satellite signals are received, the Watch will have 3D GPS Fixed.

Water immersion:

This GPS Watch is designed to be water resistant up to 3 ATM. It can resist water pressure

up to 30 meters. After submersion to water, please make sure to wipe dry and air dry the unit

before using or charging.

Caution:

"Prolonged water submersion may cause electronic shorting in the unit which may

cause minor skin burn or irritation.

Getting Started

Step 1) Know your Watch:

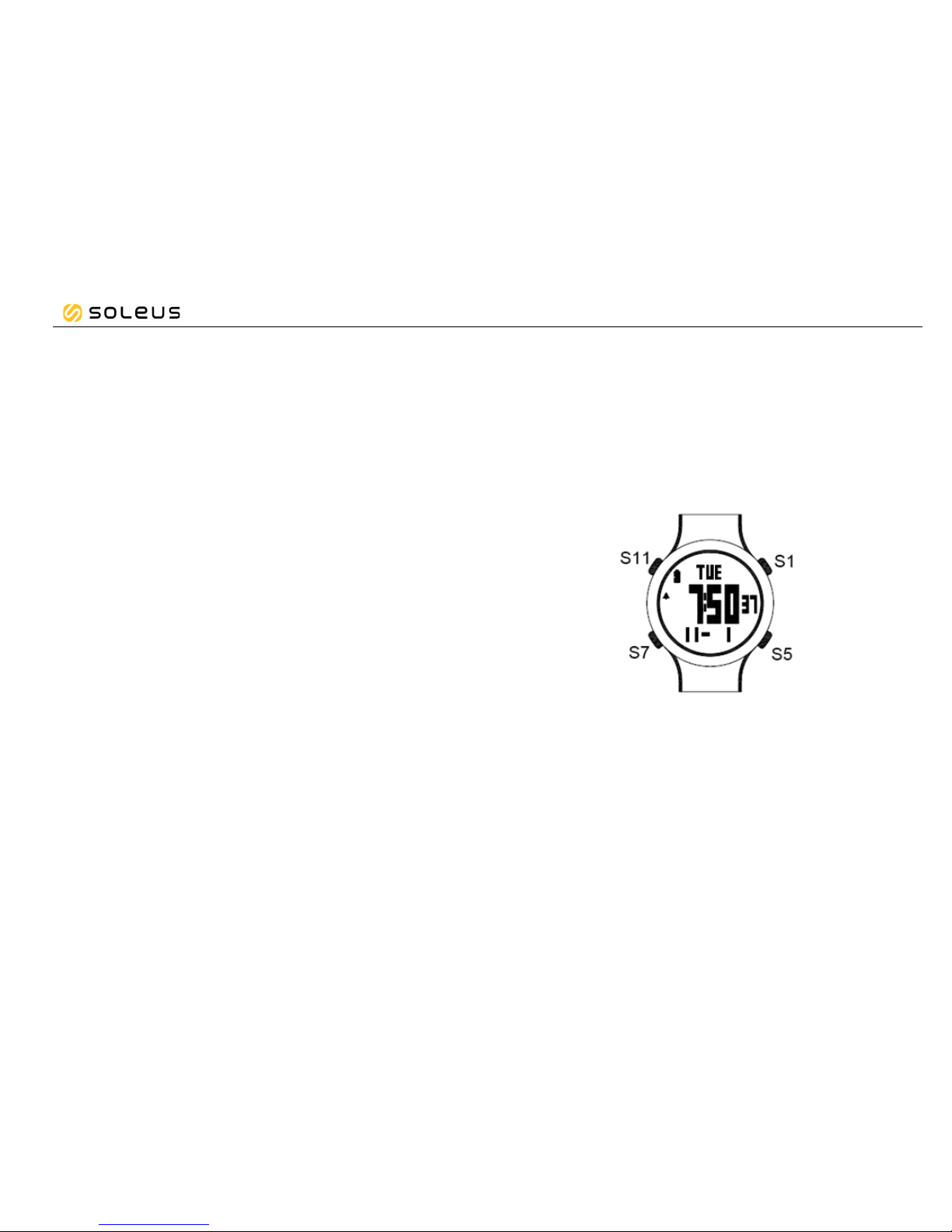

Push button location:

Push button Main function:

S1 – Start / Stop / Save / Increase adjust (+)

S5 – View / OK

S7 – Change Mode / Exit

S11 – Light / Set / Save / Lap / Decrease adjust (-)

GPS mini

Step 2) Charging the Battery:

Charge the unit for at least 4.5 hours before first use. The length of time for a fully charged

battery will last depending on the actual usage. It is recommended to regularly re-charge your

battery every 1-2 months even if it is not used to maintain good battery condition.

2.1) Plug your Watch to your PC USB port.

2.2) Make sure the contact pins of the watch are properly connected to your PC.

Note: Please thoroughly dry the charging contacts and surrounding area to ensure proper

electrical contact and prevent corrosion.

When the battery is low, it is time to charge the watch.

Battery low condition:

You cannot turn ON the GPS when the battery is low. The watch will display LOW BATT. You

need to recharge the battery in order to use the GPS again.

When the battery is almost low and you still perform your exercise, your data may not be

saved. Please make sure the battery have enough battery power before doing your exercise

in order not to lose your data.

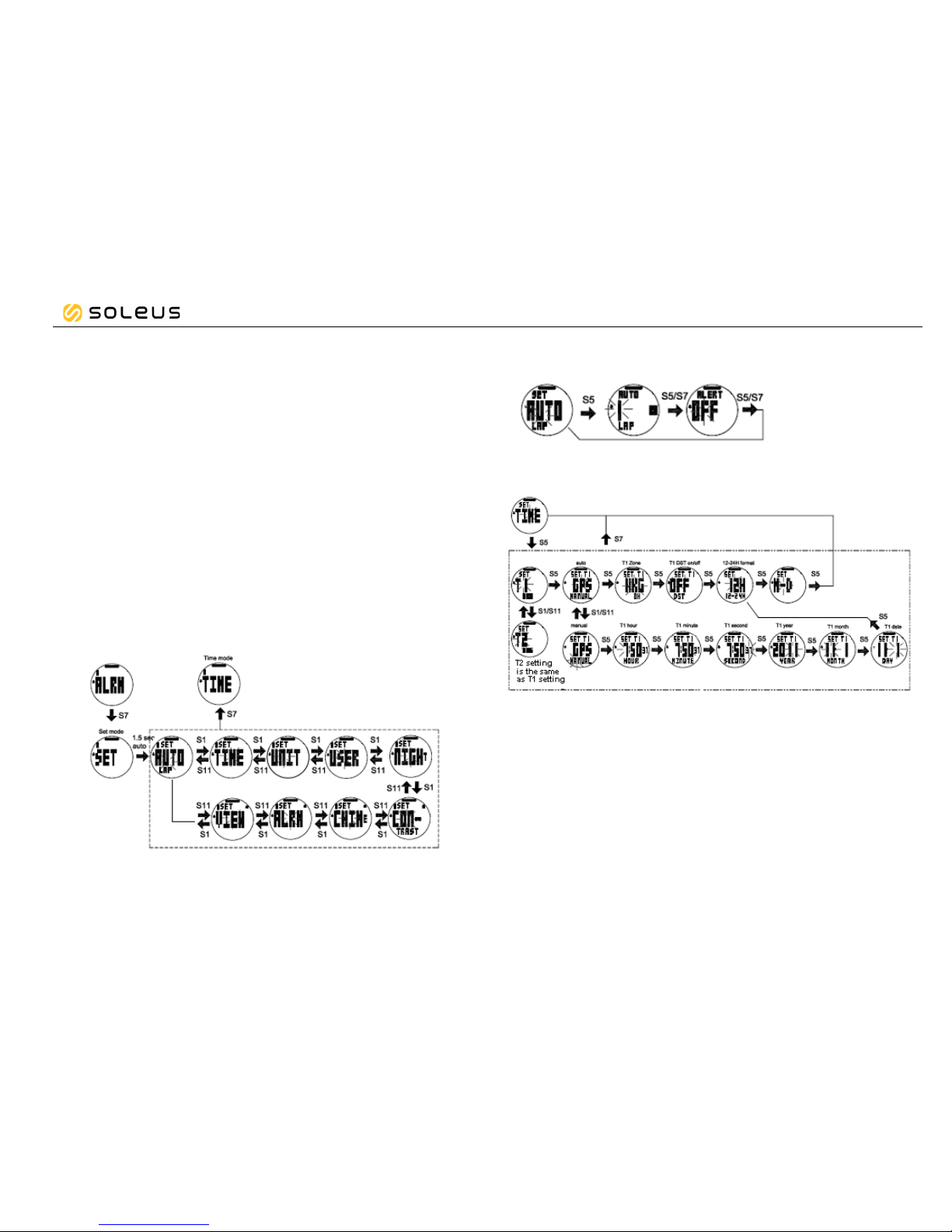

Step 3) Configure your Watch:

Before using your watch, please set your Watch.

3.1) Go to SET mode and set the following parameters: AUTO LAP, TIME, UNITS, USER,

NIGHT, Contrast, CHIME, ALARM, and VIEW.

•Press S1 or S11 to change the values of the blinking digit.

•Press S5 to enter and set the selected parameter.

•The watch will auto exit setting mode if there is no push button operation in 3 to 4

minutes.

How to set the AUTOLAP:

•Auto Lap setting range: 0.4, 1, 2, 3, 4, 5, and OFF

How to set the TIME:

•Year range: 2001 to 2099

•Total of 36 city codes are available for various Time zones.

•Time can be displayed in 12 hour or 24 hour format

•Dual time zone Time 1 and Time 2

GPS mini

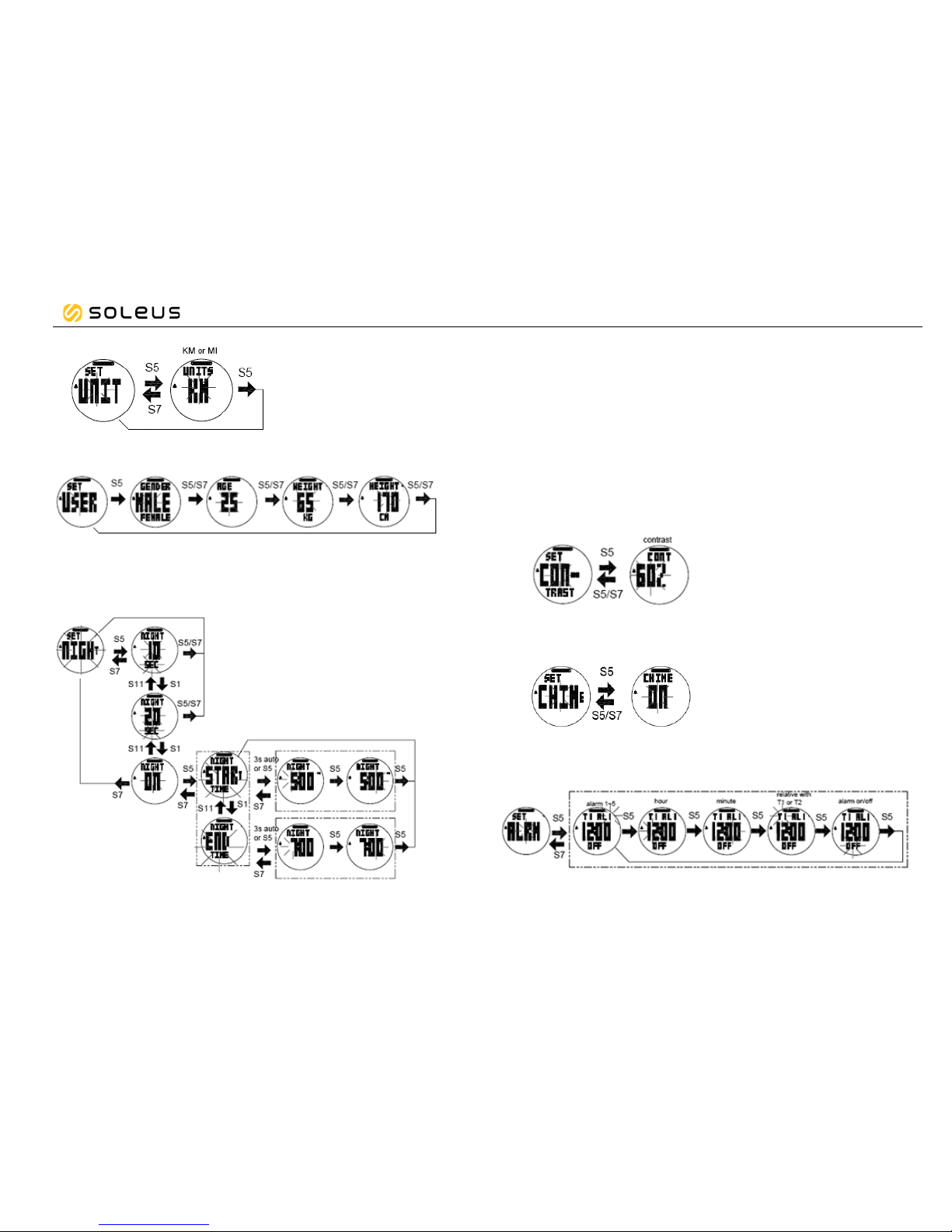

How to set the UNITS:

How to set USER details:

•Age range: 7 to 99 default: 25

•Weight range: 20- 255 KG ( 44-561 LBS) default 65 KG ( 143 LBS)

•Height range: 91-241 cm (3’00” to 7’11”)

How to set the NIGHT mode function:

Night mode settings:

•10 SECONDS – Press S11 will turn ON the Light for 10 seconds.

•20 SECONDS – Press S11 will turn ON the Light for 20 seconds.

•NIGHT ON – Default Start Time / END Time for NIGHT ON setting is 5 PM to 7 AM.

Following are the characteristics of NIGHT ON setting:

oStart Time and END TIME for NIGHT ON setting can be changed in SET

mode/ NIGHT.

oWhen the Night setting is ON, pressing any button within the Start Time / End

Time will turn ON the EL for 10 seconds.

oOutside the Start time / End Time, only press S11 will turn ON the EL for 10

seconds.

oWhen the chronograph is running within the Start Time/ End Time, the EL will

be always ON. It will turn OFF 10 seconds after the chronograph is stopped.

How to set the LCD display CONTRAST:

Contrast range = 10 to 100%

How to set the CHIME:

•When Chime is ON, the Vibration alarm function is also ON.

How to set the ALARM:

GPS mini

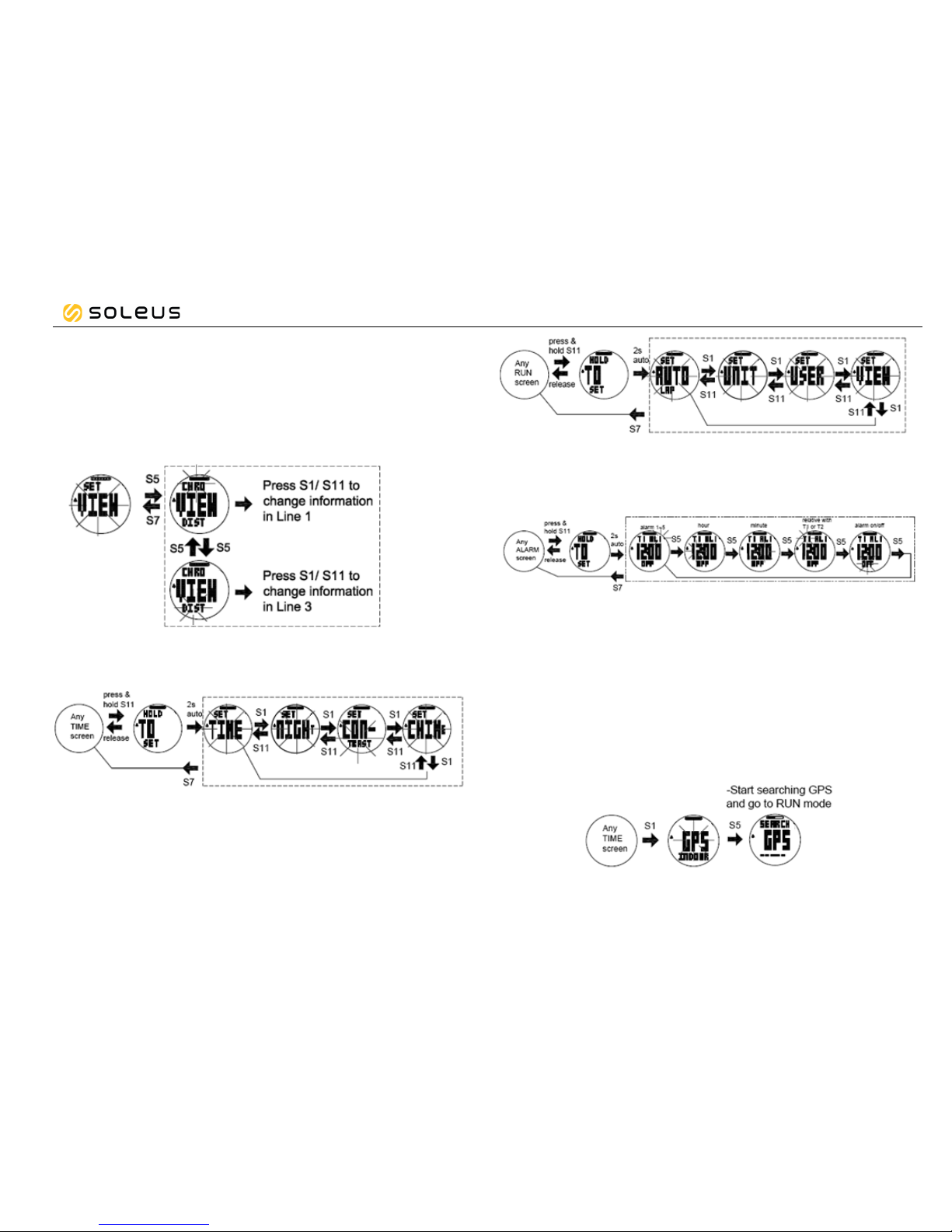

How to set the VIEW

You can select what information to display in Line 1 & Line 3 for RUN mode

3.2) TIME, NIGHT, CONTRAST, & CHIME, can also be set in TIME quick SET mode.

3.3) AUTO LAP, UNITS, USER, and VIEW can also be set in RUN quick SET mode.

3.4) ALARM can also be set in ALARM quick SET mode.

Step 4) Acquire Satellite signals:

In order to get the correct time of day and begin using your watch, you have to acquire the

Satellite signals. It may take a few minutes to get the signals.

4.1) Go outside to an open area away from tall buildings and trees. Orient the GPS antenna

towards the sky for best reception. The antenna is located at the 12 o’clock position of

the watch.

4.2) Stand still and do not begin moving while locating the Satellites until the GPS signals are

already received.

4.3) How to Turn ON the GPS: Following are the possible ways to turn on the GPS.

4.3.1) Press S1 in TIME mode.The Watch will display the GPS / INDOOR selection

screen. Select GPS and press S5. The watch will start searching for GPS and go

to RUN mode.

GPS mini

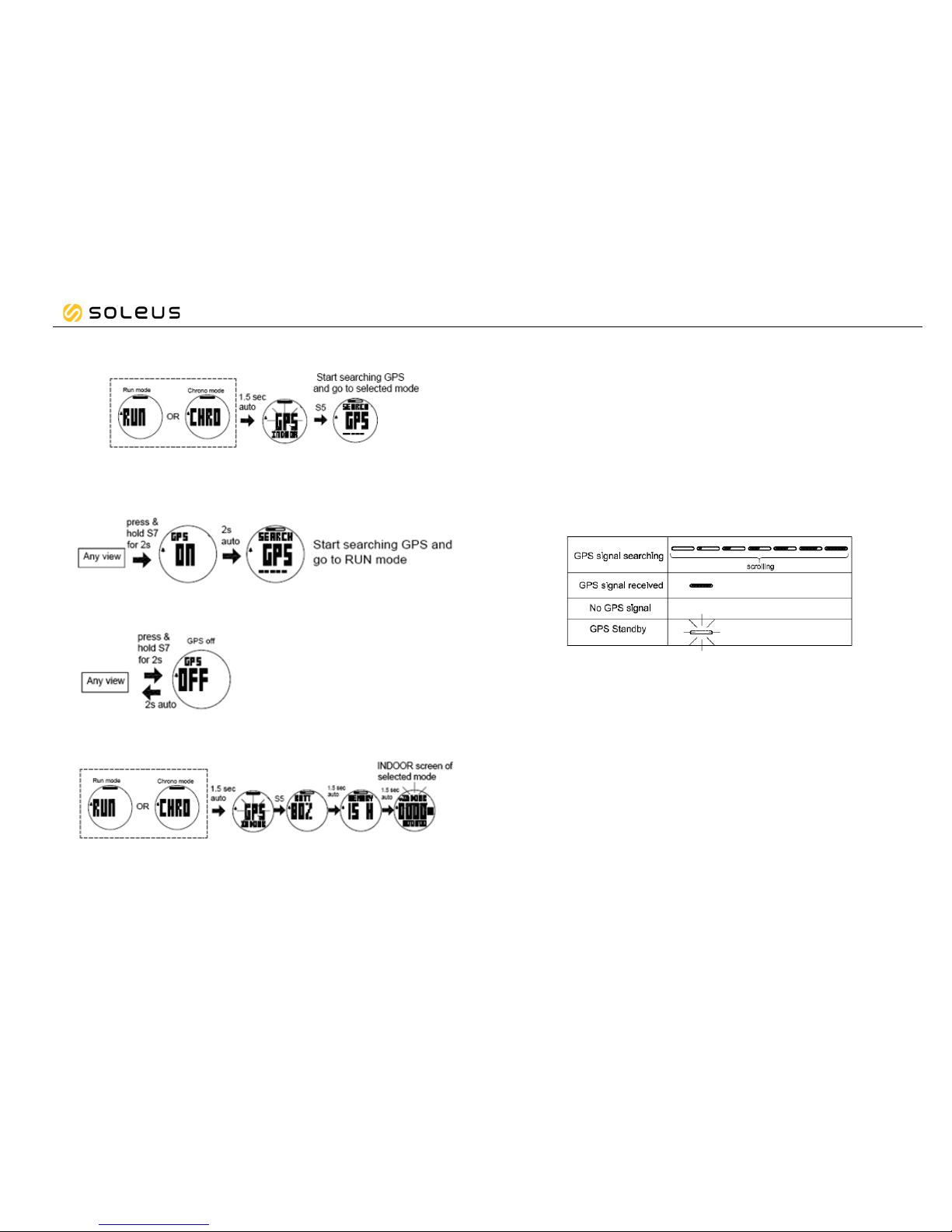

4.3.2) Press S7 to enter RUN or CHRONO mode.

4.3.3) Press and hold S7 for 2 seconds from any mode while GPS is initially OFF.

4.4) How to turn OFF the GPS:

4.4.1) Press and hold S7 for 2 seconds from any mode while GPS is initially ON.

4.4.2) Press S7 to enter RUN or CHRONO mode. Select INDOOR and press S5 to

confirm.

4.4.3) When the chronograph is stopped and reset in any mode, the GPS will go to TIME

mode after 10 minutes and the GPS will be on Standby mode (GPS ring icon

flashing). The GPS will auto turn OFF after 1 hour (GPS ring icon is OFF).

GPS signals and its meaning:

You will hear a beep sound when the Watch has received a GPS signal or when the GPS

signal has been lost. LOST GPS signal will also be displayed in the screen.

GPS mini

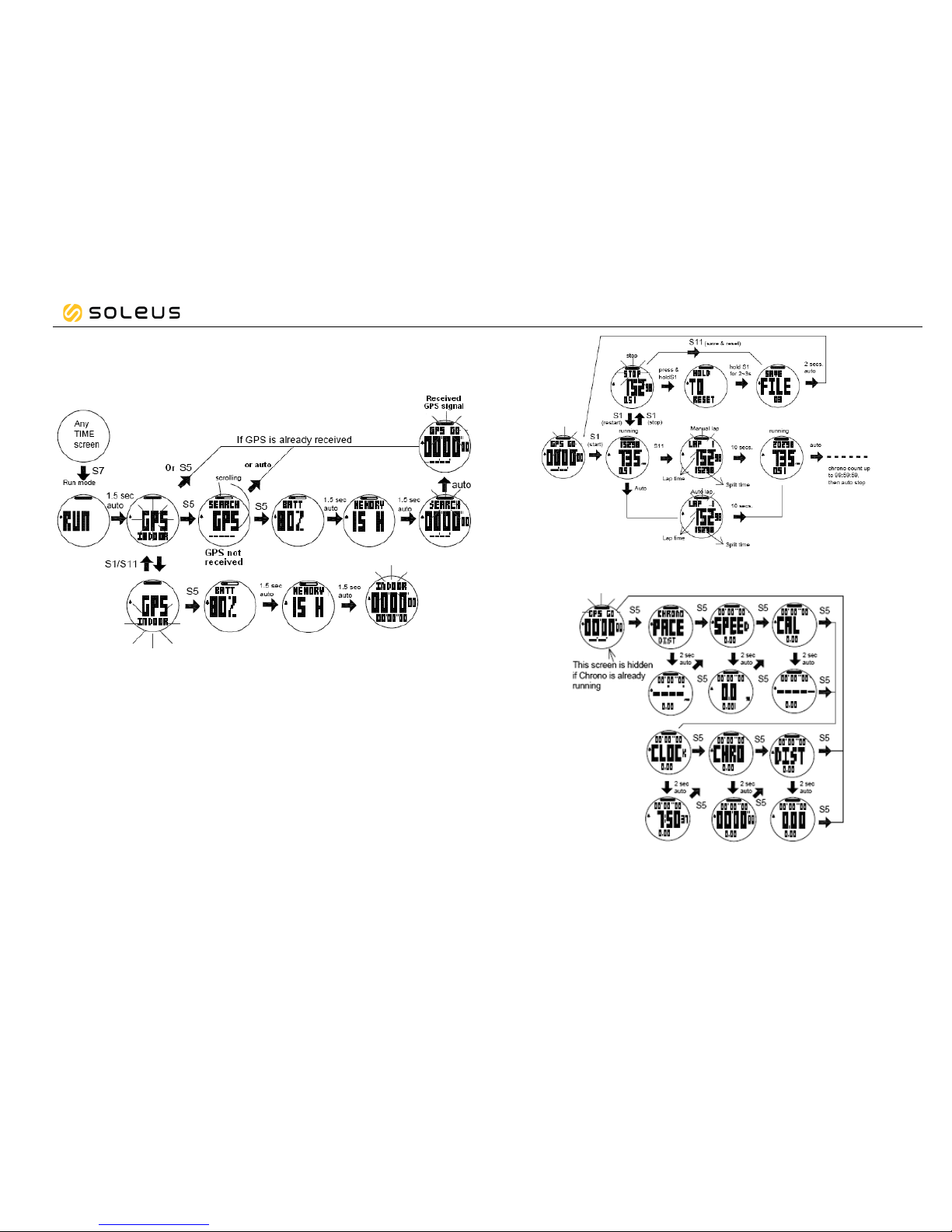

Step 5) Go for a RUN:

5.1) Using RUN mode:

5.1.1) How to enter RUN mode:

5.1.2) How to START, TAKE LAP, STOP, and SAVE:

Note: The watch will take Auto Lap based on the Distance set in Auto Lap setting.

5.1.3) How to change views: Press S5 to change the information displayed in Line 2.

Following are the information displayed as you press S5:

Notes:

•"Information displayed in Lines 1 and 3 can be changed in SET mode/ VIEW.

GPS mini

•The watch will remember your previous screen view the next time you come back to

RUN mode.

5.1.4) How to view your current data before saving while the chronograph is stopped.

Following are the information as you press S5:

Notes:

oBefore going for a run exercise, it is highly recommended that you set your user

profile first so that the calories will be calculated properly. Go to SET mode/USER.

oWhen the Chronograph is stopped and reset in RUN mode, if no activity for 10

minutes, the GPS will be on Standby mode ( GPS ring icon flashing) and return to

TIME mode.

oWhile in RUN mode, then the GPS signal suddenly becomes weak lost for any

reason, the Watch will display LOST GPS signal until it receives GPS signal again.

oMaximum of 15 hours of track record / 30 data files/ 100 laps for each data file can

be saved in memory.

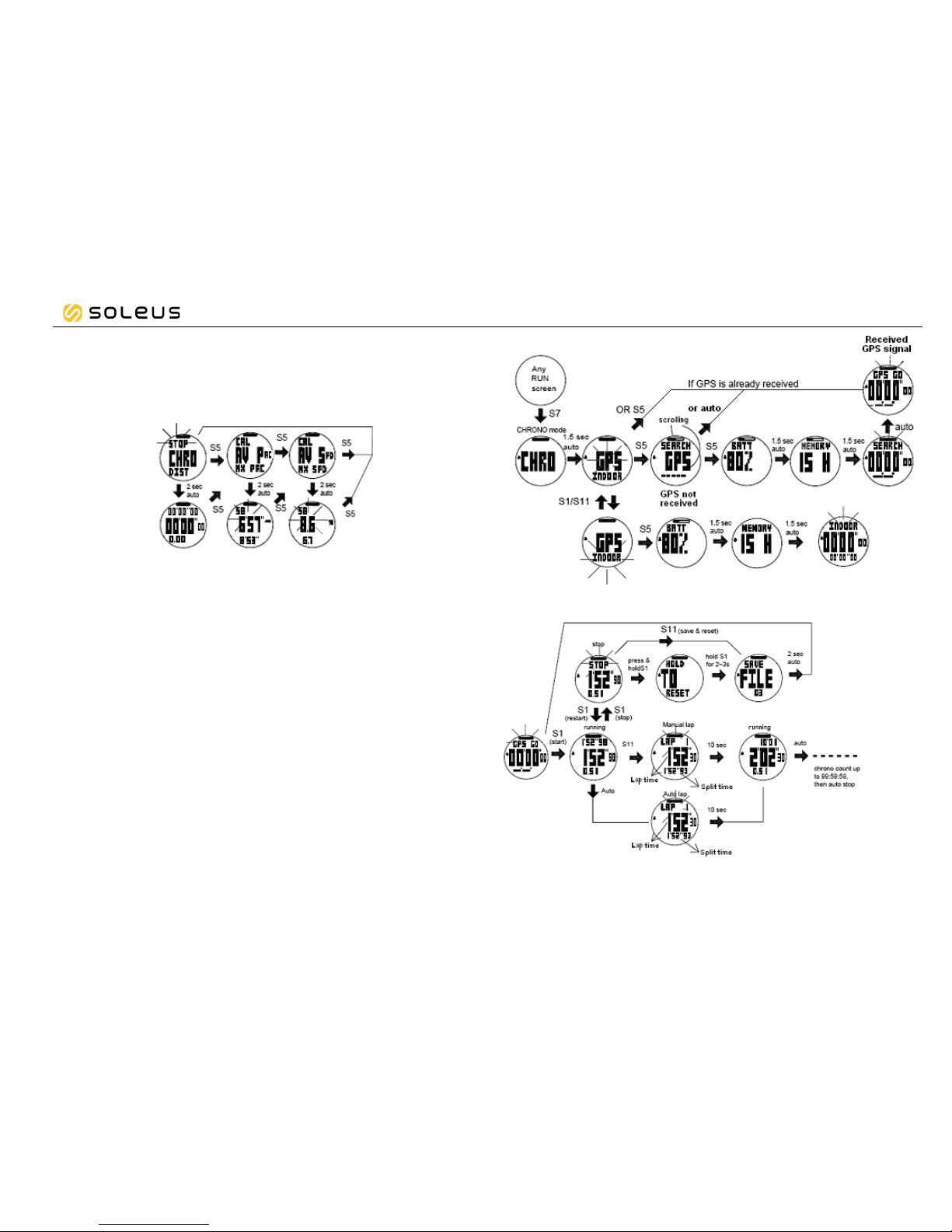

5.2) Using Chronograph mode:

RUN mode & CHRONO mode has the same chronograph counter. When the chronograph is

started or stopped in RUN mode, the same thing happens in CHRONO mode.

5.2.1) How to enter CHRONO mode:

5.2.2) How to START, take LAP, STOP, and SAVE:

•The watch will take Auto Lap based on the Distance set in Auto Lap setting.

GPS mini

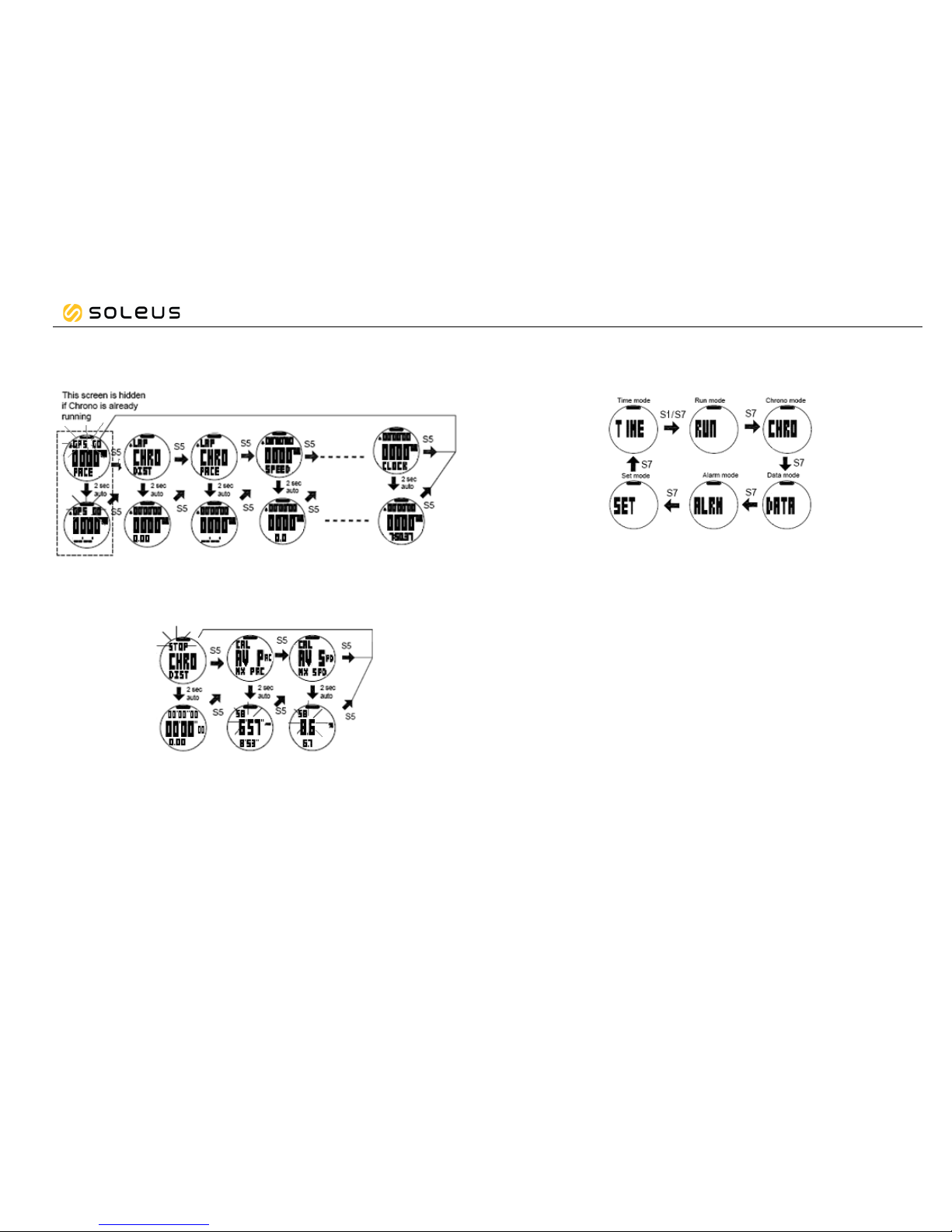

5.2.3) Press S5 to change the information displayed in Line 3. Following are the views

as your press S5:

Note: The watch will remember your previous screen view the next time you come back to

CHRONO mode.

5.2.4) How to view your current data before saving while the chronograph is stopped.

Following are the information as you press S5:

General Operations

The Watch has the following main modes: Time, Run, Chronograph, Data, Alarm and Set

modes. Press S7 to scroll through these modes. Press S1 from Time mode will also go to

RUN mode (GPS/INDOOR screen appears).

EL backlight:

This Watch has a Night mode function. Following are the options in SET mode and their

functions:

10 SECONDS – Press S11 will turn ON the Light for 10 seconds.

20 SECONDS – Press S11 will turn ON the Light for 20 seconds.

NIGHT ON – Default Start Time / END Time for NIGHT ON setting is 5 PM to 7 AM. Following

are the characteristics of NIGHT ON setting:

oStart Time and END TIME for NIGHT ON setting can be changed in SET

mode/ NIGHT.

oWhen the Night setting is ON, pressing any button within the Start Time / End

Time will turn ON the EL for 10 seconds.

oOutside the Start time / End Time, only press S11 will turn ON the EL for 10

seconds.

oWhen the chronograph is running within the Start Time/ End Time, the EL will

be always ON. It will turn OFF 10 seconds after the chronograph is stopped.

GPS mini

TIME mode

•How to enter TIME mode:

Travelling between different Time zones

•When you are traveling to a different Time zone, you have to set your GPS Watch to

your destination Time zone. We recommend setting Time 1 to your current location and

Time 2 set to your destination Time zone.

•When you arrive to your destination Time zone, press & hold S1 for 2-3 seconds to

change the time to Time 2.

•When you go back to your original location (Time 1), press & hold S1 for 2-3 seconds to

change the time back to Time 1.

•The Time of the Watch will be synchronized with GPS TIME when you turn ON the GPS.

•Make sure that the Watch is set to the correct CITY CODE and DST ON or OFF setting

so that it can display the correct time.

DATA mode

•How to enter DATA mode, view details, and delete Data:

GPS mini

Data numbering system/ Legend:

Sample data number: D03 03 1031 – 1 02 G

Data

Total number of files

File number counter

Month

Date

Refer to Time 1 or 2 for time 2

File number of the day

GPS workout, H for INDOOR workout

ALARM mode

•Alarm will sound for 20 seconds at alarm time. Pressing any button will stop the alarm

sound without the button function. When Alarm is ON, the alarm icon is displayed in all

modes.

•How to enter ALARM mode (ALARM setting):

Battery:

The Watch is using a rechargeable Lithium Ion battery that will require about 4.5 hours

charging time. While battery is charging, the Watch cannot be used and all buttons are

disabled. User needs to recharge the battery when the Watch indicates a “low batt”.

Battery Life (full charge): 8 hrs typical (continuous GPS).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Soleus Air Montre

Soleus Air

Soleus Air SH010 Manuel utilisateur

Soleus Air

Soleus Air Sprint SR022 Manuel utilisateur

Soleus Air

Soleus Air SG009 Manuel utilisateur

Soleus Air

Soleus Air SG002 Manuel utilisateur

Soleus Air

Soleus Air PR HRM SH009 Manuel utilisateur

Soleus Air

Soleus Air GPS Fit 1.0 Manuel utilisateur

Soleus Air

Soleus Air GPS 1.0 Manuel utilisateur

Soleus Air

Soleus Air GPS Pulse Manuel utilisateur

Soleus Air

Soleus Air SG007 Manuel utilisateur

Soleus Air

Soleus Air SG102 Manuel utilisateur

Soleus Air

Soleus Air SG008 Manuel utilisateur

Soleus Air

Soleus Air SG004 Manuel utilisateur

Soleus Air

Soleus Air SG006 Manuel utilisateur

Soleus Air

Soleus Air SH011 Manuel utilisateur

Soleus Air

Soleus Air SR017 Manuel utilisateur

Soleus Air

Soleus Air M15-019D Manuel utilisateur

Soleus Air

Soleus Air M12-896D Manuel utilisateur

Soleus Air

Soleus Air SG100 Manuel utilisateur

Soleus Air

Soleus Air SR002101P Manuel utilisateur

Soleus Air

Soleus Air SPORTS STRAP Manuel utilisateur

Soleus Air

Soleus Air SR021 Manuel utilisateur

Soleus Air

Soleus Air SG010 Manuel utilisateur

Soleus Air

Soleus Air SH011 Manuel utilisateur

Soleus Air

Soleus Air GPS 2.0 Watch Manuel utilisateur

Manuels Montre populaires d'autres marques

Pandora

Pandora WATCH2 Manuel utilisateur

Casio

Casio QW-4343 Manuel utilisateur

Suunto

Suunto X6 Manuel utilisateur

Seiko

Seiko N830 Manuel utilisateur

MotionX

MotionX 365 Manuel utilisateur

Garmin

Garmin VENU SQ 2 Manuel utilisateur

QCY

QCY Watch GTC Manuel utilisateur

Canyon

Canyon Cindy CNE-KW41WP Manuel utilisateur

Esq

Esq Watches Guide d'installation

Crane

Crane AA5-CDSM-3A Manuel utilisateur

Timex

Timex W-214 Manuel utilisateur

DETOMASO

DETOMASO MATERA Manuel utilisateur

Geemarc

Geemarc Watch N Shake Manuel utilisateur

LORUS

LORUS W590 Manuel utilisateur

STENLILLE

STENLILLE Actío Manuel utilisateur

Casio

Casio 5594 Manuel utilisateur

Sinn

Sinn HUNTER'S WATCH 3. Edition Manuel utilisateur

Slazenger

Slazenger SLZ800 Manuel utilisateur
