Soleus Air HM2-15R-32 Manuel utilisateur

HM2-15R-32

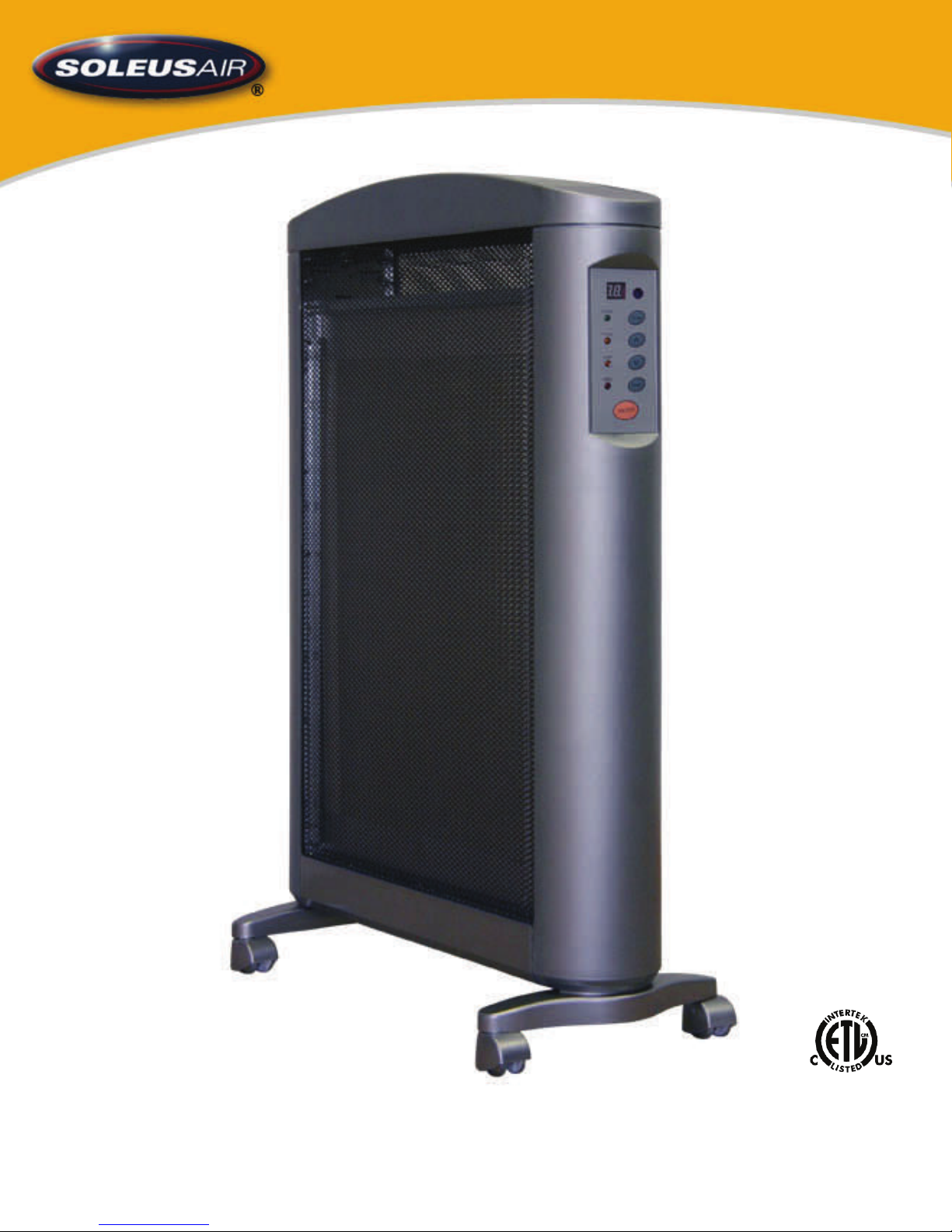

Micathermic Heater w/ Remote

Model No. HM2-15R-32

3092402

www.sylvane.com 1-800-934-9194

Thank you for choosing a Soleus Air Micathermic heater. This owner’s manual will provide you with

valuable information necessary for the proper care and maintenance of your new product. Please take

a few moments to thoroughly read the instructions and familiarize yourself with all the operational

aspects of your new Soleus Air Micathermic heater.

For your own records, please attach a copy of your sales receipt to this manual. Also, write the store

name/location, date purchased, and serial number below:

Store Name: ____________________________________________________

Location: ______________________________________________________

Date Purchased: _________________________________________________

Serial Number (located on back of unit): ______________________________

IMPORTANT INSTRUCTIONS

Before using your Soleus Air personal heater, please read this owner’s manual carefully. Store this manual in a

safe place for future reference.

1. Read ALL instructions before using this unit.

2. CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater yourself.

3. This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided,

use handles when moving this heater.

4. Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and curtains at least 3

ft from the front of the heater and keep them away from the sides and rear. DO NOT place towels or

other objects on the heater.

5. Extreme caution is necessary when any heater is used by or near children or the disabled, or when the

heater is left operating and unattended.

6. DO NOT operate any heater with a damaged cord or after the heater malfunctions, has been dropped

or damaged in any manner. Return heater to authorized service facility for examination, electrical or

mechanical adjustment, or repair.

7. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. NEVER

locate heater where it may fall into a bathtub or other water container. To protect against electrical

hazards, DO NOT immerse in water or other liquids.

8. DO NOT touch the control panel or plug with a wet hand.

9. DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar

coverings. Arrange cord away from traffic area and where it will not be tripped over.

10. DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause

an electric shock or fire, or damage the heater.

11. To prevent a possible fire, DO NOT block air intakes or exhaust in any manner. DO NOT use on soft

surfaces, like a bed, where openings may become blocked.

www.sylvane.com 1-800-934-9194

PRODUCT INFORMATION & SPECIFICATIONS

Micathermic heating technology combines two popular heating technologies to create the ideal room heater.

Using radiant and convection heat, Micathermic heaters are able to achieve full power within minutes and

provide a consistent and comfortable silent heat without causing dry spots.

DISCLAIMER

ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE

PRESENTATION OF THE MANUFACTURER. SOLEUS INTERNATIONAL HAS NOT CONDUCTED INDEPENDENT

TEST TO THE INFORMATION AND THE SPECIFICATIONS PRESENTED HEREWITHIN.

12. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint,

explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open

flames.

13. Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire.

However, if you have to use an extension cord, the cord shall be No16.AWG minimum size and rated

not less than 1500W.

14. To avoid fire or shock hazard, plug the unit directly into a 120 V AC electrical outlet.

15. To disconnect heater, turn controls to OFF, then remove plug from outlet. Pull firmly on the plug, DO

NOT unplug by pulling on the cord.

16. Always unplug the unit before moving or cleaning, or whenever the heater is not in use.

17. Use only for intended household use as described in this manual. Any other use not recommended by

the manufacturer may cause fire, electric shock, or injury to persons. The use of attachments not rec-

ommended or sold by unauthorized dealers may cause hazards.

18. Always use on a dry, level surface.

19. DO NOT use outdoors.

20. WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any solid-state

speed control device.

21. DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will

void your warranty. The inside of the unit contains no user serviceable parts. Qualified personnel

should perform all servicing only.

22. SAVE THESE INSTRUCTIONS

Voltage Rating 120 V (60Hz)

Power Consumption 750/1500W

Unit Size 18 in. (W) x 8 5/8 in. (D) x 26 in. (H)

Unit Weight 11 lbs

www.sylvane.com 1-800-934-9194

IN THE BOX

• MICATHERMIC HEATER

• REMOTE CONTROL & BATTERY

• INSTRUCTION BOOKLET

• 2 - WHEEL BASE

• 4 - WHEELS

• 2 - LARGE GREY WASHERS

Tip-Over Safety Feature

This heater is equipped with a tip-over safety feature. Once the heater is tipped over, an internal switch will

automatically shut the heater off. Once the heater is restored to an upright position, the heater will reset. To

continue operation, turn on the heater using the supplied remote control or the control panel on the heater.

Overheat Safety Feature

This heater is equipped with a overheat safety feature. When the heaters internal components reach a certain

temperature that could cause overheat and possible fire, the heater will automatically shut off. The heater will

automatically reset itself once the internal temperature decreases to acceptable levels.

WARNING:It is normal for the power cord to feel warm to the touch; however, a loose fit between the outlet

and the plug may cause overheating of the plug. If this occurs, try inserting the plug into a different outlet.

Contact a qualified electrician to inspect the original outlet for damage.

SAFETY FEATURES

• 2 - LARGE BLACK SPRING WASHERS

• 2 - STANDARD SCREWS

• 4 - WHEEL SCREWS

• 4 - SMALL BLACK SPRING WASHERS

• 4 - SMALL GREY WASHERS

Polarized Plug

Warning: This appliance has a polarized plug (one blade is wider than the other). To reduce

the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If

the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a

qualified electrician. Do not attempt to modify the plug in any way.

DO NOT DEFEAT THE SAFETY PURPOSE OF THE POLARIZED PLUG.

www.sylvane.com 1-800-934-9194

PRODUCT DIAGRAM

CARRYING HANDLE

WHEEL BASE

CONTROL PANEL

WHEELS

www.sylvane.com 1-800-934-9194

ASSEMBLY

1. Remove the heater body, two wheelbases, wheels, screws, and washers from the box. Remove the pack-

aging materials and keep for future storage.

2. Attach the wheels to each wheelbase with the supplied wheel screws, small spring-washers, and small

washers.

3. Be certain the heater is unplugged and the controls are set to off. Set the heater on the floor upside down.

4. Attach a wheel base (with wheels attached) to each end of the heater body using the supplied standard

screws, large spring-washers, and large washers.

SMALL SPRING WASHER

SMALL WASHER

WHEEL BASE

WHEEL SCREW

WHEEL

LARGE SPRING WASHER

LARGE WASHER

STANDARD SCREW

WHEEL BASE

MICATHERMIC HEATER

www.sylvane.com 1-800-934-9194

Timer

Low

Heat

High

Mode

Power

ON/OFF

Temp./Time

OPERATING INSTRUCTIONS

CONTROL PANEL & REMOTE OPERATION

1. Place the heater on a firm, level surface and plug into a grounded 120V 60Hz power outlet. Only operate

heater in upright position with caster wheels attached.

2. Turn the heater on by pressing the On/Off button on the control panel or the supplied remote control.

3. Select a heat setting:

On the control panel, press the MODE button to toggle between the two heat settings; LOW (750W) or

HIGH (1500W) . When using the remote control press the HIGH or LOW buttons to select the preferred

power setting.

4. Adjust the thermostat by pressing the TEMPERATURE SELECT buttons (▲or ▼) on the control panel

or remote control. The digital readout will display the selected temperature.

5. Once you have chosen the desired temperature, the heater will remain on until the room temperature

increases to the temperature on the digital display. The heater will cycle on and off to maintain the desired

room temperature.

6. This heater is equipped with a 12-hour automatic shut-off timer. To activate the timer, press the TIMER

button on the control panel or remote control. Each press of the timer button will increase the heater

operating time by one hour. The digital readout will display the number of hours you have selected. To

turn off the timer, simply press the TIMER button until the digital readout displays your current selected

temperature. Once you have selected a shut off time, the heater will operate for the selected time, then

automatically shut off.

7. The indication lights on the control panel communicate how the heater is operating. The TIMER light will

turn-on when the timer is selected. When HIGH, LOW modes are selected, the corresponding lights will

turn on accordingly.

8. Unplug the heater when not in use.

Receiver for Remote Control

Timer Select Button

Temperature Select Buttons

Mode Select Button

On/Off Button (Power)

Temperature & Timer

Display

Indication Lights

Heat

www.sylvane.com 1-800-934-9194

OPERATING INSTRUCTIONS (CONTINUED)

OPTIMAL OPERATING CONDITIONS

To get the most out of your Soleus Air Micathermic heater, follow these helpful hints:

1. All electric heaters are limited to maximum of 1500 watts* (per UL and ETL requirements). Due to this

limitation all electric heaters can heat approximately 150 square feet. Micathermic heaters fit in this

category, but they are able to provide a more comfortable and consistent heat than other heating

technologies.

2. For optimal performance, place the heater in a room and close all windows and doors. This will confine the

heat to the area that needs it most.

3. To save energy and in turn save money in the winter, place the heater in a room or area that needs extra

heat instead of raising the thermostat on your central heating system. This heater will function very well as

an additional heating source and can easily maintain the temperature in most rooms and attached

bathrooms. There is no need to increase the heat in the entire house when you only need comfort in the

room in which you are currently located.

www.sylvane.com 1-800-934-9194

MAINTENANCE

1. Unplug the unit and let it cool completely.

2. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild

detergent if necessary. After cleaning, dry the unit with a soft cloth. CAUTION: DO NOT let liquid

enter the heater.

3. DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the

heater. This may cause damage or deterioration to the surface of the heater.

4. DO NOT immerse the heater in water.

5. Wait until the unit is completely dry before use.

STORAGE

Store the heater in a cool, dry location when not in use. If available, use the retail packaging and pack up the

heater to prevent dust from collecting on and inside the heater.

TROUBLESHOOTING

If the heater will not operate, please check the following before seeking repair of service:

1. Check if the power cord is plugged into an electrical outlet, if not, plug in.

2. Check if electricity to the main fuse is working.

3. Check if the heater is set to ON by confirming the light on the control panel is lit. If not, turn the

POWER SELECT dial to LOW or HIGH to turn on the unit.

4. Check if the heater is on a level surface. If the tip-over safety mechanism inside the heater is engaged

the heater will not run.

5. The room temperature has reached the temperature on the manual thermostat. Increase the temperature

on the thermostat so the heater will continue operation or wait for the room temperature to drop below

the set temperature on the heater.

www.sylvane.com 1-800-934-9194

WARRANTY

One Year Limited Warranty

Soleus International Inc. warrants the accompanying Soleus Air heater to be free of defects in material and workman-

ship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original re-

tail purchase in the United States.

If the unit exhibits a defect in normal use, Soleus International Inc. will, at its option, either repair or replace it, free of

charge within a reasonable time after the unit is returned during the warranty period.

As a condition to any warranty service obligation, the consumer must present this Warranty Certificate along with a

copy of the original purchase invoice.

THIS WARRANTY DOES NOT COVER:

• Damage, accidental or otherwise, to the unit while in the possession of a consumer not caused by a defect in

material or workmanship.

• Damage caused by consumer misuse, tampering, or failure to follow the care and special handling provisions

in the instructions.

• Damage to the finish of the case, or other appearance parts caused by wear.

• Damage caused by repairs or alterations of the unit by anyone other than those authorized by Soleus Interna-

tional Inc.

• Freight and Insurance cost for the warranty service.

ALL WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANT ABILITY ARE LIMITED TO

ONE-YEAR DURATION OF THIS EXPRESS LIMITED WARRANTY. SOLEUS INTERNATIONAL INC.

DISCLAIMS ANY LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES AND IN NO EVENT

SHALL SOLEUS INTERNATIONAL INC’S LIABILITY EXCEED THE RETAIL VALUE OF THE UNIT FOR

BREACH OF ANY WRITTEN OR IMPLIED WARRANTY WITH RESPECT TO THIS UNIT.

This warranty covers only new products purchased from our authorized dealers or retailers. It does not cover used, sal-

vaged, or refurbished products.

As some states do not allow the limitation or exclusion of incidental or consequential damages, or do not allow

limitation on implied warranties, the above limitations and exclusions may not apply to you. This warranty gives you

specific legal rights, and you may also have other rights that vary from state to state.

For Technical Support and Warranty Service

Please Call (888) 876-5387

Or Write To:

Soleus International Inc.

20035 E Walnut Dr, North.

City of Industry, CA 91789 USA

www.soleusair.com

www.sylvane.com 1-800-934-9194

Autres manuels pour HM2-15R-32

Table des matières

Autres manuels Soleus Air Chauffage

Soleus Air

Soleus Air MS-14R Manuel utilisateur

Soleus Air

Soleus Air HR2-08-21 Manuel utilisateur

Soleus Air

Soleus Air HM2-15R-32 Manuel utilisateur

Soleus Air

Soleus Air HC4-15-20 Manuel utilisateur

Soleus Air

Soleus Air HM2-15-32 Manuel utilisateur

Soleus Air

Soleus Air HM5-15-30 Manuel utilisateur

Soleus Air

Soleus Air HE15-C7-01 Manuel utilisateur

Soleus Air

Soleus Air HGW-308 Manuel utilisateur

Soleus Air

Soleus Air HR3-08-21 Manuel utilisateur

Soleus Air

Soleus Air HM10-15E-32 Manuel utilisateur

Soleus Air

Soleus Air MS-09 Manuel utilisateur

Soleus Air

Soleus Air HB15R-M3-32 Manuel utilisateur

Soleus Air

Soleus Air HE08-R3-21 Manuel utilisateur

Soleus Air

Soleus Air HC8-15-30 Manuel utilisateur

Soleus Air

Soleus Air HGW-308 Manuel utilisateur

Soleus Air

Soleus Air MS-23S Manuel utilisateur

Soleus Air

Soleus Air HM1-10-32 Manuel utilisateur

Soleus Air

Soleus Air HGW-308 Manuel utilisateur

Soleus Air

Soleus Air HC6-15R-01 Manuel utilisateur

Soleus Air

Soleus Air HC4-15-32 Manuel utilisateur

Soleus Air

Soleus Air MS-10R Manuel utilisateur

Soleus Air

Soleus Air MS-12 Manuel utilisateur

Soleus Air

Soleus Air HR1-08R-21 Manuel utilisateur

Soleus Air

Soleus Air MS-14R Manuel utilisateur

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
