Soleus Air KFHHP-22 Fiche technique

Wall Mounted Mini Split

Heat Pump

Air Conditioner

OPERATING AND INSTALLATION MANUAL

Model: KFHHP-22-ID / KFHHP-22-OD

Thank you for selecting Soleus Air. To ensure proper

operation, please read this manual and keep it for

future reference.

Indoor Unit.

Outdoor Unit.

TABLE OF CONTENTS

OPERATION AND MAINTENANCE…………..………..…………………………………….....1-12

Instructions before Use ……………………………………………………………………………1-2

Description of Air Conditioner Components………………………………………………...………3

Remote Control Operation…………………………………………………………………………4-6

How to Insert Batteries…………………………………………………….…………………………6

User Notices…………………………………………………….………………….…………………7

Care and Maintenance………………………………………………….......……………...….……8-9

Trouble-Shooting…………………………………………………….…...……..…………..…….9-10

Specifications and Technical Data………………………………...…….…....………...……..…….11

INSTALLATION………………………………………………...………..……...………….……12-21

Installation Diagram……………………………………………………………………..………….12

Installation Location………………………………….……………………………..………………13

Installation………………………………...……...……………………………………...………14-20

Test Operation and Check after Installation…………………………………………….………..…21

ELECTRICAL SCHEMATIC DIAGRAM…………………………………...………..…………22-23

Electrical Schematic Diagram (Indoor Unit)…………………………...……………......………….22

Electrical Schematic Diagram (Outdoor Unit)………..……………………….……………………23

WARRANTY…………………………………………………………………………………………24

Thank you for selecting Soleus Air. To ensure proper operation, please read this

manual and keep it for future reference.

Danger Caution. This mark indicates a direction/procedure that

must be followed!

- 1 -

Operation and Maintenance

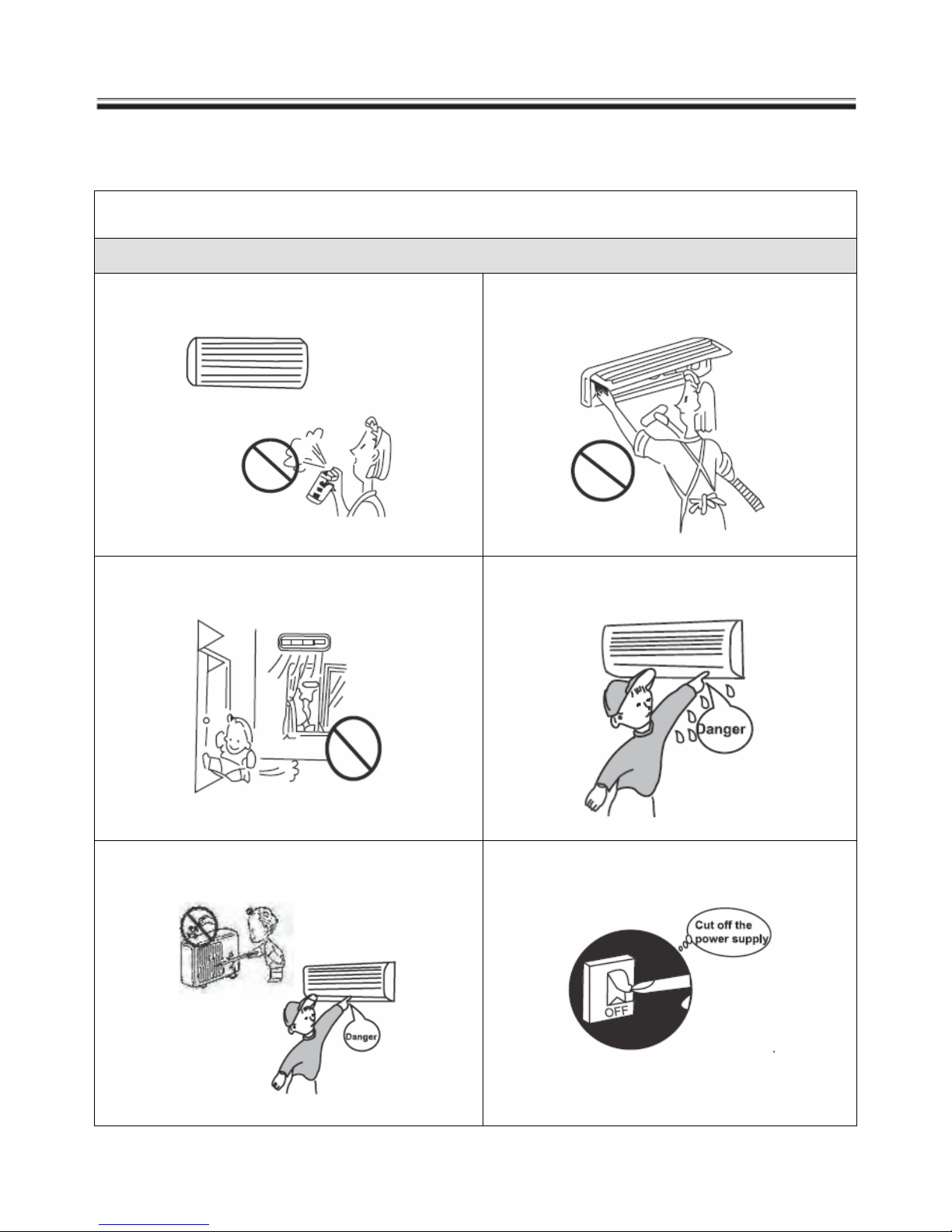

◆Instructions before Use

Carefully read the following instructions before use

Warning

★Do not use flammable liquids on or near this air

conditioner.

★Touching metal parts after removing filter can

cause an electric shock.

★Do not use for long periods of time if the

humidity is high. Condensation may be present.

★Don’t operate the air conditioner with web

hands. It can cause an electric shock.

★Do not insert your hands or any other object into

the air intake or outlets.

★If your air conditioner malfunctions,

discontinue use and call your authorized dealer.

- 2 -

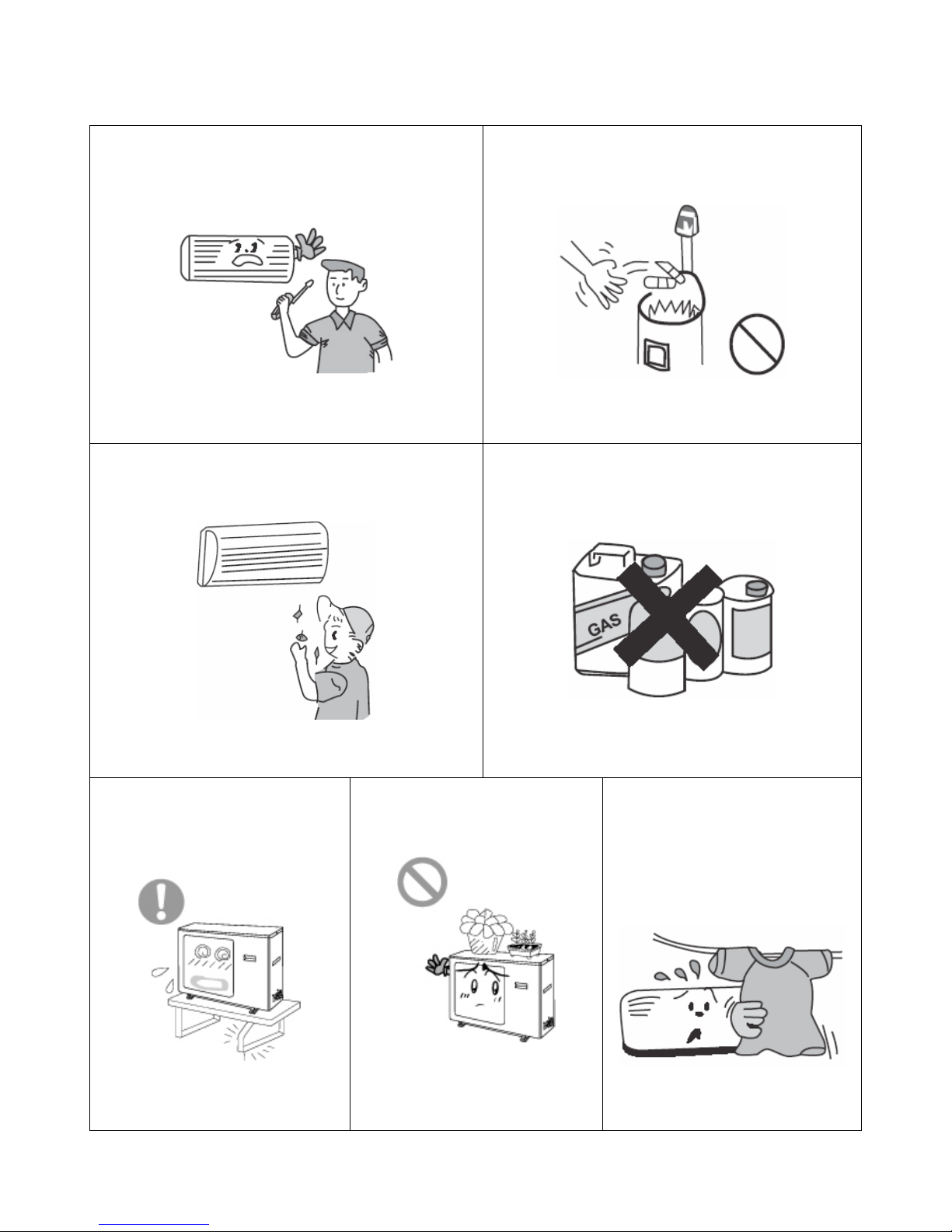

◆Instructions before Use

★Don’t attempt to repair the air conditioner by

yourself. There are no user replaceable parts.

Please contact your authorized dealer.

★Always use new batteries in your remote.

Never mix batteries.

★Be sure to turn the power off when not using the

air conditioner for a long time.

★Never store flammable liquids near your air

conditioner.

★The condensing unit should be

securely mounted to avoid

damage.

★Don’t step on the top of the

outdoor unit.

★Don’t block the air intake or

outlet vents of both the outdoor

and indoor unit. It can decrease

the air conditioning capacity or

cause a malfunction.

- 3 -

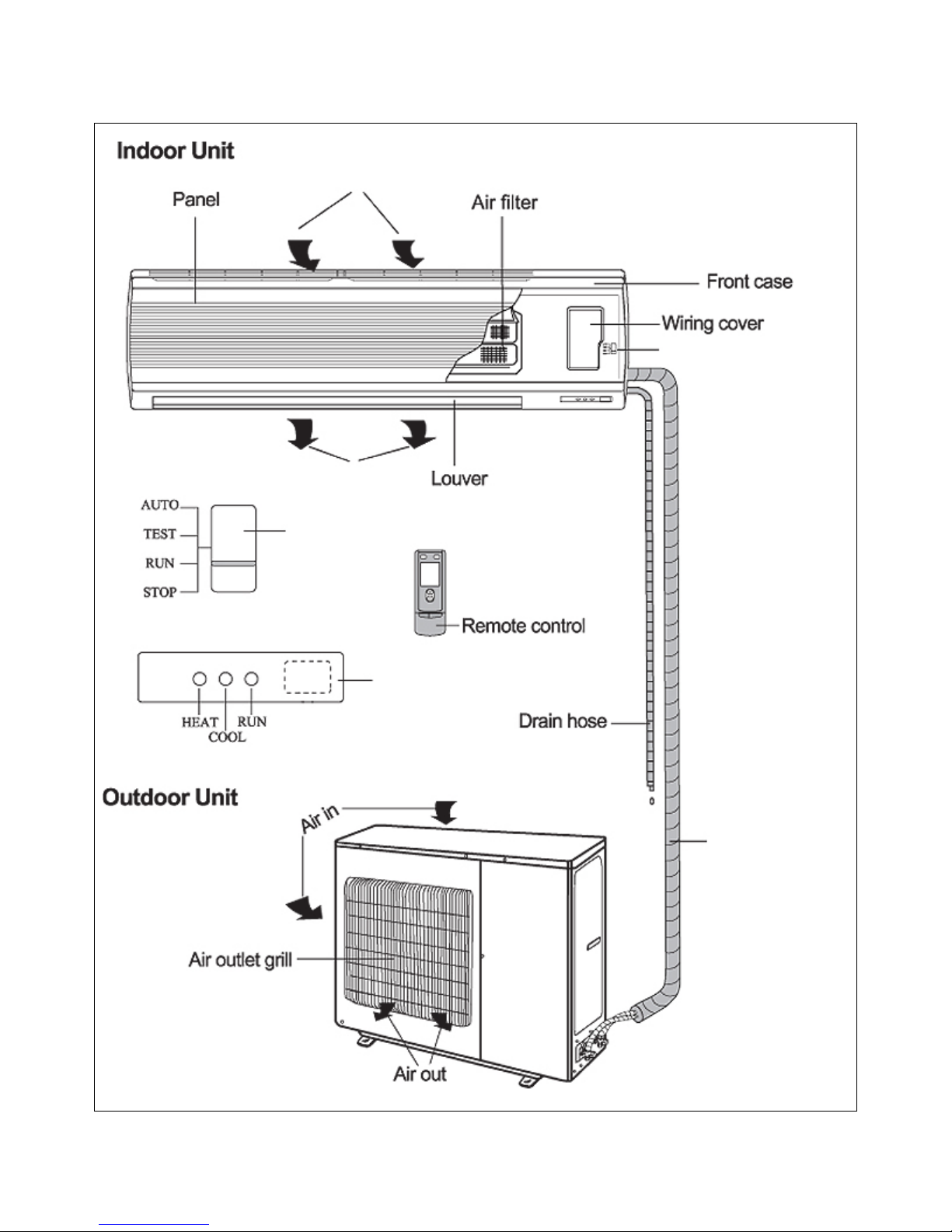

◆Description of Air Conditioner Components

Air intake

Air

outlet

On/Off Switch

Connecting Pipe /

Line set

On/Off Switch

Signal Sensor

- 4 -

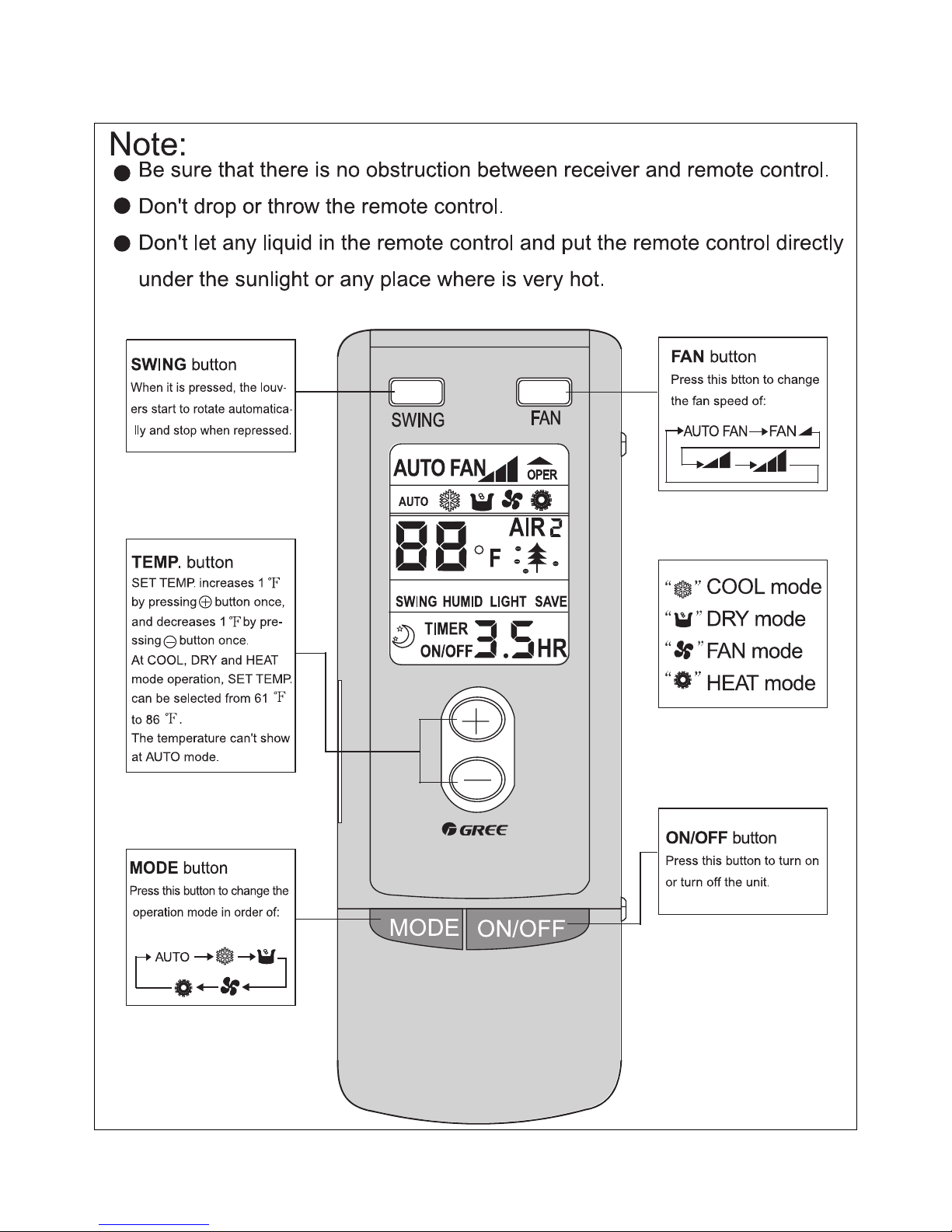

◆Remote Control Operation

- 5 -

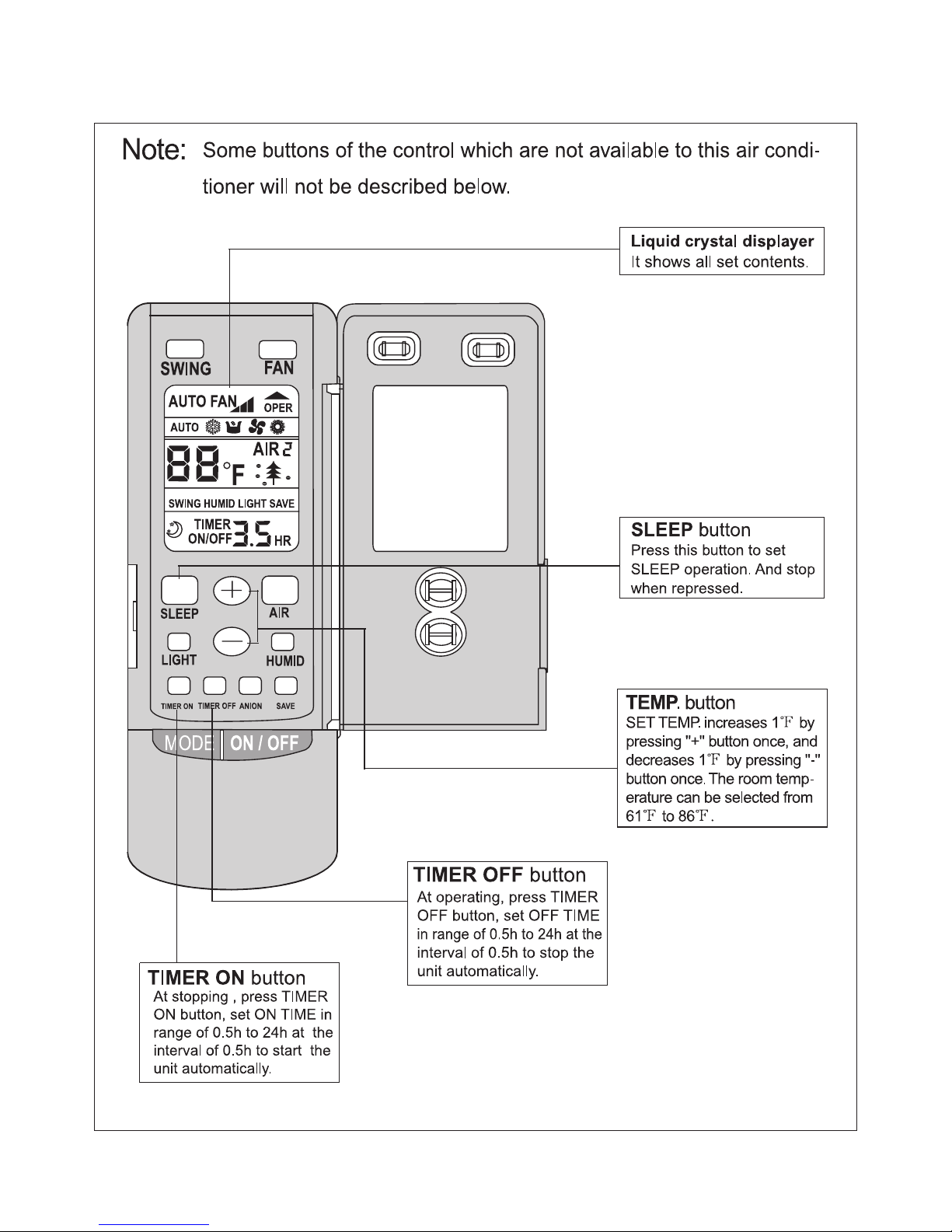

◆Remote Control Operation (Continued)

- 6 -

◆Remote Control Operation (Continued)

The General Procedure:

1. Press ON/OFF button to start the unit.

2. Press MODE button to select the suitable operation mode.

3. Press SWING button to swing. It will stop when pressed again.

4. Press FAN button to set desired fan speed.

5. Press +/- button to set desired temperature.

The Selected Procedure:

6. Press SLEEP button to set timer.

7. Press ON/OFF button to set desired temperature.

Note:

In AUTO mode, the unit will automatically adjust its running modes according to the room

temperature.

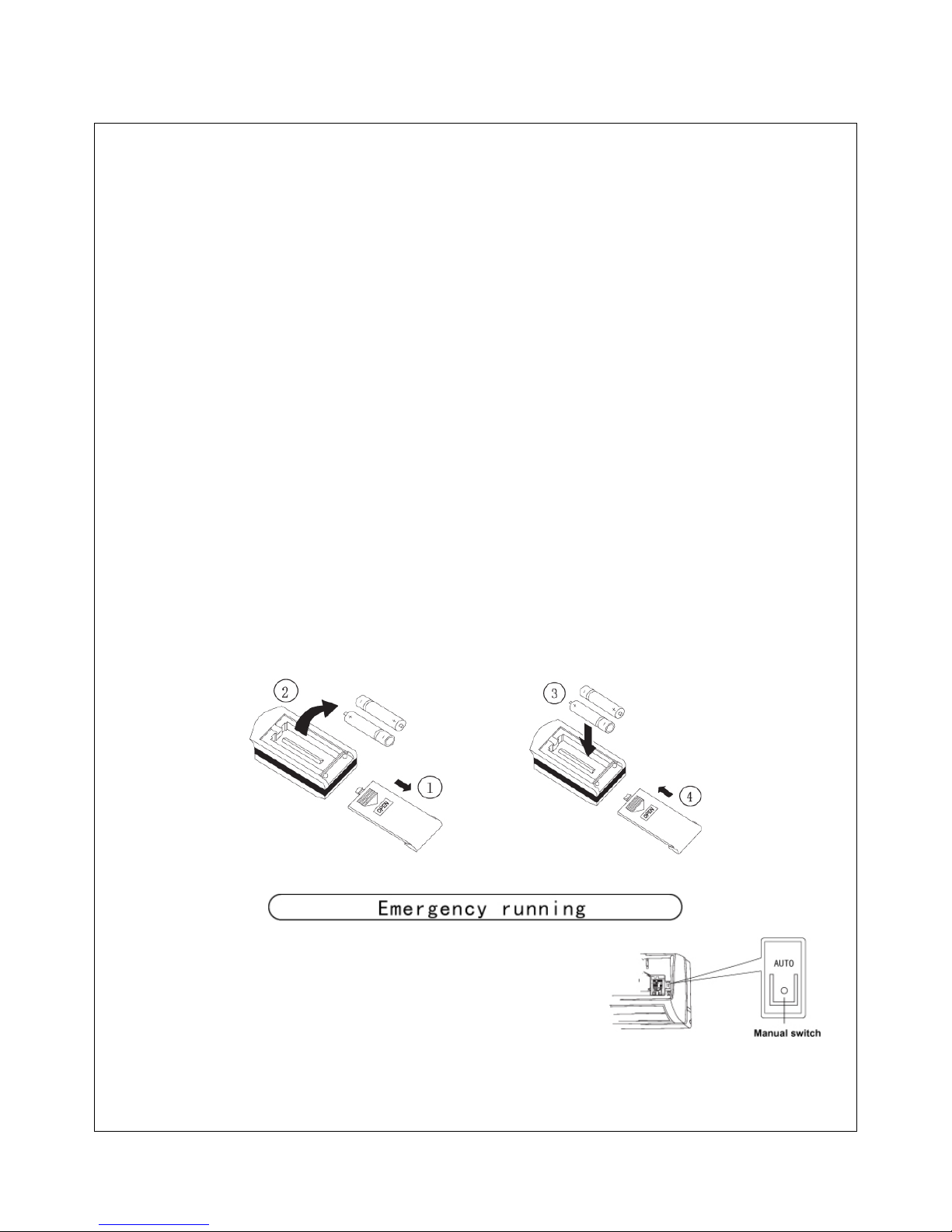

◆How to Insert Batteries

The remote control uses two AAA batteries.

1. Remove the cover from the back of the remote control and insert two new batteries.

2. Re-attach the cover.

Note:

•Don’t mix new and used or different types of batteries.

•Remove batteries when the remote control is not in use for a long time.

•Keep remote at least 3.28 feet from TV’s and other electronic devices.

When the wireless remote control is lost or broken, please use the manual switch,

It will start in AUTO mode, the temperature setting and fan speed cannot

be changed. Please use a ball point pen or similar device to operate switch.

Turn on the unit: By pressing the Manual Switch the unit will start in AUTO automatically.

The microcomputer will adjust to the indoor temperature by selecting (COOL, HEAT, FAN), in order to

achieve a comfortable condition.

•Turn off the unit: When unit is running, press the manual switch STOP button, the unit will stop running.

- 7 -

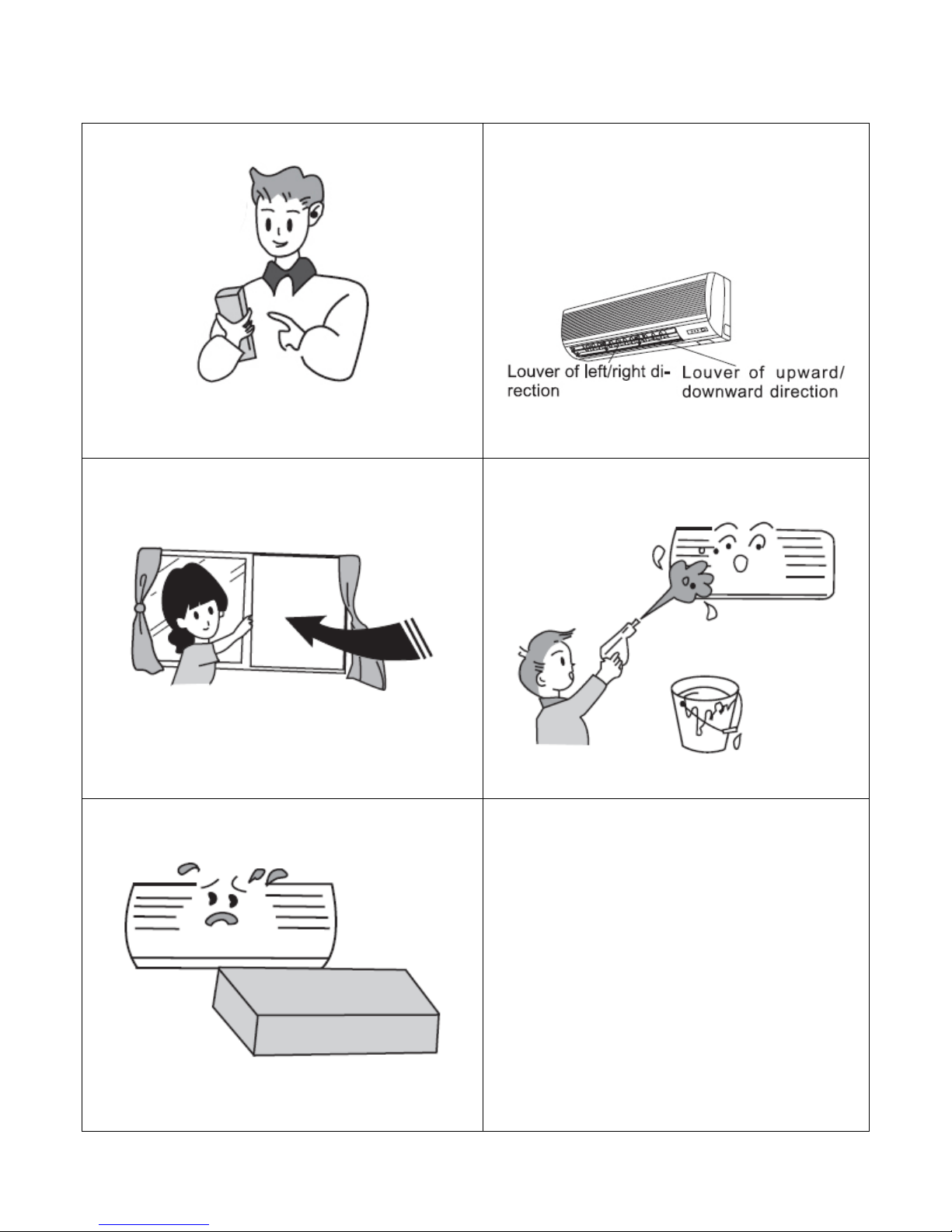

◆User Notices

★Select the most comfortable temperature.

★The airflow direction can be adjusted.

At operating, adjust the vertical airflow direction

by adjusting the louvers of upward/downward

direction. And then, hold two ends of left and

right louver to adjust the horizontal airflow.

★Don’t leave windows and doors open for a long

time while operating the air conditioner.

It can decrease the air conditioning efficiency.

★Splashing water on the air conditioner can

cause an electric shock and malfunction.

★Don’t use the air conditioner for other purposes,

such as drying clothes, preserving foods, etc.

- 8 -

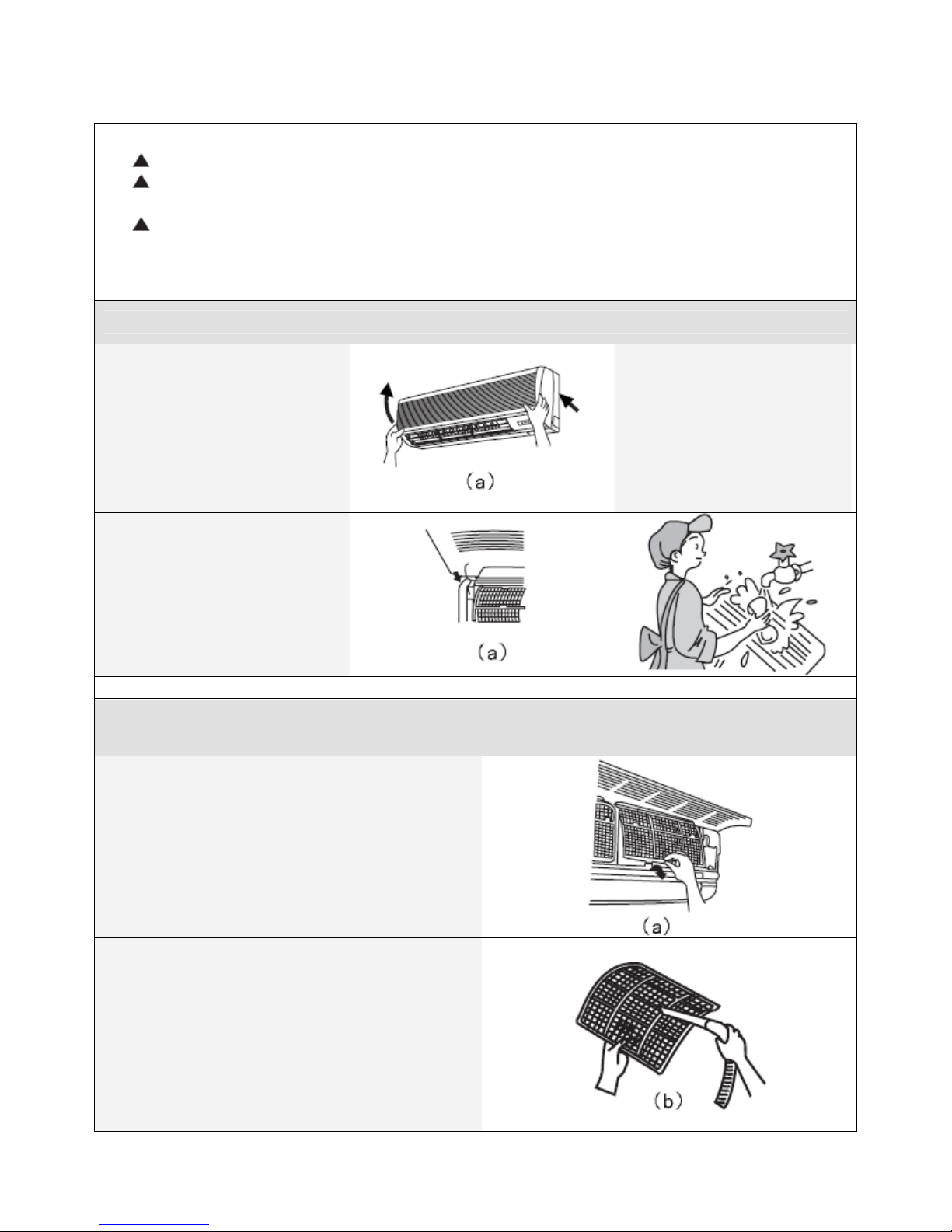

◆Care and Maintenance

CAUTION:

Turn power off and pull out the power cord before cleaning air conditioner.

Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause

an electric shock.

Volatile Liquid (e.g. thinner or gasoline) will damage the air conditioner. (So wipe the units

with a dry soft cloth, or a cloth slightly moistened with water or cleanser.)

Take down the surface panel and clean it (Take it down before cleaning)

1. Pull along the direction of

arrows to take down surface

panel.

2. Washing

Wipe with a cloth slightly

moistened with water or

cleaner then dry it.

Note: Never use water above

113°F to wash the panel, or it

could cause deformation or

discoloration.

3. Install surface panel.

Install the supports (those are on

two ends of surface panel) into

the supporting slots then cover

the surface panel and clasp it.

Cleaning the Air Filters (Recommended once every three months)

The air filters should be cleaned more frequently in dusty conditions.

1. Take down the air filter

Open the surface panel, hold the tab of air filter

and raise it slightly, and then take it out along the

direction of arrows (See the right figure).

2. Cleaning

To clear the dust adhering to the filters, you can

either use a vacuum cleaner, or wash them with

water and dry it in the shade (See the right figure).

Note: Never use water above 113°F to wash the filters, or it

could cause deformation or discoloration. Never parch it by

fire, or it could cause a fire or deformation.
