Soleus Air GL-PAC-08E4 Manuel utilisateur

8,000 BTU Portable Air Conditioner

Operating Instructions

Model No. GL-PAC-08E4

Thank you for choosing a Soleus Air Powered by Gree Portable Air Conditioner. This owner’s man-

ual will provide you with valuable information necessary for the proper care and maintenance of your

new product. Please take a few moments to thoroughly read the instructions and familiarize yourself

with all the operational aspects of your new Portable Air Conditioner.

For your own records, please attach a copy of your sales receipt to this manual. Also, write the store

name/location, date purchased, and serial number below:

Store Name: ____________________________________________________

Location: ______________________________________________________

Date Purchased: _________________________________________________

Serial Number (located on back of unit): ______________________________

IMPORTANT INSTRUCTIONS

Before installing and using your portable air conditioner, please read this owner’s manual carefully. Store this

manual in a safe place for future reference.

1) Always place the unit on a level surface.

2) Never use or store gasoline or other flammable vapor or liquid near this unit unless instructed by this

manual.

3) Maintain at least 10 inches (25 cm) clearance space around this unit. Do not block or cover air inlet or

outlet grilles.

4) The unit must be connected to a correctly grounded power supply.

5) Do not start or stop the unit by inserting or pulling out the power plug.

6) Do not use an adapter plug or extension cord.

7) Do not use the unit in the immediate surroundings of a bath, a shower or a swimming pool.

8) Do not insert anything into the air outlet. Do not obstruct air inlet or outlet grills unless instructed by this

manual.

9) Do not let children play near this unit.

10) Always inspect the cord for signs of damage before use. If the power cord is damaged, it must be replaced

by the manufacturer or a qualified service technician.

11) When cleaning the unit, always turn the unit off and unplug the power cord.

LCDI POWER CORD AND PLUG

This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and

plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexible cord

with no termination on the load side and a LCDI attachment plug on the line side.

The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the

nominal current leakage between the cord shield and either load conductor exceeds a predetermined value.

The cord will remain de-energized until the devise has been manually reset. This is intended to reduce the risk

of a fire in the power cord or combustible materials nearby. The cord shields are not grounded and they must

be considered a shock hazards if exposed. The cord shield must not be connected to ground or to any exposed

metal.

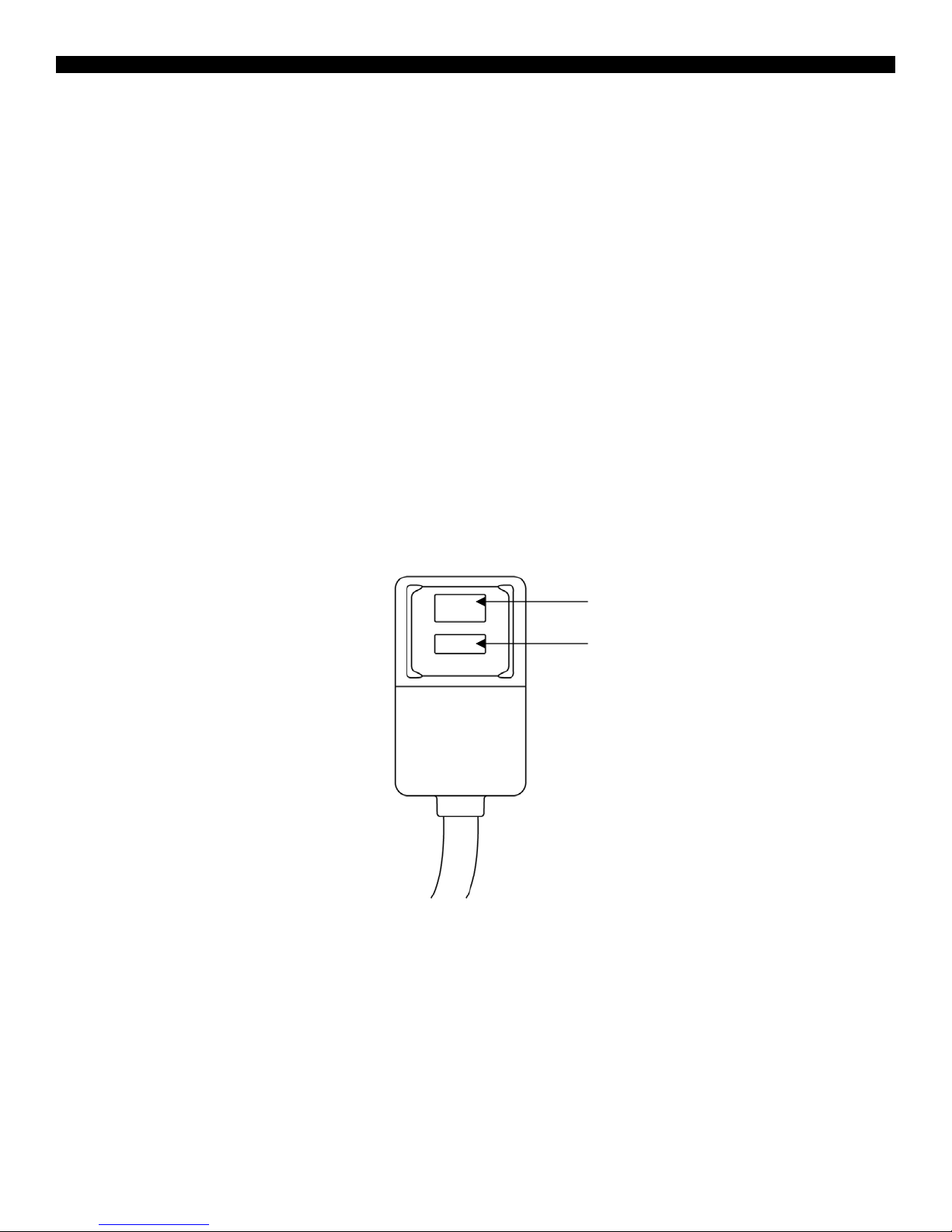

The test and reset buttons on the LCDI Plug are used to check if the plug is functioning properly. To test:

1. Plug power cord into wall outlet

2. Press TEST Button, circuit should trip, cutting power to the air conditioner

3. Press RESET button for use

If a test is performed and the indicator light remains ON, current leakage has been detected. Do not use the air

conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Powered by Gree Customer Service for trou-

bleshooting recommendations.

WARNING:

1. DO NOT press the TEST button while the air conditioner is operating.

2. The TEST and RESET buttons should not be used as “ON” and “OFF” switches.

3. The cord and plug are not intended to offer protection to externally connected loads or supply circuits.

4. The cord and plug are intended for indoor use only.

RESET

TEST

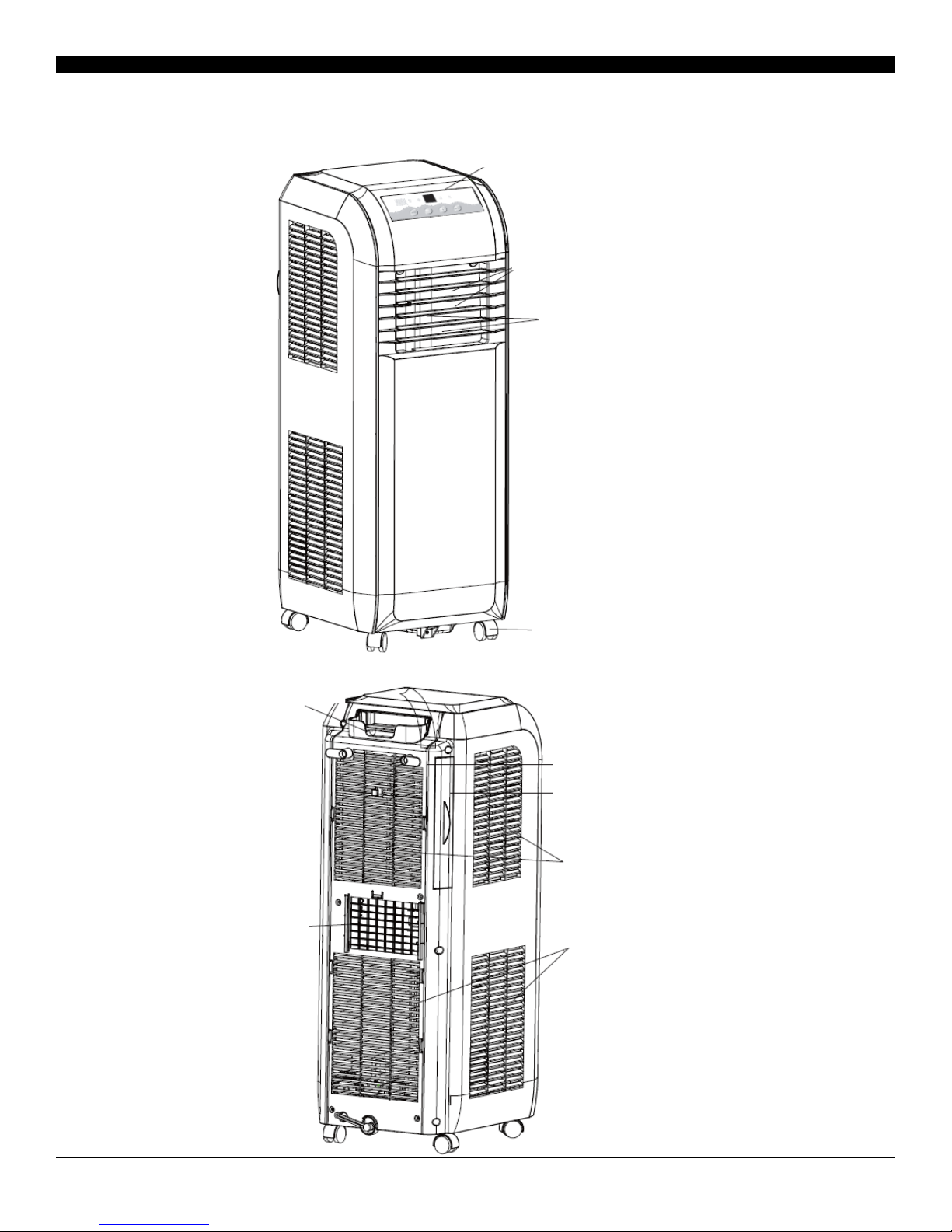

PRODUCT DIAGRAM

Control Panel

Louvers

Louver Guides

Casters

Power Cord

Filters

Upper Air Intake

Lower Air Intake

Remote Control Holder

Air Exhaust Vent

SPECIFICATIONS

• The cooling capacity is measured at an ambient temperature of DB 86 °F, WB 78 °F.

• Noise level is measured at a distance of 3.28 ft away from the front of the unit, when the unit is in cooling mode.

• Power consumption is measured when the fan runs at the highest speed setting.

• These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit.

• If the environment temperature is higher than the max operating temperature or lower than the minimum operating

temperature, the air conditioner may not work properly.

PACKAGE CONTENTS

Portable Air Conditioner

Exhaust Hose (1)

Exhaust Hose Adapter (1)

Window Kit Adapter (1)

Hose Adapter (1)

Remote Control & AAA Batteries (2 batteries)

Window Kit - 3 Sliding Panels (1 single hose panel, 2 extension panels)

Drain Hose Assembly (drain pipe, clamp, hose clip, rubber plug, & screw)

Owner’s Manual

Model Number GL-PAC-08E4

Power Supply (Ph/V/Hz) 1/115/60Hz

Dehumidifying Capacity (Pints/Day) 38

Rated Cooling Capacity (BTU/h) 8,000

Rated Heating Capacity (BTU/h) /

Cooling Power Input (Watts) 760

Heating Power Input (Watts) /

Rated Current Cooling (Amperage) 6.7

Rated Current Heating (Amperage) /

EER/C.O.P /

Noise Level db (A) H/L <=55

CFM 195

Design Pressure (PSIG) (H/L) /

Dimensions (W” x H” x D”) 11.75 x 31.5 x 14

Package Dimensions (W” x H” x D”) 14 x 33.5 x 22.25

Net/Gross Weight (Lbs) 53/66

Refrigerant Charge (Oz) 14

Refrigerant Type R-410A

PARTS & WINDOW KIT ASSEMBLY

PARTS

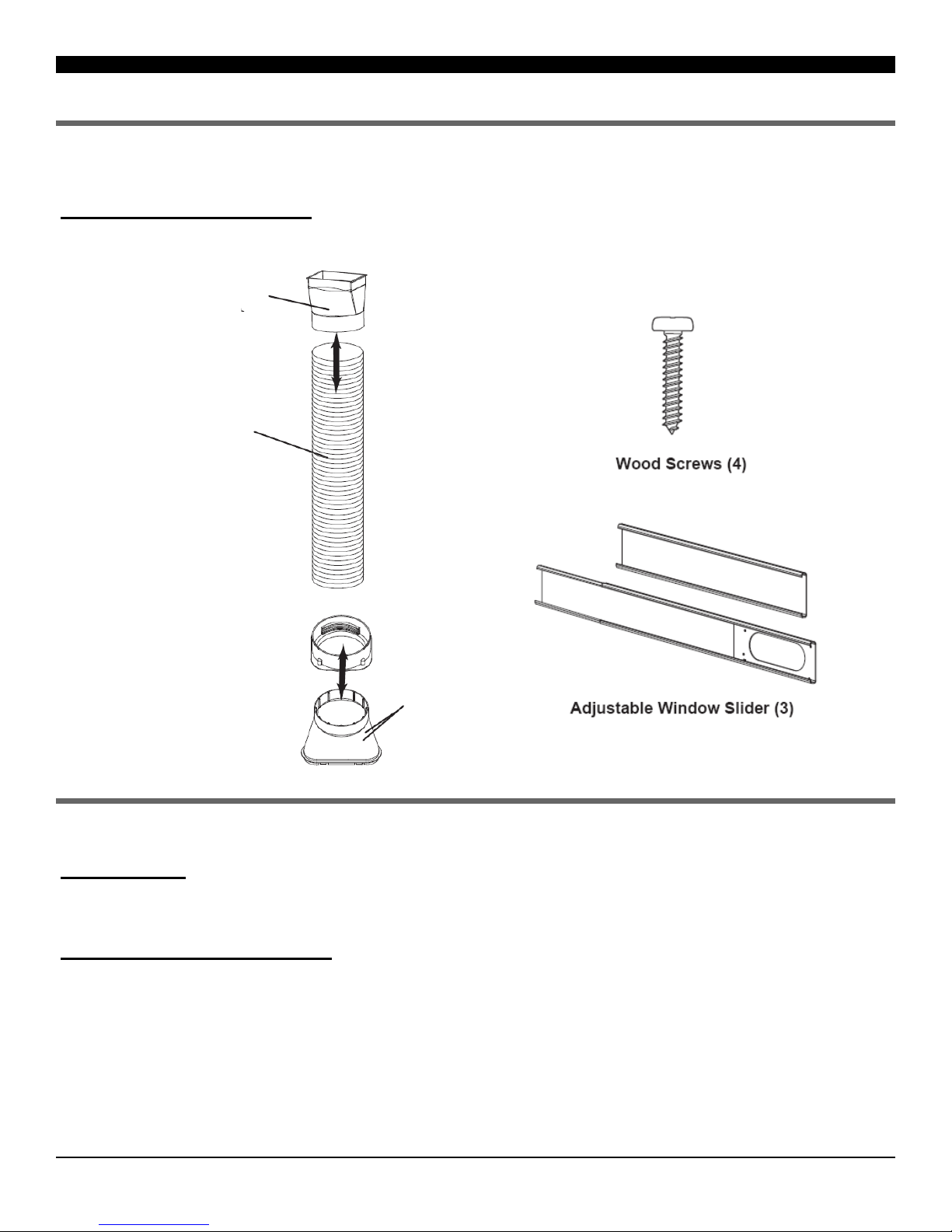

EXHAUST HOSE & ADAPTERS

ASSEMBLY & INSTALLATION

INSTALLATION

When the unit is operating as an air conditioner or dehumidifier, the window kit and exhaust hose must be installed.

When the unit is operating in fan mode, the window kit and exhaust hose do not need to be installed .

MOUNTING THE EXHAUST HOSE

• Choose a suitable location, near a grounded electrical outlet and suitable window or door. Remove

packaging and locate components.

• Extend both ends of the exhaust hose approximately 6 inches.

• Screw the window kit adapter onto one end of the exhaust hose clockwise. Screw the hose adapter onto

the other end of the exhaust hose clockwise.

• Mount the exhaust hose onto the back of the unit by locking the hose adapters into place.

• For maximum efficiency do not bend the hose as much as possible.

Exhaust Hose Adapter

Exhaust Hose

Hose

Adapter

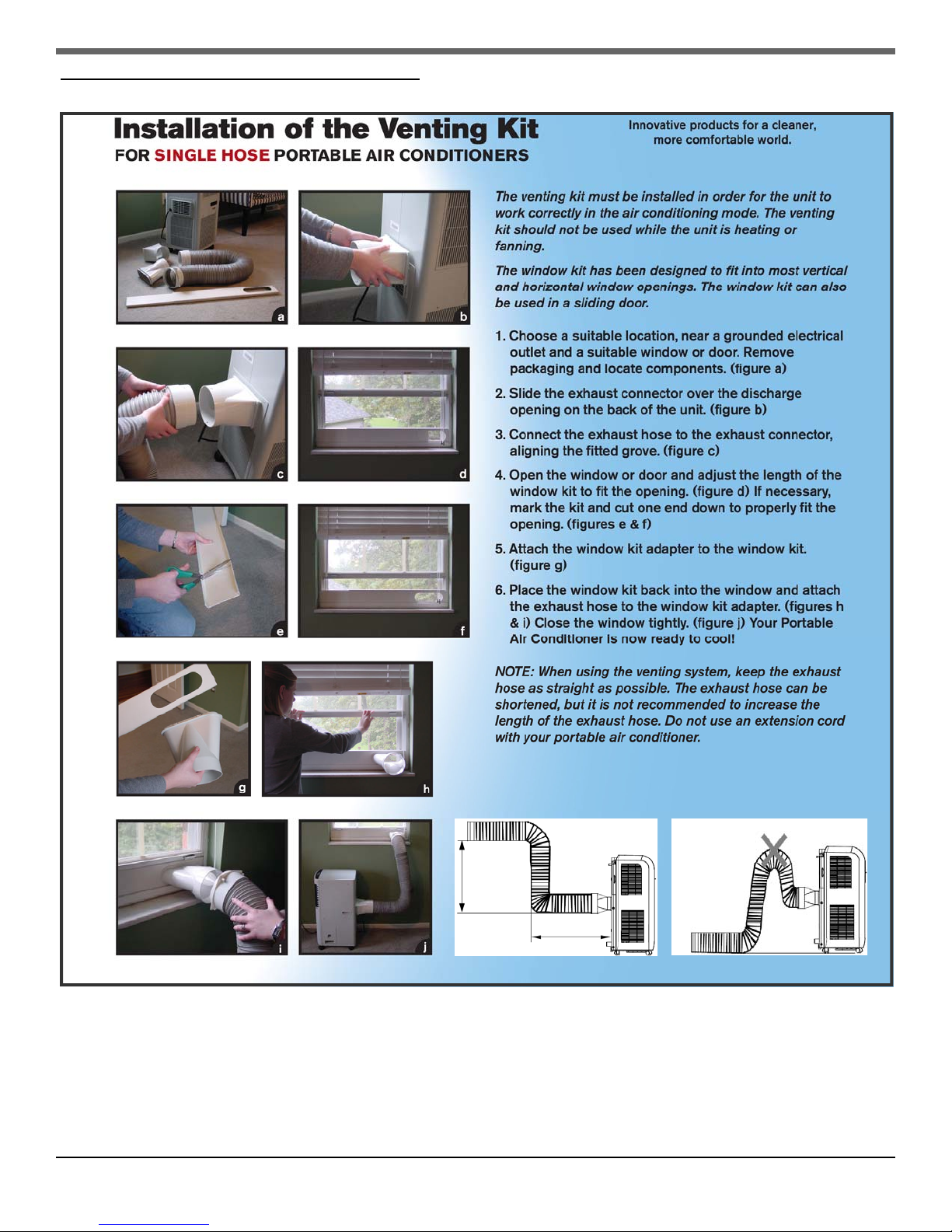

SINGLE HOSE WINDOW KIT INSTALLATION

When installing the exhaust hose, try and keep it as flat as possible. The less angles and bends

in the hose, the better the unit will perform. If bending or an angle is necessary, use single 90°

angles like the pictures above. Multiple bends will decrease performance and efficiency

This installation is OK The is a poor installation

22”

26”

CONTROL PANEL, DISPLAY, & OPERATING INSTRUCTIONS

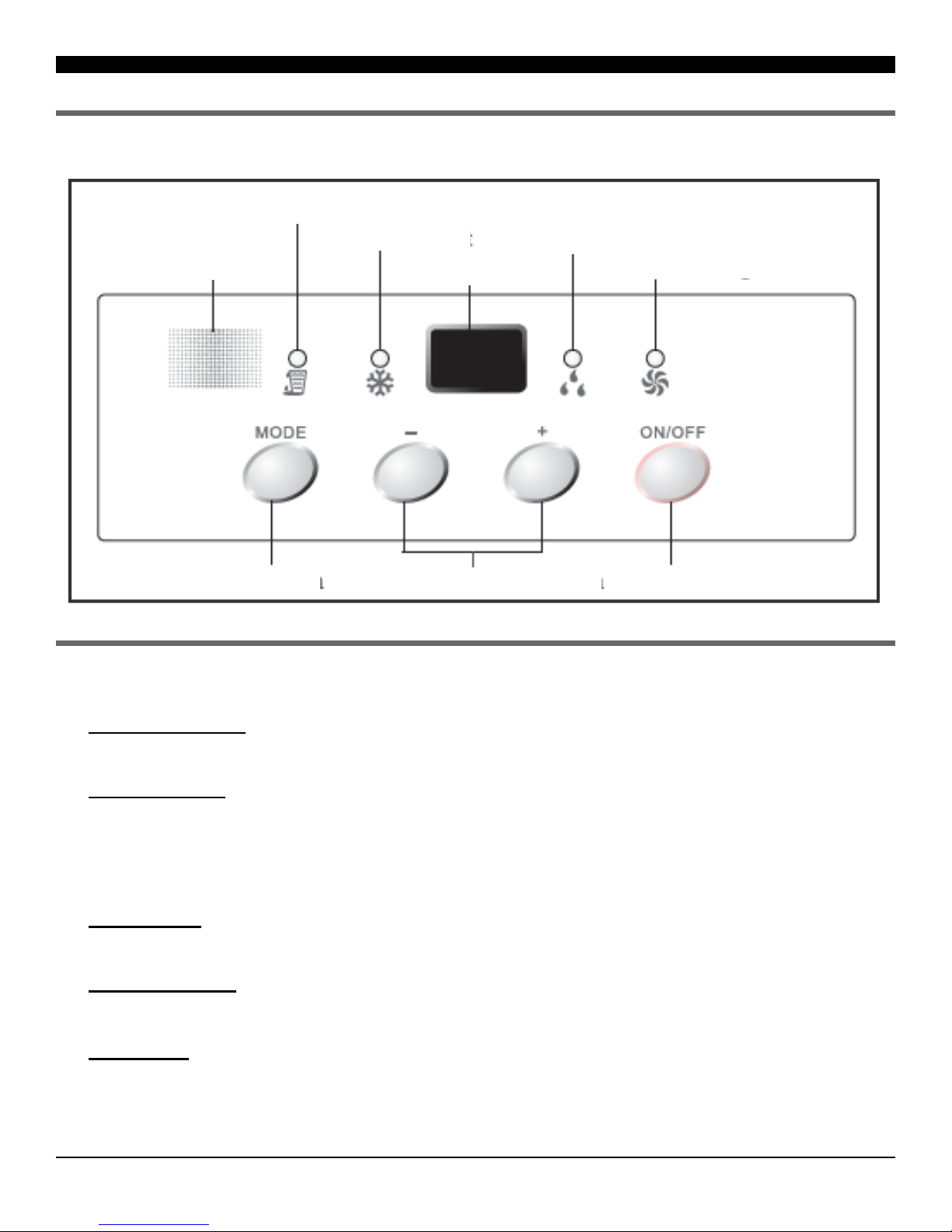

CONTROL PANEL & LED DISPLAY

CONTROL PANEL OPERATING INSTRUCTIONS

1) Power On and Off - Press the POWER button once to manually turn the unit on. Press the POWER

button once more to turn the unit off.

2) Mode Selection - Press the MODE Button repeatedly to cycle between the different modes: Cool, Dry

and Fan only mode. Each press of the MODE button will light up a different icon on the control panel.

The exhaust hose and window kit must be installed when the unit is in cool or dry mode.

When using the unit as a fan, it is not necessary to keep the exhaust hose and window kit connected to

the unit.

3) Temperature - Select the desired temperature by pressing either “ - ” or “ + ” key when using the unit in

cooling mode. The digital thermostat will display the set temperature.

4) Louver Direction - This unit has 4-Way directional louvers. Use the louver guides to direct air where

cooling or fanning is needed most.

5) Bucket Full - When the unit cannot evaporate the collected moisture fast enough. The excess water will

collect in a backup water tank located inside the unit. The bucket full icon will light up if this occurs

REMOTE RECEIVER

MODE BUTTON TEMP SELECT BUTTON POWER BUTTON

BUCKET FULL LIGHT

COOL MODE LIGHT DRY MODE LIGHT

FAN MODE LIGHT

LED DISPLAY

1) Power On and Off - Press the ON/OFF (POWER) button once to manually turn the unit on. Press the Power button once

more to turn the unit off. When you manually power the unit on and off by pressing the ON/OFF button, the preset timer will

be cancelled.

2) Mode Selection - Press the MODE Button repeatedly to cycle between the different modes: Auto, Cool, Dry, and Fan only

mode. Once a mode is selected, an arrow will light up on the LCD display next to the selected MODE label on the remote

Auto mode automatically chooses the air conditioner, dehumidifier, or fan mode based on the current room temperature.

3) Fan Speed - Press the FAN speed button to cycle through low, medium, and high fan speeds. The small fan icons will light up

depending on which speed is selected. The more fan icons light up, the higher the speed. The fan icons are located on the LCD

display next to the SPEED label.

4) Temperature Setting - When the unit is in Air Conditioner mode you can select your desired temperature. Press the TEMP

SELECT buttons (+or -) to select your desired temperature setting. The temperature on the LCD display on the remote control

will increase or decrease accordingly. Hold the +/- buttons for two seconds to rapidly increase or decrease the temperature.

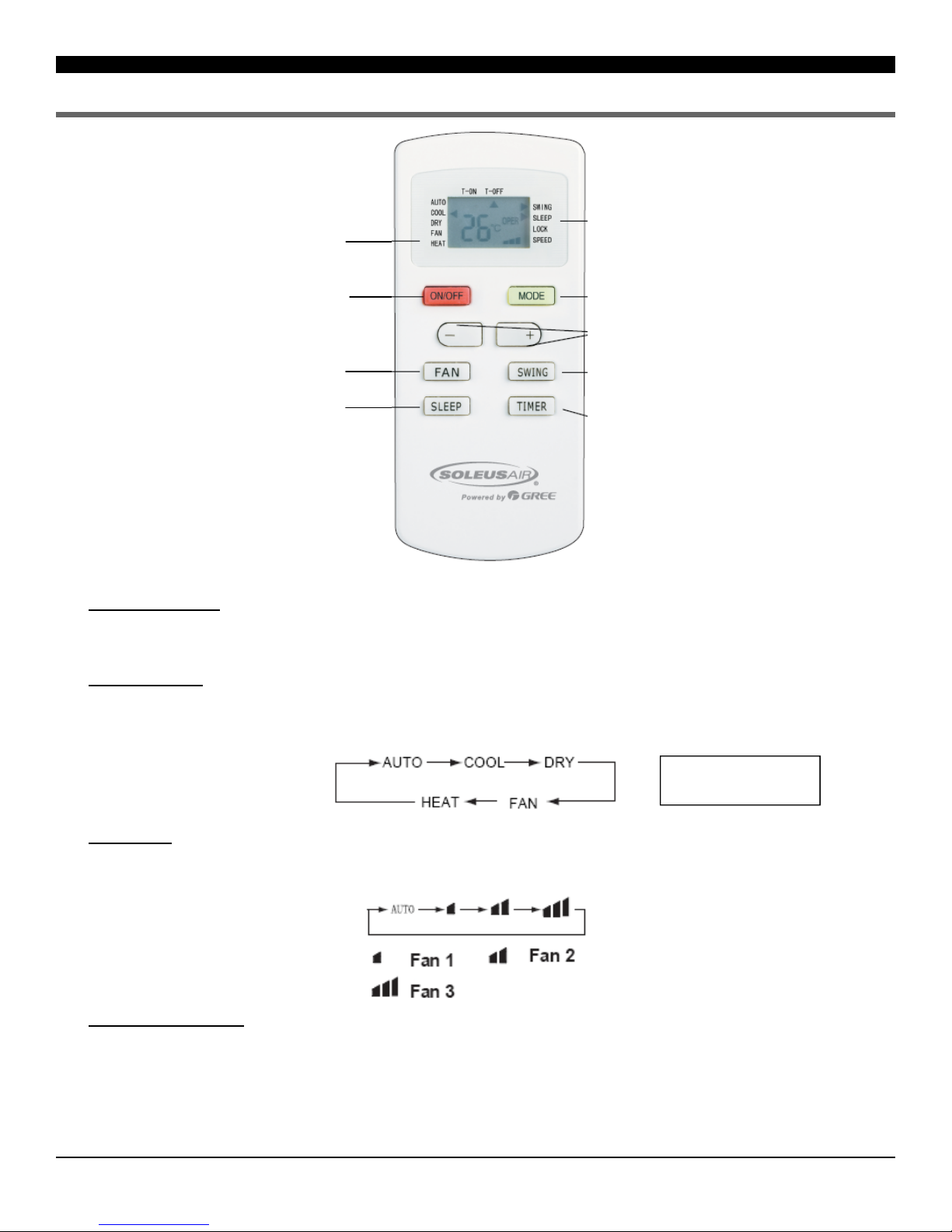

REMOTE CONTROL OPERATING INSTRUCTIONS

MODE BUTTON

TEMP SELECT BUTTONS

POWER BUTTON

SWING BUTTON

(Not Available on GL-PAC-08E4)

TIMER BUTTON

FAN BUTTON

SLEEP BUTTON

LCD DISPLAY and

MODE LABELS

NOTE: Heat mode is not available

on the GL-PAC-08E4

NOTE: HEAT MODE

NOT AVAILABLE

5) Auto-on Timer: When the air conditioner is off, it can be set to automatically turn on in 30 minutes to 24 hours at the previous

set mode and fan setting. To set the Auto-on Timer, press the TIMER button on the unit or remote control. Each touch of the +/-

buttons on the remote will change the timer setting in 30 minute increments (.5 hours). The T-ON and H lights will blink while

the Auto-on Timer is being set. Once the timer is set, press the TIMER button once more to save the setting. Press the ON/OFF

button to cancel the timer.

Auto-off Timer: When the air conditioner is on, it can be set to automatically turn off in 30 minutes to 24 hours. To set the

Auto-off Timer, press the TIMER button on the remote control. Each touch of the +/- buttons on the remote will change the

timer setting in 30 minute (.5 hour) intervals. The T-OFF and H lights will blink while setting. To cancel the timer, press the

ON/OFF button. Once the timer is set, press the TIMER button once more to save the setting. Press the ON/OFF button to

cancel the timer.

6) Sleep Mode - Press the SLEEP mode button to engage SLEEP mode. Sleep mode automatically reduces the

set temperature by 2°F after one hour and 4°F after two hours. This feature limits compressor usage and

enhances energy savings while you are sleeping.

7) Auto Mode - When AUTO mode is selected the air conditioner will automatically choose the operating

mode base on the current room temperature. When the room is below 68°F the air conditioner will

automatically fan the room to circulate air. When the room temperature is between 68°F-73°F the air

conditioner will operate in Fan mode if it was previously selected or dehumidifier mode (if another mode

was used previously) to remove humidity from the air as well as some cooling to help lower the room

temperature. When the room temperature is between 74°F-79°F the air conditioner will always operate in

dehumidifier mode. When the room temperature rises above 79°F, the unit will operate in air conditioner

mode to maximize cooling. Auto mode uses pre-determined settings to keep you comfortable by choosing

the most energy efficient mode based on the temperature of the room.

REMOTE CONTROL OPERATING INSTRUCTIONS (Cont.)
