INSTALLATION MANUAL
Solar Panel Models:
SL40L – SL40Q
SP50L – SP50Q
SL80
SP 00
SP112
SP125
CP125
SP137
CP140
. INTRODUCTION
2. SAFETY
Warnings and electrical risks
3. SOLBIANFLEX Solar Panels
Packing contents
Technical data
Accessories
4. INSTALLATION
Installation advice
Panel installation
Electric connections
5. MAINTENANCE
SUMMARY
CongratulationV RQ the choice youKDYH made LQbuying thLV
SOLBIANFLEX SDQHOfor PDULQH use. ,WKDVEHHQPDQXIDFWXUHG
ith the most innovative technologies and ithWKH highHVW quality
components.
INTRODUCTION
$6RODU3DQHO installation can be DFFRPSOLVKHG by DQ\FRPSHWHQWSHUVRQ ith VLPSOHWRROV. +RZHYHU
WKHLQVWDOOHU takes responsibility for DOO accidentV WKDWPD\RFFXU during the installation, including electric shocks
THE FOLLOWING INSTRUCTIONS ARE ONLY A GUIDEWE +,*+/<RECOMMEND 7+$7<28 &2168/7$
0$5,1((/(&75,&$/,167$//(5,)<28+$9($1<48(67,2165(*$5',1*<285,167$//7,21
www.solbian.eu
WARNINGS
These instructions must be carefully read and understood before proceeding with Solar Panel
installation, connection, utili ation and maintenance. Touching the electrically active parts of the panel, like
terminals, may cause burning, sparks or low voltage discharges, even when the panel is disconnected.
A Solar Panel produces electricity when the front part is exposed to sunlight or to another light
source. Even if the voltage produced by a single panel is not dangerous for health, when the panels are
connected in series, voltages add up, and when they are parallel connected, currents are additive. So a system
with more than one panel can produce a high voltage or high currents that can be dangerous and can cause
injuries or death.
2
SAFETY
WARNINGS AND ELECTRICAL RISKS
Before installing the panel verify the need of permission or licenses that may be requested by the
law.
If not specified, it is recommended that you follow the newer national and international laws.
A bad installation can cause problems to the entire electrical system. Additional
devices such as groundings, fuses, diodes, charger or power disconnector switch may be required.
Do not use different types of panels on the same system.
Avoid electrical risks during the installation, connection, utili ation and maintenance.
A Solar Panel produces continuous current when exposed to sunlight or other light
sources. During the panel installation or connection, it’s highly recommended to completely cover
the front part of the panel with a soft, light-inhibiting material to avoid electricity production.
The panel must stay in his original packaging until the moment of installation. Never touch
terminals when the panel is exposed to light or during the installation. Use insulating gloves to
avoid contact with the terminals. As a further precaution, use only properly isolated tools.
Do not subject the panel to damage by unnecessarily rough treatment, or by dropping objects on it.
Ensure that the system parts can’t cause mechanical or electrical damage.
Do not install the panel in the presence of inflammable gasses or steam, as sparks are always possible.
Do not install or use a damaged panel.
Installation must be accomplished only by qualified persons. Do not allow children to touch the panel.
.
Use the panel only for it's intended purpose. Follow all the manufacturers instructions. Do not
disassemble or remove any part or label installed by the manufacturer.
Do not put any paint or labels on the panel.
Never focus sunlight on the panel.
Preserve these instructions for future reference.
3
SOLBIANFLEX SOLAR PANELS
PACKAGING CONTENTS
The Packaging includes:
TECHNICAL DATA
SOLBIANFLEX Solar Panels utilize mono-crystalline silicon cells with high efficiency to convert
energy from sunlight into electricity. The circuit of the cell assembly is laminated to a polymer formed by a
sheet of transparent plastic in front, and an opaque plastic sheet on the back, which serves as protection
against weathering and provides electrical insulation.
ACCESSORIES
One or more SOLBIANFLEX SP, SL or CP panels.
Installation Instructions.
Two pairs of heat-shrink tubing for the Rear Wiring Strips, for each panel supplied with that option.
One pair of MC4 connectors for each panel supplied with Quick Connect Cables, if no Cable set purchased .
Charge Regulators
Required to be able to safely connect your Solar Panel to a battery.
We highly recommend Genasun controllers with MPPT technology.
Solbian 40watt and 50watt panels have an 8v nominal output and
must use a Genasun Boost controller for connection to 12v systems.
All Genasun controllers are available from your Solbian dealer.
Cables
Various lengths are available from your Solbian dealer.
MC4 connectors
If your Solbian Solar Panel is supplied with the Quick Connect Cable
option and a Cable is not purchased with the panel, a pair of MC 4
connectors is supplied to be able to connect the panel to a controller.
Extra sets of MC4 connectors are available from your Solbian dealer.
4
SL40L SL40Q
11.5"
43.7"
21.6"
23.4"
5
SP50L SL50Q
11.5"
43.7"
21.6"
23.4"
6
SL80L SP 00L
21.6"
43.7"
21.6"
43.7"
FIXING: DOUBLE SIDED TAPE
SOLBIANFLEX PANELS series CP are made with a
special adhesive that allows, thanks to their exibility, easy
installation even on surfaces not totally at.
On request we can supply the complete kit for installation:
Photovoltaic Panel
Charhe regulator
Connectors (pairs)
Cable (4 m)
SOLBIAN.EU

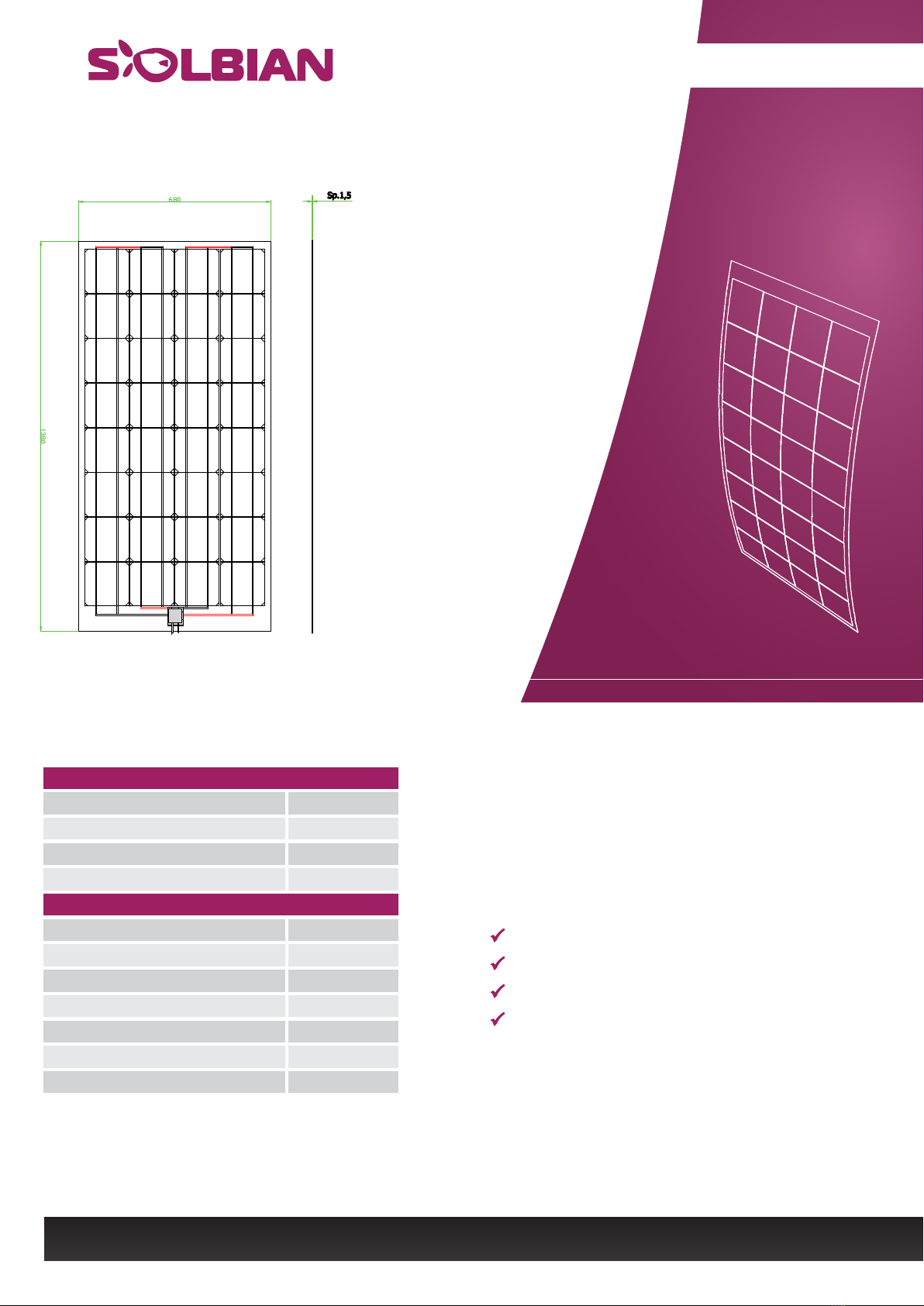

DATA SHEET
SOLBIAN ENERGIE ALTERNATIVE SRL
Legal and Operative Headquarter: Via Caselette, km.16.200 - 10091 Alpignano (TO) - Phone: +39 011.966.35.12 - Fax: +39 011.966.47.20 - [email protected]
Ofce in Avigliana: Viale dei Mareschi, 15 - 10051 Avigliana (TO) - ITALY - Phone: +39 011.932.56.66 - Fax: +39 011.932.56.64 - [email protected]
FLEX CP125
Lenght
PHYSICAL CHARACTERISTICS
ELECTRICAL CHARACTERISTICS
Height
Thickness
Weight
Vp max
Ip max
Wp
Vca
Icc
Efciency (module)
Max Bending
1380 mm
680 mm
1,5 mm
2,35 kg
16,86 V
7,61 A
128,40 W
20,10 V
8,10 I
14,44%
25%
P
P
P
P
CONNECTION: JUNCTION BOX
CONNECTION AND FIXING OPTIONS
INSTALLATION
54.3"
26.8"
54.3"
26.8"
1/16"
5.2 lb
For best results, use the Genasun GV-10
MPPT Controller. One per panel.
