Solark 60K-3P-N Manuel utilisateur

60K-3P-N

COMMERCIAL

480V

INSTALLATION GUIDE | USER MANUAL

 January 9th, 2022 1




UPON RECEIVING SHIPMENT ................................................................................................................................. 4
SPEC SHEET............................................................................................................................................................ 5
WIRE GAUGE GUIDE (COPPER)............................................................................................................................... 7
WIRING DIAGRAMS ............................................................................................................................................... 8
PHYSICAL INSTALLATION ..................................................................................................................................... 18
INVERTER COMPONENTS................................................................................................................................................18
DECIDING THE SITE’S BACKUP CIRCUITS............................................................................................................................18
SINGLE SYSTEM INSTALLATIONS (SMALL COMMERCIAL BACKUP) ...........................................................................................19
MOUNTING THE SOL-ARK..............................................................................................................................................19
INTEGRATING BATTERIES (SOL-ARK POWERED "OFF").....................................................................................................19
CONNECTING SOLAR PANELS ..........................................................................................................................................20
INTEGRATING A GENERATOR...........................................................................................................................................21
SENSORS INTEGRATION AND ACCESSORY PLACEMENT..........................................................................................................22
POWERING-UP &TESTING THE SOL-ARK 60K-3P-480V ....................................................................................................24
CHECK THE VOLTAGE ON EACH PV INPUT CIRCUIT ...............................................................................................................24
WI-FI / INTERNET CONNECTION........................................................................................................................... 26
REMOTE MONITORING SETUP ........................................................................................................................................26
IP ADDRESS SETUP INSTRUCTIONS (PC OR SMARTPHONE)...................................................................................................29
GUI SCREENS........................................................................................................................................................ 31
PROGRAMMING GUIDE ....................................................................................................................................... 33
MAIN SCREENS (TOUCHSCREEN).....................................................................................................................................34
BASIC SETUP ...............................................................................................................................................................35
SYSTEM ALARMS..........................................................................................................................................................35
BATTERY SETUP ...........................................................................................................................................................36
LIMITER TAB /GRID SETUP ............................................................................................................................................38
LIMITER SENSORS (CT SENSORS).......................................................................................................................... 42
LIMITER SENSOR AUTOMATIC SETUP................................................................................................................................42
INSTALL TIPS ........................................................................................................................................................ 44
OFF-GRID INSTALL TIPS.................................................................................................................................................44
GRID-TIE /NO BATTERY INSTALL TIPS ..............................................................................................................................44
BATTERIES ........................................................................................................................................................... 45
BATTERY CHARGING INFORMATION .................................................................................................................................45
TROUBLESHOOTING GUIDE.................................................................................................................................. 46
TROUBLESHOOTING PHASING ISSUES................................................................................................................................48
SOL-ARK 60K-3P-480V ERROR CODES ...........................................................................................................................49
INSTALL VERIFICATION CHECKLIST ....................................................................................................................... 50
60K-3P-480V LIMITED WARRANTY....................................................................................................................... 51


UL Model “60K-3P-480V”INSTALL GUIDE & OWNER’S MANUAL
60K-3P 480V
OUTDOOR

February 24th , 2023 2

Disclaimer

UNLESS SPECIFICALLY AGREED TO IN WRITING, SOL-ARK:

(a) MAKES NO WARRANTY REGARDING THE ACCURACY, SUFFICIENCY, OR SUITABILITY OF ANY TECHNICAL

OR OTHER INFORMATION PROVIDED IN ITS MANUALS OR OTHER DOCUMENTATION.

(b) ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSS OR DAMAGE, WHETHER DIRECT, INDIRECT,

CONSEQUENTIAL, OR INCIDENTAL, WHICH MIGHT ARISE OUT OF THE USE OF SUCH INFORMATION. THE USE

OF ANY SUCH INFORMATION WILL BE ENTIRELY AT THE USER'S RISK.

Sol-Ark cannot be responsible for system failure, damages, or injury resulting from improper installation of

their products.

The information included in this manual is subject to change without notice.

PHONE 1-972-575-8875 ext 2

EMAIL [email protected]

WEBSITE WWW.SOL-ARK.COM

February 24th , 2023 3

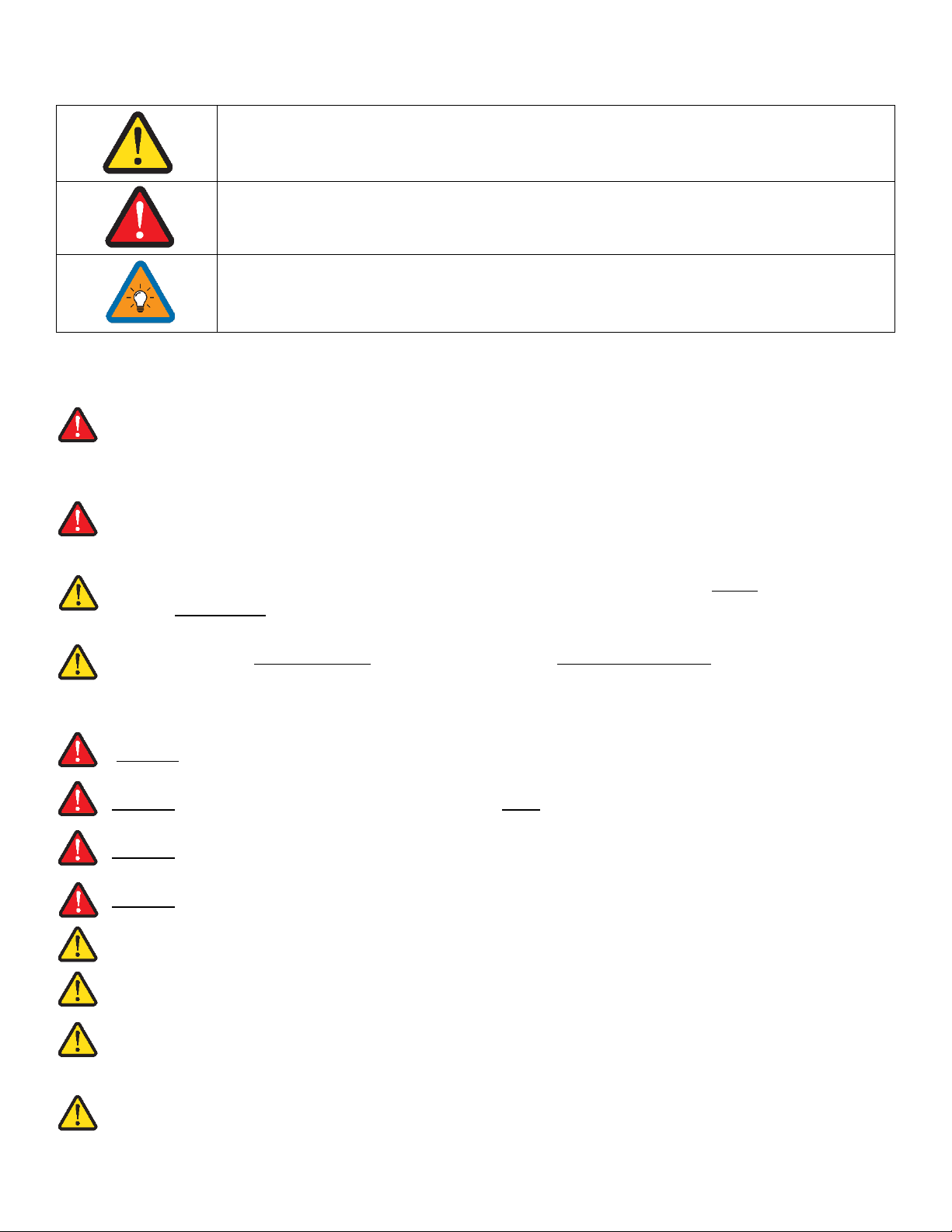

Warning Symbols

This symbol indicates information that, if ignored, could result in minor injury or

damage to the equipment.

This symbol indicates information that, if ignored, could result in serious injury,

damage to the equipment, or death.

This symbol indicates information that is important but not hazard-related.

Warnings

Read this entire document before installing or using the Sol-Ark 60K-3P-480V Inverter. Failure to

follow the instructions or warnings in this document can result in electrical shock, serious injury, or

death. Damage to the Sol-Ark Inverter is also possible, potentially rendering it inoperable.

High Life Risk Due to Fire or Electrocution –ONLY qualified personnel should install the Sol-Ark 60K-

3P-480V Inverter.

The system must have Ground connections and Neutral connections. Ground MUST be bonded to

Neutral ONLY ONCE in the circuit.

Solar PV+/PV- are UNGROUNDED. Note, you may ground PV Racking/Mounts, but doing so directly

to the Sol-Ark will likely result in damage in the case of a direct lightning strike to the PV array.

We recommend grounding the frames outside of the Sol-Ark circuit.

DO NOT connect the grid to the Load Output Terminal Block.

DO NOT reverse the polarity of batteries. Damage WILL occur.

DO NOT exceed 800Voc on any MPPT on the Sol-Ark.

DO NOT turn off the battery breaker if any amount of current flows in or out of the battery.

DO NOT use impact drivers to tighten any fasteners on the Sol-Ark.

MUST use Strain Reliefs ON ALL wires entering/exiting the Sol-Ark 60K-3P-480V user area.

MUST use conduit (or double insulated wire) for AC Wires entering/exiting Sol-Ark 60K-3P-480V user

area.

ALL terminals/breakers, including battery, MPPT, and AC Terminal Block inputs, should only have

one conductor connecting to them.

February 24th , 2023 4

Upon Receiving Shipment

Inspect Shipment

A. Compare the package condition to the condition of the package in the photo we sent you

before it left our facility.

B. If damaged, contact us immediately at 972-575-8875 Ext. 3

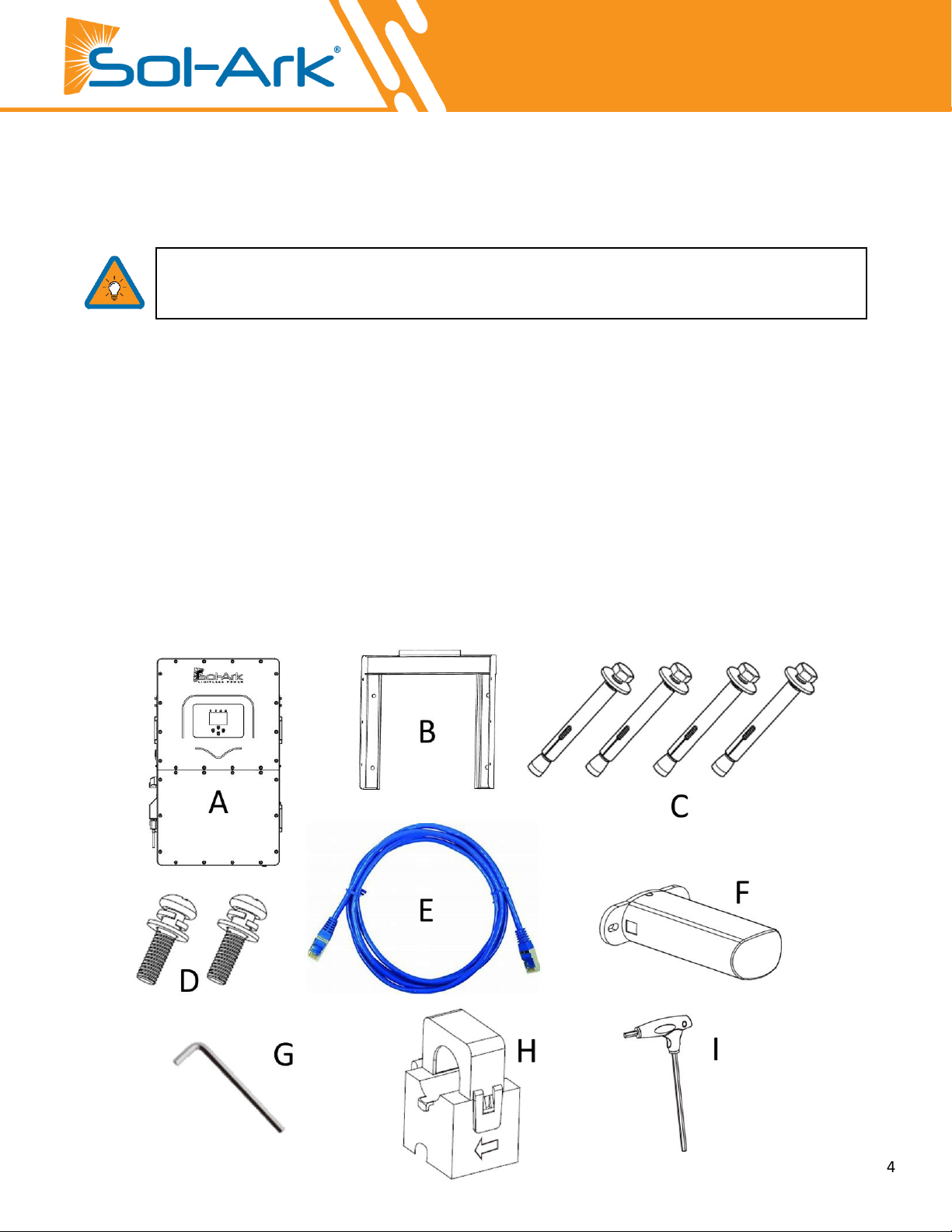

Component Guide—the following items are included in the package:

A. Sol-Ark 60K-3P-480V inverter (x 1)

B. Mounting Bracket: For wall mounting the Sol-Ark 60K-3P-480V (x 1)

C. Bolts M12x60 (x 4)

D. Bolts M4x12 (x 9)

E. CAT 5 cable for parallel communications (x 2)

F. WIFI Dongle: For software updates and remote monitoring (use M4x10 screws to hold in)

G. L-Type Hex Key (3mm): For opening and closing the user wiring area (x 1)

H. Included Limiter Sensors: 1 3/8” CT sensors (x 3)

[Larger sensors available: email [email protected]]

I. T-Type Hex Key: For tightening the AC connections (x 1)

You must note any damage due to shipping with delivery driver before

accepting the package otherwise the shipping company will deny any claim.

February 24th , 2023 5

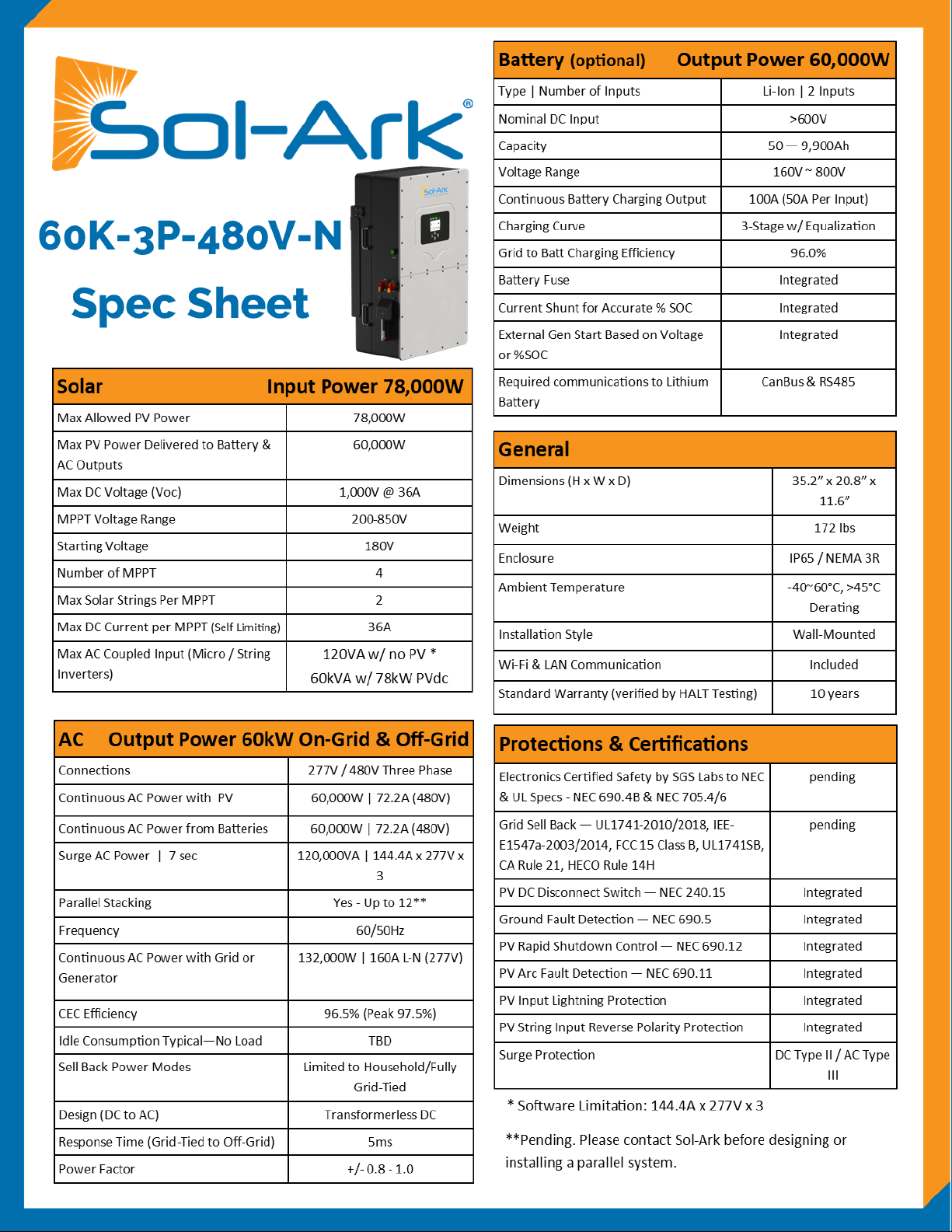

Spec Sheet

February 24th , 2023 6

Sol-Ark 30K-3P-208V Torque Values Application Note

Load Terminal Block

62 IN Lbs

7 NM

Grid Terminal Block

62 IN Lbs

7 NM

Gen Terminal Block

62 IN Lbs

7 NM

Neutral / Ground Busbars

62 IN Lbs

7 NM

Cover Screws

15.5 IN Lbs

1.75 NM

Battery Connection

Hand-Pressed Actuation Lever

2” Minimum Horizontal Clearance | 6” Minimum Vertical Clearance

2”(5.08cm)

Temperature Derating

DC: 90C-100C Shutdown @ 100C

AC: 75C-82C Shutdown @ 82C

Do Not Use Impact Drivers to Tighten Any Fasteners on the Sol-Ark.

2” (5.08cm)

February 24th , 2023 7

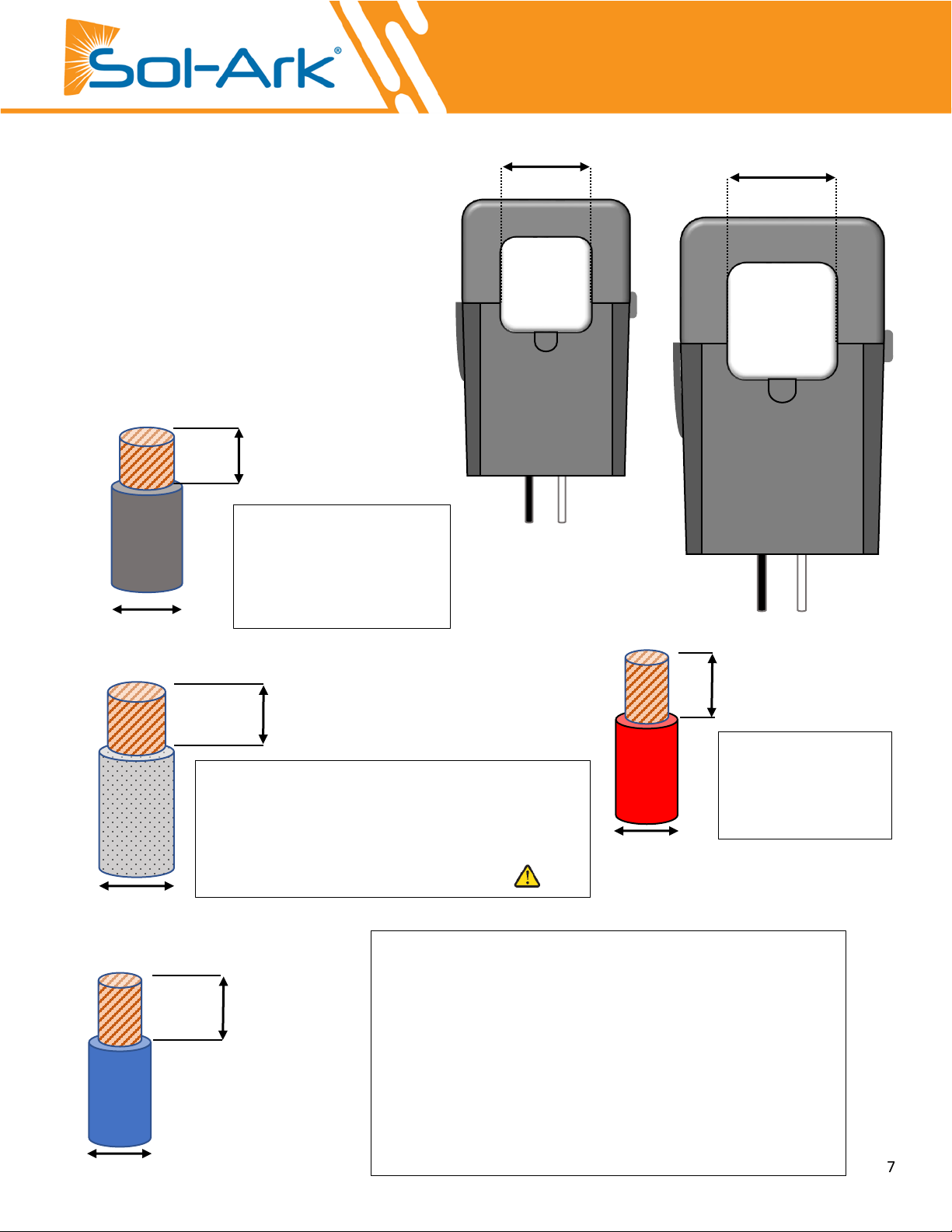

Wire Gauge Guide (copper)

PV input: 12 - 10 AWG

AC Inputs/Outputs: 1/0 AWG - 4/0 AWG

All Sensors: 20 –24 AWG

CT Sensors: 10' Wire Included

Batt Temp Sensor: 6' Wire Included

RJ45 Cable: 7' Included (Extendable up to 20')

Battery input: 6 –4 AWG (Hand-Tightened

Actuation Lever)

400A: 2.0A

50.8mm (2in)

34.93mm (1 3/8in)

300A:5A

Fits 4/0 AWG

Regular

Limiter Sensor

Inputs

DC Battery Input

0’ –12’: 6 AWG

12’ –20’: 4 AWG

15.875mm (5/8in)

10 AWG Max

PV Panel Inputs

0’ –100’:

12 AWG

100’ –300’: 10 AWG

All Sensor Inputs

0’ –100’: 24 AWG (Do NOT use > 20AWG)

100’ –400’: 23 AWG CAT 6

CT Wires Can Be Extended -Extensions for Limiter

Sensors must be twisted pair (See pg. 41)

(Shielded CAT6 Recommended)

6.35mm

(1/4in)

20 AWG Max

Max

Grid + Load L1/L2/L3, Ground, & Neutral:

4/0 AWG

Gen L1/L2/L3, Ground, Neutral: 2/0 AWG

Distance Limits Will Vary Per User

25.4mm (1in)

4/0 AWG Max

Fits Metal Busbar

Grid Feed

X-Large

Limiter Sensor

25.4mm

(1in)

4 AWG Max

Max

February 24th , 2023 8

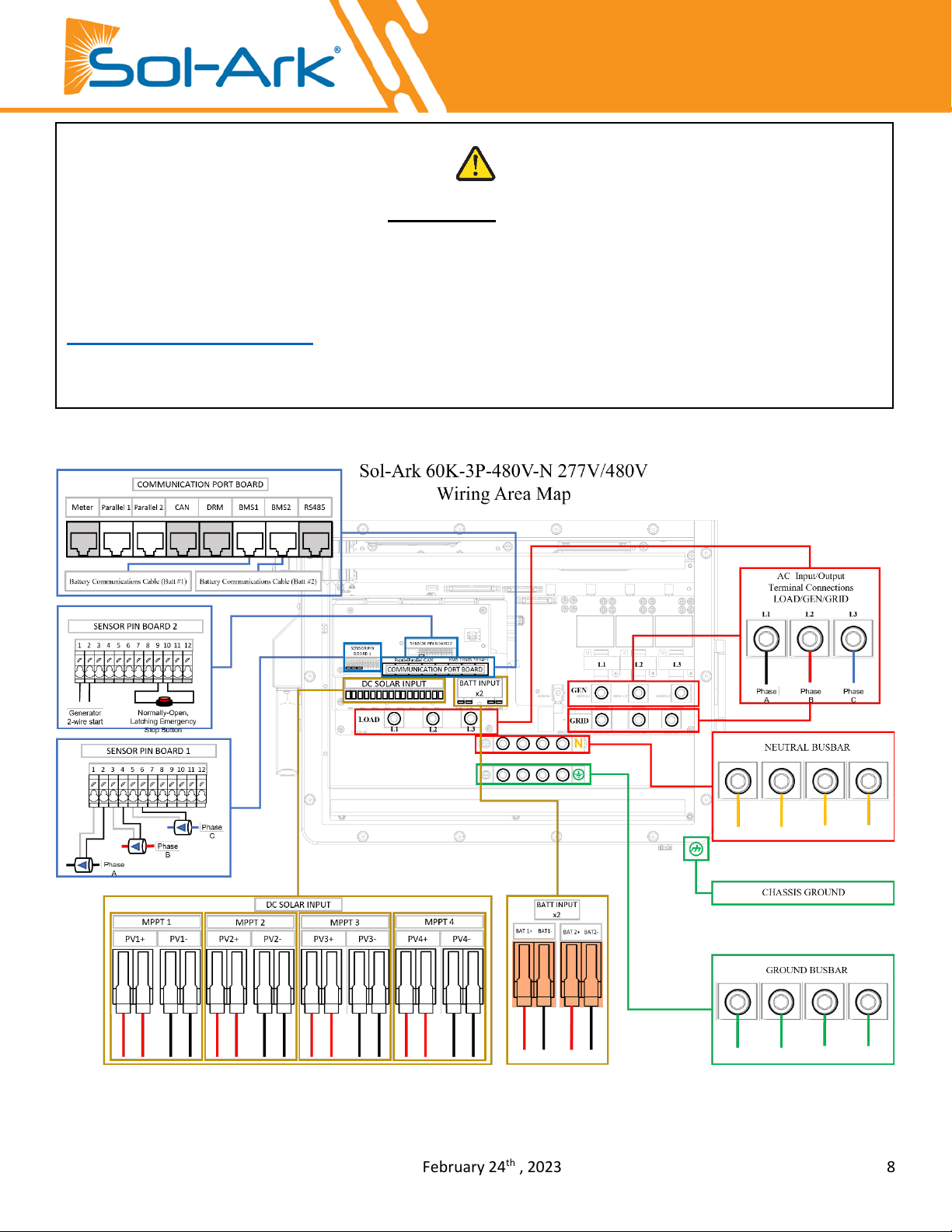

Wiring Diagrams

These Wiring Diagrams are examples of common-use cases for Sol-Ark

inverters.

Sol-Ark does not provide custom diagrams; however, you may contact

[email protected] for any questions about existing Wiring Diagrams.

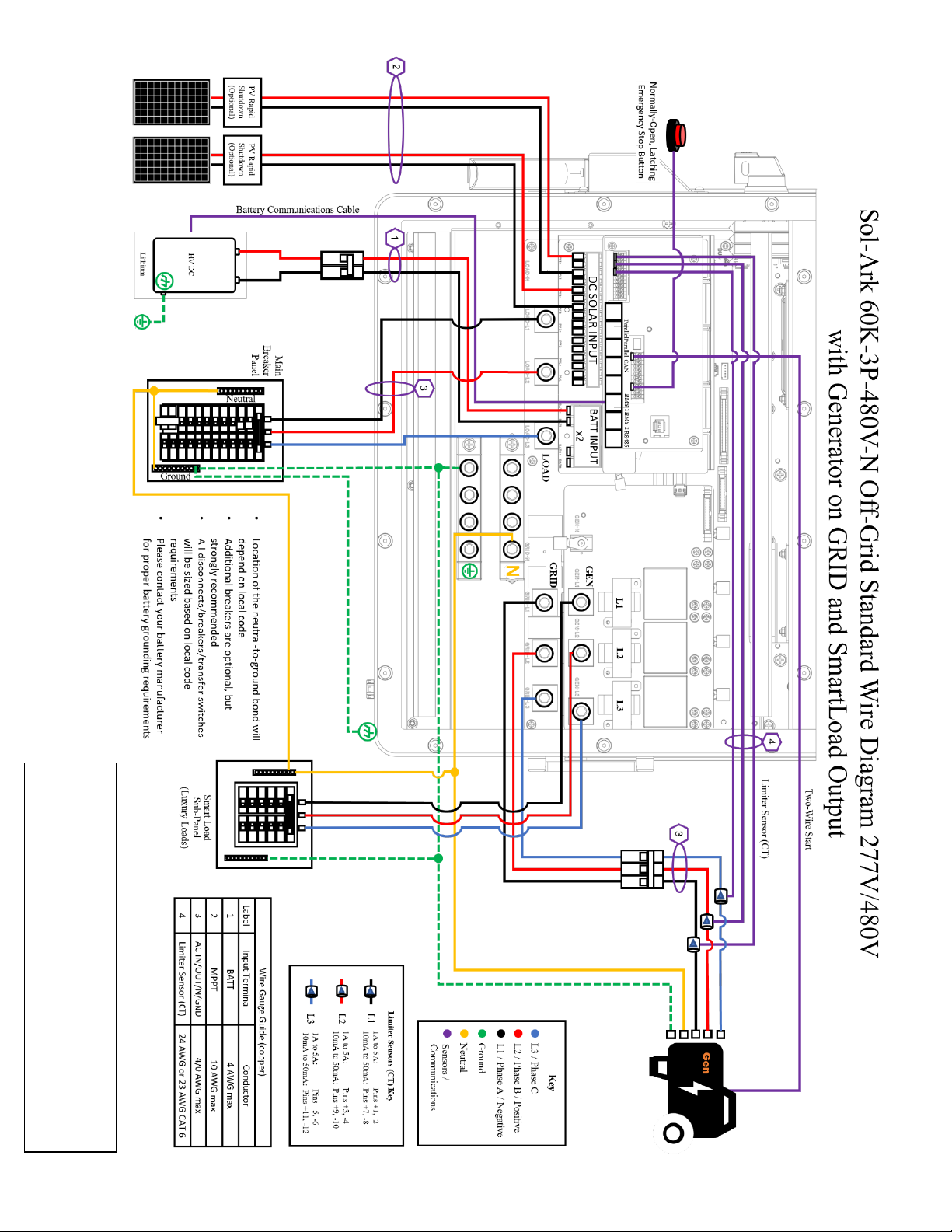

Diagram 1

February 24th , 2023 9

CT Sensors are optional but necessary to enable

Peak Shaving.

See Integrating Gens and pg.41 for additional info.

Diagram 2
