Installation Guide

SolarEdge Home Hub

Inverter Single Phase

For Australia

Version 1.5

Disclaimers

Important Notice

No part of this document may be reproduced, stored in a retrieval system or

transmitted, in any form or by any means, electronic, mechanical, photographic,

magnetic or otherwise, without the prior written permission of SolarEdge Inc.

The material furnished in this document is believed to be accurate and reliable.

However, SolarEdge assumes no responsibility for the use of this material. SolarEdge

reserves the right to make changes to the material at any time and without notice. You

may refer to the SolarEdge web site (www.solaredge.com) for the most updated version.

All company and brand products and service names are trademarks or registered

trademarks of their respective holders.

Patent marking notice: see http://www.solaredge.com/patent

The general terms and conditions of delivery of SolarEdge shall apply.

The content of these documents is continually reviewed and amended, where

necessary. However, discrepancies cannot be excluded. No guarantee is made for the

completeness of these documents.

The images contained in this document are for illustrative purposes only and may vary

depending on product models.

This manual describes installation of theSolarEdge Home Hub Inverter. Read this

manual before you attempt to install the product, and follow the instructions

throughout the installation process. If you are uncertain about any of the requirements,

recommendations, or safety procedures described in this manual, contact SolarEdge

Support immediately for advice and clarification. The information included in this

manual is accurate at the time of publication. However, the product specifications are

subject to change without prior notice. In addition, the illustrations in this manual are

meant to help explain system configuration concepts and installation instructions. The

illustrated items may differ from the actual items at the installation location.

Disclaimers1

SolarEdge Home Hub Inverter Single Phase MAN-01-00812-1.5

Revision History

Version 1.5 (April 2023)

LG Chem Prime Battery removed.

Version 1.4 (October 2022)

Updated name to SolarEdge Home Hub Inverter Single Phase

Version 1.3 (January 2021)

Added S-series Power Optimisers installation guidelines in

Installation Guidelines

page 14.

Added the option to use Opti Clamps in

Step 1: Mounting the Power Optimisers

page 17.

Version 1.2 (October 2021)

Editorial changes

SolarEdge Home Hub Inverter Single Phase MAN-01-00812-1.5

2 Revision History

Contents

Disclaimers 1

Important Notice 1

Revision History 2

HANDLING AND SAFETY INSTRUCTIONS 5

Safety Symbols Information 5

IMPORTANTSAFETYINSTRUCTIONS 6

Chapter 1: Overview 9

SolarEdge Home Battery Solution Components 9

List of Installation Equipment 10

Inverter Transport and Storage 11

Chapter 2: Installing the Power Optimisers 12

Safety 12

Installation Guidelines 14

Step 1: Mounting the Power Optimisers 17

Step 2: Connecting a PV module to a Power Optimiser 18

Step 3: Connecting Power Optimizers in Strings 19

Step 4: Verifying Proper Power Optimiser Connection 20

Chapter 3: Installing the Inverter 21

Inverter Package Contents 21

Identifying the Inverter 21

Unpacking the inverter 21

Inverter Interfaces 22

Mounting the Inverter 26

Selecting a Residual Current Device (RCD) 29

Chapter 4: Installing the Battery (Optional) 31

Chapter 5: Connecting the Inverter 32

Installing Conduits 32

Connecting the Inverter to ACGrid 33

Connecting the DC Strings to the Inverter 33

Connecting the Battery (Optional) 35

Connecting the Backup Interface 36

Connecting an External CTto the Energy Meter (Optional) 37

Connecting an External RSDSwitch (Optional) 38

Installing the 9V Battery 40

Connecting Multiple Inverters through RS485 41

Chapter 6: Activating, Commissioning and Configuring the System 43

Step 3: Verifying Proper Activation and Commissioning 46

Revision History3

SolarEdge Home Hub Inverter Single Phase MAN-01-00812-1.5

Configuring Communication with Other Devices 47

Running a Battery Self-test 47

Enabling Home Hub Applications 48

Enabling Demand Response Mode for Zero Export 49

Reporting and Monitoring Installation Data 50

Chapter 7: Setting Up Communication with the Monitoring Platform 53

Communication Options 53

Communication Connectors 55

Removing the Inverter Cover 56

Creating an Ethernet (LAN) Connection 57

Verifying the Connection 59

Appendix A: Errors and Troubleshooting 60

Identifying Errors 60

Energy Hub Inverter Troubleshooting 61

Troubleshooting Communication 62

Power Optimiser Troubleshooting 63

Appendix B: Mechanical Specifications 65

Appendix C: SafeDC™ 66

Support Contact Information 67

SolarEdge Home Hub Inverter Single Phase MAN-01-00812-1.5

4 Revision History

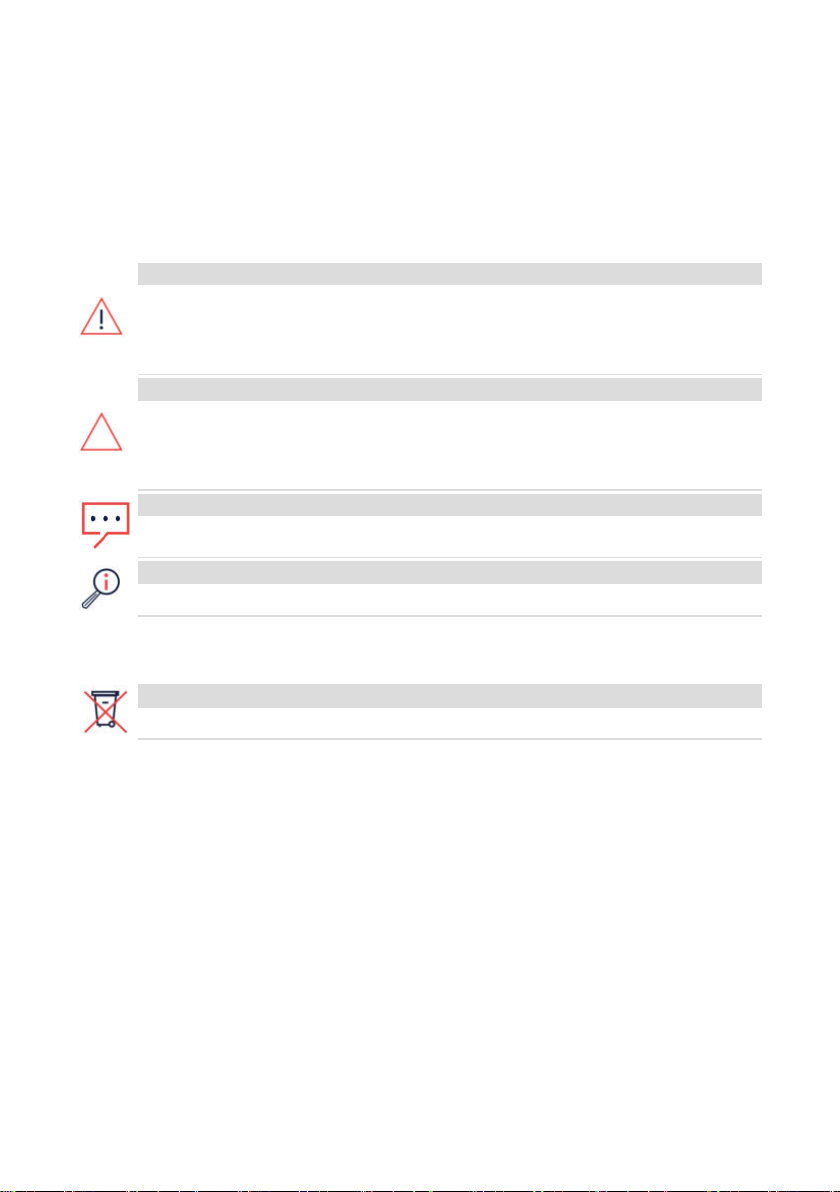

HANDLING AND SAFETY INSTRUCTIONS

Safety Symbols Information

The following safety symbols are used in this document. Familiarize yourself with the

symbols and their meaning before installing or operating the system.

WARNING!

Denotes a hazard. It calls attention to a procedure that, if not correctly

performed or adhered to, could result in injury or loss of life. Do not proceed

beyond a warning note until the indicated conditions are fully understood and

met.

CAUTION!

Denotes a hazard. It calls attention to a procedure that, if not correctly

performed or adhered to, could result in damage or destruction of the

product. Do not proceed beyond a caution sign until the indicated conditions

are fully understood and met.

NOTE

Denotes additional information about the current subject.

IMPORTANTSAFETYFEATURE

Denotes information about safety issues.

Disposal requirements under the Waste Electrical and Electronic Equipment (WEEE)

regulations:

NOTE

Discard this product according to local regulations or send it back to SolarEdge.

HANDLING AND SAFETY INSTRUCTIONS5

SolarEdge Home Hub Inverter Single Phase MAN-01-00812-1.5

IMPORTANTSAFETYINSTRUCTIONS

SAVETHESEINSTRUCTIONS

Warning!

To reduce the risk of injury, read all instructions in this document.

WARNING!

Before opening the inverter cover:

1. Turn off the inverter ON/OFF/P switch located at the bottom of the inverter.

2. Turn off the Connection Unit DCsafety switch (if applicable).

3. Turn off the inverter ACcircuit breaker on the main service panel.

4. Wait five minutes for the capacitors to discharge.



WARNING!

Before operating the inverter, ensure that the inverter AC power cable and wall

outlet are grounded properly. This product must be connected to a grounded,

metal, permanent wiring system, or an equipment-grounding conductor must

be run with the circuit conductors and connected to the equipment grounding

terminal or lead on the product.

WARNING!

Opening the inverter and repairing or testing under power must be performed

only by qualified service personnel familiar with this inverter.

WARNING!

Do not touch the PV panels or any rail system connected when the inverter

switch is ON, unless grounded.

WARNING!

SafeDC complies with IEC60947-3 when installing the system with a worst case

SafeDC voltage (under fault conditions) < 120V.

The worst case voltage is defined as: Voc,max+ (String Length-1)*1V, where:

Voc,max = Maximum Voc (at lowest temperature) of the PV modules in the

string (for a string with multiple modules, use the max value)

String Length = number of power optimisers in the string

CAUTION!

This unit must be operated according to the technical specification datasheet

provided with the unit.

SolarEdge Home Hub Inverter Single Phase MAN-01-00812-1.5

6 IMPORTANTSAFETYINSTRUCTIONS

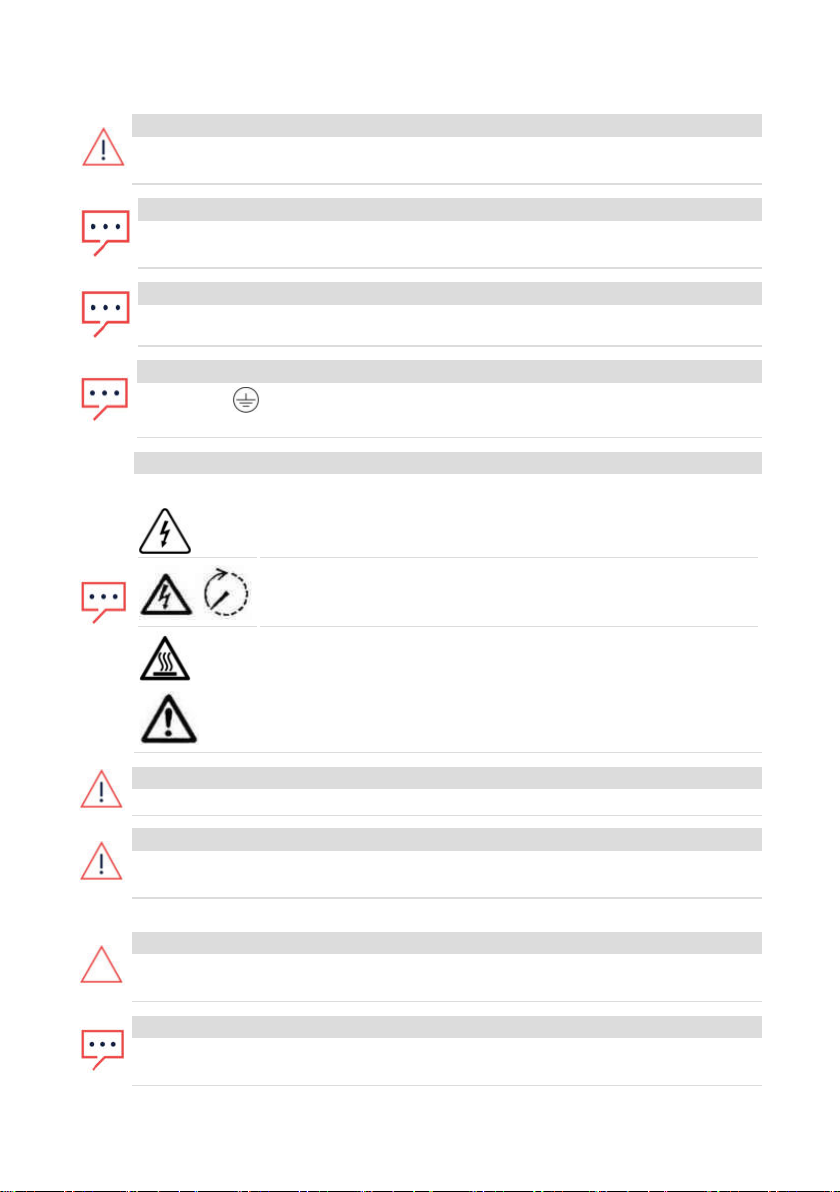

CAUTION!

HEAVY OBJECT. To avoid muscle strain or back injury, use proper lifting

techniques, and if required - a lifting aid.

NOTE

The Connection Unit is NEMAtype 3R rated . Unused glands should be sealed

with appropriate seals.

NOTE

Use PV modules rated according to IEC 61730 class A.

NOTE

The symbol appears at grounding points on the SolarEdge equipment. This

symbol is also used in this manual.

NOTE

The following warning symbols appear on the inverter warning label:

Risk of electric shock

Risk of electric shock from energy stored in the capacitor. Do

not remove cover until 5 minutes after disconnecting all

sources of supply.

Hot surface – To reduce the risk of burns, do not touch.

Caution, risk of danger

WARNING!

Before operating the system, ensure that the been grounded properly.

WARNING!

When handling the storage system battery, adhere to all manufacturer safety

instructions.



CAUTION!

This unit must be operated under the specified operating conditions as

described in the technical specifications supplied with the unit.

NOTE

The batteries must be certified according to local regulations and supported by

the SolarEdge inverter firmware.

IMPORTANTSAFETYINSTRUCTIONS 7

SolarEdge Home Hub Inverter Single Phase MAN-01-00812-1.5

NOTE

For battery decommissioning and disposal, follow the manufacturer

requirements and instructions.

NOTE

Multiple inverter combination is not supported.

NOTE

The Home Hub Interface is IP65 rated. Unused connectors and glands should

be sealed with the provided seals.

NOTE

For inverters with a nameplate up to and including 10kW:

Maximum short circuit peak current: 78.1A

Maximum short circuit current duration (until current stops): 113msec

Maximum 3-cycle short circuit current RMS value: 60A

SolarEdge Home Hub Inverter Single Phase MAN-01-00812-1.5

8 IMPORTANTSAFETYINSTRUCTIONS

Chapter 1: Overview

NOTE

Backing up high-consumption loads, such as whole home air conditioners and

well pumps, requires installation of a soft start device (not supplied by

SolarEdge) on the AC supply of these loads.

SolarEdge Home Battery Solution Components

SolarEdge Home Hub Inverter Single Phase - manages battery and system

energy, in addition to its traditional functionality as a DC-optimized PV inverter.

The Connection Unit, located at the bottom of the inverter, allows simple

installation and connectivity to other system components and includes an external

DC Safety Switch.

The Energy Meter is used by the inverter for export, import, and consumption

readings, and for Smart Energy Management applications, such as export limitation,

time-of-use profile programming and maximizing self-consumption.

One or multiple batteries (optional) - DC-coupled batteries designed to work with

the SolarEdge system. The batteries can be connected to the system optionally.

When installing a battery, connect the DC cables from the battery and from Power

Optimisers to an external combiner box, compliant with local regulation. Then,

connect the cables from the combiner box to the DCterminals inside the inverter's

Connection Unit.We recommend using the SolarEdge combiner box. For

installation and connection instructions see:

https://www.solaredge.com/sites/default/files/se-combiner-box-installation-guide-

aus.pdf



Chapter 1: Overview9

SolarEdge Home Hub Inverter Single Phase MAN-01-00812-1.5

Autres manuels pour Energy Bank

Table des matières

Autres manuels SolarEdge Onduleur

SolarEdge

SolarEdge SE330K Manuel utilisateur

SolarEdge

SolarEdge SE K Series Manuel utilisateur

SolarEdge

SolarEdge SE K Series Manuel utilisateur

SolarEdge

SolarEdge SEXXXXH-RWMBNBF54 Manuel utilisateur

SolarEdge

SolarEdge SE7600A-US Manuel utilisateur

SolarEdge

SolarEdge SE2200 Manuel utilisateur

SolarEdge

SolarEdge T568B Manuel utilisateur

SolarEdge

SolarEdge SE8000H-AU Manuel utilisateur

SolarEdge

SolarEdge SE K Series Manuel utilisateur

SolarEdge

SolarEdge StorEdge SE7600A-US1 Manuel utilisateur

SolarEdge

SolarEdge SE2500H Manuel utilisateur

SolarEdge

SolarEdge SE5000H-US Manuel utilisateur

SolarEdge

SolarEdge Power Harvesting System Manuel utilisateur

SolarEdge

SolarEdge SE K Series Manuel utilisateur

SolarEdge

SolarEdge Inline Energy Meter Manuel utilisateur

SolarEdge

SolarEdge SE K-AU I Series Manuel utilisateur

SolarEdge

SolarEdge StorEdge Solution with Backup Manuel utilisateur

SolarEdge

SolarEdge storedge Manuel utilisateur

SolarEdge

SolarEdge storedge Manuel utilisateur

SolarEdge

SolarEdge SE3000US Manuel utilisateur

SolarEdge

SolarEdge SE8K-N4 Manuel utilisateur

SolarEdge

SolarEdge storedge Manuel utilisateur

SolarEdge

SolarEdge Home Hub Inverter Three Phase Manuel utilisateur

SolarEdge

SolarEdge StorEdge SE7600A-USS Manuel utilisateur

Manuels Onduleur populaires d'autres marques

Fourgroup

Fourgroup Easy Manuel utilisateur

Velleman

Velleman PI300M Manuel utilisateur

Sungrow

Sungrow SG350HX-US Manuel utilisateur

WilTec

WilTec 61897 Manuel utilisateur

SMA

SMA SUNNY BOY STORAGE 2.5 Manuel utilisateur

Simplicity

Simplicity LANDLORD 316 Manuel utilisateur

Santak

Santak SMAX 3000 Manuel utilisateur

ATON

ATON RA.Store-3 Manuel utilisateur

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manuel utilisateur

Tektronix

Tektronix CFG250 Manuel utilisateur

Champion

Champion 200989 Manuel utilisateur

Vanner

Vanner 20-500 Series Manuel utilisateur

GE GEP Manuel utilisateur

Astrel Group

Astrel Group Power Reducer Guide rapide

MULTIQUIP

MULTIQUIP GDP-5H Mode d’emploi

GoWISE

GoWISE PS1007 Manuel utilisateur

Promate

Promate PM13500D ES Manuel utilisateur

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manuel utilisateur
