SOLAR VISION TX300 Manuel utilisateur

installation ManUal

tx300 & tx150 commercial solar lighting system

Solar Vision inc. www.solar-vision.com info@solar-vision.com T. 1-819-729-0450

Revision 3.2 | May 24, 2022

IMPORTANT: Always install the system assembly on the pole before inserting the batteries.

The assembly system should never be handled when the batteries are installed inside.

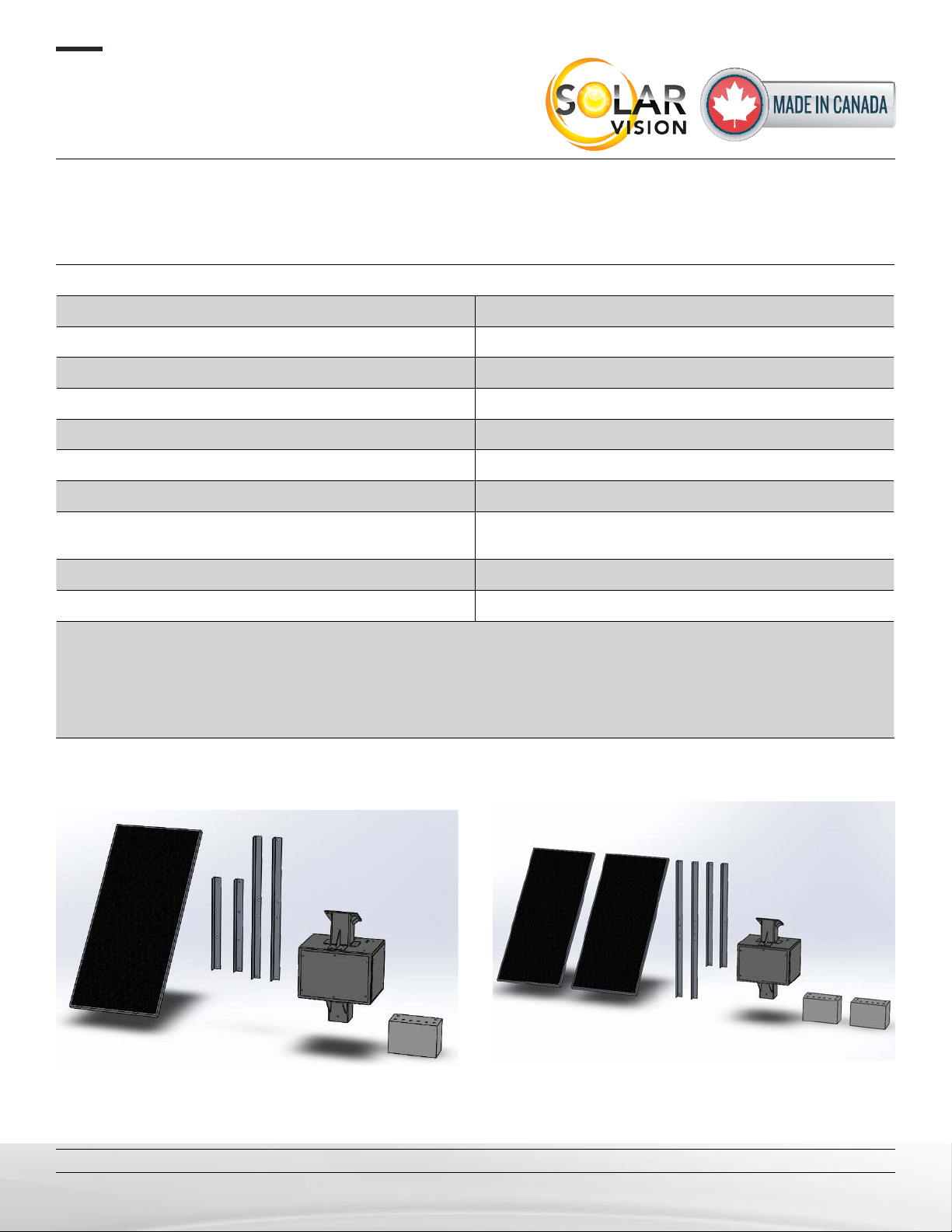

LIST OF MATERIAL BY MODEL

TX150 SYSTEM: TX300 SYSTEM:

Battery/Control main enclosure Battery/Control main enclosure

Battery, 12V (1 per system) Battery, 12V (2 per system, in series)

L shape prole, 30in long (2 per system) L shape prole, 30in long (2 per system)

L shape prole, 26in long (2 per system) L shape prole, 53in long (2 per system)

Solar Module 150W (1 per system) Solar Module 150W (2 per system)

3/8” stainless steel hardware for assembly 3/8” 5/16 stainless steel hardware for assembly

5/16” stainless steel hardware for solar module

assembly

5/16” stainless steel hardware for solar module

assembly

LED luminaire, 12Vdc compatible LED luminaire, 24Vdc compatible

2ft Elliptical tube mounting arm (Hardware not included) 2ft Elliptical tube mounting arm (Hardware not included)

Note 1: The TX150 system is a 12Vdc system with one (1) 12V battery and one (1) 150W solar module. This system is

compatible with an LED luminaire operating at 12Vdc only.

Note 2: The TX300 system is a 24Vdc system with two (2) 12V batteries in series and two (2) 150W solar modules. This

system is compatible with an LED luminaire operating at 24Vdc. Do not use a 12Vdc luminaire on a 24Vdc system.

This will cause permanent damage to the LED driver.

TX150 System Components TX300 System Components

*Elliptical tube mounting arm and luminaire NOT shown *Elliptical tube mounting arm and luminaire NOT shown

P.1/11

installation ManUal

tx300 & tx150 commercial solar lighting system

Solar Vision inc. www.solar-vision.com info@solar-vision.com T. 1-819-729-0450

Solar Vision inc. www.solar-vision.com inf[email protected]om T. 1-819-729-0450

Revision 3.2 | May 24, 2022

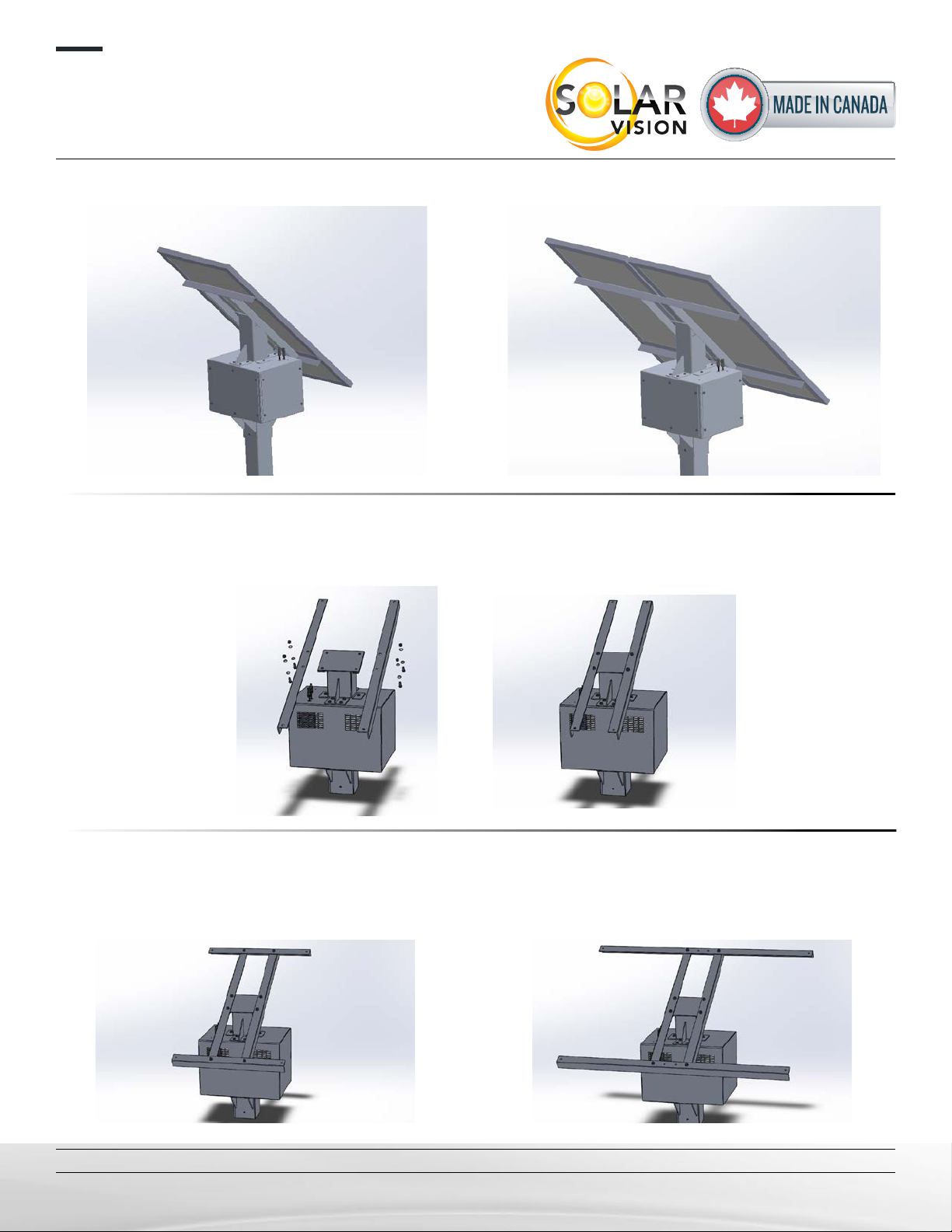

STEP 1:

Using the 3/8-16 x 1¼” bolts and hardware (hex bolt, at washer, lock washer and hex nut), tighten the

two 30in “L” channels to the “main support” as indicated on the image.

STEP 2:

Using the 3/8-16 x 1” bolts and hardware (hex bolt, at washer, lock washer and hex nut), tighten the

two “L” channels (26in or 53in according to model) to the “30in L channel” as indicated on the image.

TX150 FINAL ASSEMBLY TX300 FINAL ASSEMBLY

This step is identical

for the TX150 & TX300

TX300

TX150

P.2/11

installation ManUal

tx300 & tx150 commercial solar lighting system

Solar Vision inc. www.solar-vision.com info@solar-vision.com T. 1-819-729-0450

Solar Vision inc. www.solar-vision.com inf[email protected]om T. 1-819-729-0450

Revision 3.2 | May 24, 2022

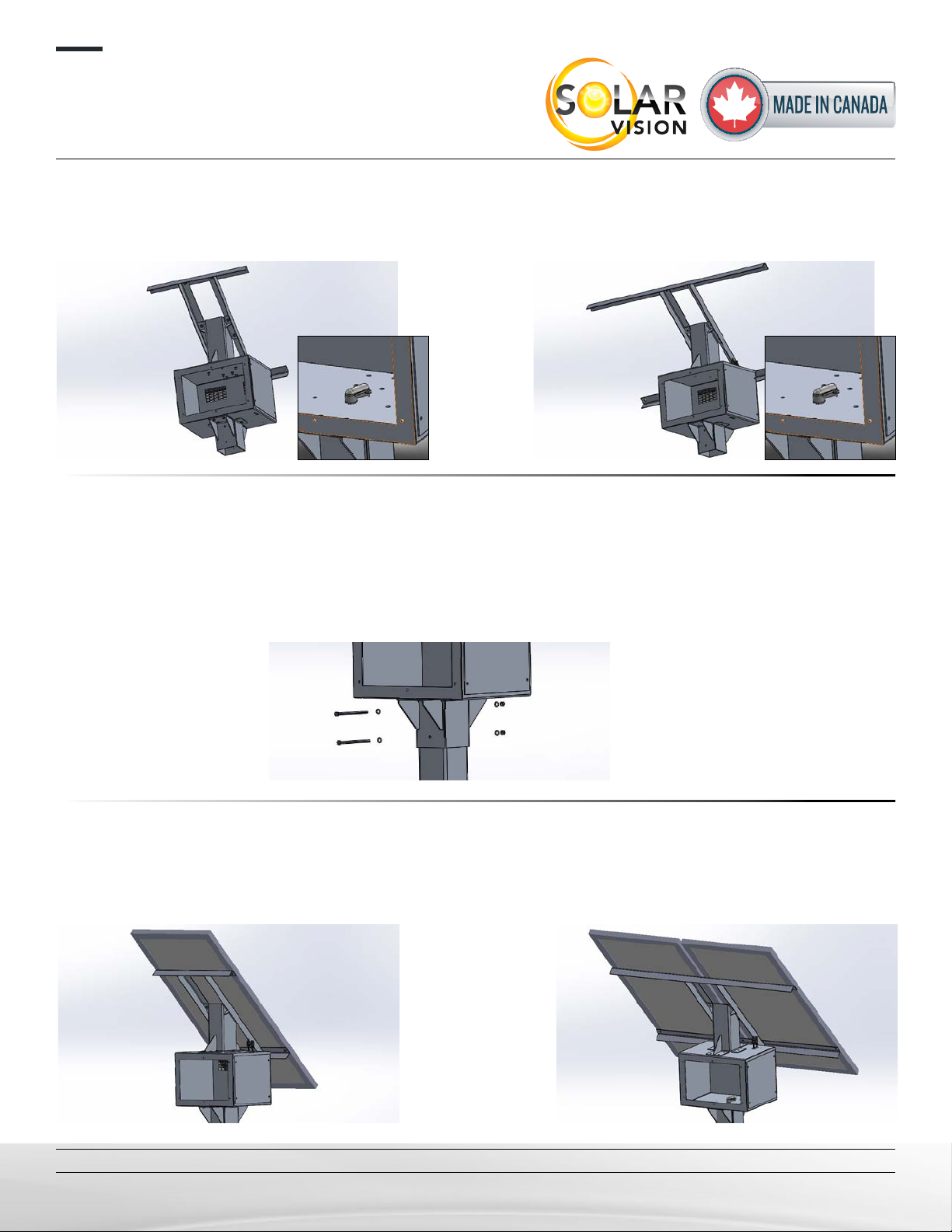

STEP 3:

Pass through the luminaire power cable (preinstalled in the battery box) into the 90 degree connector

to make it available for the luminaire connection. 10FT, #16 AWG is pre-wired.

STEP 4:

1. Determine the system’s orientation so that the solar panels are facing South.

2. Once the orientation is determined, use the drilling guide at the end of the document to drill holes

at the proper location.

3. Slide the system on the pole and use the 3/8”-16 x 6½” bolts and hardware to secure the system

into position. Bolts crosses the pole.

STEP 5:

Using the 5/16-18 x 1” bolts and hardware (hex bolt, at washer, lock washer and hex nut), install the

solar panels using their precut frame holes.

Note: The solar panel junction boxe needs to be on the down side.

TX150 TX300

P.3/11

installation ManUal

tx300 & tx150 commercial solar lighting system

Solar Vision inc. www.solar-vision.com info@solar-vision.com T. 1-819-729-0450

Solar Vision inc. www.solar-vision.com inf[email protected]om T. 1-819-729-0450

Revision 3.2 | May 24, 2022

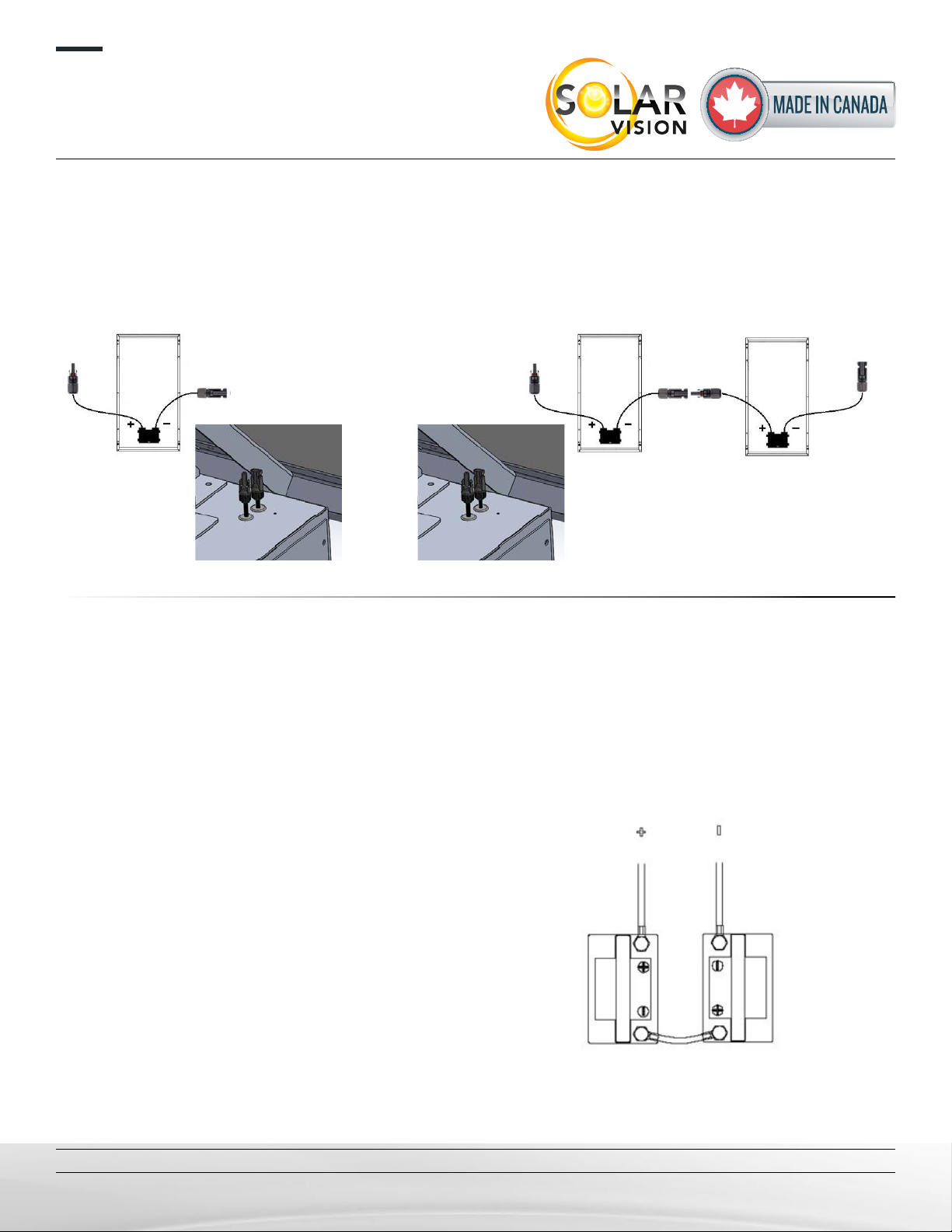

STEP 6:

1. For the TX300 only, make a serial connection between the solar panels, as shown in the picture

(The positive cable of one panel with the negative cable of the other panel).

2. Then connect the two remaining cables to the MC4 (pre-wired) connector on the main battery com-

partment as shown on the image.

STEP 7:

1. Following the + and - (positive and negative) orientation as indicated in the battery compartment,

insert the batteries.

2. For the TX300 only, using the supplied cable, make a serial connection between the batteries

(The positive terminal of one battery with the negative terminal of the other battery).

3. Then, by respecting the cable polarities, complete the batteries connection by using the pre wired

cables in the battery compartment.

TX150 TX300

TX300

ONLY

P.4/11

installation ManUal

tx300 & tx150 commercial solar lighting system

Solar Vision inc. www.solar-vision.com inf[email protected]om T. 1-819-729-0450

Revision 3.2 | May 24, 2022

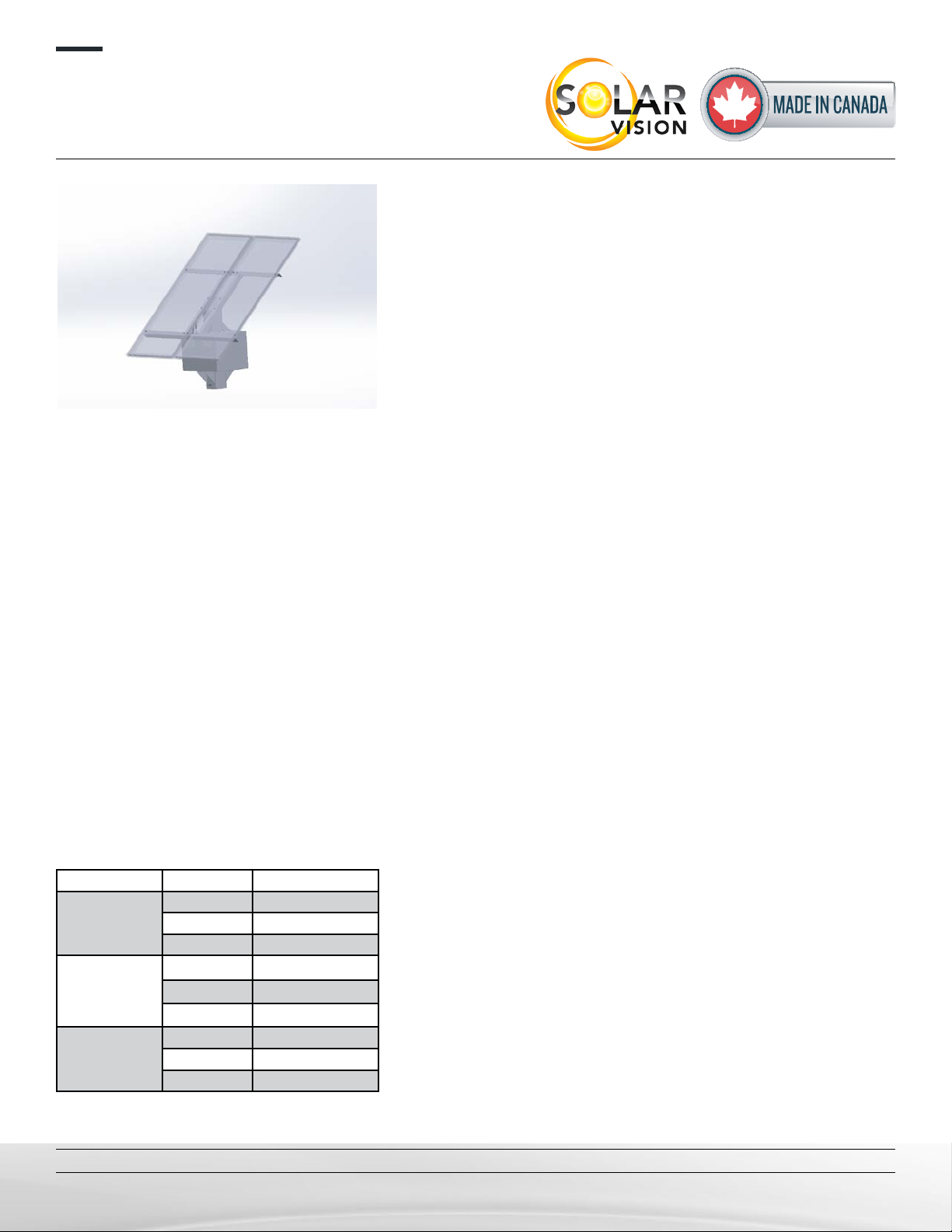

STEP 8:

Close the battery compartment door using the 1/4”-20 bolts

and neopren washers.

STEP 9:

Install the pole arm and the luminaire at the desired location,

minimum 18in underneath the battery compartment.

Hardware not provided for the pole arm.

Pole arm and luminaire specications are included herein.

The DC lighting xture has 3 wires:

Positive Red(+), Negative Black(-), and Dimming White

(signal). Please make all 3 connections for proper opera-

tion.

DAY-NIGHT TRANSITION

The TX300 solar system uses the solar panel to detect day and night periods. The night transition re-

quires a very low brightness level for 5 continuous minutes. This constraint prevents false night transi-

tions that could be caused by storm clouds in the evening. If the solar module is covered with debris,

the solar module voltage may be too low and may cause light synchronization errors. If the light works

erratically, make sure the solar module is clean. The light automatically corrects synchronization errors

whithin 24 hours.

IMPORTANT

If you wish to store the batteries, they need to be recharged before storing for a period of 15 days or

more in order to prevent damage to the battery. The batteries must be stored at 20°C room temperature.

The light must be installed in an open area, no trees or nearby structure, this could favor snow accu-

mulation and shading.

Never manipulate the battery compartment when the batteries are inside. Use the quick access door to

remove the batteries before handling. Failing to follow these recommendations can result in seri-

ous danger and dammage.

Orientation Period Autonomy losses

South (≈ optimal)

Annual 0%

Summer 0%

Winter 0%

East / West

Annual -21%

Summer -15%

Winter -40%

North

Annual -50%

Summer -41%

Winter -72%

SOLAR PANNEL ORIENTATION AND AUTONOMY

P.5/11

2.500

1.250

4.000

TYP.

.500

DETAIL

SCALE

1 : 3

NOTE:

The installation of the

battery

box on the top of

the lamp

post requires

drilling the post

as per the presented drilling

patturn.

The lamp will be

secured

using 2 bolts through

the

lamp post.

Drill on all 4 sides to simplify

on site coordination. (South

orientation of the solar

modules.)

A A

B B

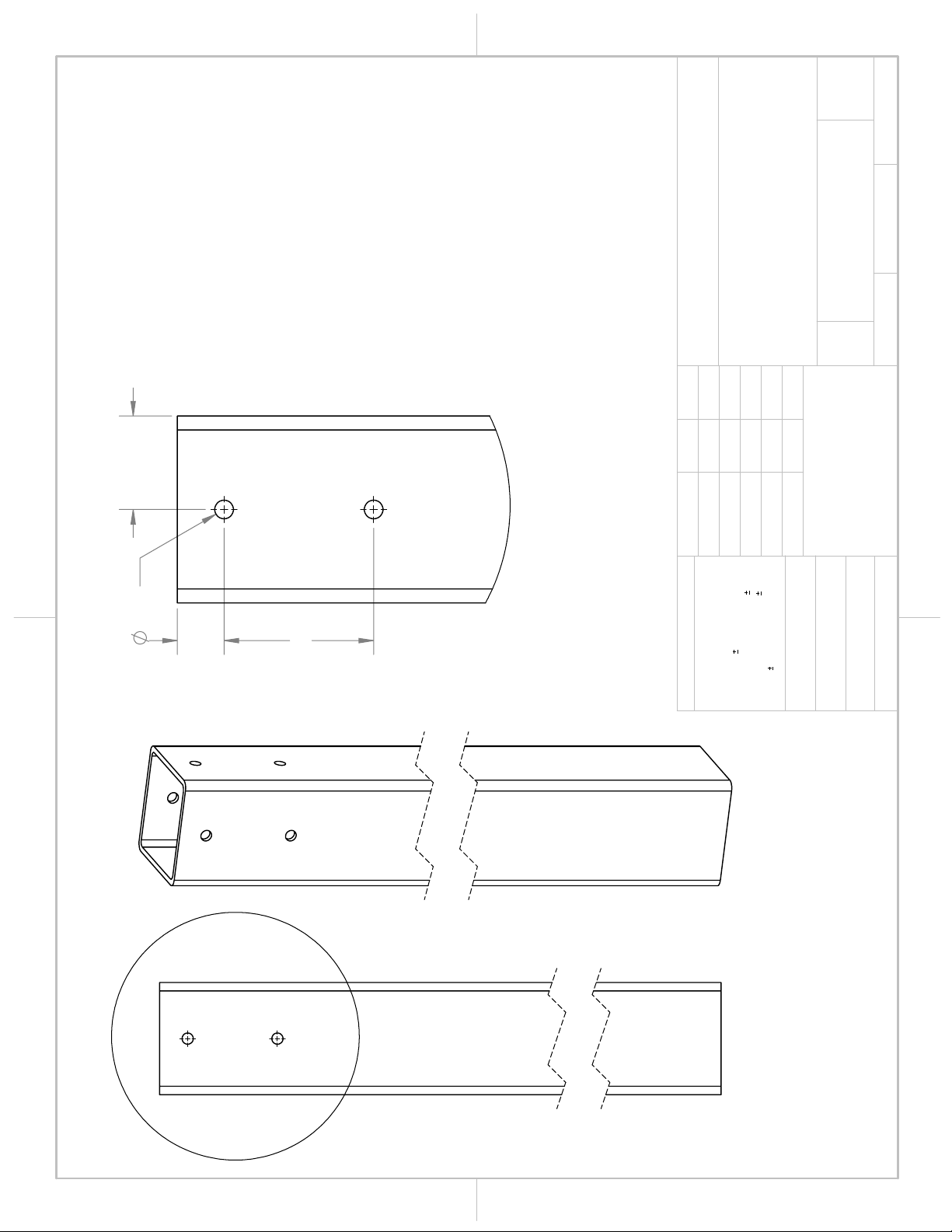

TX300/TX150

5 INCH POST

DRILLING PATTERN

DO NOT SCALE DRAWING

TX300/150-02-EN

SHEET 1 OF 1

27 JUN 19

27JUN 19

JFOL

UNLESS OTHERWISE SPECIFIED:

SCALE: 1:5

WEIGHT:

REV

DWG NO.

TITTLE

NAME

DATE

PROPRIETARY AND CONFIDENTIAL

Q.A.

MFG APPR.

ENG APPR.

CHECKED

DRAWN

FINISH

MATERIAL

INTERPRET GEOMETRIC

TOLERANCING PER:

DIMENSIONS ARE IN INCHES

TOLERANCES:

ANGULAR:

TWO PLACE DECIMAL

0.6"

THREE PLACE DECIMAL

0.31"

HOLES:

0.05"

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

SOLAR VISION. ANY REPRODUCTION IN

PART OR AS A WHOLE WITHOUT THE

WRITTEN PERMISSION OF SOLAR VISION IS

PROHIBITED.

COMMENT

SIZE

POLE NOT INCLUDED

Tenon drilling pattern not

shown here.

P.6/11

P.7/11

3.20

1.60

0.359" TYP.X4

1.00"

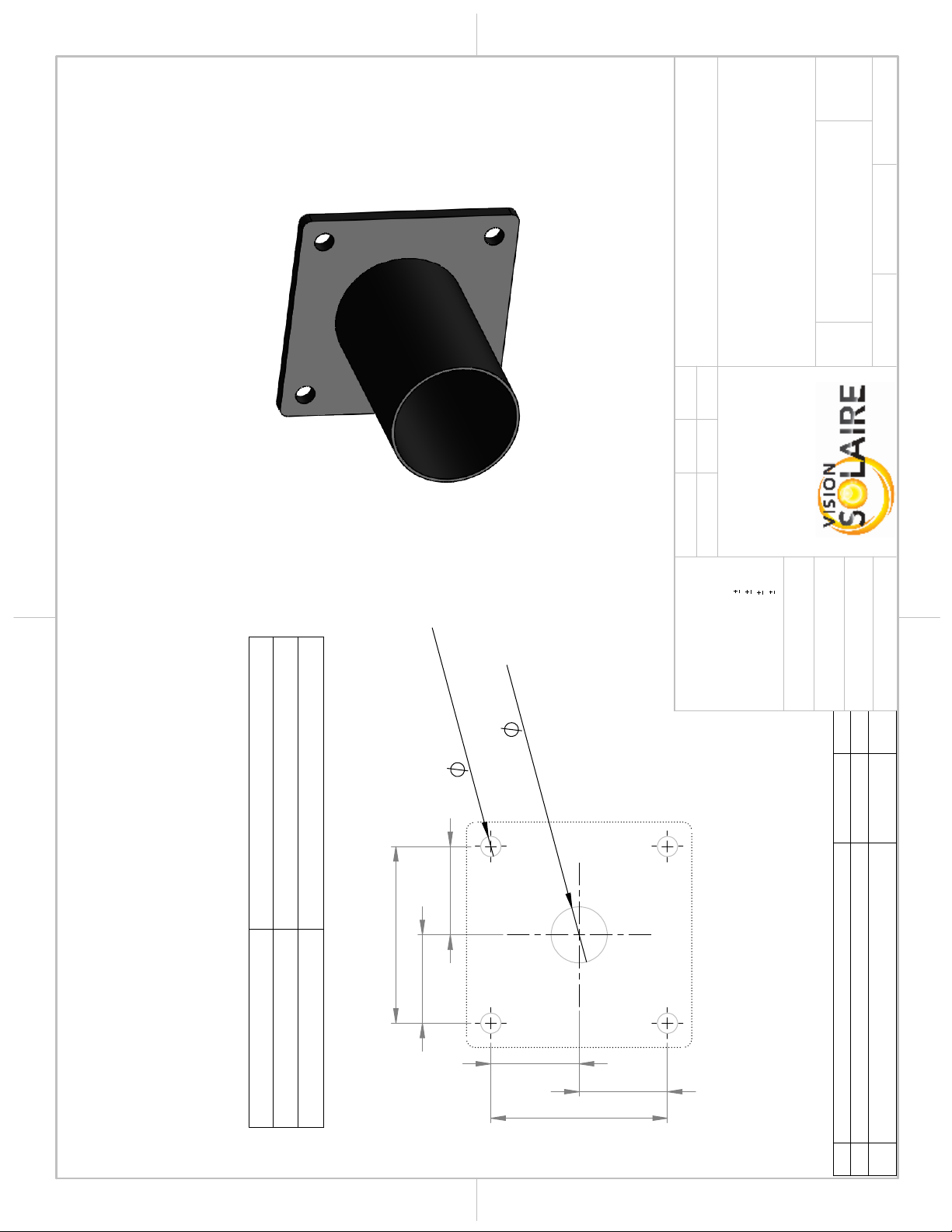

PROVIDED BY DEFAULT FOR THE ZX & TX SERIES WHEN NO OTHER OPTIONAL

POLE ARM IS PURCHASED

HARDWARE 1/4-20X1" (4X) INCLUDED FOR INSTALLING THE TENON

PLEASE COORDINATE DRILLING HOLES WITH YOUR POLE MANUFACTURER.

THE FIXTURE'S TENON MUST BE INSTALLED AT A MINIMUM DISTANCE BELOW

BELOW THE TOP OF THE POST AS PER THE FOLLOWING TABLE:

PERCEMENTS

DIMENSIONS IN INCHES

REV.

DESCRIPTION

DATE

PAR

1 MOUNTING LOCATION

25 MAI 2022

JFOL

ORIGINAL

2 AOUT 2021

JFOL

DISTANCE MIN.

MODÈLE

12" (305mm)

ZX30 & ZX60

18" (457mm)

ZX100, ZX170, TX150 & TX300

A A

B B

PROJECT:

WEIGHT:

THICKNESS

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

VISION SOLAIRE INC ANY

REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

VISION SOLAIRE COM IS

PROHIBITED.

PROPRIETARY AND CONFIDENTIAL

DIMENSIONS ARE IN INCHES

DEFAULT TOLERANCES:

ANGULAR

1°

TWO PLACE DECIMAL

.06"

THREE PLACE DECIMAL

.031"

HOLES

.005"

MATERIAL

FINISH

DRAWN

DATE

NAME

ZX - TX

TITLE:

SIZE

DWG. NO.

REV

SCALE: 1:2

UNLESS OTHERWISE SPECIFIED:

JFOL

2 AUG 2021

SHEET 1 OF 1

TENSQ45

DO NOT SCALE DRAWING

DRILLING PATTERN

HORIZONTAL TENON FOR

4" & 5" SQUARE POLE

PAINTED STEEL





















































Power Modules Dimension Weight



EPA





























































































P.8/11

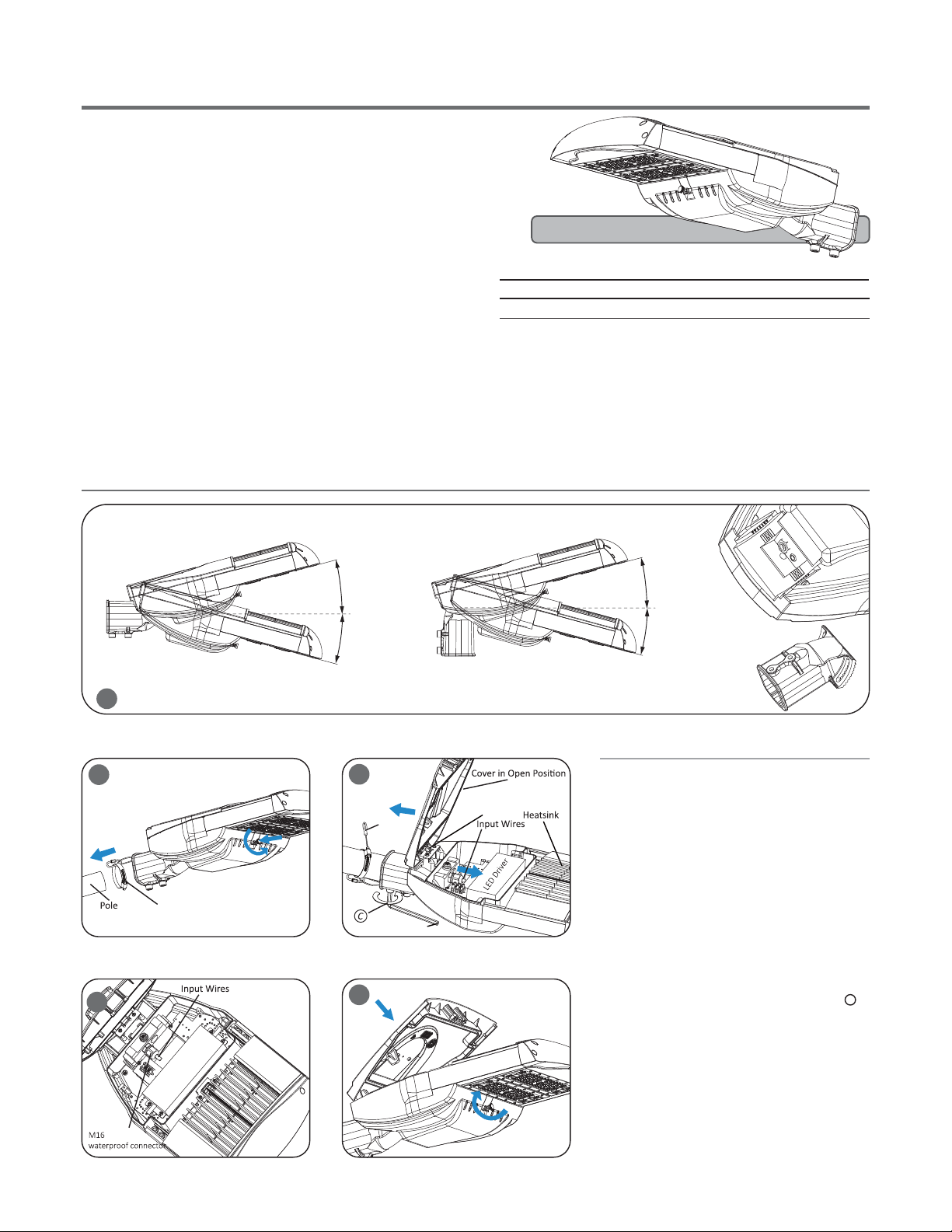

IMPORTANT

DC(Direct Current) based system.

DC BASED

STEP 1:

Make the following Electrical ConnecƟons:

Connect INPUT POSITIVE(+) conductor to RED WIRE posiƟon

of the terminal block or POSITIVE(+) conductor of LED driver.

Connect INPUT NEGATIVE(-) conductor to BLACK WIRE

posiƟon of the terminal block or NEGATIVE(-) conductor of

LED driver.

Connect INPUT DIM SIGNAL (WHITE WIRE) to Dim signal of

LED Driver.

STEP 2:

Make sure all excess input wires are pushed into pole, screws are

Ɵghtened.

STEP 3:

Close cover by rmly pushing cover towards xture, making sure

that no wires are pinched and Sealing gasket are fully engaged.

STEP 4:

If the xture without a terminal block, please insulate all electrical

connecƟons with wire nuts suitable for at least 90°C

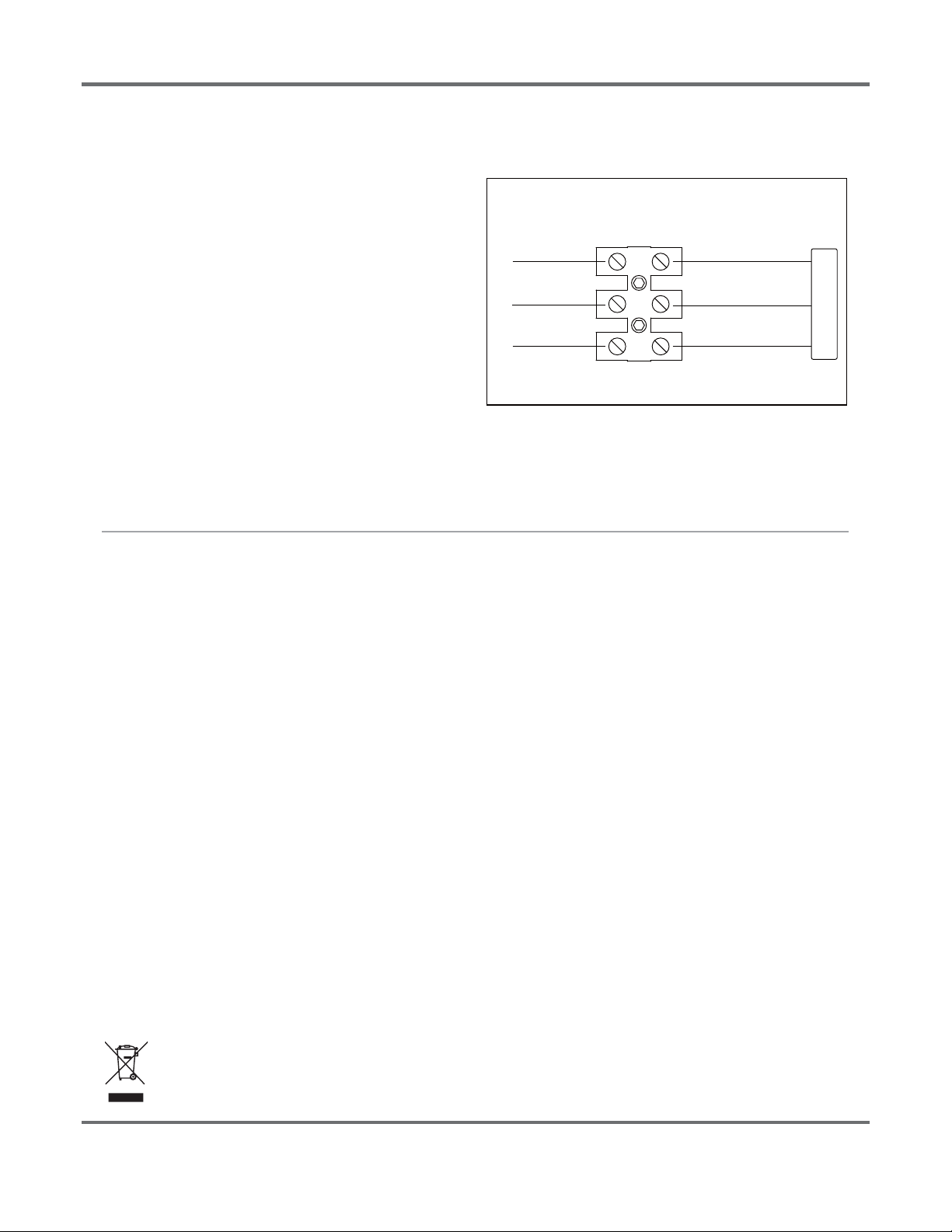

TERMINAL BLOCK

LED DRIVER

NEGATIVE(-) NEGATIVE(-) BLACK

POSITIVE(+) POSITIVE(+) RED

INPUT WIRING

FIXTURE WIRING

This marking indicates that this product should not be disposed with other household wastes throughout the EU.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it

responsibly to promote the sustainable reuse of material resources. To return your used device, please use

the return and collecƟon systems or contact the retailer where the product was purchased. They can take

this product for environmental safe recycling.

DIM Signal

(white)

DIM Signal (White)

P.9/11

P.10/11

9.00

1.00

0.69

4.25

11.50

9.00

1.00

4.13

0.69

DRILLING PATTERN

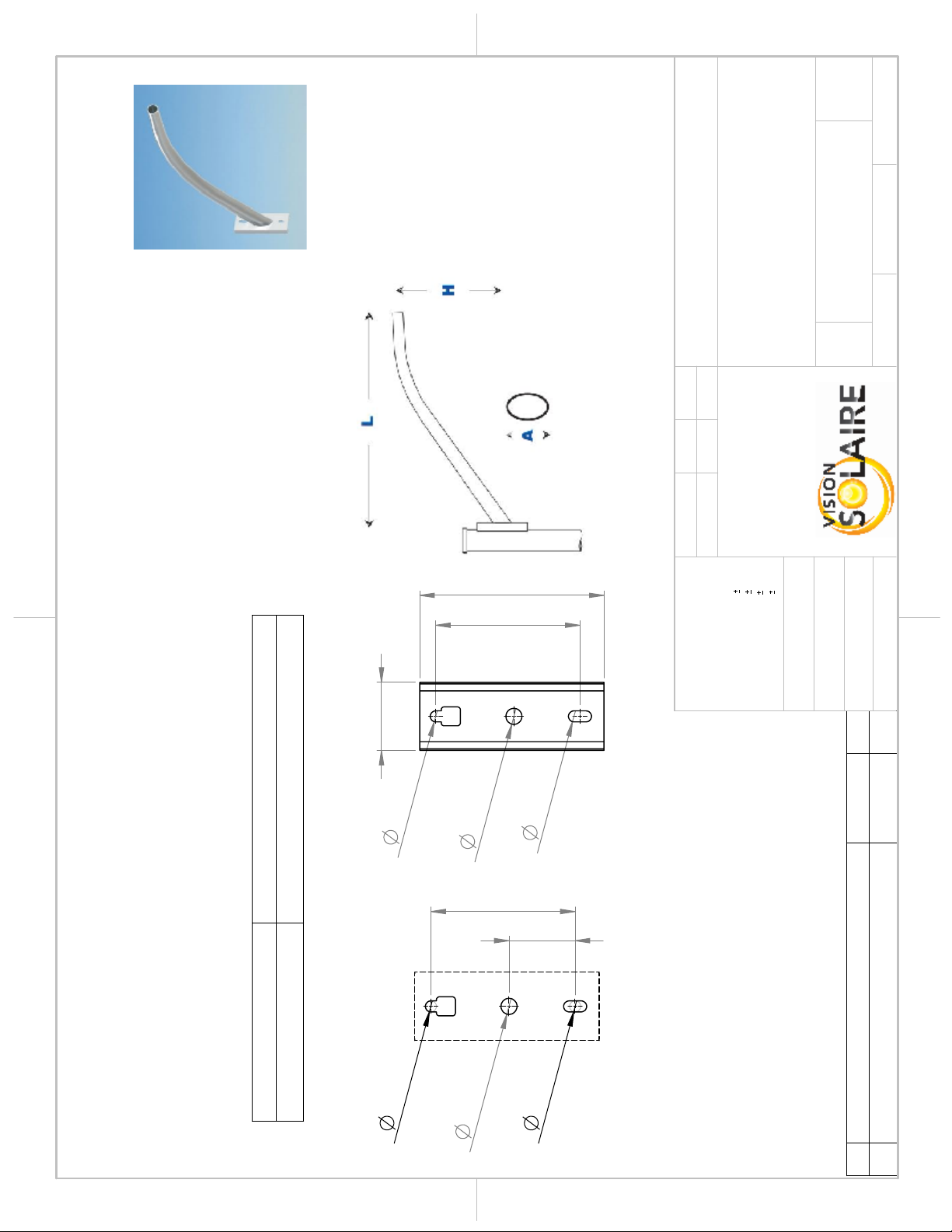

OPTIONAL ELLIPTICAL POLE ARM #RE2MA AVAILABLE FOR THE ZX & TX SERIES.

HARDWARE 5/8-11X 3" (X2) INCLUDED FOR INSTALLING THE POLE ARM.

PLEASE COORDINATE DRILLING HOLES WITH YOUR POLE MANUFACTURER.

THE FIXTURES'S POLE ARM MUST BE INSTALLED AT A MINIMUM DISTANCE BELOW

THE TOP OF THE POST AS PER THE FOLLOWING TABLE:

DIMENSIONS IN INCHES

BACK

L = 24"

H = 12"

A = 2.5" x 3.375"

DIAM. EXT. = 2.375"

THICKNESS = 0.125"

REV.

DESCRIPTION

DATE

PAR

ORIGINAL

26 MAI 2022

JFOL

DISTANCE MIN.

MODEL

18" (457mm)

ZX100, ZX170, TX150 & TX300

A A

B B

PROJECT:

WEIGHT:

0.125"

THICKNESS

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

VISION SOLAIRE INC ANY

REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

VISION SOLAIRE COM IS

PROHIBITED.

PROPRIETARY AND CONFIDENTIAL

DIMENSIONS ARE IN INCHES

DEFAULT TOLERANCES:

ANGULAR

1°

TWO PLACE DECIMAL

.06"

THREE PLACE DECIMAL

.031"

HOLES

.005"

MATERIAL

FINISH

BLACK

DRAWN

DATE

NAME

ZX - TX

TITLE:

SIZE

DWG. NO.

REV

SCALE: 1:25

UNLESS OTHERWISE SPECIFIED:

JFOL

26 MAI 2022

SHEET 2 OF 2

RE2MA

DO NOT SCALE DRAWING

DRILLING PATTERN

ELLIPTICAL POLE

ARM 2'

6063-T6 ALU.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SOLAR VISION Équipement d'éclairage

SOLAR VISION

SOLAR VISION TX360 Manuel utilisateur

SOLAR VISION

SOLAR VISION ZX Series Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
