SOLAR ROYAL SR1800 QUICK INSTALL GUIDE

ank you for purchasing a Solar Royal SR1800. e following is a quick guide to installing your attic fan. You may nd the full

installation guide at manual.solarroyal.com. Please make sure to register your product, as this is necessary for activating your

warranty. Once again, it is crucial that the end user registers the products installed within ninety days or your product will not be

covered by our warranty. You may register with the enclosed form or online at reg.solarroyal.com.

Prior to the Installation:

Tools Required:

• Safety Goggles • Stud Finder

• Measuring Tape • Drill w/Phillips Bit

• Marking Pencil • Flat Pry Bar

• Utility Knife • Caulk Gun

• Screws (Provided) • Reciprocating Saw

• Caulk (MP1 or similar) • String and 2 Nails (Recommended)

Set Up Note:

Prior to installation, please check the cabling for the thermostat (thermoball).

Please be careful to ensure the wiring is properly placed in the wiring channel

and the sliding clip is secure. If it is not properly placed, the cable can be damaged,

cut or become tangled into the motor. We recommend utilizing a piece of heavy duty

tape to secure the clip to ensure it will not move over time. See images to the right.

Step 1: Measure and Cut the Hole

On either 24” or 16” center construction, we recommend cutting a 15” round hole between the raers. We recommend installing

the SR1800 between the raers but if not possible it is OK to install the SR1800 over a raer.

Step 2: Insert the Flashing

Once the hole as been made, trim away shingles as needed to accommodate the metal base ashing so that you have a clean and

tight t. Normally, if you cut a clean 15” hole, we recommend trimming away from the top rows of shingles an additional 1” (one

inch) to allow the base ashing to slip under the top row(s) of shingles and over the bottom row(s). Slip the at metal base under

the top rows of shingles and center the unit over the opening. e base is square so it does not matter which side is installed rst.

Before attempting to slide in the ashing, remove any roong nails or other obstructions. Avoid scratching the powder-coating.

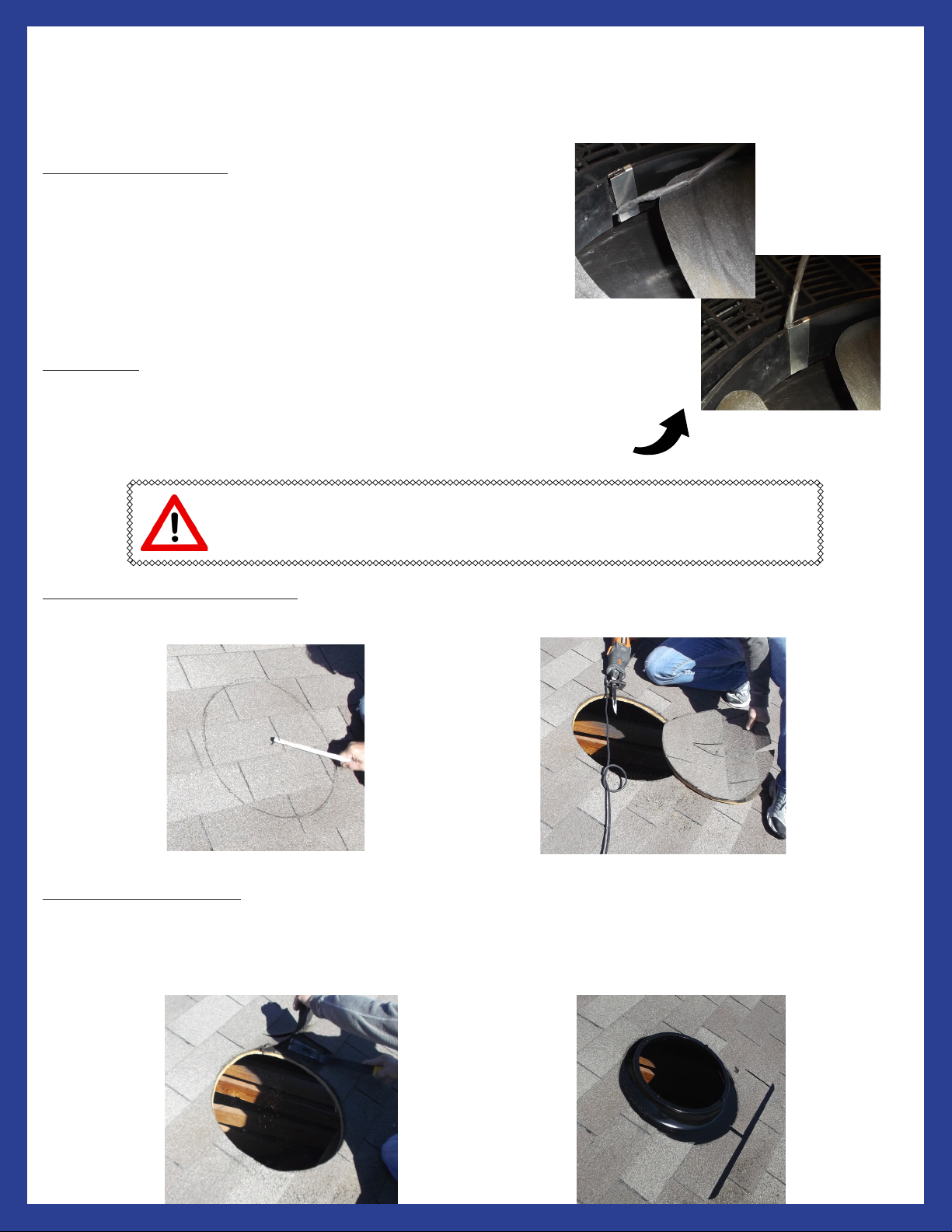

Improperly Cabled

Properly Cabled

Installing an attic fan is fairly easy but Solar Royal, LLC recommends that if you have

no experience working with these materials or are not familiar with working on a

roof, you should hire an insured and bonded professional to install anything on your

roof, including a solar attic fan.

Measuring the hole e hole cut out

Removing

obstructions

Flashing aer

sliding in

Step 3: Seal and Secure the Flashing

Once the metal ashing is in place, gently li the lower exposed metal base ashing and apply sealant (caulk) generously under the side and

lower edges, but not so much that it oozes out. If sealant starts to ooze, just wipe o excess before it hardens. e bottom part of the ashing

will be exposed and sits on top of the shingles. Drill 8 mounting holes (along bottom and exposed sides). Use the eight (8) 1” panhead screws

provided to mount the unit while making sure the unit is properly squared with the roof edge or side before securing the second screw. Not

having the unit properly squared will make for an uneven look from the ground so it’s important to align it carefully.

Aer properly mounting the SR1800 to the roof, utilize the exterior grade, high-heat, waterproof sealant (caulk) by applying generously over

the screws as needed over or on the sides of the shingles. Re-check the status of the oozing or lack of sealant on the exposed metal

ashing underside. Now is the time to do it right and make sure the installation is watertight. Also seal any scratches or loosened paint.

Step 4: Attach and Congure the Hood

e SR1800 comes with a 36” thermostat wire (thermoball) attachment. is is designed to hang down into your attic. You can adjust the

length of the thermostat with a cable tie or tape. e ermoball is designed to allow the fan to run once the temperature is above 78° F

( +/- 5° ). Carefully set the SR1800 down (centered) on the metal base (ashing) making sure the thermoball /cable is not being pinched and

is handing down within the attic space. Also if you want to have your solar panel at an angle - remember to take into consideration where and

how the hood is placed down, in the event angling the panel is required. e SR1800 when placed on the base is slightly o and not exactly

squared with the metal base unit until the unit is (turned to the le) clicked into place. You will hear a very distinct ‘Click’ which is the metal

clips locking the solar attic fan into place. If you have found that you have placed it incorrectly, you will then need to remove the four screws

from the sides, liing o the top portion of the solar attic fan. Be careful not to pinch or sever the wiring. You will then nd two metal thumb-

spring plates which you will slightly li. To turn the lower portion of the solar attic fan to the right so it can be removed and reattached to the

top part of the unit.

Step 5: Serial Number & Warranty Registration

e SR1800 has matching serial numbers on the box, hood, solar panel and motor. is is a great to time to remind your customer or if you

are the customer to verify your serial number(s) so that you can register right away. Warranty is only valid if registered within 90 days of

installation or purchase invoice date, whichever is rst.

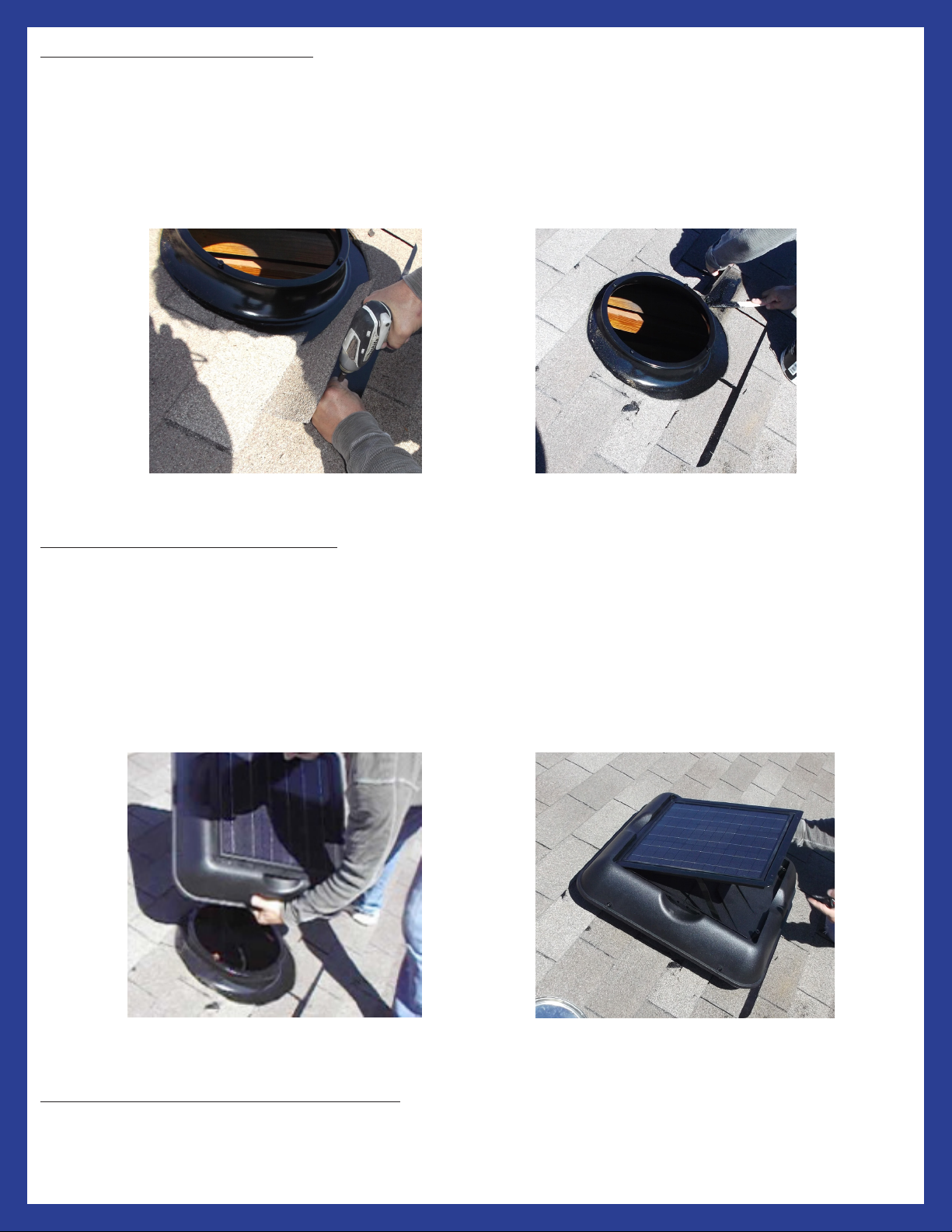

Secure the ashing Sealing the ashing

Attaching the Hood Raising the solar panel
