Solar-Log® Installation Manual

Solar-Log 2050 Assembly

Table of Contents

1 Important Safety Instructions 3

2 Package Contents 4

2.1 What’s in your shipment 4

3 Assembly 5

4 Installation 7

5 Wiring 8

6 Conﬁguration 12

6.1 Connecting the Solar-Log to a network/PC 12

6.2 Setting up the Solar-Log using the conﬁguration Assistant 13

7 Appendix A: CT Placement 24

1 Important Safety Instructions

Save These Instructions

The Solar-Log 2050 Assembly is used in conjunction with a Solar-Log® data logger that is capable of communicating with a

wide variety of inverters, and one or several inverters of choice that can produce hundreds of AC current amps. These Safety

Instructions are to help ensure safe installation and operation of the Solar-Log 2050 and the equipment it is connected to. Be

sure to read the instructions which came with the Solar-Log 2050 and all other connected equipment carefully. Inspect the

Solar-Log 2050 and all other equipment and read all cautionary and instructive markings on all equipment. Be sure to follow

all cautions and instructions when installing all equipment. Save this manual, it has important maintenance and operation

information.

Proper equipment grounding must be performed as directed in the grounding section of this manual.

THIS IS THE SYMBOL FOR GROUND:

THIS IS THE SYMBOL FOR DIRECT CURRENT (DC):

THIS IS THE SYMBOL FOR ALTERNATING CURRENT (AC):

• Use appropriate size conductors rated for at least 90º C.

• Torque all connections as recommended in this manual.

Solar Data Systems, Inc. requires that all wiring must be done by a licensed electrician or certiﬁed technician in accordance

to all local and national electrical codes applicable in your jurisdiction. Do not perform electrical work without the proper

qualiﬁcations.

To avoid a risk of ﬁre and electric shock, make sure that existing wiring is in excellent condition and that the conductors are

correctly rated. Do not operate any system components with damaged or substandard conductors. Use only attachments

recommended or sold by Solar Data Systems, Inc. or our Authorized Distribution Partners. Attaching other devices may result

in a risk of ﬁre, electric shock, or injury to persons. To reduce the risk of electrical shock, disconnect all sources of AC and DC

power from the Solar-Log 2050 before removing the cover and attempting any maintenance or working on any components

connected to the Solar-Log 2050.

Intended Use

The Solar-Log 2050 is designed for use only with Solar Data Systems, Inc. equipment. Any inappropriate application may result

in a ﬁre hazard or personal injury.

Warning

The Solar-Log 2050 is designed for indoor or outdoor use. The enclosure is rated IP66 which oers resistance to dust and

sprayed water inﬁltration. It must be installed using the proper ﬁttings to maintain this rating. Failure to do so in damp

environments will signiﬁcantly shorten the life of this product and may aect the product warranty.

Do not mount the Solar-Log 2050 Enclosure in an area exposed to direct sunlight. It must be placed in a constantly shaded

area.

Do not disassemble the Solar-Log 2050. The Solar-Log 2050 does not have any user-serviceable parts.

Always use insulated tools to reduce the chance of short-circuits when installing or working with power connections, PV arrays

and any other connected equipment. To further reduce the risk of exposure to live circuits remove all jewelry while installing this

system.

2 Package Contents

2.1 What’s in your shipment

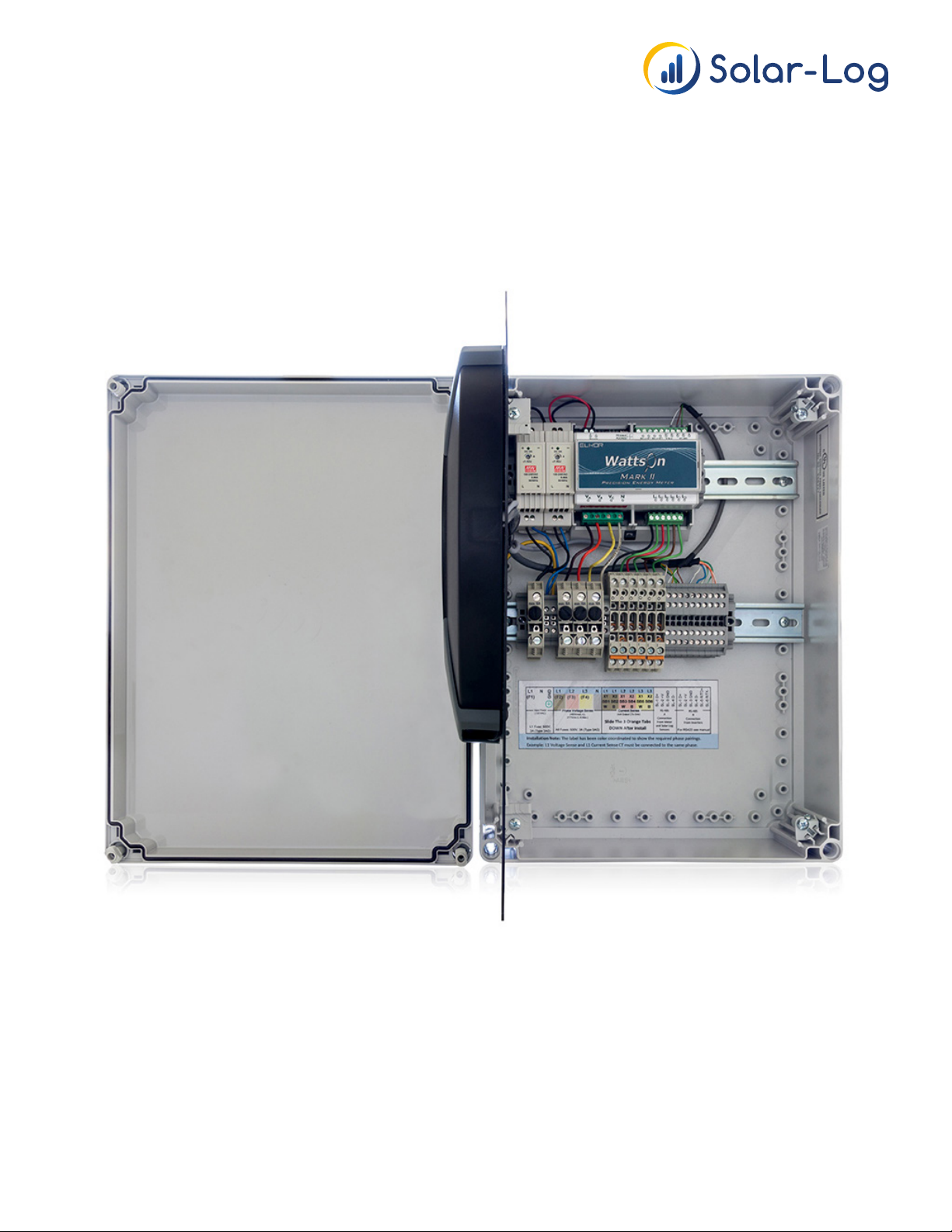

Figure 2.1: Solar-Log 2050, Current Transformers (CTs), Solar-Log® Data Logger

The shipment comes with the following components:

• Solar-Log 2050 (art. no. 840850): In an indoor/outdoor enclosure, the assembly includes a revenue grade meter, power

supply, fusing blocks, shorting blocks, RS485/422 ports, and a swing frame

• Current Transformers (CTs) models and number of units vary

• One of the following Solar-Log® data logger models: Solar-Log 1200 (art. no. 255591), Solar-Log 1900 (art. no. 256241),

Solar-Log 2000 (art. no. 255592)

Note:

If you are using the Solar-Log 2050 assembly for consumption monitoring only, the Solar-Log® data logger might not be

included in your shipment. The Solar-Log 2050, Solar-Log® Data Logger, and CTs are all sold separately.

3 Assembly

1. Remove the front cover on the Solar-Log 2050 enclosure by uscrewing the 4 plastic captive screws.

2. Remove the 2 screws (Figure 3.1) & open the swingframe.

Figure 3.1: Swing Frame Screws

3. Mount the Logger to the swingframe using the screws, nuts & washers provided. Be sure to guide wires under the wire guide

of the Logger (Figure 3.2).

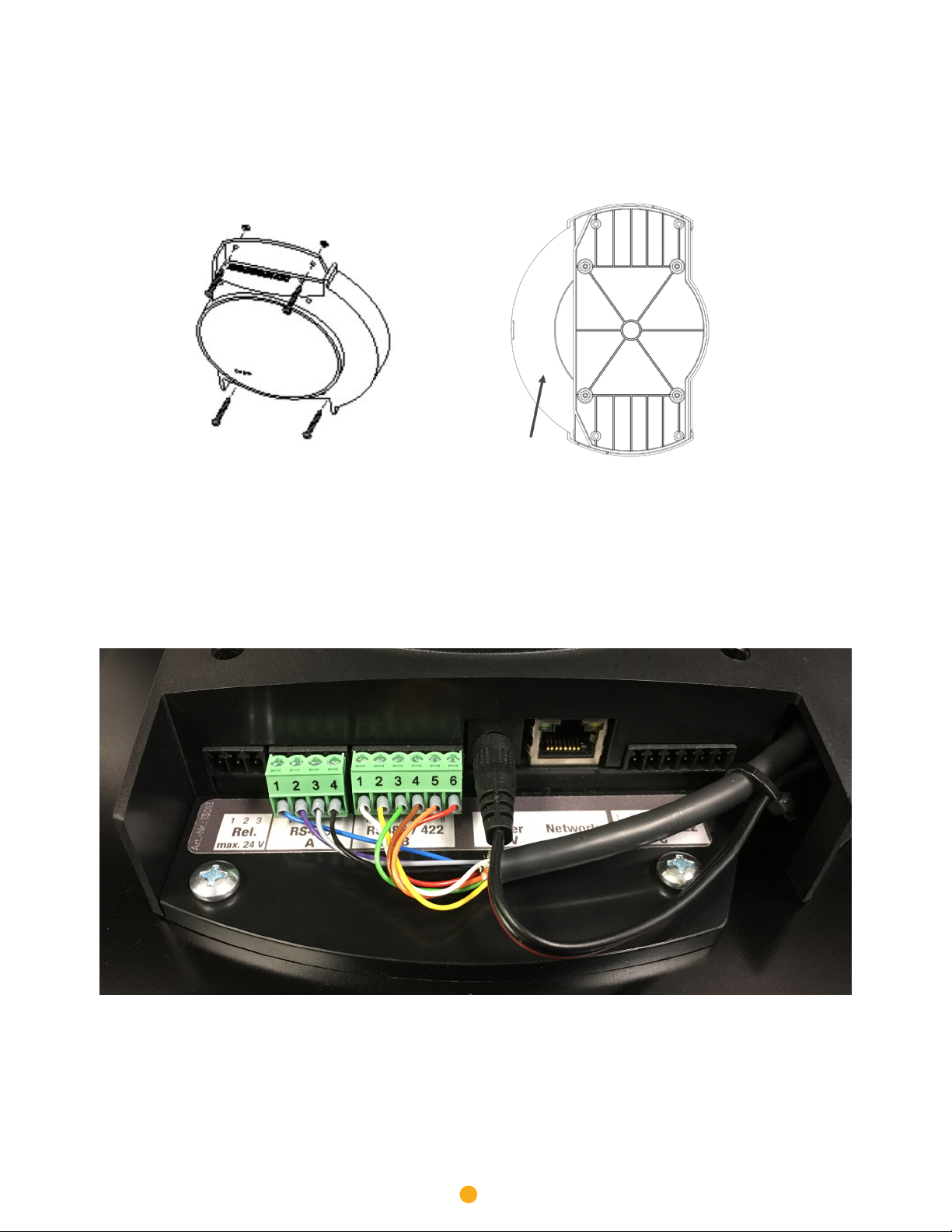

Figure 3.2: Logger screw holes for attaching to swing frame & wire guide on the back of the Logger.

4. Connect the DC Power, Port A & Port B connectors to the Logger (Figure 3.3).

Figure 3.3: Logger Connections

4 Installation

1. Select a suitable wall location and use suitable rustproof screws to secure Solar-Log 2050 unit to the support. Dierent

anchors and screws for ﬁtting the Solar-Log 2050 box are required depending on the support. Therefore anchors and screws

for mounting are not supplied (Figure 4.1).

2. Drill the needed conduit holes for mains power and other connections. Run power mains and communication lines in

separate conduit.

Note: DO NOT DRILL OR SCREW DIRECTLY INTO THE ENCLOSURE! In order to keep the enclosure waterproof and maintain its

environmental (IP) ratings please use the 4 pre-drilled mounting/lid holes for fastening the enclosure to the wall.

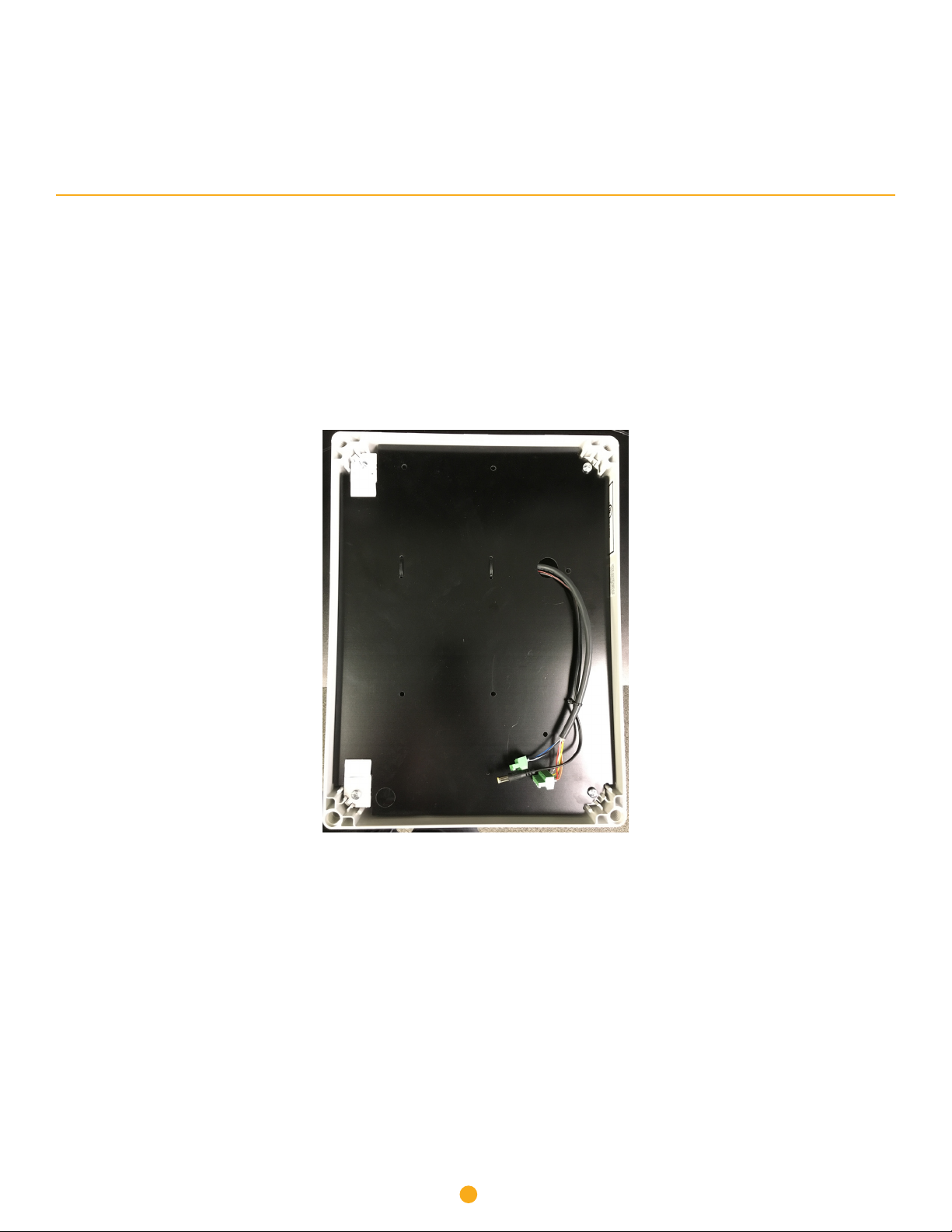

Figure 4.1: Mounting Instructions

Wall Screw

Cover Screw

5 Wiring

Note:

Before you start wiring make sure the system is de-energized. Refer to Figures 5.3 & 5.4:

1. Connect the input power to F1 (line) and N (Neutral) and GND (Ground). Torque F1 to 17.7 in-lbs. (2Nm), and N and GND to 5.3

in-lbs. (0.6Nm).

2. Connect the 3 phase voltage sense wires to F2 (L1), F3 (L2), F4 (L3), and N (Neutral). Torque F2 - F4 to 17.7 in-lbs. (2Nm),

and N to 5.3 in-lbs. (0.6Nm).

3. Install current transformers (CTs) on the mains voltage feed wires. Refer to CT labeling for Source/Load direction and see

Appendix A.

4. Connect the CT sense wires to the appropriate terminals. Torque terminal connections to 5.3 in-lbs. (0.6Nm).

Note:

Connect the CT X1 wire to the X1 terminal and the X2 wire to the X2 terminal. The CT sense wires may be extended, as

necessary. Splice 18 AWG hookup wires and minimize wire extension length to limit additional impedance on the circuit.

Note:

For 5A CT systems only: When the CT wires are in place on the short blocks (Figure 6) you must now lower the orange tab over

the screw terminals. This prevents access to the circuit with a screwdriver, as well as completes the circuit. Unscrew both the

screws near the “I” and pull the orange bar over the screw terminals. Re-fasten the screw closest to the “I”. The circuit is now

complete. The meter must NOT be disconnected when the shorting block is in the OPEN position.

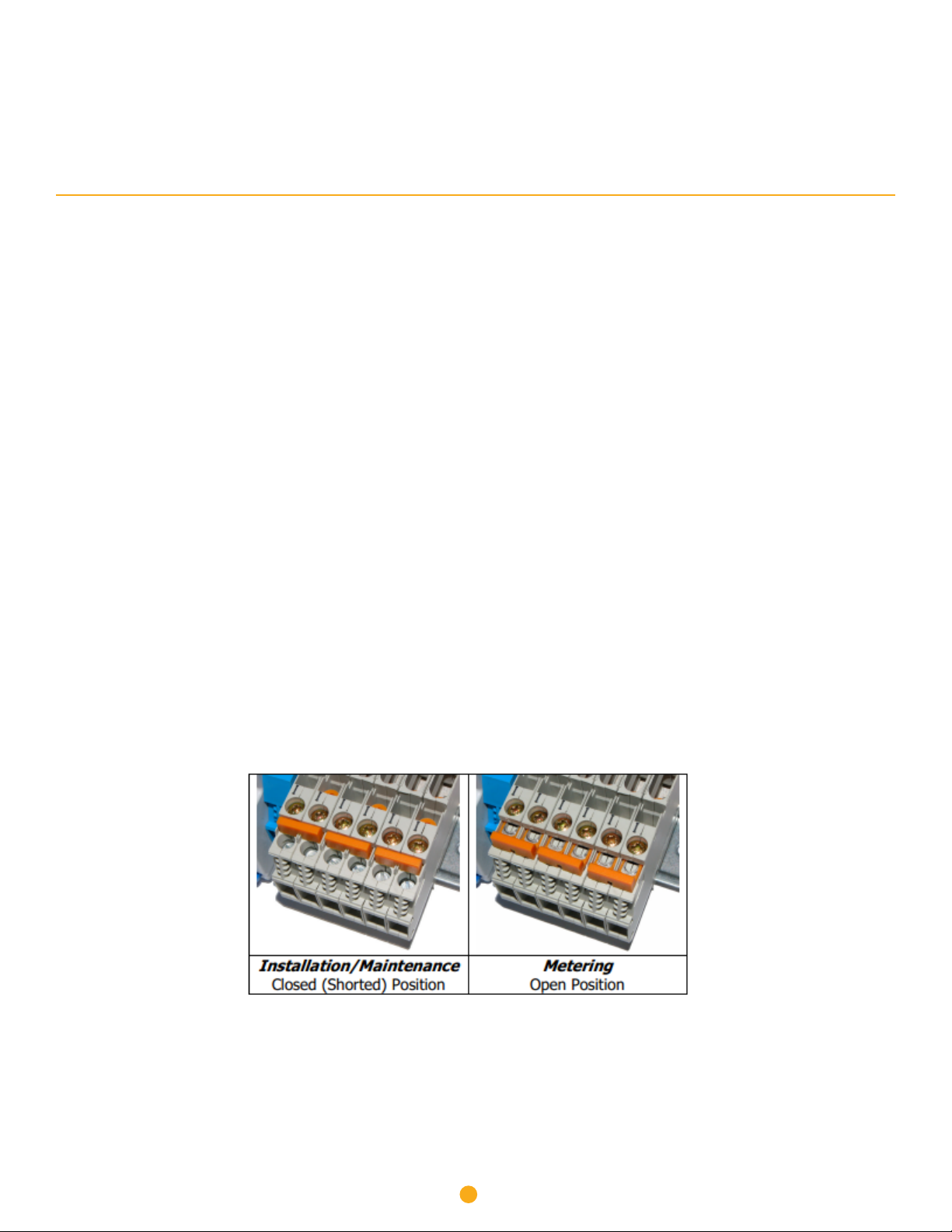

Figure 5.1: CT Shorting Block

5. The RS-485 (or RS-422) connections between the Solar-Log® and Revenue Grade Meter are pre-wired. Connections to the

Inverter(s) are made to the RS-485 Port B terminals at the right side of the enclosure. Torque terminal connections to 5.3 in-lbs.

(0.6Nm).

6. Power the enclosure and wait for the Solar-Log® to complete its booting process.

7. For 3 phase systems, six green LED’s on the WattsOn meter should be solid (exception: bi-directional meter). If any of the

green LED’s in the bottom row are blinking the CT is in the wrong direction. Flip the CT or the wire leads in the terminal block.

If any of the six LED’s are red (solid or blinking) then the CT and voltage tap are phase mismatched. Swap CT leads in terminal

blocks till all six lights are green.

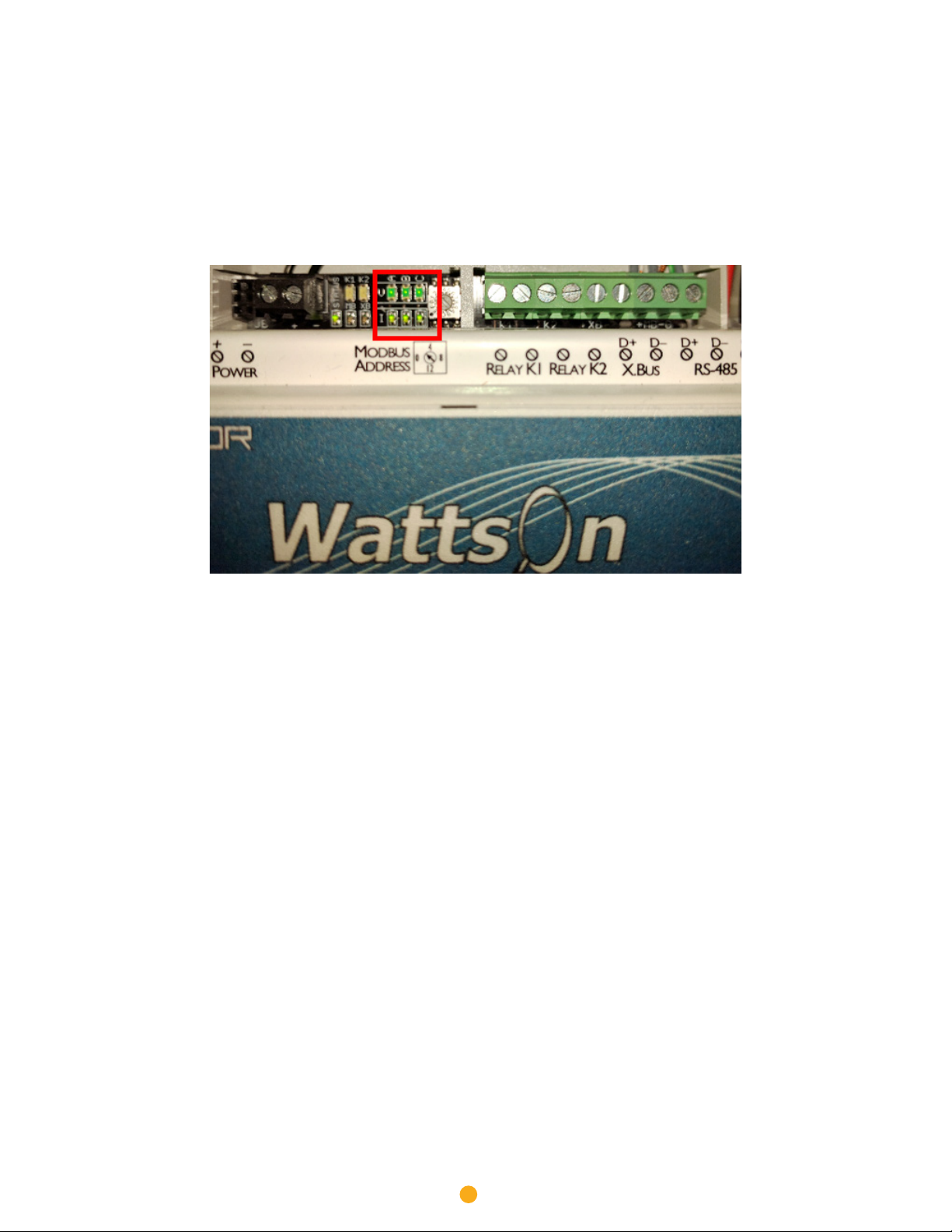

Figure 5.2: Elkor Meter LEDs

Note:

CT lead wire color can vary. Standard wire color is shown. Verify lead color of CT in manufacturer manual.

Terminals SB1-SB6 for mA meters are equipped with standard terminal blocks instead of shorting blocks.

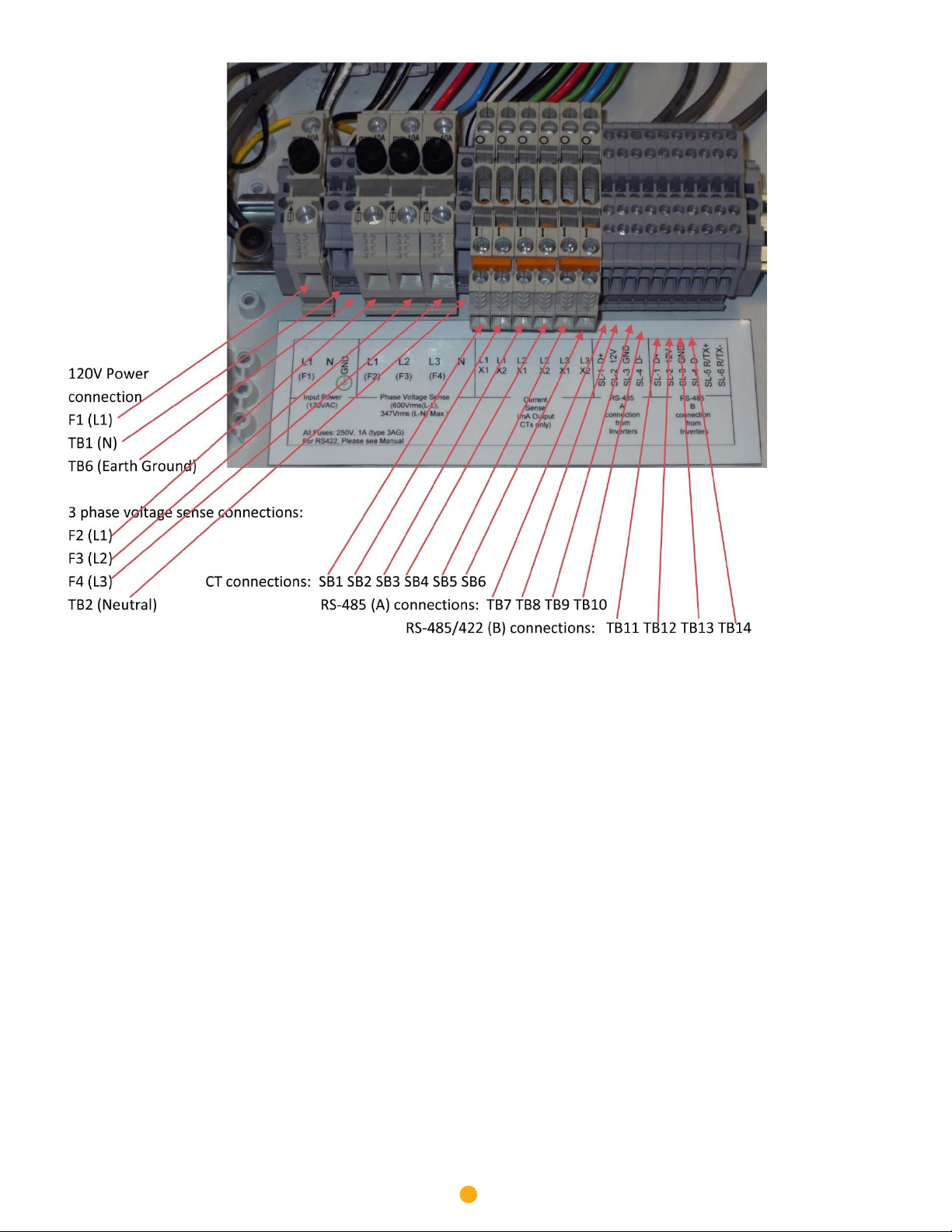

Figure 5.3: Wiring Compartment
