Solaira Alpha H1 Manuel utilisateur

Reference Manual

Solaira Alpha

H1 277V

(1 × Lamp Emitter Heater)

CANADA & USA MODELS:

I M P OR TA N T - S AV E T H E S E I N S T R U C T I O N S F O R F U T U R E R E F E R E N C E

Ref No. 043482-EN-S Iss. Oa

WEATHERPROOF INFRARED HEATERS SUITABLE FOR OUTDOOR AND INDOOR USE

IN NON-HAZARDOUS AREAS

- COMMERCIAL AND INDUSTRIAL, (RESIDENTIAL 240V OUTDOOR USE ONLY)

247748

INFORESIGHT CONSUMER RODUCTS INC.

125 Traders Blvd. E Unit # 4, Mississauga, Ontario L4Z 2 3

Tel: 905-568-7655 - Fax: 905-568-7521

Email: info@solairaheaters.com - Website: www.solairaheaters.com

C COLOR CODE

SALPHA15277C (240V - 1125W / 277V - 1500W)

SALPHA15277L1C (240V - 1125W / 277V - 1500W) CANDEL LOW LIGHT

SALPHA20277C (240V - 1500W / 277V - 2000W)

SALPHA20277L1C (240V - 1500W / 277V - 2000W) CANDEL LOW LIGHT

1. Read all instructions before using this heater.

2. Use this heater only as described in this manual. Any other use not

recommended by the manufacturer may cause fire, electric shock, or

injury to persons.

3. This heater is hot when in use. To avoid burns, do not let bare skin

touch hot surfaces. If provided, use handles when moving this heater.

Keep combustible materials, such as furniture, pillows, bedding,

papers, clothes, and curtains at least 6 feet (1.8m) from the front of the

heater and keep them away from the sides and rear.

4. Extreme caution is necessary when any heater is used by or near

children or invalids and whenever the heater is left operating and

unattended.

5. Do not operate any heater with a damaged cord or after the heater

malfunctions, has been dropped or damaged in any manner. Return

heater to authorized service facility for examination, electrical or

mechanical adjustment, or repair.

6. This heater is not intended for use in bathrooms, laundry areas and

similar locations. Never locate heater where it may fall into a bathtub

or other water container.

7. To disconnect heater, turn controls to off.

WARNING -

Each power supply circuit shall be provided with

disconnecting means and the disconnecting means shall be grouped

together.

I M P O R TA N T I N S T RU C T I O N S

When using electrical INFRARED EATERS, basic precautions

should always be followed to reduce the risk of fire, electric shock,

and injury to persons, including the following:

2 of 18 Ref No. 043482-EN-S Iss. Oa

8. Do not insert or allow foreign objects to enter any opening as this may

cause an electric shock or fire, or damage the heater.

9. To prevent a possible fire, do not block openings in any manner.

10. A heater has hot parts inside. Do not use it in areas where gasoline,

paint, or flammable liquids are used or stored.

11. Do not cover or otherwise obstruct the heater.

I M P O R TA N T I N S T RU C T I O N S

SAVE THE SE I NST RUCTI ON S

G R O U N D I N G I N S T R U C T IO N S

For 240V / 277V heaters, the cords from each terminal box must be

permanently connected (hard wired).

Kee combustible material such as furniture, a ers,

clothes and curtains at least 6 feet (1.8m) from the front

of the heater and away from the sides and rear.

Heaters are not intended for use as indoor residential or

as a household heater. They may be used for outdoor residential

1.5kW 240V use.

WAR N I NG : R I S K O F F IRE

3 of 18 Ref No. 043482-EN-S Iss. Oa

I N T R O D U C T I O N

The Alpha 1 heater produces radiant heat like the sun, warming people and objects rather

than the air in between. It is mounted on an adjustable bracket that allows the heat to be

directed exactly where it is required. The Alpha 1 can also be used in a modular system in

that more than one heater can be connected together - see ‘Configurations’ later in the

manual. The Alpha 1 weatherproof heater is designed for indoor and outdoor use.

Please read the following instructions carefully before use. The safety of this heater is

guaranteed only by its correct usage in accordance with these instructions, therefore

they should be retained for future reference.

Before using this appliance:

1. Check that the voltage indicated on the units rating label corresponds to the mains

supply voltage.

2. Do not install the heaters less than the minimum height from the floor as specified below

in the specification table.

3. Ensure that the heater has been securely fastened in its final mounting position.

4. WARNING - This appliance must be grounded and hard wired!

5. WARNING - Keep the supply cables away from the front and body of the heater which

will get hot during use.

6. Do not cover or obstruct the heater while it is in use.

7. Do not insert any object through any slot or opening in the heater.

8. Do not use if a grille is not present.

9. When replacing the lamp emitter or cleaning the unit, ensure that the

hard wired

circuit(s) is disconnected from the mains supply. Note: always ensure that the lamp

emitter is cool before handling.

10. Do not handle the halogen emitter with bare hands. If it is inadvertently

touched, remove finger marks with a soft cloth and methylated spirit or

rubbing alcohol. Otherwise, the marks will burn into the quartz glass of the

lamp emitter during use causing premature heater failure.

11. The heater is not intended for use by young children and must be supervised

by a responsible person at all times.

CAUT I O N

4 of 18 Ref No. 043482-EN-S Iss. Oa

S P E C I F I C AT I O N TA B L E

A l h a H 1 2 4 0 V / 2 7 7 V H e a t e r s

5 of 18 Ref No. 043482-EN-S Iss. Oa

Number of

Units

Model Type

1 - off

SALPHA15277C

SALPHA15277L1C

1 - off

SALPHA20277C

SALPHA20277L1C

2 - off

SALPHA15277C

SALPHA15277L1C

2 - off

SALPHA20277C

SALPHA20277L1C

3 - off

SALPHA15277C

SALPHA15277L1C

3 - off

SALPHA20277C

SALPHA20277L1C

Voltage 240V /277V 240V /277V 240V /277V 240V /277V 240V /277V 240V /277V

Number of 1 1 2 2 3 3

Lamp

Emitters

Power

1125

/1500

1500

/2000

1125

/1500

1500

/2000

1125

/1500

1500

/2000

Total Power

of Unit

1125

1500

W1500W /2000W

2250

3000

W3000W /4000W

3375

4500

W4500W /6000W

Current er

Lam Emitter 4.7A /5.4A 6.3A /7.2A 4.7A /5.4A 6.3A /7.2A 5.0A /5.4A 6.7A /7.2A

Total Current

of Unit 4.7A /5.4A 6.3A /7.2A 9.4A /10.8A 12.5A /14.4A 14.1A /16.2A 18.8A /21.7A

Minimum Mounting

Height from Floor/

Grade to Bottom of

Heater

Minimum Distance

from Ceiling to To

of Heater

7½in

(19cm)

15in

(38cm)

15in

(38cm)

Minimum Distance

from Side Wall to

Side of Heater

30in

(76

cm)

30in

(76

cm)

30in

(76

cm)

30in

(76

cm)

33in

(83

cm)

40in

(101

cm)

35in

(89

cm)

39in

(99

cm)

30in

(76

cm)

33in

(84

cm)

39in

(94

cm)

42in

(107

cm)

Dimensions -

W × H × D

(inc. Bracket &

bars in max. osition)

17in × 9in × 12¾in

(43cm × 23cm × 32cm)

17in × 18¼in × 16in

(43cm × 46cm × 41cm)

17in × 27¼in × 17¼in

(43cm × 69cm × 44cm)

Weight 7.5lb

(3.4kg)

15lb

(6.8kg)

22.5lb

(10.2kg)

7ft 10½in

(240 cm)

I N S TAL L AT I O N

The heater is fitted with a supply cord measuring 79in (200cm) for hard wiring.

WARNING: Wiring procedures and connections should be in accordance with the National

Electric Code (NEC) and local codes.

WARNING: If the supply cord(s) becomes damaged, it must be immediately replaced by a

qualified person in order to avoid a hazard.

CAUTION: Disconnect electric power supply before working on circuit wiring to prevent electric

shock.

CAUTION:

Please observe the minimum safe distance between the heater body and any

inflammable surfaces.

CAUTION: When the electrical connection is outside weatherproof sockets must be used having

ground fault protection (GFCI or GFI).

NOTE: CONSULT A QUALIFIED ELECTRICIAN, IF IN DOUBT.

C O N F I G U R AT I O N S

The Alpha 1 heater contains one lamp emitter. It can be installed as a single unit or joined

to one or two other individual units with joining bars that are available to connect the heaters

together and increase the size and output of the installation. The maximum number of Alpha

1 heaters that can be joined together is three. Please read the section ‘joining heaters

together’ for information on how this should be done.

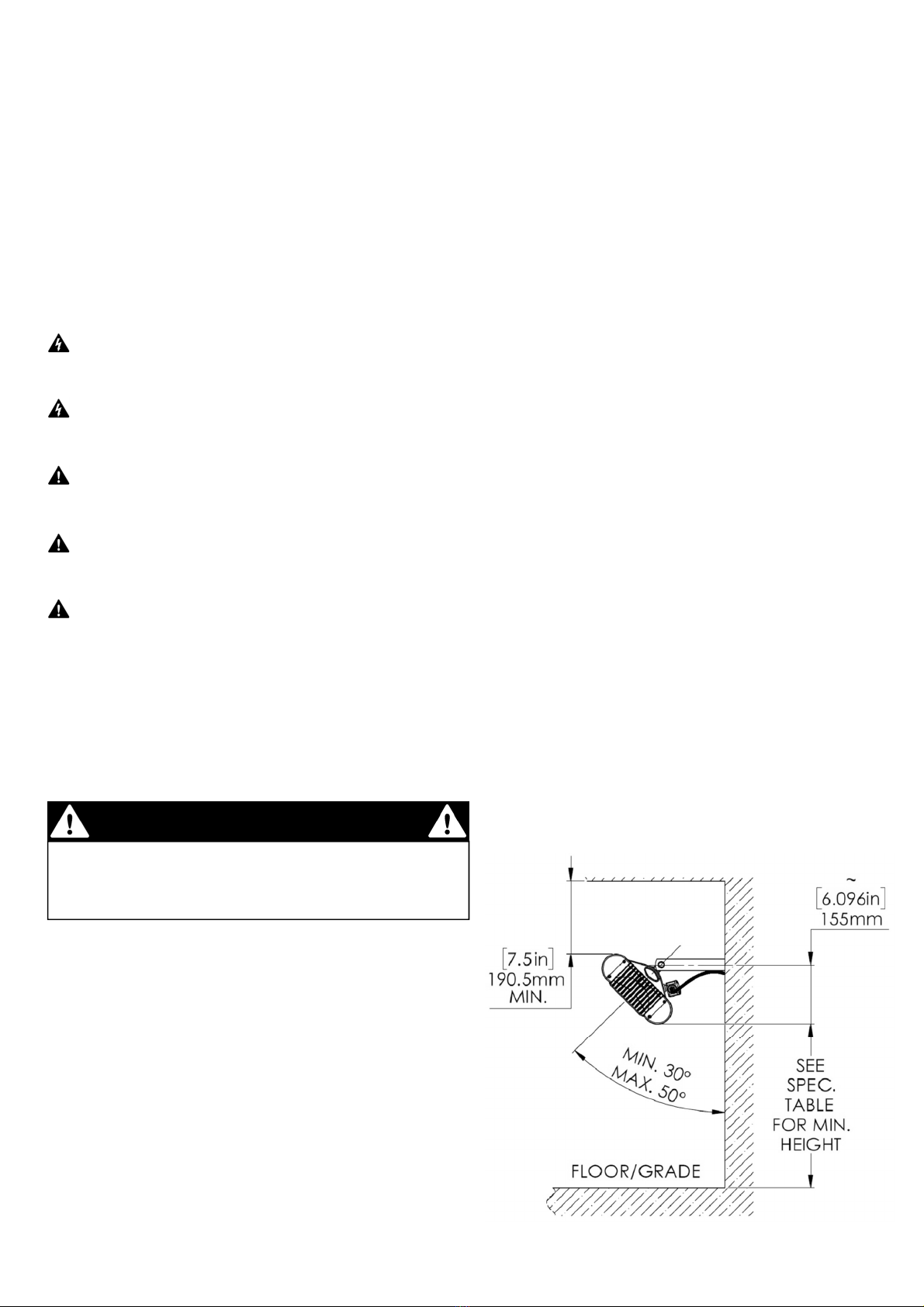

 The Alpha 1 heater should only be wall

mounted in a horizontal manner or hung from

a ceiling from chains (not supplied).

 When wall mounting the Alpha 1 heater, do

not position the heater at an angle more than

50° and less than 30° as shown in Fig. A.

 When ceiling hanging the Alpha 1 heater,

ensure the minimum distance from the

ceiling is adhered to as shown in Fig. B.

Continue over page…

M O U N T I N G - ONE SIN G L E HE AT E R

C AU T I O N

Always isolate the heater from the mains

su ly when mounting or adjusting the

heater osition.

6 of 18 Ref No. 043482-EN-S Iss. Oa

Fig. A

• When ceiling hanging the Alpha 1 heater, ensure the

minimum distance from the ceiling is adhered to as

shown in Fig. B.

• Always allow the heater to cool before attempting to

reposition/move. Never attempt to move the heater while

it is switched on!

• Observe the minimum safe distance between the heater

body and inflammable surfaces and objects when

mounting.

• Please refer to the specification tables for the

recommended positioning of the heater with regards to

minimum distances. Do not install the heater in a corner!

• Keep out of the reach of children.

1. When wall mounting, securely fasten the L-shaped

wall brackets to the mounting surface using both of the

fixing holes in the short part of the bracket (see Fig. D on

the next page for mounting hole centres). Please refer to

the specification tables for recommended positioning of the

heater. Please note. wall fixings are not supplied. They

should be selected to substantially support the weight of

the installation. If in doubt contact a professional for advice!

When hanging from a ceiling two equal length and gauge

chains are required and should be selected with fixings that

are adequate to hold the weight of the heater. Again, if in

doubt contact a professional for advice!

2. The heater should be mounted with the terminal box

at the bottom of the heater when being wall mounted.

3. When wall mounting, fix in the required angular

position by tightening the fixing bolts on the brackets at the

rear of the heater as shown in Fig. C on the next page. The

heater should face directly down when hanging.

4. Ensure the supply cable from the terminal box is

routed away from the body of the heater.

Fig. D

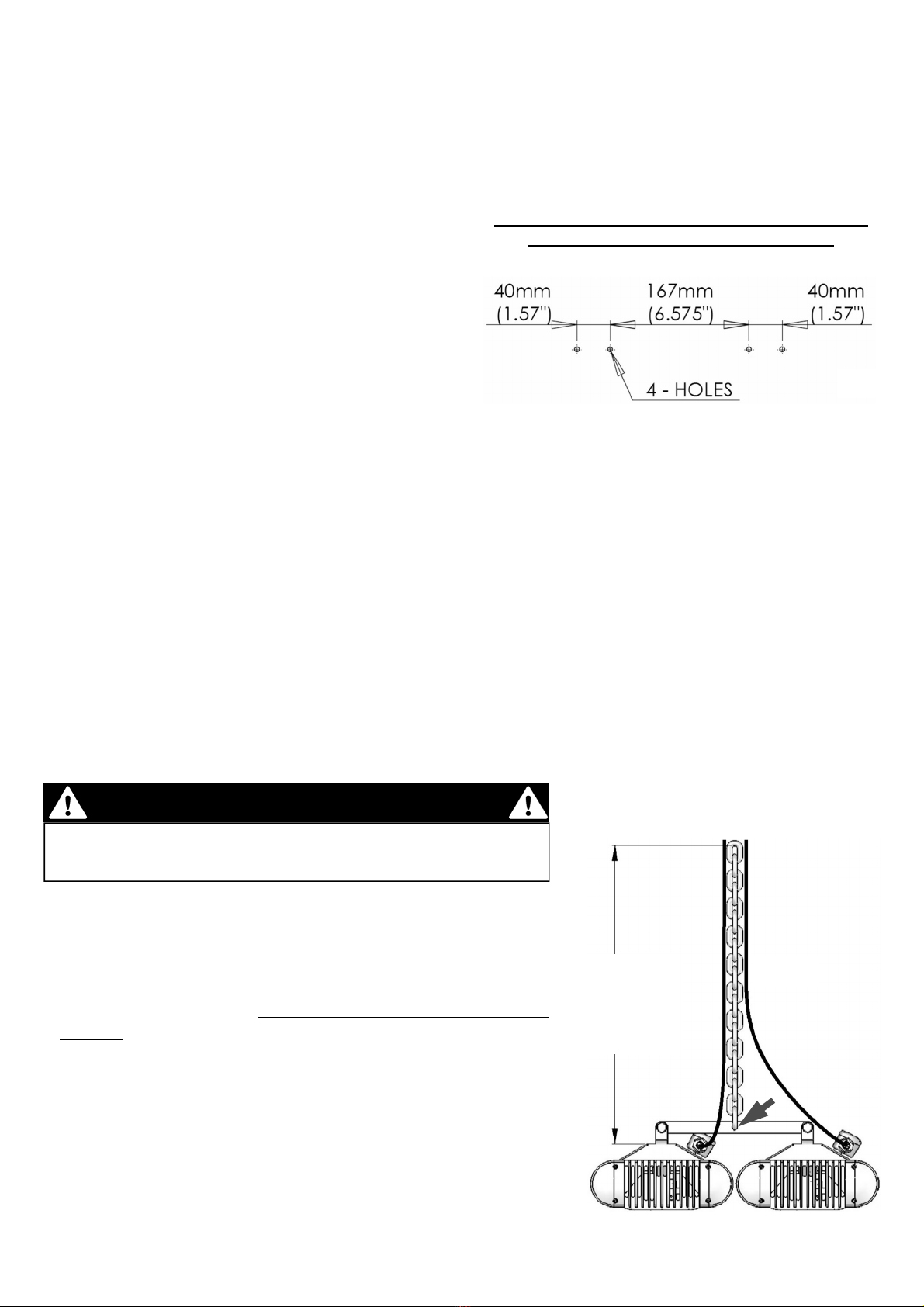

DRILLING HOLE TEMPLATE DIMENSIONS FOR WALL MOUNTED BRACKETS

Fig. C

TERMINAL

BOX

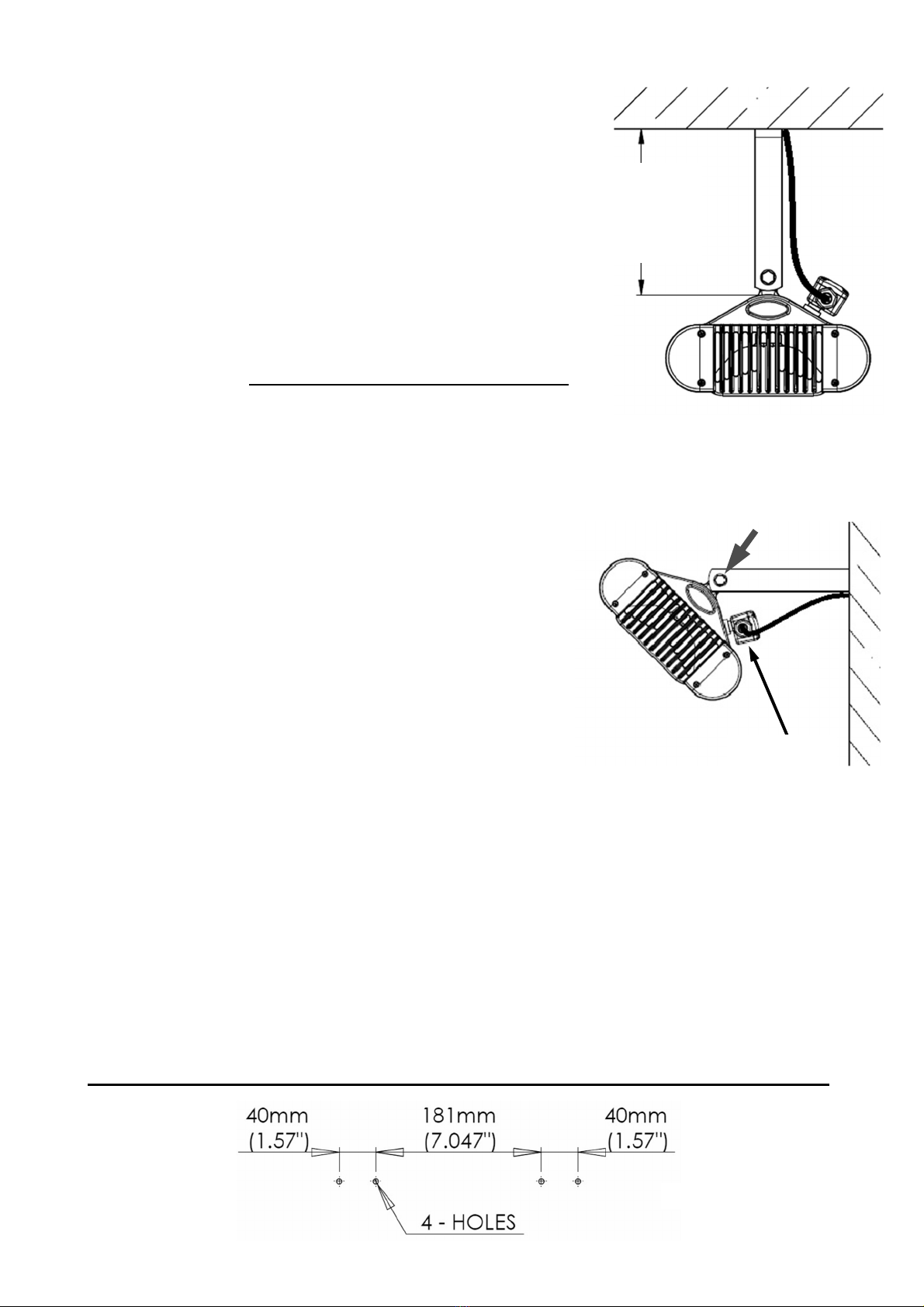

Fig. B

7 of 18 Ref No. 043482-EN-S Iss. Oa

USE

BRACKET

SUPPLIED

MIN.

8 of 18 Ref No. 043482-EN-S Iss. Oa

C AU T I O N

AS S E M B L I N G - T W O S IN G L E H E AT E R S JO I N E D (WAL L

M O U N T E D O R C H AI N H A N G I N G )

1. Take the first heater and place it face down on a flat surface.

2. Take the second heater and place it face down and positioned parallel to the first heater.

3. Push the bolts used to hold the wall brackets through the hole in the brackets on the rear

heaters and slide a shake-proof washer on all the threads from the protruding side.

4. Slide the joining bars on each bolt and fit a washer and nut – do not fully tighten at this

point.

5. Ensure the second heater is still parallel to the first and sitting flat.

Slide the joining bars on each protruding bolt of the other heater to connect them

together and fit the washers and nuts.

7. Again, ensuring the heaters remain flat, fully tighten all four nuts to secure the joining

bars in place.

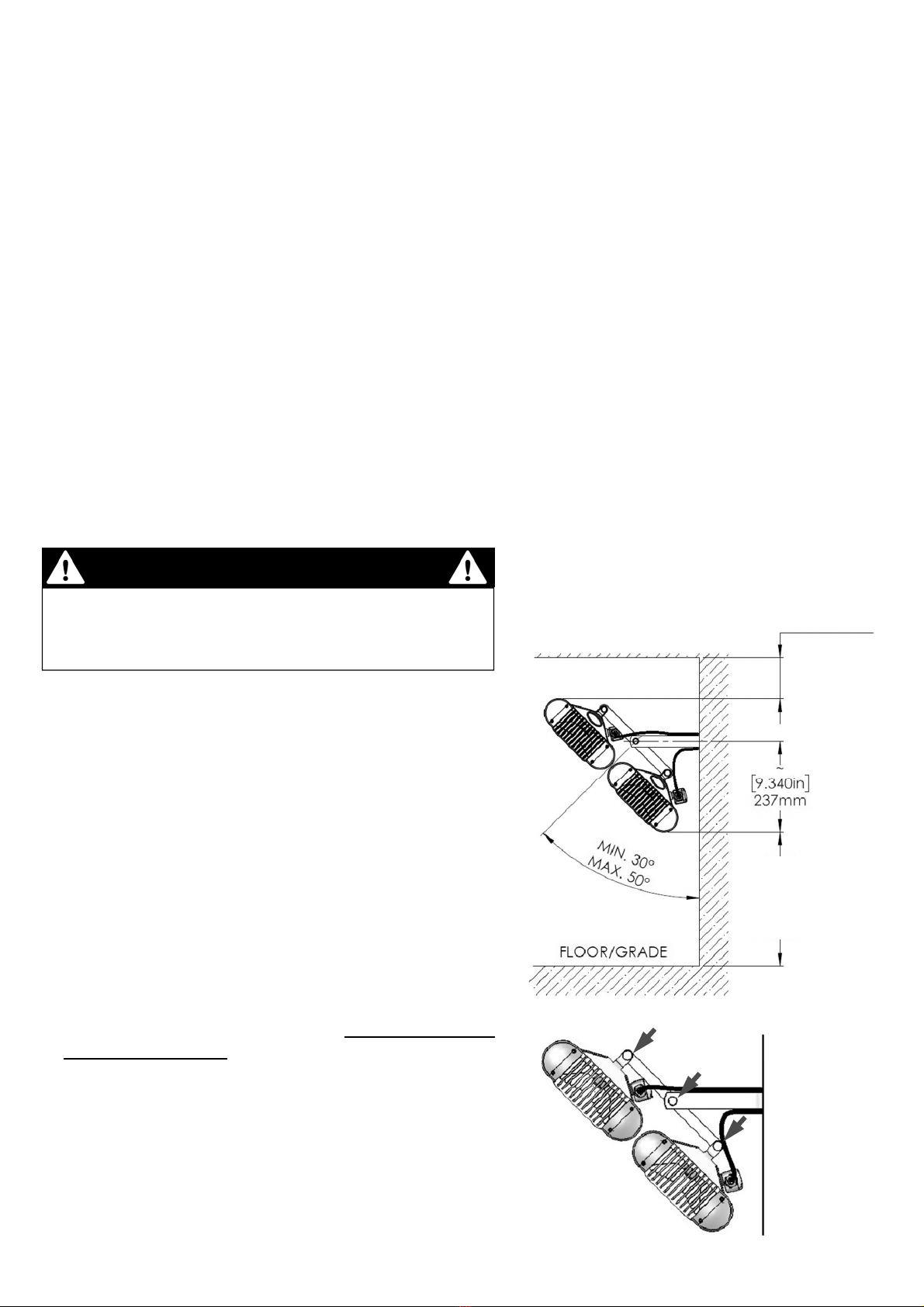

 When wall mounting two Alpha 1 heaters

joined together in a horizontal manner, do not

position the heater at an angle more than 50°

and less than 30° as shown in Fig. E.

 Always allow the heater to cool before

attempting to reposition/move. Never attempt to

move the heater while it is switched on!

 Observe the minimum safe distance between

the heater body and inflammable surfaces and

objects when mounting.

 Please refer to the specification tables for the

recommended positioning of the heater with

regards to minimum distances. Do not install the

heater in a corner!

 Keep out of the reach of children.

continue on next page…

Fig. E

WAL L M O U N T I N G - T W O S I N G L E H E AT E R S J O I N E D

Fig. F

Always isolate the heater from the mains

su ly when mounting or adjusting the

heater osition.

SEE SPEC.

TABLE

FOR MIN.

HEIGHT

SEE SPEC.

TABLE

FOR MIN.

CLEARANCE

9 of 18 Ref No. 043482-EN-S Iss. Oa

2. Fix the heater assembly to the brackets

via the hole in the centre of the joining

bar. The joining bars should slide inside

the gap of the two wall brackets.

3. Place a bolt and washer in the hole of

the wall bracket and put a serrated

washer on the opposite side between

the bracket and joining bar. Repeat on

opposite side.

1. Securely fasten the L-shaped wall brackets to the mounting surface using both of the fixing

holes in the short part of the bracket (see Fig. G for mounting hole template centres).

Please refer to the specification tables for recommended positioning of the heater. Please

note. wall fixings are not supplied. They should be selected to substantially support the

weight of the installation. If in doubt contact a professional for advice!

 When two Alpha 1 heaters are joined they can also

be chain hung from a ceiling (Fig. ).

 Please refer to the specification tables for the

recommended positioning of the heater with regards to

minimum distances. Do not install the heater in a

corner!

 Always allow the heater to cool before attempting to

reposition/move. Never attempt to move the heater

while it is switched on!

continue on next page…

Fig. G

DRILLING HOLE TEMPLATE DIMENSIONS

FOR WALL MOUNTED BRACKETS

C H AI N H AN G IN G - T W O S I N G L E H E AT E R S J O I N E D

Fig. H

Fit the heater assembly to the brackets and place a washer and nut on the bolts

protruding through the joining bars.

5. Fully tighten the nut and bolts (Fig. F) with the heaters set as shown in Fig. E.

6. Ensure the supply cables from the terminal boxes are routed away from the body of the

heater.

C AU T I O N

Always isolate the heater from the mains su ly

when mounting or adjusting the heater osition.

SEE SPEC.

TABLE

FOR MIN.

CLEARANCE

10 of 18 Ref No. 043482-EN-S Iss. Oa

 Observe the minimum safe distance between the heater body and inflammable surfaces

and objects when mounting.

 Keep out of the reach of children.

1. Please refer to the specification tables for recommended positioning of the heater. When

hanging from a ceiling two chains of equal length and gauge are required and should be

selected with fixings that are adequate to hold the weight of the heater. If in doubt

contact a professional for advice!

2. Attach the heater assembly to the chains via the hole in the centre of the joining bar as

shown in Fig. . and ensure the heater faces directly down when hanging.

3. Ensure the supply cables from the terminal boxes are routed away from the body of the

heater.

AS S E M B L I N G - T H R E E S I N G L E H E AT E R S J O I N E D

1. Take the first heater and lie it face down on a flat surface.

2. Take the second and third heaters and position them face down and parallel to the first.

3. Push the bolts used to hold the wall brackets through the hole in the brackets on the

rear heaters and slide a shake-proof washer on all the threads from the protruding side.

4. Slide the joining bars on each bolt and fit a washer and nut – do not fully tighten at this

point.

5. Position the second heater so it’s parallel to the first and sitting flat.

6. Take the third heater and a joining bar. Push a bolt and washer through the end hole

and place a serrated washer on the other side. Push the bolt through the bracket hole

on heater. Repeat on opposite side and secure with a washer and nut – do not fully

tighten at this point.

7. Position the third heater so it’s parallel to the second.

8. Line-up the bars of the first heater with the brackets of the second heater – they should

go on the inside faces like heater one.

9. Line-up the bars of the third heater with the brackets of the second heater – these

should go on the outside faces like heater three.

10. Push a bolt from the back of the joining bars through the holes putting a serrated wash-

er on each side of the heater bracket.

11. Fit a washer and nut to both sides and providing the assembly is sitting flat, fully tighten

both sides and also the nuts of the first and third heaters to the joining bars.

12. The heater is now ready for mounting or hanging.

Ce manuel convient aux modèles suivants

Autres manuels Solaira Chauffage

Solaira

Solaira ICR H3 Series Manuel utilisateur

Solaira

Solaira Cosy XL Double Manuel utilisateur

Solaira

Solaira SCOMH01500 Manuel d'utilisation et d'entretien

Solaira

Solaira Alpha H3 Manuel utilisateur

Solaira

Solaira SALPHA15120 Manuel utilisateur

Solaira

Solaira Alpha H2SALPHAH2-20240 Manuel utilisateur

Solaira

Solaira SALPHAH3-30240 Manuel utilisateur

Solaira

Solaira Malibu MAL 45240 Manuel utilisateur

Solaira

Solaira Cosy XL Manuel utilisateur

Solaira

Solaira Cosy SCOSYAW15120 Manuel utilisateur

Solaira

Solaira ICR Series Manuel utilisateur

Solaira

Solaira SCOSYXLAW15120 Manuel utilisateur

Solaira

Solaira Cosy XL Manuel utilisateur

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
