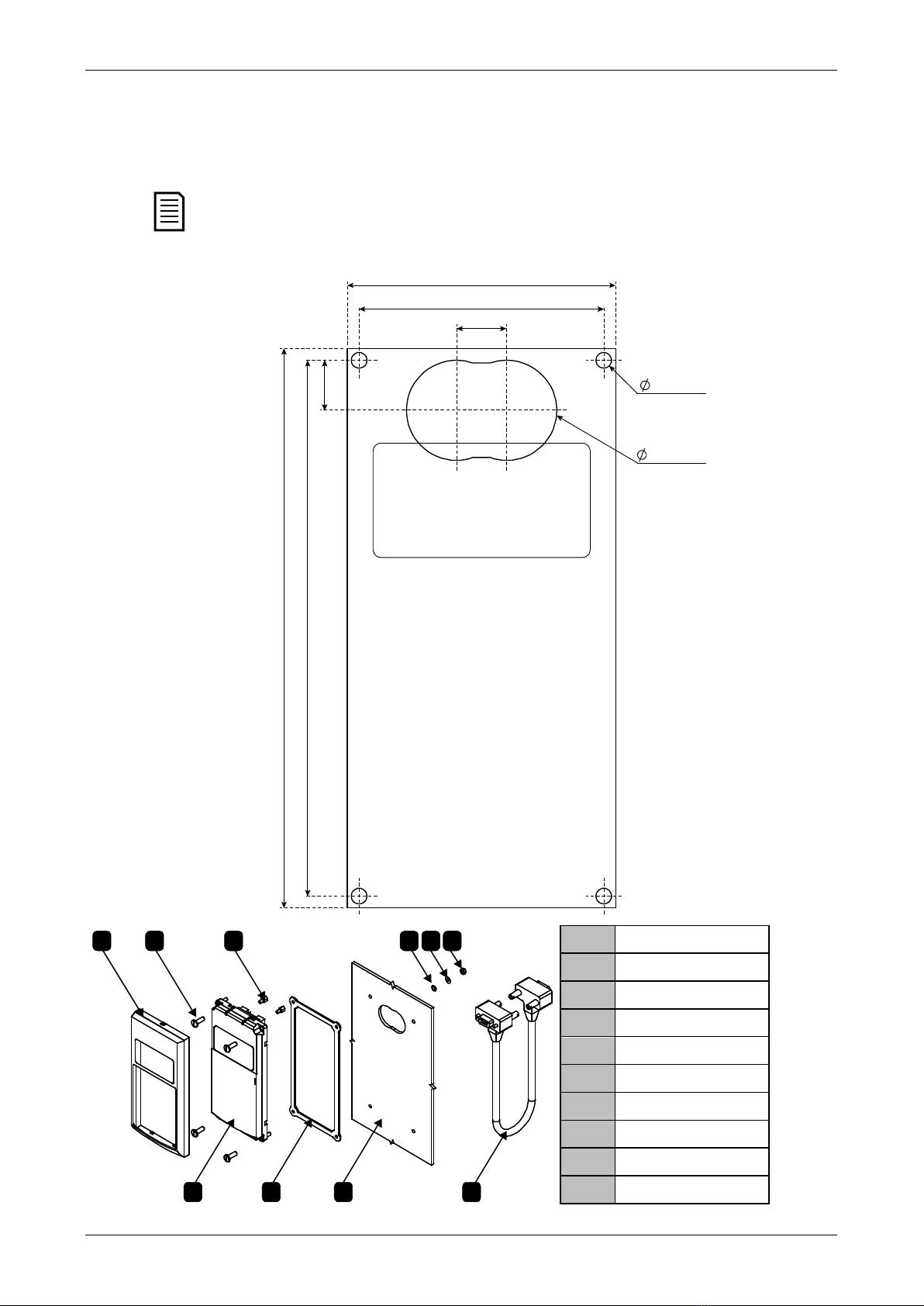

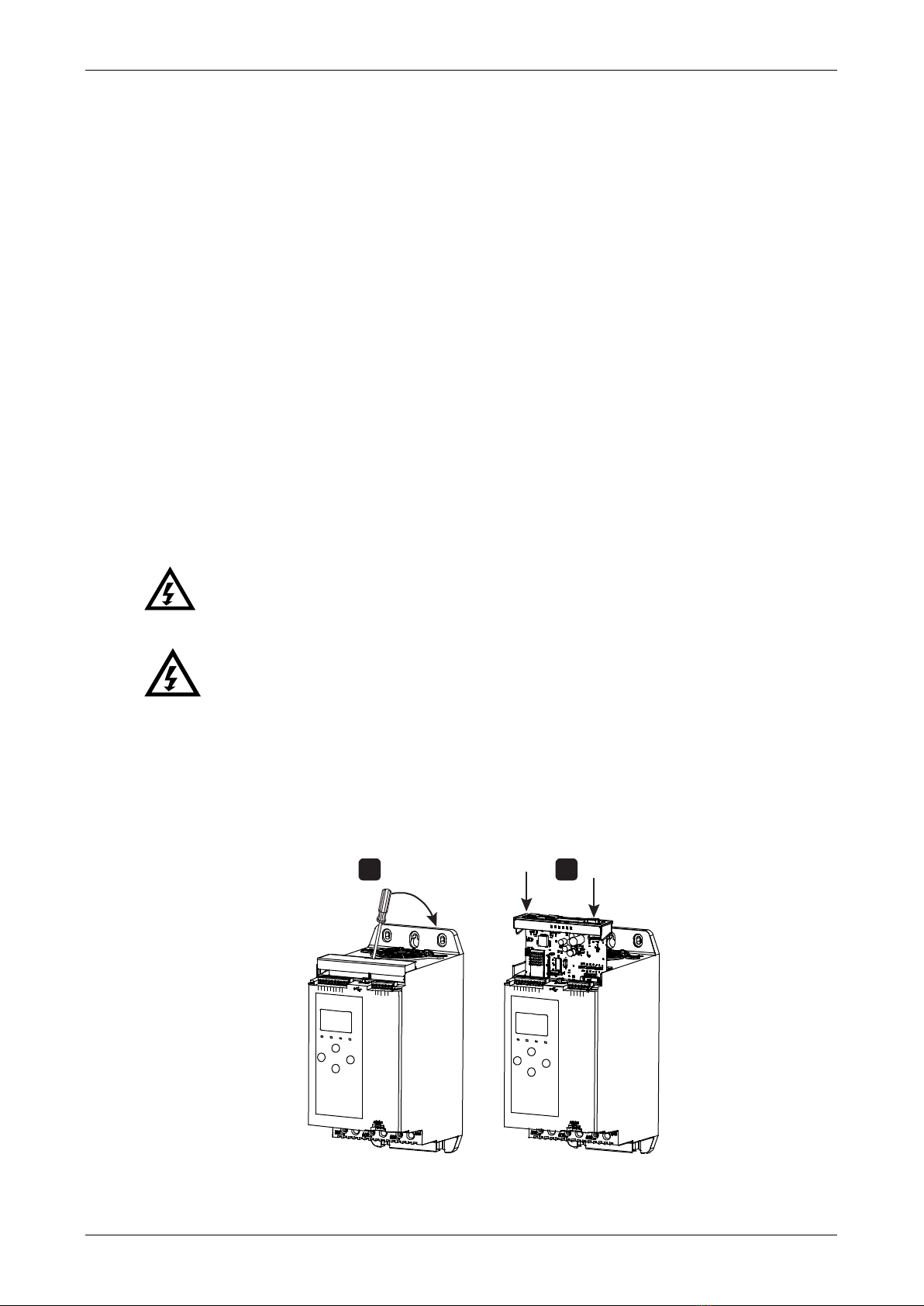

Remote Keypad & Mounting Kit
5 Using the Remote Keypad to Control the Starter
The soft starter will only accept start and reset commands from the remote keypad
if parameter 1A Command Source is set to Remote Keypad.

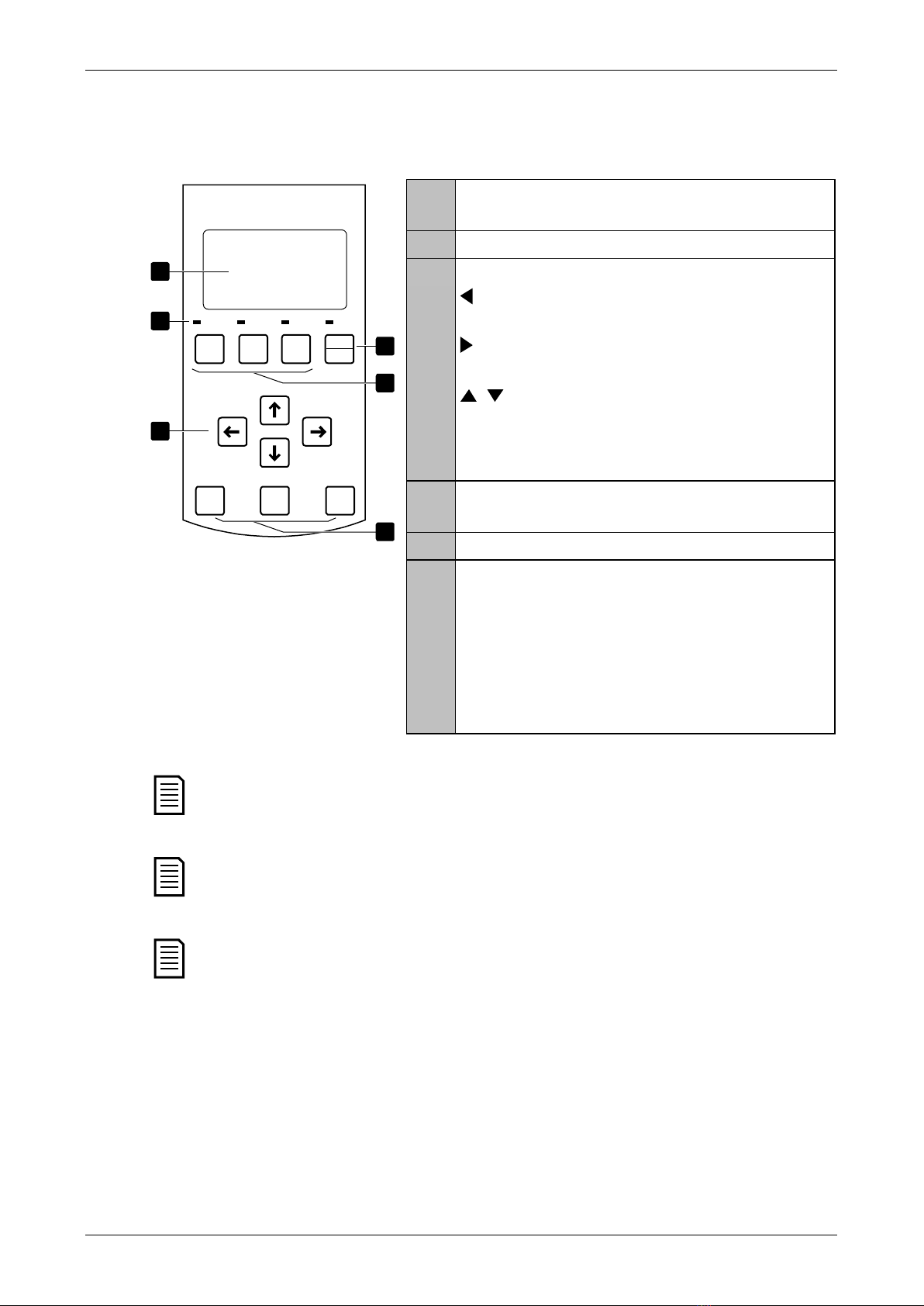

Four-line display for status and programming
details.
: Exit the menu or parameter, or cancel a
parameter change.
: Enter a menu or parameter, or save a
parameter change.
: Scroll to the next or previous menu or
parameter, change the setting of the current
parameter or scroll through the status
screens.
LOCAL/REMOTE: Shortcut to the command
source menu in Setup Tools.
Soft starter local control buttons
Shortcut buttons for quick access to
common tasks.
LOGS: Open the Logs Menu.
GRAPHS: Select which graph to view, or
pause/restart the graph (hold longer than 0.5
seconds)
: Open the Setup Tools.

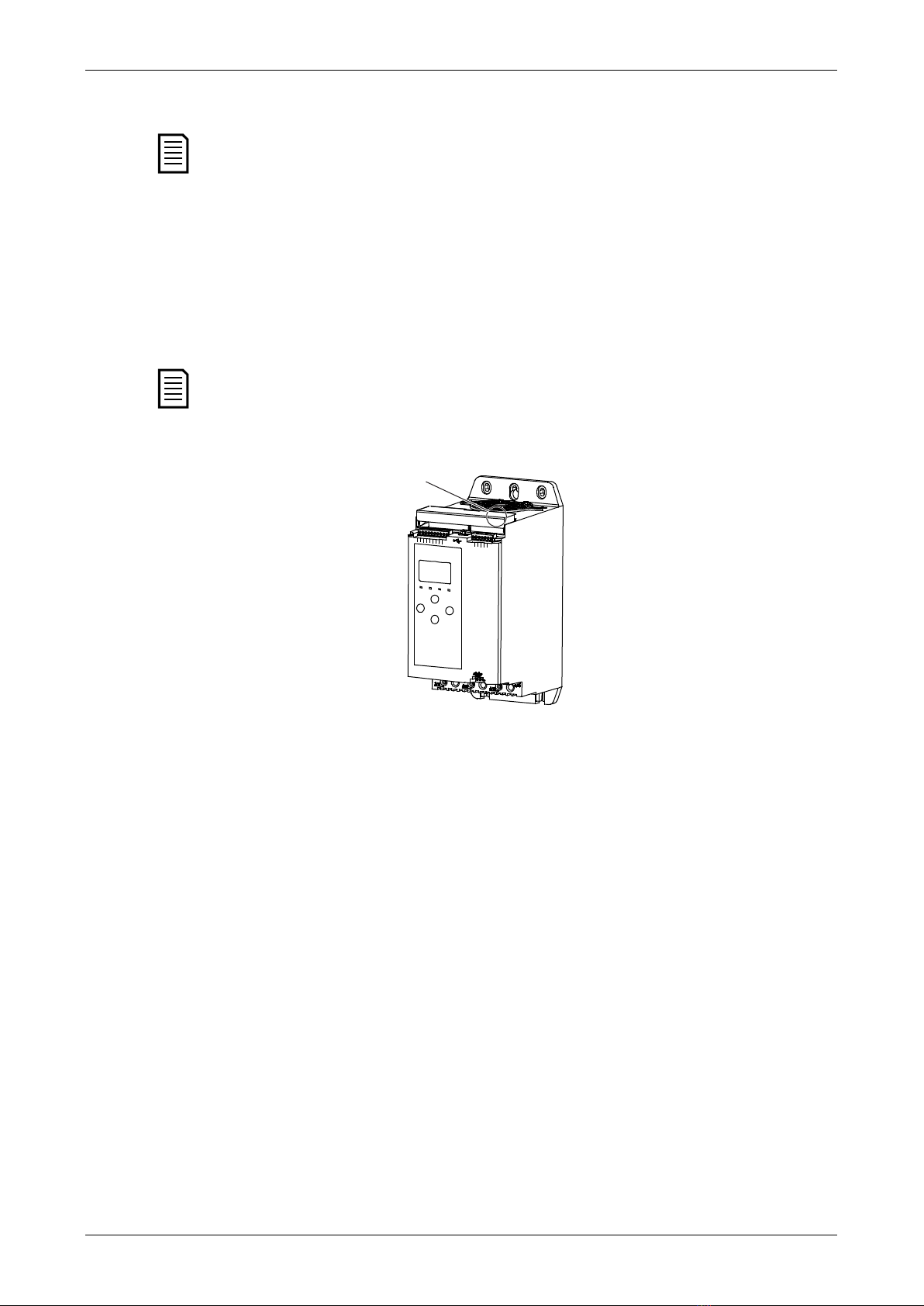

NOTE
If the Commissioning Menu is open on the built-in keypad, the soft starter
will ignore all commands from the external keypad except Stop.
NOTE
The remote keypad can be safely connected or removed while the starter is
running. It is not necessary to remove mains or control voltage.
NOTE
If parameter 1A Command Source is set to Remote Keypad, removing the
remote keypad will cause a trip.
