Softneta MedDream Manuel

UAB Softneta

K. Barsausko st. 59, LT 51423

Kaunas, Lithuania

[email protected]

www.softneta.com

MedDream (version 8.0.0)

INSTALL MANUAL

of MedDream video viewing

and converting functionalities

version 4.6.1

Meddream VideoStation functionalities v4.6.1 Install Manual

All names of companies and products mentioned inthis user`smanual may be trademarks or registered trademarks. References

to products of other manufacturers are for information purposes only. Such references are intended neither as an approval nor

a recommendation of these products. Softneta UAB accepts no liability for the performance or use of such products.

Other brand names, software and hardware names used in this user`s manual is subject to trademark or patent protection. The

quoting of products is for informational purposes only and does not represent a trademark misuse.

This user`s manual is protected by copyright. Unless expressly authorized in writing, dissemination, duplication or other

commercial exploitation of this documentation set or communication of its contents or parts of it is not permitted. In case of

infringement, the violator may be liable to pay compensation for damages.

Specifications due to technical developments are subject to change. This user`s manual is not subject to the revision service.

Please contact the manufacturer or authorized dealer to request the latest edition of the manual.





Meddream VideoStation functionalities v4.6.1 Install Manual

Table of Contents
Table of Contents................................................................................................................................................................5
Explanation of symbols used............................................................................................................................................... 6
Warnings regarding residual risks.......................................................................................................................................7
Introduction ......................................................................................................................................................................... 8
Minimal Requirements.........................................................................................................................................................9
General consideration.........................................................................................................................................................9
Installation...........................................................................................................................................................................9
Physical installation.......................................................................................................................................................9
Software installation / updates.....................................................................................................................................10
Install software...........................................................................................................................................................10
Update software.........................................................................................................................................................13
Software uninstalls ......................................................................................................................................................15
VideoStation Setup ........................................................................................................................................................... 16
Settings........................................................................................................................................................................17
General settings.........................................................................................................................................................17
Network settings.........................................................................................................................................................18
Recording settings.......................................................................................................................................................20
Device settings............................................................................................................................................................22
Recording configuration, settings ................................................................................................................................25
Stream settings............................................................................................................................................................27
Storage - disc space and service management...........................................................................................................31
Auto delete.................................................................................................................................................................31
Manual deleting..........................................................................................................................................................32
Service.......................................................................................................................................................................33
About VS and license........................................................................................................................................................ 33
Image/Video access from hospital network....................................................................................................................... 34
Functional test................................................................................................................................................................... 34
Create new study.........................................................................................................................................................34
Check connection with PACS......................................................................................................................................34
Technical specification...................................................................................................................................................... 34
Security considerations..................................................................................................................................................... 35
API restriction..............................................................................................................................................................35
Password.....................................................................................................................................................................35
Firewall........................................................................................................................................................................35
Other programs ...........................................................................................................................................................36
Access audio and video devices..................................................................................................................................36
Local archive ...............................................................................................................................................................36
Installator.....................................................................................................................................................................36
Figures.............................................................................................................................................................................. 37
Index ................................................................................................................................................................................. 38




Meddream VideoStation functionalities v4.6.1 Install Manual

Explanation of symbols used

The symbols used in this daily workflow refer to important safety information which warn against possible health risks or fatal

injuries and contain useful notes. Whenever you see these symbols, read the accompanying information carefully and observe

all safety notes and information in the user manual, daily workflow and on the device labels.

WARNING! This indicates a hazardous situation which may cause patient death, potential injury or serious health

impairment, requiring professional medical intervention.

CAUTION! This indicates a hazardous situation which may cause minor potential injury, not requiring professional

medical intervention, or simply cause inconvenience to medical professionals using software without affecting patient health

status or health changes.

NOTE! Information, hints and advice for a better understanding of the instructions to be observed in the operation of

the instrument.

Meddream VideoStation functionalities v4.6.1 Install Manual

Warnings regarding residual risks

Hazard

Warning/ Caution

Incorrect

configuration

CAUTION! VS software will try to scale medical device output signal to match settings. It is

recommended to select close enough or the same resolution for medical device output signal to

ensure best quality. Use WIDTH and HEIGHT entry controls to adjust the selected size or enter

the custom size.

CAUTION! VS software will try to scale medical device output signal to match settings. It is

recommended to select close enough or the same resolution for medical device output signal to

ensure best quality.

Meddream VideoStation functionalities v4.6.1 Install Manual

Introduction

NOTE! Further in text MedDream video viewing and converting functionalities will be referred to MedDream

VideoStation or short name VS.

Intuitive user interface, simple, but very powerful software controllable by touchscreen Medical Panel PC. Storing locally more

than 125 hours of HD videos and up to 100.000 of still images.

The core functions:

•High-quality video recording into DICOM by using MPEG2 and MPEG-4 AVC/H.264 compression;

•Record/take multiple low and high (full HD) quality video/snapshots during the surgery or other procedures;

•Live stream video during the procedure;

•Record, stream, play video and take snapshots at the same time;

•Record video/take images from multiple connected devices (special video card needed);

•Flexible patient data assignment: selecting already existing patient, manually entering the patient details or

selecting from hospital DICOM worklist server;

•Possibility to start a new study recording, while other video/snapshots is in progress for saving to DICOM or

sending to DICOM archive;

•Review medical images/video during the surgery or other procedures;

•Trim the recorded video;

•Recorded studies can be stored locally, sent to the hospital DICOM archive (PACS) or exported to other storage

devices;

•View saved images/videos with integrated DICOM Viewer.

Customization possibilities:

•Custom video settings.

•Multi languages support: English, Lithuanian, other languages by request.

•Additional foot pedal support.

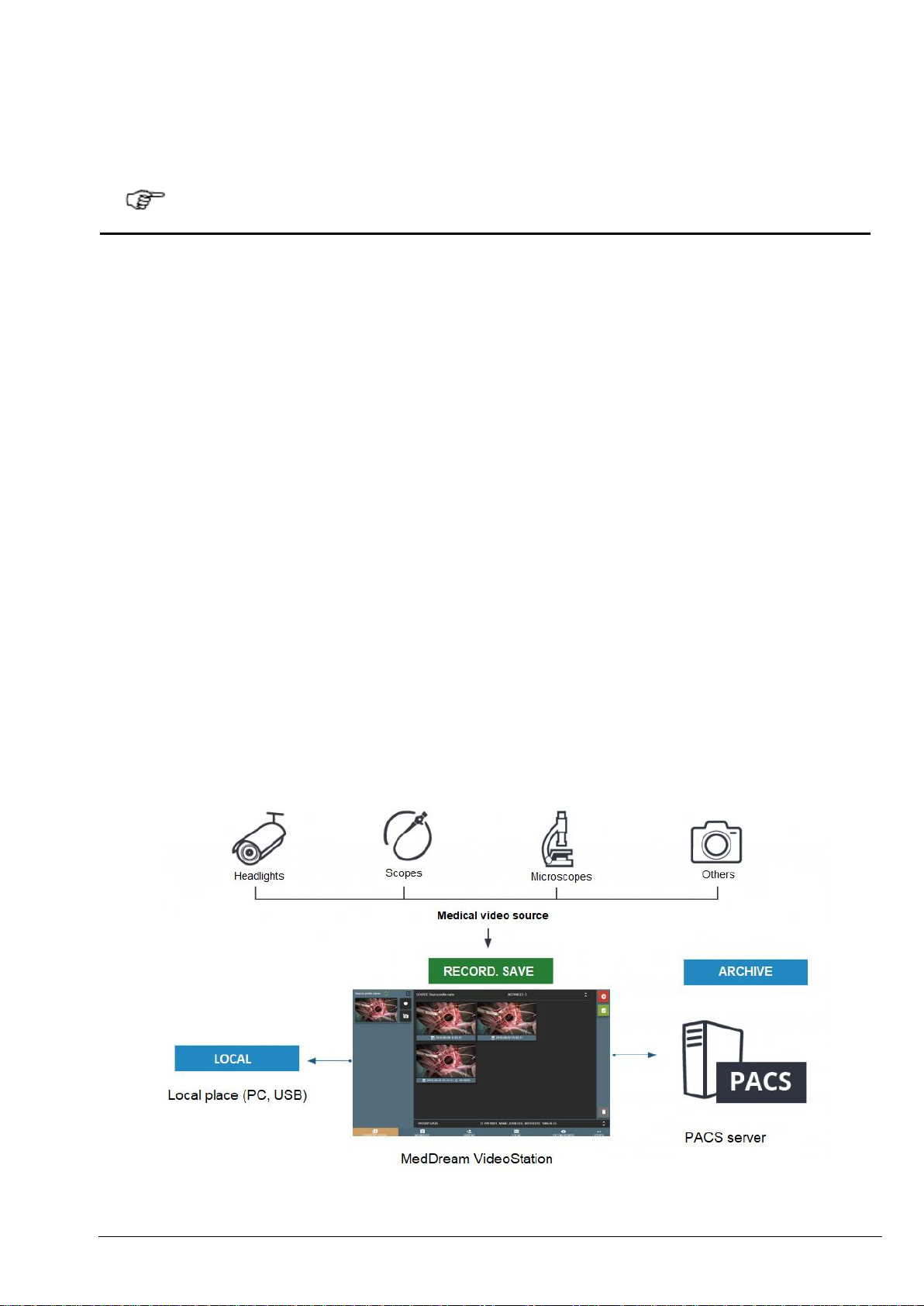

Figure 1. Connection diagram

Meddream VideoStation functionalities v4.6.1 Install Manual

Minimal Requirements

Minimal hardware and software requirements:

Parameter

Requirements

Processor

Intel® Core™ i5 or i7

When using FHD streaming, recording and playing at the same time:

4 threads, 4 GHz or 8 threads, 1.8 GHZ.

Using intel media SDK (reduce CPU consumption), requires 3rd Generation (or

later) Intel® Core™, selected Intel® Celeron™, Intel® Pentium™ and Intel® Atom®

processors with integrated graphics supporting Intel® Quick Sync Video

Memory

4 GB RAM

Hard drive

SDD 500 GB (SATA)

depends on usage workflow, can be >=256, GB, ~7 days requires 56 GB

Onboard graphics

Intel® HD Graphics

Network Interface

1000 Mbit/s

Screen resolution

1920x1080 pixels (lower resolution not supported)

Supports following operating

systems

Windows 7/8/10/11 (32 and 64 bit)

NOTE! We recommend upgrade PC or reduce video quality, if it does no match minimal requirements for

recording, playing and streaming at the same time.

If you faced with such a problem, please contact Softneta UAB Customer support –e-mail

[email protected] and we will help you resolve it.

General consideration

VS software based on JAVA, C/C++, ELECTRON (CSS/HTML/JavaScript) built applications, JAVA WEB server and MySql

database. So, all data is stored into MySql database, program configurations are saved into files and studies are stored as

image/video/DICOM in local PACS system.

Installation

Physical installation

VS is working with video devices or capture cards installed on the same PC and can record, make snapshots and stream one

or more signals at the same time.

VS solution mostly used in operating room but also there are possible to use at doctor’s room where need record action with

patient (for example psychiatrist session). Therefore, physical installation depending on who will be recording and from what

kind of equipment you need to take a video signal. We recommend to consult with us before buying and we will present two

main scenarios bellow:

1. Video recording and snapshots without YUAN capture card.

To record and make snapshots need device who supports Microsoft DirectShow API. Most of devices, that can be installed

on Windows OS, supports DirectShow API.

2. Video recording, snapshots and streaming with YUAN capture card.

To record, make snapshots and stream video, requires YUAN USB/PCIe capture card with software compression.

Currently tested capture cards: SA7160 PCI, QP0203 PCI, FH8735 PCI, CY3014 USB.

VS supports YUAN capture card inputs: COMPOSITE, SVIDEO, HDMI, DVI_A, DVI_D, COMPONENTS, SDI.

Meddream VideoStation functionalities v4.6.1 Install Manual

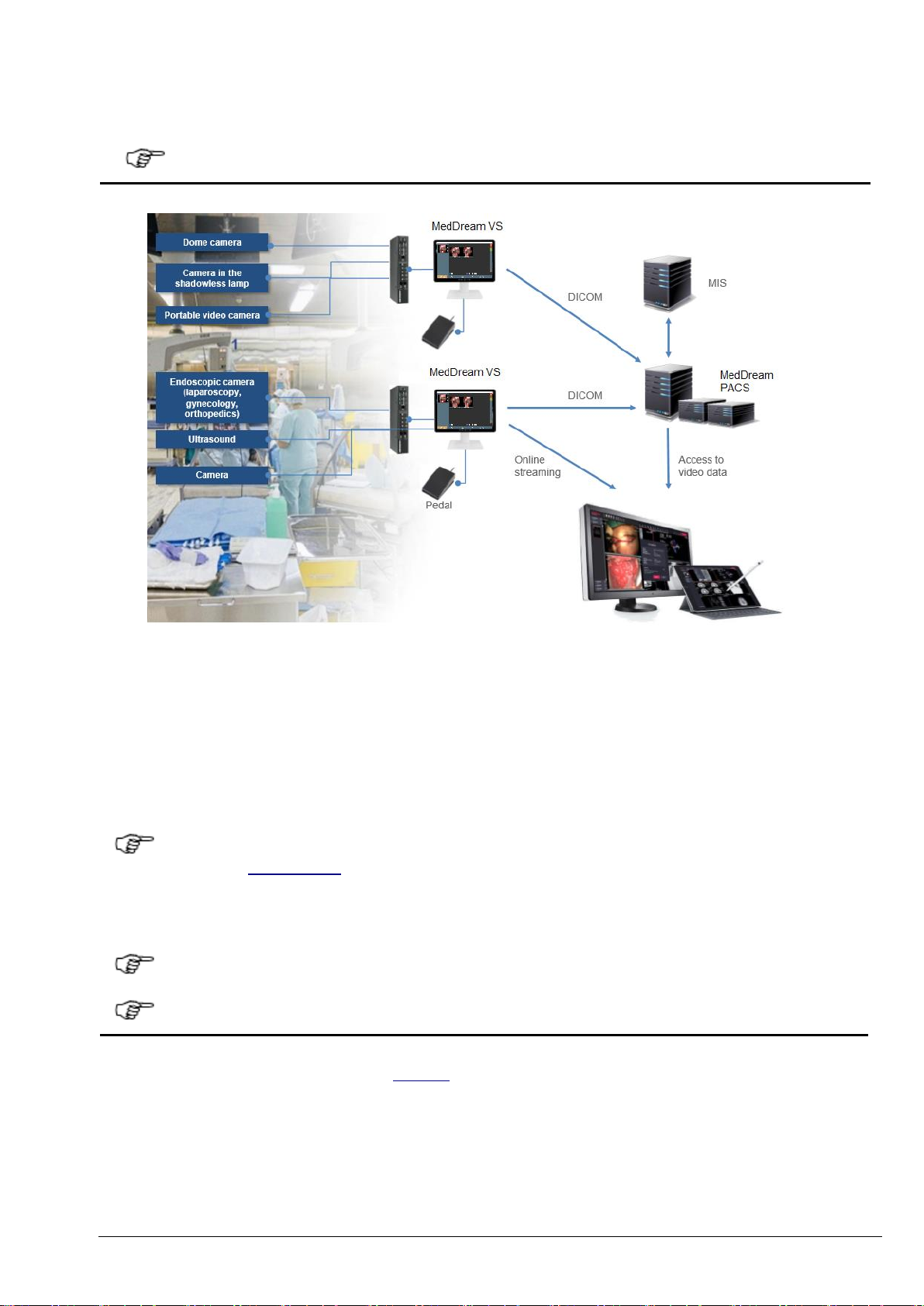

Figure 2. Physical installation scheme

Software installation / updates

Install software

VS software setup will install workstation files.

NOTE! All physically installation must be completed before software installation.

Intel media SDK restriction. Also, there more information about Intel Media SDK installation here: C:\

MedDreamStation\software\README.md

To install software for the first time, follow steps bellow.

NOTE! VS use: 80, 3310, 8081, 4568 ports for main applications to work.

Other ports can be configured via VS application settings.

NOTE! If you use capture board - install drivers before VS setup.

1. Download VS setup file from Softneta webpage.

2. Run executable file MedDreamVideoStationSetup-x.x.x.exe to start installation.

NOTE! Please contact us for more details about required capture card for your business workflow.

Meddream VideoStation functionalities v4.6.1 Install Manual

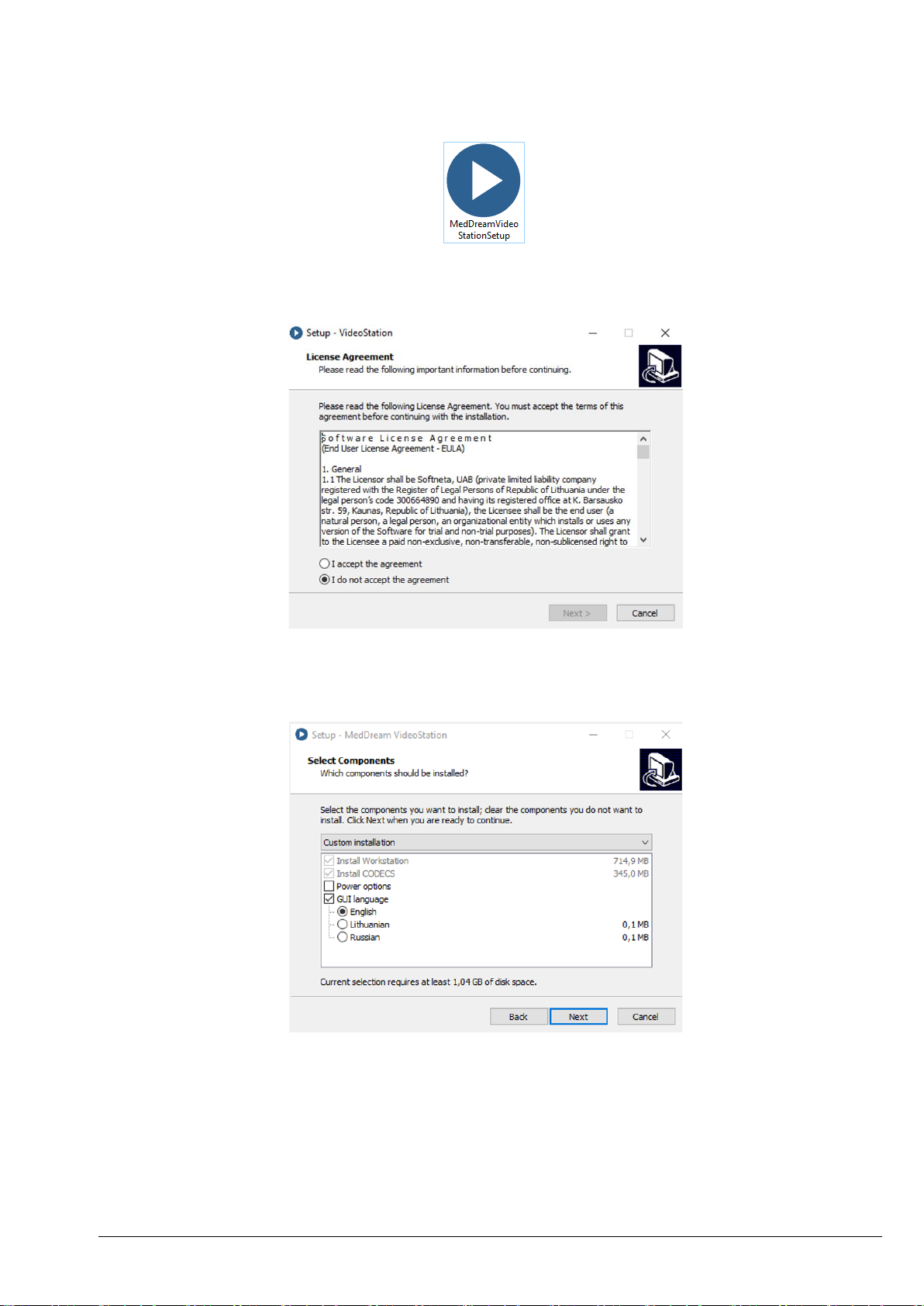

Figure 3. Setup file

3. VS setup will display license agreement. Select “I accept the agreement” and click “Next”.

Figure 4. License Agreement page

4. Select the components you want to install: clear the components you do not want to install. Select Language which

you want to install. And click next when you are ready to continue.

Figure 5. Select components you want to install

5. VS setup will generate passwords, but you can change and set your own known passwords. All data about passwords

will be placed in C:\MedDreamStation\login.txt file.

After change, click “Next”.

Meddream VideoStation functionalities v4.6.1 Install Manual

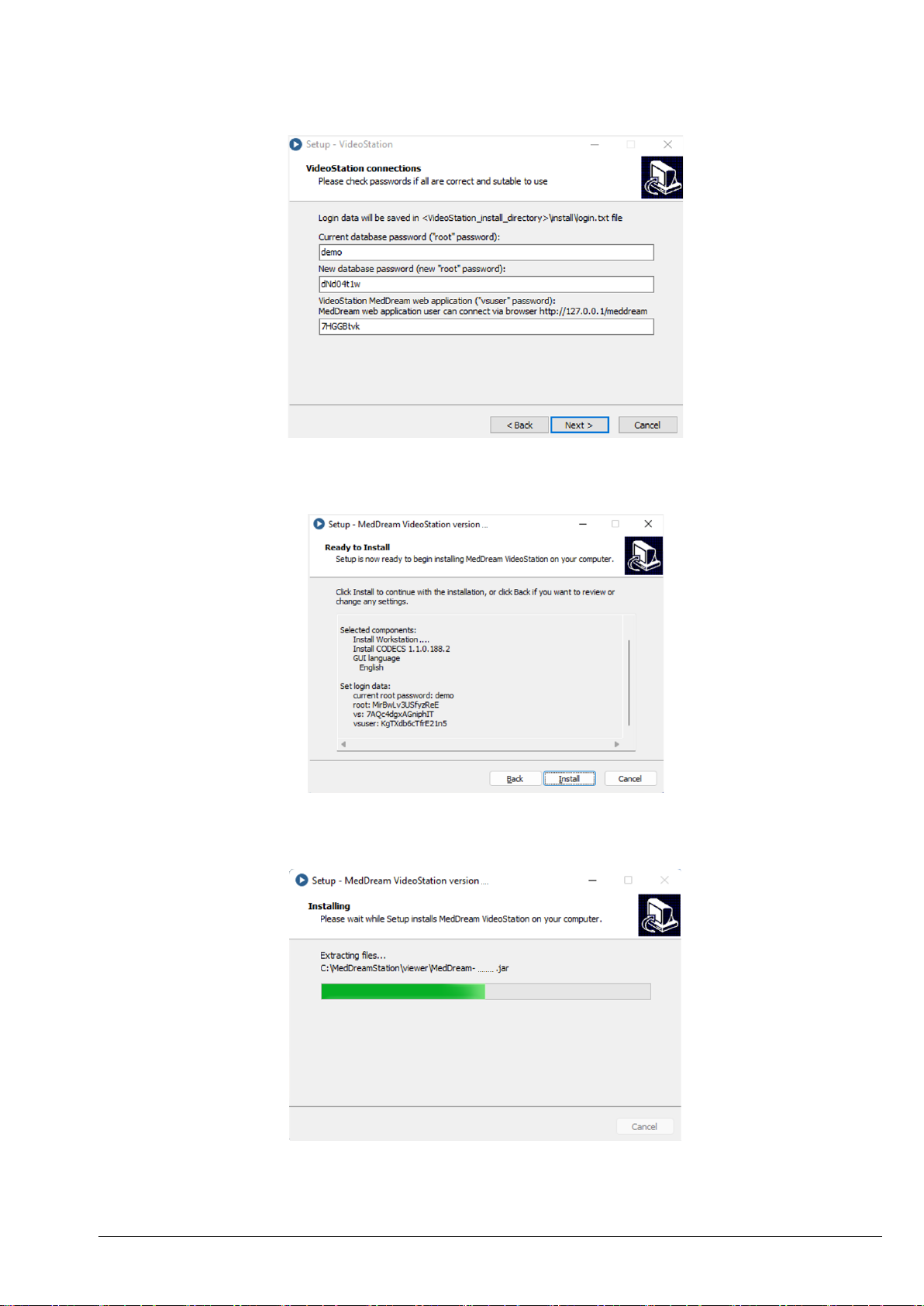

Figure 6. VS connections

6. VS setup display information about installing software. To start installation, click “Install”.

Figure 7. Ready to install page

7. Wait while setup installation complete (copy files, install and start application services).

Figure 8. Progress page

8. Complete VS installation:
