CableMaster CM500
Voice, Data & Video Tester with
Length Measurement
• Tests Voice (6 wire), Data (8 wire) and Video
(coax)
• Easy to read, extra large 7-segment LCD
screen with large icons
•
•
• RJ (Voice & Data) master remote stores in
•
•
•
•
•
life
•
USER MANUAL
CableMaster 500
2
TABLE OF CONTENTS
.............................................................................................3
CableMaster 500 Features....................................................................3
Safety Informaon .............................................................................4
.........................................................................5
Screen Icons.......................................................................................7
..........................................................8
Using the Tester .................................................................................
........................................................................................
Remotes...............................................................................................
.......................................................................
Video (Coax) Cables............................................................................
Voice (POTS) Cables............................................................................
.......................................................................................
Seng the Cable Capacitance.............................................................
Pass/Fail Sengs................................................................................
Single-Ended Tesng ..........................................................................
Port Link Light ....................................................................................
Connuous Loop Tesng ....................................................................
Backlight and Built-in LED Flashlight....................................................
Tone Mode ........................................................................................
Accessories ..........................................................................................
.......................................................................................
Warranty..............................................................................................
3
The CableMaster 500 is designed to test and measure lengths of
all common low voltage cabling found in today’s network, video or
telephone systems. It also maps the locaons of cable ends by sending a
tone on the cable that can be traced with a tone tracer or by blinking the
LED on the port jack. The CableMaster 500 has a large, bright backlit LCD
display and glow-in-the-dark buons to directly access each funcon.
The remote stores inside the main unit for ease of cable tesng.
The CableMaster 500 is turned on by pressing the power buon and
begins operang in the last mode used or the selected mode twisted
pair (DATA), coax (VIDEO), telephone (VOICE), tone generaon (TONE) or
Port Link-Blink (LINC).
CableMaster 500 Features
• Test, Measure, and Map data, coaxial video and voice cables
• Fault tesng for opens, shorts, mis-wires, reverses and split pairs
• Highly accurate length, opens and split detecon using capacive
technology
• Port Link-Blink to visually idenfy connected ports on a switch or
router
• Verify end-to-end grounding of shielded data cables
• Single-ended tesng for shorts
• Wiremap tesng to EIA T568A/B standards and cross-over cables
• Loop mode for connuous tesng
• Recognizes up to 20 unique remote ID numbers for mapping cables
• Built-in 4-cadence Tone Generator for audible tracing of cable runs
• Auto-o and low power consumpon for extended baery life
• Built-in LED Flashlight
• Easy-to-read Large Backlit LCD Display
• Glow-in-the-Dark Buons
• Audible Beep for Addional Feedback
• Ergonomic Slip-resistant Side Grips
• Self-stored Master Remote - Squeeze remote at nger grip openings
in main unit to remove
• RJ45, RJ12 and F-Jack on Main Unit and Remote
CableMaster 500
4
SAFETY INFORMATION
To ensure safe operaon of the CableMaster, follow the instrucons
carefully.
Poorly terminated RJ45 connectors have the potenal to damage
the jacks on the CableMaster 500. Always visually inspect an RJ45
connector before inserng it into the tester. All the contacts should
always be recessed into the plasc housing of the connector.
The use of a Port Saver, a sacricial adapter with an RJ45 on one end
and an RJ45 jack on the other, is highly recommended to extend the
life of the jack.
Only insert RJ45 connectors into the RJ45 jack in the tester. Plugging
6-posion connectors (RJ12/RJ11) into the 8-posion jack on the tester
may damage the outermost contacts of the jack unless the connector is
specically designed for that purpose.
The CableMaster 500 is designed for use on
unenergized cabling systems.
Connecng the CableMaster 500 to live AC power
may damage it and pose a safety hazard for the
user.
Failure to observe these warnings
can result in severe injury or death.
5

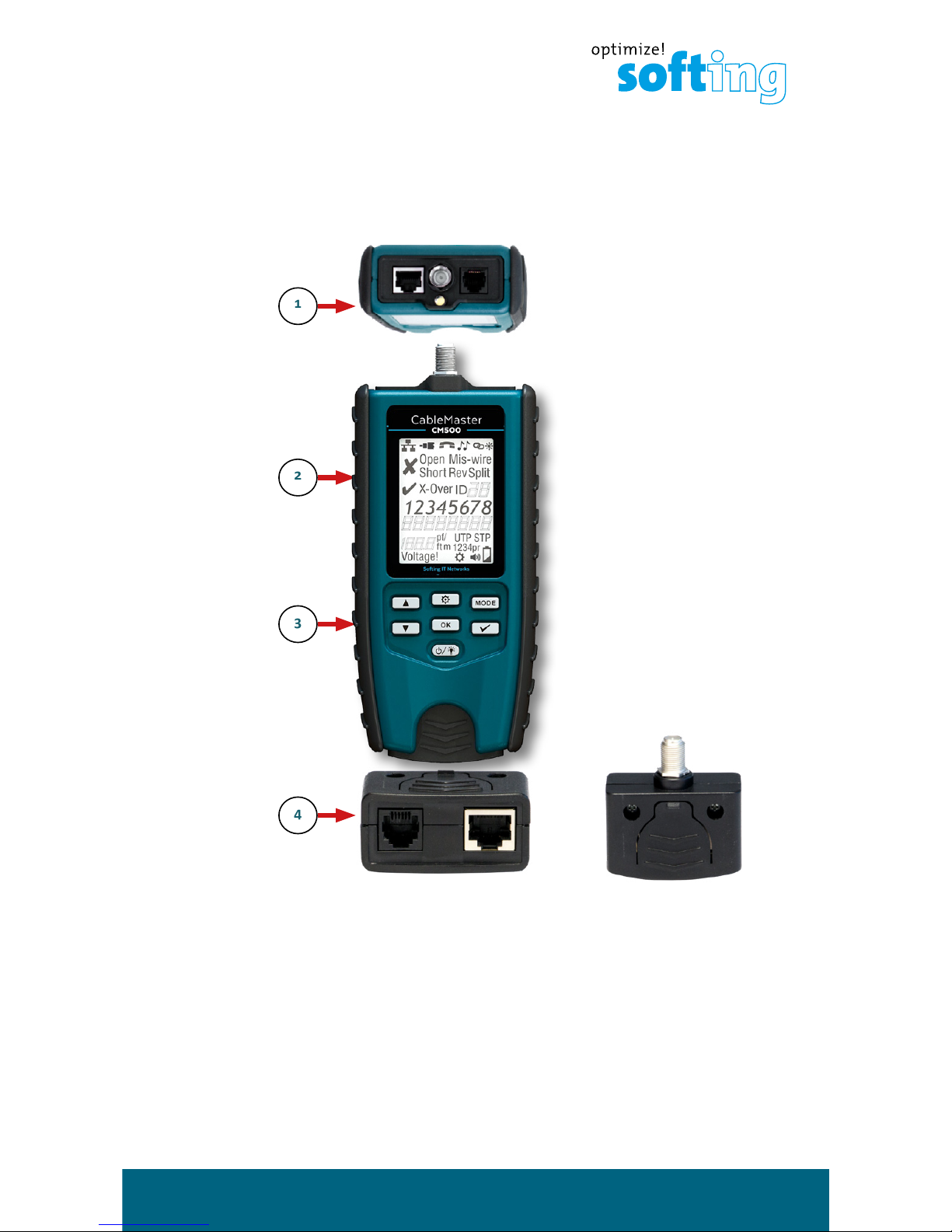

1. Connector ports and built-in LED ashlight (top of tester)
2. Large Backlit LCD Screen
3. Glow-in-the-Dark Keypad
4. Stored Master Remote (Removable) with RJ45, RJ12/11 and
Female Jacks
CableMaster 500
6
Data Cable
Mode
Coax Cable
Mode
Phone Cable
Mode Tone Mode
PASS
FAIL
Port Link
Mode
Cross-o ve r
Wi re Map
Fault(s)
Detected
Remote ID
(Up to 20)
Shie ld
Length or Cable
Capacitance
Value
High Voltage
Warni n g
Fe et or
Meters
Menu
Bee p On
Strength
P ai r s
Detected
7
Screen Icons
DATA/LAN Cable Test mode
VIDEO/Coax Cable Test Mode
VOICE Cable Test Mode
TONE Mode
Port Link-Blink Mode
Passed Cable Test
Failed Cable Test
There is a break in a wire between the ends
Mis-wire The wires in a pair are not in the proper order
Short The pairs are in contact with each other at a point
in the cable
Wires are reversed
A wire in one pair is switched with the wire of
another pair
Cross-over cable detected
ID no. ID number for an aached remote
Voltage higher than 60V has been detected!
End-to-End Shielded Detecon
Setup Menu
Audible Beep
Low Baery Indicator
Select Up/Down Keypad Buons
“OK” Buon
Setup Buon
Tester Mode Buon
Test Buon
Power/Backlight & LED Flashlight Buon
CableMaster 500
8
FAIL, Data Cable,
FAIL, Data Cable,
FAIL, Data Cable,
FAIL, Data Cable,
FAIL, Data Cable,
3/6 and 7/8, Short
on 4/5, remote ID
9
Single-ended test,
shielding not tested,
FAIL, Data Cable,
Single-ended test,
shielding not tested,
ANY Cable mode)
TONE mode, Hi Lo
warble, Tone On
Data Cable, High
Disconnect
immediately to
the tester
CableMaster 500
10
Using the Tester
The corresponding connectors at the top end of the tester are labeled
the same as their mode switches. An icon for the currently selected
mode will appear or ash on the screen.
To turn the CableMaster 500 o when in one of the cable test modes,
press and hold the power buon unl the tester powers o.
The top line of numbers (Fig 2) on the display represents the connector
pins on the main unit. The second line of pin numbers represents the
connector pin numbers of the remote, normally being the same as the
top line for a one-to-one wired cable.
If there is a mis-wire (Fig 3), the pin numbers on the second line will
indicate the pin numbers detected and the “Fail” icon will appear.
Figure 3 - Mis-Wire
The associated pin numbers of a mis-wired pairs will blink in the
remote row. If no connecon was detected for some of the pins, the
rst and second line of pin numbers will be blank in those pin locaons.
If a short is detected, the second line (Fig 4) will have a dash ‘-’ in those
posions along with “Short” appearing.
Note that this tester will not determine which end of a faulty cable is
mis-wired, reversed, or split.
Figure 4 - Shorts
