Sofar 3KTLM-G2 Manuel utilisateur

TRACKSO INSTALLATION GUIDE FOR SOFAR

Brand: SOFAR

Type: Solar On Grid String Inverter

Models: SOFAR 3KTLM-G2, SOFAR 3.6KTLM-G2, SOFAR 4KTLM-G2, SOFAR 4.6KTLM-G2, SOFAR 5KTLM-G2, SOFAR 6KTLM-G2, SOFAR

10000TL, SOFAR 15000TL, SOFAR 17000TL, SOFAR 20000TL, SOFAR 25000TL, SOFAR 30000TL, SOFAR 33000TL, SOFAR 36000TL,

SOFAR 40000TL, SOFAR 50000TL, SOFAR 60000TL, SOFAR 70000TL-HV

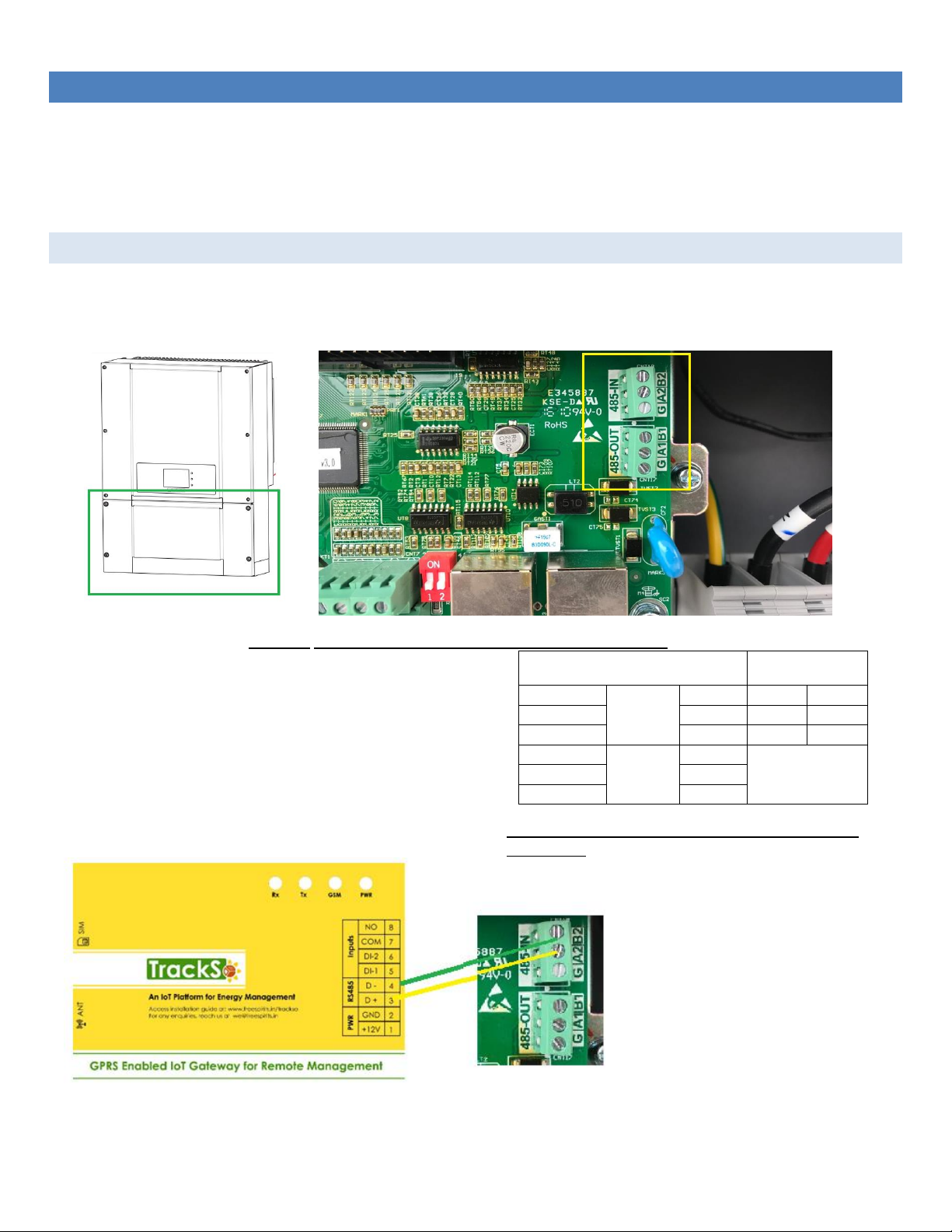

CONNECTION DIAGRAM

Locate communication terminals (RS485) as shown in the picture below. There are two connection terminals on the

configuration circuit board: RS485IN and RS485OUT (used for Daisy Chain connections)

Figure S1: SOFAR String Inverter communicatio port & Connections

Connection steps

•Please unscrew the RS485 terminal as shown in A part of Figure

S1.

•Please make the connections from the Terminal Block to

TrackSo IoT Gateway as mentioned in Table –ST1.

•Provide 12V external supply to TrackSo IoT Gateway via 12V, 2A

DC adaptor provided in the package

Table ST1 –SOFAR RS485 chip connections with TrackSo

IoT Gateway

SOFAR Pin no. & Assignment

TrackSo Pin No.&

Assignment

485-IN

Data-

Data+

485-OUT

Used for Daisy

Chain

Connection

Different Connection

location/connectors exist in

different models of Inverter.

Please locate RS485 connector of

your inverter as per its

(We have collated available the

same for available model nos on

next page.)

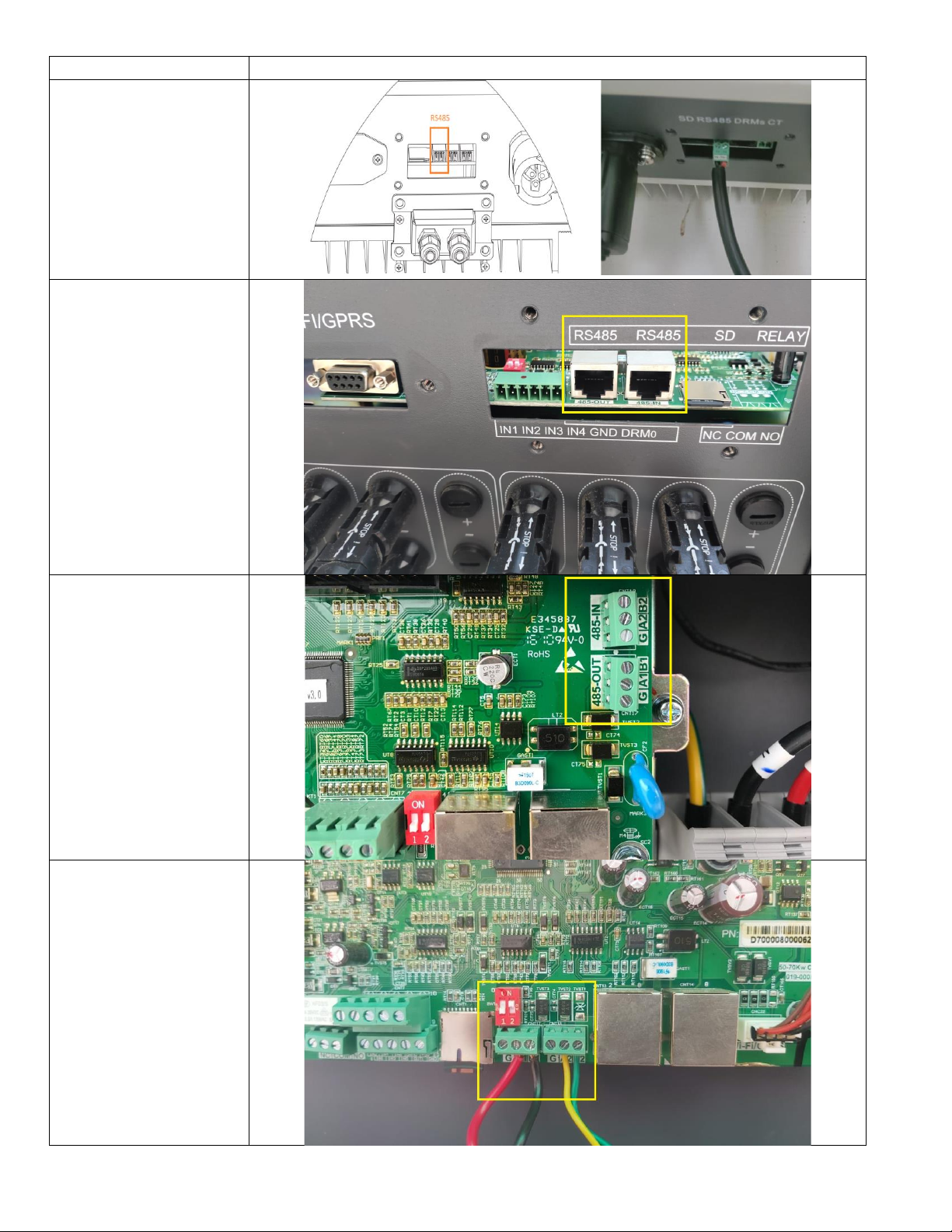

Inverter Model No.

RS485 Port Location

SOFAR 3KTLM-G2

SOFAR 3.6KTLM-G2

SOFAR 4KTLM-G2

SOFAR 4.6KTLM-G2

SOFAR 5KTLM-G2

SOFAR 6KTLM-G2

SOFAR 10000TL

SOFAR 15000TL

SOFAR 17000TL

SOFAR 20000TL

SOFAR 30000TL

SOFAR 25000TL

SOFAR 33000TL

SOFAR 36000TL

SOFAR 40000TL

SOFAR 50000TL

SOFAR 60000TL

SOFAR 70000TL-HV

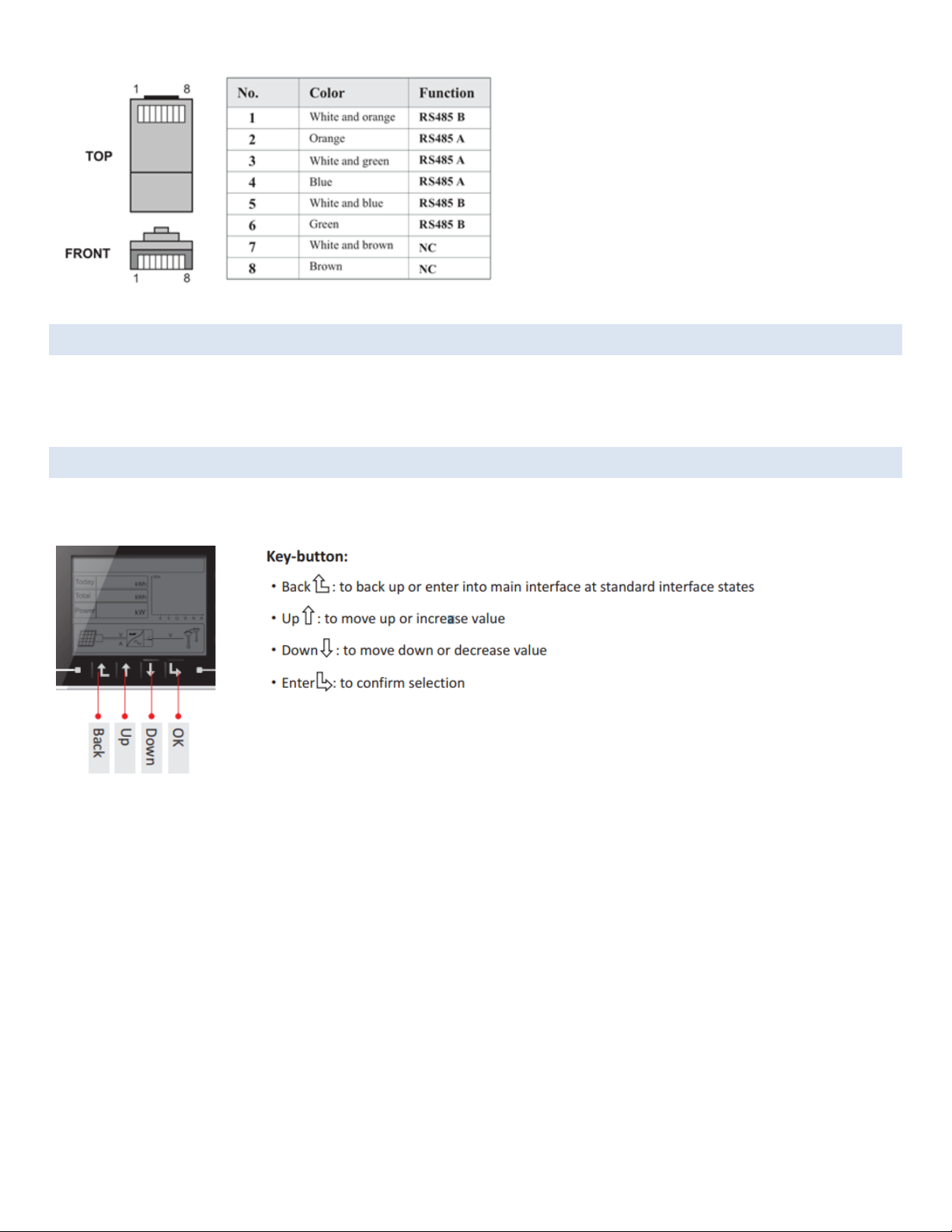

In case you are using the RJ45 connector to connect with the datalogger below is the wire config

Join the following wires from CAT6 cable to get RS485

connections

Data + (RS485 +) = 2nd + 3rd + 4th

Data –(RS485 -) = 1st + 5th + 6th

DEFAULT CONFIGURATION IN TRACKSO IOT GATEWAY

Inverter ID: 1, 2, 3, 4 …. Continuous numbering starting with 1, (Range: 1 to 247)

Baud Rate: 9600 (Default) (Values: 9600, 19200, 38400)

Data Bits: 8 ,Stop Bit: 1 ,Parity: None

CONFIGURATION AT THE INVERTER END

Inverter Screen has 4 buttons Back, Up, Down, Ok

SETTING THE INVERTER ID

The inverter ID is used to identify the inverter in a RS485 connection

•Set a different inverter ID for each inverter in the PV plant. Otherwise, the inverters cannot be correctly identified.

•On the last inverter in the RS485 connection, switch on the RS485 termination resistor.

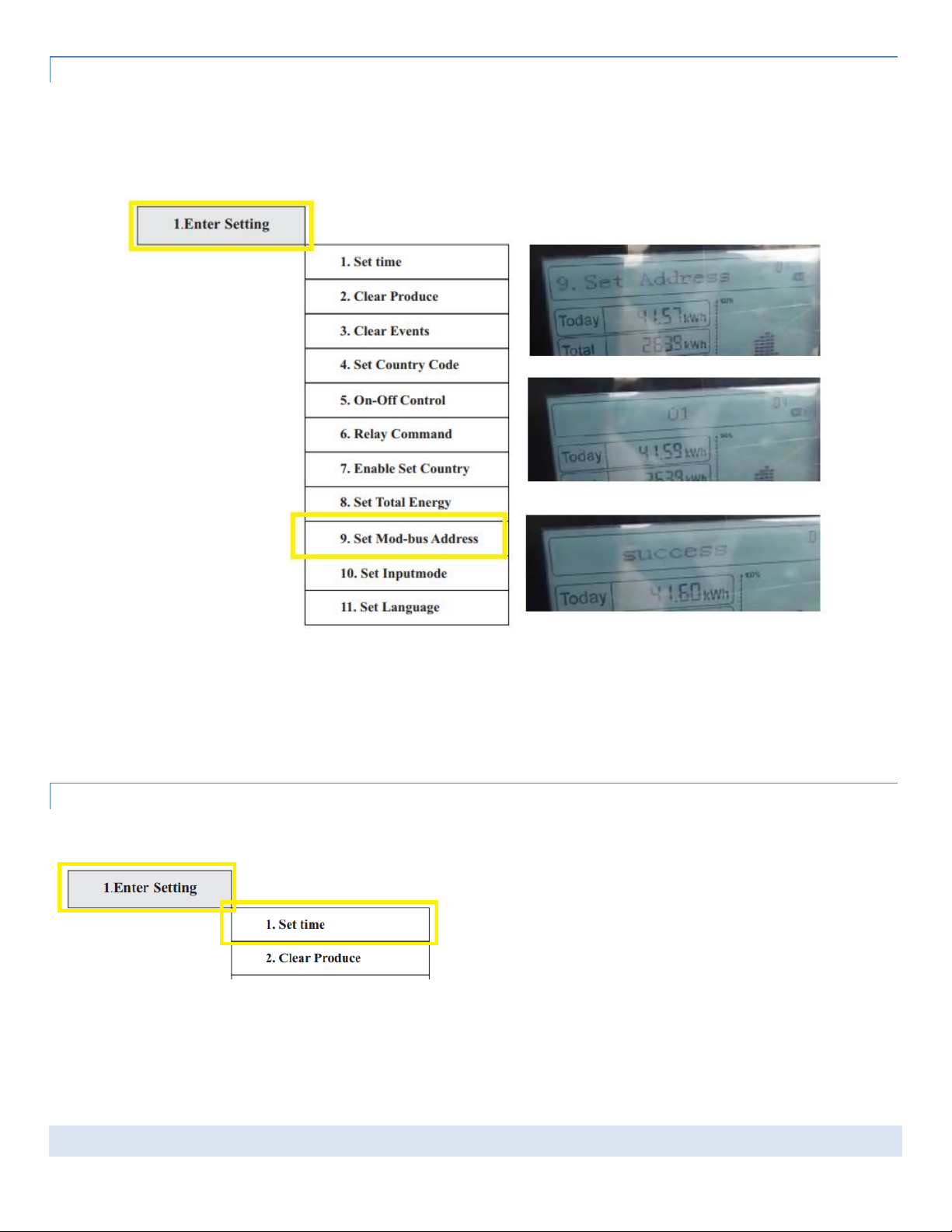

•Users press “Back” button to enter “1.Enter setting” interface, Press ”OK“ button to enter main setting interface.

•Enter “9. Set Address” by pressing “Up” button or ”Down“ button.

•Press “OK” button and enter setting interface “Success” or “fail” is displayed after setting.

SET D ATE & T IME O F INVE RTER

For a precise calculation of the statistics in the inverter itself and in a monitoring system, date and time have to be correct.

•Users press “Back” button to enter “1.Enter Setting” interface, Press “OK button to enter main setting interface.

•Enter “1. Set Time” by pressing“Up” button or “Down” button, then press”OK“button and start to set up time.

•Time set from year, month, day, minutes, & seconds in turns, “Up or “Down”button to choose different value to set date.

•Set each value is need to press “OK” button to confirm setting. “success” is displayed if the setting time is correct, “fail”

means failure settings

Communication Card Settings

Set the Correct Date & Time

Set correct Inverter Ids

Single Inverter Terminal Resistor-off

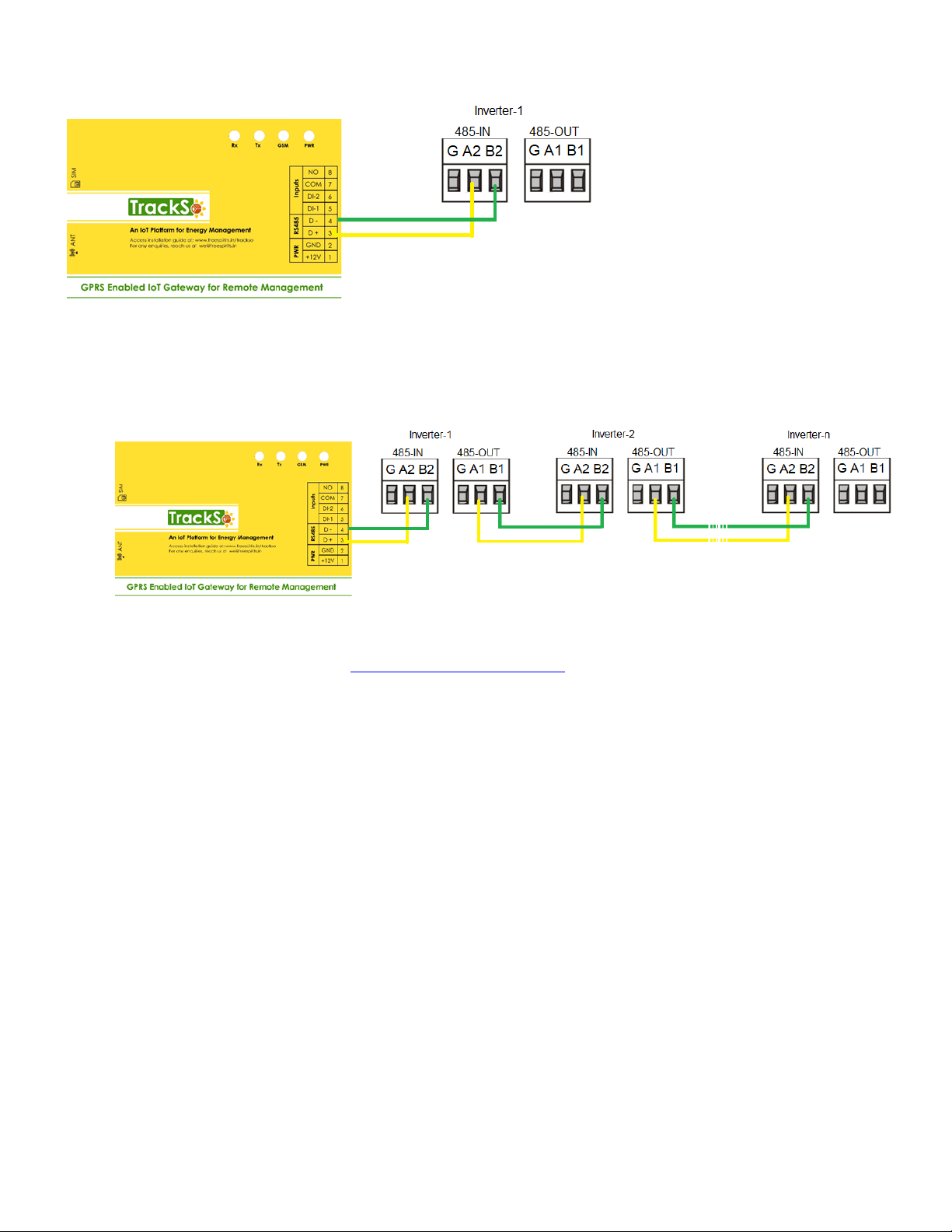

Multiple Inverters

If multiple SOFAR Inv are used, connect all SOFAR Inv in daisy chain mode over theRS485 communication cable. Set different

Modbus address(1~31) for each inverter in LCD display and set SWT2 (match resistance) at the first and last inverter

NOTE: The above details are mentioned in the Installation & Operation Manual of SOFAR Inverters
