SNOWJOE Sunjoe MJ504M Manuel utilisateur

A Division of Snow Joe®, LLC

OPERATOR’S MANUAL

Model MJ504M Form No. SJ-MJ504M-880E-MR1

RMANUAL REEL MOWER

16-INCH | 9 CUTTING HEIGHTS | RAZOREEL

IMPORTANT!

Safety Instructions

All Operators Must Read These

Instructions Before Use

Always follow these safety guidelines. Failure to do so may

result in serious bodily injury or death.

General Safety WARNINGS!

When using this reel mower, basic safety precautions should

always be followed to reduce the risk of personal injury. These

precautions include:

mWARNING! This unit can be dangerous! Careless or

improper use can cause serious injury.

mWARNING! Risk of dismemberment: keep hands and

feet away from the rotating blades and the cutting area.

Before using the reel mower, familiarize yourself with the

controls, especially how to stop the mower in an emergency.

The only individuals who should use the mower are those who

thoroughly understand these instructions and know how to

properly operate the unit. Children should never be allowed

access to the mower.

Retain this manual for future reference and reread it at the start

of each mowing season.

Safety Information

1. Never place hands, ngers, or feet inside the reel.

Although this mower is not powered by a motor, the reel

spins when the wheels turn, and it is sharp enough to

cause serious injury.

2. Never mow when the grass is wet as it can be slippery.

3. Do not use the reel mower while barefoot or while wearing

sandals.

4. Walk behind, never run, while using the reel mower.

Always keep proper footing and balance when using this

reel mower.

5. Do not intentionally strike or hit trees, fences, or

other objects. Doing so can cause severe injuries or

permanently damage the reel mower's mechanisms.

6. Make sure that the reel mower is in proper working order

prior to use. Do not attempt to operate this reel mower if it

is damaged. Contact your authorized Snow Joe®+

Sun Joe®dealer or call the Snow Joe®+ Sun Joe®

customer service center at 1-866- SNOWJOE

(1-866-766-9563).

IMPORTANT!

Safety Instructions for Walk-Behind

Reel Mowers

General Operation

• Read, understand, and follow all instructions on the

machine and in the manual(s) before starting.

• Do not put hands or feet near or under the machine.

Always stay clear of the discharge opening.

• Only responsible adults who are familiar with the

instructions should be allowed to operate this machine.

• Clear the mowing area of foreign objects such as rocks,

wire, toys, and other miscellaneous articles, which could

be picked up and thrown by the rotating blades.

• Make sure that the mowing area is clear of bystanders

before starting the mower. Stop the mower if anyone

enters the area.

• Always look down and behind before starting and while

moving backward with the mower.

• Do not operate the machine without safety protective

devices in place and in proper working order.

• Never operate the mower on wet grass. Always be sure of

your footing; walk, never run, with the mower.

• Keep blades sharp.

• Keep hands and feet away from the cutting area.

• Always wear eye protection when operating the machine.

• Objects struck by the reel mower blades can cause severe

injuries. The mowing area should always be carefully

examined and cleared of all objects prior to each mowing.

• Only use identical replacement blades.

Slope Operation

Slopes are major factors involved in slip and fall accidents.

Such accidents can cause severe personal injury. Operating

this mower on any inclined surface requires extra caution. If

you feel uneasy on a slope, do not mow it.

• Mow across the face of a sloped surface; never mow

up and down a slope. Exercise extreme caution when

changing direction on a slope.

• Watch for holes, ruts, bumps, rocks, or other hidden

objects. These may cause an unexpected slip or fall.

• Do not mow on wet grass or excessively steep slopes.

Poor footing could cause a slip and fall accident.

• Do not mow near drop-os, ditches, or embankments.

You could lose your footing or balance.

Children

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the mower

and the mowing activity. Never assume that children will

remain where you last saw them.

• Keep children out of the mowing area and under the

watchful care of a responsible adult other than the

operator.

• Stay alert and stop the reel mower if a child enters the

area.

• Never allow children access to the machine.

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may block your view of a child.

Service

• Keep all nuts and bolts tight.

• Never tamper with safety devices. Regularly check to

ensure these devices are in place and in proper working

order.

• Keep the reel mower free from grass, leaves, or other

debris buildup.

• If you strike a foreign object, stop and inspect the reel

mower. Repair, if necessary, before restarting.

• The mower blades are sharp. Wrap the blades or wear

gloves when handling.

• Maintain or replace safety and instruction labels as

needed.

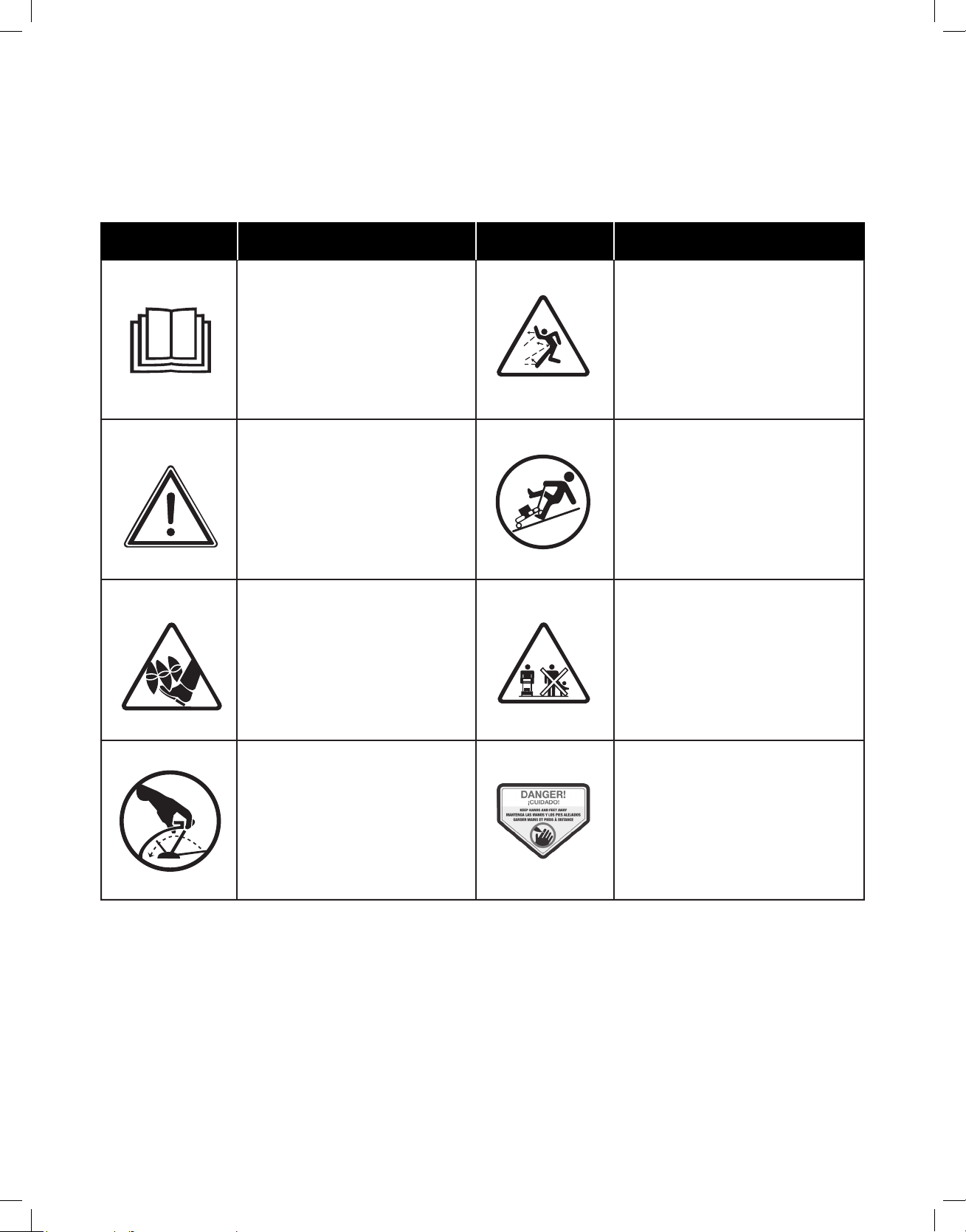

Safety Symbols

The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all

instructions on the machine before attempting to assemble and operate.

SAFETY ALERT – Indicates a

precaution, a warning, or a danger.

DANGER! Cutting/dismemberment

hazard – Keep feet away from the

rotating blades.

Keep bystanders and children a

safe distance away.

DANGER! Sharp blades can

sever ngers and toes. Keep

away from the cutting area.

Slip on slope hazard – Use extra

caution when mowing on slopes to

prevent slip and fall accidents.

CAUTION! Beware of stones and

other foreign objects that could be

thrown from the appliance.

DANGER! Cutting/dismemberment

hazard – Keep hands away from the

rotating blades.

Symbols SymbolsDescriptions Descriptions

READ THE OPERATOR'S

MANUAL(S) – Read, understand,

and follow all instructions in the

user manual(s) before attempting to

assemble and operate.

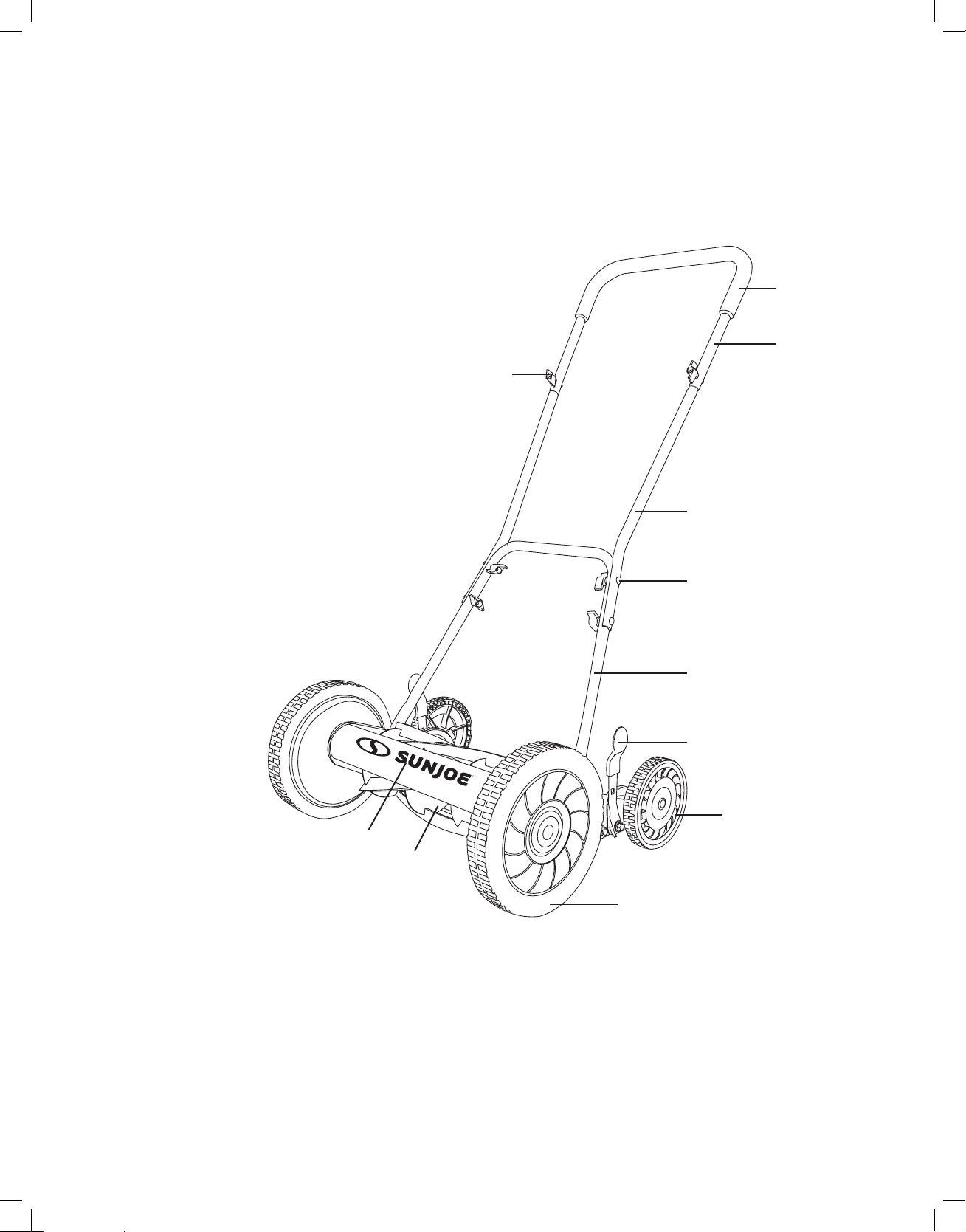

Know Your Manual Reel Mower

Read the owner’s manual and safety instructions carefully before operating the reel mower. Compare the illustration below to the

reel mower in order to become familiar with the location of the various controls and adjustments. Save this manual for

future reference.

1. Foam grip

2. Upper handle

3. Upper handle knob and bolt (2)

4. Middle handle bar (2)

5. Lower handle knob and bolt (4)

6. Lower handle

7. Height adjustment levers

8. Rear wheel (2)

9. Front wheel (2)

10. Reel mower body

11. Steel blades

Technical Data

Rotor 5 steel blades

Cutting Width 16 in (40.6 cm)

Cutting Heights 1.1 in. – 2.9 in.

(2.7 cm – 7.3 cm)

Wheel Size Front: 10 in. (25 cm)

Rear: 6 in. (15 cm)

Height Control 9-position manual

height adjustment

Weight 24.9 lbs (11.3 kg)

Unpacking

Carton Contents:

• Reel mower body

• Upper handle

• Middle handle bar (2)

• Lower handle

• Handle knob and bolt (6)

• Paper test strips (20)

• Hex wrench

• Manuals with registration card

1. Carefully remove the manual reel mower and check to see

that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or

damage occurred during shipping. If you nd damaged or

missing parts, DO NOT return the unit to the store. Please

call the Snow Joe®+ Sun Joe®customer service center at

1-866-SNOWJOE (1-866-766-9563).

NOTE: Do not discard the shipping carton and packaging

material until you are ready to use your new manual reel

mower. The packaging is made of recyclable materials.

Properly dispose of these materials in accordance with

local regulations.

IMPORTANT! The equipment and packaging material are

not toys. Do not let children play with plastic bags, foils,

or small parts. These items can be swallowed and pose a

suocation risk!

Assembly

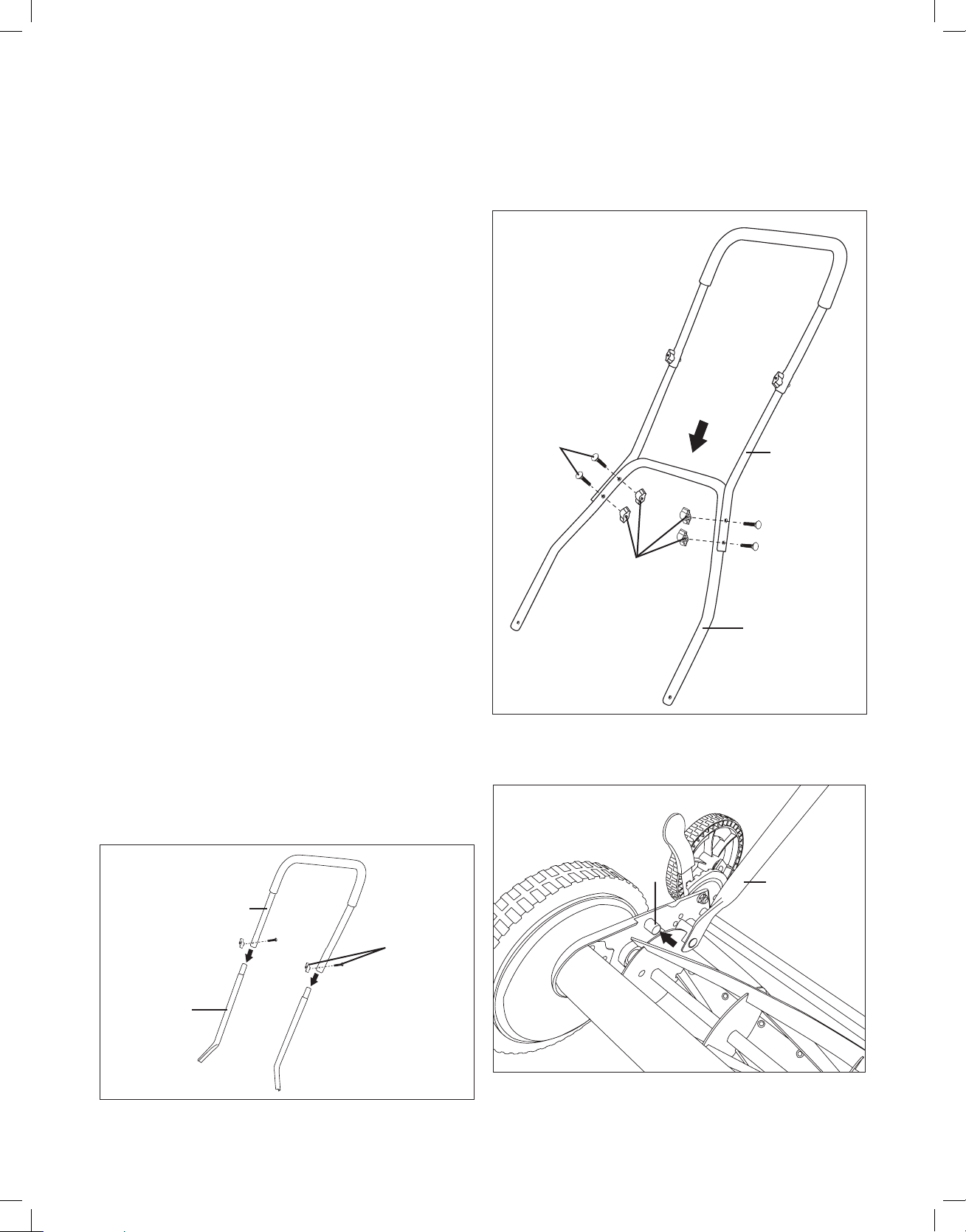

Fitting the handle

NOTE: Do not tighten the knobs completely until assembly is

complete.

1. Secure the two middle handle bars to the upper handle

using the rst set of knobs and bolts provided. Tighten the

knobs on each side to ensure a secure t (Fig. 1).

2. Attach the upper and middle handle assembly to the lower

handle using the remaining knobs and bolts provided.

Tighten the knobs on each side to ensure a secure t

(Fig. 2).

3. After assembling the handle, line up the holes at the lower

end of each handle arm with the short posts that extend

from the side plates of the mower base (Fig. 3).

Upper handle

Middle

handle

bar

Knob + bolt

Fig. 1

Fig. 2

Middle

handle

assembly

Lower handle

Knobs

Bolts

Fig. 3

Post Handle bars

4. Pull both sides of the lower handle bars over the posts

on the mower body. Press inward on the handle bars to

ensure a secure t over the posts.

Operation

Cutting height adjustment

1. The cutting height of the 16" (40.6 cm) reel mower can be

adjusted from 1.1" to 2.9" (2.7 to 7.3 cm) by moving the

9-position height adjustment levers to the desired setting.

The height adjustment levers are located next to the

smaller wheels.

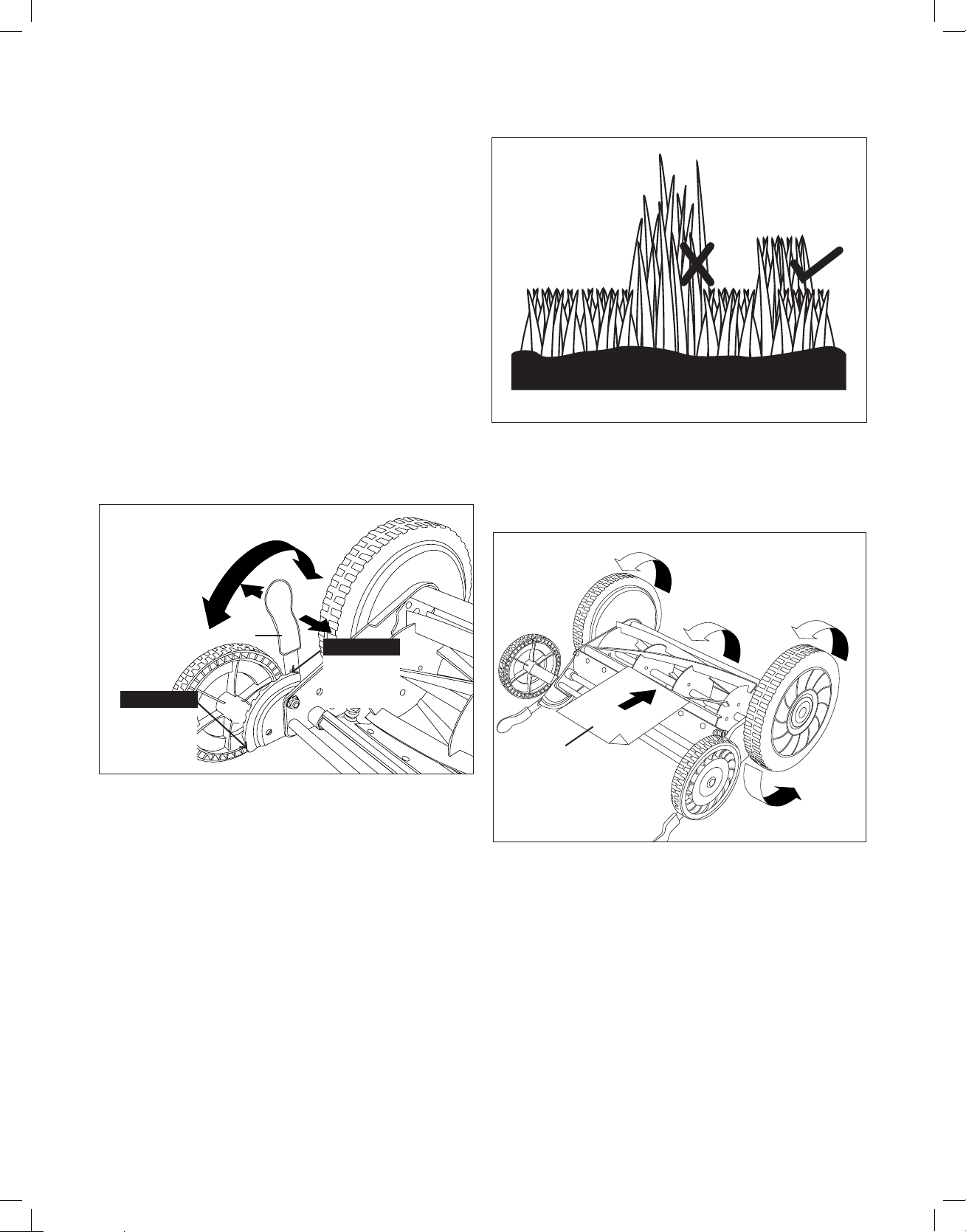

2. In order to set the mower to its lowest cutting position,

pull the adjustment levers on both sides, one at a time,

and set them to position A (Fig. 4).

3. In order to set the mower to its highest cutting position,

move the adjustment levers on both sides to position B

(Fig. 4).

NOTE: The two adjustment levers MUST be set to the

same position (height).

4. Other cutting heights are achieved by moving the

adjustment levers to the settings between the highest and

lowest positions.

Ensuring a clean cut

mWARNING! The steel blades are extremely sharp.

To avoid injury, do not touch the blades while making

adjustments.

NOTE: Although the blades are pre-adjusted prior to leaving

the factory, it is recommended that the adjustment be veried

prior to rst use.

NOTE: Vibrations during shipping can cause blade

misalignment, which often causes the blades to become too

loose or too tight. This will result in a rough, uneven cut, or

make the mower dicult to push (Fig. 5).

1. To verify proper blade alignment, place the mower on a

at surface. Remove the handles and turn the mower reel

upside down to expose the cutting bar.

2. Insert a sheet of paper between the blade reel and cutting

bar, then slowly turn the wheel by hand (Fig. 6).

3. All the blades should slice the paper evenly along the

entire length of the cutting bar while the reel is turned

smoothly.

4. If the mower cuts the paper intermittently, adjustment

should be made to the appropriate side of the blades to

achieve optimal cutting performance.

Adjustment lever

Fig. 4

Lowest

cutting

position

Position A

Highest

cutting

position

Position B

Quality

Fig. 5

Paper

Fig. 6

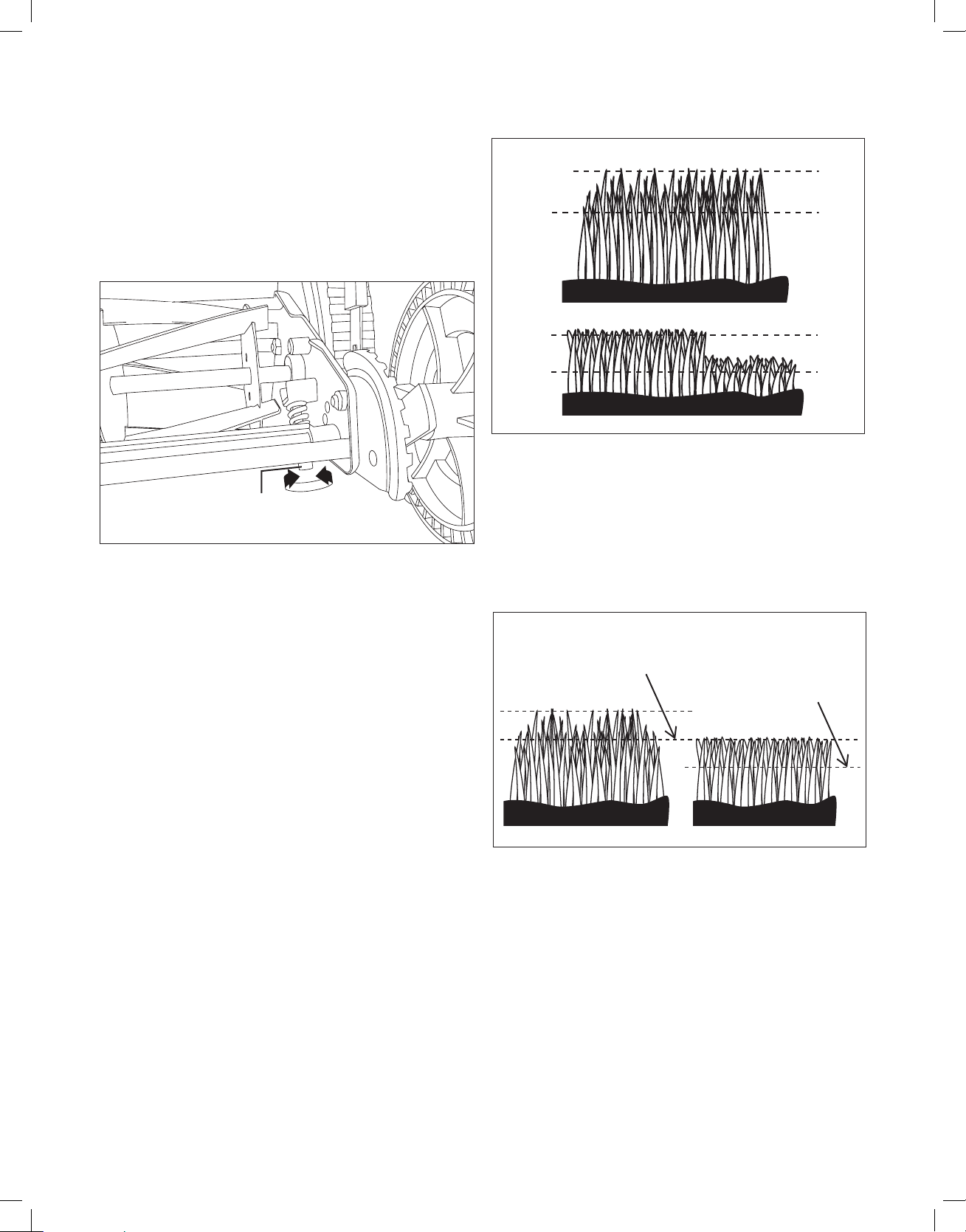

Adjusting the mower blades

1. Each end of the cutting bar can be adjusted separately.

2. The cutting bar blade, which is located under the reel, is

able to pivot. The two adjustment nuts located at the back

of the mower move the cutting bar away from the blades

when they are turned counterclockwise, and closer to the

blades when they are turned clockwise (Fig. 7).

m WARNING! Do not overtighten the adjustment screws

as this could damage the cutting bar. Both screws must be

tight on nal adjustment.

3. To loosen the blades, use the hex wrench provided and

turn both adjustment screws by an equal amount

counterclockwise.

4. To tighten the blades, tighten both screws by an equal

amount by turning them clockwise.

NOTE: If you have any questions, please call the Snow Joe® +

Sun Joe®customer service department at 1-866-SNOWJOE

(1-866-766-9563) for assistance.

5. Once the mower blades have been properly adjusted and

their alignment has been veried, you can now proceed

to use your reel mower. Align the cutting path indication

arrow with the previously cut path.

NOTE: The width of the reel mower's actual cut is

indicated below. Do not use the mower's wheels as a

reference point for the grass cut line.

Mowing Tips

Follow the 1/3 rule

The 1/3 rule is key to an enjoyable mowing experience and a

healthy lawn.

1. You should mow your lawn regularly, at least once a week,

during the growing season.

2. Be guided by observing the lawn and taking care not to

remove more than 1/3 of the total height of the turf at any

mowing session and never more than 1 inch at a time

(Fig. 8).

3. Following this rule will stimulate the turf’s root growth,

maintain its health, and encourage its natural ability to

crowd out unwanted weeds.

Tall grass requires incremental cutting

1. For extremely tall grass, set the cutting height at the

mower's maximum setting for the rst pass, and then

reset it to the desired height and mow a second or third

time (Fig. 9).

2. Removing too much of the turf’s height, especially in the

heat of summer, can cause root shock and weaken the

lawn; bringing down the height by successive mowing

over two or more days can avoid this damage and

maintain the health of the turf.

3. If the lawn is overgrown (to higher than 4 inches) it may be

necessary to use a brush cutter to remove the excess turf

mass before resuming mowing at normal heights.

NOTE: Do not cover the grass surface with a heavy layer

of clippings. Consider using a grass collection system and

starting a compost pile.

Fig. 7

Adjustment screw

1/3

Fig. 8

Cut here on

rstpass Cut here on

second pass

Fig. 9

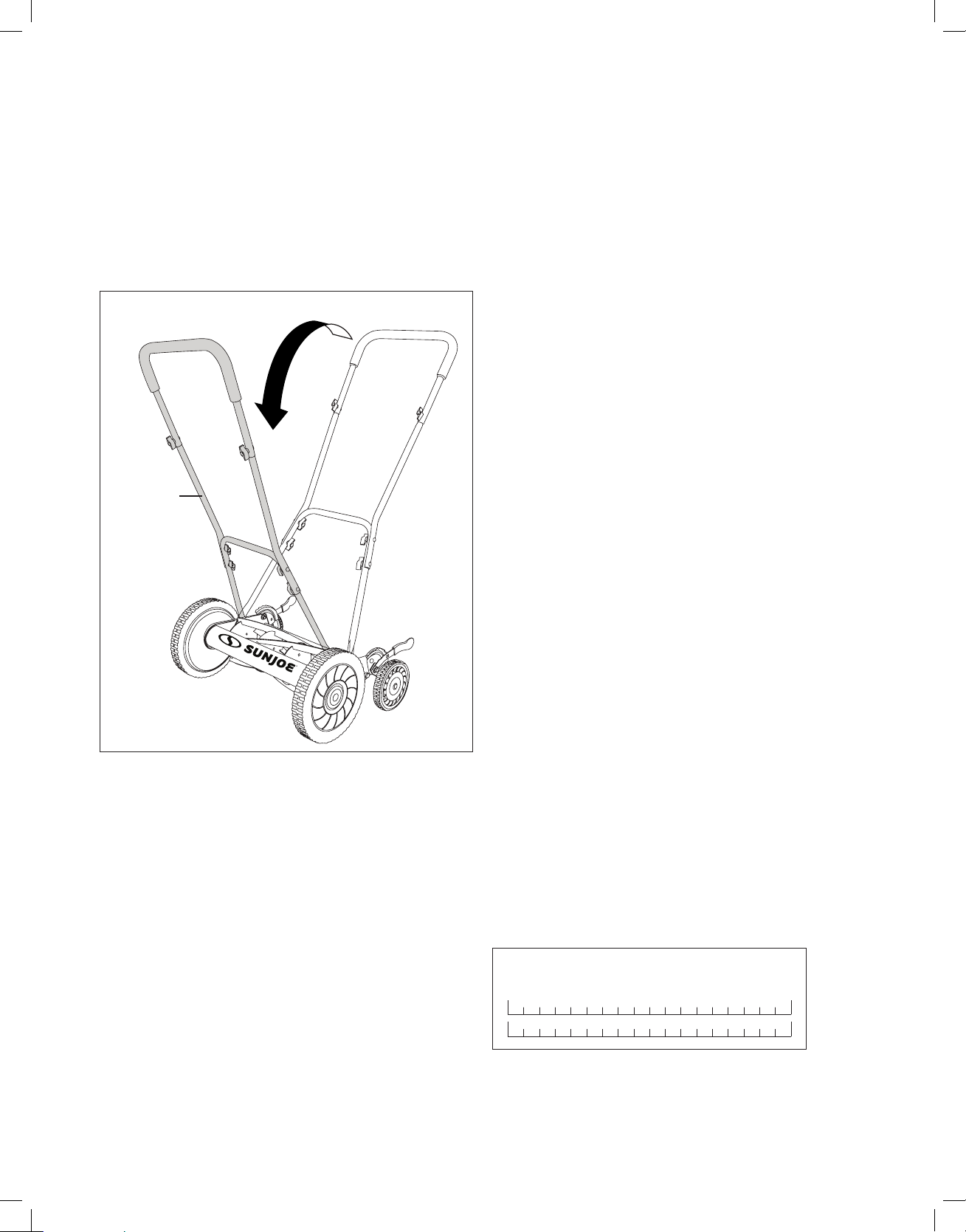

Transporting the Mower

During normal operation, the blade reel will turn anytime the

mower's front wheels are turning. To safely move the mower

from one location to another without the blade reel turning,

simply pivot the handle over the reel and push the mower from

the opposite side. Pushing the mower in this manner (transport

mode) prohibits the blade reel from turning (Fig. 10).

Care and Maintenance

1. Minimum care is required to ensure smooth operation of

your mower.

2. To avoid damage to the mower or cutting blades, keep the

area to be mowed free from debris.

3. For best results, regularly apply lubricant to the mower’s

cutting surfaces, cutting reel axle shaft, and wheels.

Sharpening the Cutting Blades

1. Spread a thin layer of lapping compound on the front edge

of the reel blades.

2. Adjust the cutting bar so that the blade has light but rm

contact across the full width of the bar.

mCAUTION! Do not overtighten the adjusting screws, as

this could damage the cutting bar. Tighten both screws during

nal adjustment.

3. Turn the reel blades until the front edge of the cutting bar

blade is polished.

mWARNING! Clean any grinding compound or debris

from the cutting bar blade, reel blade, pinions, and pawls.

NOTE: Use industrial or valve lapping compound between 100

and 240 grit.

NOTE: Lubricate the axle and pinion with a light lm of wheel

bearing grease.

Cleaning and Storage

1. Clean the exterior of the machine thoroughly using a soft

brush and cloth before storing. Do not use water, solvents,

or polishes.

2. Turn the mower on its side to clean the blade area.

mWARNING! Do not place your hands inside or near the

cutting area. If grass cuttings are compacted in the blade area,

remove them using a wood or plastic cleaning tool appropriate

for blade cleaning.

3. Store the mower in a dry place. Do not place other objects

on top of the mower during storage.

Maintenance Tips

Reel mowers are relatively low maintenance. For consistent

cutting, follow the below instructions:

• Always keep the cutting bar properly adjusted. Refer to the

instruction manual for further directions.

• Regularly clean and lubricate cutting edges with light spray

oil.

IMPORTANT! Reel mowers have diculty cutting tall weeds,

such as dandelions, and will often bend, rather than cut, such

weeds. Cut often to prevent this.

Service and Support

If your Sun Joe®manual reel mower requires service or

maintenance, please call the Snow Joe®+ Sun Joe®customer

service center at 1-866-SNOWJOE (1-866-766-9563).

Model and Serial Numbers

When contacting the company or reordering parts, you will

need to provide the model and serial numbers of your product.

These are found on the decal axed to the housing of your

reel mower. Copy these numbers into the space provided

below.

Handle

Fig. 10

Record the following numbers from the housing or handle of your

new product:

M J 5 0 4 M

Model #:

Serial #:

NOTES

Autres manuels pour sunjoe MJ504M

Table des matières

Autres manuels SNOWJOE Tondeuse à gazon

SNOWJOE

SNOWJOE SunJoe MJ24C-14-XR Manuel utilisateur

SNOWJOE

SNOWJOE Sunjoe 24V-MJ14C-RM Manuel utilisateur

SNOWJOE

SNOWJOE SUNJOE MJ408E Manuel utilisateur

SNOWJOE

SNOWJOE Sunjoe MJ506E Manuel utilisateur

SNOWJOE

SNOWJOE Sunjoe MJ500MRM Manuel utilisateur

SNOWJOE

SNOWJOE SUNJOE MJ402E-RM Manuel utilisateur

SNOWJOE

SNOWJOE SUNJOE iON100V-21LM-RM Manuel utilisateur

SNOWJOE

SNOWJOE SUNJOE MJ401E-PRO-RM Manuel utilisateur

SNOWJOE

SNOWJOE SUNJOE MOW JOE MJ401E-PRO Manuel utilisateur

SNOWJOE

SNOWJOE SUNJOE MJ407ERM Manuel utilisateur

SNOWJOE

SNOWJOE SUNJOE MJ408E-RM Manuel utilisateur

SNOWJOE

SNOWJOE Sunjoe MJ501M Manuel utilisateur

SNOWJOE

SNOWJOE SUNJOE MJ403E-RM Manuel utilisateur

SNOWJOE

SNOWJOE SUNJOE iON100V-21LM Manuel utilisateur

SNOWJOE

SNOWJOE SUNJOE 24V-X2-21LM-CT Manuel utilisateur

SNOWJOE

SNOWJOE sunjoe 24V-X2-21LMSP-RM Manuel utilisateur

SNOWJOE

SNOWJOE sunjoe MJ400E Manuel utilisateur

SNOWJOE

SNOWJOE Sunjoe MJ401C-XR Manuel utilisateur

SNOWJOE

SNOWJOE sunjoe 24V-X2-21LM Manuel utilisateur

SNOWJOE

SNOWJOE SUNJOE MJ402E Manuel utilisateur

SNOWJOE

SNOWJOE SUNJOE MJ504M-RM Manuel utilisateur

SNOWJOE

SNOWJOE sunjoe MJ503M Manuel utilisateur

SNOWJOE

SNOWJOE SunJoe 24V-CRLM15-CT Manuel utilisateur

SNOWJOE

SNOWJOE SUNJOE 24V-X2-17LM-CT Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

SNOWJOE sunjoe MJ504M Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques
