Economic Megapixel IP Camera

User Manual

- 2 -

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN!

CAUTION :

TO REDUCE THE RISK OF ELECTRICAL SHOCK,

DO NOT OPEN COVERS (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

WARNING: This symbol is intended to alert the user to the presence of un-insulated

“dangerous voltage”.

CAUTION: This symbol is intended to alert the user to presence of important operating and

maintenance (Servicing) instructions in the literature accompanying the

appliance.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union

and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product shall not be treated as

household waste. Instead it shall be handed over to the applicable collection point for the recycling

of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will

help prevent potential negative consequences for the environment and human health, which could

otherwise be caused by inappropriate waste handling of this product. The recycling of materials

will help to conserve natural resources. For more detailed information about recycling of this

product, please contact your local city office, your household waste disposal service or the shop

where you purchased the product. The power cord is the main power connection. Therefore,

constantly plug and unplug of the power cord might result in malfunction of the product.

CE / FCC Mark.

This apparatus is manufactured to comply with radio interference requirement.

Do not install the product in an environment where the humidity is high.

Unless the product is waterproof or weatherproof, otherwise it can cause the image quality to

be poor.

Do not drop the product or subject them to physical shocks.

Except for vandal-proof or shockproof product, otherwise it will result malfunctions to occur.

Never keep the product to direct strong light.

It can damage the product.

Do not spill liquid of any kind on the product.

If it gets wet, wipe it dry immediately. Alcohol or beverage can contain minerals that corrode

the electronic components.

Do not expose to extreme temperatures.

Use the product at temperatures within 0

℃

℃℃

℃

~ 50

℃

℃℃

℃

It is advised to read the Safety Precaution Guide through carefully before

operating the product, prevent any possible danger.

- 3 -

Table of Contents

1. Product Overview....................................................................................................................................... - 5 -

1.1 Product Feature .............................................................................................................................. - 5 -

2. Hardware Overview ................................................................................................................................... - 7 -

2.1 Hardware Description .................................................................................................................... - 7 -

3. Installation .................................................................................................................................................. - 9 -

3.1 Basic Installation............................................................................................................................. - 9 -

3.1.1 Hardware Connecting Diagram................................................................................................ - 9 -

3.1.2 Network Setting.......................................................................................................................... - 9 -

3.1.3 SecuUtility................................................................................................................................... - 9 -

3.1.4 Device Login ............................................................................................................................. - 10 -

3.2 Software Installation .................................................................................................................... - 13 -

3.2.1 Install SecuUtility..................................................................................................................... - 13 -

3.2.2 Install SecuConverter Tool ...................................................................................................... - 17 -

3.2.3 Install Secu Series Documents................................................................................................. - 20 -

3.3 Suggest Computer Equipment..................................................................................................... - 24 -

4. Main Page and Basic Setting ................................................................................................................... - 25 -

4.1 User Login ..................................................................................................................................... - 25 -

4.2 System Status ................................................................................................................................ - 26 -

4.2.1 Language................................................................................................................................... - 26 -

4.2.2 Serial Number .......................................................................................................................... - 26 -

4.2.3 Mac Address ............................................................................................................................. - 26 -

4.3 Live View Page .............................................................................................................................. - 26 -

4.3.1 Video Type ................................................................................................................................ - 27 -

4.3.2 Source........................................................................................................................................ - 27 -

4.3.3 Digital Zoom ............................................................................................................................. - 27 -

4.3.4 Utility......................................................................................................................................... - 27 -

4.3.5 Lighting Status ......................................................................................................................... - 28 -

4.3.6 PTZ Control Panel ................................................................................................................... - 29 -

4.3.7 Digital Zoom Panel .................................................................................................................. - 29 -

5. Setting........................................................................................................................................................ - 30 -

5.1 Network Setting ............................................................................................................................ - 30 -

5.1.1 Basic Setting ............................................................................................................................. - 31 -

5.1.1.1 IP Address Setting ................................................................................................... - 31 -

5.1.1.2 PPPoE Setting.......................................................................................................... - 32 -

5.1.1.3 Web Port Setting ..................................................................................................... - 32 -

5.1.2 Advanced Setting ..................................................................................................................... - 32 -

5.1.2.1 Port ........................................................................................................................... - 33 -

5.1.3 Service Setting .......................................................................................................................... - 33 -

5.1.3.1 DDNS Setting........................................................................................................... - 34 -

5.1.3.2 SMTP Setting........................................................................................................... - 34 -

5.1.3.3 RTSP Setting............................................................................................................ - 35 -

5.1.3.4 Mobile View Setting ................................................................................................ - 36 -

5.1.3.5 UPnP Setting............................................................................................................ - 36 -

5.1.3.6 FTP Setting .............................................................................................................. - 37 -

5.1.4 Wireless..................................................................................................................................... - 37 -

5.1.4.1 Wireless Network Setting ....................................................................................... - 38 -

5.2 Camera Setting ............................................................................................................................. - 40 -

5.2.1 Camera Setting......................................................................................................................... - 40 -

5.2.2 Streaming Setting ..................................................................................................................... - 46 -

5.2.3 Event Record ............................................................................................................................ - 47 -

5.3 Alarm ............................................................................................................................................. - 47 -

5.3.1 Alarm Setting ........................................................................................................................... - 47 -

5.4 User Management......................................................................................................................... - 48 -

5.5 Backup Device............................................................................................................................... - 50 -

5.6 System............................................................................................................................................ - 51 -

5.6.1 Basic Setting ............................................................................................................................. - 51 -

- 4 -

5.6.2 Advanced Setting ..................................................................................................................... - 52 -

5.6.3 Time Setting.............................................................................................................................. - 53 -

5.6.4 DST (Daylight Saving Time) ................................................................................................... - 55 -

5.7 Serial Port...................................................................................................................................... - 55 -

Appendix A –Web user interface guide....................................................................................................... - 57 -

Appendix B – Upgrade Firmware at local device....................................................................................... - 58 -

Appendix C – Install and Use Instant Messenger Video Module.............................................................. - 59 -

Appendix E – Time Zone .............................................................................................................................. - 74 -

Appendix E – Use Skype Module................................................................................................................. - 76 -

- 5 -

1. Product Overview

The system is used of IP camera, in order to achieve maximum mutual connectivity and

interoperability, all of this equipment according to leading-industry from front-end to

back-end monitoring structure, provides a variety of standard network protocols and

encryption algorithms. The goal is to expand the monitoring of regional, improve the

monitoring of security level and achieve high compatibility with integrated monitoring

environment.

The system is to use H.264/MJPEG’s video hardware compression chip, can simultaneously

output two kinds of image compression formats, according to different monitoring

environment to adjust to fit the suitable way. To provide high transmission quality, low

transfer rate, low delay, use a less of hard disk storage space and other features of the image,

moreover, support low delay of two-way voice.

1.1 Product Feature

Megapixel image; frame rate can be up to 25 at 1280x800.

Support H.264 / MJPEG codec, video quality is adjustable.

Support ADPCM codec, two way audio is supported.

Support high performance network transmission algorism, provide low-latency

video and audio stream.

Support event and schedule recording.

Support multiple event search (alarm, motion, video loss…) for basic and intelligent

playback.

Support motion detection; detection area and sensitivity are adjustable.

Support multiple alarm and event trigger.

Support RS485 interface, and PTZ control panel.

Video stream bit rate, frame rate and resolution are adjustable.

Multi-language supported.

Support multi-level password and protection in order to provide the highest security.

Support SD Card store pre-event and post-event recording and remotely backup

manually. (Bundled software supported)

- 6 -

Support remote setup, live view, recording, snapshot, ftp and firmware upgrade by

web page or bundled software.

Provide SecuUtility for device searching.

Network protocol supported: HTTP, UPnP, DNS, DDNS, RTSP, RTP, RTCP, TCP/IP,

UDP/IP, ICMP, DHCP, PPPoE, FTP, NTP, SMTP, Multi-Casting.

Support auto re-connecting after network or power shortage.

Support digital zoom on web page.

Free bundle 32 channel surveillance software. Support maximum 32 channels live

view and 16 channels playback.

Support hardware reset function.

- 7 -

2. Hardware Overview

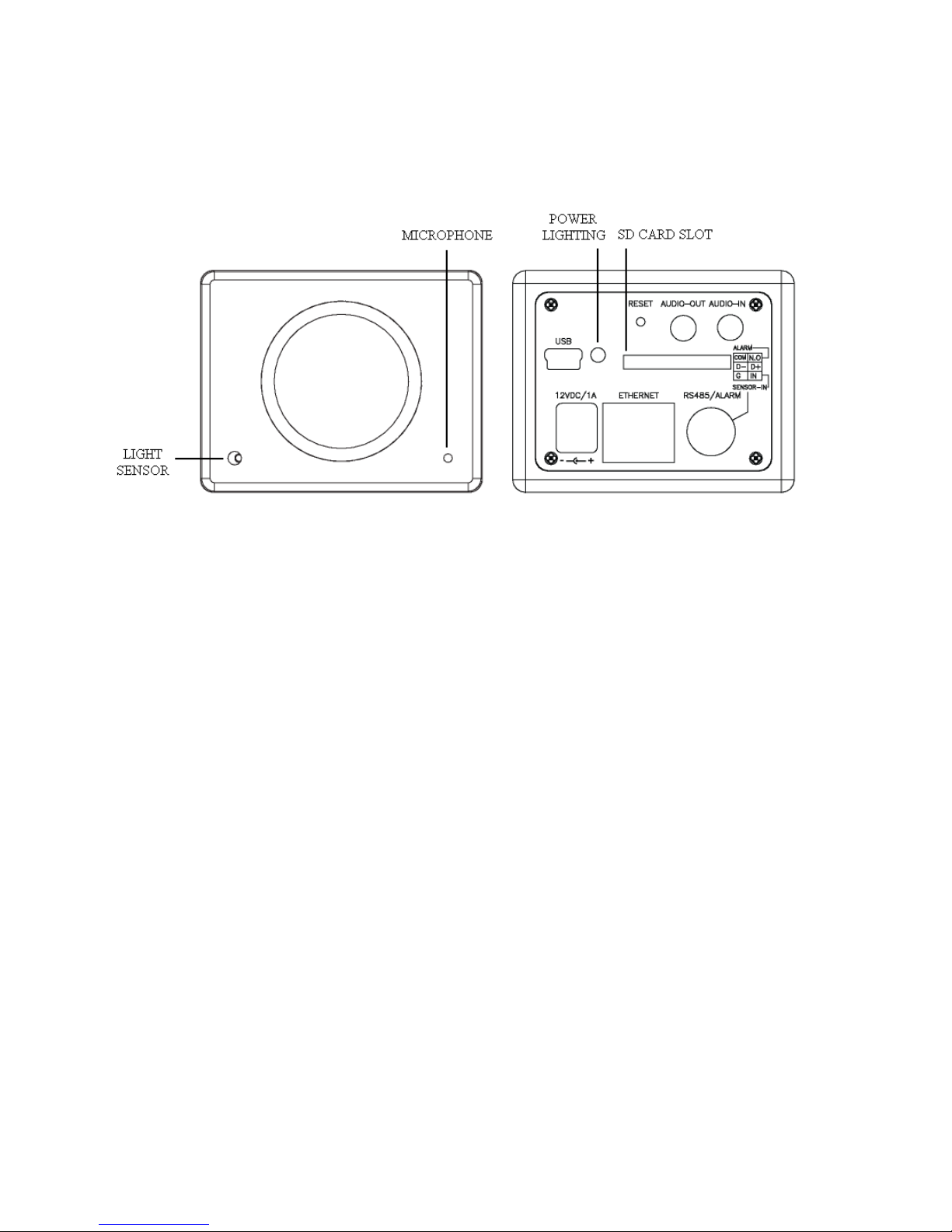

2.1 Hardware Description

Figure2-1

LIGHT SENSOR

Detect incoming light sensor. While the incoming light is too low, image will display in

monochrome automatically.

MICROPHONE

Built-in microphone.

USB

External USB slot, user can use it for wireless module.

RESET

When system is frozen, please push the reset button with suitable object and keep it

depressed for 5 seconds, after the power light is blinking, then release the reset button,

the system will finish rebooting procedure in one minute. When the power light is on;

the device is booted up successfully.

AUDIO-OUT

Connect to external audio devices for audio output, like speaker. Remote audio will

output from this connector.

AUDIO-IN

Connect to external audio devices for audio input, like microphone.

SD CARD SLOT

Support SD card type SD1.1 to SD2.0. Device doesn’t support SD card hot swapping,

please insert or remove SD card while system is off.

- 8 -

12 DC/1A

Connect to 12V DC power adapter.

ETHERNET

Connect to Ethernet network.

RS485/ALARM

Connect external device or RS-485 to keyboard or PTZ camera with Mini Dim Cable,

which is an accessory in product package. Please refer to figure 2-2 for pin definition.

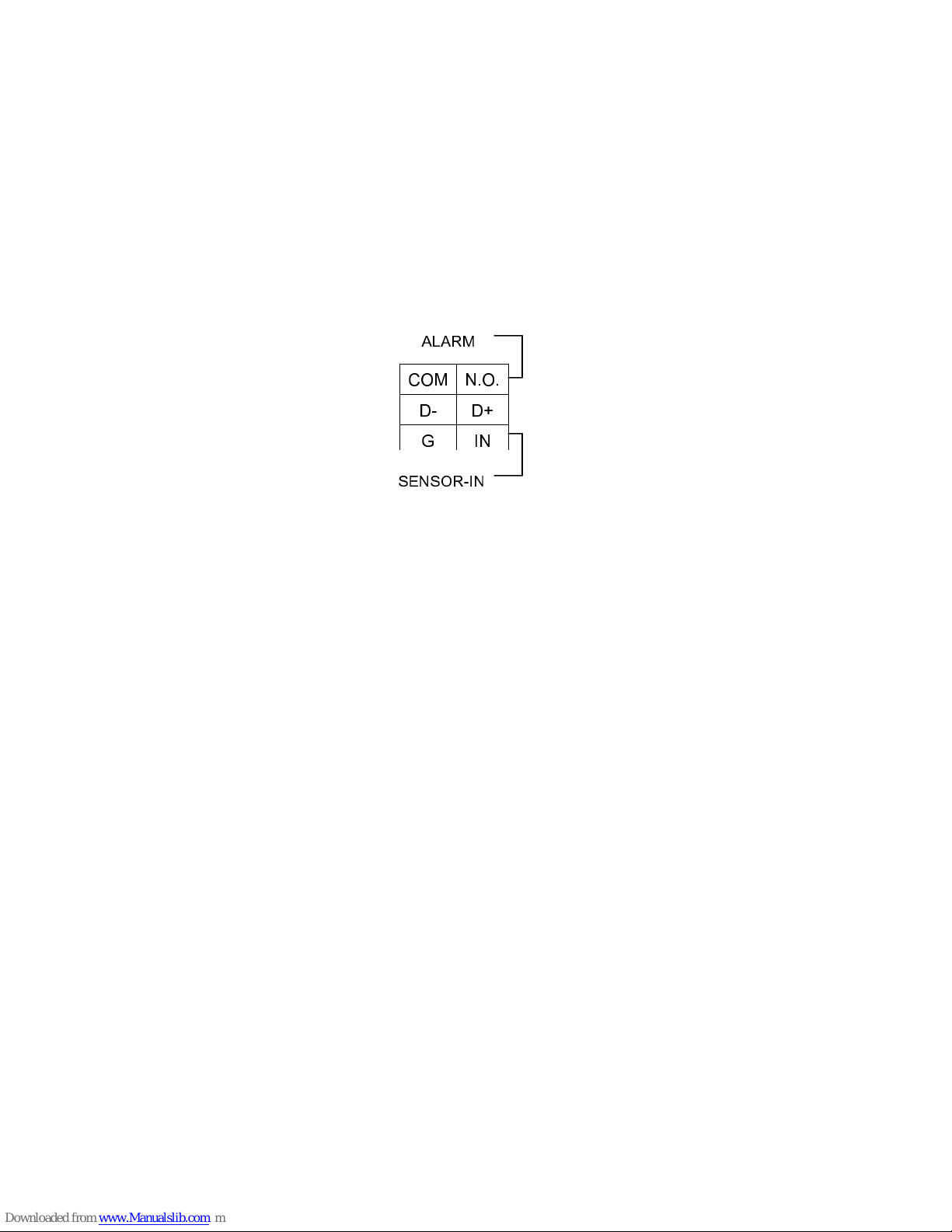

Figure 2-2

Pin definition in figure 2-2 as follows

a. COM —Connect point that corresponds to alarm out.

b. ALARM N.O. —Connect to N.O. alarm output device.

c. D- — Connect to external device, such as PTZ camera or PTZ control

keyboard.

d. D+ — Connect to external device, such as PTZ camera or PTZ control

keyboard.

e. G — Ground wire.

f. Sensor In — Connect to alarm input sensor.

Color wire definition of Mini Dim in product package as follows:

Black: ground wire

Red: sensor in wire

Orange: D+ wire

Gray: D- wire

Blue: COM wire

Brown: N.O.wire

COM

N.O.

D- D+

SENSOR-IN

ALARM

- 9 -

3. Installation

3.1 Basic Installation

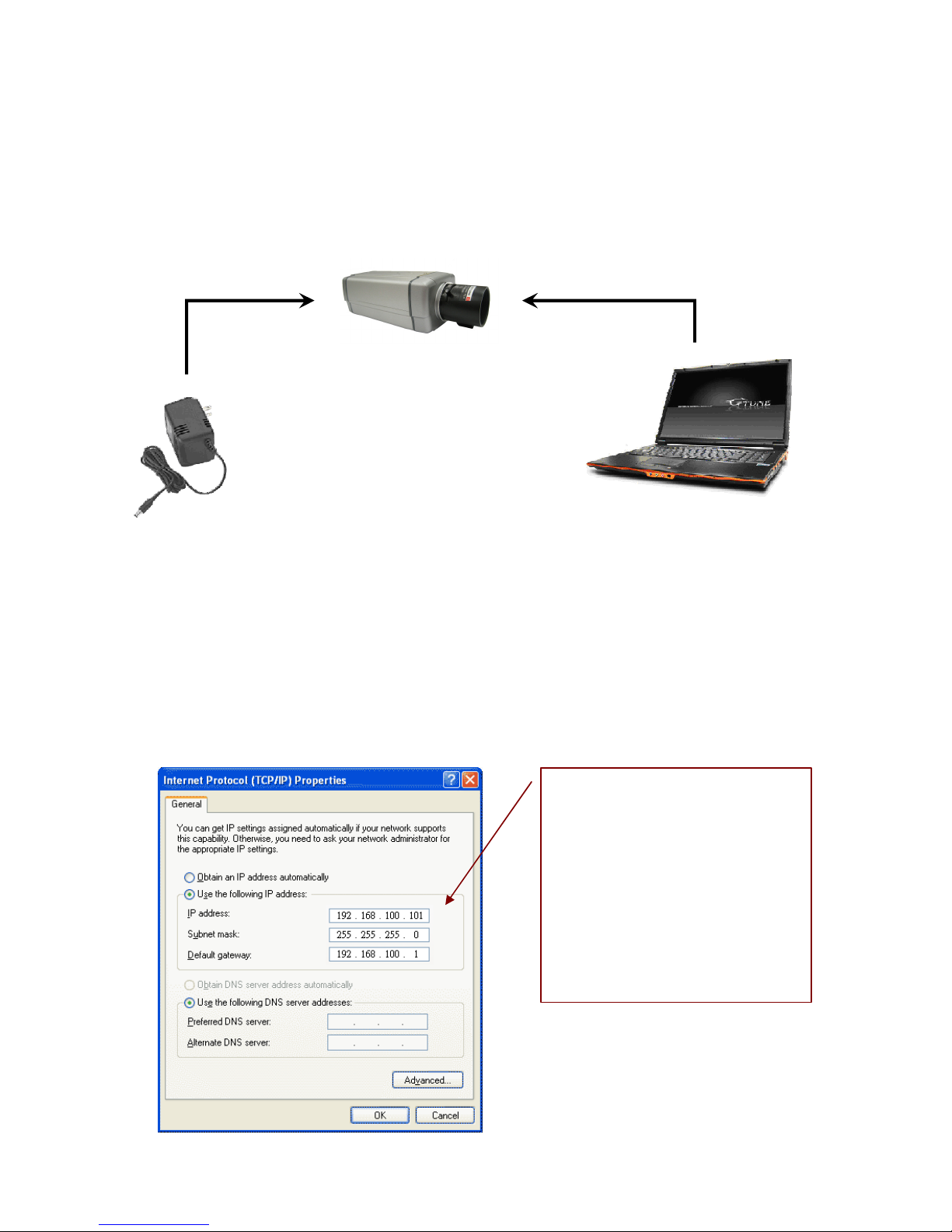

3.1.1 Hardware Connecting Diagram

Figure3-1

(1) Connect the 12V DC adaptor to the power jack on the rear panel of the IP camera.

(2) Use Ethernet cable to make connection from the Ethernet 10/100 RJ45 socket on

the IP camera to the PC.

3.1.2 Network Setting

After completing the basic hardware connection, make sure that the PC and the IP

camera IP address are both in the same network segment. Example: Setup preset IP

camera IP to 192.168.100.100 and configure your desktop IP address as the Figure

3-2 below.

Figure3-2

Setup format：

IP Address：192.168.100.xxx

Subnet Mask：255.255.255.0

Default Gateway：192.168.100.1

※Note

xxx address ranges from 1~254,

please avoid using “100” which

has been used by IP camera.

- 10 -

3.1.3 SecuUtility

(1) Please install SecuUtility from the product CD. (Please refer to chapter 3.3.1 for

installation procedures)

(2) Start SecuUtility.

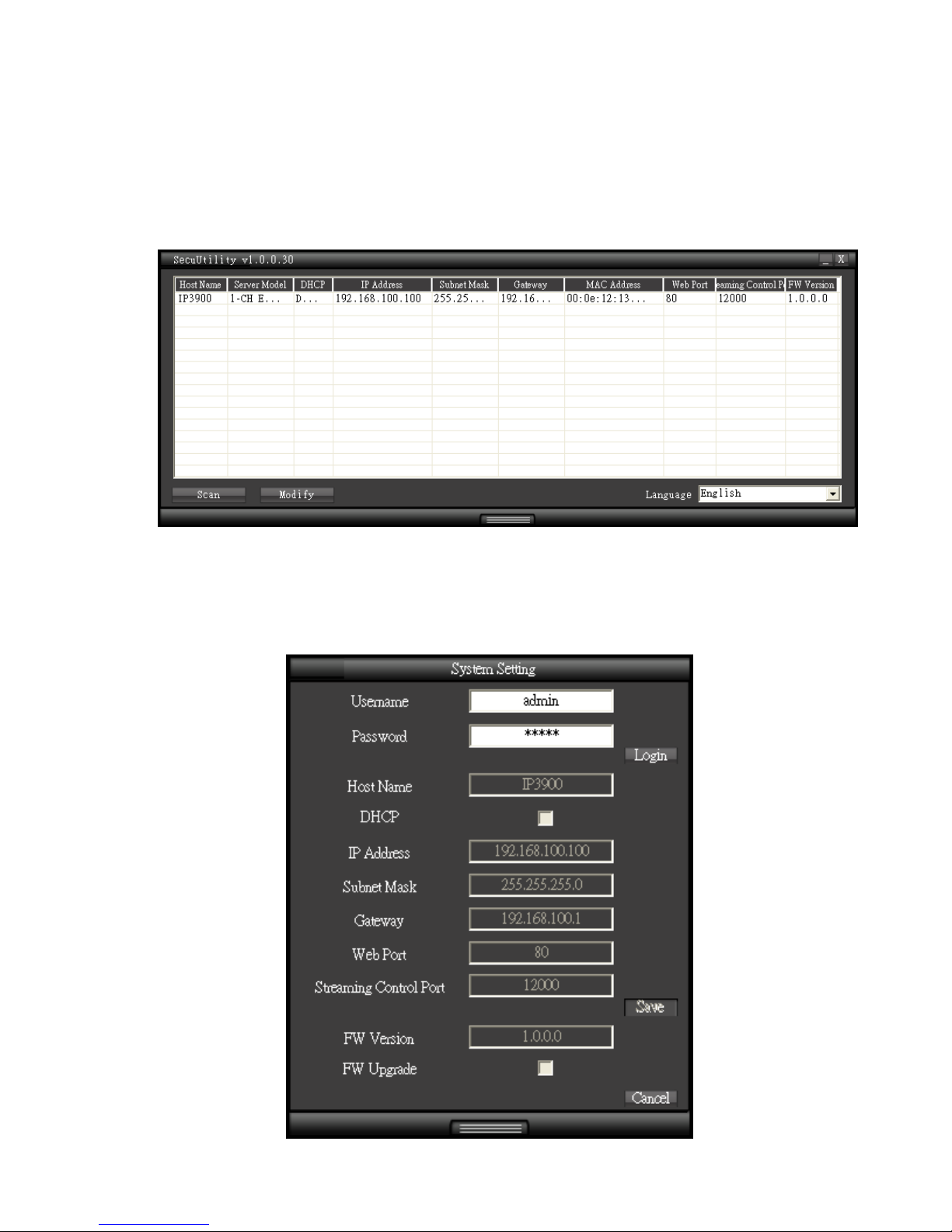

(3) After starting SecuUtility, the program will automatically search and display

supportive devices in local LAN, please see the Figure 3-3.

Figure 3-3

(4) Choose which device you would like to access, the default IP address on the device

is 192.168.100.100

(5) Double click on the IP address, will automatically open the selected device web

image.

(6) Please select on the device you would like to modify its setting and click “Modify”.

Table des matières

Manuels Caméra IP populaires d'autres marques

FLIR

FLIR Exx series Manuel utilisateur

Avigilon

Avigilon H4A-BO1-IR Manuel utilisateur

Digital Watchdog

Digital Watchdog DWCA-C128-64 Manuel utilisateur

ShareTech

ShareTech AV1 Manuel utilisateur

Ezviz

Ezviz C6C Manuel utilisateur

Melchioni

Melchioni UCAM 2015 Manuel utilisateur

Geutebruck

Geutebruck G-Cam/ESD-4630 Manuel utilisateur

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG Manuel utilisateur

Mitel

Mitel 6800i Series Manuel de service

Vitek

Vitek VTC-IR403-212NP Manuel utilisateur

THOMSON

THOMSON DSC - 323W Manuel utilisateur

AVer

AVer FB2027 Manuel utilisateur

ENFORCER

ENFORCER EV-T5105-N2SQ Manuel utilisateur

Wansview

Wansview NC543 Manuel utilisateur

Eneo

Eneo MCB-64A0003M0A Manuel utilisateur

deView electronics

deView electronics CBDNI36F Manuel utilisateur

Swann

Swann SwannEye Manuel utilisateur

LevelOne

LevelOne IP CamSecure Manuel utilisateur
