Snarkoon PACELIGHT Manuel utilisateur

RGB ILLUMINATION SET

MANUAL

1. Speciﬁcations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.1 Pacelight P1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.2 Pacelight RGB LED Strip S1 . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.3 Pacelight RGB Fan F1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2. Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3.1 Connect to the Mainboard . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3.2 Connect to the Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . 6

3.3 Connect the Fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.4 Connect the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.5 Attaching the Pacelight P1 . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4. Software Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5. Menu Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

6. Fan Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

7. LED Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

7.1 Manual LED Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

7.2 Channel Synchronization . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

7.3 LED Control by Week . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

7.4 Lighting Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

7.5 Advanced Lighting Options . . . . . . . . . . . . . . . . . . . . . . . . . . 17

8. Fan Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

9. Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

9.1 Fan Failure Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

9.2 Time Control Dimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

9.3 Assign Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Table of Contents

1.1 Pacelight P1

RGB Channels 8

Fan Channels 4

Input Voltage 12 V DC

Connector 15-Pin SATA

USB Connector 9-Pin Internal

Max. LED Current 50 mA (Per Color)

Max. Fan Current 0.5 A (Per Connector)

Fan Output Voltage 12 V

Max. Fan Starting Current 2 A

Microcontroller 4x 8bit MCU

Fan Controller Type PWM

LED Controller Type PWM

Supported Operating Systems Windows 7/8/10

Fixation Self-Adhesive / Cable Tie

Weight 44 g

Cable Length 60 cm

Dimensions (L x W x H) 110 x 66 x 11 mm

1.2 Pacelight RGB LED Strip S1

LED Type 5050 RGB

Length 360 mm

Width 10 mm

No. of LEDs 18

Connector 4-Pin (2.54 mm)

Pinout 12 V – G - R - B

Cable Length 60 cm

Fixation Magnetic / Self-Adhesive

Rated Voltage 12 V DC

Rated Current 280 mA

Weight 30 g

Dimensions (L x W x H) 360 x 10 x 3 mm

1. Speciﬁcations

1.3 Pacelight RGB Fan F1

General

Fan Speed 1,400 rpm ± 10 %

Bearing Type Fluid Dynamic Bearing

Max. Airﬂow 93.22 m³/h

Max. Air Pressure 1.13 mm H²0

Max. Noise Level 23 dB (A)

MTBF Min. 50,000 Hours

Illumination 6x RGB LED

Connector Fan 3-Pin Connector

Connector LED 4-Pin (2.54 mm)

Pinout 12 V – G - R - B

Cable Length 50 cm + 5 cm LED / 45 cm Fan

Electrical Speciﬁcations

Rated Voltage 12 V

Rated Current Fan 0.15 A

Rated Current LED Fan 0.08 A

Rated Power Fan 1.8 W

Rated Power LED Fan 1 W

Start Voltage 5 V

Weight incl. Cable 125 g

Dimensions (L x W x H) 120 x 120 x 26 mm

1. Speciﬁcations

2. Safety Instructions

In some cases, certain individuals may experience epileptic seizures if exposed to certain light frequencies,

ﬂickering light sources and patterns. Consult your doctor if you or one of your family members suffer from

epilepsy. Even some people without a history of seizures or epilepsy may have an undiagnosed ailment. Seek

medical attention if any of the following symptoms occur: visual impairment, eye and muscle twitching, loss of

consciousness, disorientation, involuntary movements and spasms.

The Pacelight RGB LED Strips S1 contain magnets for mounting. To prevent data loss, do not install them near

HDDs, SSDs, DRAM or other storage devices.

Sharkoon assumes no liability for any data loss, especially due to improper handling.

3. Installation

3.1 Connect to the Mainboard

Turn off your computer before installing the Pacelight P1, fans and LED strips.

Then connect the provided USB cable, as shown, to the Pacelight P1 and the internal USB port on the mainboard.

3.2 Connect to the Power Supply

To power the Pacelight P1, connect an available SATA plug from the power supply, as shown.

3.3 Connect the Fans

Up to four fans, with or without LEDs, can connect to the Pacelight P1. Please refer to the following section for

information on connecting the LED fan control and LED strips.

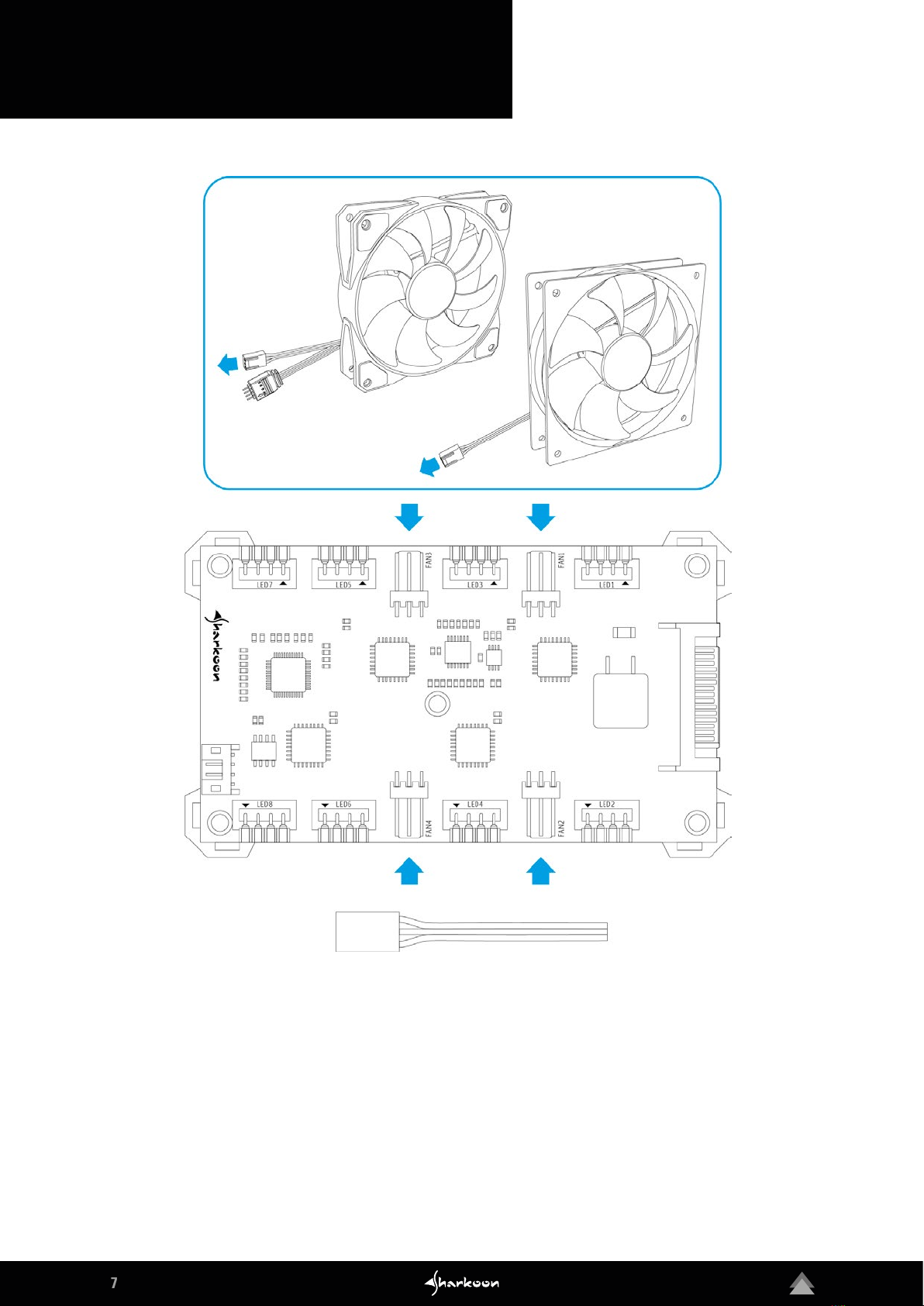

To connect a fan, attach its 3-pin fan connector to the indicated connector of the Pacelight P1.

3. Installation

3.4 Connect the LEDs

Up to eight LED elements can be connected to the Pacelight P1. To connect the LED fan control or LED

strips, connect the 4-pin LED connector to the Pacelight P1, as shown. For fans or LED strips from third party

manufacturers, ensure that the correct connector layout is 12 V – G - R – B.

Always combine the connection of the fan with its corresponding LED control. Start in ascending order,

beginning with the “FAN1” / “LED1” marked connectors on the Pacelight P1.

Note: When connecting the LED control or LED strips, ensure that the 4-pin LED connector is aligned correctly.

This is marked with an arrow, as is the connector of the Pacelight P1. The two arrows must be aligned across

from each other, as shown.

3. Installation

3.5 Attaching the Pacelight P1

Attach the Pacelight P1 to the inside of the case with the self-adhesive backing or by running cable ties through

the cutouts in the silicone pad.

Caution: Do not remove the silicone pad on the Pacelight P1; short-circuiting may result if it directly contacts a

conductive surface.

After successful installation, turn on your computer.

3. Installation

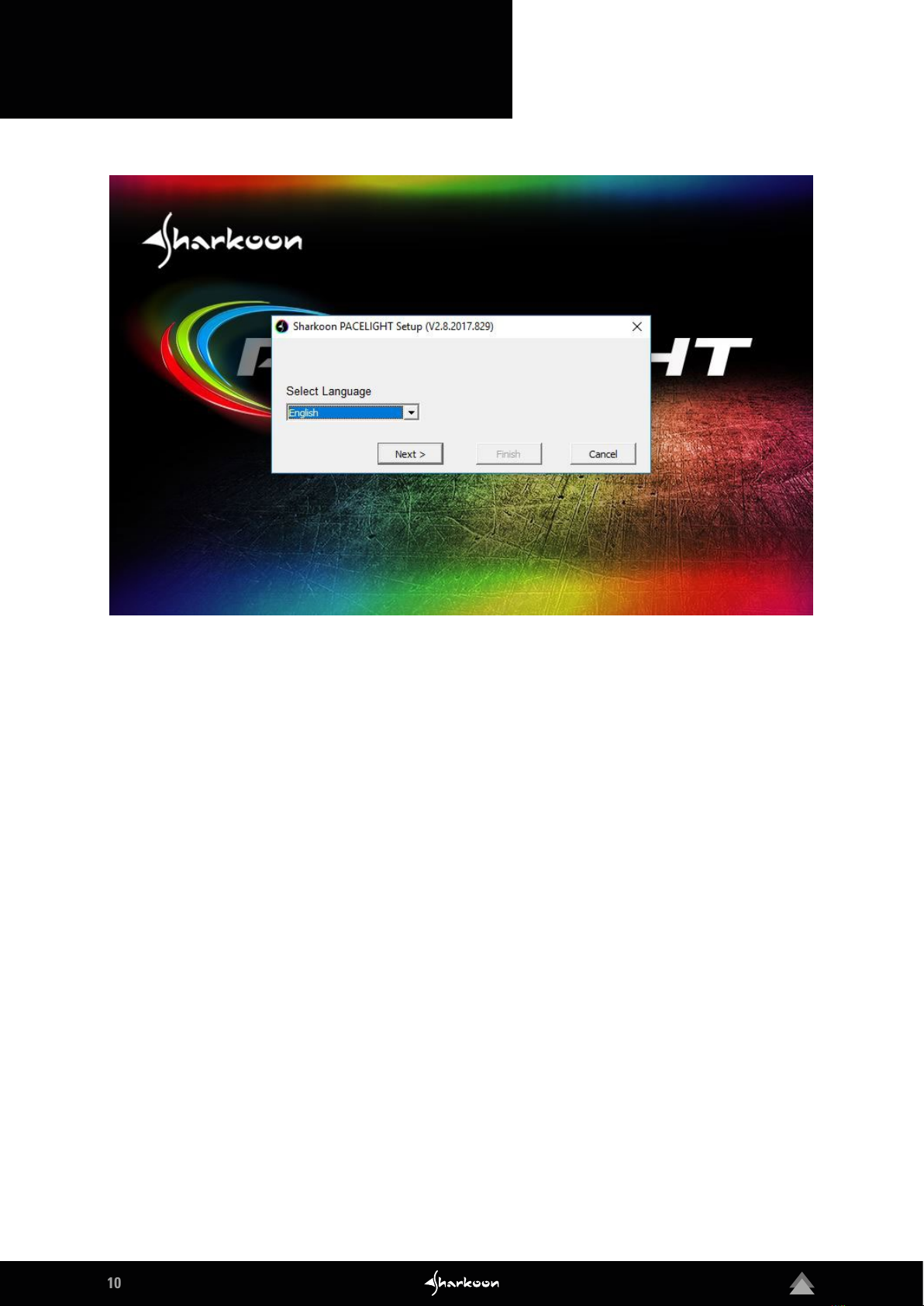

4. Software Installation

Download the Pacelight P1 software directly from the Sharkoon homepage at www.sharkoon.com. Unzip the zip

ﬁle to a location of your choice and then double-click on Pacelight_Setup.exe to launch the installation.

Follow the instructions on the installation wizard. The default installation language will automatically be

the same language as your operating system. To change the language at any time, right-click on the icon in

the taskbar.

After restarting your computer, the Pacelight software will automatically appear in your taskbar. Ensure that the

Pacelight software is always active in the background to access its full functionality.
