Snapper 1696000 Manuel utilisateur

Not for

Reproduction

Parts Manual fo

24" 9TP TWO STAG

2011

INTERMEDIATE SNOWTHROWER

Revision: - 6/14/2011

Briggs & Stratton Yard Power Products Group

Manual No. 7105282

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967

Descri

tionModel No.

169600

M924E

Not for

Reproduction

Not for

Reproduction

Table Of Content

TP 400-5491---IS-N

24" 9TP TWO STAGE

2011 3

Manual No. 7105282

PAGE GROUP

4Handles & Controls Group

8Auger Housing Group

10 Auger Drive Group

12 Gear Case Assembly

14 Chute & Rotation Group - Dash Mount Crank

16 Engine & Frame Group

20 Traction Drive Group - Standard

22 Decals Group

24 Wheel & Tire Group

Not for

Reproduction

Manual No. 7105282 24" 9TP TWO STAGE

2011

Handles & Controls Group

Not for

Reproduction

Footnotes:

Manual No. 710528224" 9TP TWO STAGE

2011 5

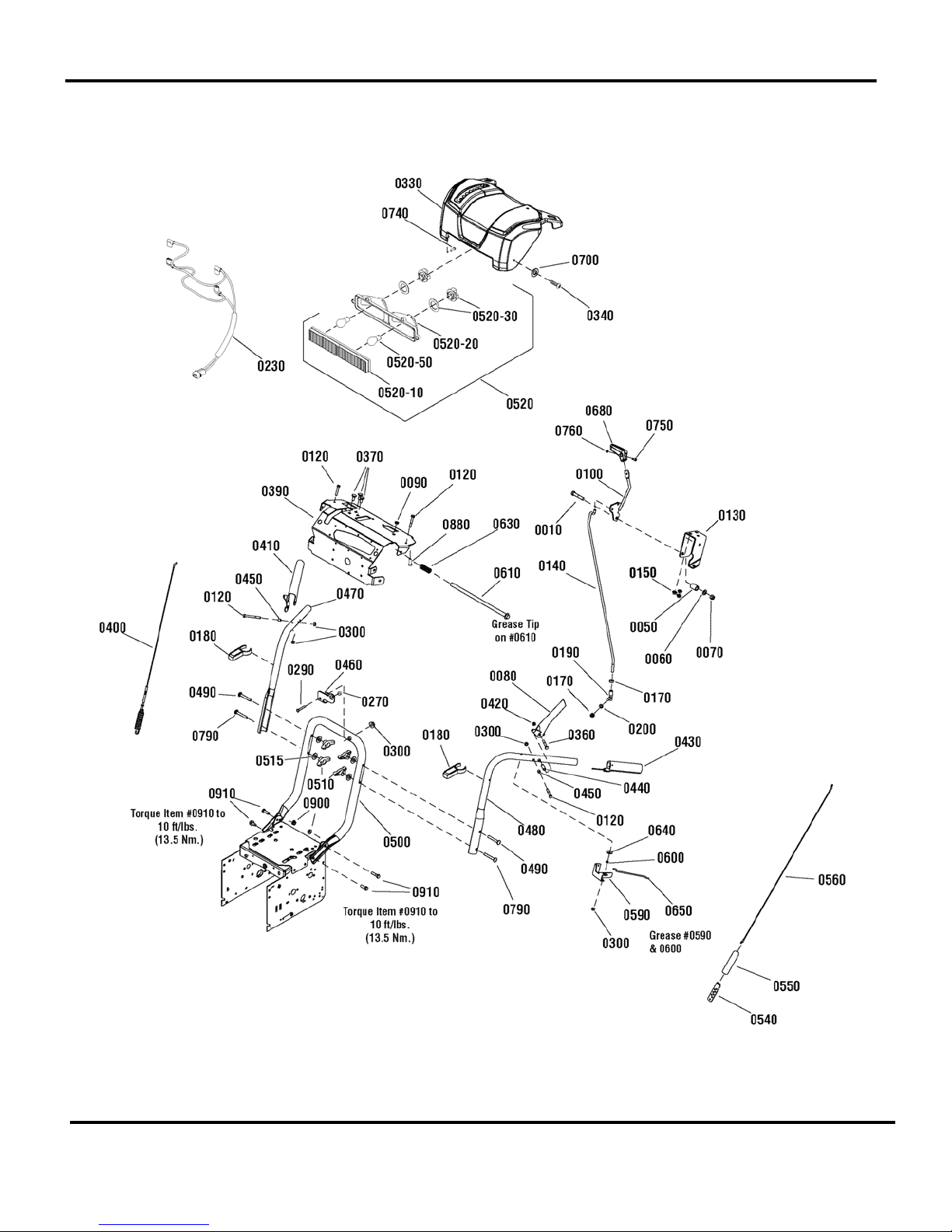

Handles & Controls Group

Part No Descri

tionItem Qty

0010 1923701 1 CAPSCREW, Hex Head, 3/8-16 x 2, G5

0050 724361 1 SPRING, 3/4

0060 1918266 1 WASHER, 3/8

0070 1919439 1 NUT, Hex Lock, ESNA Light, 3/8-16

0080 1739782A 1 LEVER, Clutch, LH

0090 1667588 1 BUSHING

0100 1736836 1 LEVER, Speed

0120 1921962 4 CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5

0130 1737684 1 BRACKET, Controls

0140 1751543 1 ROD, Speed Control

0150 1931277 3 NUT, Hex Flange, Whiz Lock, 5/16-18

0170 2820263 1 NUT, Hex, 5/16-24

0180 1739487 2 BRACKET, Mounting

0190 724360 1 BALLJOINT

0200 1917356 1 LOCKWASHER, Spring, 5/16

0230 1738286 1 WIRING HARNESS, Headlights

0270 722323 1 BUSHING, Chute Crank

0290 1931323 1 BOLT, Carriage, Short Neck, 1/4-20 x 2, G5

0300 1920397 5 NUT, Hex Lock, ESNA Light, 1/4-20

0330 1738324 1 DASH

0340 1960001 2 SCREW, Hex Washer Head, Plastite, 10-14 x 5/8

0360 1750554 2 BOLT, Shoulder, 10-24

0370 723873 3 BOLT, Carriage, Short Neck, 5/16-18 x 3/4

0390 1739500BZ 1 SUPPORT, Dash

0400 1737544 1 CABLE, Auger Drive

0410 1739783A 1 LEVER, Clutch, RH

0420 1933896 2 NUT, Hex Lock, Nylon Insert, 10-24

0430 1726317 2 GRIP

0440 1736542 2 SPACER, Stepped

0450 1678392 2 SPACER, 1/4 ID x 3/8 OD x 5/16"

0460 1735589 1 BRACKET, Rod Support

0470 1734587A 1 HANDLE, Upper, RH

0480 1734586A 1 HANDLE, Upper, LH

0490 1750299 2 BOLT, Carriage, Curved Head, 5/16-18 x 2-1/4

0500 1737274A 1 HANDLE, Lower

0510 7035744 4 KNOB, Wing, 5/16-18

0515 7090391 4 WASHER, Internal Tooth, 5/16

0520 1736176 1 HEADLIGHT ASSEMBLY

0520-10 ----- 1 LENS, Twin Light (Included in Ref. No 0520)

0520-20 ----- 1 DEFLECTOR, Twin Light (Included in Ref. No 0520)

0520-30 1736180 2 SOCKET & GASKET ASSEMBLY, Headlight (Included in Ref. No 0520)

0520-50 ----- 2 * BULB, 12V - 20W Halogen (Included in Ref. No 0520)

0540 723259 1 BRACKET, Cable Adjusting

0550 723154 1 BOOT, Spring End Cover

Note* See your local hardware store for replacement bulbs.

Not for

Reproduction

Manual No. 7105282 24" 9TP TWO STAGE

2011

Handles & Controls Group

Not for

Reproduction

Footnotes:

Manual No. 710528224" 9TP TWO STAGE

2011 7

Handles & Controls Group

Part No Descri

tionItem Qty

0560 727331 1 CABLE, Forward Drive

0590 1733505A 1 BRACKET, Pivot, Free Hand

0600 1733095 1 SPACER, 1/4 ID x 3/8 OD x 1/8"

0610 1733509 1 ROD & SPRING ASSEMBLY

0630 2108360 1 SPRING, Compression, 2-1/4"

0640 1960353 1 WASHER, 1/4

0650 1736360 1 ROD, Hold Down

0680 1733192 1 KNOB, Slot Speed

0700 1921319 2 WASHER, 1/4

0740 7091105 4 SCREW, Hex Washer Head, #10-16 x 1/2

0750 1960589 1 SCREW, Phillips Head, #10-24 x 3/4

0760 1933896 1 NUT, Hex Lock, Nylon Insert, 10-24

0790 7091189 2 BOLT, Carriage, Curved Head, 5/16-18 x 2

0880 7091081 2 SCREW, Hex Washer, Tap, 1/4-15 x 3/4

0900 1960684 4 NUT, Hex KEPS, 5/16-18

0910 723873 4 BOLT, Carriage, Short Neck, 5/16-18 x 3/4

Note* See your local hardware store for replacement bulbs.

Not for

Reproduction

Manual No. 7105282 24" 9TP TWO STAGE

2011

Auger Housing Group

Not for

Reproduction

Footnotes:

Manual No. 710528224" 9TP TWO STAGE

2011 9

Auger Housing Group

Part No Descri

tionItem Qty

0010 1687511 1 AUGER HOUSING ASSEMBLY, 24"

0020 1736620 2 CLIP, Retainer

0030 1960569 2 SCREW, Truss Head Torx, #10-24 x 3/8

0040 722401 2 NUT, Nylock, 10 x 26

0060 1736094 1 BRUSH, Cleanout

0070 724427 2 BEARING, Auger Shaft

0080 722839 4 CAPSCREW, Hex Head, 5/16-18 x 3/4

0090 7091547 4 BOLT, Carriage, 3/8-16 x 3/4, GR5

0100 7091619 4 NUT, Hex Flange, 3/8-16

0110 725273 7 NUT, Hex Flange, Serrated Lock, 5/16-18

0150 1727854A 2 SHOE, Skid, Reversible

0160 1738301A 1 BLADE, Scraper, 24"

0170 724712 1 RETAINER, Ball Bearing

0180 1705897 1 BEARING, Ball

0190 720018 3 BOLT, Hex, 5/16-18 x 5/8

0200 725521 2 PLUG, Panel

0210 7090799 4 BOLT, Carriage, 3/8-16 x 5/8, GR5

Not for

Reproduction

Manual No. 7105282 24" 9TP TWO STAGE

2011

Auger Drive Group
