Snapper SPV211S Manuel utilisateur

Parts Manual fo

Revision 1,

21" STEEL DECK EASY LIN

McDonough, GA, 30253 U.S.A.

TP 400-5145-1-WB-N

1/25/2007 Manual No. 7006206

SWIVEL WHEEL WALK MOWE

Briggs & Startton Yard Power Products Group

Briggs & Startton Corporation

MODEL

SPV21

SPV211

Table Of Content

TP 400-5145-1-WB-N

Manual No. 700620621" STEEL DECK EASY LINE

PAGE GROUP

4HANDLES & CONTROLS

6GUARDS AND COVERS

8FRONT WHEELS

10 REAR WHEELS

12 REAR DECK BRACKETS & IDLER ARM

14 TRANSMISSION

16 ENGINE AND BLADE

18 BAGGING COMPONENTS

20 DECALS

HANDLES & CONTROLS

TP 400-5145-1-WB-N

Manual No. 7006206 21" STEEL DECK EASY LINE

HANDLES & CONTROLS

Footnotes:

TP 400-5145-1-WB-N

Manual No. 700620621" STEEL DECK EASY LINE

Part No Descri

tionItem Qt

Note

1 7078247 1 HANDLE, Upper, Flat black textured finish

2 7300130 1 PLATE, Control Panel

3 7100225 4 SCREW, #8-16 Recessed Pan Head (Torxplus)

4 7028488 1 GUIDE, Rope with 1/4-20 threads

5 7076978 1 NUT, 1/4-20 Hex Nyloc

6 7090391 4 WASHER, 5/16 Internal Tooth Lock

7 7035744 4 KNOB, 5/16-18 Wing (Black)

7 M720727 4 KNOB, 5/16-18 Wing (Black) Briggs part # 71294

8 7100069 1 ASSY, Control Head Variable Speed (Includes 8, 9, 10, 11, 12,

15 & 16)

9 1 SPRING STEEL Not Available Individually

10 1 CLUTCH LEVER, Silver Not Available Individually

11 1 ASS'Y., Speed Lever/Friction Material Not Available Individually

12 1 TOP BOX, Variable Speed- Black Not Available Individually

13 7078248 1 BAIL, Brake black textured finish

14 7100074 1 CABLE, Zone Control

15 7100263 1 CABLE, Clutch

16 7100264 1 CABLE, Speed used on some early units

17 7078246 1 HANDLE, Lower black textured finish

18 7024649 2 WIRE TIE, 11 Inch Black Nylon

19 7091189 2 BOLT, 5/16-18 x 2” Curved Head Square Neck GR 2

20 7300103 2 BRACKET, Lower Handle black textured finish

21 7091612 2 BOLT, 5/16-18 x 1-1/2” Round Head Square Neck

22 7090799 7 BOLT, 5/16-18 x 5/8” Round Head Short Square Neck Carriage

23 7091601 4 NUT, 5/16-18 Hex Flange Lock

24 7072023 1 CONTROL, Swivel Wheel Latch 56.5 (LH Outside)

25 7090505 1 SCREW, 1/4-20 x 2” Hex Head Cap, GR 5

26 7090372 3 NUT, 1/4-20 Hex Center Lock

27 7091135 2 PUSHNUT, 3/8”

28 7100632 2 FOAM GRIP, 7”

GUARDS AND COVERS

TP 400-5145-1-WB-N

Manual No. 7006206 21" STEEL DECK EASY LINE

GUARDS AND COVERS

Footnotes:

TP 400-5145-1-WB-N

Manual No. 700620621" STEEL DECK EASY LINE

Part No Descri

tionItem Qt

Note

1 7400014 1 WELDMENT, 21” Deck Swivel Wheel

2 7100001 1 REAR COVER, Belt/Transmission

3 7100059 6 RIVET, Plastic, Fastener

4 7046780 2 PLUG, Hole (Polyethylene)

5 7078225 1 ROD, Trail Shield 1/4-20 thread- both ends

6 7078272 1 SHIELD, Trail

7 7091584 2 NUT, 1/4-20 Hex Flange Lock

8 7090001 2 BOLT, 5/16-18 x 3/4” Short Square Neck Carriage, GR 5

9 7011791 1 BOLT RETAINER, 5/16- Black

10A 7100243 1 COVER, Mulching, No Tools

10B 7029149 1 COVER, 21 Deck Recycling

11 7100516 1 KNOB, Fluted (5/16-18 thread)

12 7024340 1 SPACER, .316 x .375 x .300/.310

13 7090951 1 NUT, 5/16-18 Large Flange Hex Center Lock

14 7042965 1 CHUTE, 21 Side Discharge

15 7900015 1 BOLT, 5/16-18 x 5/8” Short Square Neck Carriage, GR5 modified shoulder

16 7400137 1 WELDMENT, Hinge Pivot

17 7100253 1 SPRING, Torsion, Mulching Cover

18 7091135 1 PUSHNUT, 3/8”

19 7090189 1 WASHER, 5/16” Internal/External

20 7091070 2 NUT, 5/16-18 Hex Flange Lock

21 7900028 1 NUT, 5/16-18 Speed Shakeproof# FN-614020-1-50)

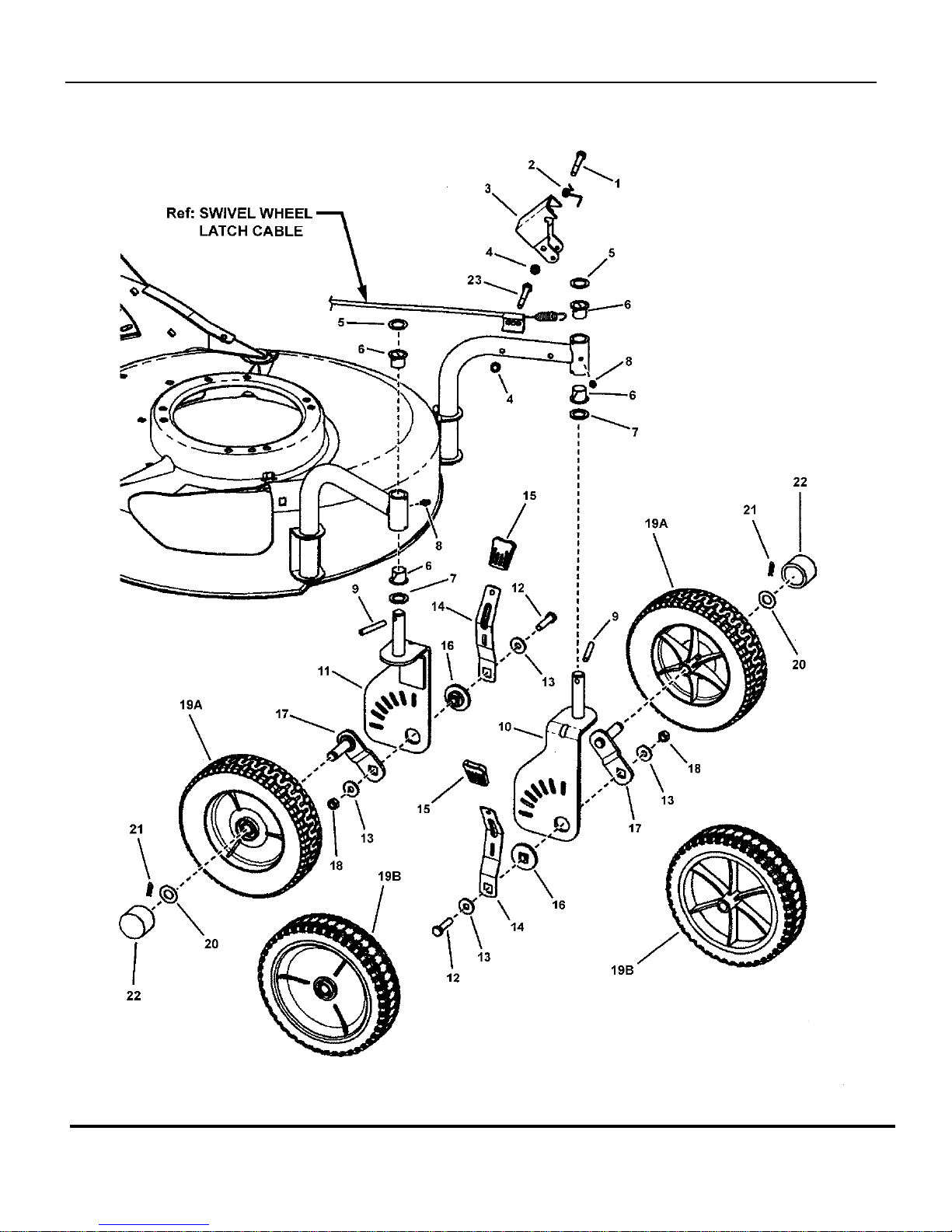

FRONT WHEELS

TP 400-5145-1-WB-N

Manual No. 7006206 21" STEEL DECK EASY LINE

FRONT WHEELS

Footnotes:

TP 400-5145-1-WB-N

Manual No. 700620621" STEEL DECK EASY LINE

Part No Descri

tionItem Qt

Note

1 7091256 1 SCREW, 1/4-20 x 2-1/4” Hex Head Cap, GR 5

2 7046668 1 SPRING, Torsion

3 7300171 1 BRACKET Swivel Wheel Lock

4 7090372 2 NUT, 1/4-20 Hex Center Lock

5 7092021 2 WASHER, .64 x .99 x .025 Flat

6 7046628 4 NYLINER, 5/8

7 7092022 2 WASHER, .64 x .99 x .075 Flat

8 7013864 2 LUBE FITTING, 3/16”

9 7014106 2 ROLL PIN, 1/4 x 1-3/4”

10 7400068 1 WELDMENT, Swivel Wheel Brkt. LH

11 7400070 1 WELDMENT, Swivel Wheel Brkt. RH

12 7091527 2 SCREW, 5/16-18 X 1-1/4” Hex Head Cap, GR 5

13 7900022 4 WASHER, .875 x .327 x .090 Flat

14 7100251 2 LEVER, Height Adjust, Swivel Wheel

15 7100633 2 GRIP, Height Latch Was 7027702

16 7100249 2 SPACER, Swivel Wheel Pivot

17 7500101 2 ASSEMBLY, Axle Arm/Stud

18 7091575 2 NUT, 5/16-18 Hex Center Lock

19A 7100250 2 WHEEL, Front 8 x 2”, LS Tread, 1-3/8” Hub Length, (Swivel

Wheel)

19B 7101127 2 WHEEL, Front 8 x 2”, Double Bar II Tread, 1-3/8” Hub Length

20 7100585 2 WASHER, Shim, .875 x .531 x .060

21 7091193 2 COTTER, Hairpin

22 7100088 2 HUB CAP, 1-3/8” Diameter black

23 7090505 1 SCREW, 1/4-20 x 2” Hex Head Cap, GR 5

REAR WHEELS

TP 400-5145-1-WB-N

Manual No. 7006206 21" STEEL DECK EASY LINE
