Snapper 2690858 Manuel utilisateur

Not for

Reproduction

Parts Manual fo

HYDRO DRIVE ELECTRIC CLUTCH

LT130 AWS SERIES

ALL WHEEL STEERING LAWN TRACTOR

Revision: B 10/19/2010

Briggs & Stratton Yard Power Products Group

Manual No. 7103199

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967

Descri

tionModel No.

7800545E ELST23460AWS

269085

ELT23460AWS

780047

LT23460AWS

7800542 LT23460AWSC

7800545 SLT23460AWS

780054

SLT23460AWSC

Not for

Reproduction

Not for

Reproduction

Table Of Contents

TP 400-5425-B-TC-N

HYDRO DRIVE ELECTRIC CLUTCH

LT130 AWS SERIES 3

Manual No. 7103199

PAGE GROUP

4 Steering Group

6 Hood, Grille & Dash Group

10 Frame Group

14 Engine Group - 23HP Briggs & Stratton

16 Motion Drive Group

20 Fuel Tank Group

22 Decal Group

24 Decal Group - F/C

26 46" Mower Deck - Housing, Arbors & Blades

28 46" Mower Deck - Clutch & Support

30 Electrical Group (23 & 24 HP)

32 Wiring Schematic

Not for

Reproduction

Manual No. 7103199 HYDRO DRIVE ELECTRIC CLUTCH

LT130 AWS SERIES

Steering Group

Not for

Reproduction

Footnotes:

Manual No. 7103199HYDRO DRIVE ELECTRIC CLUTCH

LT130 AWS SERIES 5

Steering Group

Part No Descri

tionItem Qty

1 729275 1 COVER, Integra

2 727628 1 STEERING WHEEL

3 720973 1 BELLOWS

4 7101525 1 POST, Steering

5 722867 2 SCREW, 5/16-18 x 7/8

6 721242 1 BEARING, Lower

7 721589 1 GEAR, Pinion

8 720119 1 SNAP RING

9 722620 2 WASHER, Flat

10 721318 2 HUB CAP

11 7101557 2 WHEEL & TIRE ASSY, 15X6.0-6 (Includes Ref Nos 14, 15, 16 & 18)

12 720042 1 SCREW, Thread Forming, 1/4-20 x 1

13 722593 1 WASHER, FLAT, .344-1.20-.12

14 7101556 2 TIRE, 15 x 6 2 Ply K358

15 7012234 2 VALVE STEM, TR412

16 7046430 2 FITTING, Grease

17 722598 2 WASHER, Flat, 1-1/4

18 1742259 2 BUSHING

Not for

Reproduction

Manual No. 7103199 HYDRO DRIVE ELECTRIC CLUTCH

LT130 AWS SERIES

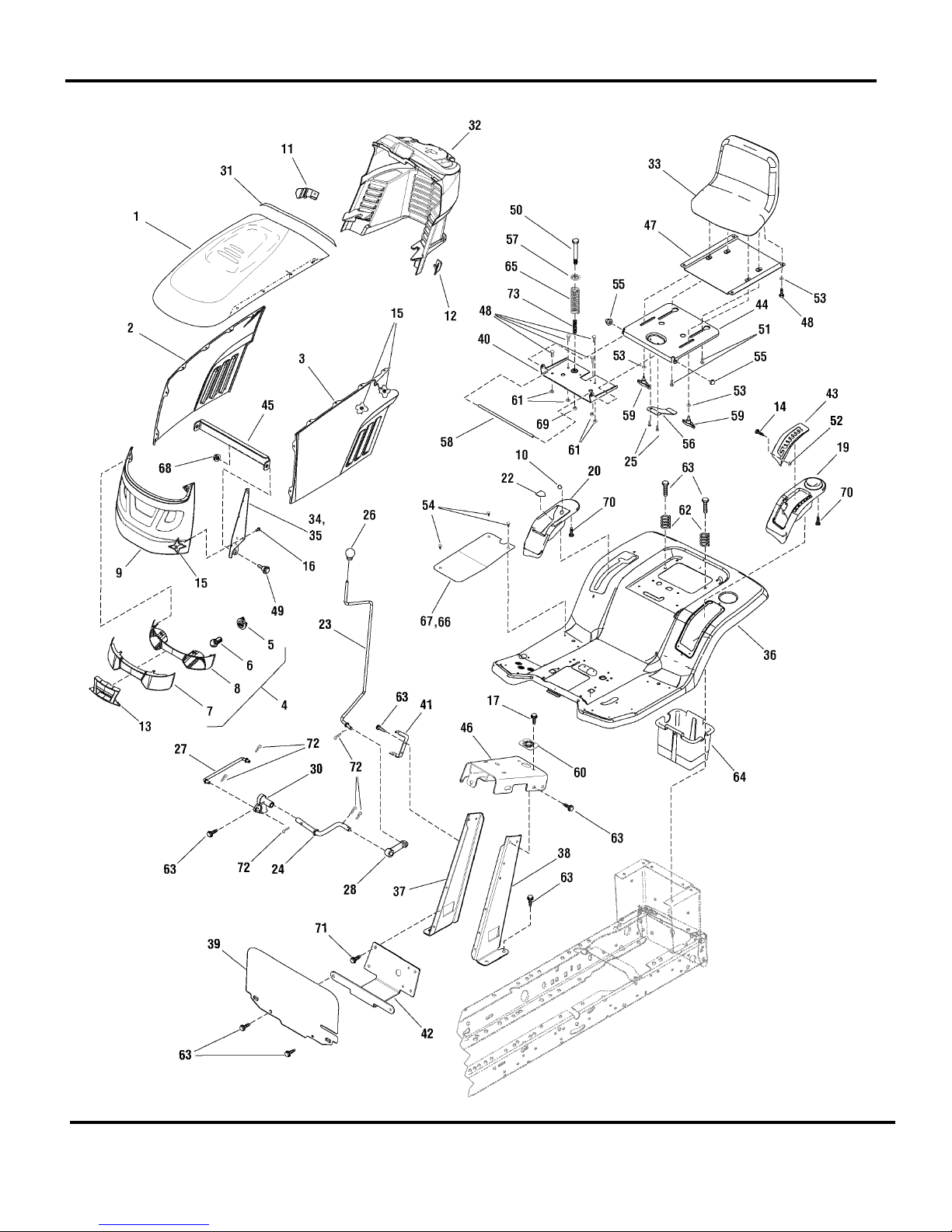

Hood, Grille & Dash Group

Not for

Reproduction

Footnotes:

Manual No. 7103199HYDRO DRIVE ELECTRIC CLUTCH

LT130 AWS SERIES 7

Hood, Grille & Dash Group

Part No Descri

tionItem Qty

1 1722110D 1 HOOD, 3 Louvers

2 1727294D 1 PANEL, Side, Right

3 1727295D 1 PANEL, Side, Left

4 1727296 1 HEADLIGHT ASSEMBLY

5 1723451 2 SOCKET

6 1677371 2 BULB, Headlight

7 1728974 1 LENS, Headlight

8 1728973 1 REFLECTOR, Headlight

9 1728059D 1 GRILLE

10 1732007 1 PLUG, Hole

11 1732030 1 GUIDE, Hood, Left

12 1732031 1 GUIDE, Hood, Right

13 7101810 1 TRIM, Light Bar, Center

14 1929477 4 SCREW, Hex Washer, Taptit, #10 x 1/2

15 1930641 12 NUT, Hex Flange, 1/4-20

16 1960295 12 SCREW, Hex Flange, 1/4-20 x 5/8

17 7091246 2 SCREW, Self Tap, 1/4-20 x 3/4

19 7101770 1 POD, With Cup Holder

20 7101771 1 POD, With Compartment

22 7101493 1 INDICATOR, Cutting Height

23 7101891 1 ACTUATOR, Cruise

24 7101894 1 ROD, Pivot Cruise

25 7102073 4 SCREW, 1/4-16

26 7102074 1 KNOB, Pull, 1/4-20

27 7102076 1 LINK, Cruise Rod

28 7102156 1 LINK, Cruise

30 7102350 1 LATCH, Cruise

31 7102404 1 STRIP, Trim

32 7101355 1 CONSOLE

33 7102785 1 SEAT, High Back

34 7300657BM 1 BRACKET, Pivot Hood, Right

35 7300658BM 1 BRACKET, Pivot Hood, Left

36 7300677D 1 DECK, Seat

37 7300696BM 1 BRACKET, Dash Support, Right

38 7300697BM 1 BRACKET, Dash Support, Left

39 7300772BM 1 BULKHEAD

40 7300794D 1 BRACKET, Seat Pivot

41 7300810BM 1 BRACKET, Support, Cruise

42 7300818BM 1 STIFFENER, Steering

43 7300865BM 1 INDEX PLATE

44 7300875D 1 SUPPORT, Seat

45 7300998BM 1 BRACKET, Hood Stiffener

46 7400252BM 1 SUPPOT, Clutch Rod

47 7400286 1 SEAT PLATE

Not for

Reproduction

Manual No. 7103199 HYDRO DRIVE ELECTRIC CLUTCH

LT130 AWS SERIES

Hood, Grille & Dash Group

Not for

Reproduction

Footnotes:

Manual No. 7103199HYDRO DRIVE ELECTRIC CLUTCH

LT130 AWS SERIES 9

Hood, Grille & Dash Group

Part No Descri

tionItem Qty

48 720018 4 BOLT, Hex, 5/16-18 x 5/8

49 720097 2 BOLT, Shoulder, 3/8-16 x 1/2

50 720101 1 BOLT, Shoulder, 1/4-20 x 5/16

51 720102 2 BOLT, Shoulder, 5/16-18 x 3/8

52 720140 4 NUT, Mclean, #10-24

53 720163 6 WASHER, Flat

54 720182 12 FASTENER, Panel

55 720360 2 CAP, Push-on

56 721214 1 LEAF SPRING

57 721258 1 WASHER, Cup

58 721259 1 ROD, Pivot

59 721425 2 BOLT, Wing, 5/16-18 x 5/8

60 721487 1 BEARING, Steering

61 722396 4 NUT, Nylock, 5/16-18

62 722411 2 SPRING, Compression

63 722858 6 CAPSCREW, 5/16-18 x 3/4

64 725181 1 CONTAINER, Battery

65 727614 1 SPRING, Compression

66 7101772 1 MAT, Left

67 7101773 1 MAT, Right

68 720142 2 NUT, Hex Flange, 3/8-16

69 720146 1 NUT, Hex Flange Lock 1/4-20

70 7090952 1 SCREW, 1/4-20 x 1/2

71 7091084 2 SCREW, 1/4-20 x 3/8

72 1722460 5 HAIRPIN

73 7074511 1 SPRING, Brake Compression

Not for

Reproduction

Manual No. 7103199 HYDRO DRIVE ELECTRIC CLUTCH

LT130 AWS SERIES

Frame Group
