Directions for constructing and installing your SnapFenceTM Gate Kit.
IF YOU CAN DREAM IT, YOU CAN BUILD IT.
Gate Kit
Gate KitInstructions
(B) Gate Corner
1) Open package and separate parts.
**The Gate Kit does not include any (N)Rail Connecters which are needed to attach (H)Posts/(J)Rails of the support
section and/or the (I)Support Rail found below the gate to help stabilize the structure. It also does not include
(H)Posts/(J)Rails needed to make the Support Section and/or the (K)Posts/(L)Rails for the Gate itself. (M)Post caps,
Gate Panel Wire, Panel Clips, Ground Anchor Stakes or Base Mounts are not included.**
2) Cut Posts and Rails.
Cut Posts (H1, H2 and H3) to desired height.*
Cut Rails (I, J1 and J2) to desired length.**
Connect Rail Connectors (N) to Rails (I, J1 and J2) by sliding them into place.***
*If installing a 3’ high fence as shown in the example, no cutting will be necessary
if using 39” Posts.
**If installing a 2’ wide gate with 4’ wide fence sections, dimensions are supplied
in the example.
***If installing a corner, Corner Rail Connectors (not included) will be needed to
make a turn. (Sold separately.)
Pick your gate location:
Gate location should include space for
a support wall as seen in the example.
Remember to pick a level spot for your
gate with room for the gate to swing in
the desired direction.
It is preferable if the latch side of your
gate is not on an unsupported corner.

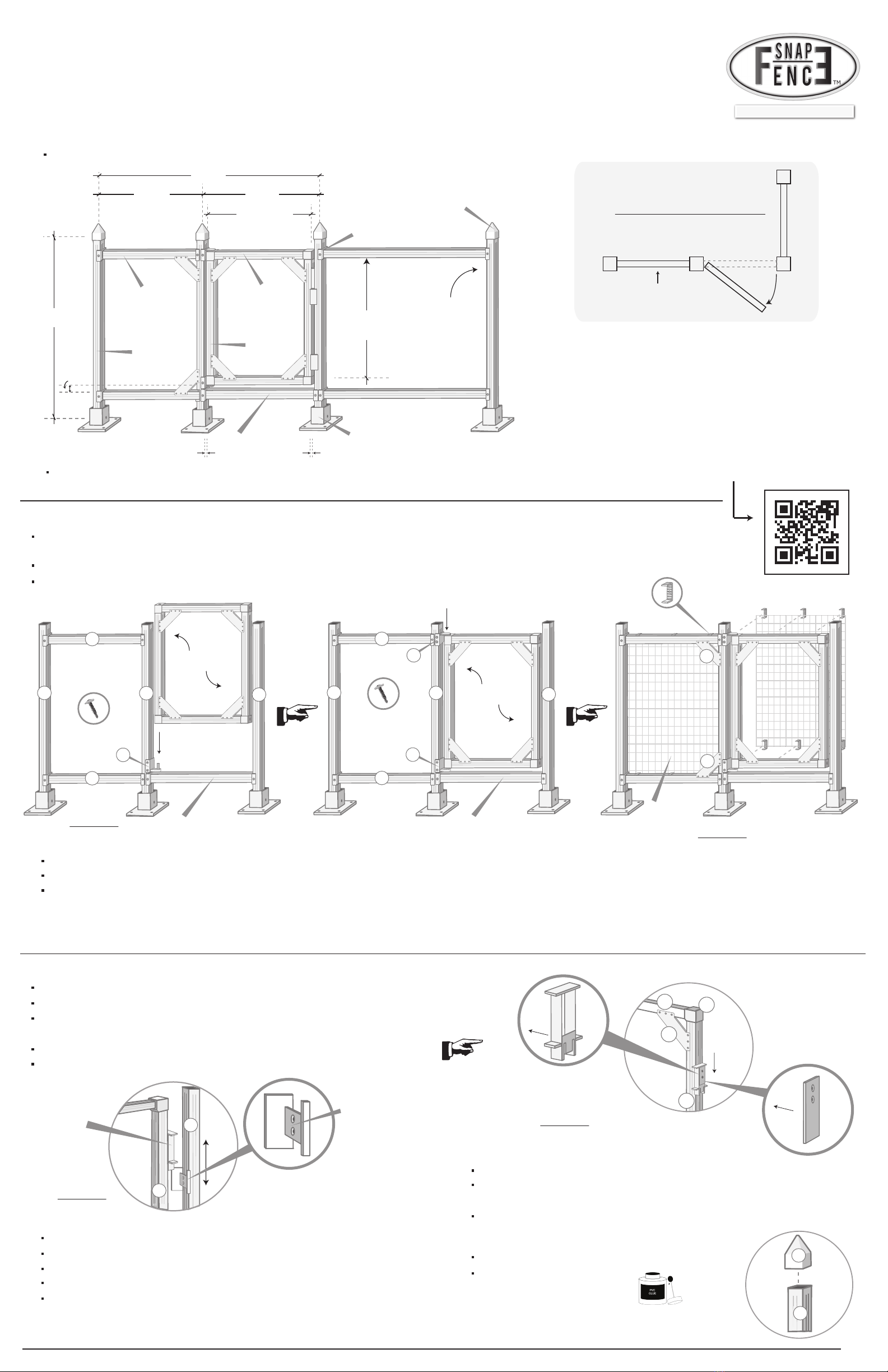

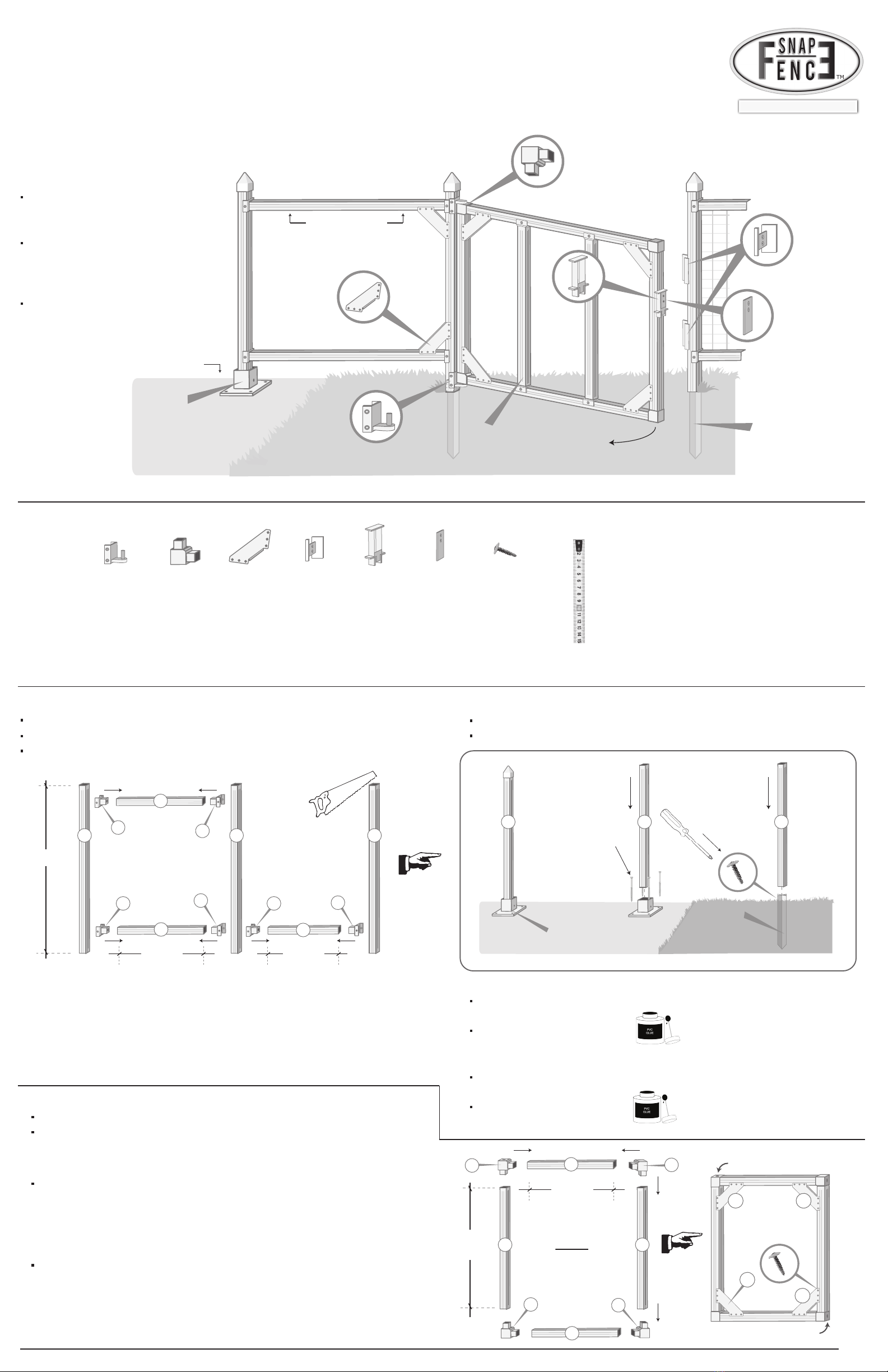

Gate Assembly Diagram
Support Section
Level Surface
Gate Swings Open
Solid Soil
(A) Hinge
(D) Gate Stop
(E) Latch
Slide
(F) Mounting
Plate
(C) Corner
Support
1
Visit: www.snapfence.com for more How-To help.
Or post questions to:
www.facebook.com/Snapfence
Customer service is our number one priority!
We want you to have the best SnapFenceTM
experience.
All materials not included can be purchased
separately.**
(Note - Not all included screws are needed)
Ground Anchor
Stakes**
Base
Mounts**
**Ground attachments (sold separately.)
Baluster**
2.1) Install desired ground attachments in your determined locations.
Typical attachments as shown, Ground Anchor Stakes** or Base Mounts**
Video instructions available on www.snapfence.com
2.2) Install Posts.
Slide Posts (H1, H2 and H3) over ground attachments and secure into place with
screws.
Secure with PVC glue if desired.
2.3) Attach Rails.
Snap Rails (I, J1 and J2) to Posts (H1, H2 and H3) then attach using the screws
provided.
Secure with PVC glue if desired.
3) Build the Gate
Cut gate structure to desired size using Posts (K1 and K2) and Rails (L1 and L2).*
Plan for a 1/2” clearance on each side of gate and 1” clearance on the bottom of
the gate.
3.1) Gate Corners.
Attach Gate Corners (B1 - B4) to gate structure (K1,K2, L1 and L2) by sliding corners
into the Posts/Rails. Make sure the holes on the hinge side Gate Corners (B1 and B2),
face up and down, and the holes on the latch side Gate Corners (B3 and B4) face
outward.
3.2) Support Brackets.
Attach Support Brackets (C) using supplied screws. Support Brackets (C) should be
installed on the opposite side from which you are intending to hang your wire.
Support Brackets (C) are not necessary if you are making a gate that will feature
Balusters (extra Posts (H)).
*If installing a 2’ wide gate with 4’ wide fence sections , dimensions are supplied in the example.
(A)
2 Hinges
(G)
1 Bag of
Screws
(C)
4 Support
Brackets
(D)
2 Gate
Stops
(E)
1 Latch
Slide
(F)
1 Mounting
Plate
(B)
4 Gate
Corners
39”
Desired
Length
Desired
Length
Desired
Height
Desired
Length
holes face up/down
holes face outward
Gate
H1 H2 H3
J2
J1 I
N
N
N
N
NN
Solid
Secure base with larger
screws/bolts as needed.
Attach post to
anchor stake
with screws.
Soil
Ground
Anchor
Stakes**
Base Mounts**
H1 H2 H3
Slide Slide
Slide
Slide
Cut to
size
K1 K2
L2
L1
B1
B2
B3
B4
C
C
C
C
Secure support
brackets with
screws.
Part Number: VFG-1
Gate Kit - Hardware Only
