SNAPCYCLE Storm Manuel utilisateur
ELECTRIC BICYCLE
Snapcycle Storm
User’s Manual
ENGLISH MANUAL
Snapcycle Inc.
5318 E. 2nd St
Long Beach, CA 90803
www.snapcycle.com
1
Contents
1. Preface ........................................................................................................................................... 2
1.1 Welcome ................................................................................................................................ 2
1.2 About this manual .................................................................................................................. 2
1.3 Symbols used in the manual ................................................................................................... 2
1.4 Service & technical support .................................................................................................... 2
2. Safety .............................................................................................................................................. 3
2.1 Safe Use of the E-bike ................................................................................................................... 3
2.2 Battery and Charger Safety .......................................................................................................... 4
2.3 Changing Components or Adding Accessories ............................................................................. 4
3. Unboxing & Assembly ........................................................................................................................ 5
3.1 Overview ...................................................................................................................................... 5
3.2 Cockpit .......................................................................................................................................... 6
4. Operations .......................................................................................................................................... 6
4.1 Product Specifications .................................................................................................................. 6
4.2 Mechanical Checklist .................................................................................................................... 7
4.3 First Ride ....................................................................................................................................... 8
4.4 Bike Display and Controls ............................................................................................................. 9
4.5 Battery and Charging .................................................................................................................. 14
5. Transportation & Storage ................................................................................................................. 15
5.1 Transportation ............................................................................................................................ 15
5.2 Storage ....................................................................................................................................... 15
6. Error Code and Troubleshooting ...................................................................................................... 16
6.1 Error Code 21H ........................................................................................................................... 16
6.2 Error Code 22H ........................................................................................................................... 17
6.3 Error Code 24H ........................................................................................................................... 17
6.4 Error Code 30H ........................................................................................................................... 18
7. Maintenance .................................................................................................................................... 19
7.1 Inspection and Safety Check ....................................................................................................... 19
7.2 Cleaning ...................................................................................................................................... 19
7.3 Lubrication .................................................................................................................................. 19
8. Product Warranty ............................................................................................................................. 21
9. Safety Disclaimer .............................................................................................................................. 24
2
1. Preface
1.1 Welcome
Congratulations on your purchase of a Snapcycle® E-Bike and welcome to the Snapcycle
community.
Snapcycle is committed to providing electric bicycles with state-of-the-art design, and world-
class quality. Our corporate goal is to offer everyone a happy and enjoyable ride, which will
form some of your memorable moments in your life. Either riding along the beach with loved
ones, or riding in a national park with grand-children will all become a source of happiness
when you recall such moments down the road in life. It is this commitment to our customers
that inspires us to constantly improve the quality of our products and services, and to
continuously innovate in order to serve our customers better.
1.2 About this manual
This manual contains important safety, performance, service and maintenance information.
Please read all information in this manual before you start riding your new e-bike. Please pay
full attention to the safety instructions in this manual and do not overlook them. This manual
would give you a thorough understanding of the general functionalities and features of the e-
bike and how it should be operated and maintained.
1.3 Symbols used in the manual
WARNING: Warns about a situation that can cause death, serious physical injury
and/or material damage if one does not follow the safety instructions.
1.4 Service & technical support
If you have questions after reading this manual, please contact the Snapcycle Help Center.
We are always here to support you.
Snapcycle Help Center: support.snapcycle.com
Email: [email protected]
Happy Riding SNAPCYCLE® .
3
2. Safety
2.1 Safe Use of the E-bike
1) You need to check the traffic rules and regulations in your area, including but not limited to
regulations about bicycle lighting, licensing of e-bikes, riding on sidewalks, laws regulating bike
path and trail use, helmet laws, child carrier laws, special e-bike traffic laws. It is your
responsibility to know and obey the laws.

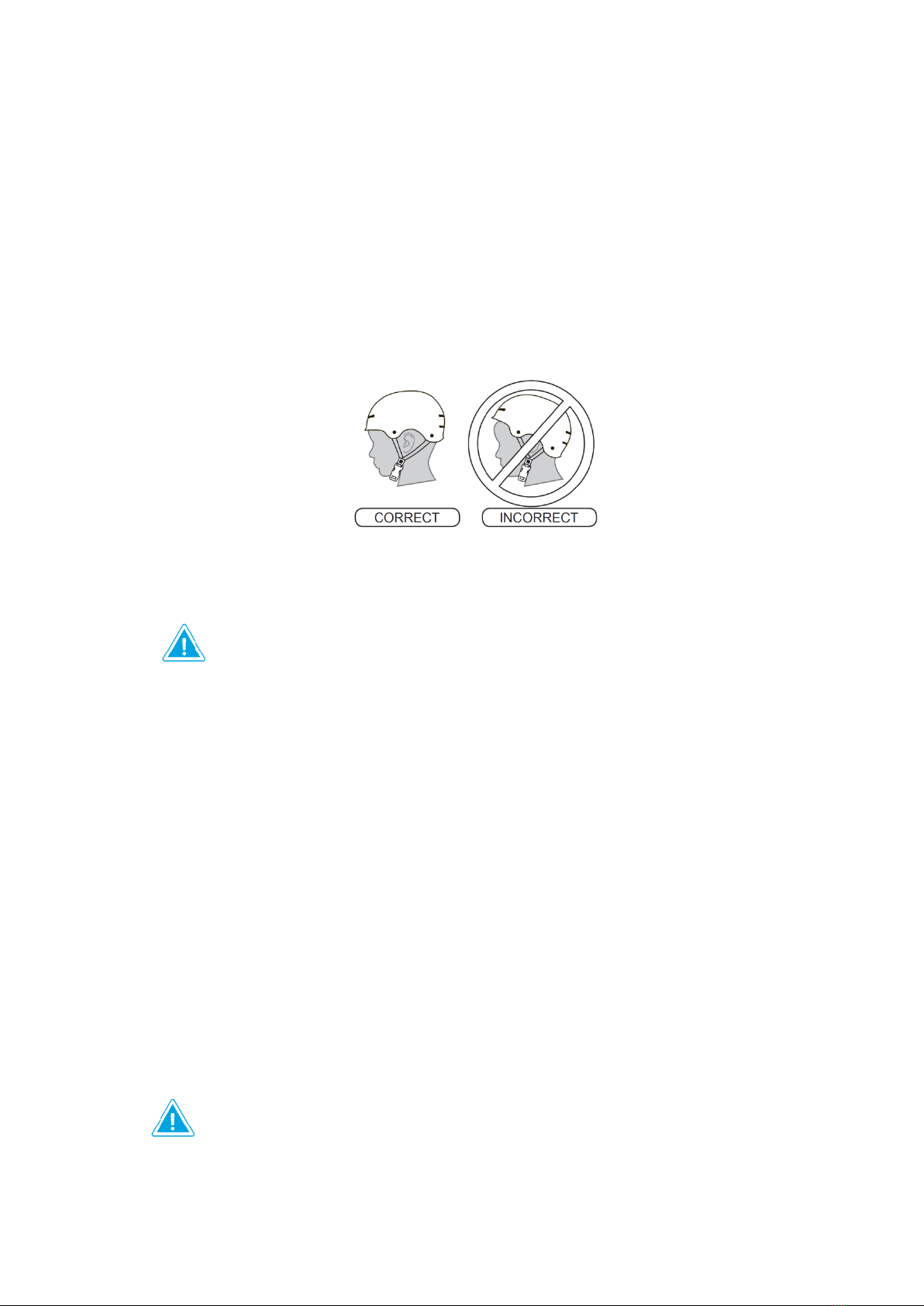

2) Always wear a helmet when riding your e-bike. Ensure that the helmet fits your head and is
securely tightened down. If you attach a seat for children to the e-bike, they must also be
wearing a properly fitted helmet at all times.
Always read the user manual of the helmet to make sure it is fitted and attached properly to the
wearer’s head according to the fitting instructions described in the user manual.
Warning: Failure to wear a helmet when riding may result in serious injury or death.
3) Before using the e-bike on the road, ride the e-bike in a secure area to get familiarised with
riding the e-bike with electric pedalling assistance and its functionalities.
• Conduct mechanical and electrical checks following the pre-riding checklist in Section 4 of
this manual to ensure the e-bike is safe to use.
• This bicycle is made to be ridden by one rider at a time for general transportation and
recreational use. It is not made to withstand the abuse of stunting and jumping.
• Wet weather impairs traction, braking and visibility. The risk of an accident is dramatically
increased in wet conditions. Ride slowly with caution, especially when turning.
• Riding a bicycle at night is much more dangerous than riding during the day. It is
recommended to not ride at night if possible. If you indeed to ride at night, you need to
install a tail light on the e-bike and ensure it has sufficient battery power. Ride at slow
speed. Do turn on the head light, and tail light when riding at night. It is recommended for
the riders to use additional night lighting system such as flashing light on helmet, adding
additional reflectors on the e-bikes on all facets.
Warning: Keep both hands on the grips on the handlebar and the brake levers within
reach while riding. Failing to do so can cause you to lose control over the e-bike, and
may cause serious injury or death.
4
Warning: Never exceed the maximum permissible load of the e-bike. Failing to do so
may result in structural failure, and cause serious injury or death.
Warning: When pushing the e-bike on pedestrian pathways, the rider needs to turn
off the power to avoid any accidental activation of the electric motor, which may
result in injury to you or other pedestrians.
2.2 Battery and Charger Safety
• Keep the battery & charger away from water, open window, and open fire.
• Do not use the battery & charger for other purposes other than powering the e-bike.
• Only use the original charger to charge the Snapcycle e-bike battery.
• Do not connect terminals.
• Do not open the battery casing.
• Do not attempt to repair the battery unless you are a specially trained and licensed
technician.
• Keep the battery away from children and pets.
• Avoid shock and impact to the battery & charger (e.g. by dropping, smashing ).
• Stop the charging procedure immediately if you notice a strange smell or smoke.
• In the unlikely case that the battery is on fire, do NOT try to extinguish with water. Use
sand or Carbon dioxide extinguisher instead and call emergency hotline immediately.
Warning: Water may cause the short circuit to the battery, may result in fire and
other consequences. Avoid water when using or handling batteries
2.3 Changing Components or Adding Accessories
• Changing the components on your e-bike with non-genuine replacement parts may
compromise the safety of your e-bike and may void the warranty. Check with Snapcycle
customer service before changing the components on your bike
• Please take note that the use of a third-party trailer may cause extra load stress on your
e-bike, which may affect the safe use of your e-bike. Do not modify any original parts of
the e-bike to accommodate a third-party trailer. Do not exceed the total permissible load
weight of the e-bike as stated elsewhere in this user manual.
• Please note that the use of a child seat can cause extra load stress on your e-bike, which
may affect the safe use of your e-bike. Do not modify any original parts of the e-bike to
accommodate a third-party child seat. Do not exceed the total permissible load weight of
the e-bike as stated elsewhere in this user manual. If a child seat is used, there is a risk of
trapping the child’s fingers or feet into the wheel. Please take appropriate steps to prevent
the trapping of the child’s fingers or feet. Always follow the child seat manufacturer’s
instructions for installation, usage and safety.
5
3. Unboxing & Assembly
You need to follow the unboxing and assembly instruction video that was sent to you via email upon
your purchase of the bike. You can also find the video on our product page, under the ‘Manual and
Assembly Videos’ section: https://support.snapcycle.com/hc/en-us/categories/4403039258777-
User-Manuals-and-Technical-Videos.
If you are unable to find the assembly video, please check your spam/junk folders. You may also
write in to us at [email protected] , or phone us at (415) 888-9135.

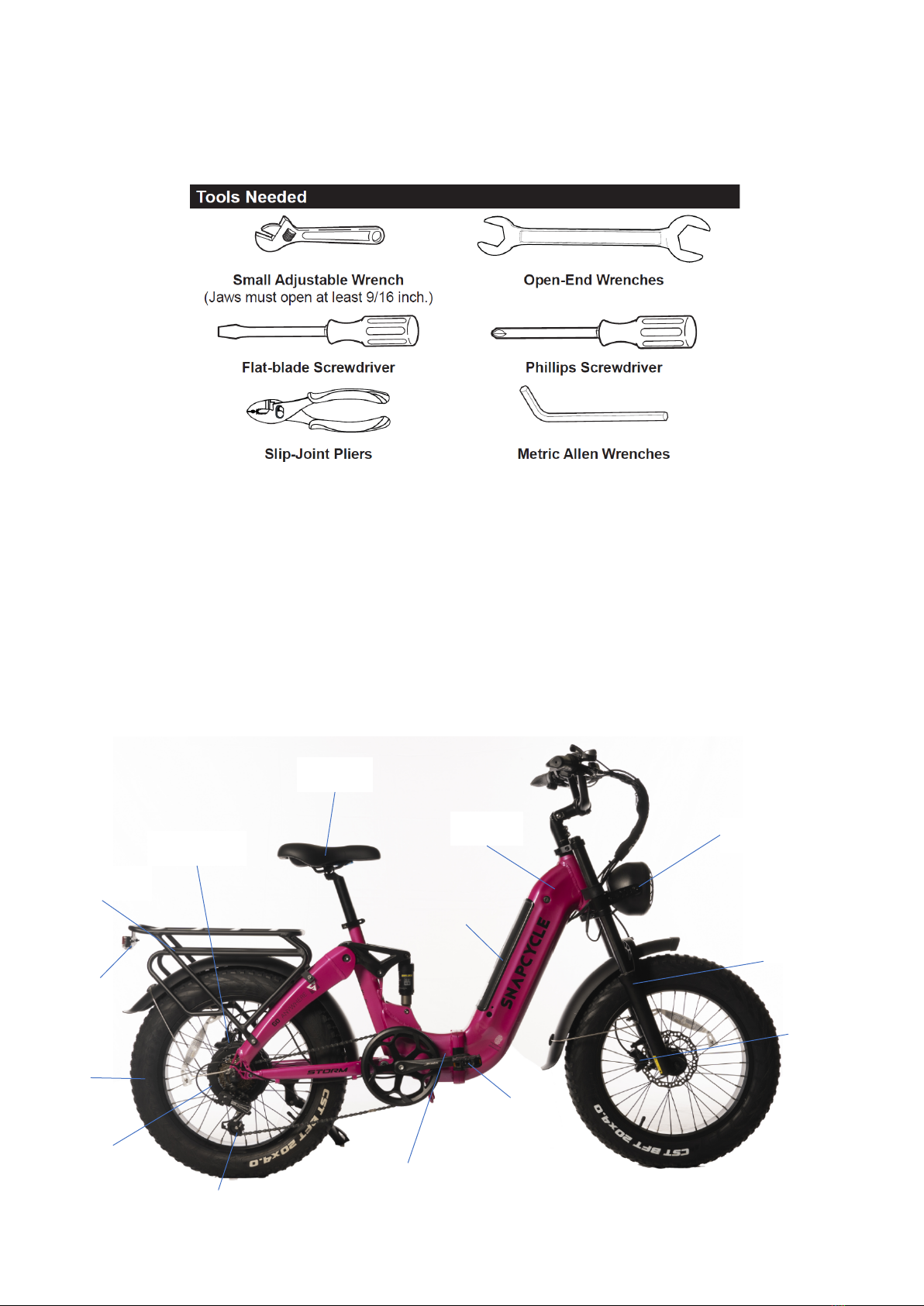

3.1 Overview
Rear Rack
Taillight
Rear Brake
Saddle
Frame
Head Light
Battery
Pedal
Front Brake
Front
Suspension
Fork
Controller (inside
the frame)
Derailleur
Motor
Tire
6

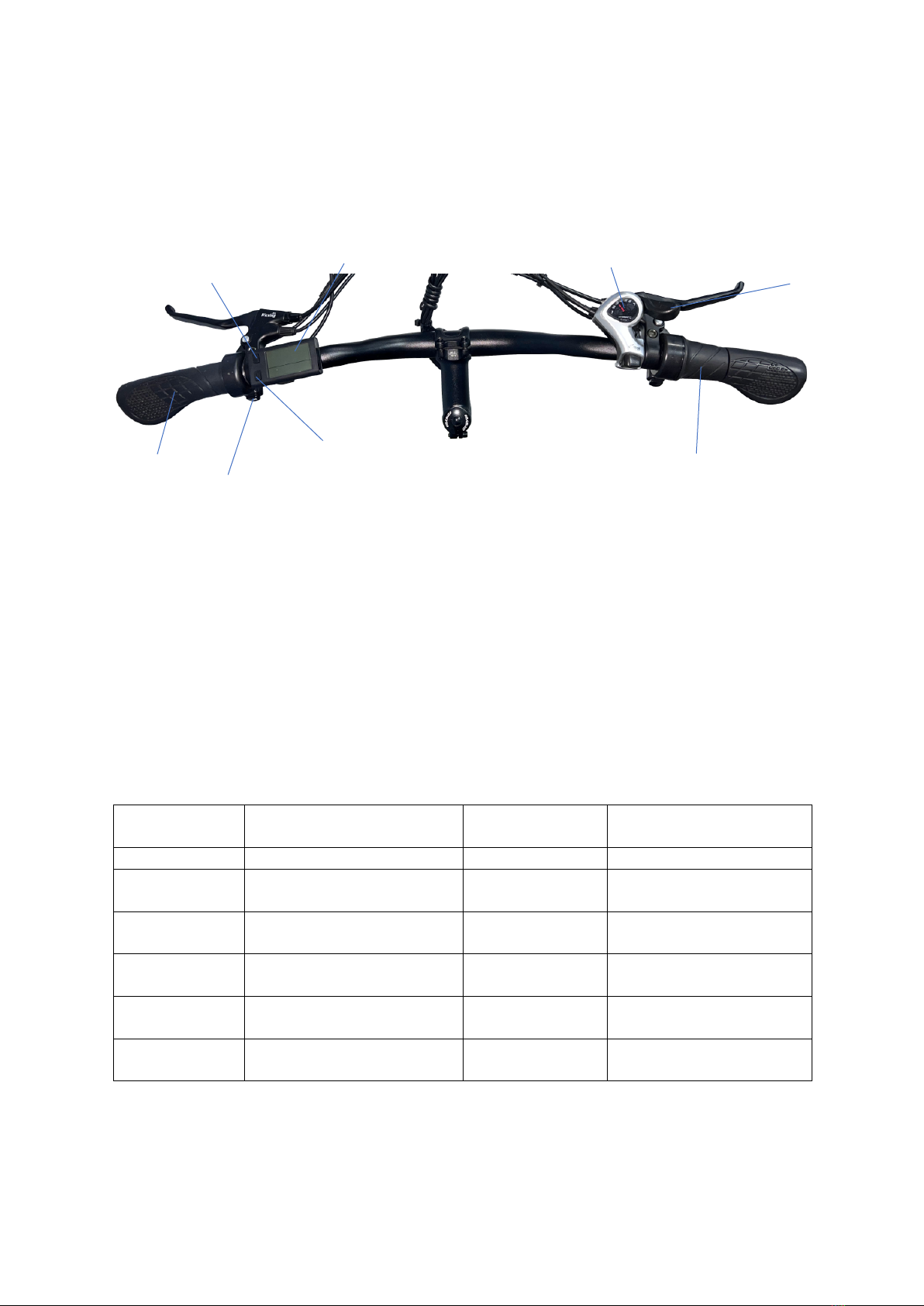

3.2 Cockpit
4. Operations
4.1 Product Specifications
Battery
48V 15AH Lithium Battery
Charger
US Standard 3.0A smart
charger, UL Certified
Range
20 ~ 45 Miles
Controller
48V / 22A
Electric Bike
Class
Class 2 (by default)
(Configurable to Class 3)
Display
Adjustable-Angle, Backlit,
Grayscale, LCD
Hub Motor
750W brushless geared
motor
Frame
Aluminium 6061
Charging Time
4 ~ 5 Hours
Pedal Assist
Intelligent
0~5 level pedal assist
(Configurable to 9-level)
Total Payload
Capacity
330 lbs
Top Speed
20 mph by default
(Configurable to 28 mph)
Recommended
Rider’s Height
5’ 3” ~ 6’ 7”
Net Weight
70.5 lbs
Brake Lever
(with Brake Sensor)
Handle
Mode Button
LCD Display
Power Button
Half-Twist
Throttle
Shimano
Shifter
Horn
