SNAP DRILL SD42,4 Manuel utilisateur

GMV SnapDrill 2021

TECHNICAL SPECIFICATIONS

TABLE OF CONTENTS

1. Description

2. Dimensions and weight

3. Hole cutters

4. Safety

5. Instructions for use

6. Changing of hole cutter

7. List of spare parts

8. Declaration of Conformity

GMV SnapDrill 2021

1 Description

The Snapdrill connects to a standard battery drill, and is a new patented tool for safe and efficient hole

cutting in pipes. The tools cover pipes with an external diameter of Ø42,4 up to and included Ø168,3 mm,

and drill holes from Ø24 up to and included Ø63,5 mm

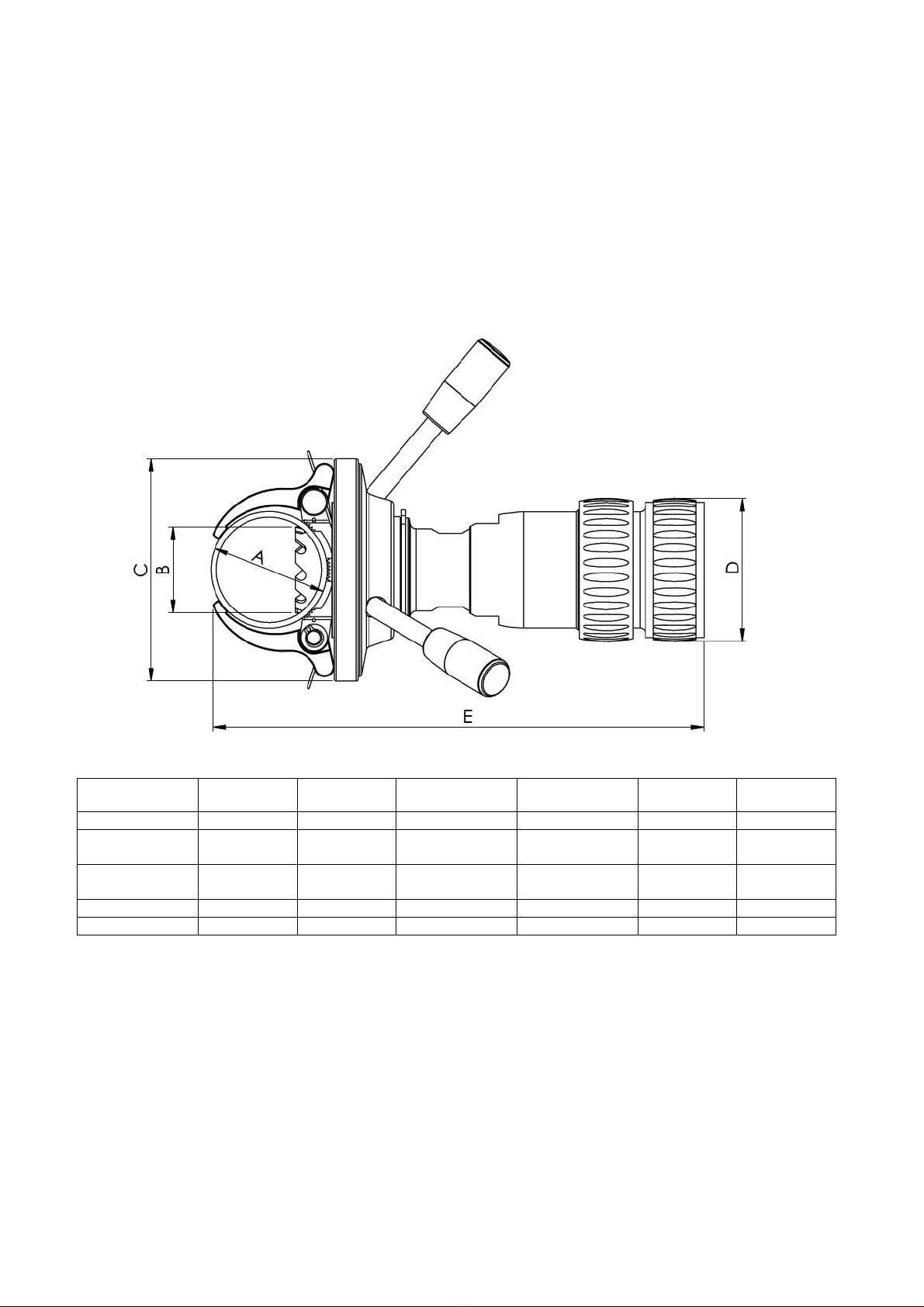

2 Dimensions and weight

Snapdrill

SD42,4/48,3

SD60,3

SD76,1

SD88,9

SD114,3

SD168,3

Tube ØA (mm)

42,4 and 48,3

60,3

76,1

88,9

114,3

168,3

Diameter ØC

(mm)

114

124

139

Diameter ØD

(mm)

Length E (mm)

239,5

257

270

285

301

349,5

Weight (kg)

2,4

2,85

3,2

3,34

4,1

4,4

3 Hole cutters

GMV SnapDrill 2021

SD42,4/48,3 (42,4)

Hole cutter part no

HS24S 1)

HS30S 1)

Hole cutter diameter ØB (mm)

Tube diameter Ø42.4mm

Maximum wall thickness of tube (mm)

6.2

3.6

SD42,4/48,3 (48,3)

Hole cutter part no

HS24S 1)

HS30S 1)

Hole cutter diameter ØB (mm)

Tube diameter Ø48.3mm

Maximum wall thickness of tube (mm)

4.8

SD60,3

Hole cutter part no

HS24L

HS30L

HS38L

HS44L

Hole cutter diameter ØB (mm)

38,1

44,5

Maximum wall thickness of tube (mm)

11.3

9.2

6.1

3.5

SD76,1

Hole cutter part no

HS24L

HS30L

HS38L

HS44L

HS50L

Hole cutter diameter

ØB (mm)

38,1

44,5

50,8

Maximum wall

thickness of tube

(mm)

11.4

8.9

6.7

4.4

SD88,9

Hole cutter part no

HS24L

HS30L

HS38L

HS44L

HS50L

Hole cutter diameter

ØB (mm)

38,1

44,5

50,8

Maximum wall

thickness of tube

(mm)

11.8

10.6

8.6

6.8

4.9

SD114,3

Hole cutter

part no

HS24L

HS30L

HS38L

HS44L

HS50L

HS63L

Hole cutter

diameter ØB

(mm)

38,1

44,5

50,8

63,5

Maximum

wall thickness

of tube (mm)

14.4

13.5

11.9

10.5

8.9

5.3

SD168,3

Hole cutter

part no

HS24L

HS30L

HS38L

HS44L

HS50L

HS63L

Hole cutter

diameter ØB

(mm)

38,1

44,5

50,8

63,5

Maximum

wall thickness

of tube (mm)

13.1

12.5

11.6

10.7

9.7

7.3

1) Note that for cutter Ø24 and Ø30 there is a short (S) and a long (L) version.

4 Safety

GMV SnapDrill 2021

1. Check HSE rules and regulations

2. Make inspection of tool before starting

3. Emphasize the clamping danger

4. Supply data sheets of the tube

It is recommended to wear protective footwear, goggles, hard hat, hearing protection and gloves to

handle metal chips.

5 Instructions for use

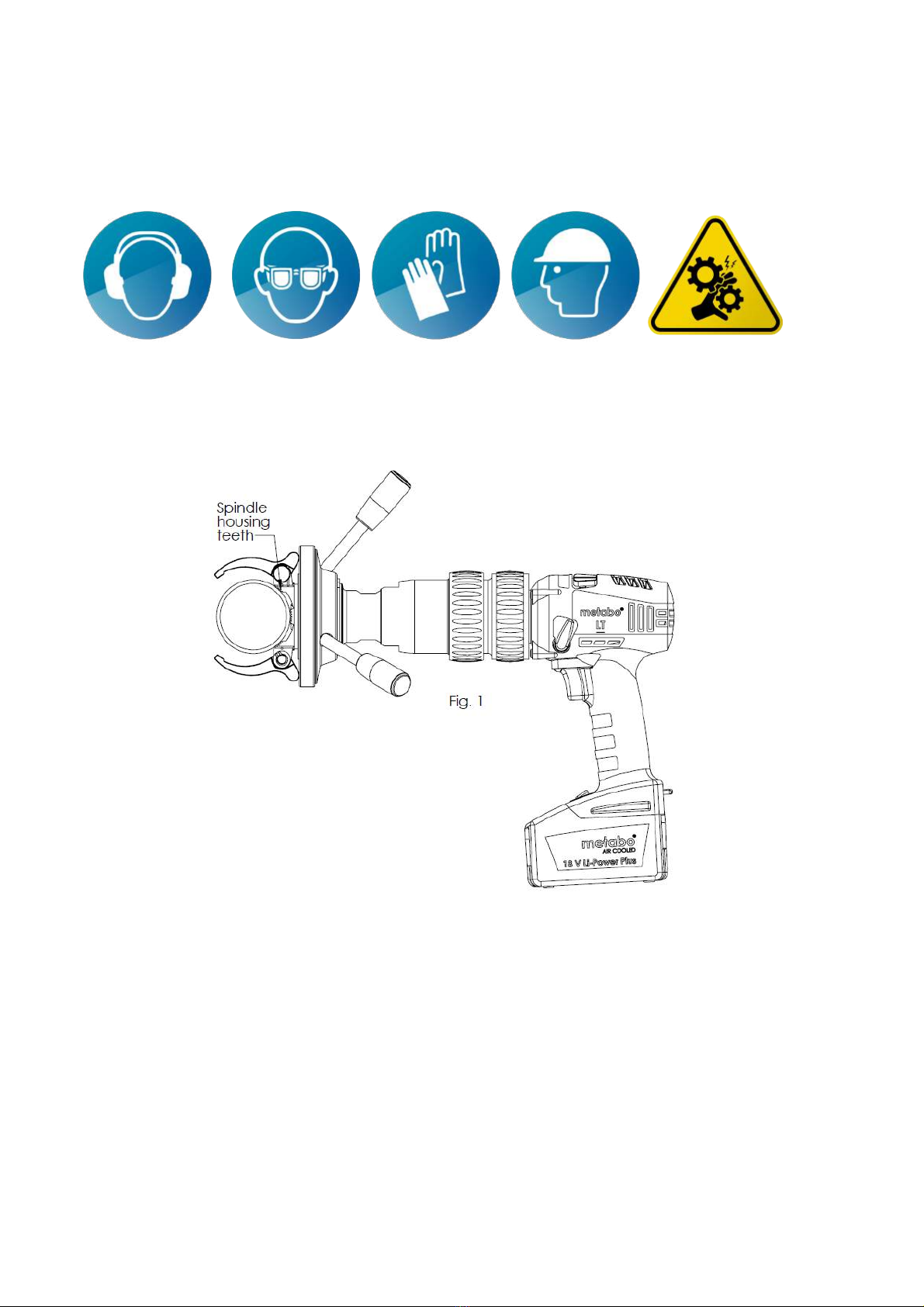

1. Referring to fig. 1, place the teeth in the spindle housing against the tube where to drill the hole.

GMV SnapDrill 2021

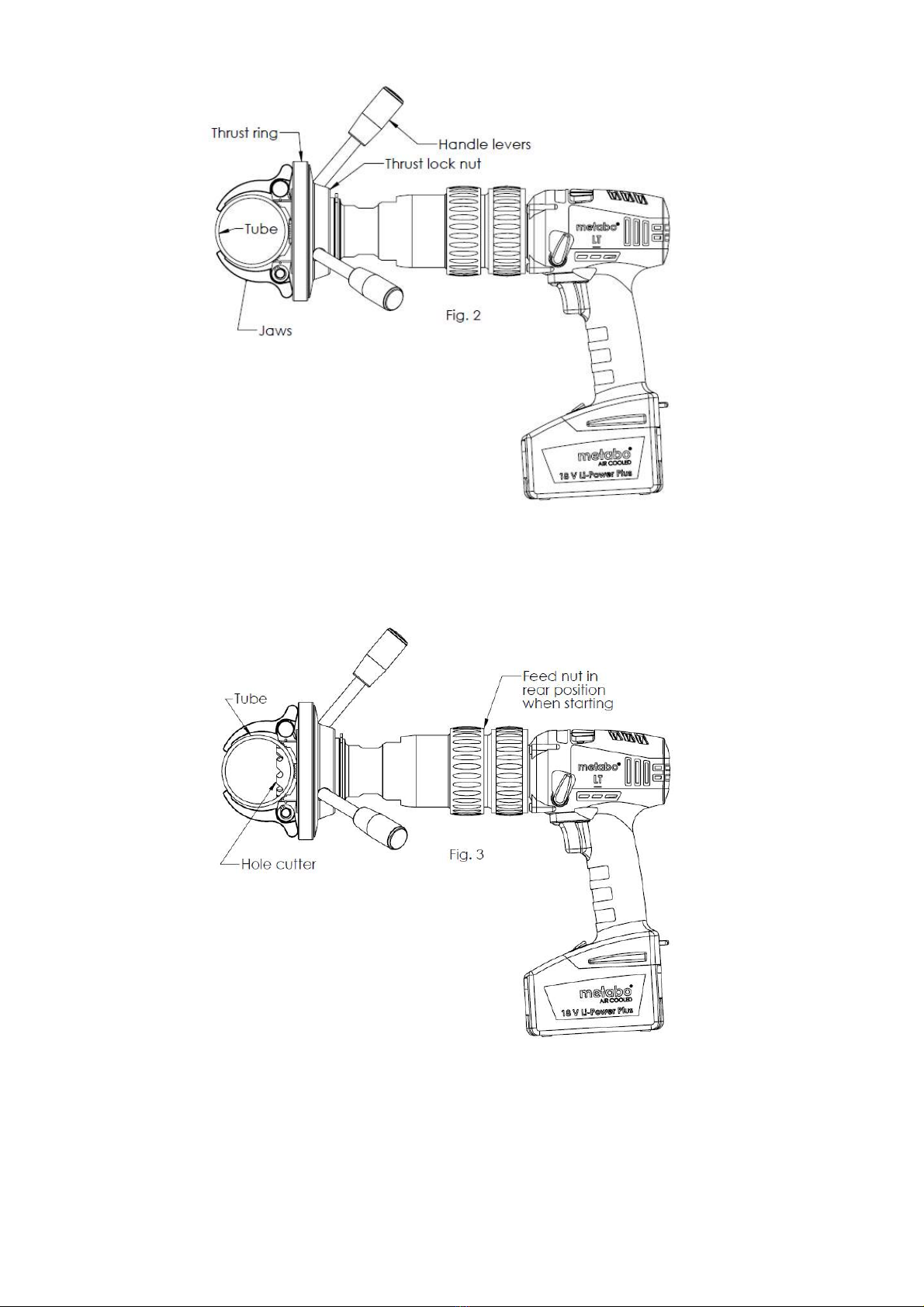

2. Referring to fig. 2, fasten the snap drill to the tube by tightening the jaws against the tube by

rotating the thrust lock nut clockwise against the thrust ring by the help of the handle levers. Use

both hands for final tightening.

3. Referring to fig. 3, check that the feed nut is in the rear position before start. Lubrication directly

in the hole saw ahead of drilling is recommended. Use the battery drills “drilling mode” (drill

symbol) on the torque switch. Use battery drill gear stage 1. Start the battery drill clockwise

pushing the button fully down to achieve full torque. Gently rotate the feed nut outwards to

engage the clutch. The hole cutter will now move outwards and cut the hole in the tube. Drill

continuously, until the hole saw is fully through the pipe.

GMV SnapDrill 2021

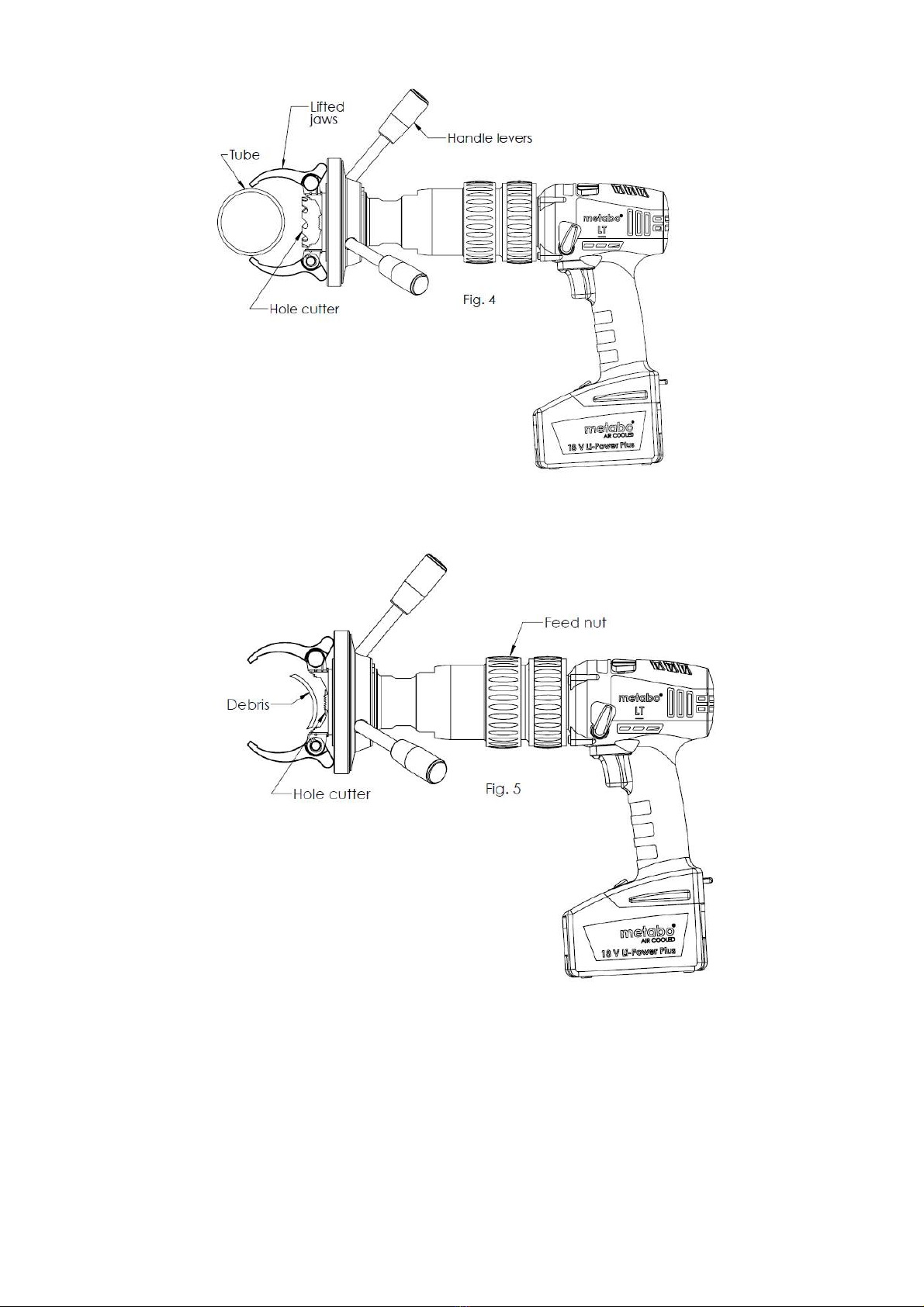

4. Referring to fig. 4, loosen the jaws by rotating the thrust lock nut anticlockwise. The torsion

springs will lift up the jaws thus enable the snap drill to be pulled free.

5. Referring to fig. 5, get rid of the debris by rotating the drill anticlockwise and gently rotate the

feed nut outwards to engage the clutch. The hole cutter will now move backwards pushing the

debris against the hexagon drive shaft thus throwing it free from the hole cutter.

GMV SnapDrill 2021

6 Changing of hole cutter

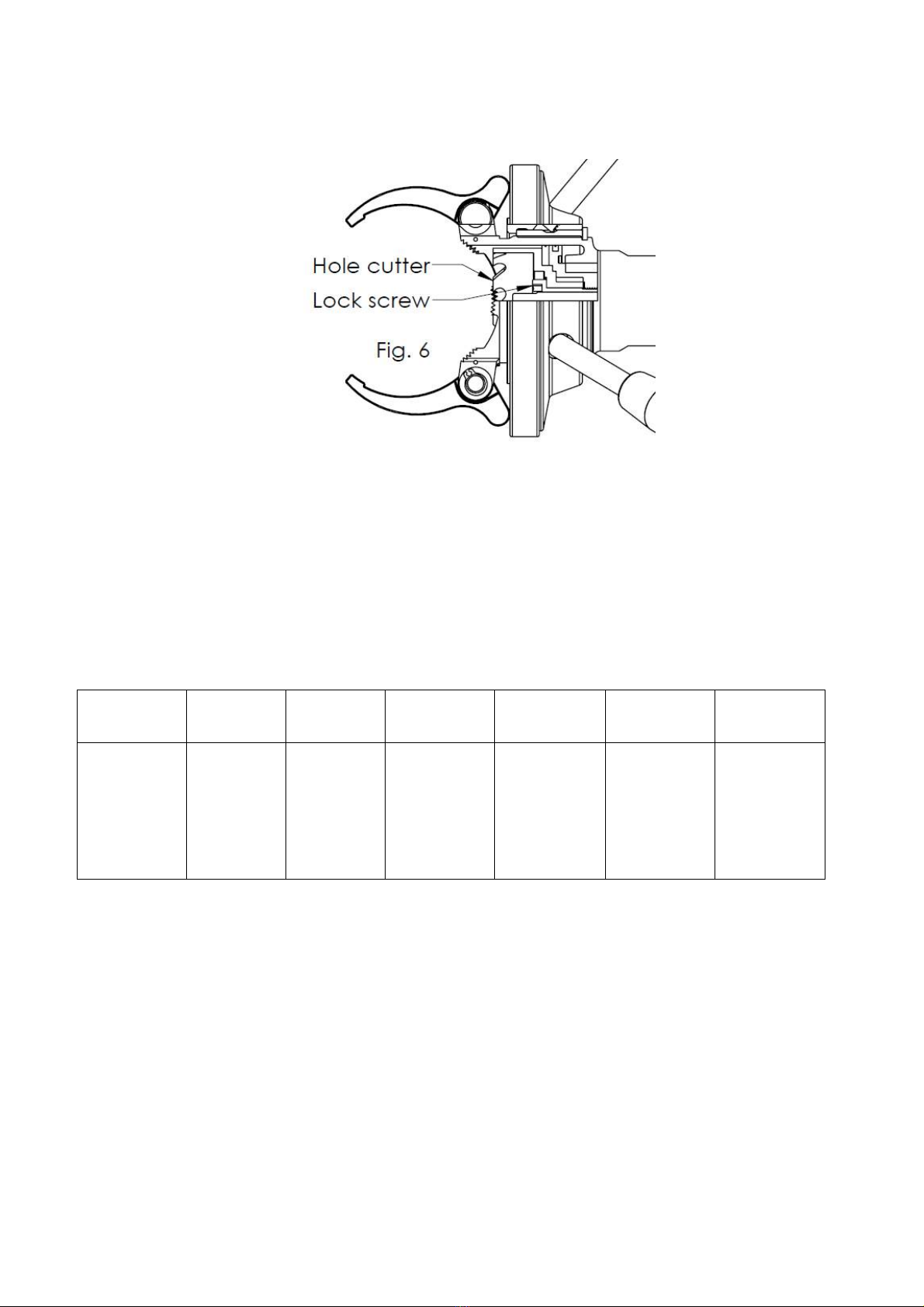

1. Referring to fig. 6, screw out lock screw and remove the hole cutter.

2. Thoroughly clean all visible parts. Using air pressure to clean is not recommended. Insert the new

hole cutter.

3. It is important that the battery drill is set to gear stage 1. Fasten the hole cutter with the custom

socket and flex handle.

4. The table below gives the hole cutter part number and its size that fit for each SnapDrill. Note

that for cutter Ø24 and Ø30 there is a short (S) and a long (L) version.

SnapDrill part

number and

pipe size (mm)

SD42,4/48,3-

Ø42,4 and

Ø48,3

SD60,3

Ø60,3

SD76,1

Ø76,1

SD88,9

Ø88,9

SD114,3

Ø114,3

SD168,3

Ø168,3

Hole cutter part

number and

cutter size (mm)

SD030S -Ø30

SD024S -Ø24

SD046L -Ø46

SD044L -

Ø44,5

SD038L -

Ø38,1

SD030L -Ø30

SD024L -Ø24

SD050L -Ø50,8

SD046L -Ø46

SD044L -Ø44,5

SD038L -Ø38,1

SD030L -Ø30

SD024L -Ø24

SD050L -Ø50,8

SD046L -Ø46

SD044L -Ø44,5

SD038L -Ø38,1

SD030L -Ø30

SD024L -Ø24

SD063L -Ø63,5

SD050L -Ø50,8

SD046L -Ø46

SD044L -Ø44,5

SD038L -Ø38,1

SD030L -Ø30

SD024L -Ø24

SD063L -Ø63,5

SD050L -Ø50,8

SD046L -Ø46

SD044L -Ø44,5

SD038L -Ø38,1

SD030L -Ø30

SD024L -Ø24

GMV SnapDrill 2021

7 List of spare parts

Name

Description

42,4/48,3-JAW

Replacement jaw (2) for SD42,4/48,3 with brass bolt and spring (2) and circlip (2)

60,3-JAW

Replacement jaw (2) for SD60,3 with brass bolt and spring (2) and circlip (2)

76,1-JAW

Replacement jaw (2) for SD76,1 with brass bolt and spring (2) and circlip (2)

88,9-JAW

Replacement jaw (2) for SD88,9 with brass bolt and spring (2) and circlip (2)

114,3-JAW

Replacement jaw (2) for SD114,3 with brass bolt and spring (2) and circlip (2)

168,3-JAW

Replacement jaw (2) for SD168,3 with brass bolt and spring (2) and circlip (2)

M8-Handles

Replacement handles (3) for SD42,4/48,3 up to SD76,1 with locking-washers (6)

M10-Handles

Replacement handles (3) for SD88,9 up to SD168,3 with locking-washers (6)

Level Bubble

Replacement level bubble

Level Bracket

Replacement 3-position level bracket (with level bubble)

SD-Bolt

Hex bolt for hole saw fastening

SD-Flex handle

Flex handle for hex nut

SD-Socket

Hex socket for fastening of SD-Bolt

Declaration of conformity

We, Snap Drill AS (NO92171951, Koppholen 9, 4313 Sandnes Norway) declare under our

sole responsibility that the Snapdrill Hole Cutting Tools* is in conformity with the following

relevant standards and documents:

98/37/EC – 89/392/EEC – 91/368/EEC – 93/44/EEC – 2006/42/EC – DBS 522 – ISO 281 – ISO

898 - VDI 2230 – GEMEINHOLZER – NIEMANN

*Snapdrill hole cutting tools consist of the Snapdrill units (SD42,4/48,3 etc.) and all hole saws

(HS24 etc.). Snap Drill AS will not take responsibility for Metabo and Auer packaging

products.

Martin Talgø – CEO

Sign.

Oslo. 25.05.21
