Snailax SL-923 Manuel utilisateur

Instruction Manual

Please read this manual carefully before using the product and keep it properly

Multifunctional Leisure

Massage Chair SL-923

Directory

Safety Precautions

Product structruc drawing

Prepare before use

Product Features

The product Installation

Function Instructions

Product Specifications

Thank you very much for purchasing this product. This manual provides a

safe and effective way for users to operate. Please read this “Safety

Precautions” carefully before use and use them correctly.

The following precautions will help you use this product safely to prevent

danger. Each precaution is divided into “warning” and “attention” according

to the degree of danger of the accident. After reading it, please place it in a

place that is easy to access and keep it proper.

Warranty 14

SAFETY PRECAUTIONS

Safety Precautions

Warning

Attention

Please use the specified voltage source, use other electric voltage may cause electric

shock, fire, etc.

If the the product fails, please unplug the plug immediately and call the distributor for

advice.

Turn off the power when not in use and remove the plug from the outlet.

When the power cord and plug are damaged, they must be replaced by professional

staff member of the manufacturer or its maintenance department.

When the product is in use, it is forbidden to put your hand into the massage

mechanism cloth cover.

If there is a power outage, please cut off the power switch and unplug the plug.

Please consult your doctor before using this product if you have any of the following

conditions.

1. Use a pacemaker or similar implantable medical device.

2. Suffering from heart disease.

3. Suffering from strain back disease

4.Ragile or damaged bone, especially the back bones.

5. After surgery.

6. Pregnant or shortly after pregnancy

7.Suffering from osteoporosis.

8.Suffering from blood circulation problems or thrombosis.

9.Suffering from skin infections.

10.Being treated or in adjunctive therapy

11. Abnormalities in the limbs.

The duration of use to 15 minutes, long time use may cause

muscle and nerve pain.

PRODUCT STRUCTRUC DRAWING

Product structruc drawing

Massage heads

Backrest adjustable handle

Solid wood handrail

Switch button

Mode selection button

Chair foot pad

12V home adapter

PREPARATION BEFORE USE

Preparation Before Use

1.INSTALLATIONLOCATION

①Install the product in dry place.Don’t expose to direct sunlight.

②Place the product on carpet to reduce the operational noise.

①. Make sure the power cord is not peeled or broken.

②. Connect the power cord on the back of product.

③. Insert the power cord plug into the socket

2.How toconnect the power supply.

PRODUCT FEATURES

Product features

1. Full back kneading massage. Massage heads on the waist, back, and neck，

massage the entire back area.

2. The two groups of massage heads can perform regular kneading massage and

also the back walking massage.

3. The massage heads fit all positions of back automatically, make the massage in

place.The massage heads are distributed on the seesaw system. The three

massage heads on the seesaw system can automatically fit the lumbers of users in

different body shapes,the two massage heads on the upper back position as same.

4.The angle of chair backrest is adjustable.Reclining angle adjustment

ranges from 90 degrees --- 135 degrees (As Figure 1).

5. The chair backrest is foldable that can minimize the package

measurement (As Figure 2).

6. The wooden frame of the chair can be assembled that can minimize

the package size.

Adjustable Range

Figure 1 Figure 2

FUNCTIONAL INSTRUCTIONS

Functional Instructions

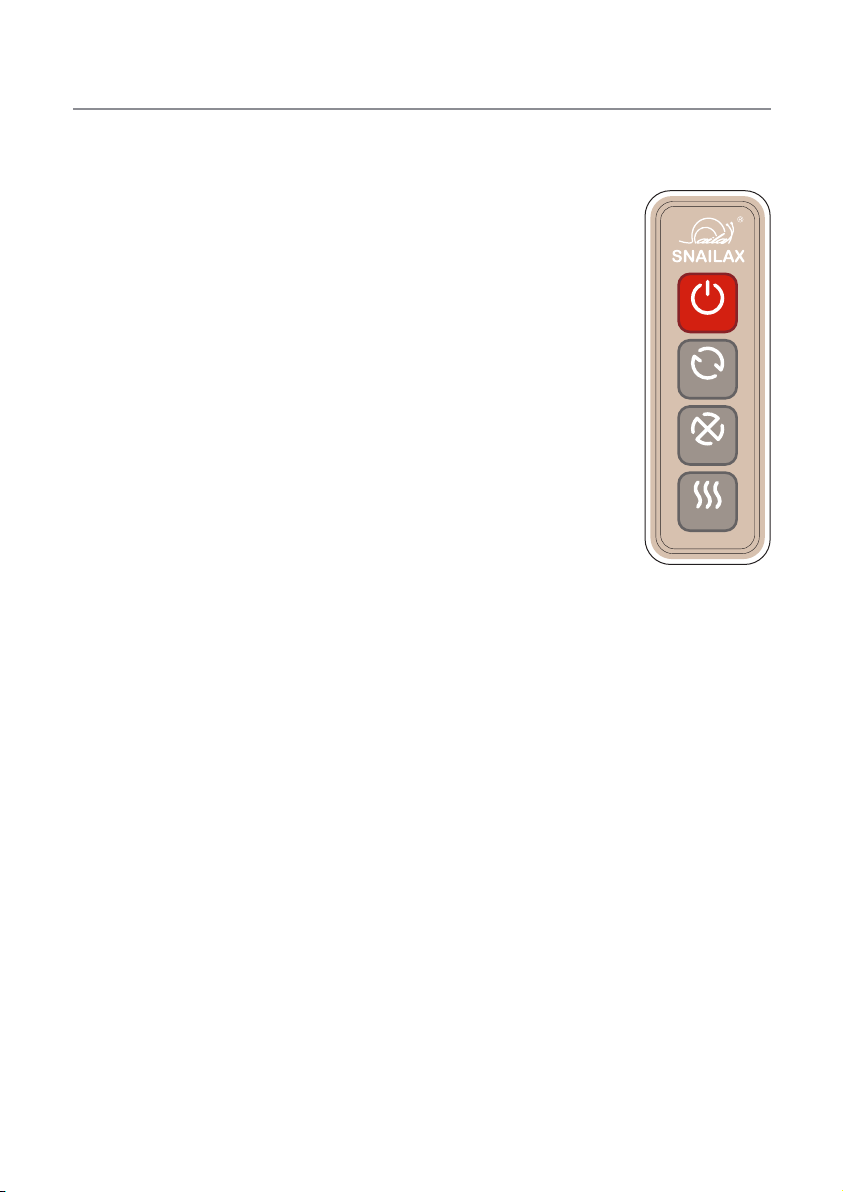

1. Switch key

2. Massage mode button

A. Press this button toturn on the machine. The "kneading function" and "heating

function" are turned on, the light on the massage head lights up, and the massage

heads start to rotate;

B. The initial state of the boot is "synchronous kneading massage" and run in

“speed mode l", and "synchronized kneading massage" and "asynchronous

kneading massage (Thai stepping massage)" will automatically switch every one

minute.

C. 15 minutes automatic timing, after running for 15 minutes, the massager will

automatically shut down;

D. Press this button again toshut down.

A. Press this button to switch the massage modes.

B.This machine has"synchronized kneading massage"and "asynchronous

kneading massage (Thai stepping massage)" two massage modes;

C. "Synchronized kneading massage", that is, the left and right sets of massage

heads do the same relative movement;

D. "Asynchronous kneading massage (Thai stepping massage)" that is, the left

and right sets of massage heads make high and low unequal height relative

movement

FUNCTIONAL INSTRUCTIONS

Functional Instructions

3 Massage speed button

4 Heating key

A. Press this button tocycle the massage speed mode.

B. This machine has “massage speed mode 1”.

"Massage speed mode 2", "Massage speed mode 3" three

massage speed modes.

C.Presses the speed mode l" at full speed, the speed of the

massage head is 30RPM.

D.Massage speed mode 2" The first 15S, the massage head

rotation speed is gradually increased from 10RPM to 20RPM;

After 15S, the massage head rotation speed is rotated at

30RPM. Continuous circulation.

E."Massage speed mode 3" In 15S, the rotational speed of the

massage head is gradually increased from 10RPM to 20RPM.

Continuous circulation.

This button controls the light on the massage head.

The lamp on the massage head of this product has a heating function.

A. Press this button, the light turns off.

B. Press this button again, the light turns on.

On/Off

Mode

Speed

Heat

PRODUCT SPECIFICATION

Product Specification

1.Trouble shooting

2.Specification

SymptomsPossible Cause Remedy

The machine can not

be operate normally.

The power supply plug

is detached

Check that the power plug

is inserted the socket

securely

The power cord on the

back is disconnected

Check that the power cord

is inserted properly

If abnormal phenomenon still remains after above measures have been

taken tothe massage chair,pls contact the manufacturer or local

distributor for repair and maintenance.

Rated voltage 220VC

Gross weight 18KG

Net weight 16KG

Color Twilight Grey

Rated frequency 50Hz

Model M60

Rated power 30W

Outer box size

(without footrest) 750-310-610mm

Use external switching power supply,

input 100-230 VAC, output 12VCD/2.5A

The Product Installation

THE PRODUCT INSTALLATION

Big hole upward

1. Take out the massage chair and accessories from the box, and put the backrest

on the floor, then lock 4 screws on the Chair frame beam to fix on the bottom of

the seat:

Inner

side

Pay attention to

the direction

of the hole position

Note the label sticked on

bothof the chair frame beam.

OPT.1 Quick installaon guide

Please scan the QR code below or enter the following URL to view the

installation video.

OPT.2 Refer to the following installaon steps:

hps://www.snailax.com/pages/923
