GB
FREE STANDING
ELECTRICCOOKER USER
MANUAL
FF 6043
Dear Customer,
Pieces of packaging (plastic bags, polystyrene etc.) must not be left within
reach of children, as they are potentially dangerous. Please dispose of
packaging thoughtfully by the appropriate means.
To this effect, we recommend that you read the entire guide carefully
before operating the product and keep it as a reference.
CONTENTS
1. IMPORTANT WARNINGS
2. TECHNICAL FEATURES OF YOUR OVEN
3. INSTALLATION OF YOUR OVEN
4. DESCRIPTION OF COOKER & CONTROL PANEL
5. USING OF YOUR COOKER
6. IF YOUR COOKER DOES NOT OPERATE
7. USING HEAT SHIELD
8. MAINTENANCE and CLEANING
IMPORTANT WARNINGS
WARNING: This appliance must be earthed!
Please find required information as power and ratings for your cooker
from rating label is which located behind of appliance.
Ensure that the electricity supply is turned OFF before installing your
appliance.
Ensure that the appliance is switched off before replacing the lamp to
avoid the possibility of electric shock.
If the supply cord is damaged, it must be replaced by the manufacturer,
its services agent or similar qualified persons in order to avoid hazard.
Keep the electrical cable of your cooker away from the hot areas; do not
let them touch the appliance. Keep them away from sharp sides and
heated surfaces.
Usage of your appliance creates moisture and heat in the room; make
sure that your kitchen is well ventilated.
Prolonged intensive use of the appliance may call for additional
ventilation, for example opening increasing the level of mechanical
ventilation where present.
When the cooker is hot never touch the oven glass by hand.
This appliance is for cooking purposes only. It must not be used for
other purposes, for example room heating. All our appliances are only
for domestic use, not for commercial use.
Before starting to use your appliance, keep curtains, paper or
inflammable things away from your appliance. Do not keep combustible
or inflammable things in or near the appliance.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children
unless they are older than 8 and supervised.
Use glove when using cooker. Do not touch on hot surfaces
Do not carry cooker to hold from handle
Do not use cooker in potentially explosive atmospheres.
If the current rate of the fuse in your installation is less than 16 Amp,
have a qualified electrician fit a16 Amp fuse.
When the oven is being used, some parts may become hot; children
should be kept away and supervised at all times.
Do not splash cool water in an oven tray or inside the oven when the
surface of the appliance is still hot. Arising steam may cause burns and
sudden temperature exchange may cause damages on the surface of
the appliance
WARNING: Accessible parts may become hot during use. Young children
should be kept away.
WARNING: The appliance and its accessible parts become hot during
use. Care should be taken to avoid touching heating elements. Children
less than 8 years of age shall be kept away unless continuously
supervised.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the
oven door glass since they can scratch the surface which may result in
shattering of the glass.
If the current rate of the fuse in your installation is less than 32Ampere,
have a qualified electrician fit a 32A. fuse. (With rapid Hotplate models
40 A.)
This appliance is produced in accordance with the safety regulations.
Incorrect use will harm people and appliance.
The cooker must be supplied via a suitable double pole isolating switch,
having contact separation of at least 3 mm in all poles placed in a readily
accessible position adjacent to the unit.
Children should be supervised to ensure that they do not play with the
appliance. Never let them play with the appliance.
The cooker may be located in a kitchen, a kitchen/diner or bed-sitting
room but not in a room containing a bath or shower.
Caution: glass lids may shatter when heated. Turn off all the burners
before shutting the lid. Anyspillageshould be
removedfromthelidbeforeopening.
In models that have digital timer, after power cut set your digital timer
rightly. Otherwise, your oven will not operate.
Caution: Accessible parts may be hot when the grill is in use. Young
children should be kept away”
Do not put flammable, combustible, explosive liquid able or deformable
by heat any material in the oven against possible risk of danger even if
your appliance is not in use.
Bread may catch fire if the toasting time is too long. Close supervision is
necessary during toasting
For cleaning fan guard panel (optional) the cooker must be switched off
before removing the guard and after cleaning, the guard must be
replaced in correct position into the cooker.
WARNING:Before obtaining access to terminals, all supply circuits must
be disconnected.
WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire.NEVER try to extinguish a fire with
water, but switch off the applianceand then cover flame e.g. with a lid
or a fire blanket.
WARNING: Danger of fire: do not store items on the cooking surfaces.
WARNING: If the surface is cracked, switch off the appliance to avoid
the possibility of electric shock.
The appliance is not intended to be operated by means of an
external timer or separate remote-control system
WARNING:This appliance is not intended for use by persons (including
children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge,
unless they have beengiven supervision or instruction concerning use of
the appliance by a person responsible fortheir safety.
Children should be supervised to ensure that they do not play with the
appliance.
TECHNICAL FEATURES OF YOUR OVEN
(*) Optional
SPECIFICATIONS
50 x 50
50 x 60
60 x 60
Outer width
500 mm
500 mm
600 mm
Outer depth
600 mm
600 mm
650 mm
Outer height
855 mm
855 mm
855 mm
Inner width
392 mm
392 mm
445 mm
Inner depth
402 mm
402 mm
445 mm
Inner height
324 mm
324 mm
345 mm
Lamp power *
15 W
Thermostat
50 - 250 °C
Bottom heating element
800 W
800 W
1300 W
Top heating element
650 W
650 W
850 W
Grill heating element *
1500 W
1500 W
2000 W
Supply voltage *
220-240V/380-415V or 230V/400V AC,
50 - 60 Hz.
Hot plate Ø145 mm
1000 W
Hot plate Ø180 mm
1500 W
Hot plate Rapid Ø145 mm
*
1500 W
Hot plate Rapid Ø180 mm
*
2000 W
Hot plate Ø80 mm
450 W
Hot plate Ø220 mm
2000 W
INSTALLATION OF YOUR OVEN
The adjustment conditions for this appliance are stated on the rating
label.
Your appliance requires 32-40 Ampere supply. If necessary, installation
by a qualified electrician is recommended.
Electrical connection of the oven should only be made to
connections/sockets with an earth system installed in compliance with
local regulations. If there are no connections/sockets with an earth
system in place where the oven will be installed, immediately contact a
qualified electrician to install. The manufacturer is not responsible for
damages that will arise because of the appliance not be connected to an
earth system.
Your oven is for use with 230V/400V AC, 50 –60 Hz or 220-240V/380-
415V AC, 50-60 Hz electric supply. If your supply is different from the
specified value, contact your authorized service agent.
When placing your oven to its location, ensure that it is at the counter
level. Bring it to the counter level by adjusting the feet if necessary.
Some models are supplied without a plug-an-lead set. In this case please
use a flexible cable to suitable for connection to mono phase: H05 VV-F
3 G 2,5 mm2, H05 VV-F 3 G 4 mm2 or for 3 phase: H05 VV-F 5 G 1.5
mm2

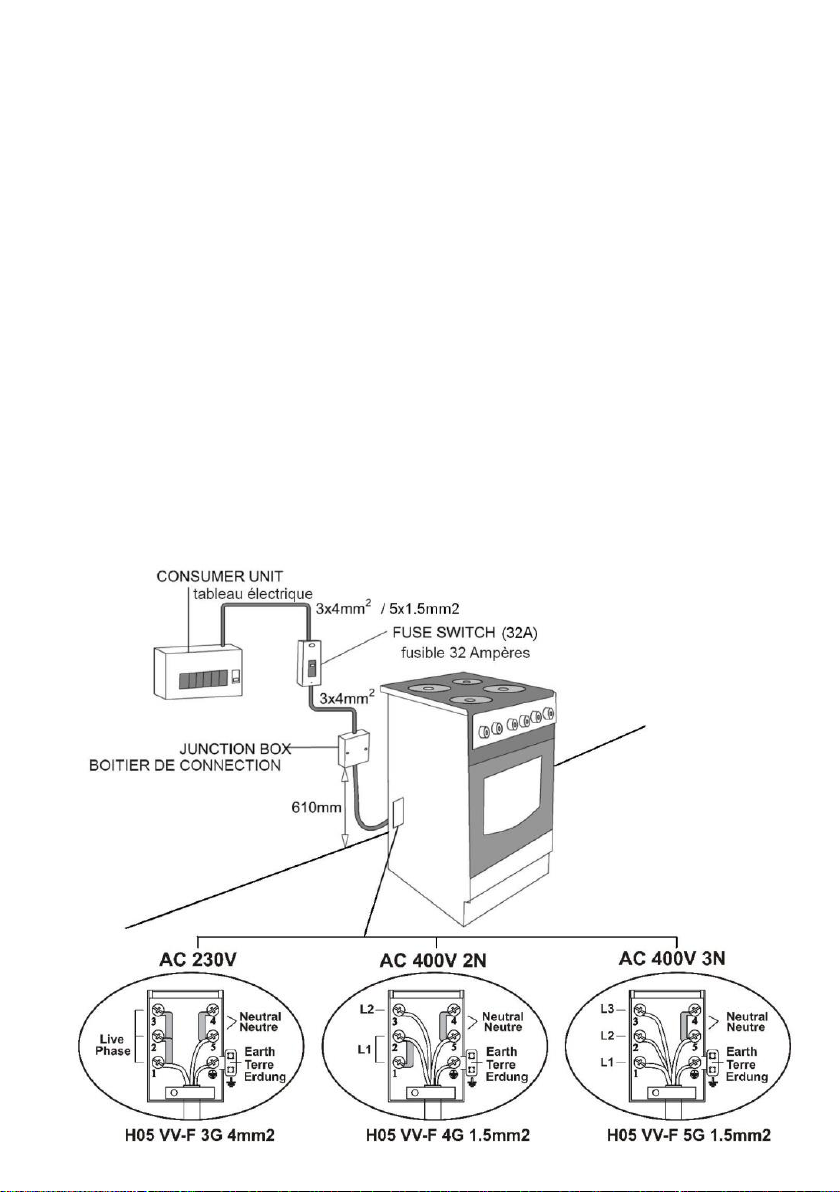

Connection schem

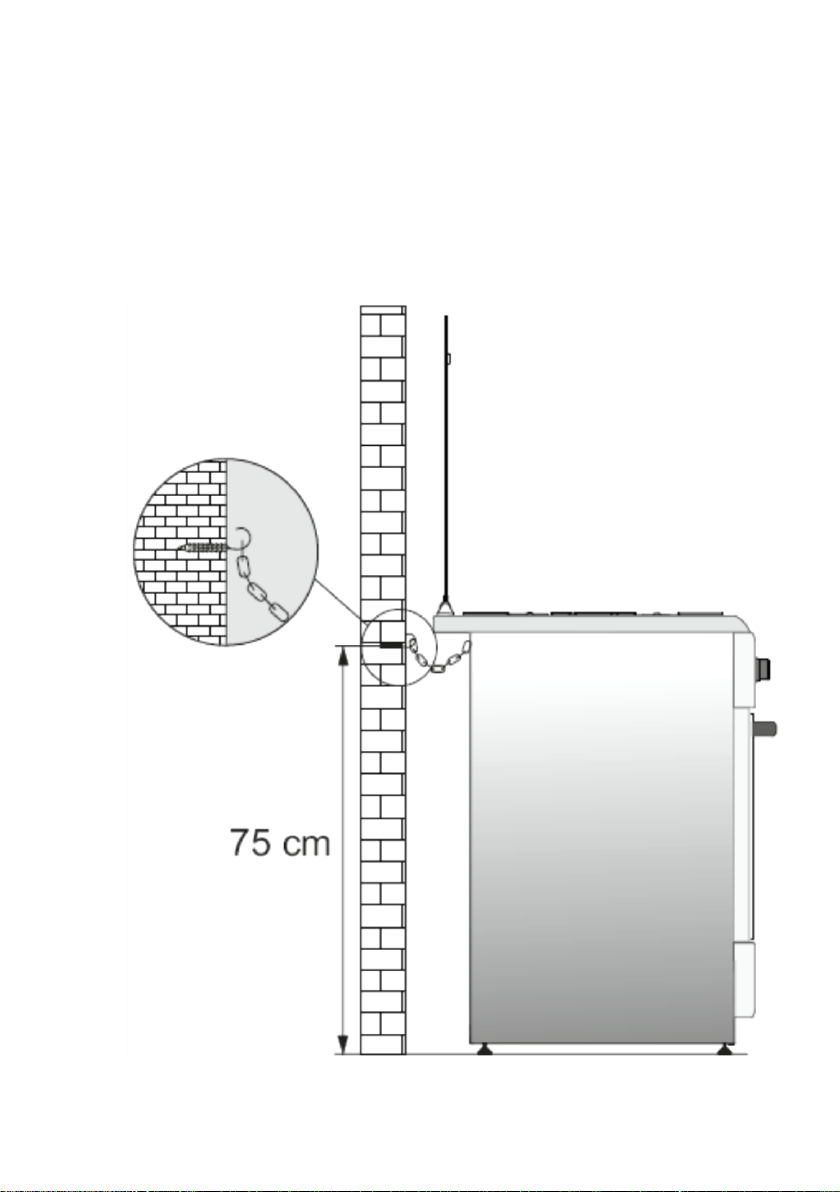

WALL FIXING (*) Optional
Before using the appliance, in order to ensure safe use, be sure to fix the
appliance to the wall using the chain and hooked screw supplied. Ensure
that the hook is screwed into the wall securely
WARNING!
In order to prevent tipping of the appliance, this stabilizing means must be
installed. Refer to the instructions for installation.
DESCRIPTION OF COOKER & CONTROL PANEL
DESCRIPTION OF COOKER
Symbols of functions on cooker:
Closed Oven heating element
Top heating element Grill&turnspit
Oven & grill heating element Turbo fan
Grillheating element Turbo fan &heating element
Manual using Timer
Turnspit Ovenlamp
