SMORACY MEGABYTE Manuel utilisateur
MEGABYTE™
OPERATING & PARTS MANUAL
BUILT WITH QUALITY AND DESIGN FIRST
Model No: _________________
Serial No: _________________
DEALER:
Name: ____________________
Address: __________________
City/State: _________________
Phone No: _________________
Delivery Date: ______________
MEGABYTE
ATTENTION:
Depending on what
replacement parts
you are ordering, we
willneedthefollowing
information:
SERIAL NUMBER
OF MEGABYTE™
EXCAVATOR MAKE
AND MODEL
MANUFACTURED BY
SMORACY, LLC
6750 Millbrook Road
REMUS, MICHIGAN 49340
PHONE: (517) 561-2270 OR 561-2272
FAX: (517) 561-2273 ~ SALES DEPT.
FAX: (517) 561-2962 ~ PARTS/SERVICE
MEGABYTE™
™
PRINTED 2/01
MEGABYTE™ TABLE OF CONTENTS
Smoracy, LLC
PRINTED 2/01 PAGE 1
TABLE OF CONTENTS
NOTE- ANY PART, PORTION, DESIGN, NUMBER, SPECIFICATION, AND/OR
DIMENSION IN THIS MANUAL IS SUBJECT TO CHANGE WITHOUT
NOTICE BY THE MANUFACTURER.
PAGES
INTRODUCTION & WARRANTY ...................................................2
SAFETY PROCEDURES ...............................................................7
SAFETY DECALS ......................................................................... 9
OPERATING PROCEDURES ......................................................12
INSTALLATION PROCEDURES ................................................. 13
LUBRICATION .............................................................................19
MAINTENANCE ...........................................................................20
HYDRAULIC SECTION ............................................................... 22
REPLACEMENT PARTS SECTION ............................................ 23
MEGABYTE™ INTRODUCTION & WARRANTY
INTRODUCTION
The purpose of this manual is to provide the user with specifications and procedures for the
operation, maintenance and repair of the Megabyte™. As with any piece of equipment, safety should
always be a constant thought while the equipment is being operated, serviced or stored. In order
to highlight this consideration, the material which addresses safety is proceeded by the
following signal words:
Signal Word Likelihood of Occurence Degree of Potential
Injury or Damage
DANGER!
WARNING!
CAUTION!
NOTICE
Will occur if warning is ignored
Can occur if warning is ignored
Will or can occur if warning is ignored
Important, but not hazard related
Severe
Severe
Minor to Severe
Minor
The Megabyte™ is designed and manufactured in accordance with the latest industry standards.
This alone does not prevent injury. It is the operator’s responsibility to use good judgement and
follow the warnings and instructions as indicated in this manual.
WARNING!
Improper use of the Megabyte™ can result in severe personal injury. Personnel using the
Megabyte™must be qualified, trained and familiar with the operating procedures as defined in this
manual.
WARNING!
It is the responsibility of the owner or employer to insure that the operator is trained and practices
safe operation while using and servicing the equipment. It is also the owner’s responsibility to
provide and follow a regularly scheduled preventative maintenance and repair program on the
Megabyte™, using only factory approved replacement parts. Any unapproved repairs or
modifications may not only damage the machine and its performance, but could result in severe
personal injury. Consult the equipment manufacturer!!!
Each machine is shipped with a manual, a customer’s check sheet on the Megabyte™, and any
available parts & service manuals on component parts not produced by this manufacturer.
Additional copies of these manuals and check sheets can be purchased from the manufacturer, or
through the dealer.
NOTE - The producer of the Megabyte™ reserves the right to make any
modifications or revisions to the design or specifications of its equipment without
advance notice. The producer also reserves the right to change equipment and
part prices as needed without advance notice.
Smoracy, LLC
PRINTED 2/01 PAGE 2
MEGABYTE™ SERVICE RECORD
SERVICE RECORD
DATE DESCRIPTION AMOUNT
Smoracy, LLC
PRINTED 2/01 PAGE 6

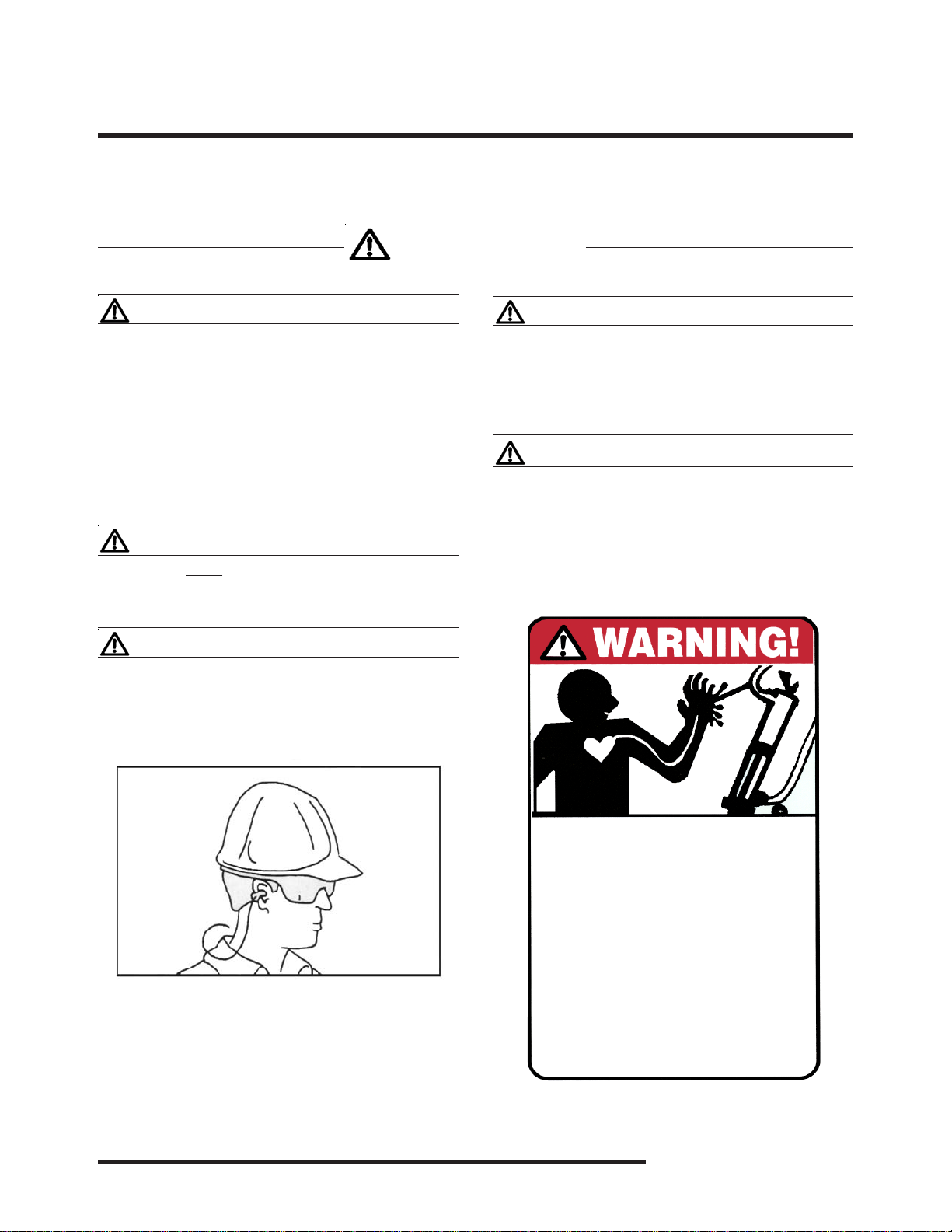

MEGABYTE™ SAFETY PROCEDURES
SAFETY PROCEDURES
DANGER!
The words Danger!, Warning!, Caution!, and
Notice are used on the safety decals and throughout
this manual, to make you aware of the safety
procedures. These procedures are very important,
read and obey them.
YOUR SAFETY IS VERY IMPORTANT TO US!
This equipment is equipped with safety decals, and
designs for your protection.
Don’t ever take the equipment for granted, always
be cautious and careful when operating your
equipment.
Read and follow all the instructions in your manual
thoroughly. Your safety is dependent on your
knowledge of how to operate and maintain this
equipment. You may obtain additional copies of this
manual from your Smoracy, LLC Dealer.
Before operating Megabyte™, you must have all
potentialoperators; readand understandmanual, and
follow the recommendations.
Regardless of how hard a manufacturer tries to
produce a safe machine, accidents still happen.
Normally accidents are caused by people making
mistakes. They do not read the manual, they ignore
warning decals or do not use lockouts provided for
their safety. This normally happens after the person
has become accustomed to the machinery. In the
initial start up and operation of the machinery, they
are cautious, they are very careful because they do
not understand the machine.
Never split any materials that might contain
wires, stones, nails, or other metal objects which
may damage the blades and become dangerous
projectiles.
WARNING!
Most of the nuts used on the Megabyte™ are self
locking. After the nut has been removed five times, it
should be replaced to insure proper tightness.
Before using the equipment, take a minute to check
a few things. The Megabyte™ should be in an area
restricted from people passing by. This area around
the Megabyte™ must be free of all objects that can
obstruct your movement when working with the
equipment.
DANGER!
Never check for hydraulic leaks by touching
hoses or fittings with your bare hands. Hydraulic
fluid under pressure can penetrate the skin. Use a
piece of cardboard to find leaks. Never use your
bare hands.
To obtain the most from your Megabyte™, for the
least amount of cost, it is a good practice to set and
follow a scheduled preventative maintenance
program. It will eliminate many possible problems
and down time.
DANGER!
Smoracy, LLC
PRINTED 2/01 PAGE 7
FLYING OBJECTS
KEEP WELL AWAY FROM
MACHINE WHILE IN
OPERATION.
MEGABYTE™ SAFETY PROCEDURES
SAFETY PROCEDURES
DANGER!
Torn or loose clothing is more likely to get caught in
movingmachinery parts ortree branches. Keep such
items as long hair, shirt sleeves, and shirt tails
properly contained. Avoid wearing necklaces, rings,
watches, and especially neckties while operating this
machinery. Make sure the machine is in excellent
condition.
Keep children, bystanders and animals clear of
workingarea. Neveroperateequipmentthat isinneed
of repair or adjustment.
Wear all applicable safety equipment examples:
hard hat, safety glasses, gloves, ear protection, etc.
You should always keep a fully charged fire
extinguisher with you while operating or servicing
the equipment.
DANGER!
DO NOT GO NEAR HYDRAULIC LEAKS!
High pressure oil easily punctures skin causing
serious injury, gangrene, or death.
DO NOT use fingers or skin to check for leaks.
Lower load or relieve hydraulic pressure before
loosening fittings.
WARNING!
DANGER!
WARNING!
Operators must at all times be located within easy
reach of all feed control and shut-off devices when
the unit is running.
DANGER!
NEVER work on the Megabyte™ unless the
excavator engine is shut off, the ignition key is
removed and in your pocket, and the battery cables
are disconnected.
Smoracy, LLC
PRINTED 2/01 PAGE 8
DO NOT GO NEAR LEAKS!
•High pressure oil easily punctures
skin causing serious injury,
gangrene or death.
• If injured, seek emergency medical
help. Immediate surgery is
required to remove oil .
• Do not use finger or skin to check
for leaks.
• Lower load or relieve hydraulic
pressure before loosening fittings.
MEGABYTE™ SAFETY DECALS
SAFETY DECALS
Safety Decals located on your Megabyte™ contain useful information to assist you in operating your
equipment safely. Some of the decals on your equipment and their location are shown in this section.
It is very important that all decals remain in place and in good condition on your equipment. Please follow
the care and instructions given below:
1) You should use soap and water to keep your decals clean. Never use mineral spirits or
any other abraisive cleaners.
2) Replace immediately any missing or damaged decals. The location the decal is going
to be applied to must be clean and dry, and at least 40° F (5°C) before applying decal.
3) When the need arises to replace a machine component with a decal attached, be sure
and replace the decal.
4) Replacement decals are available, and can be purchased from the manufacturer or
your Smoracy, LLC Dealer.
5) Spanish, Portuguese and other foreign language decals are available.
EXAMPLES:
Smoracy, LLC
PRINTED 2/01 PAGE 9
GREASE
DAILY
KEEP HANDS CLEAR
THIS MACHINE IS CONVERED
BY ONE OR MORE OF THE
FOLLOOWING PATENTS:
5,362,004
5,372,316
5,413,286
5,863,003
5,988,539
6,000,642
6,016,855
6,032,707
6,036,125
6,047,912
6,059,210
6,176,572 THE OWNER IS RESPONSIBLE
TO REPLACE ANY REMOVED
OR DAMAGED DECALS.
You may also purchase decals in another language.
Mail the translated decals you require to:
PARTS DEPARTMENT
6750 MILLBROOK RD., REMUS, MI 49340.
We will contact you with cost and availability
of the translated decals.
MEGABYTE™ SAFETY DECALS

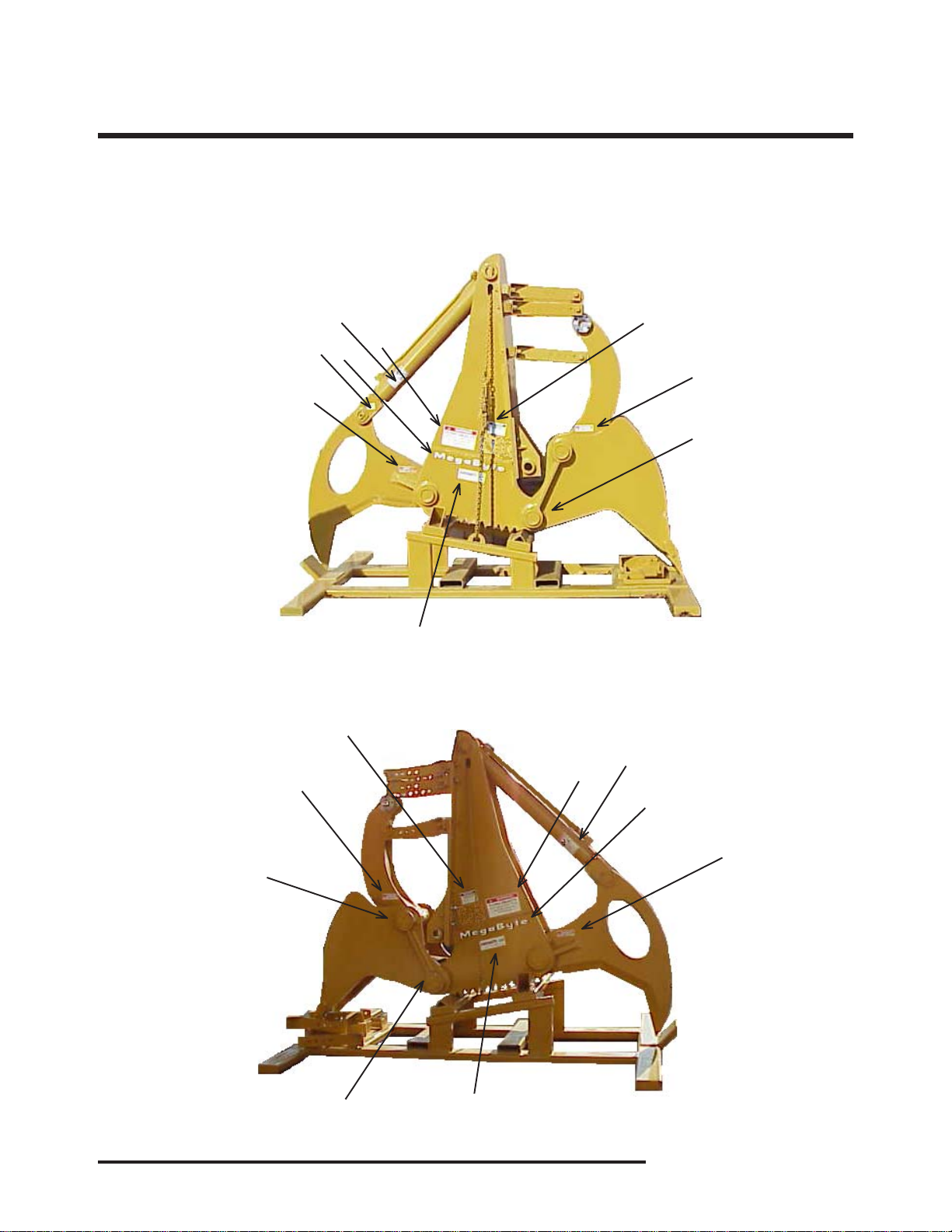

DECAL LOCATIONS - MEGABYTE™
ALTHOUGH LOCATIONS MAY VARY, ALL DECALS MUST BE ON EQUIPMENT DURING OPERATION
IF ANY DECALS BECOME DAMAGED, REPLACE IMMEDIATELY.
Smoracy, LLC
PRINTED 2/01 PAGE 10
2
5
1
6
8
5
73,4
2
5
2
5
3,4
8
6
1
7
2
