SmoothTalker Mobile CX6 4G LTE Manuel utilisateur

Gain

23 dB

50 Ohm

Operating temp

-22 F TO + 185 F

Dimensions

L 4.56 xW 2.15 x H 1.25 (inch)

Model Series

BTUX623

SPECIFICATIONS

2G, 3G, 3G+, 4G, 4G+, GSM, HSPA, CDMA, LTE, LTE A

Frequencies MHz

700 MHz upper 700 MHz lower 850 MHz 1700/2100 MHz 1900 MHz

Max Power-TX: Watts EIRP

Impedence

POWER SUPPLY 12V DC CLA OR 12V DC

fused or 120V AC/DC

Smoothtalker.com

1-877-726-3444

Weight 0.65 lb

6 BAND

Mobile CX6 4G LTE

23dB

Coupling Cradle Connect Cellular

Signal Booster - Extreme Power

MULTI BAND

User Manual BTUX623

USA

Cellular

Signal Booster

CRADLE TYPE

RX/TX

MULTI BAND 23dB

23dB 6 BAND

GSM,HSPA,CDMA,LTE, LTE A

Coupling Connect

Extreme Power

Band 12,17

Band 13

Band 5

Band 4

Band 2,25

700MHz Upper

850MHz

1700/2100MHz

2G, 3G, 3G+, 4G, 4G+

1900MHz ext

700MHz Lower

Vehicle

stealth

tech

Fig. 2

Desktop Cradle 120 volt

adapter

To comply with FCC rules, this booster must only be operated with cables, antennas

and coupling devices that have been approved for use with this equipment.(Pg. 5)

Applications

Optional Desktop (Fig. 2)

(Additional parts required which are

not included in Booster kit.)

Contents

Cellular Booster

12 volt install type12 volt socket plug type120 volt AC/DC

Optional Power Types

Cell Phone Cradle

SEM2MX SEM11MX SEM14MX

NOTE: Only one of the outside antennas is included in this kit (check model) All kits include necessary brackets and co-axial

cables for assembly. It is normal for the booster to be quite warm while the phone is in use state.

Typical Vehicle Installation Mobile CX6 (Fig. 1 )

(All parts are included)

Fig. 1

Mobile Cradle with 12 Volt

Socket CLA plug-in type

Optional outside antenna

SRP1X

Installation

1) Connect the outside antenna to the side of the booster

marked as “outside antenna”

Connect the coupling holder to the side of the booster

marked as “inside antenna”

2) Placement

Place the outside antenna in the middle of the vehicle roof. If the vehicle has a

sunroof please place the antenna on the roof towards the back window.

Place the coupling holder in desired location. Connect the booster as shown in

Fig. 1 & 2 on Pg.1 or Fig. 3 on Pg. 4.

Important: Use only the power supply included with the booster. Connecting any

other power supply at any time will result in damage to the booster and will void

the warranty. Do not turn on the power switch until ALL cables have been

screwed or plugged into the booster or you can cause damage to the booster.

The Mobile CX6

Can easily be moved from vehicle to vehicle

The “LEDS” on the face of the booster indicate operating gain state.

In any given frequency band.

The Green and Orange LED which indicate the gain status i each operating band.

When both of these LEDS are“SOLID ON”it means that the booster is operating

normally and with full gain (No Automatic Gain Reduction) .

When one or both of the LEDS are ashing (Per the chart on Pg. 6) it

indicates that the gain has been automatically reduced due to either:

A) High RX outside signal level (close to cell tower)

B) Loop Oscillation, which is due to the inside antenna (either on holder or

Patch antenna) and the outside antennas are located too close together.

When the booster is o it will be indicated as follows:

When inside and outside antennas are extremely close together the Green LED

will fast ash and the Orange LED will turn o indicating that the booster is

o due to loop oscillation.

Band 12, 17 700MHz Lower

Band Frequency

Band 13 700MHz Upper

Band 5 850MHz

Band 4 1700/2100MHz

Band 2, 25 1900MHz ext

RX High Power Attenuation

Oscillation Attenuation

Orange LED

Green LED

Hp Att

Osc Att

Understanding the LED Indicators

LED Lights Explanation and Troubleshooting

Each ash indicates 3dB of gain reduction also known as gain attenuation.

For example: three ashes equals 9dB of attenuation.

Green LED indicates loop oscillation status. When ashing it means reduction of

gain. To improve you need to spread the distance between the inside and outside

antennas. If you spread them far enough away, the Green LED

will become SOLID ON.

Orange LED There are 5 Orange LED lights: 700 Mhz Lower, 700 Mhz Upper,

850 Mhz, 1700/2100 Mhz,1900 Mhz ext.

LED ON state indicates that the RX (Receive Signal) function of the band is

functioning normally.

LED OFF (Green or Orange): indicates that the band is shut down.

When ashing it means reduction of gain also known as attenuation of gain.

You cannot prevent this condition. As you drive away from the nearby cell tower

and get far enough away the ashing Orange will automatically stop ashing

which indicates that the booster is no longer attenuated. As you approach

another nearby cell tower the Orange may begin ashing again and will stop

ashing as you get farther away. This is the normal operating process.

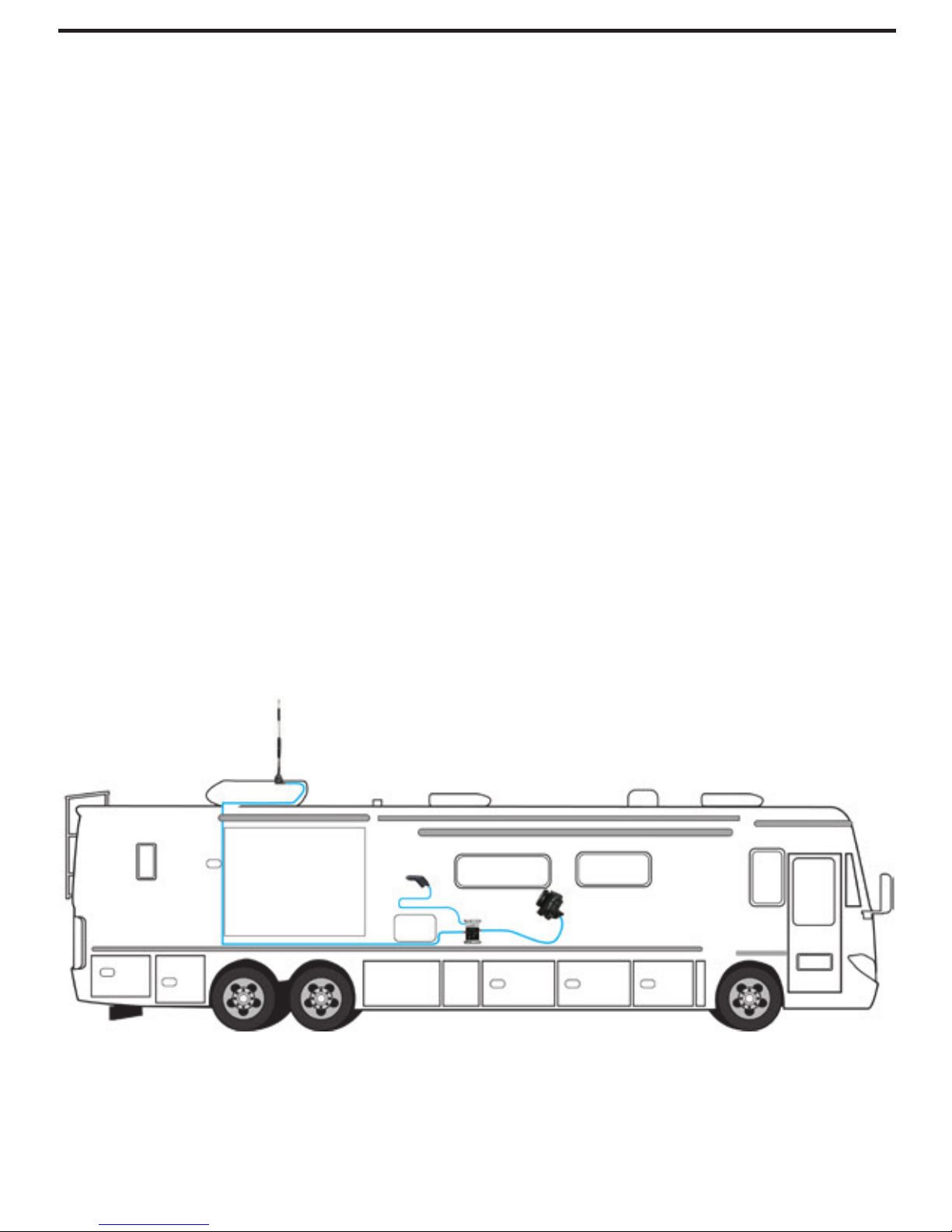

Typical RV Installation Mobile CX6 (Fig. 3)

(All parts are included)

For specications of any of the Smoothalker FCC approved part numbers

listed below visit smoothtalker.com

FCC requirements prohibit the use of unauthorized Antennas, Cables,

and/or Coupling devices.

You MUST operate this device with approved antennas and cables as specied by

the manufacturer. Antennas MUST be installed at least 8 inches from any person.

You MUST cease operating this device immediately if requested by the FCC or a

licensed wireless service provider.

Approved Equipment List

ANTENNA CABLES

ACX100, ACX900

CBXmaXfe10,20,30,40,50,60

CBNmaNfe10,20,30,40,50,60

CBGmaGfe 10,20,30,40,50,60

ANTENNAS

SEM2, 11, 14, series

SEM2M, 11M, 14M, series

SEM2LGM, 11LGM, 14LGM, 26LGM series

SEM2LGML 11LGML, 14LGML, 26LGML series

SEM2TH, 11TH, 14TH, 26TH series

SEM2THL, 11THL, 14THL, 26THL series

SEMTHMM series

SEMTHPB series

SEMRP1X , SEMRP1XL

SRBL series

SEMD1 series

SEMDA2 series

SEMO series

SEMDP1 series

SEMDY series

SEMDYD series

COUPLING HOLDERS

BTH Series

LED Lights Indicate Gain Status

ON ON

SLOW FLASHING

SOLID ONSOLID ON

SOLID ON

SOLID ONSLOW FLASHING

FAST FLASHING

OFF

ON/

ORANGE LED

RX High Power

GREEN LED

Oscilation

Attenuation (Att)

Orange Solid ON = Full Gain & Green Solid ON = Full Gain

Orange Solid ON & Green Slow Flashing = Oscillation Att

Orange O & Green Fast Flashing = Oscillation Shutdown

Orange Slow Flashing & Green Solid ON = RX High Power Att

Each ash indicates 3dB of gain reduction also known as gain attenuation.

For example: three ashes equals 9dB of attenuation.

No Flashing = Full Gain

Each Flash = up to 3dB gain reduction

Fast Flashing = booster shutdown (pls troubleshoot)

Operational description:

To comply with FCC NPS (Network Protection Standard) requirements: NPS and

other compliance/safeguard features for AGC and anti-oscillation have been

implemented. NPS and other compliance/safeguard features are defaulted to be

“On” (in operation).

NPS and other compliance/safeguard features can not be eld recongured,

disabled or removed. This booster is not user programmable, does not need ne

tuning or adjustment, does not require professional installation.

Smoothtalker.com

1-877-726-3444

Made in

North

America stealth

tech

Automatic power

control protects the

Cellular Network

FCC

Approved

Contact information for Booster registration:

Some providers have set up web-sites for booster registration. If you don’t see

your provider on this list, please contact your provider for information on how

to register your booster.

AT&T: https://securec45.securewebsession.com/attsignalbooster.com/

Verizon: http://www.verizonwireless.com/solutions-and-services/accessories/

T-mobile: https://www.signalboosterregistration.com/

Sprint: https://www.sprint.com/legal/fcc_boosters.html

Us Cellular: http://www.uscellular.com/uscellular/support/

fcc-booster-registration.jsp

This is a CONSUMER device.

BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and

have your provider’s consent.

Most wireless providers consent to the use of signal boosters. Some providers

may not consent to the use of this device on their network. If you are unsure,

contact your provider.

WARNING. E911 location information may not be provided or may be inaccurate

for calls served by using this device.

In 2001 SmoothTalker produced the rst digital mobile cellular signal booster

in North America with FCC and ICAN approval. We continue to lead with the

most powerful and intelligent boosters in the world.

Our dynamic adaptive proprietary algorithms make them very network friendly.

We call it STEALTH TECH technology.
