SMK-Link VP6230 Manuel utilisateur
Page 1
VP6230
Page 2
Page 1
Package Contents
• Blu-Link™Folding
Bluetooth®Keyboard
• Keyboard case and
tablet stand
• Micro USB charging cable
• User Guide
Introduction
Congratulations on your purchase of the Blu-Link™Folding
Bluetooth®Keyboard. This innovative portable folding keyboard
connects via Bluetooth technology to provide a wireless
connection up to 33 feet (10 meters) away. Compatible with
Microsoft®Windows®, Mac®OS®10, Mac IOS®and Android®
operating systems, the Blu-Link™Folding Bluetooth®Keyboard is
designed for use with personal computers and mobile devices.
System Requirements
• Tablet, Phone or Personal
computer with Bluetooth
• Compatible with Microsoft®
Windows®, Mac®OS®10,
Mac IOS®and Android®
operating systems
• An available USB port or
USB charging adapter
Page 2

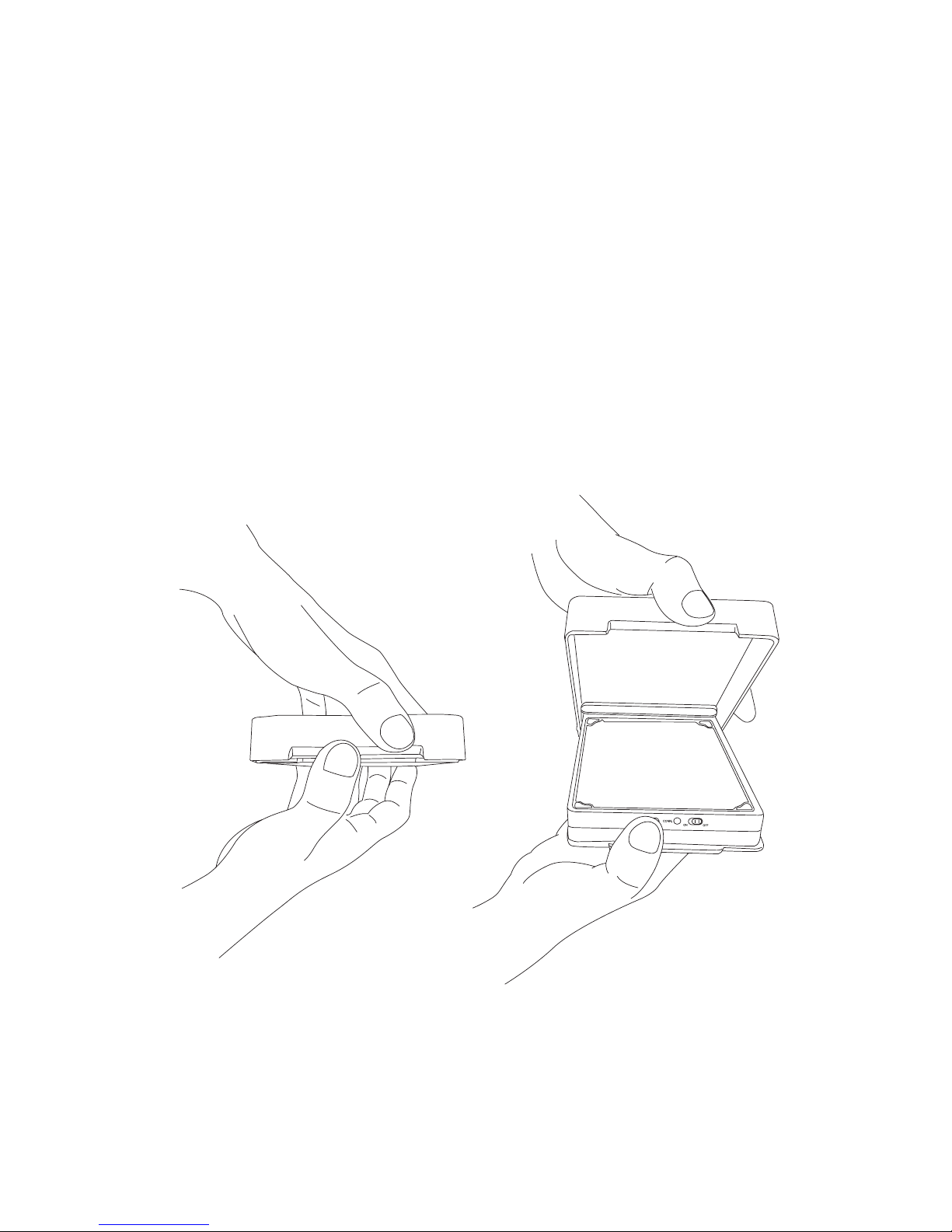

Removing the Keyboard from the
Universal Stand Case
The easiest and most convenient way to remove your Bluetooth
Folding Keyboard from the case is to orient the case with the tab
on the bottom and pull the top upwards.
Page 3
Connecting your Keyboard via
Bluetooth
The Blu-Link™Folding Bluetooth Keyboard connects to your
device as a standard Bluetooth Keyboard. Your device or
operating system may be slightly different.

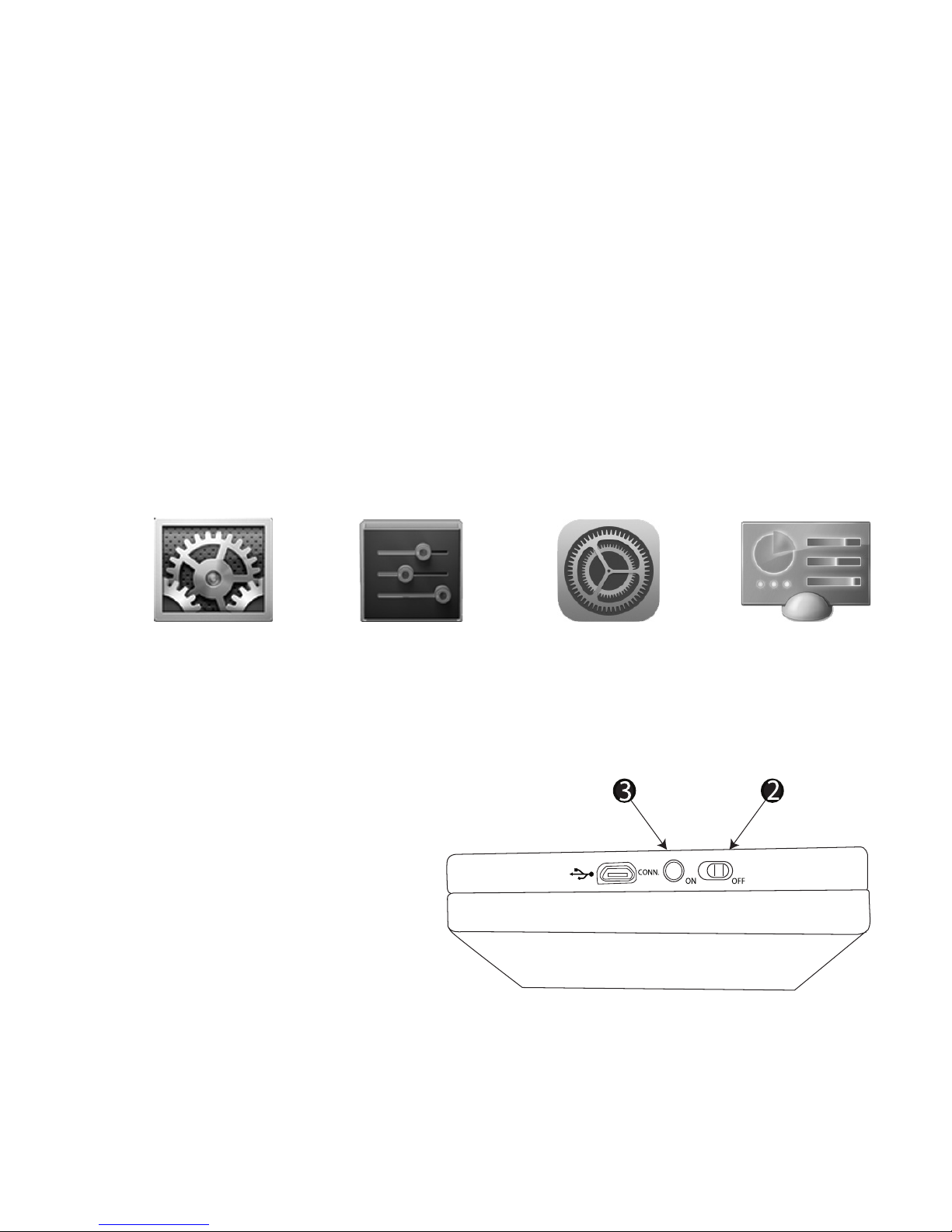

1. Turn on Bluetooth using Control Panel or Preferences
2. Turn the Blu-Link™Folding Bluetooth Keyboard ON
using the ON/Off switch on the side of the keyboard.
3. Press the Bluetooth
pairing CONN button on
the side of the keyboard
(the keyboard’s Pairing/
Bat. indicator LED will
start blinking blue).
Mac OS X Android IOS Windows
Page 4
4. After a few seconds, the Blu-Link™Folding Bluetooth Keyboard
will be recognized by your computer or mobile device and
“Bluetooth Keyboard” will be listed in your device menu.

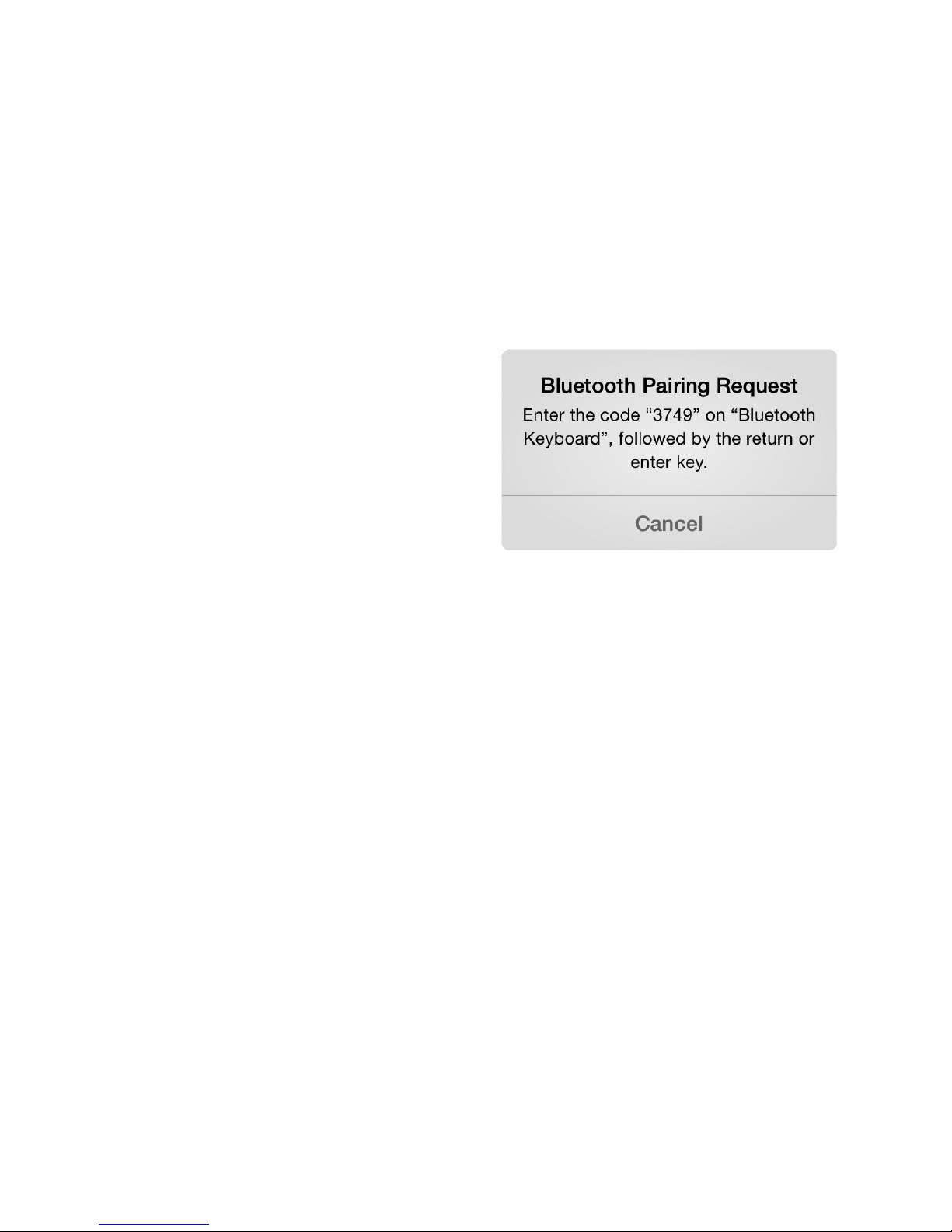

5. Select “Bluetooth Keyboard”
from this menu, entering
the PIN code shown using
your Blu-Link keyboard,
followed by the enter key.
6. Your Blu-Link™keyboard should now be listed as “Connected”
by your device, and the Pairing/Bat. LED indicator on your
keyboard will go dark.
7. Your Blu-Link™Folding Bluetooth Keyboard is now connected
and should be fully functioning with your computer or mobile
device.
Power Saving Mode
Your Blu-Link™Folding Bluetooth Keyboard will go into sleep
mode when inactive for 30 minutes. Press any key to return to
active mode.
Page 5
Charging the Blu-Link Folding
Bluetooth Keyboard
Your Blu-Link™Folding Bluetooth Keyboard will function for up
to 80 hours with the battery fully charged. As the power level
drops below 15%, the battery indicator light will blink red. When
its battery level drops below 10%, the keyboard will automatically
shut off. To recharge your keyboard battery, follow the three
simple steps below.
1. Connect your Blu-Link™ Folding Wireless Keyboard via
the Micro USB charging cable to any USB outlet on your
computer or to your mobile device USB charger.
2. The battery charging indicator light at the top left
of the keyboard will glow solid red while charging,
and turn green when the keyboard is fully charged.
Charging takes approximately two hours.
3. Remove the Micro USB Charging cable. The battery
charging indicator will go dark, and your keyboard is
now ready for up 80 hours of cordless operation.
Page 6
Battery Indicator Light
• Light is solid red when keyboard is charging, turning green when
fully charged
• Light goes dark when Micro USB charging cable is disconnected
• Light blinks red when battery power level drops below 15%
• Keyboard automatically shuts off when the power level drops
below 10%

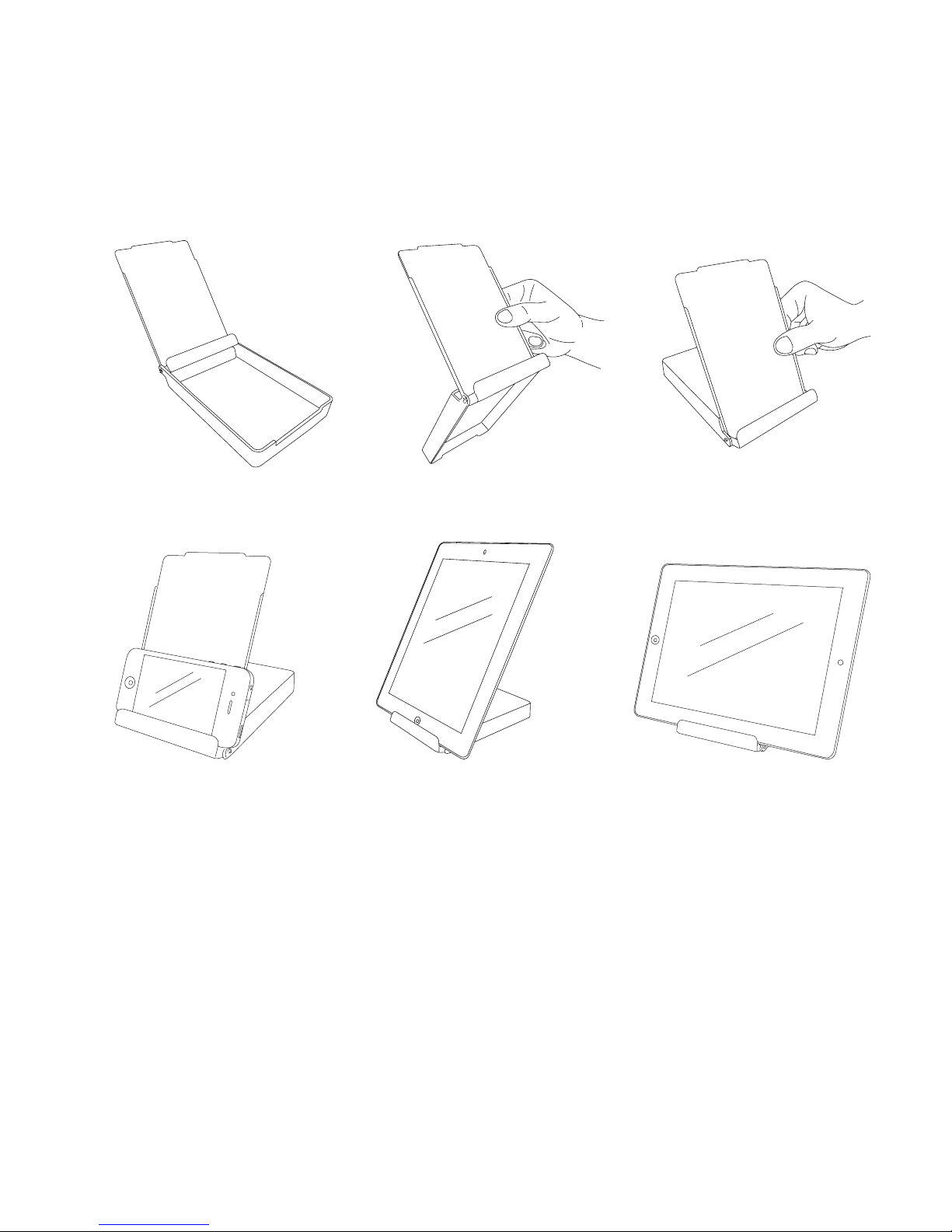

Using the Case as a Tablet Stand
The Blu-Link Folding Bluetooth Keyboard’s case doubles as a
universal tablet stand. To remove the keyboard, open the case
with the words “Open This Side Up” facing you. Then, gently lift
the case lid to open and slide the keyboard from the case.
Turn the case over and rotate the flap all the way back until it is
resting against the other side of the case. Your phone or tablet will
fit into the slot in either portrait or landscape mode.
Page 7
Page 8
Warranty
SMK-Link Electronics Corporation (SMK-Link) warrants to the
original end-user purchaser of the Product (“you”) that the
Product, excluding batteries, will be free from defects in materials
and workmanship under normal use and service for one-year from
date of purchase. If the Product becomes defective in materials
or workmanship during the warranty period, SMK-Link will, at
its option, either repair or replace it. The replacement unit may
be a more current or upgraded model if the originally purchased
model is not available. Any Product repaired or replaced under the
terms of the warranty is covered for the remainder of the original
warranty period or ninety (90) days from the date of return
shipment, whichever is longer.
This warranty does not cover Products which have been subjected
to misuse, accident, physical damage, improper installation,
abnormal operation or handling, neglect, inundation or fire or
when Product regulatory label has been removed, altered or
rendered illegible; nor does it cover accessory or consumable
items. SMK-Link shall not be liable for any indirect special,
incidental, or consequential damages.
