Smittybilt D8545 Manuel utilisateur

Installation Instructions

Roof Rack Tire Mount

Part #D8545/D8555

D8655/D8865/D8875

Part# D8545

Parts Included Qty

Main Brkt 5x4.5” bolt patt.(D8545-1) 1 5/16” Lock Washers 24

Side Plates (D8545-2) 2 5/16” Nuts 12

Bottom Plates(D8545-3) 3 3/8”x1” Bolt 2

Hardware Pack 3/8” Nut 2

5/16”x2” Bolt 4 3/8” Lock Washers 2

5/16”x3/4” Bolt 8 3/8” Flat Washers 4

5/16” Flat Washers 24 1/2" Lug Nut

Part# D8555

Parts Included Qty

Main Brkt 5x5.5” bolt patt.(D8555-1) 1 5/16” Lock Washers 24

Side Plates (D8545-2) 2 5/16” Nuts 12

Bottom Plates(D8545-3) 3 3/8”x1” Bolt 2

Hardware Pack 3/8” Nut 2

5/16”x2” Bolt 4 3/8” Lock Washers 2

5/16”x3/4” Bolt 8 3/8” Flat Washers 4

5/16” Flat Washers 24 1

/2" Lug Nut 3

Part# D8655

Parts Included Qty

Main Brkt 6x5.5” bolt patt.(D8655-1) 1 5/16” Lock Washers 24

Side Plates (D8545-2) 2 5/16” Nuts 12

Bottom Plates(D8545-3) 3 3/8”x1” Bolt 2

Hardware Pack 3/8” Nut 2

5/16”x2” Bolt 4 3/8” Lock Washers 2

5/16”x3/4” Bolt 8 3/8” Flat Washers 4

5/16” Flat Washers 24

1/2" Lug Nut 3

Please read instructions entirely before installing this product.

Installation Instructions

Roof Rack Tire Mount

Part #D8545/D8555

D8655/D8865/D8875

Part# D8865

Parts Included Qty

Main Brkt 8x6.5” bolt patt.(D8865-1) 1 5/16” Lock Washers 24

Side Plates (D8545-2) 2 5/16” Nuts 12

Bottom Plates(D8545-3) 3 3/8”x1” Bolt 2

Hardware Pack 3/8” Nut 2

5/16”x2” Bolt 4 3/8” Lock Washers 2

5/16”x3/4” Bolt 8 3/8” Flat Washers 4

5/16” Flat Washers 24

1/2" Lug Nut 3

Part# D8875

Parts Included Qty

Main Brkt 8x170m bolt patt.(D8875-1) 1

5/16” Lock Washers 24

Side Plates (D8545-2) 2 5/16” Nuts 12

Bottom Plates(D8545-3) 3 3/8”x1” Bolt 2

Hardware Pack 3/8” Nut 2

5/16”x2” Bolt 4 3/8” Lock Washers 2

5/16”x3/4” Bolt 8 3/8” Flat Washers 4

5/16” Flat Washers 24

1/2" Lug Nut 3

Notes: We recommend this installation be performed by a qualified technician. Always torque

all hardware to factory specifications and use red octite on all bolts. When removing

wheels, support vehicle with jack stands.

Grade 8 nut torque specifications

Standard

Metric

5/16” nuts 20 ft. lbs.

9 ft. lbs.

3/8” nuts 35 ft. lbs.

M8 23 ft. lbs.

7/16”nuts 60 ft. lbs.

M10 45 ft. lbs.

1/2”

nuts 90 ft. lbs.

M12 75 ft. lbs.

9/16” nuts 160 ft. lbs.

M14 120 ft. lbs.

5/8” nuts

175 ft. lbs.

M16 165 ft. lbs.

Installation Instructions

Roof Rack Tire Mount

Part #D8545/D8555

D8655/D8865/D8875

Step 1: Put your tire on a flat surface, and then measure from the surface to the bottom of

the lug nut hole. You need this to determine the height of the tire mount.

Step 2: Once you have this measurement, mount the side plates to the tire mount, and adjust

the height of the top of the tire mount, so its ¼” less than the measurement you took

earlier.

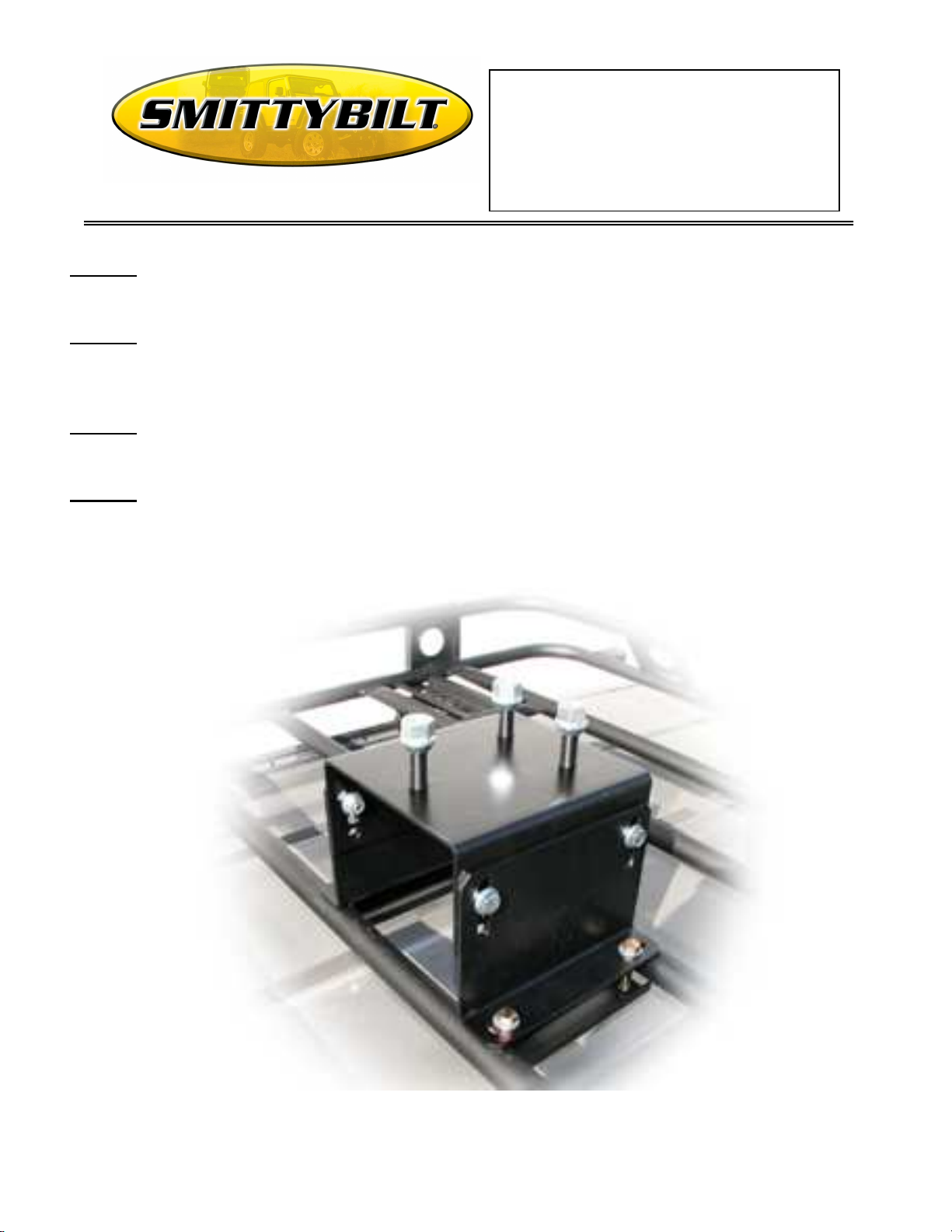

Step 3: Now mount the tire mount to flooring as shown in picture, making sure there is

enough room around it so the tire will fit flat on the flooring.

Step 4: Install tire. Make sure that there is not too much, so the tire compresses slightly,

without bending the flooring tubes, or the mount.
