Smiths Medical CADD-Legacy Guide de référence

CADD™Medication Cassette

Reservoirs with Flow Stop

Quick Reference Card

Flow stop free-flow protection is an integral

set-based free-flow protection device that has

been added to medication cassette reservoirs.

CADD-Legacy®Pumps

IN19859EN-032013.indd 1IN19859EN-032013.indd 1 27/08/2020 13:3527/08/2020 13:35

1. Fill the medication cassette reservior and remove all air

from the medication cassette reservoir according to the

Instructions for Use supplied with the product.

2. Close the tubing clamp.

3. Using aseptic technique, connect the medication

cassette reservoir luer to the luer lock (blue cap)

of the extension set.

NOTE: Connect the medication cassette reservoir luer

to the luer lock of the extension set. If the anti-siphon

valve end of the extension set is connected to the

medication cassette luer, a high pressure alarm will

sound when you try to start the pump.

Step 1- Connect the Extension Set

WARNING: Leave the blue clip on the cassette in place

until ready to attach the cassette to the pump. Storing

the cassette with the blue clip removed may affect

delivery accuracy.

Step 2- Prime the Tubing

1. Remove the blue clip from the cassette.

IN19859EN-032013.indd 2IN19859EN-032013.indd 2 27/08/2020 13:3527/08/2020 13:35

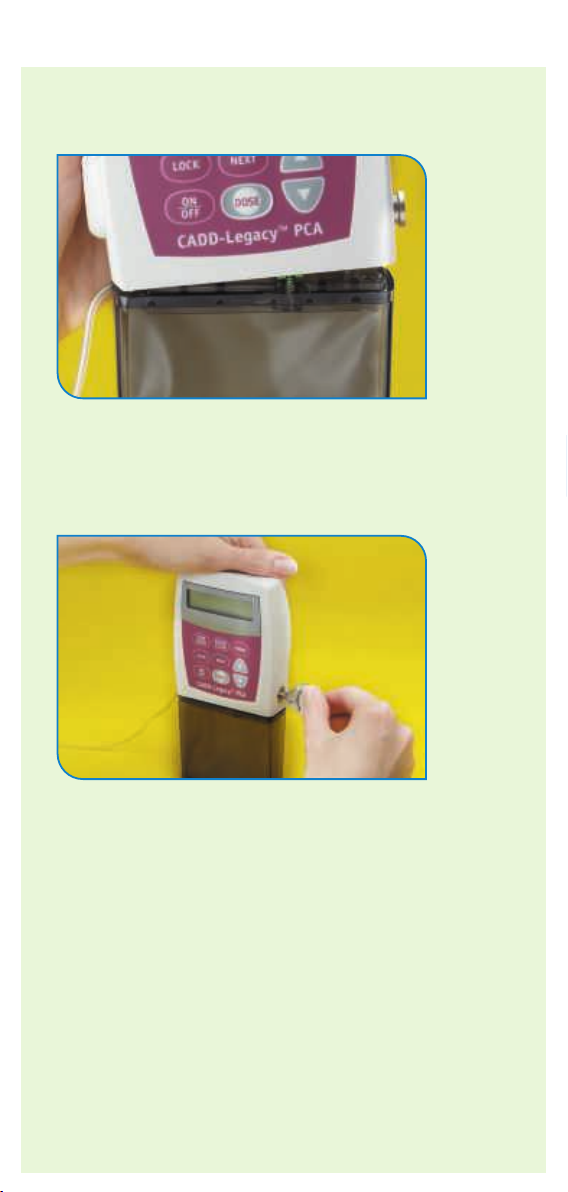

2. Insert the cassette hooks into the pump’s hinge pins.

3. Place pump with cassette on firm surface and push

down on top of pump so cassette fits tightly against

the pump.

4. Insert a CADD®pump key or coin into the lock, push in

and turn counter clockwise until the line on the lock

lines up with the arrow on the side of the pump, and

you feel the lock click into place.

5. Gently twist and pull on cassette to make sure

it is attached properly.

Step 3- Start the Infusion

IN19859EN-032013.indd 3IN19859EN-032013.indd 3 27/08/2020 13:3527/08/2020 13:35

Step 3- Start the Infusion

1. Using aseptic technique, connect the tubing to the

patient’s access site.

2. Open all tubing clamps and begin the infusion.

WARNING: Ensure fluid path below filter is free of air

before connection to patient. Please refer to the detailed

Instructions for Use supplied with the medication cassette

reservoir for additional information, cautions, and warnings.

For pump priming, refer to the Operator’s Manual supplied

with the pump.

6. Open all clamps.

7. Prime the tubing using the pump’s priming feature

according to the pump Instructions for Use. Ensure that

the entire fluid path is free of all air.

8. If the extension set contains a filter, prime

the filter according to the extension set’s Instructions

for Use.

9. Close all tubing clamps.

IN19859EN-032013.indd 4IN19859EN-032013.indd 4 27/08/2020 13:3527/08/2020 13:35

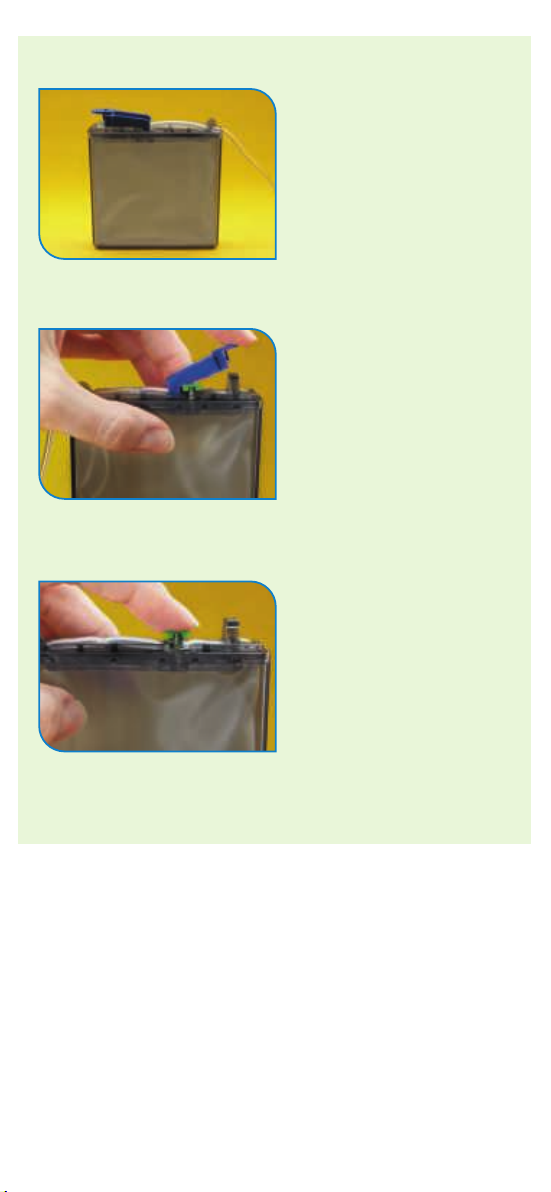

Filling

The medication cassette

reservoir is designed to be

easily filled with the blue

flow stop clip in place.

Closing the fluid path

Remove the blue clip

to close the fluid path.

Opening the fluid path

Press the green button to

open the fluid path.

Smiths Medical is part of the global technology business Smiths Group plc. MPAUCA-1001

Product(s) described may not be licensed or available for sale in all countries. Please

see the Instructions for Use/Operator’s Manual for a complete listing of the indications,

contraindications, warnings and precautions. CADD, the Medication Cassette Reservoir design

and the Smiths Medical and CADD design marks are trademarks of Smiths Medical. The

symbol ® indicates the trademark is registered in the U.S. Patent and Trademark Office and

Smiths Medical ASD, Inc.

St. Paul, MN 55112, USA

Phone: 1-214-618-0218

Toll-Free USA: 1-800-258-5361

www.smiths-medical.com

Find your local contact information at www.smiths-medical.com/customer-support

Australian Representative

Smiths Medical Australasia Pty. Ltd.

Brisbane, QLD 4113, Australia

Phone: +61 (0) 7 3340 1300

IN19859EN-032013.indd 5IN19859EN-032013.indd 5 27/08/2020 13:3527/08/2020 13:35

Filling

The medication cassette

reservoir is designed to be

easily filled with the blue

flow stop clip in place.

Closing the fluid path

Remove the blue clip

to close the fluid path.

Opening the fluid path

Press the green button to

open the fluid path.

Smiths Medical is part of the global technology business Smiths Group plc. MPAUCA-1001

Product(s) described may not be licensed or available for sale in all countries. Please

see the Instructions for Use/Operator’s Manual for a complete listing of the indications,

contraindications, warnings and precautions. CADD, the Medication Cassette Reservoir design

and the Smiths Medical and CADD design marks are trademarks of Smiths Medical. The

symbol ® indicates the trademark is registered in the U.S. Patent and Trademark Office and

Smiths Medical ASD, Inc.

St. Paul, MN 55112, USA

Phone: 1-214-618-0218

Toll-Free USA: 1-800-258-5361

EC Authorized Representative

Smiths Medical International Ltd.

TN25 4BF, UK

Phone: +44 (0) 1233 722100

www.smiths-medical.com

Find your local contact information at www.smiths-medical.com/customer-support

Australian Representative

Smiths Medical Australasia Pty. Ltd.

Brisbane, QLD 4113, Australia

Phone: +61 (0) 7 3340 1300
