Smith+nobel SNAFRB1 Manuel utilisateur

7L Retro Design Air Fryer

Model: SNAFRB1 / SNAFRR1

This appliance is intended for household use only.

Please read and retain these instructions for future reference.

Important Safeguards:

When using electrical air fryers, basic safety precautions should always be followed,

including the following:

1. Read the instructions carefully before use.

2. Remove and safely disregard any packaging material and labels before using this

product for the first time. Ensure children and babies do not play with plastic bags or any

packaging materials.

3. Before use, check that your local voltage corresponds with the specifications shown on

the appliance nameplate located under the appliance.

4. Always operate the appliance on a horizontal surface which is level, stable and non-

combustible. Do not operate the appliance on or near combustible materials such as

tablecloths or curtains.

5. Do not place the appliance on or near a hot gas or electric burner, or in a heated oven.

6. Never connect this appliance to an external timer or separate remote-control system.

7. Never use this appliance with an extension cord or power board. Ensure it is plugged

into a dedicated power point and without any other appliances on the same outlet.

8. Do not turn on the power until the appliance and parts are in place as required. Make

sure the door is closed before plugging in and switching on the power.

9. To protect against electric shock, do not immerse the cord, plug, or appliance in water

or any other liquid. Do not expose the appliance to dripping or splashing and ensure that

no objects filled with liquids such as vases are placed on the appliance. Do not put any

water or other liquid into the main housing of the appliance through the vents. Do not

rinse it under the tap.

10. Do not touch the appliance, power cord or power plug with wet hands.

11. Unplug from the outlet when not in use and before cleaning. Allow the appliance to

cool down (if relevant) before putting on or taking off the parts, and before cleaning.

12. The appliance does not contain any serviceable parts inside. Do not attempt to open

and repair the appliance yourself. All components should only be serviced by a qualified

technician.

13. Do not use the appliance if the plug, power cable or unit itself are damaged. If the

power cord is damaged, you must have it replaced at a service centre with qualified

persons in order to avoid a hazard.

14. Do not use the appliance for anything other than the intended use. It is for household

use only. It is not to be used outdoors or for commercial purposes.

15. Close supervision is necessary when any appliance is used near children. Keep the

appliance and power cord out of reach of children when it is in operation or during the

cooling process.

16. This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

17. This appliance should be operated on a separate electrical power point from other

operating appliances. If the power point is overloaded with other appliances, this

appliance may not work properly.

18. Extreme caution must be used when moving an air fryer containing hot food.

19. Leave enough open space from other objects while in use. Do not block air intakes or

exhausts.

20. Do not place the appliance against a wall or against other appliances. Leave at least

10 centimetres of free space on the back and sides and above the appliance. Do not

place anything on top of the appliance.

21. When the appliance is in operation, air is released through the air outlet vent. Keep

your hands and face at a safe distance from the air outlet vent.

22. Do not touch the hot surfaces. The appliance’s outer surfaces may become hot

during use. The rolling cage and rotisserie fork set will be hot. Wear oven mitts or use the

cage tongs to remove it. Wear oven mitts when handling the mesh pieces and drip tray.

23. Do not cover the appliance while in use.

24. Do not let the cord hang over the edge of the table or counter.

25. Do not unplug the appliance by pulling on the cord.

26. This appliance is not designed to be used by people (including children) with a

physical, sensory or mental impairment, or people without knowledge or experience,

unless they are supervised or given prior instructions concerning the use of the appliance

by someone responsible for their safety. Children must be supervised to ensure that they

do not play with the appliance.

27. Do not leave the appliance operating while unattended.

28. The appliance may emit light smoke during its first use. It is not defective, and the

smoke will burn off within a few minutes.

29. Should the appliance emit black smoke, un-plug it immediately. Wait for the smoke

to stop before removing the contents inside.

Short cord instructions:

Do not use with an extension cord. A short power supply cord is provided to reduce the

risks resulting from being entangled in or tripping over a long cord.

Overheating protection:

Should the inner temperature control system fail, the overheating protection system will

be activated, and the appliance will not operate. Should this happen, unplug the power

cord. Allow time for the appliance to cool completely before restarting or storing.

Electrical power:

If the electrical circuit is overloaded with other appliances, this appliance may not

operate properly. It should be operated on a dedicated electrical circuit.

Automatic shut-off:

The appliance has a built-in shut-off device that will automatically shut down the

appliance when the timer reaches zero.

You can manually switch off the appliance by turning the timer down to zero.

Preparation for use:

Before using the air fryer for the first time:

Warning: when using for the first time, the air fryer may emit slight odour which is not

harmful and will disappear after a few minutes. This is because a protective oil was

applied to protect parts from possible friction in transport.

Carefully unpack the air fryer and remove all the packing materials.

Place the air fryer on a flat, heat-resistant non-flammable surface.

Use a soft sponge and soapy water to remove any dust on the surface that may happen

during packing and transport. Allow the air fryer to dry before use.

Parts:

1. Air fryer

a. Timer dial

b. Temperature control slider

2. Grill pan

3. Cooking basket

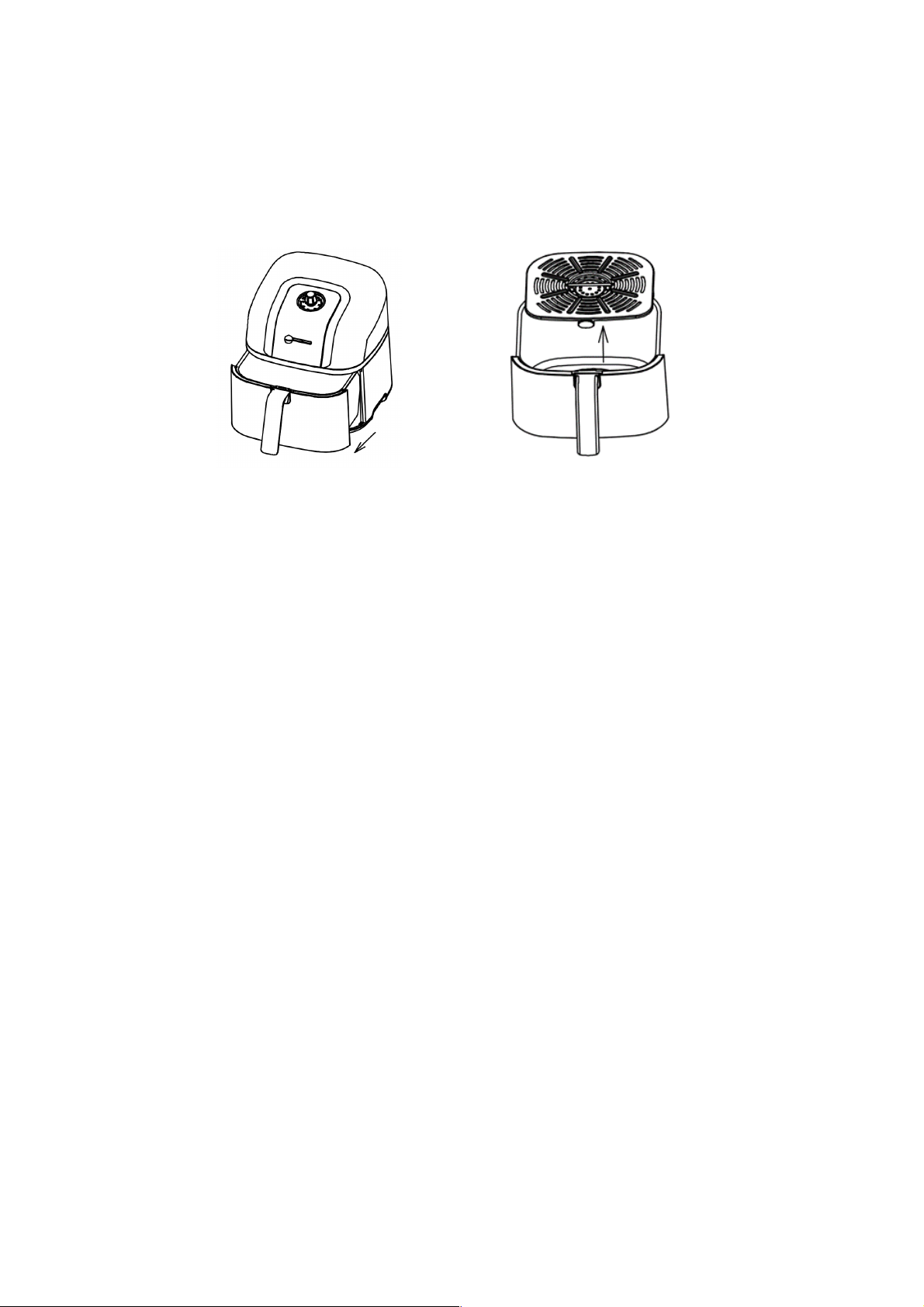

Using the basket:

1. Using the handle on the basket, pull the basket out of the air fryer.

2. To remove the grill pan, reach into the basket and pull the grill pan upwards and out of

the basket.

3. If the food has just been cooked inside the air fryer, allow it to cool down before

touching the grill pan with your hands.

Using the air fryer:

1. When the air fryer is connected to the power source, the red LED light on the upper

left of the timer dial will be illuminated.

2. Slide the temperature control slider to your desired cooking temperature.

3. Turn the timer dial to your desired cooking time. The red LED light and the blue LED

light on the upper left of the timer dial will now be illuminated while the air fryer is

heating up. The blue LED light will periodically switch on and off during the cooking

process to indicate heating up and maintaining temperature. The red LED light will

always be illuminated, indicating power to the power source.

4. When the cooking time has ended, there will be a ding sound and the fan will continue

to operate for close to 20 seconds until the internal central temperature drops.

5. The air fryer will then enter standby mode. The red LED light will remain illuminated.

Operation:

1. Plug the mains plug into an earthed wall socket.

2. Carefully pull the cooking basket out of the air fryer.

3. Ensure the grill pan is inside the cooking basket and put the food into the cooking

basket. Never use the cooking basket without the grill pan in it.

4. Slide the cooking basket securely into the air fryer.

Caution:

Do not touch the inside of the cooking basket or grill pan during and about 30

minutes after each use, as it gets very hot. Only hold the cooking basket by the handle.

5. Set your cooking time and temperature. The timer dial starts counting down from the

set preparation time.

6. Some foods require shaking halfway through the

cooking process. To shake the food, pull the cooking

basket out of the appliance by the handle and shake it

for a couple of seconds. Slide the cooking basket back

into the air fryer immediately after shaking it.

7. When you hear the ding sound, the set cooking time

has come to an end. Pull the cooking basket out of the

air fryer and place it on a heat resistant surface. Only

hold the cooking basket by the handle and do not

touch inside of it for about 30 minutes after use.

8. Check if the food is ready. If it is not ready, slide the cooking basket back into the air

fryer and add an extra few minutes on the timer dial.

9. When the food is done cooking, empty the cooking basket’s contents into a bowl or

onto a serving plate. The air fryer will be instantly ready for preparing the next batch

of food.

Tip: To remove large or fragile foods, use a pair of tongs (not included) to lift the food out

of the cooking basket. Do not turn the cooking basket upside down. Turning the cooking

basket upside down will cause the excess oil that has collected on the bottom of the

cooking basket to spill out and leak onto the served food.

Cooking guide chart:

These cooking times are a guide only. They could vary depending on quantity, initial

temperature, and weight.

Food

Time

Temperature

Additional information

Thin frozen chips

15 – 20 mins

200°C

Thick frozen chips

20 – 25 mins

200°C

Homemade chips

15 – 20 mins

200°C

Add ½tablespoon oil

Homemade potato wedges

18 – 22 mins

180°C

Add ½tablespoon oil

Hash browns

15 – 18 mins

180°C

Steak

10 – 15 mins

180°C

Hamburger

10 – 15 mins

180°C

Pork chops

10 – 15 mins

180°C

Sausage roll

13 – 15 mins

200°C

Chicken drumsticks

25 – 30 mins

180°C

Chicken breast

15 – 20 mins

180°C

Food

Time

Temperature

Additional information

Spring rolls

8 – 10 mins

200°C

Use oven-ready

Frozen chicken nuggets

10 – 15 mins

200°C

Use oven-ready

Fish fingers

6 – 10 mins

200°C

Use oven-ready

Mozzarella sticks

8 – 10 mins

180°C

Use oven-ready

Stuffed vegetables

10 mins

160°C

Cake

20 – 25 mins

160°C

Use a baking dish

Quiche

20 – 22 mins

180°C

Use a baking dish

Muffins

15 – 18 mins

200°C

Use a baking dish

Frozen onion rings

15 mins

200°C

Making homemade chips:

For the best results, we advise to use pre-baked chips. If you want to make home-made

chips, follow the steps below:

1. Peel the potatoes and cut them into sticks.

2. Soak the potato sticks in a bowl of water for at least 30 minutes, take them out and

dry them with kitchen paper.

3. Pour ½tablespoon of olive oil in a bowl, put the sticks on top and mix until the sticks

are coated with the olive oil.

4. Remove the sticks from the bowl and put the sticks into the air fryer.

5. Cook the chips for 20 – 25 minutes at 200°C. Remember to shake the basket to flip

the chips halfway through cooking.

Helpful cooking tips:

• Foods that are smaller in size usually require a slightly shorter cooking time than

larger foods.

• Large quantities of food only require a slightly longer cooking time than smaller

quantities.

• Flipping or turning smaller sized foods halfway through the cooking process ensures

that all the pieces are evenly fried.

• Misting a bit of vegetable or olive oil on fresh potatoes is suggested for a crispier

result. When adding a little oil, do so just before cooking.

• Snacks normally cooked in an oven can also be cooked in the air fryer.

• Use premade dough to prepare filled snacks quickly and easily. Premade dough also

requires a shorter cooking time than homemade dough.

Frequently asked questions:

1. Can I prepare foods other than fried dishes with my air fryer?

– You can prepare a variety of dishes including steaks, chops, burgers, and baked goods.

2. Is the air fryer oven good for making or reheating soups and sauces?

– Never cook or reheat liquids in the air fryer.

3. Does the air fryer need time to heat up?

– Preheating is needed when you are cooking from a cold start, add 3 minutes to the

cooking time to compensate for this.

4. Is it possible to shut off the air fryer oven at any time?

– Manually adjust the timer dial down to zero to immediately turn off the appliance.

5. Is the air fryer dishwasher safe?

– Only the cooking basket and grill pan are dishwasher safe. The appliance itself

containing the heating coil and electronics should never be submersed in liquid of any

kind or cleaned with anything more than a hot, moist cloth or nonabrasive sponge, with a

small amount of mild detergent.

6. What happens if the air fryer still does not work after I have tried all the

troubleshooting suggestions?

– Please contact our customer service team.

Troubleshooting:

Please use the following table as a guide to help troubleshoot and resolve any common

issues you may come across while using this appliance.

Problem

Possible cause

Solution

The air fryer

does not work.

The appliance is not

plugged into the

mains power.

Put the mains plug in an earthed wall

socket.

The food is not

done.

There is too much food

inside the air fryer.

Use smaller batches for more even

cooking.

The set temperature is

too low.

Increase the cooking temperature.

The preparation time is

too short.

Increase the cooking time.

The food is

unevenly fried in

the air fryer.

Certain types of food

need to be flipped over

during the cooking

process.

Flip the ingredients during cooking.

Fried snacks are

not crispy when

they come out of

the air fryer.

You used a type of food

that is meant to be

prepared in a traditional

deep fryer.

Use oven snacks or lightly brush some

oil onto the snacks for a crispier

result.

Chips are not

cooked evenly.

You did not soak the

potato sticks properly

before cooking.

Soak the potato sticks in a bowl of

water for at least 30 minutes; take

them out and dry them with kitchen

paper.

You did not use the right

potato type.

Use fresh potatoes and make sure

they stay firm during frying.

Fresh potato chips

arenot crispy when

they come out of

the air fryer.

The crispiness of the

chips depends on the

amount of oil and water

in the potato sticks.

Make sure you dry the potato sticks

properly before you coat them with oil.

Cut the potato into thinner sticks for a

crispier result.

Add slightly more oil for a crispier

result.

White smoke

comes out of

the appliance.

You are preparing greasy

ingredients.

Pay attention that the temperature

is under 180°C when you cook greasy

food in the air fryer.

There is excess oil inside

the air fryer.

Wipe down the inside of the air fryer to

remove excessive oil and check the grill

pan.

The grill pan has excess

grease residue from

previous cooking.

Clean the grill pan after use.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels smith+nobel Friteuse

smith+nobel

smith+nobel TH-AF05BL Manuel utilisateur

smith+nobel

smith+nobel TH-AFO30BL Manuel utilisateur

smith+nobel

smith+nobel SNDF275R Manuel utilisateur

smith+nobel

smith+nobel IA4126 Manuel utilisateur

smith+nobel

smith+nobel SN-KAF-8441 Manuel utilisateur

smith+nobel

smith+nobel TM-AF1056B Manuel utilisateur

smith+nobel

smith+nobel SNAFO20 Manuel utilisateur

smith+nobel

smith+nobel IA3642 Manuel utilisateur

smith+nobel

smith+nobel SNAF999B Manuel utilisateur

smith+nobel

smith+nobel IA4125 Manuel utilisateur

smith+nobel

smith+nobel SNAFS10 Manuel utilisateur

Manuels Friteuse populaires d'autres marques

Innsky

Innsky 55SA1US Manuel utilisateur

Falcon

Falcon G350/11 Guide de l'utilisateur

GoWISE USA

GoWISE USA GW22612 Manuel utilisateur

Wolf

Wolf IF15/S Manuel utilisateur

Electrolux

Electrolux Thermetic 9CHG583284 Guide rapide

Gourmia

Gourmia GAF799 Manuel utilisateur

DeLonghi

DeLonghi D677UX Manuel utilisateur

SEVERIN

SEVERIN DEEP FRYER - Guide de l'utilisateur

Toastmaster

Toastmaster TMFG18-NAT Manuel utilisateur

Domo

Domo DO465FR Manuel utilisateur

Henny Penny

Henny Penny PFG-691 Manuel utilisateur

Farberware

Farberware FBW FT 43721 B Manuel utilisateur

GERMANICA

GERMANICA GEAF5L3LD Manuel utilisateur

Roller Grill

Roller Grill MF 120 R Manuel d'utilisation

Philips

Philips HD9211 Manuel utilisateur

Linea 2000

Linea 2000 Domo DO536FR Manuel utilisateur

Lakeland

Lakeland 31796 Manuel utilisateur

Dash

Dash Tasti-Crisp DFAF755 Manuel utilisateur

smith+nobel SNAFRB1 Manuel utilisateur

Manuels Friteuse populaires d'autres marques
