Smith BTF-80 SERIES 210 Manuel utilisateur

COMMERCIAL GAS WATER HEATERS

Installation and Operating Manual

1503 331432-001

KEEP THIS MANUAL IN THE POCKET ON HEATER FOR FUTURE REFERENCE

WHENEVER MAINTENANCE ADJUSTMENT OR SERVICE IS REQUIRED.

POWER VENTED GAS MODELS

WITH HOT SURFACE IGNITION

NOT FOR USE IN MANUFACTURED (MOBILE) HOMES

ALL TECHNICAL AND WARRANTY QUESTIONS: SHOULD BE DIRECTED TO THE LOCAL DEALER FROM WHOM THE WATER HEATER WAS

PURCHASED. IF YOU ARE UNSUCCESSFUL, PLEASE CONTACT THE COMPANY LISTED ON THE RATING PLATE ON THE WATER HEATER.

MODELS BTF-80 SERIES 210, 211

- Do not store or use gasoline or other flam-

mable vapours and liquids in the vicinity of

this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not

use any phone in your building.

• Immediately call your gas supplier from a

neighbor's phone. Follow the gas sup-

plier's instructions.

• If you cannot reach your gas supplier, call

the fire department.

- Installation and service must be performed by

a qualified installer, service agency or the

gas supplier.

WARNING: If the information in these instruc-

tions is not followed exactly, a fire or explosion

may result causing property damage, personal

injury or death.

• For Your Safety •

AN ODOURANT IS ADDED TO THE GAS USED

BY THIS WATER HEATER.

2 331432-001

TABLE OF CONTENTS

Safe Installation, Use And Service . . . . . . . . . . . . . . . . . . 3

General Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Qualiﬁed Installer Or Service Agency . . . . . . . . . . . . 6

Preparing For The Installation. . . . . . . . . . . . . . . . . . 6

Typical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

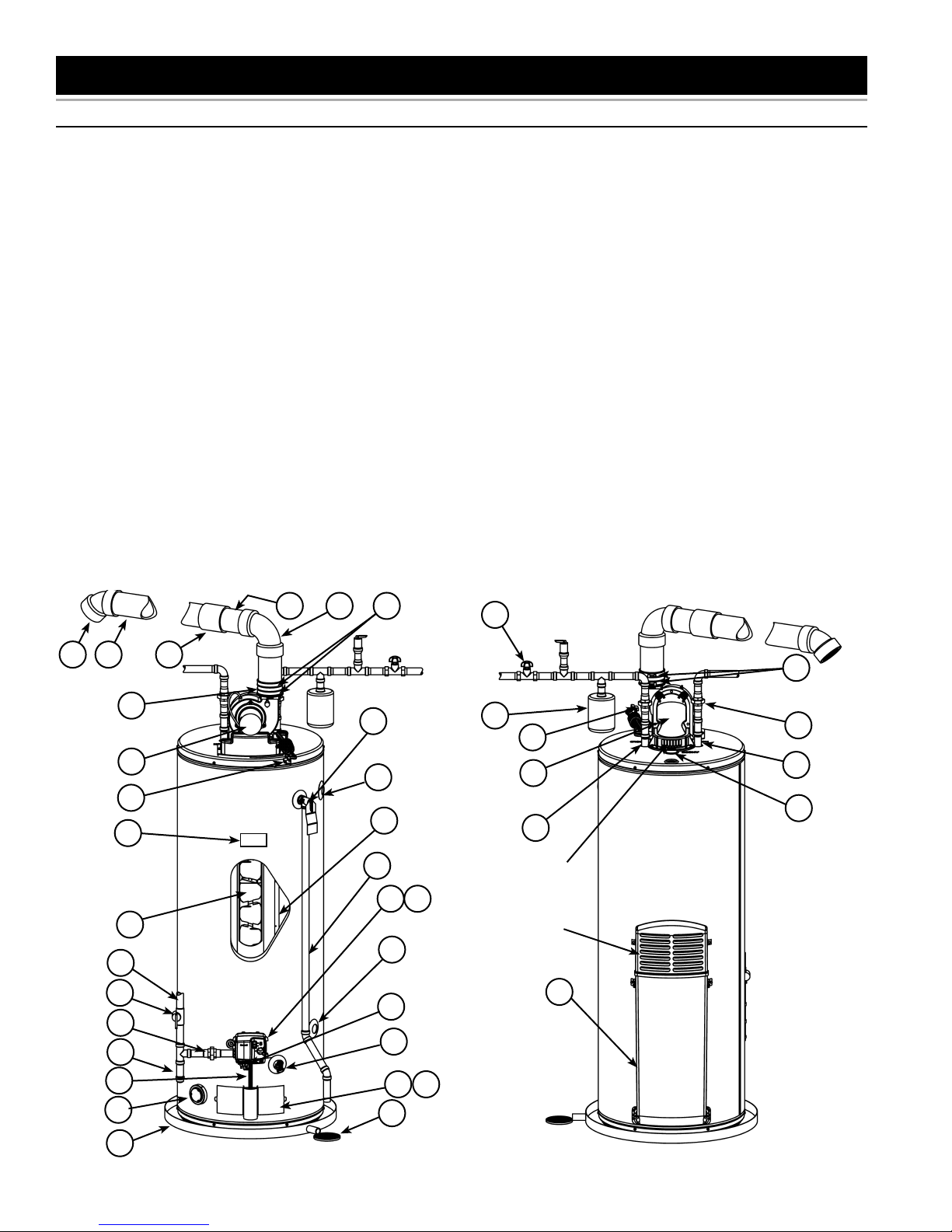

Get To Know Your Water Heater - Gas Models

(List Referencing Figures 1-7). . . . . . . . . . . . . . . . . . 7

Replacement Parts And Deliming Products . . . . . . . 8

Combo Heating Inlet And Outlet Side Taps. . . . . . . . 8

Water Piping - Mixing Valve Usage . . . . . . . . . . . . . . 9

Mixing Valves

Water Heater Operation . . . . . . . . . . . . . . . . . . . . . 10

Electrical Requirements & Wiring Diagram . . . . . . . .11

Safety Lockouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

High Limit Controls (Energy Cut Off). . . . . . . . . . . . 12

Thermostat/Water Temperature

Blower High Limit Switch

Blower Air Pressure Switch . . . . . . . . . . . . . . . . . . . 12

Flammable Vapour Sensor . . . . . . . . . . . . . . . . . . . 12

Locating The New Water Heater . . . . . . . . . . . . . . . . . . . 13

Facts To Consider About The Location . . . . . . . . . . 13

Storage Of Flammable Liquids . . . . . . . . . . . . . . . . 13

Clearances to combustibles

Floors with carpeting

Clearance for servicing

Air Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Chemical Vapour Corrosion . . . . . . . . . . . . . . . . . . 15

Installing The New Water Heater. . . . . . . . . . . . . . . . . . . 16

Water Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Space Heating And Potable Water Systems . . . . . . 16

Combo Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

System Requirements

Installation

Closed Water Systems . . . . . . . . . . . . . . . . . . . . . . 18

Thermal Expansion . . . . . . . . . . . . . . . . . . . . . . . . . 18

Temperature-Pressure Relief Valve. . . . . . . . . . . . . 19

T&P valve discharge pipe requirements:

Temperature-Pressure Relief Valve and

Pipe Insulation

High Altitude Installation . . . . . . . . . . . . . . . . . . . . . 20

Gas Piping. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Sediment Traps/Dirt Leg . . . . . . . . . . . . . . . . . . . . . 21

Filling The Water Heater . . . . . . . . . . . . . . . . . . . . . 22

Venting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Termination Clearances Sidewall Power Vent. . . . . 23

Blower Assembly Installation. . . . . . . . . . . . . . . . . . 24

Planning The Vent System . . . . . . . . . . . . . . . . . . . 24

Polypropylene Vent Systems . . . . . . . . . . . . . . . . . 25

Condensate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Exhaust Venting . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Important Notes and Warnings

Venting terminations and sizing

Vent screen installation

Calculating Equivalent Feet

Venting instructions

Vent pipe connection to blower

Coupling installations according to vent sizes

Blower Exhaust Direction . . . . . . . . . . . . . . . . . . . . 30

Installation Checklist . . . . . . . . . . . . . . . . . . . . . . . . 31

Lighting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Operating The Temperature Control System. . . . . . . . . . 33

Gas Control Valve/Thermostat . . . . . . . . . . . . . . . . 34

For Your Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Start Up Conditions . . . . . . . . . . . . . . . . . . . . . . . . . 35

Condensate

Smoke/odour

Strange sounds

Operational Conditions . . . . . . . . . . . . . . . . . . . . . . 35

Smelly water

“Air” In Hot-Water Faucets . . . . . . . . . . . . . . . . . . . 36

Periodic Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

General Upkeep . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Venting System Inspection . . . . . . . . . . . . . . . . . . . 37

Blower Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 37

Cleaning The Blower. . . . . . . . . . . . . . . . . . . . . . . . 37

Burner Operation And Inspection . . . . . . . . . . . . . . 38

Combustion Chamber And Burner Cleaning. . . . . . 39

Housekeeping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Anode Rod Inspection. . . . . . . . . . . . . . . . . . . . . . . 39

Anode Rod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Removing Anode Rod:

Installing Anode Rod:

Temperature-Pressure Relief Valve Test . . . . . . . . . 40

Draining And Flushing . . . . . . . . . . . . . . . . . . . . . . . 41

To drain the water heater storage tank:

To ﬂush the water heater storage tank:

Leakage Checkpoints . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Reference Parts Listing . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Troubleshooting Guidelines. . . . . . . . . . . . . . . . . . . . . . . 45

Resetting The Heater Control . . . . . . . . . . . . . . . . . 48

Lockouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Soft Lockout

Hard Lockout

Ignition State And Timing . . . . . . . . . . . . . . . . . . . . 48

System Status And Error Codes . . . . . . . . . . . . . . . 49

Reading The LED Flash Sequence. . . . . . . . . . . . . 49

331432-001 3

SAFE INSTALLATION, USE AND SERVICE

Your safety and the safety of others is extremely important in the installation, use and servicing of this water heater.

Many safety-related messages and instructions have been provided in this manual and on your own water heater to warn you

and others of a potential injury hazard. Read and obey all safety messages and instructions throughout this manual. It is very

important that the meaning of each safety message is understood by you and others who install, use or service this water heater.

This is the safety alert symbol. It is used to alert you

to potential personal injury hazards. Obey all safety

messages that follow this symbol to avoid possible

injury or death.

CAUTION used without the safety alert

symbol indicates a potentially hazardous

situation which, if not avoided, could

result in property damage

CAUTION indicates a potentially

hazardous situation which, if not avoided,

could result in minor or moderate injury.

WARNING indicates a potentially

hazardous situation which, if not avoided,

could result in death or injury.

DANGER indicates an imminently

hazardous situation which, if not avoided,

will result in death or injury.

CAUTION

WARNING

CAUTION

DANGER

All safety messages will generally tell you about the type of hazard, what can happen if you do not follow the safety message

and how to avoid the risk of injury.

This product is certiﬁed to comply with a maximum weighted average of 0.25% lead content as required in some areas.

IMPORTANT DEFINITIONS

Qualiﬁed Installer: A qualiﬁed installer must have ability equivalent to a licensed tradesman in the ﬁelds of plumbing, air

supply, venting and gas supply, including a thorough understanding of the requirements of the “Natural Gas and Propane

Installation Code” B149.1 as it relates to the installation of gas ﬁred water heaters. The qualiﬁed installer must also be

familiar with the design features and use of ﬂammable vapour ignition resistant water heaters and have a thorough

understanding of this Installation and Operating manual.

Service Agency: A service agency also must have ability equivalent to a licensed tradesman in the ﬁelds of plumbing,

air supply, venting and gas supply, including a thorough understanding of the requirements of the “Natural Gas and

Propane Installation Code” B149.1 as it relates to the installation of gas ﬁred water heaters. The service agency must

also have a thorough understanding of this Installation and Operating manual, and be able to perform repairs strictly in

accordance with the service guidelines provided by the manufacturer.

Gas Supplier: The Natural Gas or Propane Utility or service who supplies gas for utilization by the gas burning appliances

within this application. The gas supplier typically has responsibility for the inspection and code approval of gas piping

up to and including the Natural Gas meter or Propane storage tank of a building. Many gas suppliers also offer service

and inspection of appliances within the building.

4 331432-001

GENERAL SAFETY

Water temperature over 52°C

(125°F) can cause severe

burns instantly resulting in

severe injury or death.

Children, the elderly and the

disabled and are at highest

risk of scald injury.

Feel water before bathing or

showering.

Temperature limiting valves

are available.

Read instruction manual for

safe temperature setting.

BURN

HOT

DANGER

Read instruction manual before

installing, using or servicing

water heater.

• Do not store or use gasoline or other flammable

vapours and liquids in the vicinity of this water

heater, the vent termination hood or any other

appliance.

• Avoid all ignition sources if you smell gas.

• Do not expose water heater control to excessive

gas pressure.

• Use only gas shown on rating plate.

• Maintain required clearances to combustibles.

• Keep ignition sources away from faucets after

extended period of non-use.

Fire or Explosion Hazard

WARNING

331432-001 5

GENERAL SAFETY

Breathing carbon monoxide can cause brain damage or death.

Always read and understand instruction manual.

• Install vent system in accordance with codes.

• Do not operate water heater if flood damaged.

• For operation above 3,079 m (10,100’), a high

altitude orifice must be installed.

• Do not operate if soot buildup is present.

• Do not obstruct water heater air intake with

insulating jacket.

• Do not obstruct blower air intake.

• Do not place chemical vapour emitting products

near water heater.

• Gas and carbon monoxide detectors are

available.

• No vent damper installation is compatible with

this power vented water heater.

Breathing Hazard - Carbon Monoxide Gas

WARNING

Installation: Do not install the water heater where flammable

products will be stored or used.

Vapours from flammable

liquids may explode and

catch fire causing death or

severe burns.

Do not use or store

flammable products such as

gasoline, solvents or adhe-

sives in the same room or

area near the water heater.

Keep flammable products:

1. far away from heater,

2. in approved containers,

3. tightly closed and

4. out of children's reach.

Water heater has a main

burner and hot surface igniter.

The hot surface igniter:

1. can be triggered at any

time and

2. the hot surface will ignite

flammable vapours.

Vapours:

1. cannot be seen,

2. are heavier than air,

3. go a long way on the floor

and

4. can be carried from other

rooms to the electrodes

by air currents.

Flammable Vapours

FLAMMBLE

DANGER

6 331432-001

INTRODUCTION

Thank You for purchasing this water heater. Properly

installed and maintained, it should give you years of trouble

free service.

Abbreviations found in this Installation and Operating

manual:

• CSA - Canadian Standards Association

• ANSI - American National Standards Institute

• ASME - American Society of Mechanical Engineers

This gas-ﬁred water heater is design certiﬁed by CSA

International, under Water Heater Standard ANSI

Z21.10.3 • CSA 4.3 (current edition).

QUALIFIED INSTALLER OR SERVICE AGENCY

Installation and service of this water heater requires ability

equivalent to that of a Qualiﬁed Agency (as deﬁned by

ANSI below) in the ﬁeld involved. Installation skills such

as plumbing, air supply, venting, gas supply and electrical

supply are required in addition to electrical testing skills

when performing service.

ANSI Z223.1 2006 Sec. 3.3.83: “Qualiﬁed Agency” - “Any

individual, ﬁrm, corporation or company that either in

person or through a representative is engaged in and is

responsible for (a) the installation, testing or replacement

of gas piping or (b) the connection, installation, testing,

repair or servicing of appliances and equipment; that

is experienced in such work; that is familiar with all

precautions required and that has complied with all the

requirements of the authority having jurisdiction.”

If you are not qualiﬁed (as deﬁned by ANSI above) and

licensed or certified as required by authority having

jurisdiction to perform a given task, do not attempt to

perform any of the procedures described in this manual.

If you do not understand the instructions given in this

manual do not attempt to perform any procedures outlined

in this manual.

PREPARING FOR THE INSTALLATION

1. Read the “General Safety” section of this manual

ﬁrst and then entire manual carefully. If you don’t

follow safety rules, the water heater will not

operate properly. It could cause DEATH, SERIOUS

BODILY INJURY AND/OR PROPERTY DAMAGE.

This manual contains instructions for installation,

operation, and maintenance of the gas-ﬁred water

heater. It also contains warnings throughout the

manual that you must read and be aware of. All

warnings and instructions are essential to proper

operation of the water heater and your safety. Since

we cannot put everything on the ﬁrst few pages,

READ ENTIRE MANUAL BEFORE ATTEMPTING

TO INSTALL OR OPERATE THE WATER HEATER.

2. The installation must conform with these instructions

and local code authority having jurisdiction. In

absence of local codes, installation must comply with

current editions of the “Natural Gas and Propane

Installation Code” B149.1 and “Canadian Electrical

Code” (CSA C22.1), Part I. All documents are

available from:

CSA International,

8501 East Pleasant Valley Road,

Cleveland, Ohio, United States

44131-5575.

3. The water heater, when installed, must be electrically

grounded in accordance with the local codes or in the

absence of local codes, the current editions of the

“Canadian Electrical Code” (CSA C22.1), Part I.

4. If after reading this manual you have any questions or

do not understand any portion of the instructions, call

the local gas utility or the manufacturer whose name

appears on the rating plate.

5. Carefully plan the place where you are going to put

the water heater. Correct combustion, vent action, and

vent pipe installation are very important in preventing

death from possible carbon monoxide poisoning and

ﬁres (see Figure 15 & Figure 16). Examine the location

to ensure the water heater complies with the “Locating

The New Water Heater” section in this manual.

6. For installation in areas subject to earthquakes, this

water heater must be braced, anchored, or strapped to

avoid falling or moving during an earthquake. Contact

local utilities for code requirements in your area.

331432-001 7

TYPICAL INSTALLATION

GET TO KNOW YOUR WATER HEATER - GAS MODELS (LIST REFERENCING FIGURES 1-7)

1 Vent Termination Elbow with Rodent

Screen

2 *Vent Pipe

3 *Vent Pipe Coupling (if required)

4 CPVC Vent Pipe (1.5m (5 ft.)

supplied)

5 *CPVC Vent Pipe Elbow (long

radius)

6 Gear Clamp (see Figure 6)

7 T&P Valve

8 **Combo Heating System Supply

Outlet (Optional)

9 Cold-Water Inlet Nipple/Diptube

10 * Discharge Pipe

11 Gas Control Valve/Thermostat

(Honeywell)

12 Gas Valve Electronic Control Module

And Cover (Honeywell)

13 **Combo Heating System Return

Inlet (Optional)

14 ***Control Harness

15 Drain Valve

16 Outer Gas Door

17 Manifold Door Assembly (behind

outer door) (see Figure 3 (NG) or

Figure 4 (LP))

18 *Floor Drain

19 *Metal Drain Pan

20 Flammable Vapour Sensor (under

cover) (see Figure 5)

21 Flexible Manifold Tube (see

Figure 3)

22 *Sediment Trap/Dirt Leg

23 *Ground Joint Union (gas

connection)

24 *Main Manual Gas Shut-off Valve

25 *Gas Supply*

26 Bafﬂe Assembly

27 Rating Plate

28 Blower with Power Cord (see Figure

29 *Rubber Coupling (see Figure 6)

30 *Inlet Water Shut-off Valve

31 *Union (water connection)

32 Hot-Water Outlet Nipple

33 Anode (under cap)

34 Air Inlet Snorkel

35 Flue Collector

36 *Thermal Expansion Tank (required

for all closed systems)

37 Aluminum Burner (see Figure 3)

38 Gas Oriﬁce (see Figure 3)

39 Gas Manifold (see Figure 3)

40 Hot-Surface Igniter (see Figure 3)

41 Manifold Door Gasket (see

Figure 3)

42 Manifold Door (see Figure 3)

43 Two Piece Grommet With Clip (see

Figure 3)

44 Viewport (see Figure 3)

45 Flame Sensor Rod (see Figure 3)

46 Stainless Steel Burner (see

Figure 4)

47 Air Switch (inside box) (see

Figure 6)

48 Air Tubing (see Figure 6)

49 Blower High Limit Switch (see

Figure 6)

50 Junction Box Cover (see Figure 6)

51 Junction Box (see Figure 6)

*, **, ***, **** see notes on following

page

Figure 1

Front View

1 2

35 32

933

Combustion

Air Inlets

Blower

Dilution Air

Inlets

Figure 2

Rear View

8 331432-001

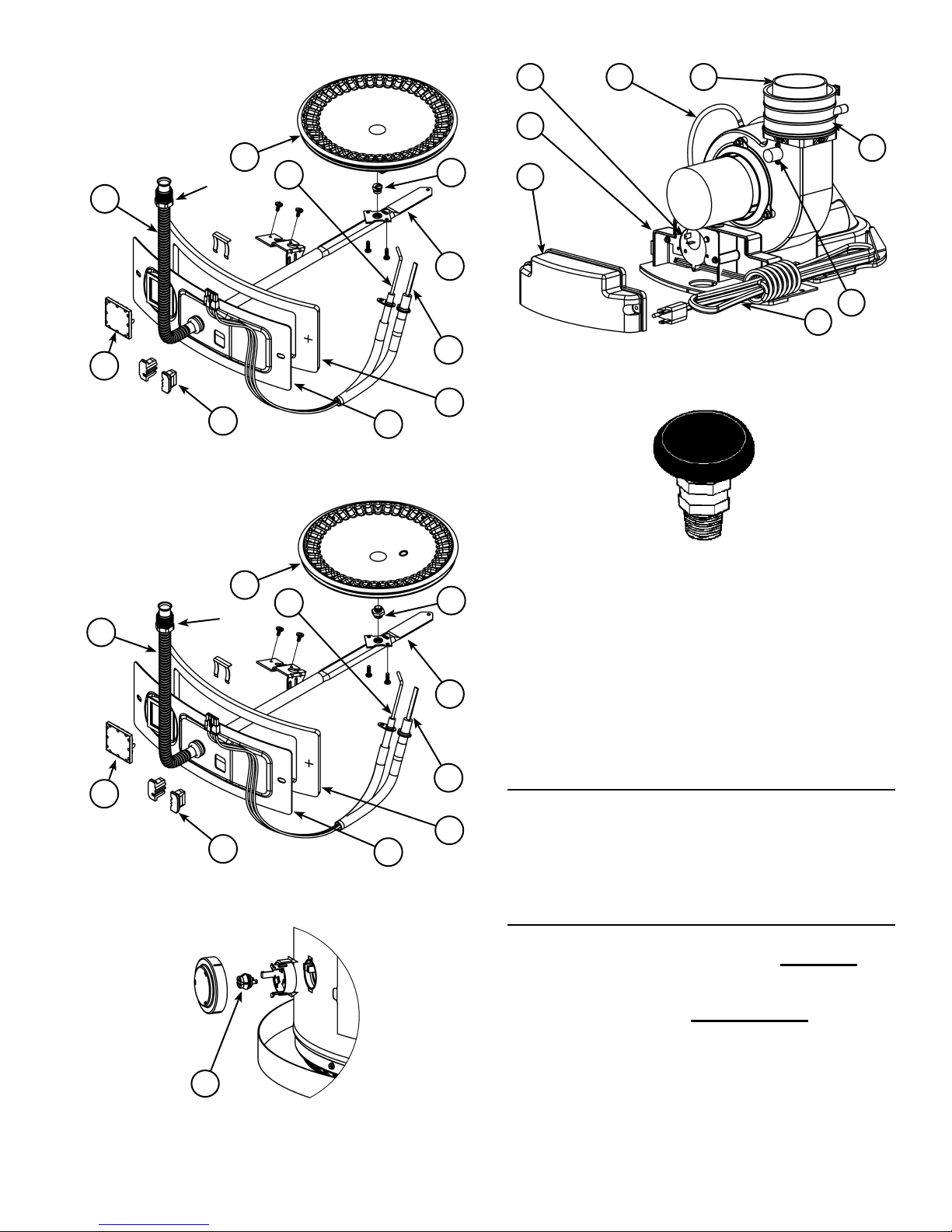

Natural gas main burner

with igniter assembly

(item 17 in Figure 1).

Flare

Nut

44 40

Figure 3

Propane (LP) main burner

with igniter assembly

(item 17 in Figure 1).

Flare

Nut

44 40

Figure 4

Figure 5

Figure 6

Vacuum relief valve

install per local

codes (not supplied

with heater).

Figure 7

Notes:

* Items not supplied with the water heater.

** The side recirculation loop connections may not be

used as the primary water inlet and outlet connections.

See “Combo Heating Inlet And Outlet Side Taps”.

*** Caution: harness has 120 VAC In operation.

**** See “Planning The Vent System”, “Condensate” and

“Blower Assembly Installation” for more information.

REPLACEMENT PARTS AND DELIMING PRODUCTS

Replacement parts and recommended delimer may be

ordered through authorized servicers or distributors. When

ordering parts, provide complete model and serial numbers

(see rating plate), quantity and name of part desired.

Standard hardware items may be purchased locally.

COMBO HEATING INLET AND OUTLET SIDE TAPS

Models equipped with Combo Heating capabilities are

shipped with the two side plumbing taps PLUGGED (item

8 and item 13 in Figure 1 and see also Figure 8 & Figure

22). If the heater is to be operated using the side taps for

combo heating, these taps must be opened by removing

the two pipe plugs.

331432-001 9

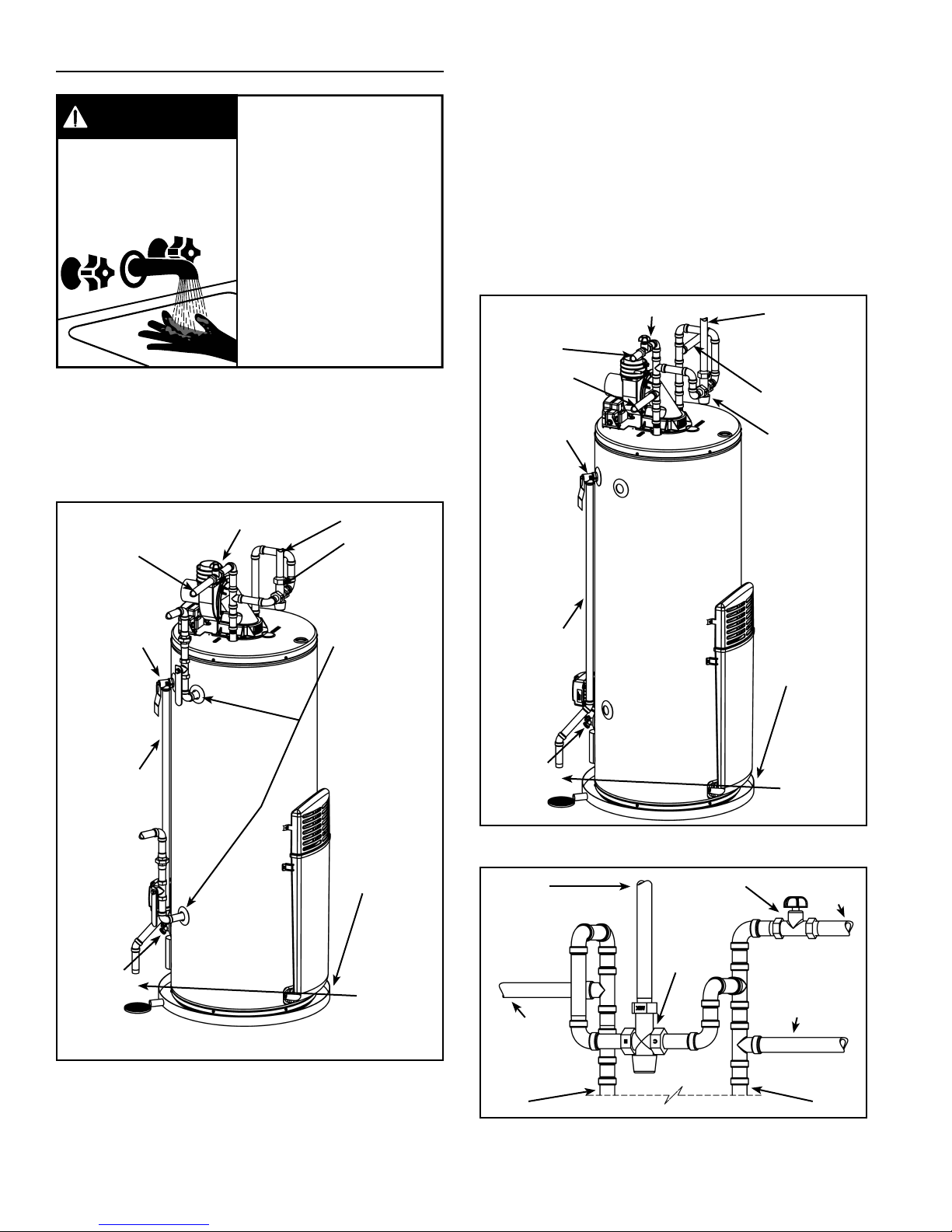

WATER PIPING - MIXING VALVE USAGE

Mixing Valves

Water temperature over 52°C

(125°F) can cause severe

burns instantly resulting in

severe injury or death.

Children, the elderly and the

disabled and are at highest

risk of scald injury.

Feel water before bathing or

showering.

Temperature limiting devices

such as mixing valves must

be installed when required

by codes and to ensure safe

temperatures at fixtures.

BURN

HOT

DANGER

Water heated to a temperature which satisﬁes space

heating, clothes washing, dish washing, and other

sanitizing needs can scald and cause permanent injury

upon contact. Short repeated heating cycles caused by

small hot-water uses can cause a temperature increase

of the hot water by 11C° (20F°) higher than the heater’s

temperature settings.

MIXING VALVE

SHUT-OFF

VALVE

SUGGESTED PIPING

ARRANGEMENT FOR

SIDE CONNECTIONS

COLD-WATER

INLET

TEMPERED

POTABLE WATER

DISCHARGE

PIPE (DO NOT

CAP OR PLUG)

TEMPERATURE-

PRESSURE

RELIEF VALVE

DRAIN

VALVE

METAL DRAIN PAN

45mm (1.75 in.)

MAX. DEPTH. AT

LEAST 50mm (2 in.)

GREATER THAN

THE DIAMETER

OF THE WATER

HEATER.

305mm

(12 in.) MAX.

AIR GAP*

CERTAIN

MODELS ARE

EQUIPPED WITH

SIDE PLUMBING

CONNECTIONS

FOR SPACE

HEATING.

* NOTE: THE

T&P VALVE

DISCHARGE

PIPE SHALL

BE PIPED

DIRECTLY TO

THE DRAIN

OR EXTERNAL

TO THE

BUILDING

Figure 8

This appliance has been design certiﬁed as complying

with American National Standard/CSA Standard for water

heaters and certain models with side plumbing connections

are considered suitable for Water (Potable) Heating and

Space Heating. Note: Do not use in space heating only

applications.

The water supply pressure should not exceed 80 psi. If this

occurs, a pressure reducing valve with a bypass should be

installed in the cold water inlet line. This should be placed

on the supply to the entire house in order to maintain equal

hot and cold water pressures.

MIXING VALVE

SHUT-OFF

VALVE

SUGGESTED PIPING

ARRANGEMENT FOR

TOP CONNECTIONS

COLD-WATER

INLET

TEMPERED

POTABLE WATER

DISCHARGE

PIPE (DO NOT

CAP OR PLUG)

TEMPERATURE-

PRESSURE

RELIEF VALVE

DRAIN

VALVE

METAL DRAIN PAN

45mm (1.75 in.)

MAX. DEPTH. AT

LEAST 50mm (2 in.)

GREATER THAN

THE DIAMETER

OF THE WATER

HEATER.

305mm

(12 in.) MAX.

AIR GAP*

* NOTE: THE

T&P VALVE

DISCHARGE

PIPE SHALL

BE PIPED

DIRECTLY TO

THE DRAIN

OR EXTERNAL

TO THE

BUILDING

NON-TEMPERED

WATER SUPPLY

NON-TEMPERED

WATER RETURN

Figure 9

SHUT-OFF

VALVE

COLD-

WATER

SUPPLY

TEMPERED

POTABLE

WATER

MIXING

VALVE

NON-

TEMPERED

WATER

SUPPLY

NON-

TEMPERED

WATER

RETURN

TO COLD

INLET

TO HOT

OUTLET

Figure 10

10 331432-001

Some people are more likely to be permanently injured

by hot water than others. These include the elderly,

children, the inﬁrm and the physically/mentally disabled.

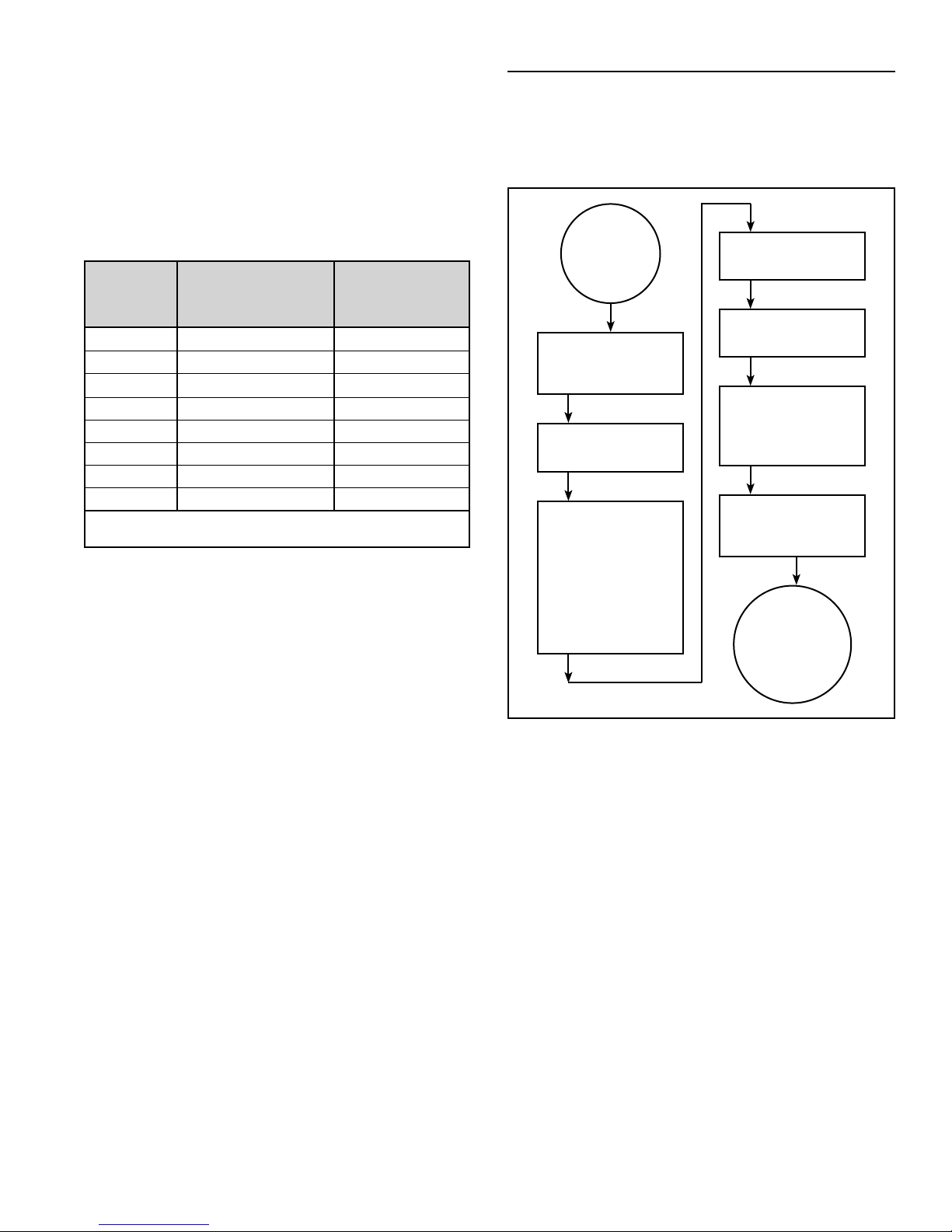

Table 1 (published by U.S. Government Memorandum,

1978) shows the approximate time-to-burn relationship

for normal adult skin. If anyone using hot water provided

by the water heater being installed ﬁts into one of these

groups or if there is a local code or state law requiring a

certain water temperature at the point of use, then special

precautions must be taken.

Water

Temperature

°C (°F)

Time for 1st

Degree Burns

(Less Severe Burns)

Time for Permanent

Burns 2nd & 3rd

Degree (Most

Severe Burns)

44 (110) (normal shower temp.)

47 (116) (pain threshold)

47 (116) 35 minutes 45 minutes

50 (122) 1 minute 5 minutes

55 (131) 5 seconds 25 seconds

60 (140) 2 seconds 5 seconds

65 (149) 1 second 2 seconds

68 (154) instantaneous 1 seconds

(U.S. Government Memorandum, C.P.S.C., Peter L. Armstrong,

Sept. 15,1978)

Table 1

In addition to using lowest possible temperature setting

that satisﬁes demand of application, a mixing valve should

be installed at water heater (see Figure 8 & Figure 9) or at

hot-water taps to further reduce system water temperature.

Mixing valves are available at plumbing supply stores.

Consult a Qualiﬁed Installer or Service Agency. Follow

mixing valve manufacturer’s instructions for installation

of the valves. Before changing the factory setting on the

thermostat, read the “Operating The Temperature Control

System” section in this manual.

WATER HEATER OPERATION

Figure 11 shows the water heater’s sequence of operation

when a call for heat is initiated. The ignition control module

will attempt to light the burner three times. If the ignition

control does not detect ignition it will enter lockout mode

and ﬂash the corresponding error code.

HEATER CONTROL

CHECKS TO ENSURE

BLOWER PRESSURE

SWITCH IS OPEN

BLOWER IS

ENERGIZED

CONTROL CHECKS

TO ENSURE PRES-

SURE SWITCH CLOSES

INDICATING BLOWER

IS OPERATING AND

THERE ARE NO

VENTING BLOCKAGES

(INLET OR OUTLET)

IGNITER IS ENERGIZED

AND MAIN GAS VALVE

IS OPENED

MAIN BURNER COMES

ON AND THE FLAME IS

SENSED BY CONTROL

MAIN BURNER CONTIN-

UES UNTIL THE WATER

IN THE TANK REACHES

THERMOSTAT SETTING

MAIN BURNER SHUTS

OFF. BLOWER

CONTINUES FOR A

POST PURGE TIME

HEATER

THERMOSTAT

CALLS FOR

HEAT

HEATER

REMAINS ON

STANDBY UNTIL

NEXT CALL FOR

HEAT

Figure 11
