X3 Hydraulic

Heavy duty triple head remover

User Manual

(954) 941-9744

www.SMITHMFG.com

MANUFACTURING

Cutters / Removers / Parts / Support

1-800-653-9311

www.SmithMfg.com

Phone: 954-941-9744 • Fax: 954-545-0348

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com

VERSION 6/2013

Hydraulic

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com

INTRODUCTION

Congratulations on purchasing the

X3™from SMITH Mfg. Company.

Page Contents

2 Index / Introduction

3 Safety Guidelines

4 Your X3 Heavy Duty Remover

5 Controls Descriptions / Attaching to Skid Loader

6 Safety Guidelines

7 Substrate Removal

8 Storage, Ordering, and Warranty Claims

9 Troubleshooting

10 Maintenance Check List

11-12 Cutter Head Installation and removal

13 Depth and Width of Cut

14-15 Belt Removal

16-17 Bearing Replacement

18-19 Maintenance Log

20 Limited Equipment Warranty

21 Warranty Activation

INDEX

The X3™ (patent pending) is an triple head

Eraser that attaches to most skid loader,

tractor or truck body for removing striping, curing

compounds, and more while leaving the road in

a natural condition. Powered by gas, diesel, or

hydraulics, the X3™ allows a single operator to

remove from 8” - 20” wide (when engaging the

swivel attachment with outboard wheel

assembly). The X3™ is a versatile, full-featured

eraser that grows as your needs grow, with

additional units: inline for faster removal, or

offset for wider removal. Designed to remove with

a unique swivel wheel sweeping removal method

pattern, the X3™ feathers the substrate edges to

eliminate the grooving pattern or "ghost line".

Select your style of removal tool: from our

gentle action set of 3 steel pin cutters, to our

aggressive, 72 pin tungsten carbide, or our 144 pin

carbide gentle abrading and NEW, 216 pin

tungsten carbide pin cutter for concrete.

Diamond Cup Wheel, Wire Brushes, or

Tungsten Carbide Mini-Pick Heads are

available for your other surface preparation and

line removal needs..

You will obtain years of satisfying service when

your machine is properly used and maintained.

Please read completely this guide and parts list

manual to assure your REMOVAL SUCCESS.

If you have any questions about the operation of

your machine or would like to order replacement

parts, please contact your SMITH Dealer directly,

or call SMITH at 1-800-653-9311 or

(954) 941-9744 for the name of your local dealer.

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com

VERSION 6/2013

Hydraulic

UNCRATING EQUIPMENT

When you uncrate your equipment, make certain

that the machine has not been damaged and that

all fasteners and guards are properly tightened.

Battery, oil, and fuel (if non-hydraulic) were not

included in shipment. No hose ttings were

included on hydraulic models. Please note that

some assembly of your X3™ may be required

before use to include the bobtach plates. .

Your machine may not have been shipped

assembled with cutters and other accessories.

Assembly may be required.

BEFORE START-UP,

READ THIS..

REMEMBER: Only authorized, experienced and

properly trained personnel should operate this

equipment. Operating personnel should

practice safety at all times and ear protective

gear (gloves, goggles, safety vests, ear plugs,

steel-toe shoes, etc.)

Please read all operating instructions, and be

completely familiar with your equipment before

operating. When in doubt, please contact SMITH

Manufacturing Customer Service for operational

details. This Owner’s Manual will guide you

through the removal process, from start to

nish, and show you how to care for your

machine. Hydraulic Systems must have

adequate pressure and volume to operate

correctly.

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com

VERSION 6/2013

Hydraulic

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com

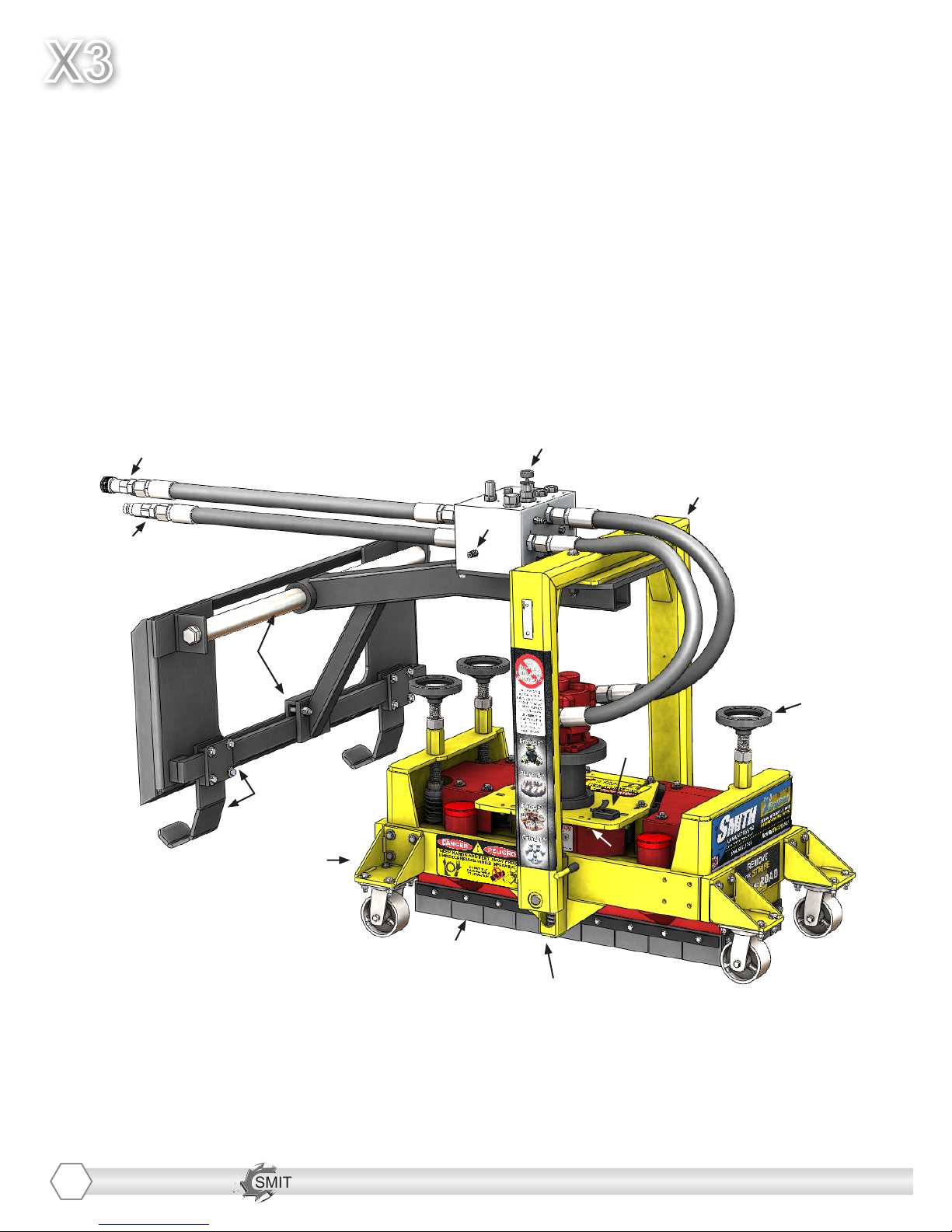

YOUR X3TM HEAVY DUTY REMOVER

Please take time to familiarize yourself with the X3™’s

controls, as well as some of the features of your new machine.

Read the engine manual before preparing the engine for starting.

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com

VERSION 6/2013

Hydraulic

CONTROLS DESCRIPTIONS

• A) TANK RETURN LINE - Female quick

connect

• B) SUPPLY LINE - Male quick connect

• C) BOBTACH PLATE - Attachment to skid

steer. Machine may be located anywhere

along bar. Loosen clamp bolts (2) to adjust

the unit side to side.

• D) DIAGNOSTIC PORT - Contains 3

pressure indicating ports for diagnostic

purposes

• E) CUTTER SPEED CONTROL - Do NOT

exceed MAX of 2200 RPM.

• F) YOKE - Should be perpendicular to the

ground during operation.

• G) TACH/HOUR METER - Check before and

during operation to make sure safe running

speeds are being maintained.

• H) CUTTER HEIGHT CONTROL - 1 of 3,

adjust together.

• I) BOBTACH FIELD LEGS - Support

machine when not attached to skid steer.

May be located anywhere along bar. Loosen

clamp bolts (4) to adjust the legs side to side.

• J) SIDE MOUNT LOCATION - Wheels may

be mounted on the sides to avoid build up

from debris.

• K) DEBRIS SKIRT - Protects from ying

debris.

• L) YOKE SPRING - Check skid steer down

pressure here.

• M) TENSIONING SCREWS - Located under

the plate, adjust belt tension here.

ATTACHING TO SKID

LOADER

1. Complete pre-operational check and

complete and return warranty card.

2. Conrm skid-loader has proper mounting

brackets to t the supplied Bobtach plate. If

not, obtain for your local ski loader supplier and

replace plate on supplied with your X3 with the

plate for your skid loader.

3. If you are going to front mount to a truck,

contact SMITH for mounting instructions. The

unit can also be mounted ot the side of your

equipment as well.

4. Check the levelness of the 4 sets of caster

wheels and the bobtach assembly. Add spacers

to align, if required.

5. Make certain the machine is off the ground

and/or cutters are off the ground before start-up.

6. Get familiar with the drive system, how to

maintain and replace the drive belt and cutters.

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com

VERSION 6/2013

Hydraulic

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com

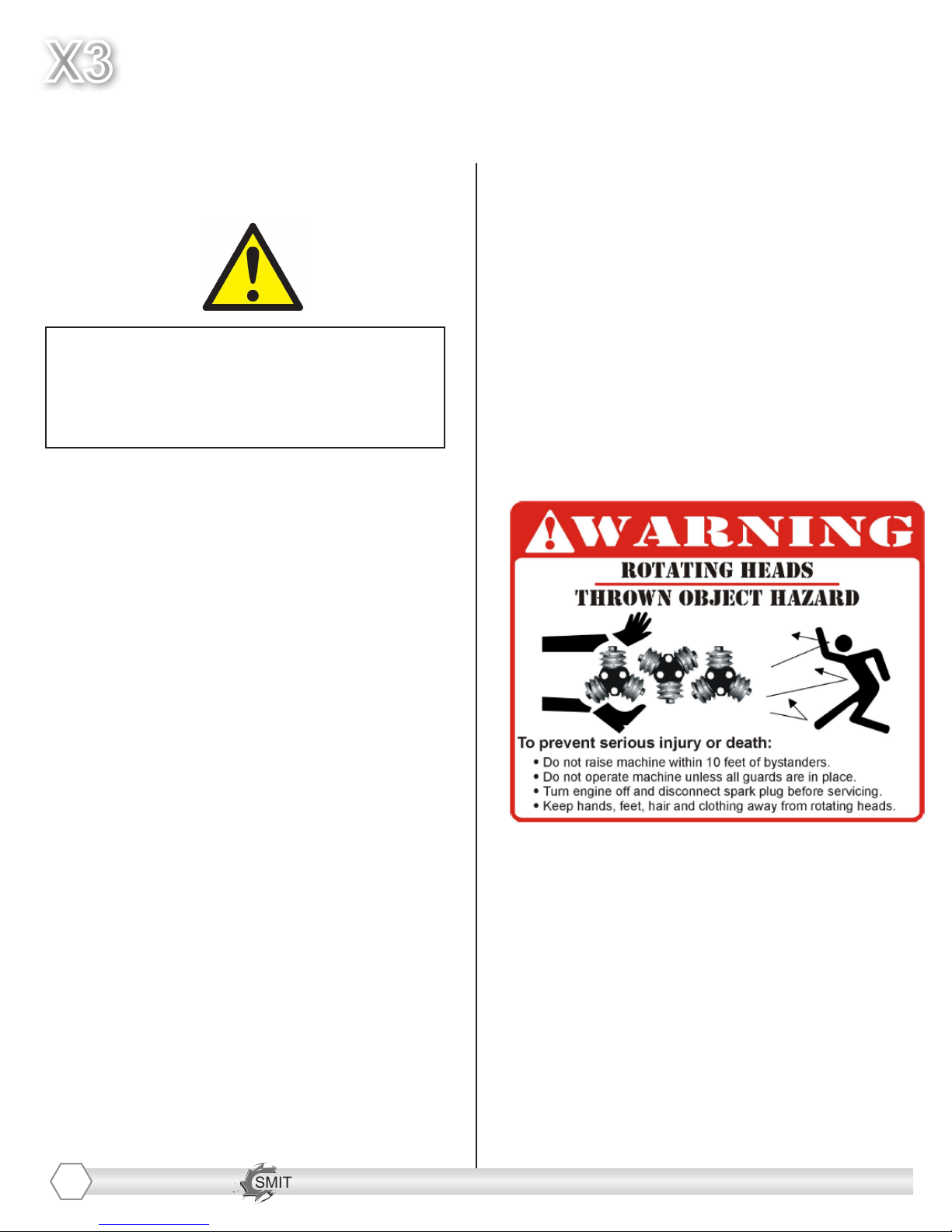

SAFETY GUIDELINES

• Never start the machine with cutters in down

position.

• Never operate machine without Rubber Skirt.

• Never operate machine without Belt Cover.

• ·· Do not operate in an explosive atmosphere,

near combustible materials or where gas fumes

may not be properly dispersed.

• Never leave the machine running unattended.

SAFETY GUIDELINES

The X3 requires a hydraulic supply

source capable of 3000 psi and delivering a

MINIMUM of 28 gpm.

Cutters should never exceed 2200 RPM

• Always wear safety glasses, steel toed shoes,

work gloves, earplugs, respirator.

• Always check to be sure all fasteners and

cutter assemblies are locked tight.

• Keep hands and feet clear of Cutter Assembly.

• Make certain the two Weights are fastened

securely before operation.

• Repair any fuel leaks immediately (Hydraulic

and Gas Models)

• Never operate machine with the unit off the

ground in an unsafe position.

• Never let anyone near Cutting Assembly

during operation. Under no circumstances may this machine be

modied from its original design without the

permission of the manufacturer in writing.

Non-authorized modications can lead to serious

injury or death.

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com

VERSION 6/2013

Hydraulic

SUBSTRATE REMOVAL 6 STEPS FOR LONGER

CUTTER LIFE

1) Protect the bearings with clean, oiled felt

Seals*.

2) Do not pinch felt seals when installing

cutters*.

3) Replace bearings and felt seals when worn*.

4) Change rubber bushings on engine plate

and spindle assembly after 50 hours use.

5) Never drop cam lever during grinding

operations.

Lower cutters gently onto road surface.

6) Purchase a second spindle mount with

removal tools outtted and rotate out daily.

*Pin cutter only

BEGINNING REMOVAL OPERATION: Move

your skid loader (vehicle) in the direction

of removal before lowering the unit on the

ground. It is recommended that to avoid

damage to the cutters, that they be lowered

gently to the road surface while moving

forward/backwards. This will insure that you

will achieve best nish (eliminate “crop-circle”

appearance) and not damage the cutters.

IMPORTANT NOTE ON REMOVAL DEPTH:

It is also recommended that the cutters be

lowered to contact the road surface just

enough to compete the removal process.

Excess downpressure creates excess wear

on all the moving parts. The unit weighs

approximately 600 Lbs. This should be

sufcient weight to hold the cutter heads

against the work surface. Should the desired

results not meet your expectations, consider

resetting the engine speed (RPM’s) to the

correct speed or reducing forward motion

speed to an acceptable level.

ENDING REMOVAL OPERATION: Raise

the unit above ground prior to stopping. The

X3 “hard-stops” so make certain everyone is

clear when shutting down.

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com

VERSION 6/2013

Hydraulic

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com

STORAGE

Store machine upright in a cool, dry, and

well-ventilated area. Make sure not to

damage the hydraulic connections which

could allow air or water into the system.

ORDERING

To ensure product safety and reliability,

and to maintain your warranty, always use

genuine replacement cutters and partsfrom

SMITH when making repairs to equipment.

When oredering please specify the model and

serial number of the machine. In addition, give

a part number, description, and quantity as

listed on your parts list.

If you have any questions about the operation

of your machine or would like to order

replacement parts, contact your SMITH

Manufacturing representative directly.

Contact 1-800-653-9311 (954-941-9744)

for information.

Visit our website at

www.smithmfg.com

WARRANTY CLAIMS

The manufacturer reserves the right to

change or improve the machine design with-

out assuming any obligation to update any

products previously manufactured before

this manual. It is the customer’s responibility

to complete the warranty card and mail it to

the seller within 10 days from date of pur-

chase. If a failure occurs during the warranty

period, the customer must contact the seller

to determine the appropriate action.

Any and all transportation charges are to

be borne by the purchaser.

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com

VERSION 6/2013

Hydraulic

TROUBLESHOOTING

PROBLEM

Possible Reason(s)/Solution(s)

CUTTERS WEARING

UNEVENLY/PREMATURELY

Cutter head is too low

Material Build-up

Bearings may be worn

Wrong cutters for

application

CUTTERS SHAFT BREAKAGE

UNEVENLY/PREMATURELY

Cutter head is too low

End plates or bushings worn

Over 40 hours service-life

EXCESS VIBRATION

Bearing worn

Cutter head contacting ground

Wheels worn out

MACHINE JUMPS

ERRATICALLY

Cutter head is hitting ground

RPM is too low

Surface is severely uneven

DRIVE BELT WEARING

PREMATURELY

Pulley is misaligned

Wrong belt

*Motor repair and warranty issues

are handled directly

by your local engine service center.

For any other problems or questions,

please contact your local representative

SMITH Mfg today at 800-653-9311

(954) 941-9744.

Cutter head is hitting ground

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com

VERSION 6/2013

Hydraulic

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com

MAINTENANCE CHECK LIST

• Keep a coating of grease on the drive shaft

and threads for easy installation or removal,

and for longer hex bushing life.

• Check all fasteners and re-tighten, since the

machine will vibrate the fasteners loose if they

are not secured. Use locktight.

• Check the Drive belt for wear, and adjust

(tension), or replace as required.

After replacing belts, check for proper tension:

• Adjust Idler to tension belt. Do not over

tighten.

• Check that the pulleys are aligned properly

to ensure the belts are running true.

• The inside housing must be clean, and

remove any build-up from inside the cage so

cutters and drum rotate freely.

MAINTENANCE SCHEDULE

DAILY

Oil felt seals

Clean dirt from equipment

WEEKLY

Clean caster wheels

Grease slide bar

Inspect guards

EVERY 16 HRS OF OPERATION

Check cutter bearings

Check drive bearings

Check rubber bushings

EVERY 50 HRS OF OPERATION

Check springs

Check meters

Order spare parts

Before beginning servicing on any

X3 unit, DISCONNECT FROM

HYDRAULIC SUPPLY SOURCE

Table des matières

Manuels Électricité industrielle populaires d'autres marques

Rexroth Indramat

Rexroth Indramat DURADRIVE SYSTEM200 Manuel technique

Abtech

Abtech HVJB Series Mode d’emploi

Murata

Murata GRM0335C1H8R1DA01 Series Manuel utilisateur

SAF-HOLLAND

SAF-HOLLAND CBX 5415.5 Manuel utilisateur

Eaton

Eaton Ulusoy HMH24-04 Manuel utilisateur

Newlong

Newlong NP-7H Manuel utilisateur

Murata

Murata GJM0335C1E4R4BB01 Series Manuel utilisateur

Stahl

Stahl 8575/12 Manuel utilisateur

SI Pegasus Manuel utilisateur

Murata

Murata GRM1555C1H2R7CA01 Seies Manuel utilisateur

Murata

Murata GRM0225C1E6R4BA03 Series Manuel utilisateur

Cooper Power Systems

Cooper Power Systems VXE15 Manuel utilisateur

S&C

S&C Vista SD Manuel utilisateur

Murata

Murata GRM0335C2A7R3CA01 Series Manuel utilisateur

Siemens

Siemens 3VA9988-0BM10 Manuel utilisateur

Siemens

Siemens SITRANS LVS100 Manuel utilisateur

Murata

Murata GRM32ER60G227ME05 Series Manuel utilisateur

Siemens

Siemens SENTRON SUPERSWITCH 3KL82 Series Manuel utilisateur
