Smeg LBE16 Manuel utilisateur
19 590 1488 00 1
Index Pag.
1. Instructions for unpack and transport 2
2. Plinth dismount 3
3. Rubber strap dismount 4
4. Rubber strap use 5
5. Door dismount 6
6. Cleaning 7
19 590 1488 00 2
1. Instruction for unpack and transport
NO NO
NO NO
YES YES
19 590 1488 00 3
2. Plinth dismount
1) With a screwdriver, makes lever on the points
…. 2) … indicated, with a movement from the bottom
to the upper …
3) in order to permit the plastic tooth, on the
plinth, to come out from the site 4) After the described operation on both sides,
proceed with the plinth dismount following the
order in picture.
5) For the assemblage of the plinth, follow the
order on the picture. 6) Finish the operation with a light pressare on
the points in picture. The “click” sound will
indicate that the plinth is assembled.
2
1
2
3
1
2
1
A
19 590 1488 00 4
3. Rubber strap dismount
1) For remove the rubber straps on the door 2) rotates the plastic terminal for 180° ….
3) … with a light pressure… 4) and the extract them.
19 590 1488 00 5
4. Rubber strap use

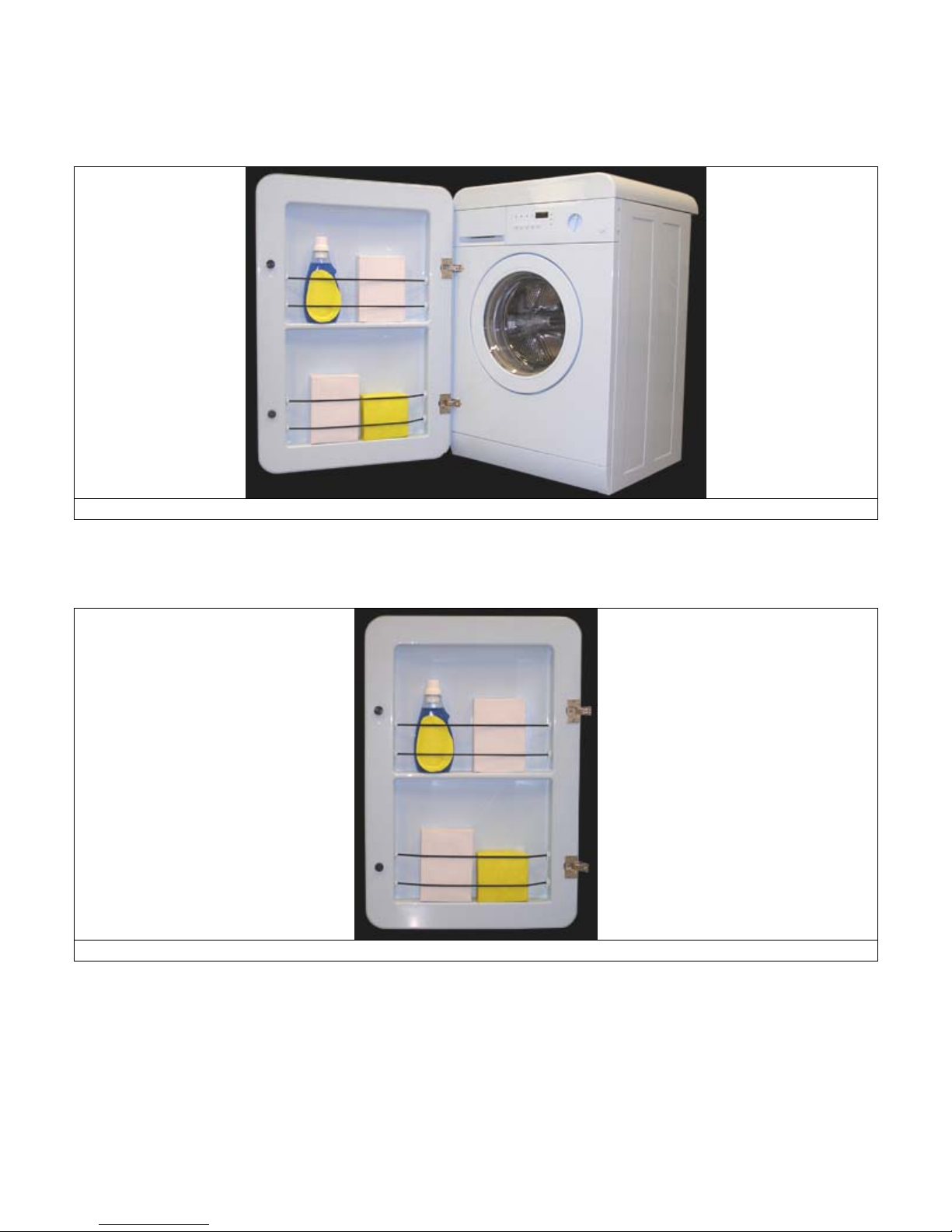

In picture, the possibility to insert some products in the vain can be appreciated …
ATTENTION:
Weight Max 4,0kg
… these products are of daily use, e.g. detergents, softener etc.
ATTENTION
This appliance is intended for use by adults.
Do not allow children to tamper with the controls or play with the washing machine.
Do not allow children to approach the appliance.
Keep children away from the appliance.
19 590 1488 00 6
5. Door dismount
1) For remove the door, unscrew the indicated
screw 2) on both the hinges (cross screwdriver)
SI
NO
3) support the door and extract … 4) .. the hinges from their sites.
19 590 1488 00 7
6. Instruction for cleaning
Instructions for the cleaning of the product:
The surfaces have to be cleaned with water and soft clothes (e.g. micro fiber)
Do not use never chemical products or aggressives (e.g. abrasives clothes, etc.)
YES NO
YES NO
