Instructions for Use
Washing machine
150241
150241
Thank you for your condence in purchasing our
washing machine, and congratulations on the
excellent choice.
Your new washing machine meets the requirements
of modern treatment of laundry. It is rational in the
consumption of energy, water and washing agents.
Our appliances are friendly to the environment.
Some of the materials may be recycled, others
deposited or decomposed. To avoid pollution of
environment, once your appliance is no longer
useful, take it to your local authorized waste
appliance dealer.
Description of washing machine ..................... 3
Cautions ............................................................. 4
Installation and connection.............................. 6
Operation ......................................................... 10
Tips for washing and energy saving ............. 19
Cleaning and maintenance............................. 21
Failures............................................................. 24
Tables ............................................................... 27
2
3
150241
150241
1. Front panel
2. Detergent dispenser
3. Door
4. Filter lid
5. Adjustable legs
6. Water outlet hose
7. Water inlet hose
8. Mains power cable
Dimensions (w x d x h):
600 mm x 600 mm x 850 mm
Depth with door open: 106 cm
Weight (net): 90 kg
Nominal voltage: 230 V, 50 Hz
Power: 2000 W
Max. load: 6 kg
Power socket: (230 V, 50 Hz, 10 A)
Water pressure: min. 0,05 MPa, max. 0,8 MPa
Fuse: 10 A
2
3
Description of washing machine
Technical information
150241
150241
•
Be sure to remove transport brackets prior rst use
of the appliance. Attempted operation of the blocked
machine may result in irreparable damage which is
not covered by the manufacturer’s warranty!
• When connecting your washing machine to water
supply, be sure to use brand new water inlet hose
and appropriate sealing gaskets (attached).
• Do not locate the machine in a room with
temperature below 0°C. Parts of the machine may
be damaged if frozen.
• Install the washing machine in a perfectly
horizontal position, on solid at concrete oor.
• Follow the instructions for correct installation and
water and mains connections.
• Never immerse the end of the drain hose into the
draining water.
• Prior starting the washing cycle lock the door by
pressing them at the designed spot.
• Door may not be open during the washing cycle.
• Use only detergents and softeners for machine
wash. Manufacturer may not assume responsibility
for any damage and eventual discoloring of
gaskets and plastic components as a consequence
of incorrect use of bleach and/or coloring agents.
• For removal of lime residues use such agents
with added anti-corrosion agents. Follow the
manufacturer’s instructions. Finish the lime
removal by multiple rinsing to remove completely
eventual acid residues.
• Never use detergents containing solvents, since
there is a danger of creating toxic gasses which
may damage the machine and result in ignition or
explosion.
• Upon completion of washing operation close the
water faucet.
• Before any transport block the machine by
inserting at least one transport blocking rod. Prior
this operation disconnect the appliance from the
mains power!
4
5
Cautions
150241
150241
• Rating plate with basic information is located
above the opening of the machine.
Before connecting the appliance read
these instructions carefully. Repairing
the failure arising from inappropriate
connections or use of the appliance is not
covered by the guarantee.
The symbol on the product or on its
packaging indicates that this product
may not be treated as household
waste. Instead it shall be handed over
to the applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product
is disposed of correctly, you will help
prevent potential negative consequences
for the environment and human health,
which could otherwise be caused
by inappropriate waste handling of
thisproduct. For more detailed information
about recycling of this product, please
contact your local city ofce, your
household waste disposal service or the
shop where you purchased the product.
4
5
150241
150241
In removing the wrapping be careful not to
damage the appliance with a sharp object.
• Our appliances are packed in environmentally
friendly materials which may be recycled,
deposited or decomposed without any threat to
the environment.
• To this end all wrappings are marked accordingly.

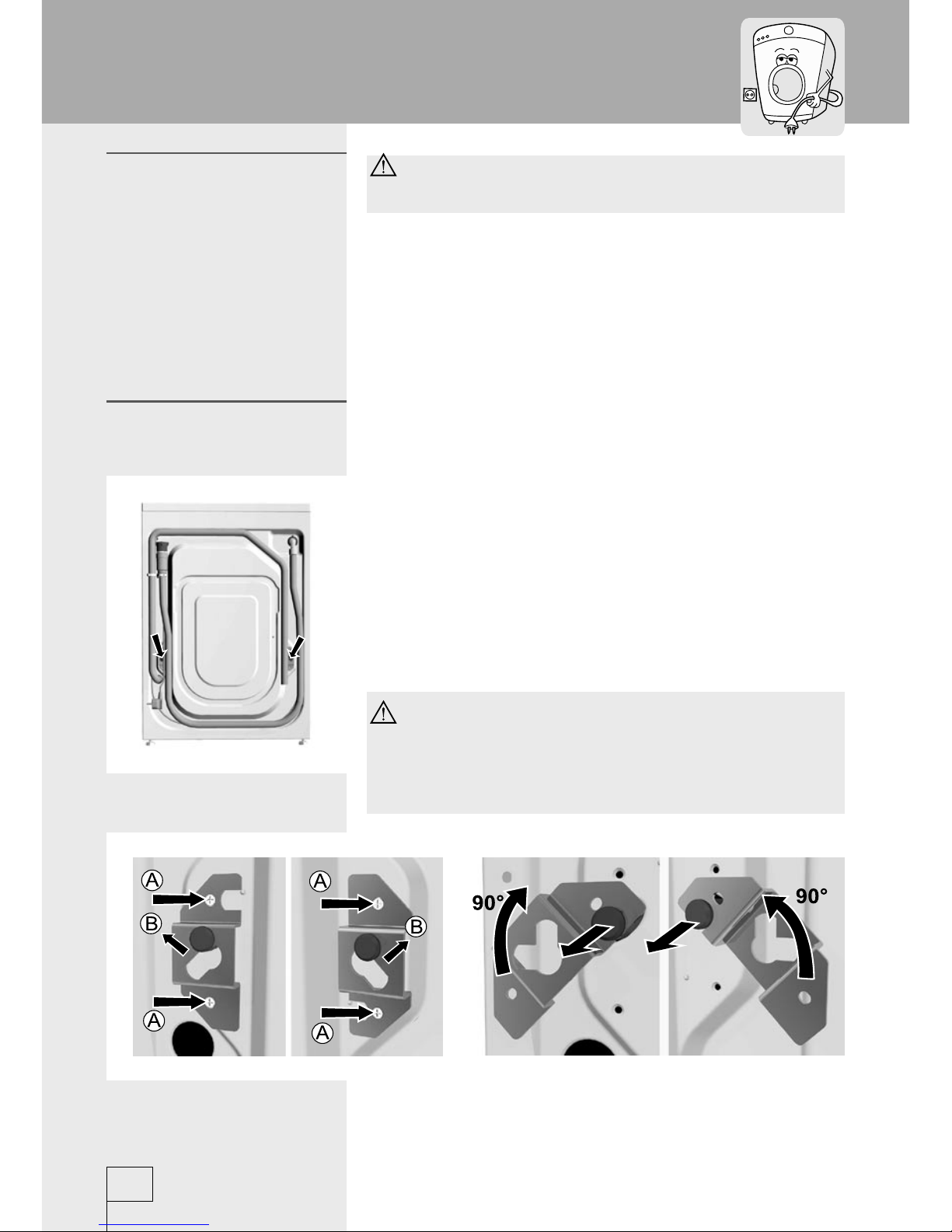

• Move the pipes.
• Loosen screws A at the rear of the machine
(Fig. 1).
• Remove the brackets B (Fig. 1) and slide them
into the groove on the blocking rod (Fig. 2) - the
right one should be turned around.
• Use the brackets to rotate blocking rods for 90°
and pull them out.
• Close the openings with attached plastic pegs.
Save transport brackets for eventual later use.
Be sure to remove the transport brackets
prior rst use, otherwise the appliance
may be permanently damaged. In such
cases the warranty conditions are void.
Fig. 1
Fig. 2
Fig. 2
6
7
Installation and connection
Package removal
Removal of transport
brackets
150241
150241
• Put the appliance in horizontal position by turning
the adjustable legs.
The legs are adjustable up to +/- 1 cm.
The oor below the appliance should have
concrete base, and must be dry and clean,
otherwise the appliance may slide.
• If you have a tumble dryer of the same
dimensions, you can place it on top of the
washing machine.
To ensure correct operation of the appliance,
water pressure inlet must be between 0,05 and
0,8 MPa.
Minimum water pressure can be established
by measuring the quantity of poured out water.
3 litres of water must be poured out from
completely opened tap in 15 seconds.
• Insert the gasket with screen into the water inlet
hose thread Screw the hose thread to the water
faucet
• In case of hot and cold water connection, connect
one hose to cold and other to hot water faucet as
marked at the rear of the appliance (letters C and H)
(C - cold; H - hot)
6
7
Water inlet connection
Leveling the appliance
150241
150241
Partial Aqua-stop (water stop system)
In case of damage on the interior pipe, leaking is
prevented by automatic closing system which stops
water inlet to the machine. In such cases display A
turns red.
Inlet pipe must be replaced.
Complete Aqua-stop
In case of damage on the interior pipe, leaking is
prevented by automatic closing system which stops
water inlet to the machine.
Security system also detects whether there is any
water leakage within the interior of the machine.
In such cases washing is suspended, machine
switches on the pump and signals error.
Do not immerse the Aqua-stop system inlet
pipe into the water, because it contains the
electric valve!
• Fix the outlet hose to run into the sink or the
bathtub, or connect it directly to the wall drain
outlet (diameter min. 4 cm).
• Wall drain must be installed properly and must
enable occasional cleaning.
• Fasten the outlet hose support with a piece of
rope led through the hose elbow, to prevent the
hose from slipping to the oor.
The end of outlet hose should be placed between
minimum 60 cm and maximum 100 cm above the
oor level.
• Plug the mains power cable to the wall mains
socket.
• Required voltage and other information are written
on the rating plate above the door opening of the
machine.
8
9
Connect the appliance
to the mains supply
Water outlet connection
150241
150241
The wall socket must be accessible at all
times and must be equipped with an earth
lead (in accordance with the local safety
regulations).
The permanent connection must be tted
by an authorized personnel only.
Damaged mains power cable may be
replaced only by the producer or his
authorized personnel.
Never plug the appliance into the electric
shaver socket or hair dryer socket.
8
9
150241
150241
A - program selector
B - Reduced spinning key-switch
(switch for reduced spinning)
C - Half program
D - Cold wash
E - pump stop knob
F - START/PAUSE knob
Signal LED’s:
- washing program stages
• wash
• rinse
• spin
- Child lock
10
11
Program selector Basic programs Partial programs
Cotton
Pre-wash
Heavy duty
Easy iron
Rinse
Synthetics
Pre-wash
Softening
Delicate Pumping water
Wool Spinning
Manual wash
Cold wash
Operation
