We advise you to read this manual carefully, which contains all the instructions for

maintaining the appliance’s aesthetic and functional qualities.

For further information on the product: www.smeg.com

TRANSLATION OF THE ORIGINAL INSTRUCTIONS

Instructions

1 Instructions

1.1 General safety instructions

Risk of personal injury

• During use the appliance and its

accessible parts become very hot.

Never touch the heating elements

during use.

• Protect your hands by wearing

oven gloves when moving food

inside the oven.

• Never try to put out a fire or

flames with water: Turn off the

appliance and smother the flames

with a fire blanket or other

appropriate cover.

• This appliance may be used by

children aged at least 8 and by

people of reduced physical,

sensory or mental capacity, or

lacking in experience in the use of

electrical appliances, provided

that they are supervised or

instructed by adults who are

responsible for their safety.

• Children must not play with the

appliance.

• Keep children under the age of

eight at a safe distance unless

they are constantly supervised.

• Keep children under the age of 8

away from the appliance when it

is in use.

• Cleaning and maintenance must

not be carried out by

unsupervised children.

• Be aware of how rapidly the

cooking zones heat up. Do not

place empty pans on the heat.

Danger of overheating.

• Fats and oils can catch fire if they

overheat. Do not leave the

appliance unattended while

preparing foods containing oils or

fats. If fats or oils catch fire, never

put water on them. Place the lid

on the pan and turn off the

relevant cooking zone.

Instructions

• The cooking process must always

be monitored. A short cooking

process must be continuously

monitored.

• Do not place metal objects, such

as dishes or cutlery, on the hob

surface during use as they may

overheat.

• Do not insert pointed metal

objects (cutlery or utensils) into the

slots in the appliance.

• Do not pour water directly onto

very hot trays.

• Keep the oven door closed

during cooking.

• If you need to move food or at the

end of cooking, open the door 5

cm for a few seconds, let the

steam come out, then open it fully.

• Do not open the storage

compartment (where present)

when the oven is on and still hot.

• The items inside the storage

compartment could be very hot

after using the oven.

• Do not use or store flammable

materials in the storage

compartment (where applicable)

or near the appliance.

• Do not use aerosols in the vicinity

of this appliance whilst it is in use.

• Switch off the appliance

immediately after use.

• Do not modify this appliance.

• Always use any necessary/

required personal protective

equipment (PPE) before

performing any work on the

appliance (installation,

maintenance, positioning or

movement).

• Before performing any work on

the appliance, switch off the

power supply.

• Have qualified personnel carry

out installation and assistance

interventions according to the

standards in force.

• Do not try to repair the appliance

yourself or without the intervention

of a qualified technician.

• Do not pull the cable to remove

the plug.

• If the power supply cable is

damaged, contact technical

support immediately and they will

replace it.

Instructions

Risk of damaging the appliance

• Do not use abrasive or corrosive

detergents (e.g. scouring

powders, stain removers and

metallic sponges) on glass parts.

• Use wooden or plastic utensils.

• Racks and trays should be

inserted as far as they will go into

the side guides. The mechanical

safety locks that prevent them from

being removed must face

downwards and towards the

back of the oven cavity.

• Do not seat on the appliance.

• Do not use steam jets to clean the

appliance.

• Do not obstruct ventilation

openings and heat dispersal slots.

• Never leave the appliance

unattended during cooking

operations where fats or oils

could be released, as these could

then heat up and catch fire. Be

very careful.

• Never leave objects on the

cooking surface.

• Do not use the appliance to heat

rooms for any reason.

• Do not spray any spray products

near the oven.

• Do not use plastic cookware or

containers when cooking food.

• Do not put sealed tins or

containers in the oven.

• Remove all trays and racks which

are not required during cooking.

• Do not cover the bottom of the

oven cavity with aluminium or tin

foil sheets.

• Do not place pans or trays

directly on the bottom of the oven

cavity.

• If you wish to use greaseproof

paper, place it so that it will not

interfere with the hot air circulation

inside the oven.

• Do not use the open door to rest

pans or trays on the internal glass

pane.

• Cooking vessels or griddle plates

should be placed inside the

perimeter of the hob.

• All pans must have smooth, flat

bottoms.

Instructions

• If any liquid does boil over or spill,

remove the excess from the hob.

• Take care not to spill acid

substances such as lemon juice or

vinegar on the hob.

• Do not put empty pans or frying

pans on switched on cooking

zones.

• Do not use steam jets to clean the

appliance.

• Do not use rough or abrasive

materials or sharp metal scrapers.

• Do not use cleaning products

containing chlorine, ammonia or

bleach on parts made of steel or

that have metallic surface finishes

(e.g. anodizing, nickel- or

chromium-plating).

• Do not use abrasive or corrosive

detergents (e.g. scouring

powders, stain removers and

metallic sponges) on glass parts.

• Do not wash removable parts

such as the hob pan support

grids, flame-spreader crowns and

burner caps in the dishwasher.

Installation

• This appliance must not be

installed in a boat or caravan.

• The appliance must not be

installed on a pedestal.

• Position the appliance into the

cabinet cut-out with the help of a

second person.

• Never use the oven door to lever

the appliance into place when

fitting.

• Avoid exerting too much pressure

on the oven door when open.

• Do not use the handle to lift or

move the appliance.

• To avoid potential overheating,

the appliance must not be

installed behind a decorative

door or a panel.

• Have the electrical connection

performed by authorised

technical personnel.

• The appliance must be connected

to earth in compliance with

electrical system safety standards.

Instructions

• Use cables withstanding a

temperature of at least 90°C.

• The tightening torque of the

screws of the terminal supply

wires must be 1.5 - 2 Nm.

For this appliance

• After use, switch off the plates.

Never rely solely on the

cookware detector.

• Supervise children carefully as

they cannot readily see the

residual heat indication. After use

the cooking zones remain hot for

a certain period of time even if

they have been turned off. Keep

children away from the cooking

zones.

• The glass ceramic surface is

highly resistant to impact.

However, prevent hard, solid

objects from falling on the

cooking surface as they may

cause it to break if they are sharp.

• Do not use the glass ceramic

cooking surface as a support

surface.

• If cracks or fissures form, or if the

glass ceramic cooking surface

breaks, turn off the appliance

immediately. Disconnect the

power supply and call Technical

Support.

• Ensure that the appliance is

switched off before replacing the

bulb.

• Do not rest any weight or sit on

the open door of the appliance.

• Take care that no objects are

stuck in the doors.

• People who have pacemakers or

other similar devices fitted must

make sure that the operation of

these devices is not jeopardised

by the inductive field, whose

frequency range is between 20

and 50 kHz.

• In conformity with the provisions

regarding electromagnetic

compatibility, the electromagnetic

induction cooking hob comes

under group 2 and class B (EN

55011).

Instructions

1.2 Appliance purpose

• This appliance is intended for

cooking food in the home

environment. Every other use is

considered improper.

• The appliance is not designed to

operate with external timers or

with remote-control systems.

1.3 Manufacturer’s liability

The manufacturer declines all liability

for damage to persons or property

caused by:

• Use of the appliance other than

that specified

• Failure to comply with the

instructions in the user manual

• Tampering with any part of the

appliance

• The use of non-original spare

parts.

1.4 This user manual

This user manual is an integral part of the

appliance and must therefore be kept in its

entirety and within the user’s reach for the

whole working life of the appliance.

Read this user manual carefully before using

the appliance.

1.5 Identification plate

The identification plate bears the technical

data, serial number and brand name of the

appliance. Do not remove the identification

plate for any reason.

1.6 Disposal

This appliance must be disposed of

separately from other waste

(Directives 2002/95/EC, 2002/

96/EC, 2003/108/EC). The appliance

does not contain substances in quantities

sufficient to be considered hazardous to

health and the environment, in accordance

with current European directives.

To dispose of the appliance:

• Cut the power supply cable and remove

it along with the plug.

Power voltage

Danger of electrocution

• Disconnect the mains power supply.

• Unplug the appliance.

Instructions

• Deliver the appliance to the appropriate

recycling centre for electrical and

electronic equipment waste, or return it to

the retailer when purchasing an

equivalent product, on a one for one

basis.

Our appliances are packaged in non-

polluting and recyclable materials.

• Deliver the packing materials to the

appropriate recycling centre.

1.7 How to read the user manual

This user manual uses the following reading

conventions:

1. Sequence of instructions for use.

• Standalone instruction.

Plastic packaging

Danger of suffocation

• Do not leave the packaging or any part

of it unattended.

• Do not let children play with the plastic

bags.

Instructions

General information on this user

manual, on safety and final

disposal.

Description

Description of the appliance and its

accessories.

Use

Information on the use of the

appliance and its accessories,

cooking advice.

Cleaning and maintenance

Information for proper cleaning and

maintenance of the appliance.

Installation

Information for the qualified

technician: Installation, operation

and inspection.

Safety instructions

Information

Advice

Description

2 Description

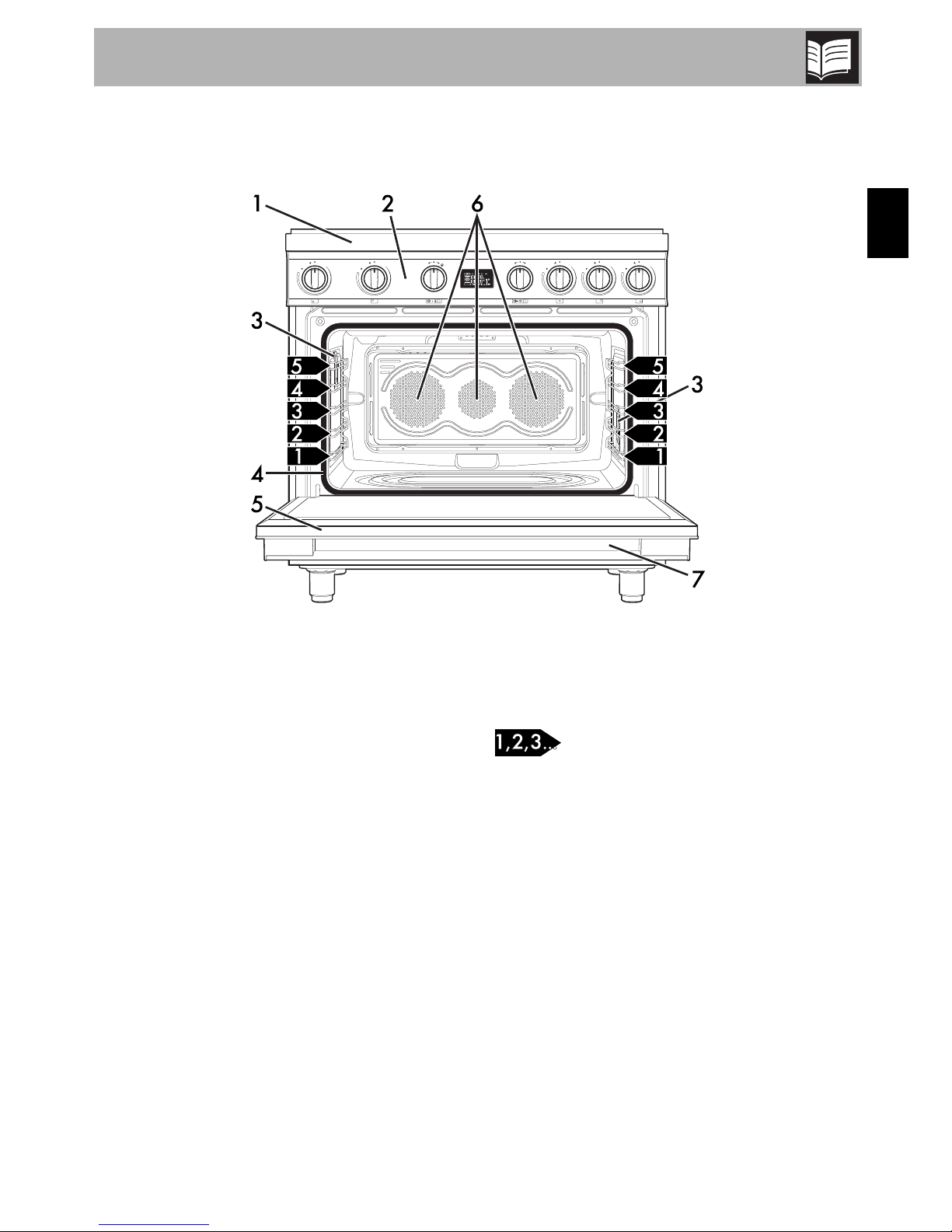

2.1 General Description

1 Hob

2 Control panel

3 Oven light

4 Seal

5 Door

6 Fan

7 Storage compartment

Rack/tray support frames

Description

2.2 Hob

* Power levels are approximate and can vary according to the pan used or the settings made.

Advantages of induction cooking • Energy saving thanks to the direct

transmission of energy to the pan

(suitable magnetisable cookware is

required) compared to traditional

electric cooking.

• Improved safety as the energy is only

transmitted to the pan placed on the hob.

• High level of energy transmitted from the

induction cooking zone to the base of

the pan.

• Rapid heating speed.

• Reduced danger of burns as the cooking

surface is only heated under the base of

the pan; foods which overflow do not

stick.

Zone Outer diameter

(mm)

Max. power draw

(W)*

Power draw

with Booster function

(W)*

1145 1400 2200

2180 1850 3000

3210 2300 3700

4270 2600 3700

The hob is equipped with an

induction generator for each

cooking zone. Each generator

located under the glass ceramic

cooking surface creates an

electromagnetic field which

induces a thermal current in the

base of the pan. This means the

heat is no longer transmitted from

the hob to the pan but created

directly inside the pan by the

inductive current.

Table des matières

Autres manuels Smeg Appareils de cuisine

Smeg

Smeg MFF01 Manuel utilisateur

Smeg

Smeg CS9GMXA Manuel utilisateur

Smeg

Smeg B70CMSX5 Manuel utilisateur

Smeg

Smeg SUK91CMX9 Manuel utilisateur

Smeg

Smeg CUISSON FESTIVE MFF11 Manuel utilisateur

Smeg

Smeg A11A-5 Manuel utilisateur

Smeg

Smeg SNZ106VML Manuel utilisateur

Smeg

Smeg CVI318LWX2 Manuel utilisateur

Smeg

Smeg FSP9610X Manuel utilisateur

Smeg

Smeg CVIA621NR3 Manuel utilisateur

Smeg

Smeg TR103BL Manuel utilisateur

Smeg

Smeg CSA150X Manuel utilisateur

Smeg

Smeg GLASS SPLASHBACK Manuel utilisateur

Smeg

Smeg CVIA638RN3 Manuel utilisateur

Smeg

Smeg Classica CVI338LX3 Manuel utilisateur

Smeg

Smeg MFF01 Manuel utilisateur

Smeg

Smeg SCV115A Manuel utilisateur

Smeg

Smeg Gas/Electric Slot-In Cooker SNZ634E Manuel utilisateur

Smeg

Smeg GID9002 Manuel utilisateur

Smeg

Smeg MFF11BLEU Manuel utilisateur

Smeg

Smeg SCB66MPX5 Mode d’emploi

Smeg

Smeg A1AU6 Manuel utilisateur

Smeg

Smeg SCV115A Manuel utilisateur

Smeg

Smeg CVI138LG Manuel utilisateur

Manuels Appareils de cuisine populaires d'autres marques

Tayama

Tayama TYG-35AF Manuel utilisateur

AEG

AEG 43172V-MN Manuel utilisateur

REBER

REBER Professional 40 Guide de l'utilisateur

North American

North American BB12482G / TR-F-04-B-NCT-1 Manuel utilisateur

Presto

Presto fountain popper Manuel utilisateur

Westmark

Westmark 1035 2260 Manuel utilisateur

Zanussi

Zanussi ZCG64396XA Manuel utilisateur

HOFFEN

HOFFEN SM-9302M Manuel utilisateur

Philips

Philips HD3133 Manuel utilisateur

Ronco

Ronco Beef Jerky Manuel utilisateur

Hendi

Hendi 470411 Manuel utilisateur

Livoo

Livoo MEN386 Manuel utilisateur

Vogue

Vogue D446 Manuel utilisateur

croydon

croydon WR-10313-700 Manuel utilisateur

ADE

ADE AUTOMATIC-L Manuel utilisateur

Chefman

Chefman RJ43-SQ Series Manuel utilisateur

Vacmaster

Vacmaster VP680 Manuel utilisateur

Jetmaster

Jetmaster 900HG Manuel utilisateur
