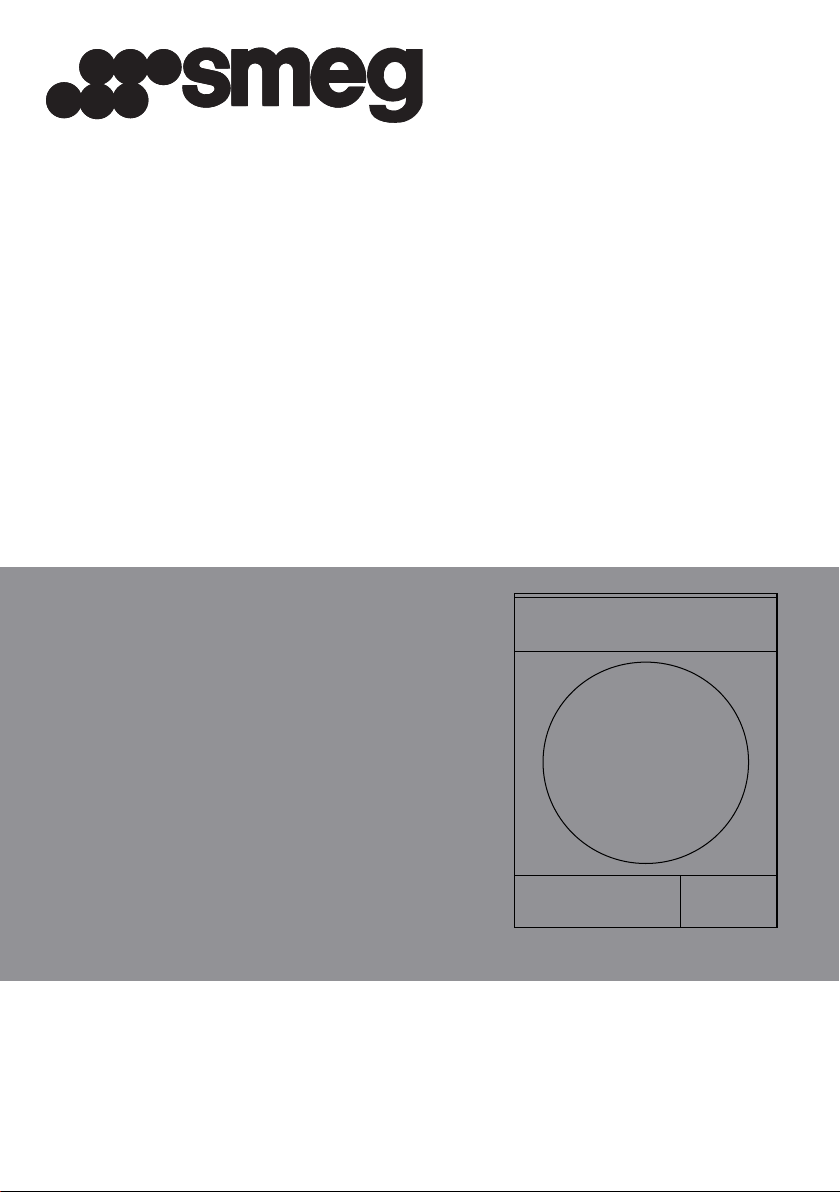

Smeg SAHP86 Manuel utilisateur

SAHP86

Dryer

User Manual

SMEG_SAHP86_A+++/110515.0930

Please read this user manual first!

Dear Customer,

Thank you for prefering a Smeg product. We hope that your product which has been manufactured with high quality

and technology will give you the best results. We advise you to read through this manual and the other accompanying

documentation carefully before using your product and keep it for future reference. If you transfer the product to

someone else, give its manual as well. Pay attention to all details and warnings specified in the user manual and

follow the instructions given therein.

Use this user manual for the model indicated on the cover page.

Explanation of symbols

Throughout this user manual the following symbols are used:

CImportant information or useful hints about

usage.

AWarning for hazardous situations with

regard to life and property.

BWarning against electric shock.

Warning against hot surfaces.

Warning against fire hazard.

Packaging materials of the product are

manufactured from recyclable materials in

accordance with our National Environment

Regulations.

Do not dispose of the packaging wastes with the domestic waste or other wastes, discard them to the dedicated

collection points designated by the local authorities.

3 / 32 EN

Dryer / User Manual

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of

personal injury or property damage. Failure to follow these instructions shall

void any warranty.

1.1 General safety

•Dryer can be used by the children at the age of 8 and over and the

persons with physical, sensory or mental disorders or unlearned or

inexperienced people as long as they are attended by a person who

will be responsible for their safety or who will instruct them accordingly

about use of the product. Children should not tamper with the machine.

Cleaning and user maintenance works should not be carried out by the

children unless they are attended by someone.

•Children of less than 3 years should be kept away unless continously

supervised.

•Adjustable feet should not be removed. (See Overview) The gap

between the dryer and the surface should not be reduced by the

materials such as carpet, wood and tape. This will cause problems with

the dryer.

•Always have the installation and repairing procedures carried out by the

Authorized Service Agent. Manufacturer shall not be held liable for

damages that may arise from procedures carried out by unauthorized

persons.

•Never wash the dryer by spraying or pouring water onto it! There is the

risk of electric shock!

4 / 32 EN Dryer / User Manual

Important instructions for safety and environment

1.1.1 Electrical safety

AElectrical safety instructions should be followed while electrical

connection is made during the installation.

•Connect the dryer to a grounded outlet protected by a fuse at the

value specified on the type label. (See Overview) Have the grounding

installation performed by a qualified electrician. Our company shall not

be liable for any damages that will arise when the dryer is used without

grounding in accordance with the local regulations.

•The voltage and allowed fuse protection is stated on the type label plate.

(See Overview)

•The voltage specified on the type label must be equal to your mains

voltage. (See Overview)

•Unplug the dryer when it is not in use.

•Unplug the dryer from the mains during installation, maintenance,

cleaning and repair works.

•Do not touch the plug with wet hands! Never unplug by pulling on the

cable, always pull out by grabbing the plug.

•Do not use extension cords, multi-plugs or adaptors to connect the dryer

to power supply in order to decrease the risk of fire and electric shock.

•Power cable plug must be within easy reach after installation.

BDamaged mains cable should be changed notifying the Authorized

Service.

BIf the dryer is faulty, it must not be operated unless it is repaired

by an authorized service agent! There is the risk of electric shock!

5 / 32 EN

Dryer / User Manual

Important instructions for safety and environment

1.1.2 Product safety

Points to be taken into consideration for fire hazard:

Below specified laundry or items must not be dried

in the dryer considering fire hazard.

•Unwashed laundry items

•Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain

removers, turpentine, paraffin or paraffin removers must be

washed in hot water with plenty of detergent before being dried

in the dryer.

For this reason especially the items containing the above

specifiedstains must be washed very well, to do thisuse adequate

detergent and choose a high washing temperature.

Below specified laundry or items must not be dried in the dryer

due to the fire hazard:

•Garments or pillows bolstered with rubber foam (latex foam),

shower bonnets, water resistant textiles, materials with rubber

reinforcement and rubber foam pads.

•Clothing cleaned with industrial chemicals.

Items such as lighter, match, coins, metal parts, needle etc.

may damage the drum set or may lead to functional problems.

Therefore check all the laundry that you will load into your dryer.

Never stop your dryer before the programme completes. If you

must do this, remove all laundry quickly and lay them out to

dissipate the heat.

Clothes that are washed inadequately may ignite on their own and

even may ignite after drying ends.

6 / 32 EN Dryer / User Manual

Important instructions for safety and environment

Oil-affected items can ignite spontaneously, especially when

exposed to heat sources such as in a tumble dryer. The items

become warm, causing an oxidation reaction in the oil. Oxidation

creates heat. If the heat cannot escape, the items can become hot

enough to catch fire. Piling, stacking or storing oil-affected items

can prevent heat from escaping and so create a fire hazard.

If it is unavoidable that fabrics that contain vegetable or cooking

oil or have been contaminated by hair care products be placed in

a tumble dryer they should first be washed in hot water with extra

detergent - this will reduce, but not eliminate, the hazard.

•You must provide enough ventilation in order to prevent gases exiting from

devices operating with other types of fuels including the naked flame from

accumulating in the room due to the back fire effect.

AUnderwear that contains metal reinforcements should not be

dried in the dryer. Dryer may be damaged if metal reinforcements

come loose and break off during drying.

CUse softeners and similar products in accordance with the

instructions of their manufacturers.

CAlways clean the lint filter before or after each loading. Never

operate the dryer without the lint filter installed.

•Never attempt to repair the dryer by yourself. Do not perform any repair

or replacement procedures on the product even if you know or have the

ability to perform the required procedure unless it is clearly suggested in

the operating instructions or the published service manual. Otherwise, you

will be putting your life and others' lives in danger.

7 / 32 EN

Dryer / User Manual

Important instructions for safety and environment

•There must not be a lockable, sliding or hinged door that may block

the opening of the loading door in the place where your dryer is to be

installed.

•Install your dryer at places suitable for home use. (Bathroom, closed

balcony, garage etc.)

•Make sure that pets do not enter the dryer. Check the inside of the dryer

before operating it.

•Do not lean on the loading door of your dryer when it is open, otherwise it

may fall over.

•The lint must not be allowed to accumulate around the tumble dryer.

1.2 Mounting over a washing machine

•A fixing device should be used between the two machines when installing

the dryer above a washing machine. The fitting device must be installed

by the authorized service agent.

•Total weight of the washing machine and the dryer -with full load- when

they are placed on top of each other reaches to approx. 180 kilograms.

Place the products on a solid floor that has sufficient load carrying

capacity!

AWashing machine cannot be placed on the dryer. Pay attention

to the above warnings during the installation on your washing

machine.

8 / 32 EN Dryer / User Manual

Important instructions for safety and environment

Installation Table for Washing Machine and Dryer

Dryer Depth Washing Machine Depth

62cm 60 cm 54 cm 50 cm 49 cm 45 cm 40 cm

54 cm Can be

installed

Can be

installed

Can be

installed

Can be

installed

Can be

installed

Can be

installed

Cannot

installed

60 cm Can be

installed

Can be

installed

Can be

installed

Can be

installed

Can be

installed

Cannot

installed

Cannot

installed

1.3 Intended use

•Dryer has been designed for domestic use. It is not designed for

commercial purposes and should not be used for other purposes.

•Use the dryer only for drying laundry that are marked accordingly.

•Manufacturer denies any liability for the damages arising from misuse or

faulty handling of the product.

•The service life of the dryer that you purchased is 10 years. During this

period, original spare parts will be available to operate the dryer properly.

9 / 32 EN

Dryer / User Manual

Important instructions for safety and environment

1.4 Children's safety

•Packaging materials are dangerous to children. Keep packaging materials

away from children.

•Electrical products are dangerous for the children. Keep children away

from the product when it is operating. Do not let them tamper with the

dryer. Use the child-proof lock in order to prevent the children to tamper

with the dryer.

CChild-proof lock is on the control panel. (See 5.12 Child-proof

lock)

•Keep loading door closed even when the dryer is not in use.

1.5 Compliance with the WEEE Directive and

disposing of the waste product

This product does not contain the harmful and prohibited

substances which are specified in the “Control of the Waste

Electrical and Electronic Equipments” as published by Republic of

Turkey Ministry of Environment and Urbanization. It complies with

the WEEE Directive.

This product was made of high quality items and materials which

are recyclable and reusable. Therefore, do not dispose of the product at the

end of its service life with the domestic and other wastes. Take them to a

collection point for the recycling of the electrical and electronic devices. Ask

your local administration for these collection points. By delivering the used

products to recycling points, contribute to the protection of the environment

and the natural resources. For children's safety, cut the power cord and

break the locking mechanism, if any, of the loading door so that the product

will be nonfunctional before disposing it.

1.6 Packaging information

Packaging of the product is made of recyclable materials pursuant to

our national legislation. Do not dispose of the packaging wastes with the

domestic waste or other wastes, discard them to the dedicated collection

points designated by the local authorities.

10 / 32 EN Dryer / User Manual

Important instructions for safety and environment

EN 2

Height (min. / max.) 84,6 cm / 86,6 cm*

Width 59,5 cm

Depth 60,9 cm

Capacity (max.) 8 kg**

Net weight (plastic front door usage) 50,5 kg

Net weight (glass front door usage) 52,5 kg

Voltage

See type label***Rated power input

Model code

1.7 Technical Specifications

* Min. height: Height with adjustable feet are closed.

Max. height: Height with adjustable feet are opened maximum.

** Dry laundry weight before washing.

*** Type label is located behind the loading door.

CTechnical specifications of the dryer are subject to specification

without notice to improve the quality of the product.

CFigures in this manual are schematic and may not match the

product exactly.

Values stated on markers on the dryer or in the other published

documentation accompanying with the dryer are obtained in

laboratory in accordance with the relevant standards. Depending

on operational and environmental conditions of the dryer, these

values may vary.

Table des matières

Autres manuels Smeg Séchoir

Smeg

Smeg DHT38PLIT Manuel utilisateur

Smeg

Smeg DNP82SEIN Manuel utilisateur

Smeg

Smeg DRY72C Manuel utilisateur

Smeg

Smeg WDI12 Manuel utilisateur

Smeg

Smeg DHT73LIT Manuel utilisateur

Smeg

Smeg DNP83SEES Manuel utilisateur

Smeg

Smeg D3T7WSA Manuel utilisateur

Smeg

Smeg DHT82LSIT Manuel utilisateur

Smeg

Smeg DRY63CS Manuel utilisateur

Smeg

Smeg DN83SE Manuel utilisateur

Smeg

Smeg DRY2005.1 Manuel utilisateur

Smeg

Smeg DNP83SEUK Manuel utilisateur

Smeg

Smeg DHT71EIN Manuel utilisateur

Smeg

Smeg DHT81LUK Manuel utilisateur

Smeg

Smeg DT182IT Manuel utilisateur

Smeg

Smeg DHTW 81 ESA Manuel utilisateur

Smeg

Smeg WD7015TECO Manuel utilisateur

Smeg

Smeg CDL83 Manuel utilisateur

Smeg

Smeg AS 73 CS Manuel utilisateur

Smeg

Smeg DGA39EX Manuel utilisateur

Smeg

Smeg D3T8SSA Manuel utilisateur

Smeg

Smeg DR72IN Manuel utilisateur

Smeg

Smeg ASC82S Manuel utilisateur

Smeg

Smeg DHTS81LSA Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
