INSTRUCTION MANUAL

Rev 0.0 1

CONTENTS EN

CONTENTS

1 INTRODUCTION ........................................................................................ 3

2 DESCRIPTION AND USE OF THE CONTROLS.......................................... 5

2.1 Upper panel ............................................................................................... 5

2.2 Setting the washing program and switching on and off............................... 6

2.2.1 Switching on .............................................................................................. 9

2.2.2 Selecting and starting the program............................................................. 9

2.2.3 End of program ........................................................................................ 10

2.2.4 Interrupting a program.............................................................................. 10

2.2.5 Changing the current program ................................................................. 10

2.2.6 Canceling the current program ................................................................. 11

2.2.7 Options .................................................................................................... 11

2.2.8 Switching off ............................................................................................ 13

2.3 Additional features.................................................................................... 13

2.3.1 Adjusting the water softener..................................................................... 13

3 ENERGY SAVING AND ENVIRONMENTAL RESPECT.............................. 15

3.1 Reducing the consumption of detergent and respecting the environment.15

4 REMOVING THE DISHES......................................................................... 16

5 TROUBLESHOOTING .............................................................................. 17

2 Rev 0.0

Rev 0.0 3

INTRODUCTION EN

1 INTRODUCTION

Thank you for choosing one of our products. To use this dishwasher

correctly and safely, please read this manual carefully. The manual is

divided into sections giving you a step-by-step guide to all your ap-

pliance’s functions. The texts are easy to understand and are com-

plete with detailed illustrations. This user-friendly manual will provide

answers to all your questions about use of the dishwasher.

Before using this dishwasher, carefully read chapter 2 “Use and sa-

fety warnings” of the attached general manual.

For any other information about use and maintenance of the

dishwasher, read the enclosed general manual carefully.

This manual comprises the following sections:

INTRODUCTION: general information about the manual.

USER INSTRUCTIONS: advice on using the washing programs and

information about all the dishwasher functions.

Nomenclature of ﬁgures and tables:

The progressive number of each ﬁgure is shown in the bottom right-

hand corner of the relative box. An example of a progressive number

is “Fig. 4-01”, where the ﬁrst number (4) indicates the section to

which the ﬁgure belongs, while the second number (01) indicates

the progressive number of the ﬁgure in section 4 (Fig. 4-01 is the

ﬁrst ﬁgure in section 4). The tables are numbered in the same way,

bearing in mind that “Tab.” is used instead of “Fig.” (e.g.: Tab. 4-01

is the ﬁrst table in section 4). If a table occupies more than one page,

a letter is added after the progressive number (e.g.: “Tab. 4-01a”,

Tab. 4-01b”).

4 Rev 0.0

INTRODUCTION

Symbols used in this manual (see tab. 1-01)

DANGER. This symbol highlights information and warnings which, if not

observed, may compromise personal safety or damage the appliance.

This symbol highlights general information and warnings.

Tab. 1-01

Rev 0.0 5

USER INSTRUCTIONS EN

2 DESCRIPTION OF THE CONTROLS

2.1 Upper panel

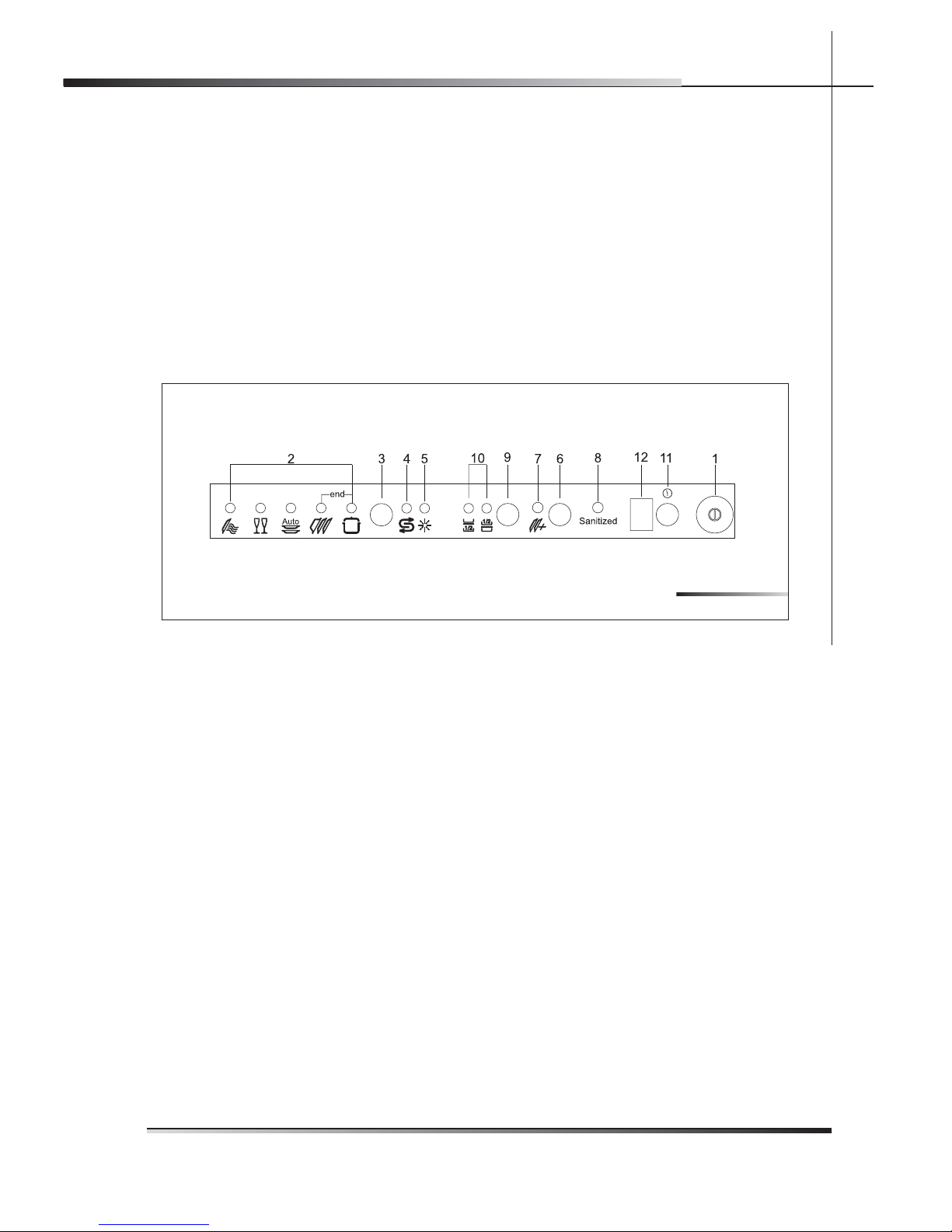

All the dishwasher controls are grouped on the upper panel (see ﬁg. 2-01). The

dishwasher can only be switched on, programmed, switched off, etc. with the

door open.

A brief description (see tab. 2-01) of the various controls on the upper panel is

given below.

FIG. 2-01

6 Rev 0.0

USER INSTRUCTIONS

1On/off button

Press to power the appliance.

Program indicator lights

These show which program is selected and whether there are any faults

(Troubleshooting).

3Program selection button

Press in sequence to select the required program.

4Add salt indicator light (only ﬁtted on some models)

Shows the appliance has run out of salt.

Add rinse aid

(only ﬁtted on some models)

Shows the appliance has run out of rinse aid.

6Supplementary program button

Press to select one of the ﬁve supplementary programs (see table).

7Supplementary program indicator light

Shows that one of the ﬁve supplementary programs will be run (see table).

8Sanitation indicator light

Shows that the function is active.

9Half-load wash button (only ﬁtted on some models)

Press to select the half-load wash option.

Half-load indicator lights (only ﬁtted on some models)

One of the lights shines to show that the half-load wash function has been selected in

the upper or lower rack.

Program delay button

(only ﬁtted on some models)

Press to delay the start of the program up to 9 hours.

12 Display (only ﬁtted on some models)

Tab. 2-01

2.2 Setting the washing program and switching

on and off

The dishwasher is equipped with a control panel (see ﬁg. 2-02) which is used

to program the appliance and switch it on and off.

10a 10b

FIG. 2-02

Rev 0.0 7

USER INSTRUCTIONS EN

To select the most suitable program for the dishes to wash, consult the fol-

lowing table which speciﬁes the most appropriate type of washing sequence

depending on the kind of dishes and how dirty they are (see tabs. 2-02a and

2-02b).

PROGRAM NUMBER

AND SYMBOL

DISHES AND

CUTLERY

PROGRAM

SEQUENCE

TIME CONSUMPTION

MINUTES

(2)

WATER

(1)

ENERGY

kWh (2)

1DISH

WARMING

Pans and

dishes to rinse

and dry

Rinse at 69°C

(156.2°F) Dry. 50’ 3.9 l

1,03 gal. 0.64

2CRYSTAL Moderately

dirty

Wash at 45°C

(113°F)

Cold rinse.

Rinse at 69°C

(156.2°F)

Dry.

70’ 10.8 l

2.85 gal. 0,6

AUTO SUPER

WASH

ETL SANITATION

LISTED

Moderately

dirty, including

dried-on

residue

Cold pre-wash

(Depending of

the type of dirty)

Wash at 65°C

(149°F).

Cold rinse.

Hot rinse at

70°C (158°F).

Dry.

115’-130’

11-15 l

2.91-

3.96 gal.

1-1.2

4NORMAL Moderately

dirty

Cold pre-wash.

Wash at 55°C

(131°F).

Cold rinse.

Rinse at 68°C

(154.4°F).

Dry.

112’ 14,8 l

3.91 gal. 0.8

EXTREME

WASH

ETL SANITATION

LISTED

Very dirty pans

and dishes,

including

dried-on

residue

Pre-wash at

45°C (113°F).

Wash at 70°C

(158°F)

2 cold rinses

Rinse at 70°C

(158°F)

Dry.

122’ 18,3 l

4.83 gal. 1.12

Tab. 2-02a

8 Rev 0.0

USER INSTRUCTIONS

PROGRAM NUMBER

AND SYMBOL

DISHES AND

CUTLERY

PROGRAM

SEQUENCE

TIME CONSUMPTION

MINUTES

(2)

WATER

(1)

ENERGY

kWh (2)

RINSE

Pans and dishes

waiting to be

washed

Cold pre-wash 16’ 3.9 l

1.03 gal. 0.03

SHORT Slightly dirty

Wash at 38°C

(136.40°F)

Cold rinse.

Rinse at 58°C

(136.4°F).

37’ 10.6 l

2.8 gal. 0.38

AUTO

DELICATE

Wash

immediately

after use

Cold pre-wash

(Depending of

the type of dirty)

Wash at 55°C

(131°F).

Cold rinse.

Hot rinse at

69°C (156.2°F).

Dry.

105’-120’

11-15 l

2.91-

3.96 gal.

0.8-1

ECONOMY

Wash

immediately

after use

Wash at 55°C

(131°F).

Cold rinse.

Rinse at 69°C

(156.2°F).

Dry.

123’ 11,9 l

3.14 gal. 0.9

HEAVY

WASH

Moderately

dirty pans and

dishes, including

dried-on residue

Wash at 70°C

(158°F)

2 cold rinses.

Rinse at 70°C

(158°F)

Dry.

102’ 15.1 l

3.99 gal. 1,0

Tab. 2-02b

(1) Average water consumption with the softener set to level 0 (zero).

Any other setting will increase water consumption till 2.5 l (0.66 gal.) / cycles with setting 5.

(2) The cycle times listed in the use and care manual are based on normal soil loads and 120°F

(49°C) incoming water and will vary based on your actual conditions.

- Only “AUTO SUPER WASH” and “EXTREME WASH” programs conforms to NSF std 184 and are

certiﬁed by INTERTEK with the ETL SANITATION LISTED.

- When the “Sanitized” light shine it means that the dishwasher and its contents have been saniti-

zed according to the requirements of the National Sanitation Foundation (NSF).

- When the “AUTO PROGRAMMES” are selected, the dishwasher recognizes the type of dirt and

automatically adjusts the washing parameters as appropriate.

Rev 0.0 9

USER INSTRUCTIONS EN

Only run the soak program with half loads.

To run programs 6, 7, 8, 9, 10 (see tab. 2-02b), select the required standard

program (see programs 1, 2, 3, 4, 5 in tab. 2-02a) and then press the supple-

mentary program button (ref. 6 ﬁg. 2-02).

After using the above tables to choose the most suitable washing cycle, pro-

gram the appliance.

Before starting a washing program, make sure that:

The water supply tap is open.

There is regenerating salt in the water softener tank (to add

salt, see the instructions in the general manual).

The correct amount of detergent has been added to the di-

spenser (to add detergent, see the instructions in the general

manual).

The spray arms are able to rotate freely and without obstruction.

The racks have been correctly loaded (see the instructions in the

general manual).

The dishwasher door is securely closed.

2.2.1 Switching on

Press the on/off button (ref. 1 ﬁg. 2-02) to start the dishwasher. Then wait for

one of the program indicator lights to turn on (ref. 2 ﬁg. 2-02).

•
