Smeg ST323PM Manuel utilisateur

Contents

1. General safety instructions _______________________________ 2

2. Installation ___________________________________________ 9

You are advised to read this manual carefully; it contains all the

information you need about the right conditions for the proper, safe use of

your dishwasher.

INSTALLATION INSTRUCTIONS: these are intended for the qualified

technician who must carry out the installation, hook-up and testing of the

appliance.

Installation

TRANSLATION OF THE ORIGINAL

INSTRUCTIONS

1. General safety instructions

 This manual is an integral part of the appliance; it

must always be kept intact together with the

dishwasher for future reference (even if sold).

Before using the appliance, carefully read all the

instructions contained in this manual.

 This appliance is intended for indoor use in a

household environment and similar such as staff

kitchens of shops, offices and other workplaces,

institutions, and for the use by guests at hotels,

hostels, bed and breakfast and other residential

facilities. The appliance is designed and

manufactured to perform the following function:

washing and drying of dishes; any other use shall

be considered improper. The manufacturer

declines all responsibility for uses other than

those described above.

 Do not use appliances which have been damaged

during transit! If in doubt, contact your dealer.

 The appliance must be installed and connected in

accordance with the instructions provided by the

manufacturer. Installation must be performed by

qualified technicians in accordance with

applicable regulations.

 Never leave waste packaging unattended. Do not

allow children to play with packaging materials.

Installation

Separate waste packaging materials by type and

consign them to the nearest recycling centre.

 The plate with the technical data, serial number and

marking is in a visible position on the inside edge of

the door. It must not be removed.

 The appliance must be earthed in compliance with

electrical safety regulations. The manufacturer

declines all responsibility for damage to

persons or property resulting from failure to

earth the appliance or from a defective earth

connection.

 During the installation the appliance must be

disconnected from the network.

 Do not install the appliance in a place subject to

freezing.

 Do not install the appliance near equipment with

high irradiation temperature (e.g. gas burners,

fireplaces, etc.).

 If the appliance is installed in a compartment above

or below another equipment (e.g. gas burners,

ovens, etc.), read carefully the instructions provided

by the manufacturer of the equipment. If the

instructions of the equipment do not contain

information, contact the manufacturer of the

equipment to ensure that the appliance can be

installed above or below it.

 Building-in the appliance underneath a hob is

absolutely forbidden. Installing a hob on top of free-

standing appliance is absolutely forbidden.

Installation

 To ensure stability, install the appliance only under

continuous worktop, securely fixed to adjacent

cabinets. If the appliance is installed in a high

cabinet, both the appliance and the cabinet must be

adequately fixed.

 If the appliance is not built-in and is therefore

accessible on one side, the door hinge area must

be covered for safety reason (injury hazard). The

covering fixtures are available as an accessory from

specialist dealers or the after-sales.

 Check that the voltage and the frequency of the

mains match the ratings on the name plate of the

appliance.

 The plug on the supply cord and the corresponding

socket outlet must be of the same type and meet

the regulations in force. Do not use adaptors or

shunt connections in order to avoid the possibility of

overheating or burning.

 The plug of the appliance must be accessible after

installation. Never disconnect the plug by pulling on

the power supply lead.

 If the appliance is provided with a plugless supply

cord, an omnipolar circuit breaker providing a full

disconnection in overvoltage protection class III

must be installed in an easily accessible position on

the supply line.

 The appliance must be connected to the water

supply by means of new hoses.

Installation

 Briefly test the appliance after installation. Run a

wash cycle with a temperature of between 45 and

70°C with the dishwasher empty and using a

specific dishwasher detergent. (It is not sufficient to

run a soak cycle). If the dishwasher fails to operate

correctly, disconnect it from the electrical power

supply and call the nearest technical service centre.

Never attempt to repair the appliance yourself.

 The dishwasher should only be used by adults. Use

by children aged from eight years and persons with

reduced physical, sensor or mental capabilities or

lack of experience and knowledge is only permitted

under the supervision of a person responsible for

their safety.

 Do not allow children to play with the appliance.

 Keep children away from the dishwasher when the

door is open. Always check that the detergent

distributor is empty after completion of the wash

cycle.

 Cleaning and regular maintenance of the appliance

by children is only permitted under the supervision

of a person responsible for their safety.

 Some detergents are strongly alkaline. Avoid

contact with the skin and eyes. Detergents can be

extremely dangerous if swallowed. They contain

substances capable of causing permanent damage

to the mouth and throat, and even leading to

suffocation. Observe all the safety instructions on

the packaging of these products.

Installation

 Do not drink the water residues which may be

present on the dishes or appliance at the end of the

washing program.

 Never place solvents such as alcohol or turpentine,

which are potentially explosive, inside the

appliance. Never load dishes soiled with ash, wax

or paint.

 Never leave the dishwasher door open; people

might trip over it. Leaning or sitting on the

dishwasher door when open may cause the

appliance to overturn and/or damage it.

 Switch off the dishwasher after use to avoid wasting

electricity.

 Knives and other kitchen equipment with sharp

edges must be placed in the basket with their tips

downwards, or horizontally in the top basket; take

care not to injure yourself on any sharp edges

protruding from the baskets.

 The appliance satisfies all applicable safety

regulations governing electrical equipment. Any

technical checks should be conducted exclusively

by trained and authorised technicians: repairs

performed by unauthorised persons not only

void the warranty but may also put the user’s

safety at risk.

 In the event of a fault, disconnect the dishwasher

from the electrical power supply and shut off the

water tap. In the event of damage to the supply

Installation

cord, have it replaced by the manufacturer or an

authorised technical service centre.

 Some components are live even with the on/off

button in the off position. Before performing any

maintenance work on the appliance, disconnect it

from the electrical power supply.

 Do not clean the machine with a water jet machine,

high-pressure or steam cleaners.

 Models with “acquastop” device

This device prevents flooding in case of water leak.

When the “acquastop” device is tripped, contact a

qualified technician to identify and repair the fault.

In these models the water intake hose contains a

solenoid valve. Do not cut the hose and do not

allow the solenoid valve to drop into water. In

case of damage to the water intake hose,

disconnect the appliance from the electrical and

water supply.

Warning: The device only works if the

dishwasher is connected to the mains.

Installation

1.1 Declaration of conformity

The appliance complies with the essential requirements

of the following European directives:

- 2009/125/EC

- 2011/65/EU

- 2014/35/EU

- IEC/EN 62471, risk group 1, for models with internal

lighting.

- IEC/EN 61770

1.2 Disposal

This appliance must be disposed of separately

from other waste (directive 2012/19/EC).

The appliance does not contain substances in quantities

sufficient to be considered hazardous to health and the

environment, in accordance with current European

directives:

To dispose of the appliance:

 Cut the power cable,

 make the lock unusable.

The manufacturer declines any liability for damage

or injury caused by failure to comply with the

instructions indicated above or as a result of

tampering with even just one part of the appliance,

and the use of non

original spare parts.

Installation

2. Installation

2.1 Technical characteristics

Water supply pressure min. 0.05 - max. 0.9 MPa (min. 0.5 –

max. 9 bar)

Water supply temperature

max. 60°C

Capacity

standard place settings

Class of protection against

moisture

IPX0

Protection against electric

shock

class I

Electrical data

see the data plate

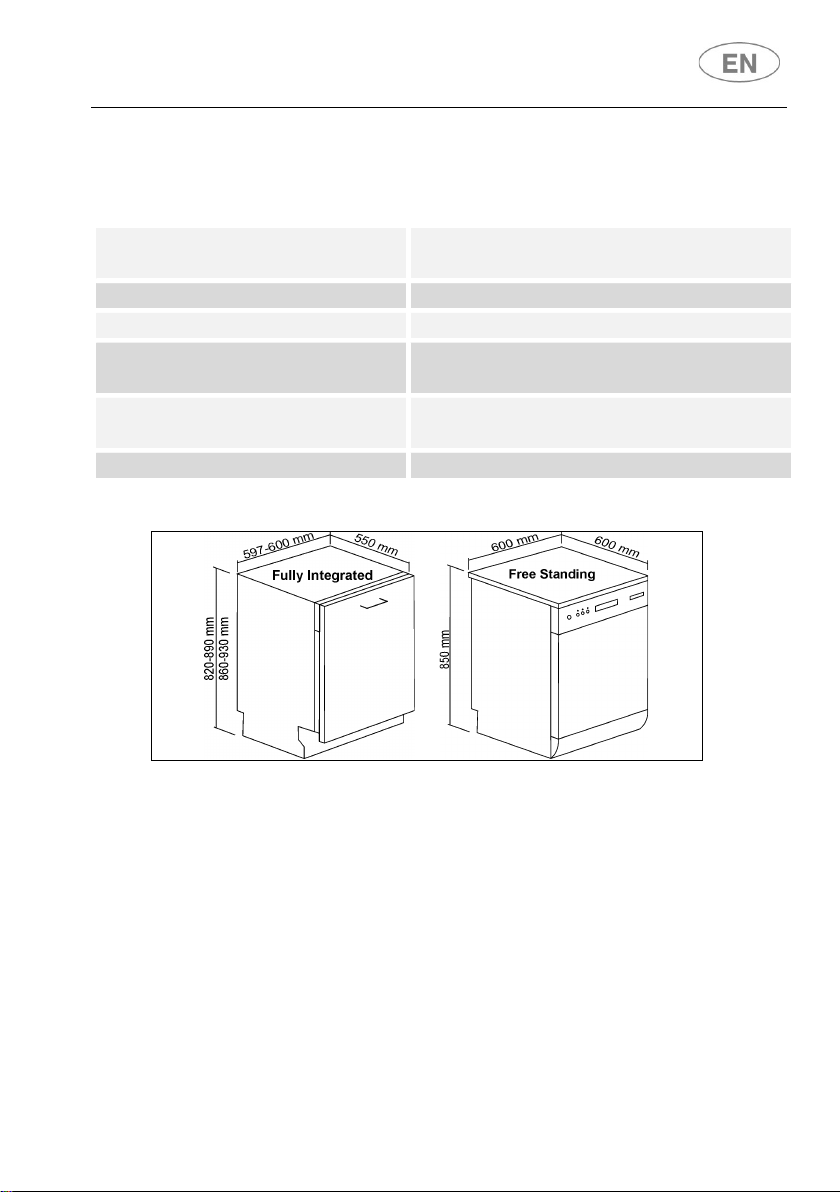

Appliance dimensions (mm)

Installation

2.2 General information



Remove the polystyrene basket retainers.

 Position the appliance in the desired place of installation.

 This appliance may be placed up against walls or other

furniture units.

 If the appliance is installed near a heat source, fit a

special insulating panel to prevent overheating and

malfunction of the appliance.

 To ensure stability, install integrated or built-under

dishwashers only under continuous worktops, and screw

them to the adjacent units.

 To facilitate the installation procedure, the intake and

drain hoses can be positioned in any direction; make

sure that the hoses are not kinked, crushed or pulled too

tightly.

 A hole at least 8 cm in diameter is required to allow the

power supply cable and hoses to pass.

 At the end of the installation, perform a short test of the

appliance: open the water tap and check that there are

no leaks.



This dishwasher is not designed for continuous use;

the maximum is 5 cycles per day.

 To install the dishwasher against the back wall, the

hoses should be passed through the lower area where

there is a dedicated space for them.

 The following spare parts will be available for 7 years

after the model is no longer produced: wash pump,

drain pump, heating elements; pipes and hoses, valves,

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Smeg Lave-vaisselle

Smeg

Smeg LVS262EB Manuel utilisateur

Smeg

Smeg PL338NE Manuel utilisateur

Smeg

Smeg Universale DWA4510X Manuel utilisateur

Smeg

Smeg STA6443-3 Manuel utilisateur

Smeg

Smeg STL2323DE Manuel utilisateur

Smeg

Smeg Dishwasher PL115NE Manuel utilisateur

Smeg

Smeg A454BA Instructions de fonctionnement

Smeg

Smeg BLV1RO Mode d’emploi

Smeg

Smeg Universale DWAU6315X2 Manuel utilisateur

Smeg

Smeg HTY511DSH Manuel utilisateur

Smeg

Smeg KLVS50EB Manuel utilisateur

Smeg

Smeg LSA4551B Manuel utilisateur

Smeg

Smeg SA8211X-2 Manuel utilisateur

Smeg

Smeg PLA6246N Manuel utilisateur

Smeg

Smeg PLA68XU Manuel utilisateur

Smeg

Smeg LSA4650B Manuel utilisateur

Smeg

Smeg DWA157 Manuel utilisateur

Smeg

Smeg LSA6145B Manuel utilisateur

Smeg

Smeg Dishwasher VG612462 Manuel utilisateur

Smeg

Smeg STA4845 Manuel utilisateur

Smeg

Smeg ST8647 Manuel utilisateur

Smeg

Smeg DI324AQ Manuel utilisateur

Smeg

Smeg SA8605XTD Manuel utilisateur

Smeg

Smeg LSA12XD9 Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

Electrolux

Electrolux ESI5211LOX Manuel utilisateur

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur
