Smeg LSA653E Manuel utilisateur

INSTRUCTION MANUAL

Contents



1. Description of the controls________________________________14

2. Troubleshooting _______________________________________21

Thank you for choosing one of our products.

You are advised to read this manual carefully; it contains all the

information you need about the right conditions for the proper, safe use

of your dishwasher.

The individual sections are laid out to provide you with a step-by-step

guide to all your appliance's functions; the texts are easy to understand

and are complete with detailed illustrations.

This user-friendly manual will provide answers to all your questions

about use of the dishwasher.

For any other information about use and maintenance of the dishwasher,

read the enclosed manual carefully.

USER INSTRUCTIONS: useful information is provided for the use of the

washing programs and all the dishwasher's functions.

User instructions



1. Description of the controls

1.1 Front panel

All the dishwasher control are grouped on the front panel. Programming

and option selection are only possible with the door closed.

1ON/OFF BUTTON

2START/PAUSE BUTTON

3SELECTION PROGRAMS BUTTON

4PROGRAMS LIGHTS

5½ LOAD WASH BUTTON (on some models only)

6½ LOAD WASH LIGHT (on some models only)

7NO SALT LIGHT

8NO RINSE AID LIGHT

9RECESSED DOOR HANDLE

User instructions



SETTING THE WASHING PROGRAM

To select the most suitable program for the dishes to be washed refer to

the table below, which indicates the most appropriate program according

to dish type and degree of soiling.

DURATION CONSUMPTION

PROGRAM SELECTION TYPE AND GRADE DIRT PROGRESS

PROGRAM MINUTES

(2)

WATER

LITRES (1)

POWER

KWh (2)

SOAK

PANS AND DISHES

IN WAITING OF

COMPLETING

THE LOAD

Cold prewash 15' 60,03

LIGHT DISHES

NOT VERY DIRTY

Wash at 45°C

Cold rinse

Rinse at 68°C

Dry

70' 15 1,15

BIO

(*)

PANS AND DISHES

NOT VERY DIRTY BUT

WITH DRY RESIDUALS

Cold prewash

Wash at 50°C

Cold rinse

Rinse at 65°C

Dry

160' 17 1,05

NORMAL

PANS AND DISHES

DIRTY AND WITH

DRY RESIDUALS

Cold prewash

Wash at 65°C

Cold rinse

Rinse at 68°C

Dry

100' 20 1,40

SUPER

PANS AND DISHES

VERY DIRTY AND

WITH DRY RESIDUALS

Prewash at 45°C

Wash at 70°C

2 cold rinses

Rinse at 70°C

Dry

115' 24 1,77

Only run the soak program with half loads.

The HALF LOAD option (5) is available for all programs except the soak program.

(*) Reference program as per EN 50242 standard.

(1) Average power consumption with the softener set on level 2.

(2) The cycle duration and power consumption may vary according to the water and room

temperatures, and the type and amount of dishes.

The washing cycle will not take place if the dishwasher door is left open

or not properly closed.

User instructions



TABLE FOR CERTIFICATION BODIES

Reference standard EN 50242

Reference program BIO

Load 12 place-settings

Type of detergent B

Amount of detergent 30 g

Rinse aid setting 5/6

1.2 Washing programs

The dishwasher is equipped with a control panel, described in chapter

"1. Description of the controls", from which it is possible to carry out all

the power switch-on, switch-off and programming operations.

Before starting a washing program make sure that:

•The water supply tap is open.

•The correct amount of detergent has been added to the

dispenser.

•The baskets have been correctly loaded.

•The spray arms are able to rotate freely and without

obstruction.

•The dishwasher door is securely closed.

SWITCHING ON

When the ON/OFF button (1) is pressed, the dishwasher switches on.

The indicator lights will display the dishwasher's "status".

User instructions



PROGRAMMING

Programming operations are only possible with the door closed.

As long as the door is open, the PROGRAMS (4) lights remain off.

PROGRAM SELECTION

Press the PROGRAM SELECTION

button (3) several times until the light of

the program required comes on.

STARTING THE PROGRAM

To start the dishwasher, press the START/PAUSE button (2) for a few

seconds, until the light of the selected program starts to flash

(confirmation beep).

The light will flash as long as the program is in progress, to indicate that

it is being performed.

END OF PROGRAM

At the end of the program the beeper

sounds briefly and the program lights 4

and 5(marked "end") flash.

INTERRUPTION A PROGRAM

To interrupt a program in progress:

•press the

START/PAUSE button (2); the light of the program in

progress remains on (confirmation beep);

•you may now restart the program by pressing button (2) again until it

restarts, or change or annul the program (see "CHANGING A

PROGRAM", or "ANNULLING A PROGRAM").

User instructions



CHANGING A PROGRAM

To change the running program it is necessary:

•to interrupt the running program (see “INTERRUPTION A PROGRAM”);

•select the new program;

•start the program (see “STARTING THE PROGRAM”).

ANNULLING A PROGRAM

To annul the program, keep the START/PAUSE button (2) pressed until

the program is interrupted (light on and confirmation beep).

Press button (2) again and keep it

pressed until the lights 4 and 5(marked

"end") come on.

The water in the tank will be pumped out and the program will end at the

point where it was interrupted.

In case that the door is opened during the operation, to the next door

closing it is going to be necessary to start the program as shown in

paragraph “STARTING THE PROGRAM”. The program will resume from the

point in which it was interrupted.

In case that the tub temperature is higher than 50°C the program

will start about 30 seconds later.

HALF LOAD WASH SETTING (certain models only)

(available in all programs except the soak program)

This function is ideal for small loads and saves

water and electricity. It is controlled by the HALF

LOAD button (5) and allows washing in the upper

basket only.

IMPORTANT: at the end of the program remember

to deactivate the function to ensure the next

wash is not also carried out in half load mode by

mistake.

User instructions



A cutlery basket can be placed in the upper basket, while the lower

basket must be left empty.

CAUTION: there is no point in loading dishes and cutlery in the

lower basket, since the jet of water will only reach the upper basket.

TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT

•Always try to run the dishwasher fully loaded.

•Do not wash the dishes in running water.

•Use the washing program that is most appropriate for each type of

load.

•Do not carry out any preliminary rinsing.

•If available, connect the dishwasher to a hot water supply up to

60°C.

TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT

THE ENVIRONMENT

The phosphates contained in dishwasher detergents are harmful to the

environment. To avoid using excessive amounts of detergent and to

save on electricity, observe the following:

•separate the more delicate items from dishes that are more

resistant to aggressive detergents and high temperatures;

•do not pour the detergent directly on the dishes.

REMOVING THE DISHES

At the end of the washing program, wait at least 20 minutes before

removing the dishes, to allow them to cool down. To prevent any water

droplets on the upper basket from falling on the dishes in the lower

basket, it is advisable to unload the lower basket first, and then the

upper basket.

User instructions



ADJUSTING THE WATER SOFTENING SYSTEM

The dishwasher is equipped with an device for the user to adjust the

water softening system according to the hardness of the water supply.

According to the machine model, the selector which acts on the

adjustment may be located:

•inside the plastic locking ring located on the right-hand side, inside

the dishwasher;

•inside the water softener, just below the cap.

Both allow for adjustment to 5settings:

WATER HARDNESS TABLE

WATER HARDNESS

German Degrees (°dH) French Degrees (°dF) SETTING

0 - 4 0 - 7 Setting N. 1 NO SALT

5 - 15 8 - 25 Setting N. 1

16 - 23 26 - 40 Setting N. 2

24 - 31 41 - 60 Setting N. 3

32 - 47 61 - 80 Setting N. 4

48 - 58 81 - 100 Setting N. 5

Contact your local water board for information on the hardness of your

water supply.

User instructions



2. Troubleshooting

The dishwasher is capable of signalling a number of faults through the

simultaneous illumination of several indicator lights, with the following

meanings:

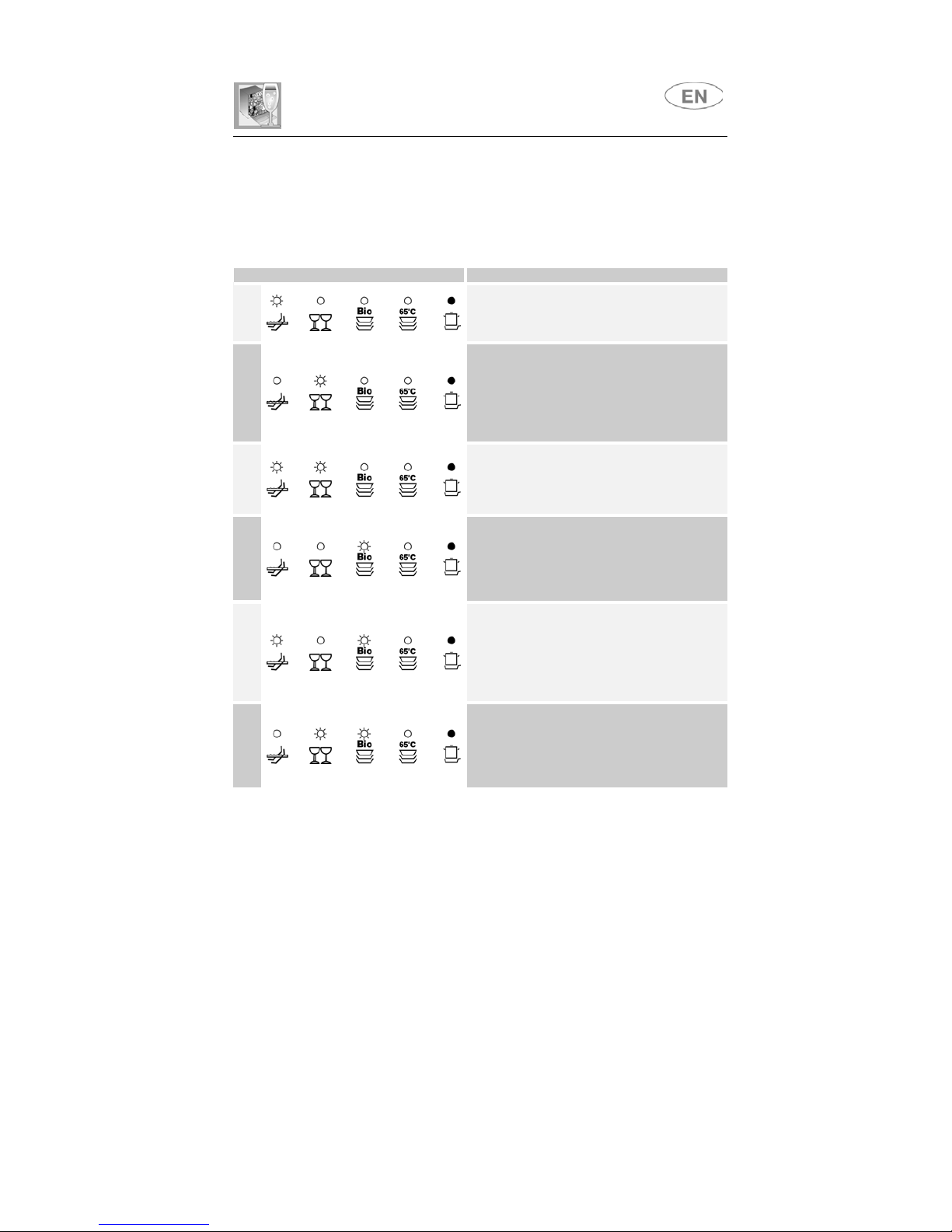

FAULT DESCRIPTION

Acquastop failure

The anti-flooding system has been activated.

The system is tripped in case of water leaks.

Contact the after-sales service.

Safety level

The system which limits the water level inside

the dishwasher has been tripped. Interrupt the

program and switch off the dishwasher. Switch

the dishwasher back on, program it again and

start the washing cycle. If the problem persists,

contact the after-sales service.

Water heating malfunction

The water is not heated or the heating

parameters are not correct. Repeat the

washing program; if the problem persists,

contact the after-sales service.

Water temperature monitoring malfunction

Interrupt the program and switch off the

dishwasher. Switch the dishwasher back on,

program it again and start the washing cycle. If

the problem persists, contact the after-sales

service.

Water intake malfunction

The appliance does not take in water or does

not do so correctly. Check that the water

connections are correct, the water intake tap is

turned on and the filter is not fouled. If the

problem persists, contact the after-sales

service.

Water pump-out malfunction

The appliance does not pump out the water or

does not do so correctly. Check that the drain

hose is not kinked or crushed and that the

siphon and filter are not fouled. If the problem

persists, contact the after-sales service.

Table des matières

Autres manuels Smeg Lave-vaisselle

Smeg

Smeg Universale PL65233XIN Manuel utilisateur

Smeg

Smeg DWA315X Manuel utilisateur

Smeg

Smeg PL945X-2 Manuel utilisateur

Smeg

Smeg STE8639L Manuel utilisateur

Smeg

Smeg Dishwasher LSA643BPQ Manuel utilisateur

Smeg

Smeg DWI612C Manuel utilisateur

Smeg

Smeg AS4060 Manuel utilisateur

Smeg

Smeg LSA4650B Manuel utilisateur

Smeg

Smeg DI912 Manuel utilisateur

Smeg

Smeg LSE990 Manuel utilisateur

Smeg

Smeg LVS655EG Manuel utilisateur

Smeg

Smeg LSA1257BE Manuel utilisateur

Smeg

Smeg ST2FABBL Manuel utilisateur

Smeg

Smeg DWAU157XT Mode d’emploi

Smeg

Smeg Dishwasher SA682X Manuel utilisateur

Smeg

Smeg DWAFI6314-2 Instructions d'installation

Smeg

Smeg LSA14X7 Manuel utilisateur

Smeg

Smeg DF41 Manuel utilisateur

Smeg

Smeg LSP1453B Manuel utilisateur

Smeg

Smeg CSE68X-S Manuel utilisateur

Smeg

Smeg LVS262EB Manuel utilisateur

Smeg

Smeg CWC500R Manuel utilisateur

Smeg

Smeg BLV1VE-1 Manuel utilisateur

Smeg

Smeg DGS60W Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

Electrolux

Electrolux ESI5211LOX Manuel utilisateur

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur
