OVERVIEW

The EZ Card™ 1000 (SMC9452TX-2) is a high performance 32-bit 10/100/1000Mbps copper gigabit PCI inter-

face card designed for network connectivity for home or ofﬁce use. SMC9452TX-2 offers 10/100/1000Mbps

auto-conﬁguration, cross-over detection, auto correction, and full duplex support to maximize the network’s

potential speed while accommodating the existing infrastructure. SMC9452TX-2’s advanced features such

as TCP and UDP Checksum Ofﬂoad (minimizes CPU utilization), Flow Control, VLAN, Jumbo Frame support

ensures data integrity under heavy loading. Fully IEEE compliant and up to 10 times faster than Fast Eth-

ernet, SMC9452TX-2 is an ideal Gigabit wired networking solution for home or ofﬁce with Wake-On-LAN,

remote wake-up support, Plug-and-Play installation, and support for major operating systems.

www.smc.com

SMC9452TX-2

EZ Card™ 1000Mbps Copper Gigabit PCI Adapter

10G FIBER

1G FIBER

10G COPPER

1G COPPER

10/100

PoE

WIRELESS

LEGEND

OFFICE

PC’s with SMC9452TX-2

SMC8150L2

Network

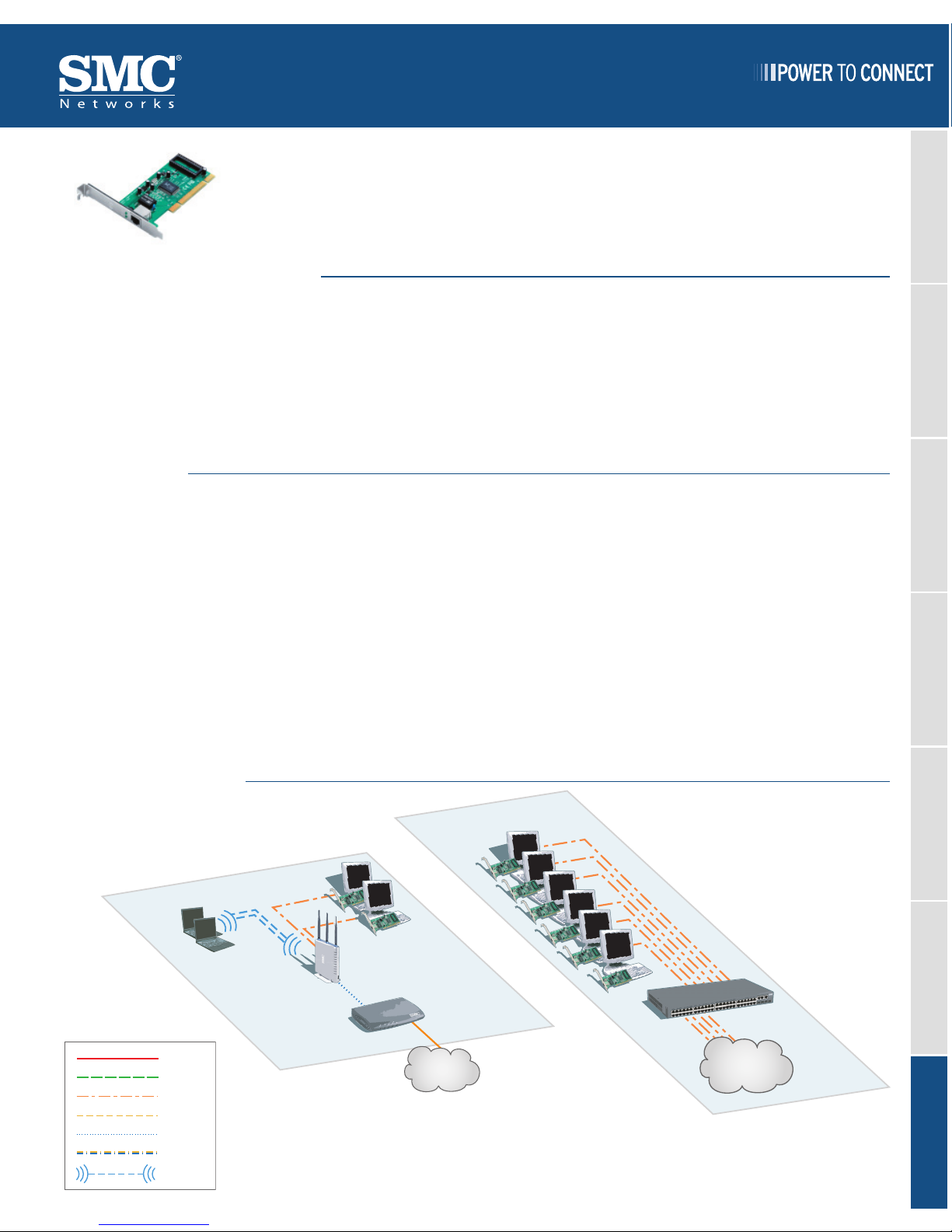

APPLICATION DIAGRAM

KEY FEATURES

Feature 1 Feature 2

Fully compliant with IEEE 802.3ab (1000BASE-T), IEEE 802.3u

(100BASE-TX), and IEEE IEEE802.3 (10BASE-T) standards with

2000Mbps Full-duplex performance.

Supports VLANs and Jumbo Frame for increased network perfor-

mance, improved manageability, and increased security.

Feature 3 Feature 4

Supports Wake-on-LAN and remote wake-up support (including

AMDMagic Packet, Re-LinkOk, and Microsoft® Wake-up frame) for

remote powering of the PCs

Optional bootrom - Serial EEPROM and /or Flash support

SWITCHES VDSL WIRELESS VOIP STORAGE BROADBAND ADAPTERS

Cable/xDSL

Modem

SMC9452TX-2

Internet

SMCWCB-N2

HOME

SMCWGBR14-N

NETWORK INTERFACES

• 10BASE-T, 100BASE-TX, 1000BASE-T

NETWORK MEDIA

• 10BASE-T: UTP category 3, 4, 5 cable (100m Max)

• EIA/TIA-568 100: STP (100m Max)

• 100BASE-TX: UTP category 5, 5e cable (100m Max)

• EIA/TIA-568 100: STP (100m Max)

• 1000BASE-T: UTP category 5, 5e cable (100m Max)

BUS INTERFACES

• PCI v2.2, 32-bit, 33/66MHz

STANDARDS

• IEEE 802.3 (10BASE-T)

• IEEE 802.3u (100BASE-TX)

• IEEE 802.3ab (1000BASE-T)

• IEEE 802.3x (Flow Control)

• IEEE 802.1P (Priority Queuing Tagging)

• IEEE 802.1Q (VLAN)

• IEEE 802.3 Nway Auto-Negotiation

• PCI v.2.2

• ACPI v1.0/ 2.0

FEATURES

• PCI Local Bus Master 2.1/ 2.2 Support

• Supports PCI 2.1/2.2 ACPI Power Management Wake-On-LAN

• Compliant to PC 99 Standard

(Magic Packet, LinkChg and Microsoft wake-up frame)

• Two independent receive and transmit FIFOs

• Jumbo Frame Support (7680Bytes)

• Plug-and-Play

• Bootrom slot

DATA TRANSFER RATE

• 10Mbps (Half-duplex)

• 20Mbps (Full-duplex)

• 100Mbps (Half-duplex)

• 200Mbps (Full-duplex)

• 1000Mbps (Half-duplex)

• 2000Mbps (Full-duplex)

OPERATING SYSTEMS

• Windows 98

• Windows 98SE

• Windows ME

• Windows NT

• Windows 2000

• Windows XP

• Windows Vista

• Linux 2.2x/ 2.4x/ 2.6x

• Linux 2.4x/ 2.6x

• Netware

• MAC OS 10.x

LED INDICATION

• 1000Mbps/ Link/ Activity

• 100Mbps/ Link/ Activity

COMPLIANCES

• FCC Part 15, Class B

• CE Mark Class B

POWER CONSUMPTION

• 4 Watts (Max)

TEMPERATURE

• Operating: 32 ~ 104 F/ 0 ~ 40C

• Storage: -40 ~ 158F/ -40 ~ 70C

HUMIDITY

• Operating: 10% ~ 90% non-condensing

• Storage: 5% ~ 90% non-condensing

DIMENSIONS

• 120mm x 59mm x 11mm (L x W x D) (Without the bracket)

• 4.72 in x 2.32 in x .43 in (L x W x D) (Without the bracket)

WEIGHT

• 36g (Without the bracket)

• 1.28oz (Without the bracket)

WARRANTY

• Please check www.smc.com for the warranty

terms in your country/region

CONTACT

North America

20 Mason

Irvine, CA 92618

1-800-SMC-4YOU

24/7 Technical Support

Europe/Africa

Fructuos Gelabert 6-8

08970 Sant Joan Despí

Barcelona, Spain

Check www.smc.com for your local country

contact information

of SMC Networks in the United States or other countries. Other trademarks

or registered trademarks are the property of their respective owners. Infor-

2/2009

www.smc.com

TECH SPECS - SMC9452TX-2
