SMC Networks ITV0000 Series Manuel utilisateur

Series ITV2000 Series ITV3000

Series ITV009

첸

Series ITV209

첸

Series ITV

Electro-Pneumatic Regulator

Electronic Vacuum Regulator

Applicable Fieldbus protocols

Reduced wiring

Compact/lightweight (Integrated communicatioin parts)

Note 1)

Compact/lightweight (Integrated communicatioin parts)

Weight: 350 gNote 1) (ITV1000)

Power consumption: 4WNote 1) or less

Electro-Pneumatic Regulators

Maximum flow rate

6l/min (ANR)

Set pressure: 0.6 MPa

Supply pressure: 1.0 MPa

Maximum flow rate

200 l/min (ANR)

Set pressure: 0.6 MPa

Supply pressure: 1.0 MPa

Grease-free specification (wetted parts)

Maximum flow rate

1500 l/min (ANR)

Set pressure: 0.6 MPa

Supply pressure: 1.0 MPa

Maximum flow rate

4000 l/min (ANR)

Set pressure: 0.6 MPa

Supply pressure: 1.0 MPa

Electronic Vacuum Regulators

Note 2) ITV1000. Dimensions in parentheses ( ) are for the CC-Link or PROFIBUS DP.

Series ITV0000 Series ITV1000

Built-in communication board,

so no converter needed.

New

Added RS-232C specification to serial communications!Added RS-232C specification to serial communications!

Note 1) Value for communications type. (PROFIBUS DP)

98(108) Note 2)

Stepless control of air pressure proportional to an electrical signalStepless control of air pressure proportional to an electrical signal

Added Fieldbus compliant specifications to

Series

ITV1000/2000/3000!

RoHS IP65

New

[Option]

CAT.ES60-15F

Compact 15

With a simplified high-

density circuit board de-

sign, an extremely com-

pact size has been ach-

ieved.

Stations can easily be in-

creased or decreased due to

DIN rail mount design.

Realizes space-

saving and

reduction of weight

for manifold use.

Flat bracket L-bracket

Straight type Right angle type

Compact Electro-Pneumatic Regulator

Series ITV0000

Compact Vacuum Regulator

Series ITV009

첸

앬 Sensitivity: Within 0.2% (F.S.)

앬 Linearity: Within ±1% (F.S.)

앬 Hysteresis: Within 0.5% (F.S.)

앬 IP65

앬 Cable connections in 2 directions

앬

Grease-free specification

(Series ITV1000)

앬 Application examples

Straight type Right angle type

Multi-stage control to analog control

Pressure

regulators

Solenoid valves

SUP.

OUT.

SUP.

Controller

Electro-pneumatic regulator

Analog control

Mist separator

Electrostatic coating control

SUP.

Controller

Control

signal

Coating nozzle

Coating material

Electro-pneumatic regulator

Mist separator

Lightweight 100

Model

ITV001첸

ITV003첸

ITV005첸

ITV009첸

Pressure range

0.1 MPa

0.5 MPa

0.9 MPa

–100 kPa

Power supply

voltage

24 VDC

12 VDC

Output signal

Analog

output

1 to 5 V

Option

• Cable connectors

Straight type

Right angle type

• Brackets

Flat bracket

L-bracket

Input signal

4 to 20 mA DC

0 to 20 mA DC

0 to 5 VDC

0 to 10 VDC

쎲Equivalent to IP65

쎲Linearity: Within ±1%

(F.S.)

Hysteresis: Within 0.5% (F.S.)

Repeatability: Within ±0.5% (F.S.)

쎲High-speed response time: 0.1 sec

(Without load)

쎲High stability

Sensitivity within 0.2% (F.S.)

쐽Cable connectors

Straight type and right angle type are available.

쐽Built-in One-touch

fittings

쐽With error indication

LED

쐽Brackets

Flat and L-brackets are available.

앬 Reduced wiring

Added Fieldbus compliant specifications to

Series

ITV1000/2000/3000

Added RS-232C specification to serial communications!

Applicable Fieldbus protocols

Mist separator

(0.01 µm or less)(0.3 µm or less)

ITV (Electro-pneumatic regulator)

Air Filter

(5 µm or less)

(Precision regulator)

Electro-Pneumatic Regulator

Series

ITV1000/2000/3000

Electronic Vacuum Regulator

Series

ITV209

첸

ITV1000

ITV2090

ITV2000

ITV3000

New

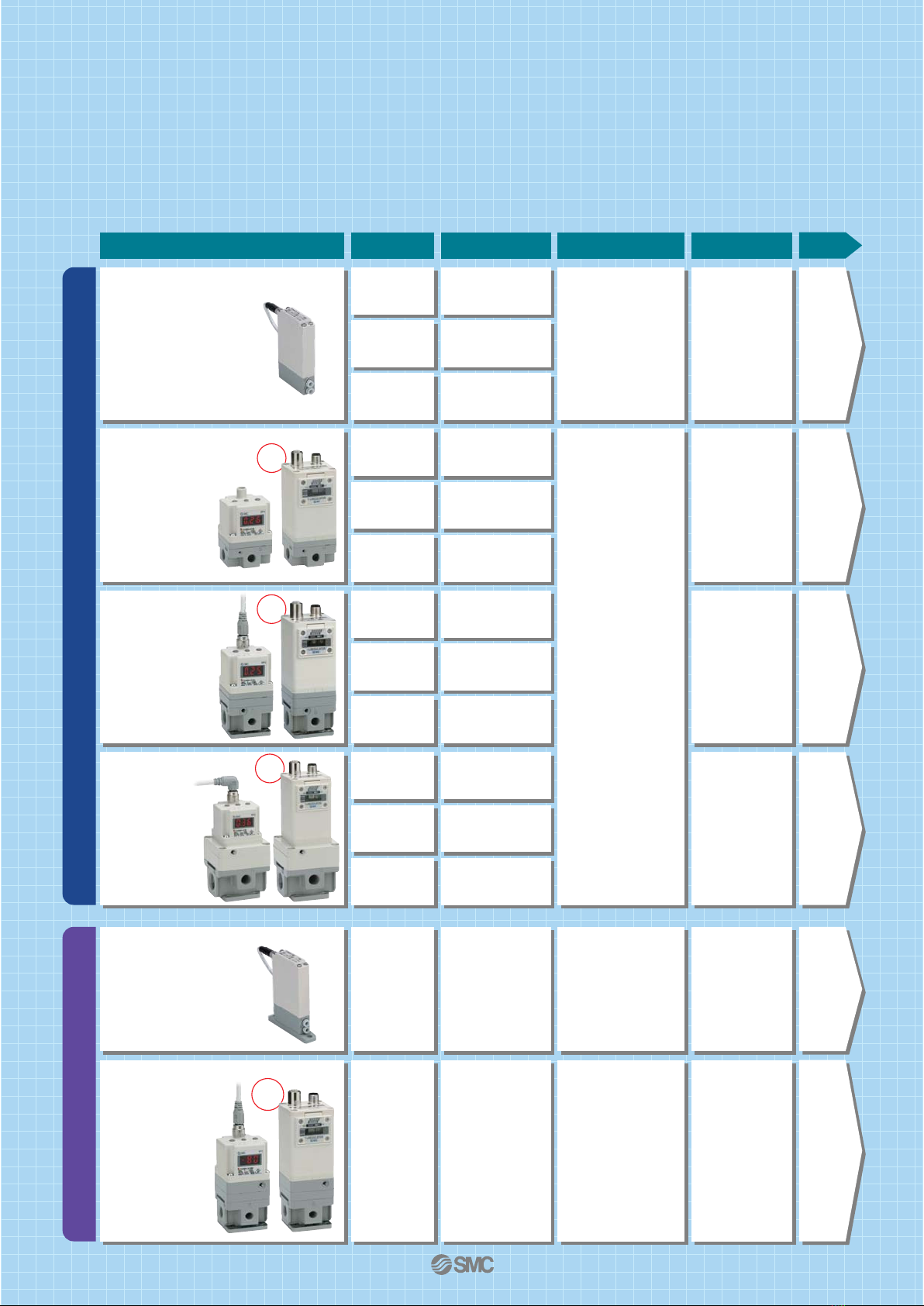

Features 1

New

Series ITV

Electro-Pneumatic Regulator

Electronic Vacuum Regulator

Electro-Pneumatic RegulatorElectronic Vacuum Regulator

Page

Series Model

Set pressure range

Port size

ITV001첸

ITV003첸

ITV005첸

0.001 to 0.1 MPa

0.001 to 0.5 MPa

0.001 to 0.9 MPa

Built-in

One-touch fittings

Metric size: ø4

Inch size: ø5/32

Series ITV2000

ITV201첸

ITV203첸

ITV205첸

0.005 to 0.1 MPa

0.005 to 0.5 MPa

0.005 to 0.9 MPa

1/4, 3/8

Series ITV1000

ITV101첸

ITV103첸

ITV105첸

0.005 to 0.1 MPa

0.005 to 0.5 MPa

0.005 to 0.9 MPa

1/8, 1/4

Series ITV3000

ITV301첸

ITV303첸

ITV305첸

0.005 to 0.1 MPa

0.005 to 0.5 MPa

0.005 to 0.9 MPa

1/4, 3/8, 1/2

Series ITV0000

ITV009첸–1 to –100 kPa

Built-in

One-touch fittings

Metric size: ø4

Inch size: ø5/32

Series ITV009

첸

ITV209첸–1.3 to –80 kPa 1/4 34

Series ITV209

첸

앬 Stepless control of air pressure proportional to an electrical signal.

Input signal

Current type:

4 to 20 mA DC

Current type:

0 to 20 mA DC

Voltage type:

0 to 5 VDC

Voltage type:

0 to 10 VDC

Current type:

4 to 20 mA DC

(Sink type)

Current type:

0 to 20 mA DC

(Sink type)

Voltage type:

0 to 5 VDC

Voltage type:

0 to 10 VDC

Preset input

New

CC-Link compatible

New

DeviceNet™ compatible

New

PROFIBUS DP compatible

New

RS-232C communication

Current type:

4 to 20 mA DC

Current type:

0 to 20 mA DC

Voltage type:

0 to 5 VDC

Voltage type:

0 to 10 VDC

Current type:

4 to 20 mA DC (Sink type)

Current type:

0 to 20 mA DC (Sink type)

Voltage type:

0 to 5 VDC

Voltage type:

0 to 10 VDC

Preset input

New

CC-Link compatible

New

DeviceNet™ compatible

New

PROFIBUS DP compatible

New

RS-232C communication

Features 2

PWR

ERR

For single unit and single unit for manifold

ITV00 1 0 3 N

Cable connector (Option)

Without cable connector

Straight type 3 m

Right angle type 2 m

Nil

ø4

ø5/32"

Nil

Bracket/Option for single unit only

Without bracket

Nil

Base type

For single unit

For manifolds

Pressure range

0.1 MPa

0.5 MPa

0.9 MPa

Built-in One-touch fittings type

Input signal

Current type 4 to 20 mA DC

Current type 0 to 20 mA DC

Voltage type 0 to 5 VDC

Voltage type 0 to 10 VDC

Power supply voltage

24 VDC ±10%

12 to 15 VDC

Manifold

IITV00 02 n

Stations

2 stations

3 stations

10 stations

···

Option

Flat

Bracket

L-bracket

PWR

ERR

For single unit

Nil

SUPzEXHc

Metric size

(Light gray)

Inch size

(Orange)

Metric size

(Light gray)

Inch size

(Orange)

OUTx

For manifold

SUPzEXHcOUTx

ø6

ø1/4"

ø4

ø5/32"

ø6

ø1/4"

Symbol

ERR

PWR

ERR

PWR

ERR

PWR

DIN rail

ITV0030-3ML

ITV0030-3MS

D side

1 2 3 ···

Note) A DIN rail with the length specified by the number of stations

is attached to the manifold. For dimensions of the DIN rail,

refer to the external dimensions.

How to Order Manifold Assembly (Example)

If a DIN rail longer than

the specified stations is

required, specify the

applicable stations in

two digits.

(Maximum 10 stations)

Example) IITV00-05-07

Nil

How to Order

Compact Electro-Pneumatic Regulator

Series ITV0000

IITV00-03

········

1 set (Manifold part no.)

∗

ITV0030-3MS······2 sets (Electro-pneumatic regulator part no. (1, 2 stations))

∗

ITV0030-3ML······1 set (Electro-pneumatic regulator part no. (3 stations))

Indicate the part numbers of electro-pneumatic regulators and options to

be mounted below the manifold part number.

Example)

Due to the common supply/exhaust feature, note that different pressure

range combinations are not available.

Indicate part numbers in order starting from the first station on

the D side.

Note) Combination with having different pressure ranges is not

available due to common supply/exhaust features.

The asterisk (∗) specifies mounting. Add an asterisk (∗) at the beginning

of electro-pneumatic regulator part numbers to be mounted.

RoHS

[Option]

One-touch fitting size for supply/

exhaust parts (End plate)

ø6 (Light gray)

ø1/4" (Orange)

CE compliant

—

CE compliant

∗

For detailed information

on models for CE, refer

to SMC's website.

Nil

Specifications

Voltage

Voltage type

Current type

Voltage type

Current type

Analog output

Minimum supply pressure

Maximum supply pressure

Set pressure range

Maximum flow rate

Power supply

Input signal

Input impedance

Output signal

Linearity

Hysteresis

Repeatability

Sensitivity

Temperature characteristics

Operating temperature range

Enclosure

Connection type

Connection size

Weight Note 1)

Model

24 VDC ±10%, 12 to 15 VDC

0 to 5 VDC, 0 to 10 VDC

4 to 20 mA DC, 0 to 20 mA DC

Approximately 10 kΩ

Approximately 250 Ω

Within ±1% (Full span)

Within 0.5% (Full span)

Within ±0.5% (Full span)

Within 0.2% (Full span)

Within ±0.12% (Full span)/°C

0 to 50°C (No condensation)

Equivalent to IP65 ∗

Built-in One-touch fittings

100 g or less (without option)

ITV001첸

0.2 MPa

0.001 to 0.1 MPa

3.5 l/min(ANR)

(Supply pressure: 0.2 MPa)

6 l/min(ANR)

(Supply pressure: 0.6 MPa)

6 l/min(ANR)

(Supply pressure: 0.6 MPa)

ITV003첸

Set pressure +0.1 MPa

0.001 to 0.5 MPa

ITV005첸

0.001 to 0.9 MPa

Accessories (Option)

Bracket Cable connector

For single unit

Manifold

Metric size

Inch size

Metric size

Inch size

1.0 MPa

Power supply voltage 24 VDC type: 0.12 A or less

Power supply voltage 12 to 15 VDC type: 0.18 A or less

1 to 5 VDC (Load impedance: 1 kΩor more)

Output accuracy: Within ±6% (Full span)

z, x, c: ø4

z, x, c: ø5/32"

z, c: ø6, x: ø4

z, c: ø1/4", x: ø5/32"

Flat bracket assembly (includes 2 mounting screws)

P39800022

L-bracket assembly (includes 2 mounting screws)

Tighting torque when assembling is 0.3 N·m.

P39800023

Straight type

Right angle type

M8-4DSX3MG4

ELWIKA-KV4408 PVC025 2M

Compact Electro-Pneumatic Regulator

Series ITV0000

Note 1) Indicates the weight of a single unit.

For IITV00-n

Total weight (g) ≤Stations (n) x 100 + 130 (Weight of end block A, B assembly) + Weight

(g) of DIN rail

Note

When there is a downstream flow consumption, pressure may become unstable

depending on piping conditions.

Note 3) When the power is turned on, a noise may be generated. This noise is normal and does

not indicate a fault.

∗When using under the conditions equivalent to IP65, connect the fitting or tube to the breathing

hole prior to use. (For details, refer to "Specific Product Precautions 1" on back page 2)

Current

consumption

Working Principle

Diagram of working principle

Block diagram

rControl circuit

SUP

EXH OUT

Discharged to atmosphere

Output pressure

Input signal +

–

rControl

circuit

ePressure

sensor

Supply pressure

Series ITV0000

When the input signal rises, the air supply soloenoid valve qturns ON. Due to this, part of the supply pressure passes through

the air supply solenoid valve qand changes to output pressure. This output pressure feeds back to the control circuit rvia the

pressure sensor e. Here, pressure corrections continue until output pressure becomes proportional to the input signal, enabling

output pressure that is proportional to the input signal.

Power supply and error

LED indication

Power supply

Input signal

qAir supply solenoid valve wExhaust solenoid valve

ePressure sensor

Output signal

qAir supply

solenoid valve

wExhaust

solenoid valve

Linearity, Hyteresis

0255075

–1

–0.6

–0.8

–0.4

–0.2

0.6

0.4

0.2

0.8

100

Output deviation factor (% F.S.)

Input signal (%F.S.)

Repeatability

1234

–1

–0.5

0.5

Output deviation factor (% F.S.)

Count

Pressure Characteristics

0.15 0.16 0.17 0.18 0.19

–1

–0.5

0.5

0.20

Output deviation factor (% F.S.)

Supply pressure (MPa)

Flow Characteristics

011.50.5 2 2.5 3 3.5

100

120

Set pressure (kPa)

Flow rate (l/min (ANR))

20 kPa

40 kPa

60 kPa

80 kPa

100 kPa

10 kPa

With 50% of signal input

Supply pressure: 0.2 MPa

Set pressure: 0.05 MPa

With 50% of signal input

Supply pressure: 0.6 MPa

Set pressure: 0.25 MPa

Linearity, Hyteresis

0255075

–1

–0.6

–0.8

–0.4

–0.2

0.6

0.4

0.2

0.8

100

Output deviation factor (% F.S.)

Input signal (%F.S.)

Repeatability

1234

–1

–0.5

0.5

Output deviation factor (% F.S.)

Count

Pressure Characteristics

0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9

–1

–0.5

0.5

1.0

Output deviation factor (% F.S.)

Supply pressure (MPa)

Flow Characteristics

0213456

100

200

500

400

300

600

Set pressure (kPa)

Flow rate (l/min (ANR))

100 kPa

200 kPa

300 kPa

400 kPa

500 kPa

50 kPa

Series ITV001첸

Series ITV003첸

Out

Return

Out

Return

Out

Return

Out

Return

Compact Electro-Pneumatic Regulator

Series ITV0000

Linearity, Hyteresis

0255075

–1

–0.6

–0.8

–0.4

–0.2

0.6

0.4

0.2

0.8

100

Output deviation factor (% F.S.)

Input signal (%F.S.)

Repeatability

1234

–1

–0.5

0.5

Output deviation factor (% F.S.)

Count

With 50% of signal input

Supply pressure: 1.0 MPa

Pressure Characteristics

0.4 0.6 0.8 1.0

–1

–0.5

0.5

1.2

Output deviation factor (% F.S.)

Supply pressure (MPa)

Flow Characteristics

01 2 34 56

200

300

100

400

900

800

500

600

700

1000

Set pressure (kPa)

Flow rate (l/min (ANR))

100 kPa

200 kPa

300 kPa

800 kPa

900 kPa

700 kPa

600 kPa

500 kPa

400 kPa

50 kPa

Set pressure: 0.45 MPa

Series ITV005첸

Out

Return

Out

Return

Series ITV0000

For Single Unit

M8 x 1

Cable connection thread

L-bracket

(Option)

4 x ø6 depth of

counterbore 3

OUTxSUPz

EXHc

EXH port

(ø4, ø5/32")

SUP port

(ø4, ø5/32")

PWR

ERR

첸38

4 x ø3.5

2x ø3.5

2 x ø6

depth of

counterbore

3.5

+50

3000

15 35

8.7

(30.9)

7 14

9.9

ø4

13.7

Body

Minimum bending radius 80

No.

ITV00 첸EXHSUP OUT

Port Location

zxc

3.7 3.7

PWR

ERR

ø9.7

24.6

2000앐50

ø4

M8 x 1

Body

Dimensions

Note) When using under the condi-

tions equivalent to IP65, con-

nect the fittings or tube to the

breathing hole prior to use.

(For details, refer to "Specific

Product Precautions 1" on

back page 2)

Breathing hole

(M3 x 0.5)

OUT port

(ø4, ø5/32")

Note)

L-bracket

(Option)

Cable connector (4-wire)

Straight type (Option)

Cable connector (4-wire)

Right angle type (Option)

Minimum bending radius 80

Flat bracket

2 x M3 x 0.5 thread depth 3.5

Bracket mounting hole

(Option)

Flat bracket

(Option)

Compact Electro-Pneumatic Regulator

Series ITV0000

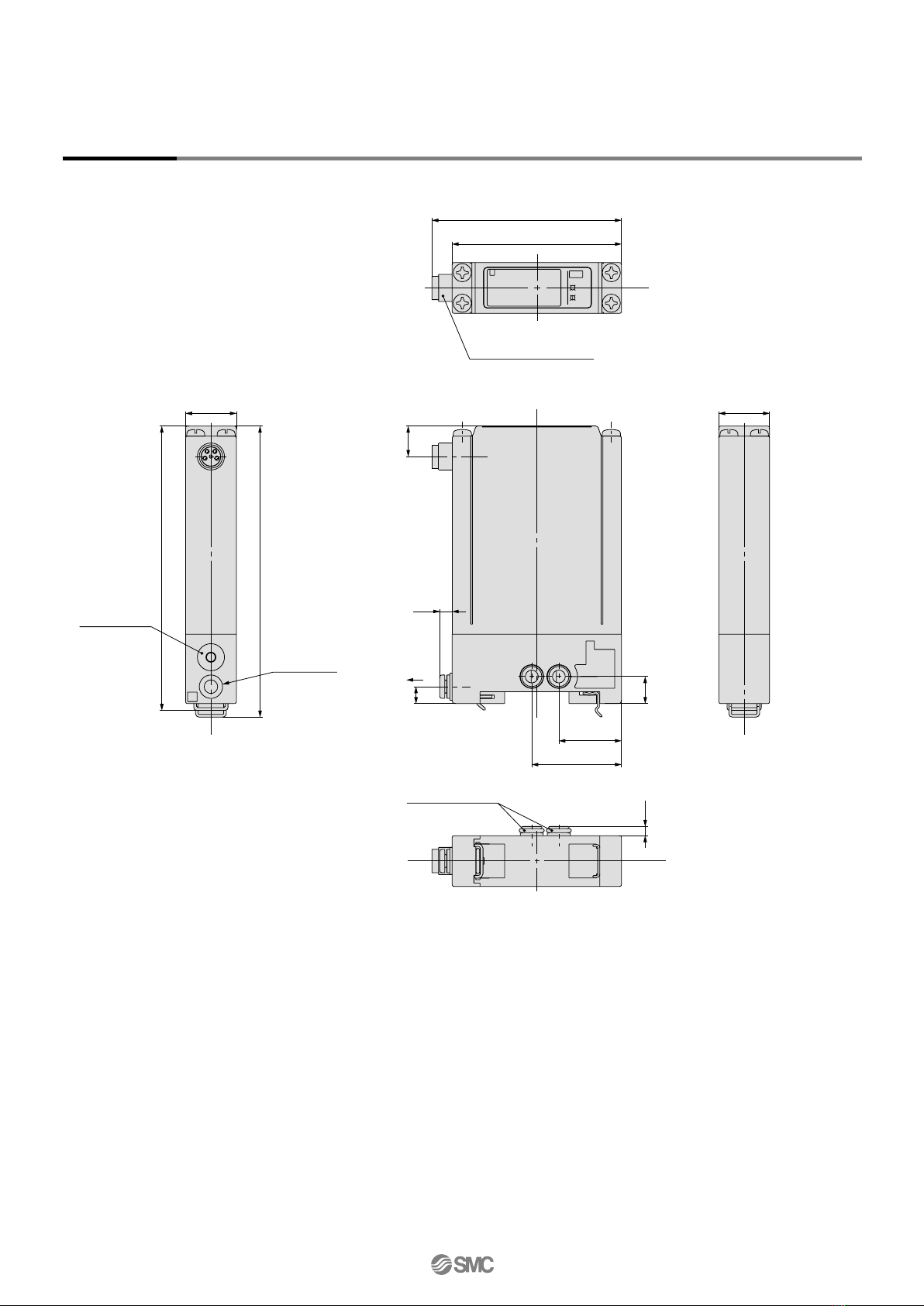

Single unit for manifold

Bushing assembly

OUTx

15 15

18.5

26.5

2.7

3.7

OUT port

(ø4, ø5/32")

Note) For dimensions of the cable connector, refer to single unit on page 6.

PWR

ERR

Dimensions

M8 x 1

Cable connection thread

Breathing hole

(M3 x 0.5)

Note)

Note) When using under the conditions equivalent to IP65,

connect the fittings or tube to the breathing hole prior

to use. (For details, refer to "Specific Product Precau-

tions 1" on back page 2)

Series ITV0000

Autres manuels pour ITV0000 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SMC Networks Contrôleurs

SMC Networks

SMC Networks 10-AW Series Manuel utilisateur

SMC Networks

SMC Networks IR320-A Manuel utilisateur

SMC Networks

SMC Networks JXC93 Series Manuel utilisateur

SMC Networks

SMC Networks LECPMJ Series Manuel utilisateur

SMC Networks

SMC Networks PSE300 Series Manuel utilisateur

SMC Networks

SMC Networks 56-SS0750 Series Manuel utilisateur

SMC Networks

SMC Networks LEY series Manuel utilisateur

SMC Networks

SMC Networks AWM20-01 Series Manuel utilisateur

SMC Networks

SMC Networks C M2 Z Series Manuel utilisateur

SMC Networks

SMC Networks ITV SEN DUX02357 Series Manuel utilisateur

SMC Networks

SMC Networks 4011 Series Manuel utilisateur

SMC Networks

SMC Networks CHSD Series Manuel utilisateur

SMC Networks

SMC Networks ITV10*0-CC****-Q Series Manuel

SMC Networks

SMC Networks LER Series Manuel utilisateur

SMC Networks

SMC Networks 55-JCM Series Manuel utilisateur

SMC Networks

SMC Networks EX230-SDN1 Manuel

SMC Networks

SMC Networks ITV0000 Series Manuel utilisateur

SMC Networks

SMC Networks e-Rodless E-MY2 Series Manuel utilisateur

SMC Networks

SMC Networks ClimateWorx FieldServer ProtoNode FPC-N34 Guide de l'utilisateur

SMC Networks

SMC Networks CRQ2 Series Manuel utilisateur

SMC Networks

SMC Networks VXFC-06D Manuel utilisateur

SMC Networks

SMC Networks IRV10 Manuel utilisateur

SMC Networks

SMC Networks LECP2 Series Manuel utilisateur

SMC Networks

SMC Networks DAS Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
