SMC Networks HP1D-ETH - annexe 1 Manuel utilisateur

Verify you have the following items included in the EZ Connect™ Powerline to Ethernet

Desktop Adapter package.

•1EZ Connect Powerline to Ethernet Adapter

•3Power Adapters (US/UK/EU).

•1Ethernet Cable.

•1Quick Install Guide.

•1EZ Installation CD including.

- EZ Install Wizard

- EZ Configuration Utility 1.0

- User Guide

Immediately inform your dealer in the event of any incorrect, missing or damaged

parts. If possible, please retain the carton and original packing materials in case

there is a need to return the product.

Please register this product and upgrade the product warranty at SMC's Web site:

www.smc.com or www.smc.europe.com.

The EZ Connect™ 14 Mbps Powerline to Ethernet Desktop Adapter (SMCHP1D-ETH) is the

easiest way to create or extend a home network without having to run expensive CAT-5

cabling. To add Powerline technology to your network, simply connect a Powerline to

Ethernet Desktop Adapter to one of the available LAN ports on your BarricadeTM Router

and plug it into an available power outlet. As soon as the Adapter is connected to the

power outlet, each outlet in your house automatically becomes a network connection

where you can access the internet, email, share devices, and connect network-enabled

home entertainment devices. The Powerline to Ethernet Desktop Adapter is compatible

with Windows, Mac, and Linux based PCs. The Powerline to Ethernet Adapter is an excel-

lent solution for getting your Game Console System, such as Xbox® or PS2®, connected

to the internet for online game playing.

The EZ Connect 14 Mbps Powerline to Ethernet Desktop Adapter (SMCHP1D-ETH)

is equipped with:

•1- Auto-Sensing 10/100 Mbps Ethernet connection.

•1– Powerline connection.

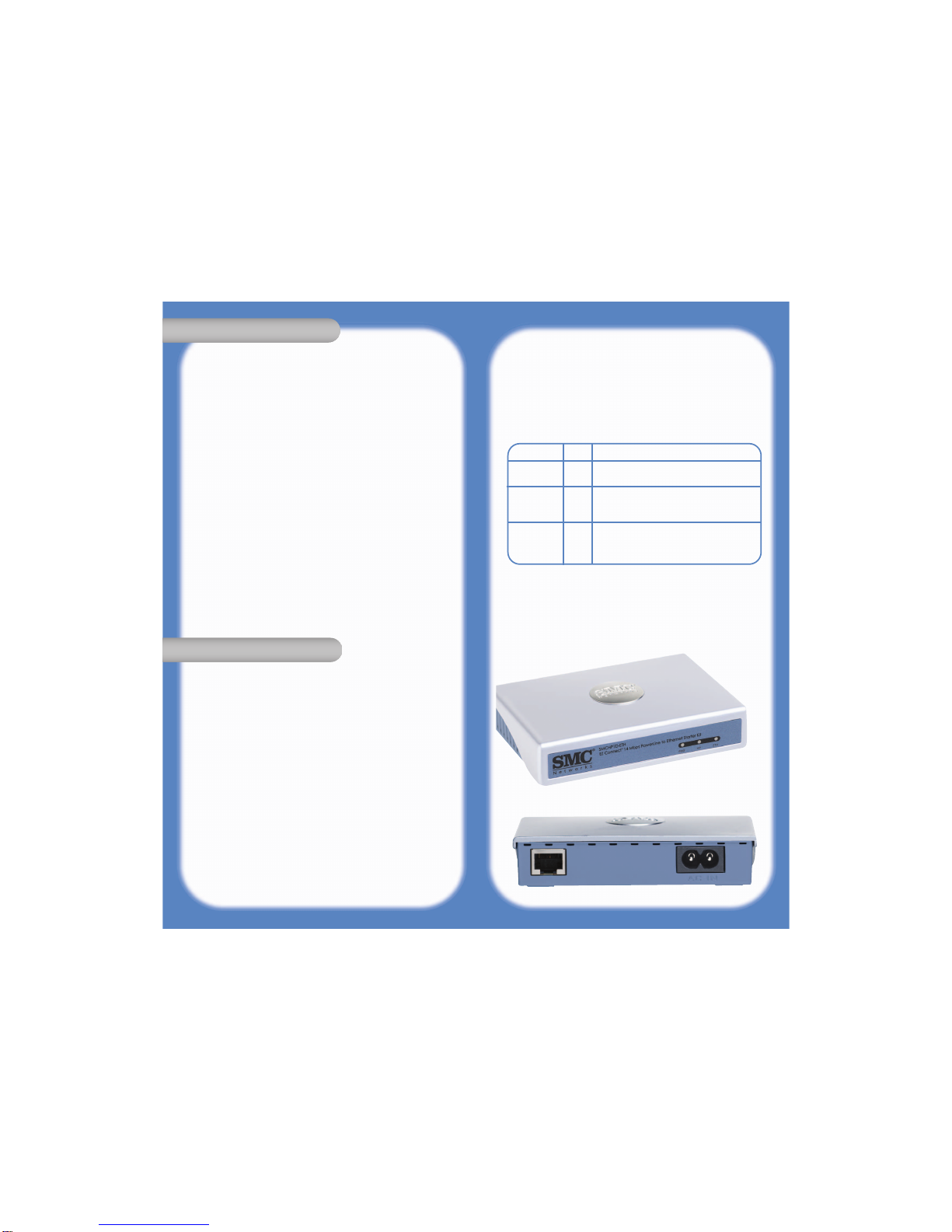

There are three LED indicators to display status, connectivity, and data traffic:

Package Contents

Hardware Description

Color

Green

LED (Label)

Power (PWR)

Powerline (HP)

Ethernet (ETH)

Activity

Solid LED indicates that the unit is powered on.

No LED light indicates the unit is powered off.

Solid LED indicates that a Powerline signal is detected.

Blinking LED indicates traffic is being transmitted.

No LED light indicates no Powerline signal is detected.

Solid LED indicates a good Ethernet connection is detected.

Blinking LED indicates traffic is being transmitted.

No LED light indicates an Ethernet connection

is not detected.

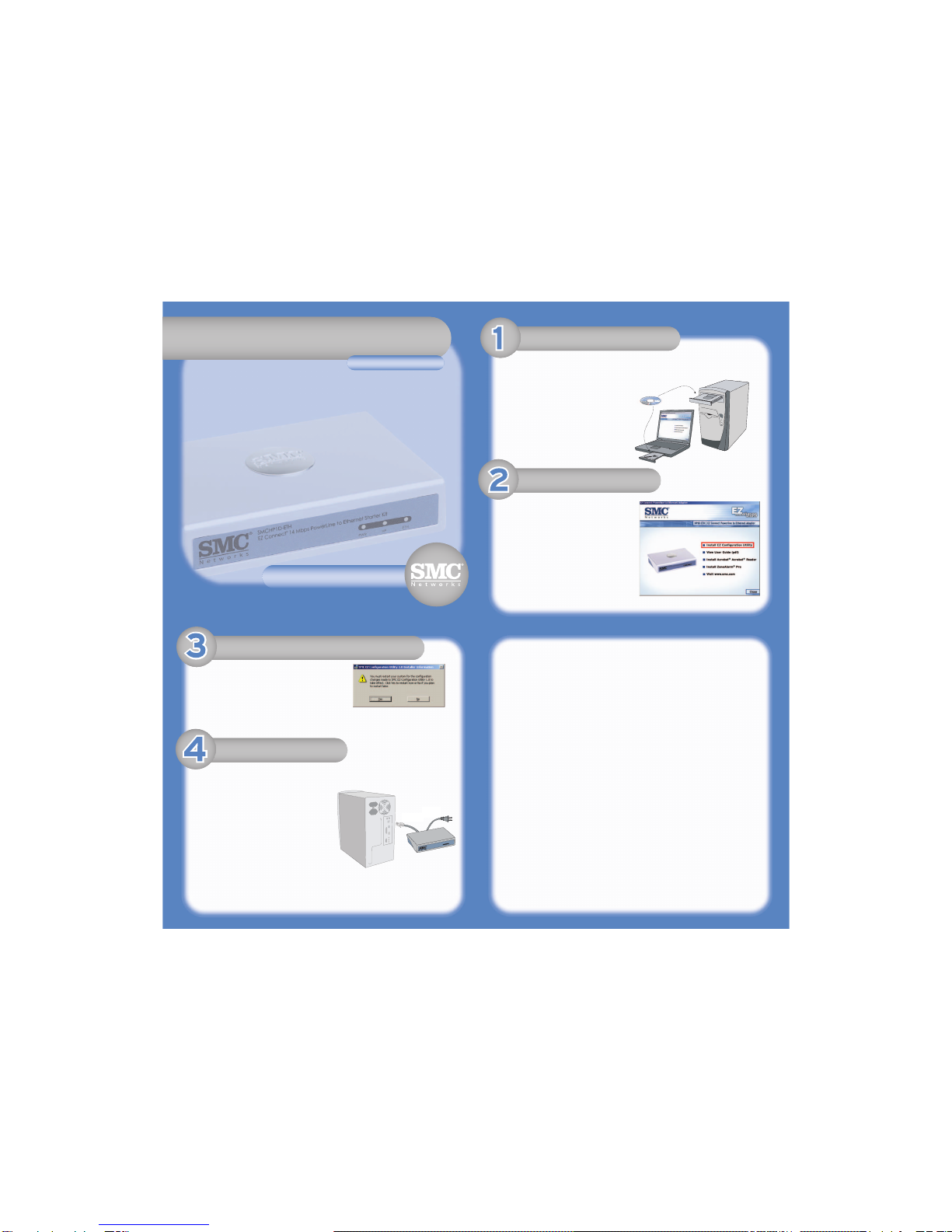

Thank you for choosing the SMC EZ-ConnectTM 14 Mbps Powerline to Ethernet Desktop

Adapter. This EZ Quick Installation Guide

will guide you through a simple process for

getting your new SMC product installed.

Put the EZ Installation CD into your

CD-ROM drive.

When the EZ Installation Wizard launches;

click on the [Install EZ Configuration

Utility] option.

Note: If the EZ 3-Click Installation Wizard

does not start automatically then you

can manually launch the program by

viewing the contents of the CD ROM

and double-clicking on the Powerline

adapter Icon.

To complete the utility installation you will

need to reboot your PC.

While your PC is rebooting, connect the

Powerline to Ethernet Adapter to the Wired

Network Adapter on your PC and then

connect the powerline cord to a power

outlet.

Note: For more information on how to use

the utilities advanced features, please

refer to the user guide on the CD.

EZ ConnectTM Powerline

to Ethernet Desktop Adapter EZ Installation CD

SMCHP1D-ETH

Quick Installation Guide

Install Utility

Reboot PC

Connect Hardware

Ethernet

Adapter

Power

Adapter

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable.

However, no responsibility is assumed by SMC for its use, nor for any infringements of

patents or other rights of third parties, which may result from its use. No license is

granted by implication or otherwise under any patent or patent rights of SMC.

SMC reserves the right to change specifications at any time without notice.

SMC is a registered trademark; and EZ ConnectTM is a trademark of SMC Networks, Inc.

Other product and company names are trademarks or registered trademarks of their

respective holders.

FOR TECHNICAL SUPPORT, CALL:

From U.S.A. and Canada

(24 hours a day, 7 days a week)

(800) SMC-4-YOU;

Phn: (949) 679-8000;

Fax: (949) 679-1481

From Europe: Contact details can be found

on www.smc-europe.com or www.smc.com.

INTERNET

E-mail addresses:

[email protected]

european.techsupport@smc-europe.com

World Wide Web:

http://www.smc.com/

http://www.smc-europe.com/

If you are looking for further contact

information, please visit www.smc.com

or www.smc-europe.com.

Model Number: SMCHP1D-ETH

Driver updates:

http://www.smc.com/index.cfm?action=tech_support_drivers_downloads
