1-1

Chapter 1 Features, Specications, and Safety Information

SmarTV TouchPhone User Guide

Ch a p t e r

Features, Specications, and Safety

Information

Overview

This chapter discusses the features of the cordless SmarTV TouchPhone and provides important information

you should read and understand before installing and using it.

Note: The room user interface screens depicted in this guide are for a generic hospitality interface. For actual

screens used for your installation, refer to the guide called Using the SmarTV TouchPhone.

Read the following sections to learn more about the phone’s features, care and maintenance, specications,

and related safety information:

About the SmarTV TouchPhon• e

Unit Features and Connection• s

Cordless Handset Feature• s

User Interface Feature• s

Care and Maintenanc• e

Technical Specication• s

Important Safety Informatio• n

About the SmarTV TouchPhone

The SmarTV TouchPhone is a tabletop Voice Over Internet Protocol (VoIP) touch-screen telephone for

hospitality applications. This stylish, versatile phone combines the functions of an alarm clock, voice-message

machine, room-control remote, stereo music dock, and cordless telephone into a multipurpose information

and control center.

Designed to provide unmatched exibility and ease of use, the SmarTV TouchPhone offers abundant features

and crystal-clear digital calling with the convenience of a touch-screen interface. This guide covers the

following model:

LPIT-H0D1E0P1• —Cordless model features acordless multi-button handset with color LCD display.

Chapter 1 Features, Specications, and Safety Information

1-2 SmarTV TouchPhone User Guide

Unit Features and Connections

Full-Color Touch-Screen Display• —The SmarTV TouchPhone’s 7-inch diagonal, full-color touch

screen display offers more room for larger, easy-to-read graphics.

Cordless Handset• — The cordless handset offers an LCD display and extra mobility when placing

and receiving calls.

Speakerphone• —The Base and cordless handset have built-in speakerphones for placing and

receiving calls.

Display Panel Snooze, Alarm OFF, and Volume Buttons• —The display panel has raised buttons

for SNOOZE, Alarm OFF, and Volume Up and Down.

Audio Connectors for Portable Music Devices• —The side panel has 3.5mm stereo and RCA

jacks to connect portable music devices and listen to music through the built-in stereo speakers.

USB Port for connecting and charging USB devices• —The side panel has a USB port for

charging USB devices.

Network Connections• —The rear of the base includes a POE-enabled RJ45 jack for connecting the

phone to the hotel network.

POE Ready• —The phone can be powered with power over Ethernet (POE) from a POE-enabled

hotel network.

Customizable User Interface• —When connected to a SmarTV server, the phone’s user interface

can be customized using the SmarTV conguration tool.

External Power Supply Connection• —The rear panel has a DC power input jack for a 48-volt DC

external power supply to be used when connecting to hotel networks without POE.

ADA Headset/TTY Keyboard Connection for Disabled Users• —The side panel has a 2.5mm

headset jack for connecting ADA devices such as an ADA-compliant headset or TTY Keyboard.

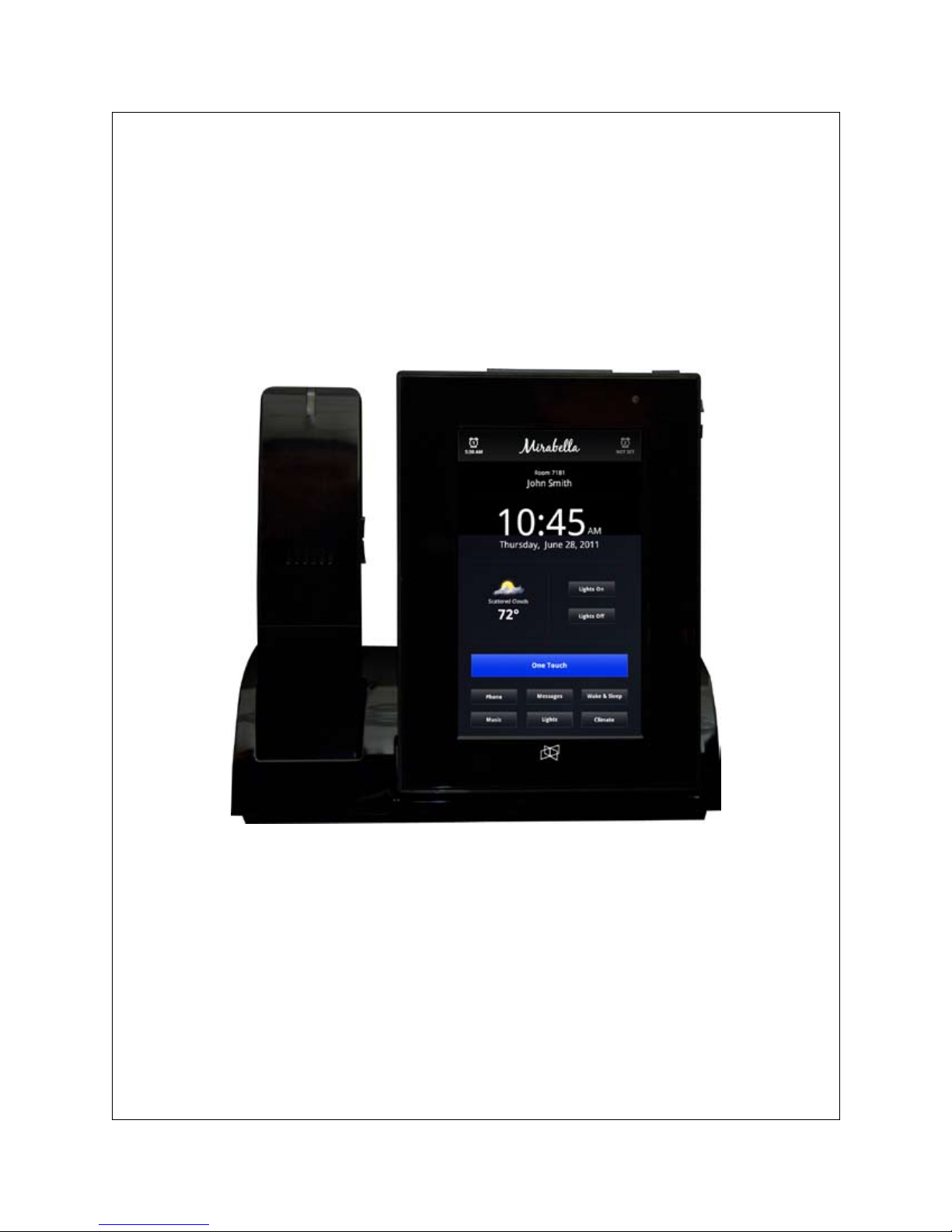

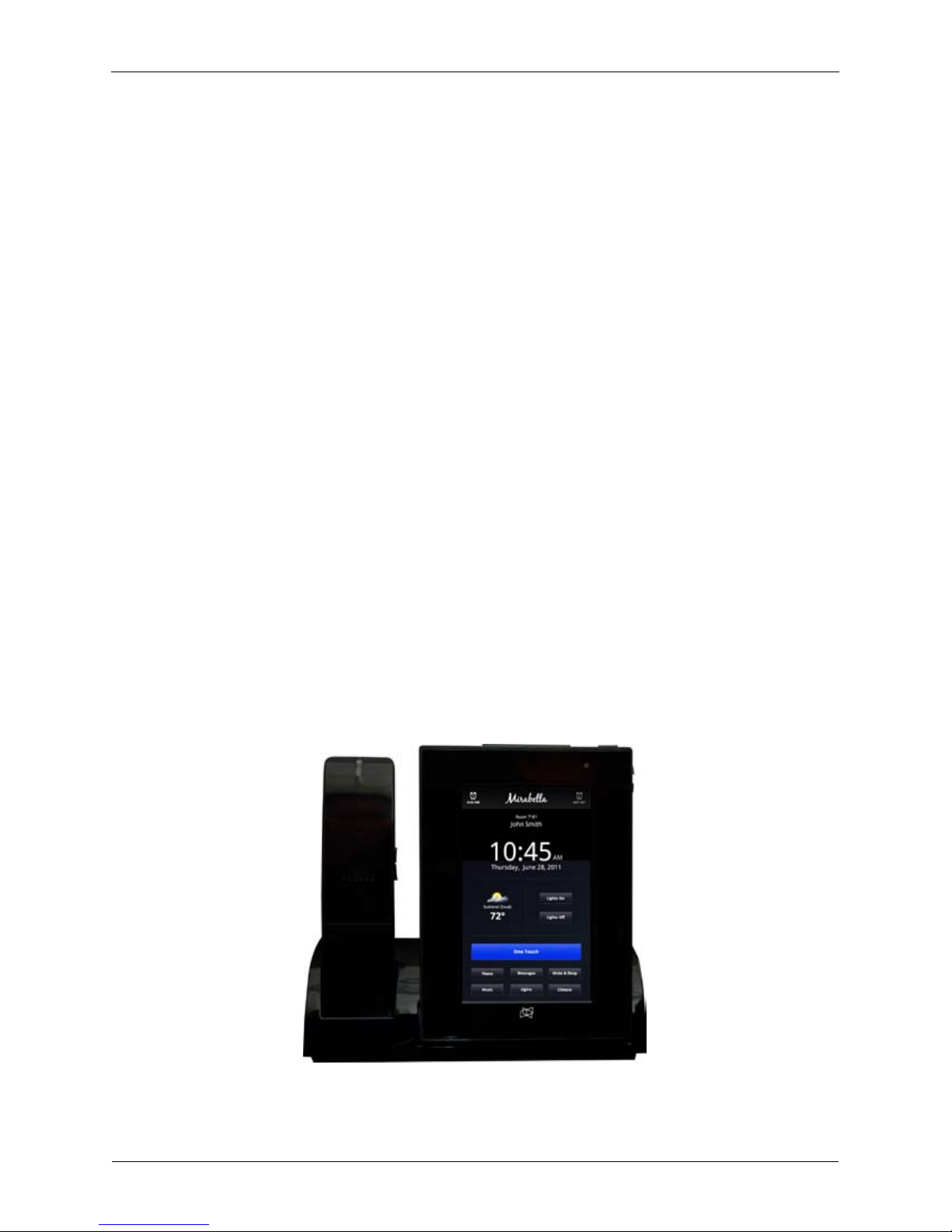

SmarTV Touch Phone (Cordless)

Chapter 1 Features, Specications, and Safety Information

1-3

SmarTV TouchPhone User Guide

Display Panel Features

The touch-screen display panel on the Base is tiltable and includes:

Raised buttons for Snooze, Alarm OFF, and Volume Up and Down•

Message indicator for incoming messages•

Light sensor for automatic display brightness•

Built-in microphone•

Message

Indicator

Light Sensor

Microphone

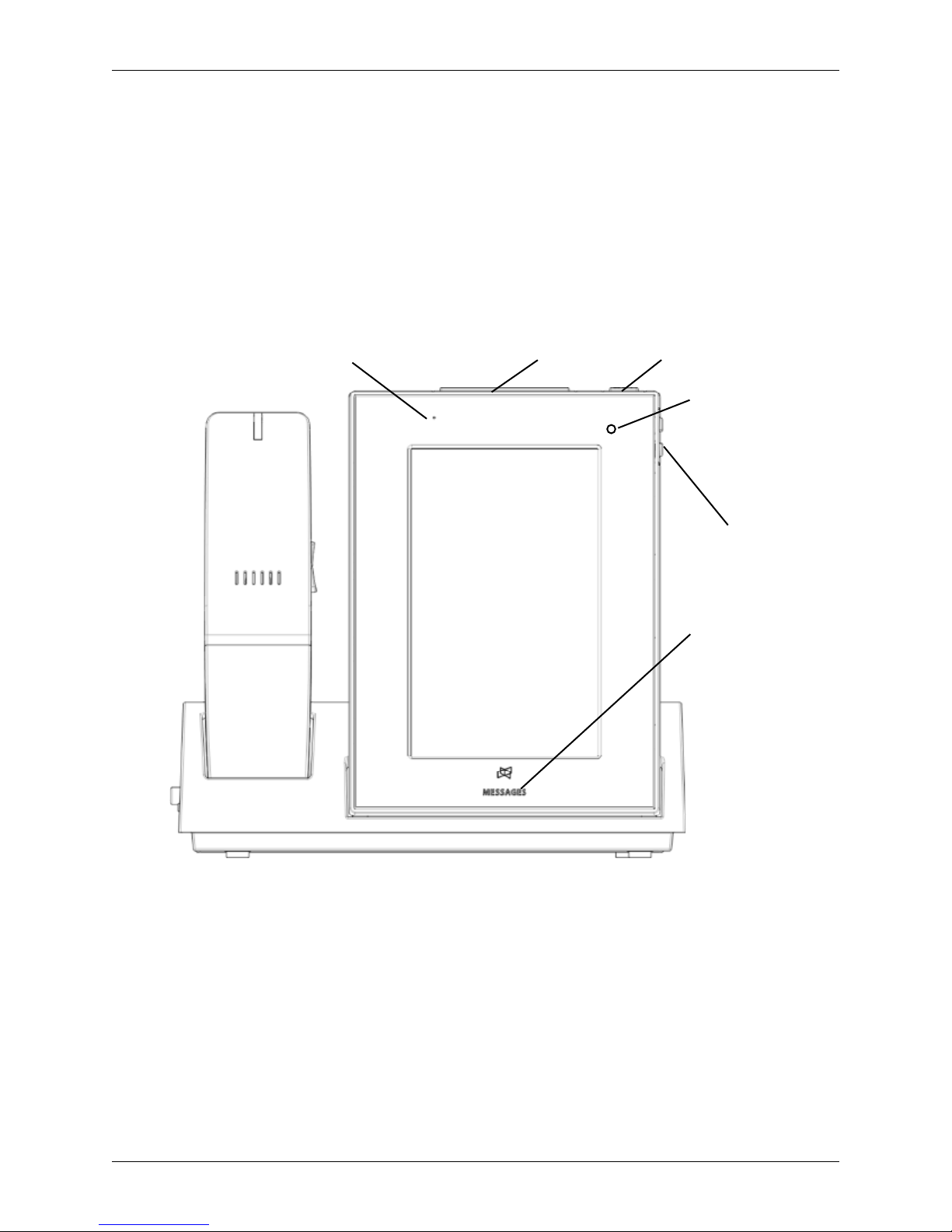

Display Panel Features

Snooze Alarm OFF

Volume Up/Down

Chapter 1 Features, Specications, and Safety Information

1-4 SmarTV TouchPhone User Guide

Rear Panel Features and Connections

The rear panel (see following diagram) from left to right includes:

Reset switch recessed behind the rear panel•

DC power input jack for 48V DC external power supply (required for non-POE hotel networks)•

RJ45 jack with POE for VoIP connection to the hotel network•

Optional RJ45 jack for connecting an external PC to the hotel network through the phone•

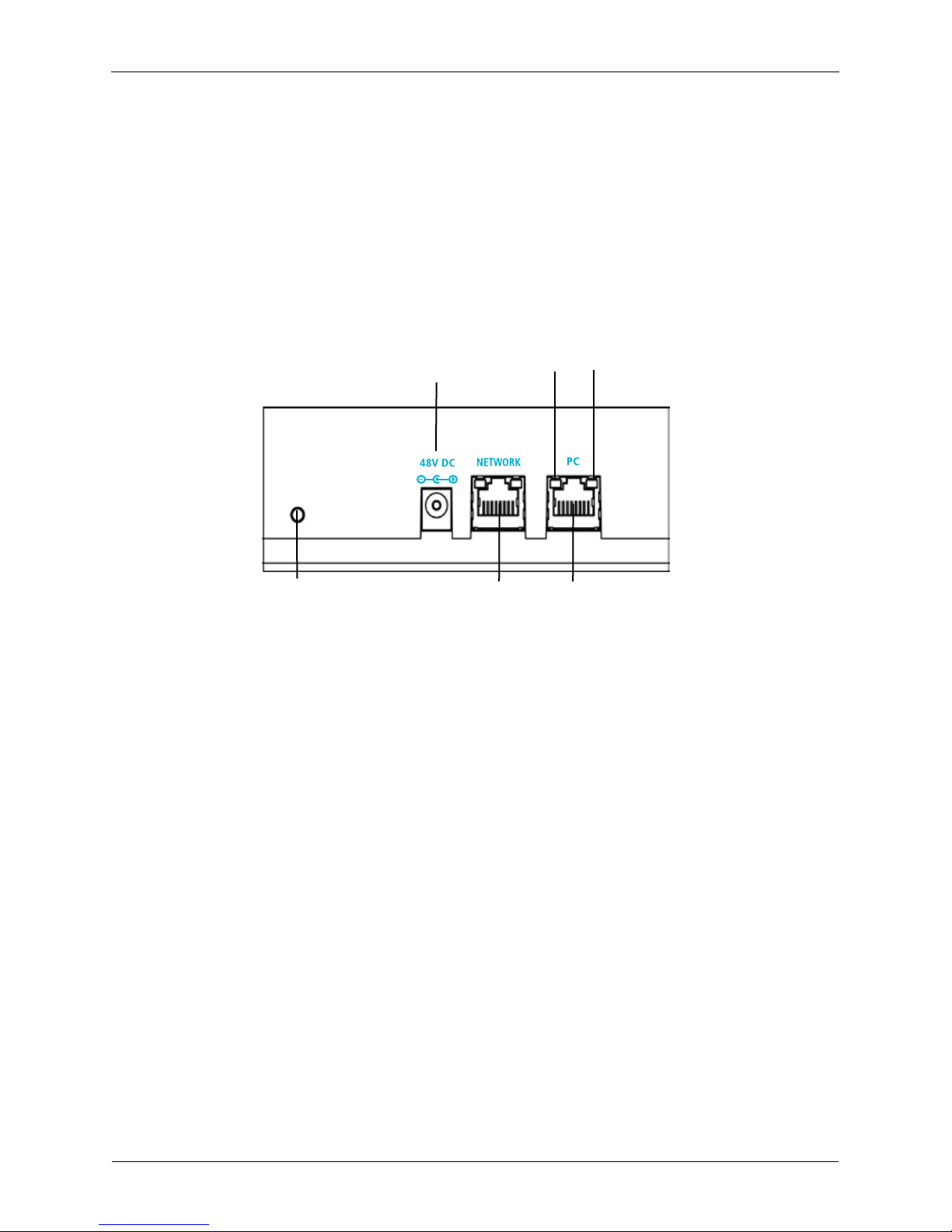

Rear Panel Power and LAN Connections

Optional PC

LAN Jack

Network

LAN Jack

48V DC

Power

Input

Activity

LED

Link

LED

Reset

Switch

Reset Switch

The reset switch is recessed behind a small hole in the rear panel and can be pressed with a straightened

paper clip or other small-shafted object. Refer to the Troubleshooting chapter for information on the

proper use of this switch.

DC Power Input

The 48V DC power input jack accepts the barrel-plug end of a 48-volt DC power supply (not included with

phone) required for use with non-POE networks.

RJ45 Ethernet Jack with POE

This POE-equipped RJ45 LAN jack is for connecting the phone to the hotel network. When a high-speed

(100Mbps) network link is established, the Link LED turns green. The Activity LED will ash green when

the phone is communicating with the network.

Optional RJ45 Ethernet Jack (non POE)

This optional RJ45 LAN jack (selected models only) is for connecting an external PC to the hotel network

through the phone. When a high-speed (100MB/s) network link is established, the Link LED turns green.

The Activity LED will ash green when the external PC is communicating with the network.

Table des matières

Manuels Téléphone sans fil populaires d'autres marques

3Com

3Com NBX Manuel utilisateur

Panasonic

Panasonic KX-TGK210HK Manuel utilisateur

Panasonic

Panasonic KX-TCA181EX Manuel utilisateur

BT FREESTYLE 3200 Manuel utilisateur

AT&T

AT&T CL84102 Manuel utilisateur

BREZZICNI

BREZZICNI CL-3622 Manuel utilisateur

Panasonic

Panasonic KX-TG1831NZ Manuel utilisateur

Panasonic

Panasonic KX-TG7301E Manuel utilisateur

Furuno

Furuno FM-4721 Manuel utilisateur

Sanyo

Sanyo CLT-J70 Manuel utilisateur

Amplicomms

Amplicomms BigTel 201 Manuel utilisateur

GE 26992 Manuel utilisateur

AT&T

AT&T E1812B Manuel utilisateur

Sanyo

Sanyo CLT-670 Manuel utilisateur

GE 15432970 Manuel utilisateur

Curtis

Curtis TC595 Manuel utilisateur

Gigaset

Gigaset Gigaset 3000 Micro Manuel utilisateur

Poly

Poly VVX D230 Guide de configuration
