Smartrise M1000-PM Manuel d'installation et d'exploitation
Page intentionally left blank
Drive Startup Manual M1000-PM
December 17, 2019 ©2019 Smartrise Engineering, Inc. All Rights Reserved Page i
Document History
Date
Version
Summary of Changes
October 23,2018
1.0
Initial Submittal
December 17, 2019
2.0
Changed cover page
Updated title name to reflect the type of drive
New document format
Updated Construction section with more detailed
information
Drive Startup Manual M1000-PM
Page ii © 2019 Smartrise Engineering, Inc. All Rights Reserved December 17, 2019
Page intentionally left blank
Drive Startup Manual M1000-PM
December 17, 2019 ©2019 Smartrise Engineering, Inc. All Rights Reserved Page iii
Table of Contents
M1000 Drive ...........................................................................................................1
Equipment/Settings Verification..............................................................................1
Grounding Requirements ........................................................................................2
Wiring .....................................................................................................................2
Power .................................................................................................................................... 2
Brake .................................................................................................................................... 3
Motor/Encoder....................................................................................................................... 3
Construction ........................................................................................................................... 4
Powering Up ...........................................................................................................5
Final Setup ..............................................................................................................5
Auto Tuning ............................................................................................................7
Motor Alignment .................................................................................................................... 7
Encoder Alignment ................................................................................................................. 8
Operation................................................................................................................8
Drive Startup Manual M1000-PM
Page iv © 2019 Smartrise Engineering, Inc. All Rights Reserved December 17, 2019
List of Figures
Figure 1: M1000 PM Drive.............................................................................................................................................1
Figure 2: Example of Parameter Table ..........................................................................................................................1
Figure 3: Ground Bus Terminal......................................................................................................................................2
Figure 4: Example of Construction Wiring.....................................................................................................................4
Figure 5: Breakers..........................................................................................................................................................5
Figure 6: MAIN MENU –Setup ......................................................................................................................................6
Figure 7: SETUP Menu –Misc........................................................................................................................................6
Figure 8: MISC Menu –Bypass Term Limits...................................................................................................................6
Figure 9: Bypass Term Limits Menu –NO......................................................................................................................6
Figure 10: Bypass Term Limits Menu –YES ...................................................................................................................7
Figure 11: U9 Autotune .................................................................................................................................................7
Drive Startup Manual M1000-PM
Page vi © 2019 Smartrise Engineering, Inc. All Rights Reserved December 17, 2019
Page intentionally left blank
Drive Startup Manual M1000-PM
December 17, 2019 ©2019 Smartrise Engineering, Inc. All Rights Reserved Page 1
M1000 Drive
The M1000 drive is a permanent magnet AC drive.

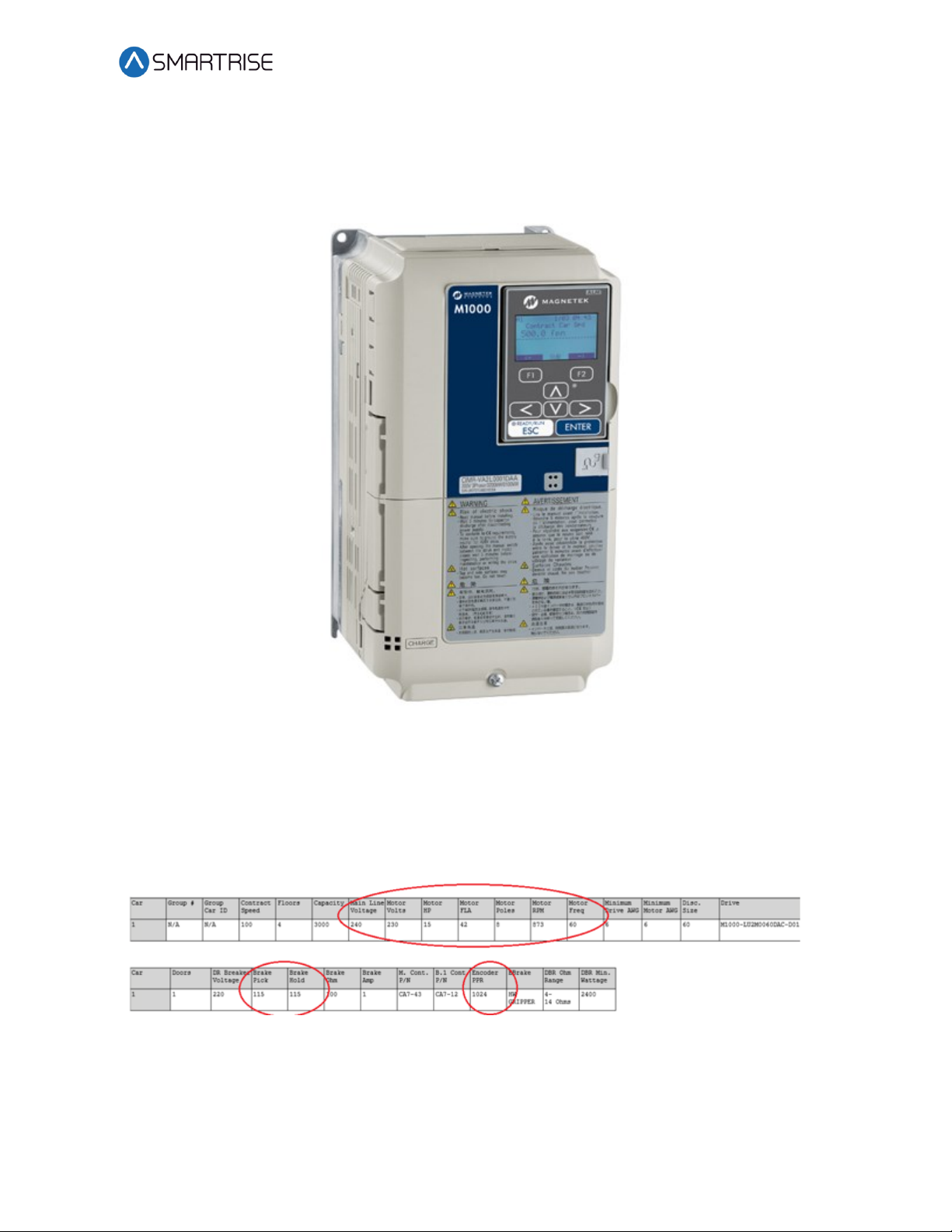

Figure 1: M1000 PM Drive
Equipment/Settings Verification
Set and verify the equipment matches the job specific parameters. See V2 Controller sheet 01
Getting Started Parameter Table for more information.
Figure 2: Example of Parameter Table
Scroll through the motor parameters and verify that they are set to the motor nameplate
values prior to performing the Motor Learn procedure.
Drive Startup Manual M1000-PM
Page 2 © 2019 Smartrise Engineering, Inc. All Rights Reserved December 17, 2019
Grounding Requirements
NOTE: A proper and effective building ground connection is required for the safe and successful
operation of the controller.
Examples of a proper building-to-controller ground is as follows:
1. Attach the ground wire to the street side of a water main.
2. Attach the ground wire to a grounding rod in the pit.
The controller has a common ground bus terminal connection.

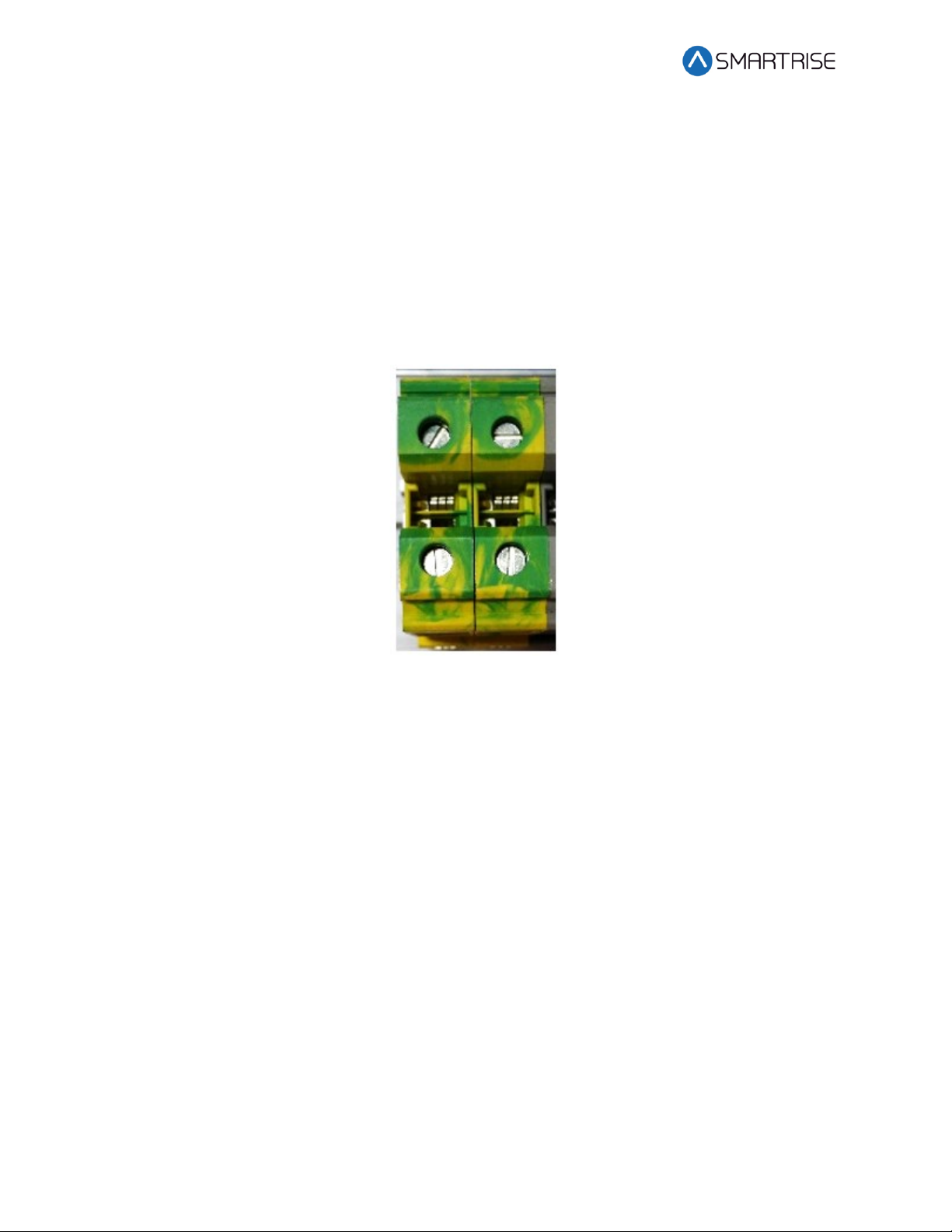

Figure 3: Ground Bus Terminal
•The building, motor, transformer, and filter(s) must all share a common ground. This
removes ground loops., limits impedance, and routes noise into the ground.
Wiring
A checklist must be completed during the drive wiring process.
Power
Perform the following to connect power. See V2 Controller sheet 03 Machine Room for job
specific information.
1. Connect Main line power to terminal blocks L1/L2/L3.
2. Connect the ground wire to the yellow/green terminal block next to L1-L3.
