Introduction

SMART+ PRODUCTS Infrared Heaters utilize the latest infrared heat technology. smart+ products

Infrared Heaters provide a safe, convenient, clean, and economical way to distribute heat

throughout your home or business without producing deadly fumes or monoxide gases. Our

heating system produces therapeutic infrared heat that can potentially relieve symptoms of

cardiovascular conditions and inflammatory diseases. Infrared heat technology, in general,

produces rays that are safe and highly beneficial to our bodies and health professionals have been

using infrared technology for decades to treat muscle and joint pains.

smart+ products Infrared Heaters are constructed of a wood housing. They are equipped with

nylon caster wheels for easy mobility. And the highly efficient filter can be maintained and cleaned

by simply rinsing with warm water.

Safety

USE CAUTION

Save these instructions because electrical safety is essential to keeping your home safe. When

using an electrical appliance, basic precautions should always be followed to reduce the risk of fire,

electric shock, and injury to persons. Please adhere to the following safety instructions:

The heater must be operated by an adult. Keep heater out of the reach of children.

Only operate the heater when it is on the floor.

Do not operate heater near any water.

Do not plug heater into any other cord connected device such as power strip, surge

protector, multiple outlet adapter, grounding adapter, outlet-type air fresheners or extension

IMPORTANT INSTRUCTIONS

cords. Plug the heater cord directly into a 3-prong 120V 15 amp grounded circuit

receptacle.

Never plug heater cord into a loose fitting or broken receptacle.

Never alter the heater’s design or operation. Such actions will void warranty and could

result in injury and/or death.

Do not operate the heater if it has a damaged cord or plug.

Do not operate the heater if there are signs of malfunction. If the heater has been dropped

or damaged, do not operate.

Keep combustible materials such as furniture, pillows and other bedding materials, paper(s),

clothing, and curtains at least three feet away from all sides of the heater during operation.

Always unplug heater when not in use.

Do not use the heater outdoors.

Do not run heater cord under carpet. Do not cover cord with throw rugs, runners, or similar

coverings. Do not route cord under furniture or appliances. Route cord away from traffic

areas.

Do not use the heater in bathrooms, laundry rooms, or similar indoor locations.

Turn off heater before unplugging.

Do not insert any foreign object or allow foreign object to enter the ventilation opening

or exhaust opening as this may cause electric shock, fire, and/or injury.

Never block the air intake or exhaust opening in any manner as this could lead to fire.

Do not locate heater, when in use, immediately below a receptacle.

Never operate heater in or around a bathtub, shower, or swimming pool.

Only open heater if instructed by an authorized representative of the manufacturer. There

are limited user-serviceable parts inside.

Use heater only as described in this manual. Any other use is not recommended by the

manufacturer as it may lead to fire, electric shock, and/or series physical injury or death.

Heater Specifications

SMART+ PRODUCTS Heater Model# SPP-WI0035

Carton Size: 19.4 in x 17.1 in x 18.6 in Thermostat: Electronic Analog

Heater Size: 15.8 in x 14.8 in x 16.2 in Fan System: Cross Flow Fan

Net Weight: 32 lbs Fan Noise Level: 46 db

Gross Weight: 36 lbs BTU: 5600

Cabinet: ¾ ply –Oak Delayed Start Function

Power Cord: 5.8 ft / 16 gauge Remote Control

Heat Chamber with Diathermanous Copper Plate “HI” Function: 1500 watts

Heating Elements: 4 Infrared Quartz Bulbs w/ Nickel-Chrome Filament “LOW” Function: 750 watts

Power Requirement: 120V 15 amp Electrostatic Washable Filter

Heating Elements Life Expectancy Potential: Rated 20,000 hrs Warranty: Limited 1-Year Parts Warranty

Heat Type: Therapeutic Quartz Infrared Heat

How It Works

The smart+ products Infrared Heater works with your in-home furnace to provide supplement heat.

In short, room temperature air circulates from the rear of the smart+ products Infrared Heater,

passes through a highly efficient filter, enters a chamber that houses the Infrared Quartz Bulbs,

and exits as heated air from the Diathermanous Copper Plate constructed on the front of the unit.

The smart+ products Infrared Heater ideally heats a room of 500 to 700 square feet, but can be

used to heat up a single room size up to 1000 square feet depending on the ambient temperature.

And it does all this with a noise level below 46db. The smart+ products Infrared Heater is not for

use as the primary/sole heating system.

Components and Functions

A. The smart+ products Infrared Heater is constructed with Infrared Quartz Bulbs. Each

Infrared Quartz Bulb is rated at 375W. These bulbs produce therapeutic infrared rays that

warm the air which passes through the inner chamber. The Infrared Quartz Bulbs are

constructed with a stainless steel thermal conducting housing. The incorporated twisted

style increases the efficiency of the unit.

B. An AC Cross Flow Fan pushes air over these Infrared Quartz Bulbs. Cross Flow Fans

create a wide flow of air using a cylindrical-shaped impeller. Air is drawn inside the smart+

products Infrared Heater, flows along the circumference of the chamber and over the

Infrared Quartz Bulbs, and is blown out laterally creating a uniform flow of warm air.

C. The smart+ products Infrared Heater has a Delay Start Function which controls the AC

Cross Flow Fan. The purpose of the Delay Start Function is to allow the Infrared Quartz

Bulbs to heat up before the fan begins to circulate the air flow. In addition, the AC Cross

Flow Fan will continue to circulate the airflow after the power is turned off to circulate the

warm air from the smart+ products Infrared Heater cooling the unit down.

D. The air flow exits through the front of the smart+ products Infrared Heater. It travels from

the Diathermanous Copper Plate. The Diathermanous Copper Plate is constructed from

red copper making it advantageous for efficient thermal conductivity. It is a resourceful

material in reflecting the infrared rays.

E. The LED Digital Display is a convenient, stylish, and modern way to display the set

temperature and time. This attractive addition compliments the smart+ products Infrared

Heater, in that, it simplifies and makes controlling the unit easy. Operating the heater is

logical and can be done on the unit itself or by remote.

Unpacking the SMART+ PRODUCTS Infrared Heater

1. First, check the carton to make sure there are no obvious damages that may have occurred

during shipment.

2. Open the smart+ products Infrared Heater packaging and remove the heater by sliding it

from the box. You may want to gently and cautiously turn the entire box upside down

letting the heater slowly slide out.

3. Remove all the protective materials from the heater. It may be a good idea to keep the

protective materials and packaging for storage during the off-season.

Operating Instructions

Visually inspect the smart+ products Infrared Heater for any damages before operation.

Do not operate the heater if any damages are detected. Contact your dealer immediately.

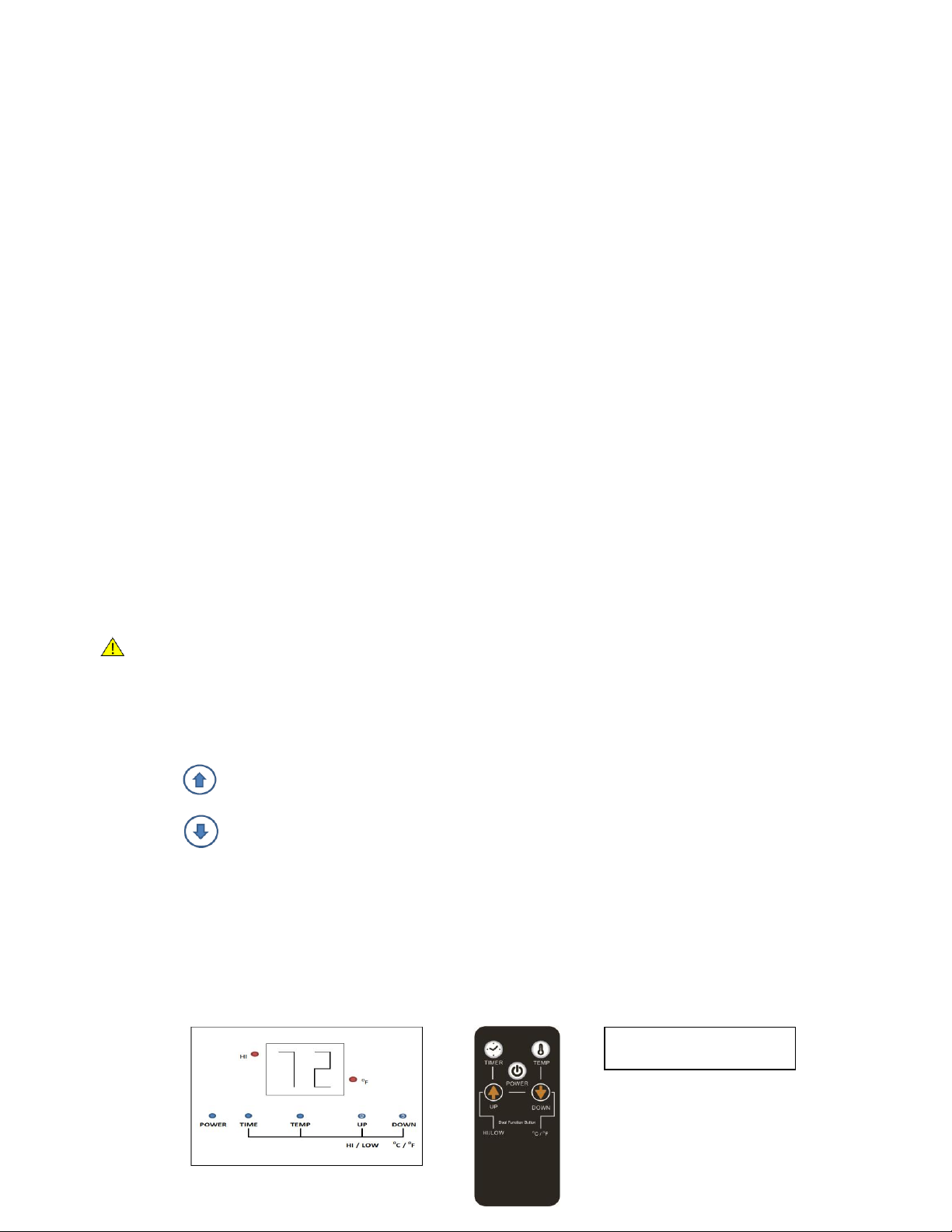

NOTE: “UP”and “DOWN”arrow buttons on the control panel and remote control

have dual function capabilities.

Adjust TIME / TEMP with up arrow or adjust HI / LOW settings.

Adjust TIME / TEMP with down arrow or adjust 0C/0F settings.

1) Plug the power cord directly into a conventional 120V 15 amp outlet and press the

MASTER POWER switch on the rear of the portable heater. Then press the POWER

button on the front control panel or on the remote to start the unit. The LED display will

show the default value as 720F/220C.

Function Display

(Note: If the current ambient temperature is greater than the set temperature, the HI/LOW display,

fan, and Quartz Bulbs will not operate.)

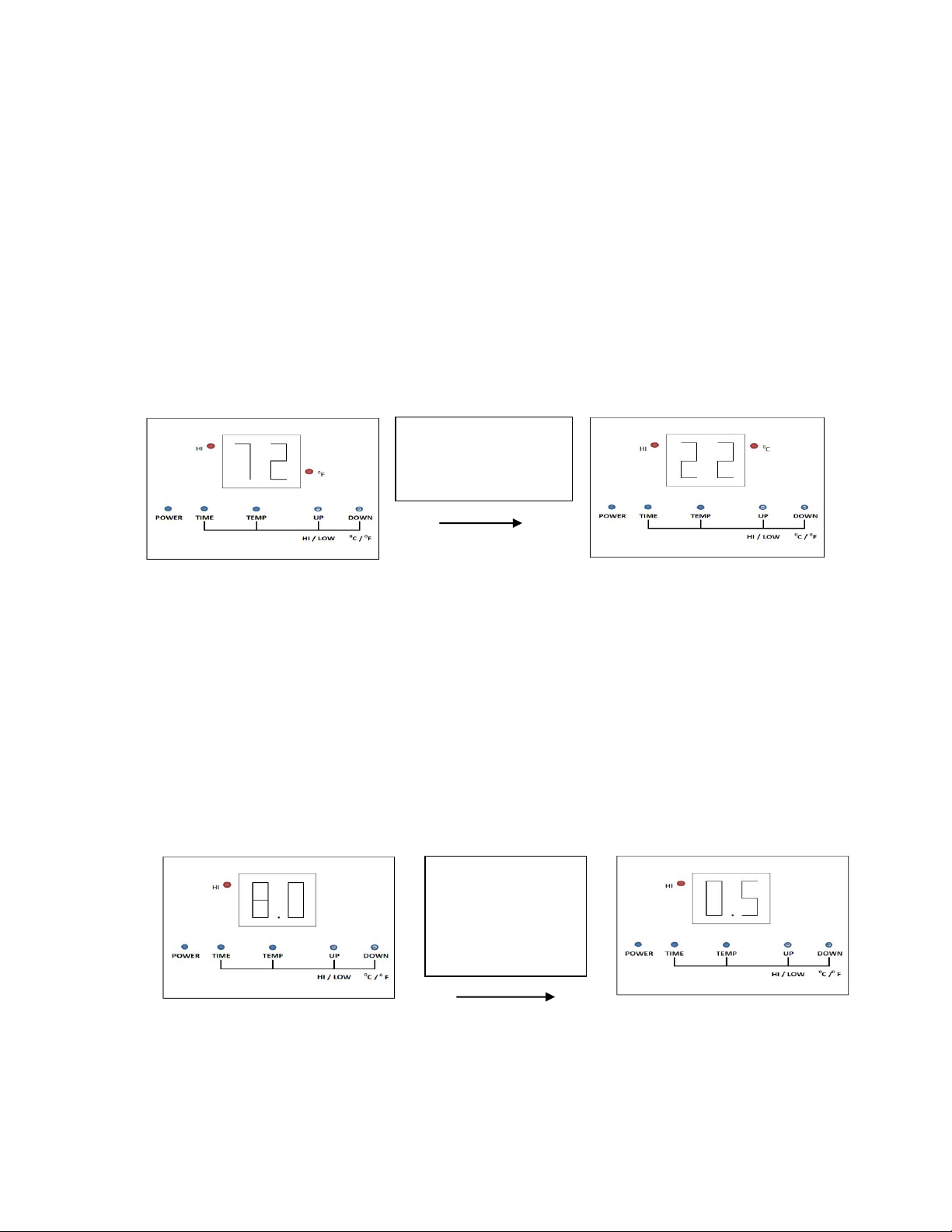

2) By pressing the 0C/0F/Down button, you can switch the temperature format from Fahrenheit

to Celsius and vice versa.

3) By pressing the TIME button, the LED display will switch from the temperature status to the

TIME status and begin to flash. The default time will display “--“. This means that the TIME

is not activated and, therefore, the heater will remain on. You must press the HI/LOW/UP

button or the 0C/0F/DOWN once again within (5) seconds to set the time. Each time you

press the HI/LOW/UP button, the time will increase by 0.5 Hr. If you press the

0C/0F/DOWN button, the time will decrease by 0.5 Hr. The maximum value for time is 8.0

Hr. By holding down the HI/LOW/UP button or 0C/0F/DOWN for (2) seconds, the number

rotation will cycle more quickly. If you do not press the HI/LOW/UP button or 0C/0F/DOWN

within (5) seconds, the time status will switch back to the temperature status.

Press TIME to switch

to time status, then

press HI/LOW/UP

button once within 5

seconds to scroll up

Press the 0C/0F/Down to

switch from Fahrenheit

to Celsius.

4) Again, the default set temperature displayed on the LED display is 720F. By pressing the

TEMP button, the LED display will switch to the temperature status and flash. You must

press the HI/LOW/UP button or 0C/0F/DOWN button once again within (5) seconds to set

the desired temperature. Each time you press the HI/LOW/UP button, the temperature

setting will increase by 10F. Press the 0C/0F/DOWN button and the time will decrease by

10F. The maximum temperature setting is 860F (300F). If you hold the HI/LOW/UP button

or 0C/0F/DOWN button for (2) seconds, the number rotation will cycle more quickly.

5) Press the HI/LOW/UP button to switch from HI (rated at 1500W) to LOW (rated at 750W).

The default setting is HI.

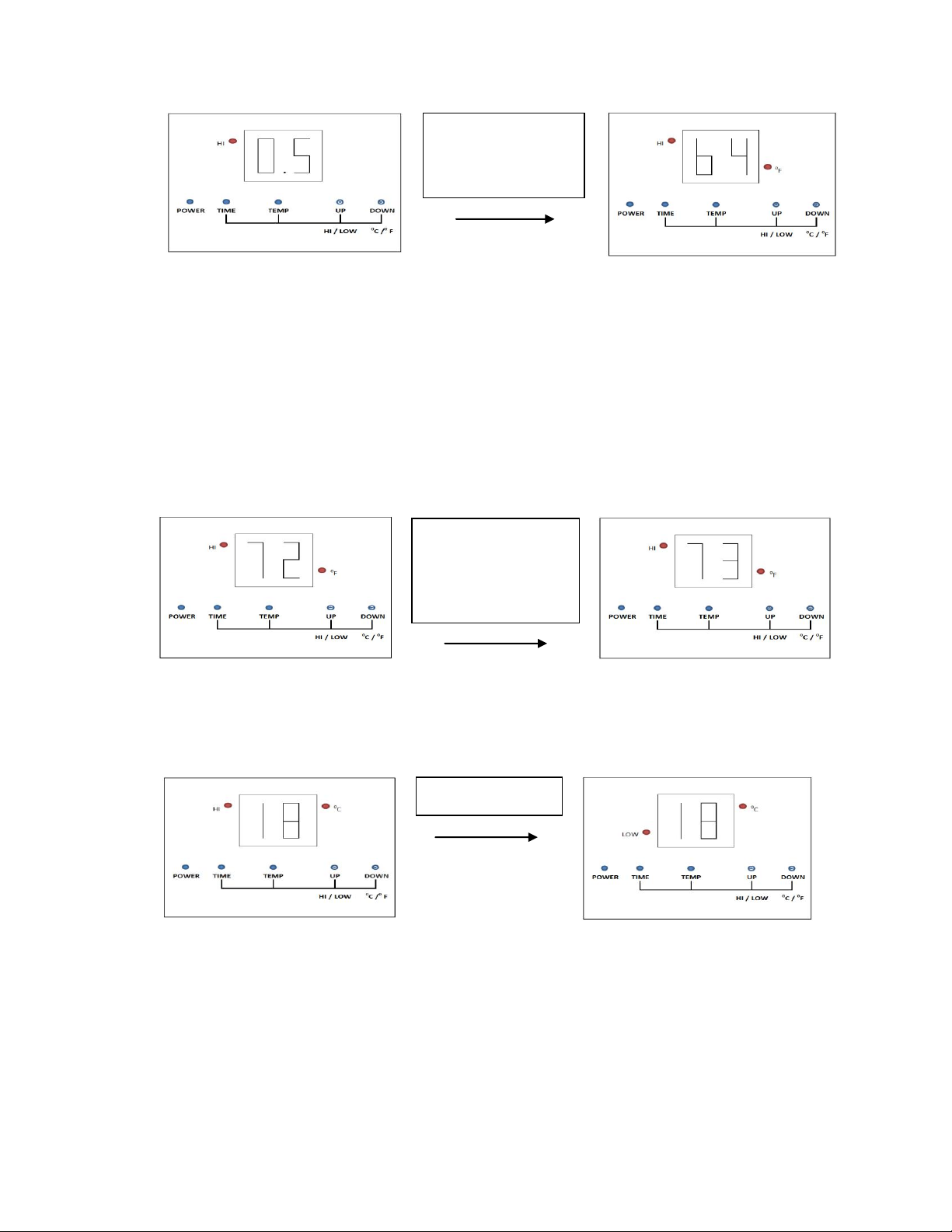

6) To find the ambient room temperature, hold down the TEMP + TIME and then let go. The

ambient temperature will be displayed. To calibrate temperature setting, hold down the

TEMP button for (5) seconds to switch to thermostat calibration status. The LED display

5 seconds later the

value switches to

ambient temperature

Press TEMP to switch

to temperature status,

then press HI/LOW/UP

button once within 5

seconds to scroll up

From HI to LOW

will begin to flash. The default setting on the display is 00. The 0For 0C LED light will

illuminate. Press HI/LOW/UP or 0C/0F/DOWN button to scroll up and down for the correct

calibration. The displayed temperature should match your wall or free-standing

thermometer within (2) degrees. Once the desired temperature is set, press TEMP again to

save your settings.

(Note: Make sure you understand the difference between the set/desired temperature and

the ambient room temperature readings on the heater. The set/desired temperature

reading is defaulted to 72 degrees Fahrenheit. You see this displayed when you first turn

on the heater. The set/desired temperature reading has nothing to do with calibrating the

heater. The ambient temperature is what the heater believes to be the current room

temperature. To find the ambient room temperature, you must push the temperature

button + time button and let go quickly. This will display the ambient room temperature and

this is the temperature you want to match your home thermostat reading (primary heating

device). The ambient room temperature on the heater is what needs to be calibrated. For

example, if your home thermostat says 70 degrees Fahrenheit and the heater has

an ambient room temperature reading of 75 degrees Fahrenheit, you will need to calibrate

the heater to -5. Please keep in mind that if your home thermostat temperature sensor is in

a different room, there may always be a few degrees variance between it and the

heater. Now the heater will read the current room temperature 75 degree Fahrenheit as

well.)

(Note: To set back to factory settings, hold down the TIME button for (5) seconds. This will

set all values back to default.)

7) The smart+ products Infrared Heater can be turned off by pressing the POWER button. DO

NOT TURN OFF THE MASTER POWER SWITCH ON THE REAR OF THE HEATER OR

UNPLUG THE HEATER UNTIL THE FAN SHUTS DOWN. If the heater is left on using the

TIME function, there will be (5) second sound alert to let you know that the time is expiring.

If no actions are taken, the heater will shut off.

Recommendations for Maximum Performance

1. Be sure not to place the heater in an area where the air flow or air movement is great.

2. Direct the outflow towards the center of the room and not against a solid structure, like a

wall for example. For larger areas, place the heater within a central location.

3. The smart+ products Infrared Heater is designed for maximum efficiency in the 680 F to 740

F range. This is because of the ambient air moving through the heater and out constantly.

4. Existing HVAC heating system vents should be closed. This allows the heater to function in

an isolated area.

5. It is not recommended to operate heater in areas exposed to non-insulated concrete or

metal walls. Concrete floors should be covered to insulate the heat within the room.

6. If the heater filters become dirty or dusty, they must be cleaned for the heater to operate at

its maximum efficiently.

Care, Maintenance, and Storage

Before care or maintenance is applied, always unplug the cord from the receptacle. The cabinet

housing can be wiped down with water and a damp cloth or with furniture polish. The heater has a

washable filter. The filter should be cleaned regularly to provide for maximum performance. Once

the filter is removed, run warm water through and over the filter to remove dirt and dust. Shake all

water residue from the filter and replace it back in the heater. (Note: A mild soap can be applied to

assist in removing dirt and dust from the filter)

If the heater is not to be used for an extended period of time, it can be stored away. Make sure the

power is turned off and the cord is unplugged from the receptacle. Wrap the cord around the

handle on the rear of the portable heater. Cover the heater to prevent dust from accumulating on

the heater. You may want to repack it back in its original carton. Always store the heater in a dry

and dust free environment.

(Note: You may want to clean the filter prior to storing the heater away so that it is ready for

operation the next time it is put in use.)

Troubleshooting

1. PROBLEM:

a. If the Heat Emitter is broken or damaged

b. If the Control Panel is not responding, the temperature reading is above 860F/300C, or there

is a burning odor coming from the portable heater

c. Or if the power cord is damaged

SOLUTION: Contact the manufacture immediately. DO NOT attempt to operate the portable heater

as this may cause electric shock, fire, and/or injury.

2. PROBLEM:

a. The amount of heated air exiting the front of the portable heater is reduced.

SOLUTION: Check the electrostatic filter to make sure it is free of dust and dirt. Also

check the front grill and rear air intake to make sure it is not being blocked by any kind of

debris.

3. PROBLEM:

a. The portable heater will not turn on.

SOLUTION: First, test your outlet to make sure it has power. You can do this by plugging in

another appliance and turning the appliance on. Secondly, check the LED display to see if it is

flashing. If this is the case, press the POWER button to turn off the TIME and resume normal

operation of the portable heater. Third, check the power switch to see if it is lighting up. If the outlet

does have power, the LED display is not flashing, or the power switch is not lighting up, then contact

the manufacturer immediately for further troubleshooting.

4. PROBLEM:

a. The portable heater continues to operate even when the power switch is turned off.

SOLUTION: Do not unplug. The portable heater has a fan that will continue to operate even when

the power switch is turned off. This fan continues to run in order to cool down the portable heater.

Once the fan stops running, you can then unplug the portable heater.

5. PROBLEM:

a. The control panel displays no temperature or TIME.

SOLUTION: First, check to make sure the power cord is not damaged, is plugged in, and the outlet

has power. Secondly, check to make sure the control panel is not damaged. If the control panel

display continues to be inoperable, contact the manufacturer for further troubleshooting.

6. PROBLEM:

a. The control panel is displaying a temperature and TIME, but the portable heater does not

operate.

SOLUTION: The Signal Cable or other relevant plugs may have become disconnected. Please

contact the manufacture for further troubleshooting.

7. PROBLEM:

a. The heat emitter is functioning and the air outflow is working, but the temperature displayed

on the LED panel does not increase.

SOLUTION: The temperature sensor may be damaged or has become disconnected. Please

contact the manufacture immediately for further troubleshooting.

8. PROBLEM:

a. The display shows “Er”. This error code means the heating system is not working correctly.

SOLUTION: Contact the manufacturer immediately. DO NOT attempt to operate the portable

heater as this may cause electric shock, fire, and/or injury.

Table des matières

Autres manuels Smart+ Products Chauffage

Smart+ Products

Smart+ Products SPP-1800-6WC Manuel utilisateur

Smart+ Products

Smart+ Products SPP-500-1WP Guide de démarrage rapide

Smart+ Products

Smart+ Products SPP1500SBH Manuel utilisateur

Smart+ Products

Smart+ Products SPP-1000-4WC Manuel utilisateur

Smart+ Products

Smart+ Products SPP-1500-4PR Manuel utilisateur

Smart+ Products

Smart+ Products SPP-4PC-1000 Manuel utilisateur

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
