Installation Guide

This Installation Guide provides basic installation and configuration procedures

for the Interactive Whiteboard.

Mounting the Whiteboard

To mount the Whiteboard on a wall:

Installation Method 1:

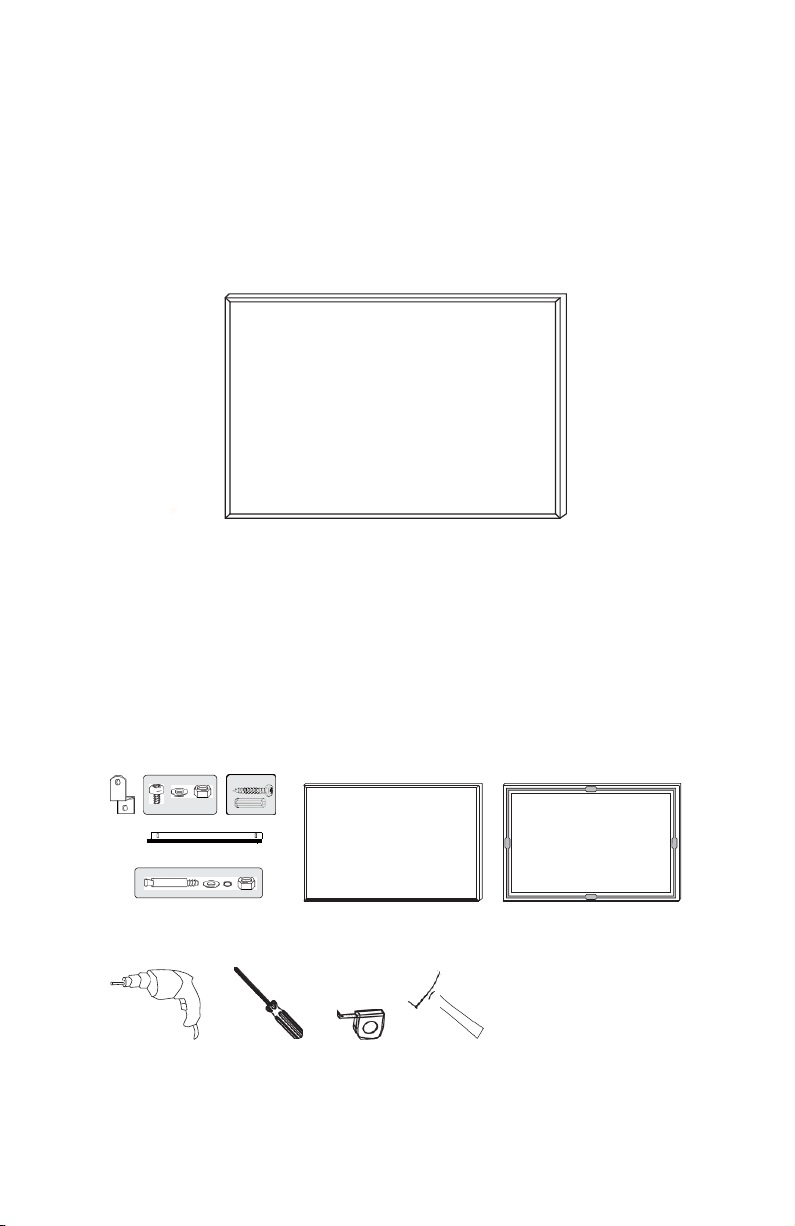

Locate the hardware and installation tools included in the package. Note the

differences between the front and back of the Whiteboard.

x4 x6 x4 (optional)

Penholder x1

Required installation tools :

BACK

FRONT

User Guide

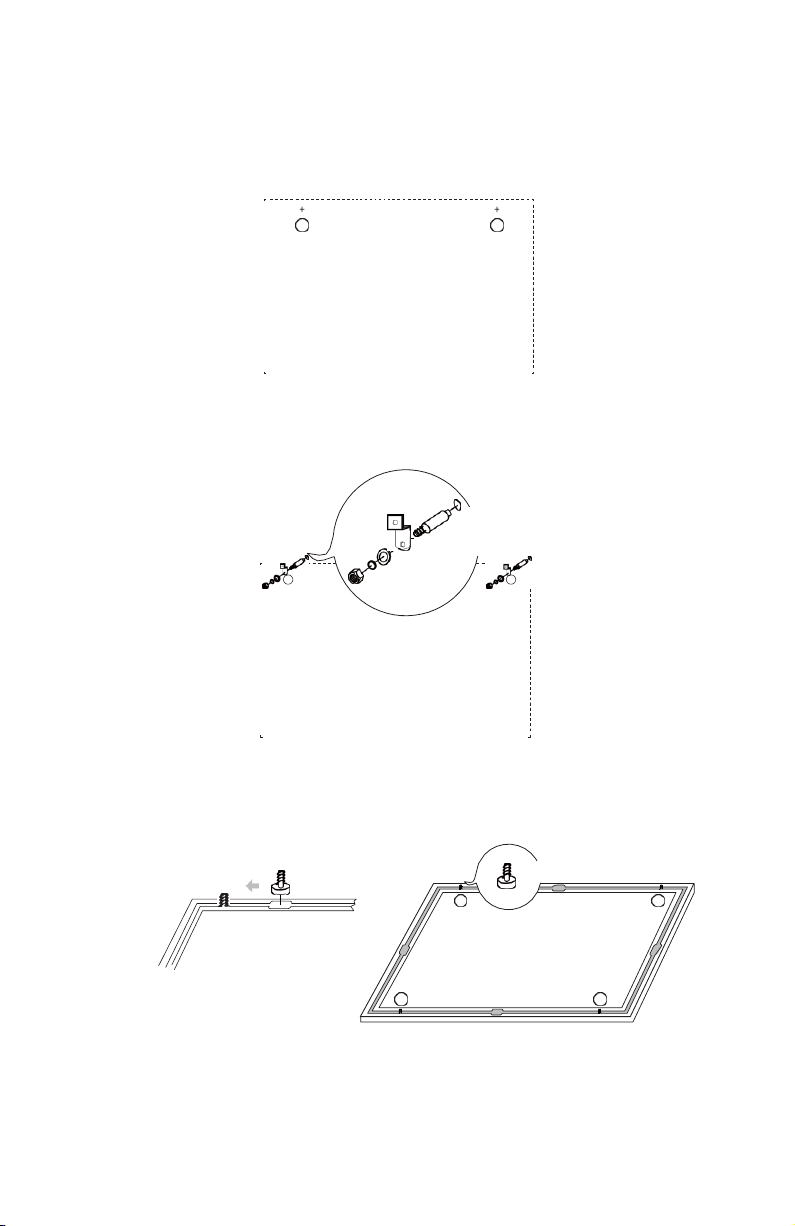

Positioning and drill holes for the brackets which will hold the top frame

of Whiteboard.

To fix the top brackets onto the wall.

Slide the holding screws into the top frame and bottom frame of Whiteboard

via the slots on the frame.

Positioning and drill holes.

BACK

User Guide

Install the penholder(optional).

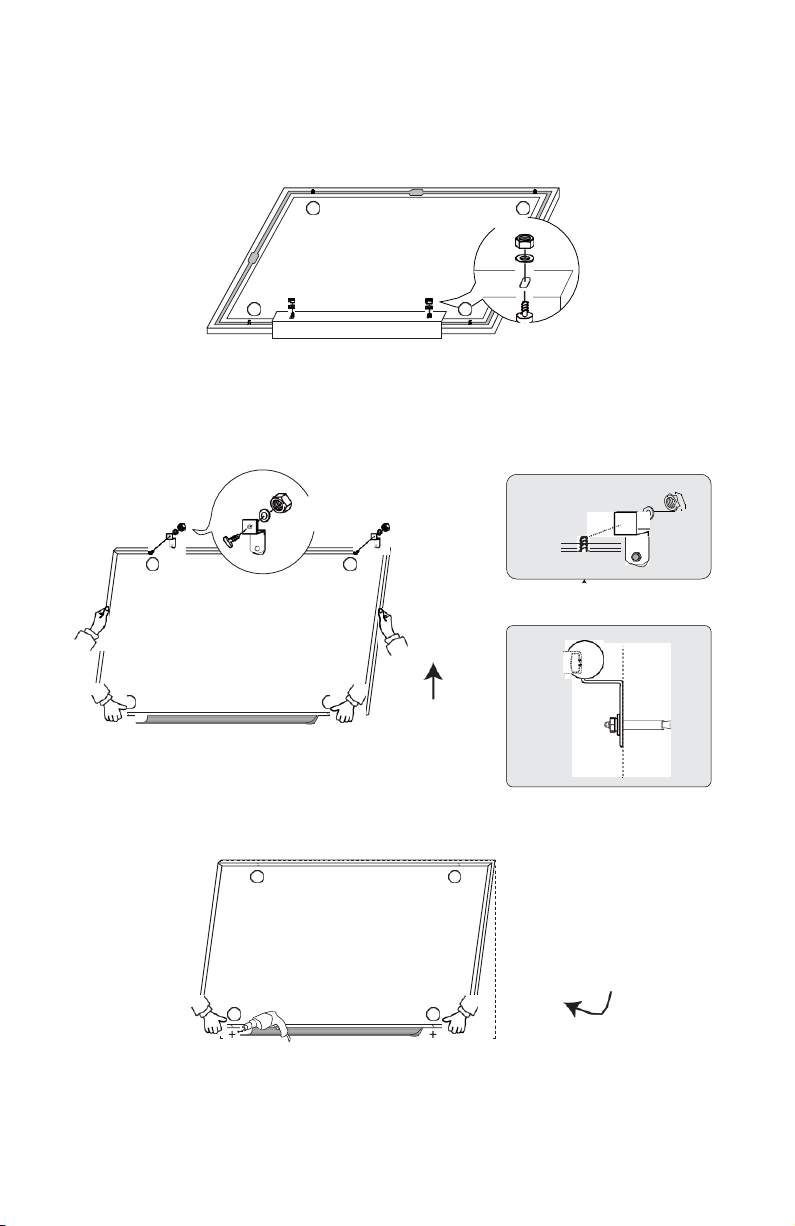

Hang the Whiteboard onto wall by fixing the top brackets with Whiteboard.

Lift up

Mount the Whiteboard on the wall.

Move up and positioning

Positioning and drill holes

BACK

Bottom side

Penholder

FRONT

BACK

IWB Frame

IWB

slot

Wall

Installed

FRONT

User Guide

To fix the bottom brackets onto the wall.

Hold the bottom frame of Whiteboard by fixing the bottom brackets with

Whiteboard.

10.

Whiteboardmountedonthewall.

Installed

FRONT

IWB keep up

Installed

IWB Frame

FRONT

BACK

IWB keep up

FRONT

User Guide

Installation Method 2:

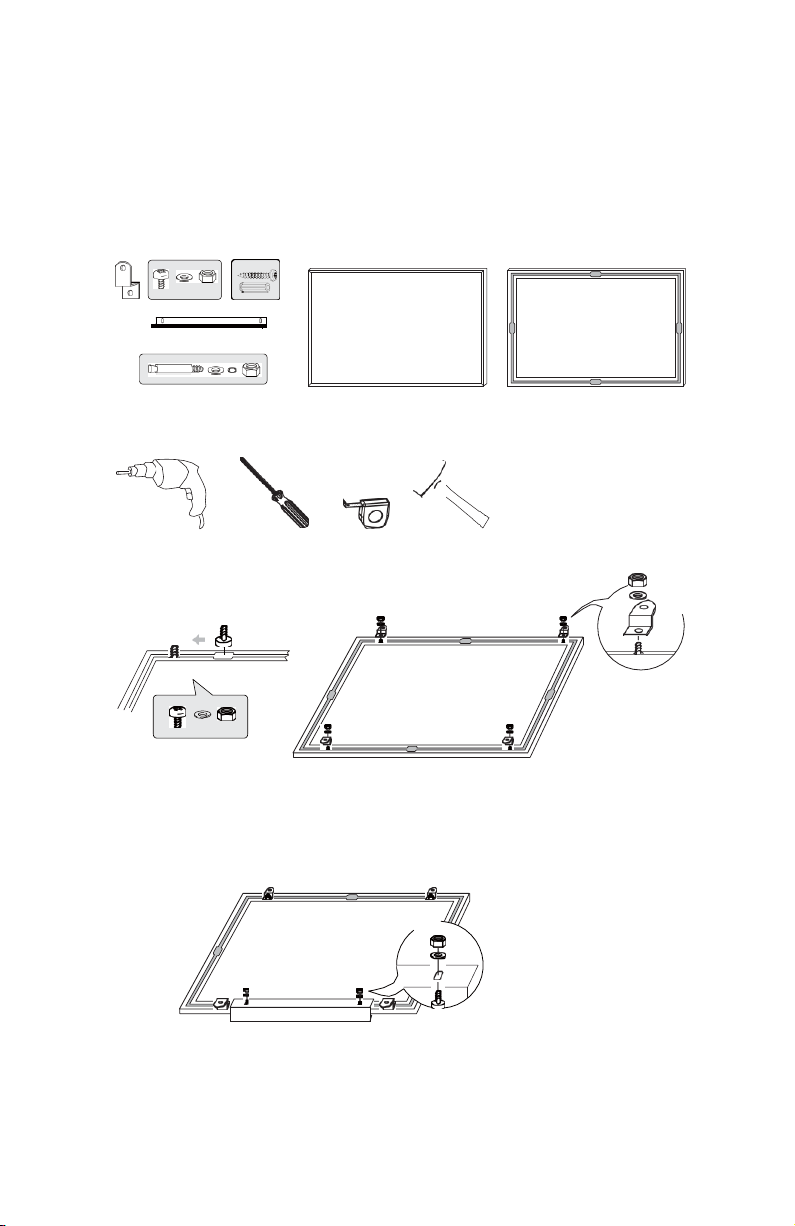

Locate the hardware and installation tools included in the package. Note the

differences between the front and back of the Whiteboard.

x4 x6 x4 (optional)

Penholder x1

Required installation tools :

Install the four wall-mount brackets.

Install the penholder.

BACK

Bottom side

Penholder

BACK

FRONT

User Guide

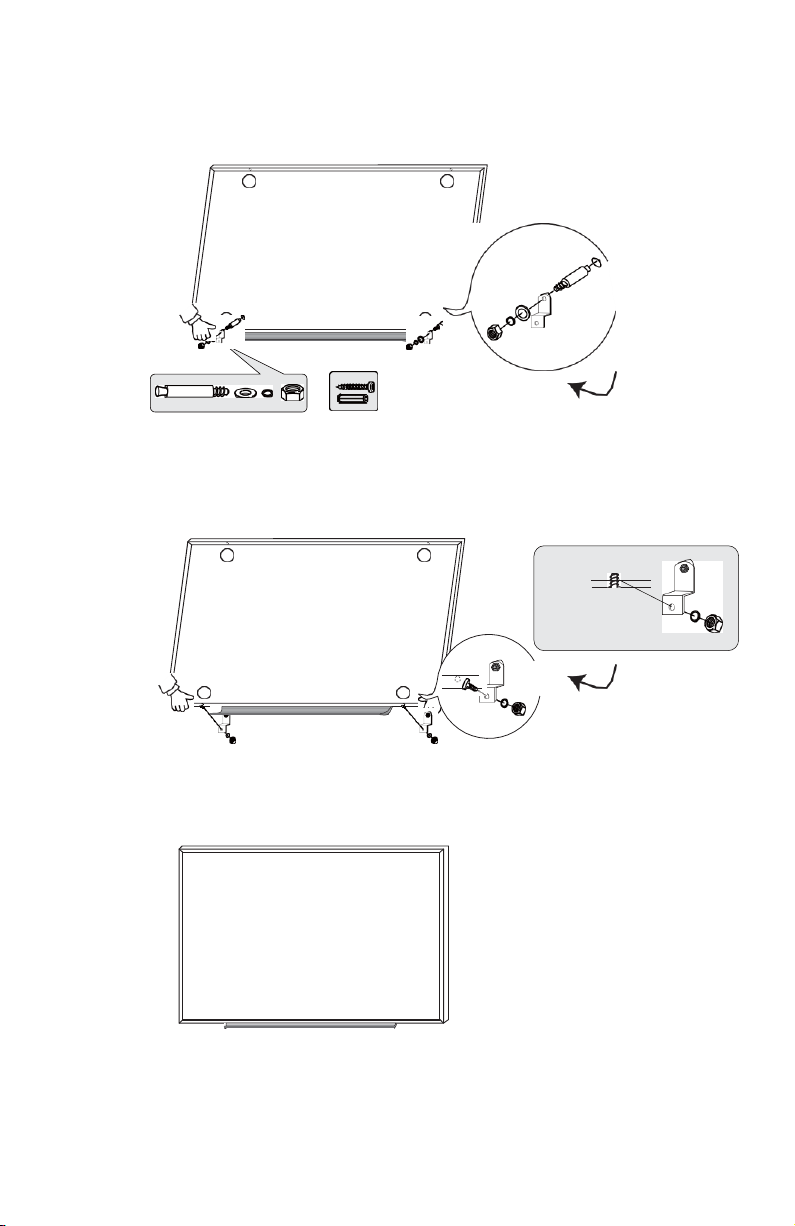

Mount the Whiteboard on the wall.

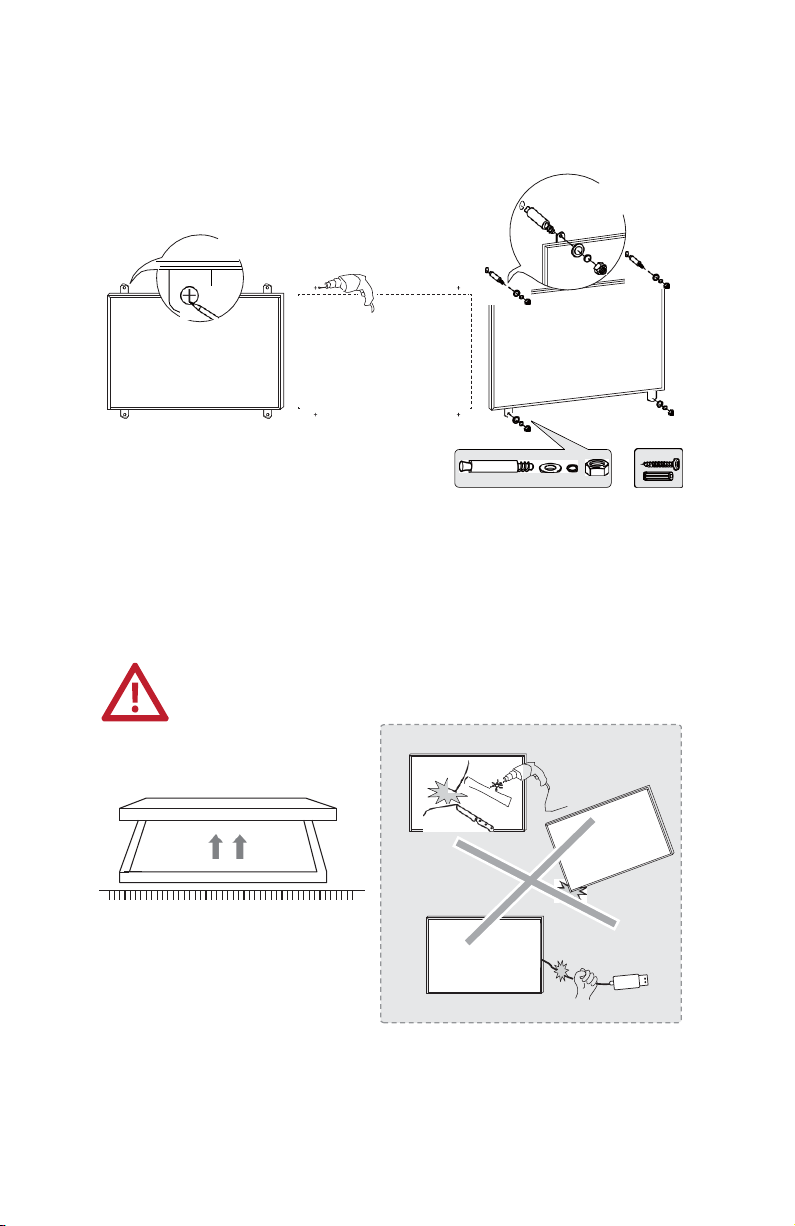

Handling the Whiteboard

When using or moving the Whiteboard, do not hit or scratch the Whiteboard’s

surface, do not drop the Whiteboard, and do not pull on cables connected to the

Whiteboard.

Warning

FRONT

User Guide

Connecting the USB lable with Whiteboard

Remark :This part is only for some models of infraredWhiteboards.

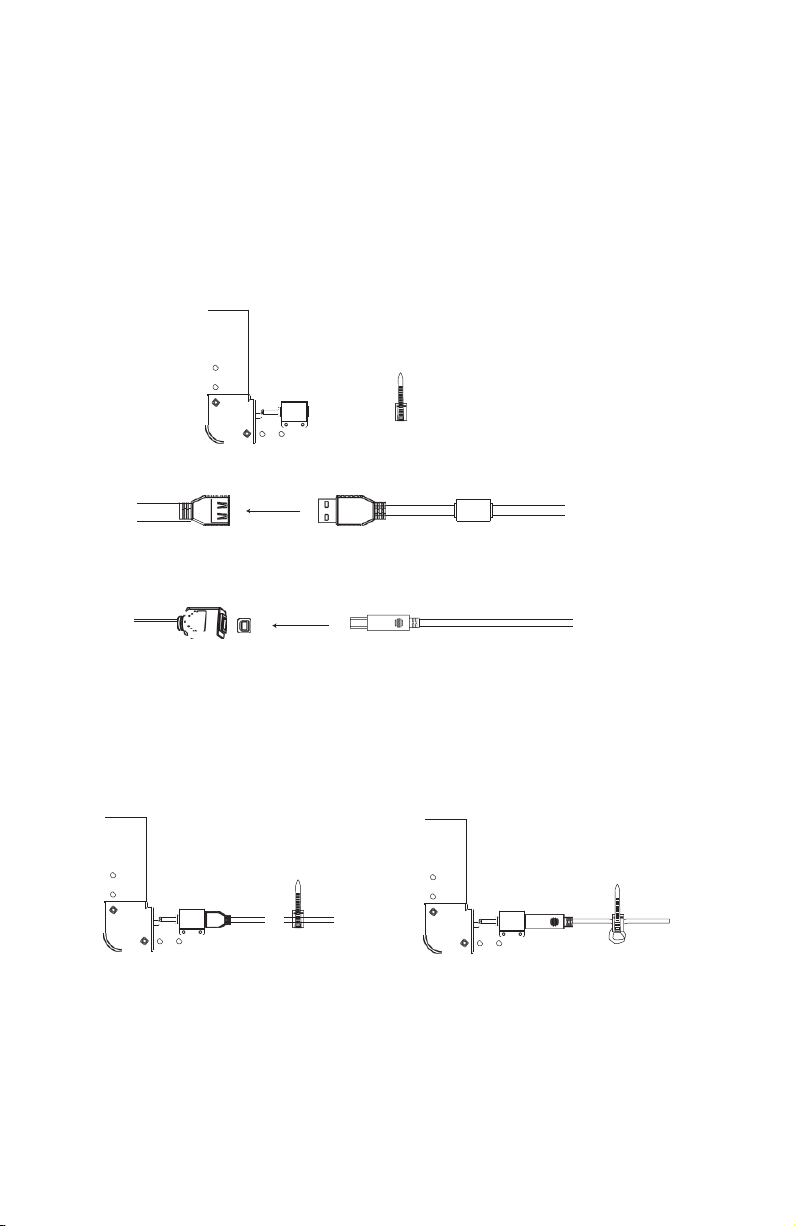

How to connect:

Plug the USB lable to the USB port (A Type or B Type) at the back of Whiteboard.

connect

①

If with A Type USB port ATypeUSBlable

②

connect

If with B Type USB port

B Type USB lable

Fasten the USB lable to the lable Fastenner to ensure the USB lable is fixed.

①A Type USB lable Fastening method: ②B Type USB lable Fastening method:

(USB port) (lable port)

BACK
