SMARTfit Mini Manuel utilisateur
SMARTfit Mini User Manual
Version 5.3
www.smartfitinc.com
1
Table of Contents
Maintenance .................................................................................................................................................. 3
Battery Operations ......................................................................................................................................... 4
Getting Started ............................................................................................................................................... 5
What’s in the Box ........................................................................................................................................... 6
Assembly Instructions .................................................................................................................................... 7
SMARTfit Mini 9 Operating Instructions ........................................................................................................ 7
Powering On Your SMARTfit Mini System ..................................................................................................... 8
Wheel Kit Operation ...................................................................................................................................... 9
Strike Target Options ................................................................................................................................... 10
The SMARTfit App ........................................................................................................................................ 11
Controller Settings .................................................................................................................................................. 12
Downloading the SMARTfit App ............................................................................................................................. 14
Start a Game ........................................................................................................................................................... 20
Standard Settings .................................................................................................................................................... 21
Open and Closed Platforms .................................................................................................................................... 25
Play a Free Activity .................................................................................................................................................. 28
Play a Free Program ................................................................................................................................................ 32
Create an Activity .................................................................................................................................................... 36
Create a Program .................................................................................................................................................... 41
Search and Export Data .......................................................................................................................................... 50
EU Declaration of Conformity ...................................................................................................................... 57
2
IMPORTANT SAFETY INSTRUCTIONS
(READ ALL INSTRUCTIONS)
CAUTIONS, WARNINGS and DANGERS
• This is not a toy and is intended for use by or under the supervision of adults.!
• To reduce the risk of fire, replace only with a fuse of the same type and electrical rating.!
• No user serviceable parts with the exception of the fuse.!
• Please note the yellow CAUTION and WARNING labels on the device.!
• Note all pinch points on the device before using.!
• If an extension cord is used pay close attention to the current requirement and routing to
eliminate tripping hazards.!
• Pay close attention to the pinch points pointed out in yellow CAUTION labels.!
• Do not climb on the device.!
• Weights in the back of the unit are required for safety.!
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.!
• Children should be supervised to ensure that they do not play with the appliance.!
• PLEASE SAVE THESE INSTRUCTIONS!
3
Maintenance
• Clean all surfaces with a water-based disinfectant, such as Windex Disinfectant.!
• Check all bolts and ensure they are tightened.!
• Check all mechanical parts for wear.!
• Check wiring for wear and fraying.!
4
Battery Operations
Power Banks are found in certain configurations of SMARTfit systems. This section only applies to such
systems.
• Only a power bank from SMARTfit shall be used.!
• Power banks shall be removed from the system prior to charging the pack.!
• Exhausted power banks shall be disposed of in a proper manor in accordance to your local laws.!
• If the system is to be dormant for an extensive period remove all power banks.!
5
Getting Started
Welcome to your new SMARTfit Mini!
The SMARTfit Mini System Includes the Following:
• Software License including downloadable iOS/Android mobile application and data
gathering/reporting module.
• CPU controller, timeclock, score display, sound system with 4 tracks of voice /tones/music.
• LED Targets multicolored high resolution, super bright, 16 x 16 dot matrix. Allows for images,
symbols, numbers up to 999 and three letter words.
• The system offers 37 categories consisting of hundreds of options that can be scaled to the
ability level of players regardless of capability.
• Adjustable touch sensitivity to suit the light touch of a hand or the weight of a medicine ball.
• 18-month warranty (extended warranty available) and SMARTfit’s exclusive Platinum Service
Plan.
What’s in this Document?
This manual will get you familiar with your SMARTfit Mini and guide you to quickly set it up. Setup
instructions include system components, On-Wall and On-Frame assembly and integration with
SMARTfit Strike Targets. The remainder of the manual walks you through the setup of the SMARTfit
app for iOS and Android including setup of open and closed platforms, playing and creating activities
and programming and searching and exporting data. Additional resources for setup and installation can
be found at www.smartfit.rocks
Customer Service
If you need assistance, feel free to give our Customer Service a call at 1-800-900-8542 x 116, between
the hours of 9:00 a.m. and 4:30 p.m. PST, Monday thru Friday or watch our easy to follow instruction
video on our website at https://www.smartfit.rocks/Customer-Resources/SMARTfit-Mini-videos
6

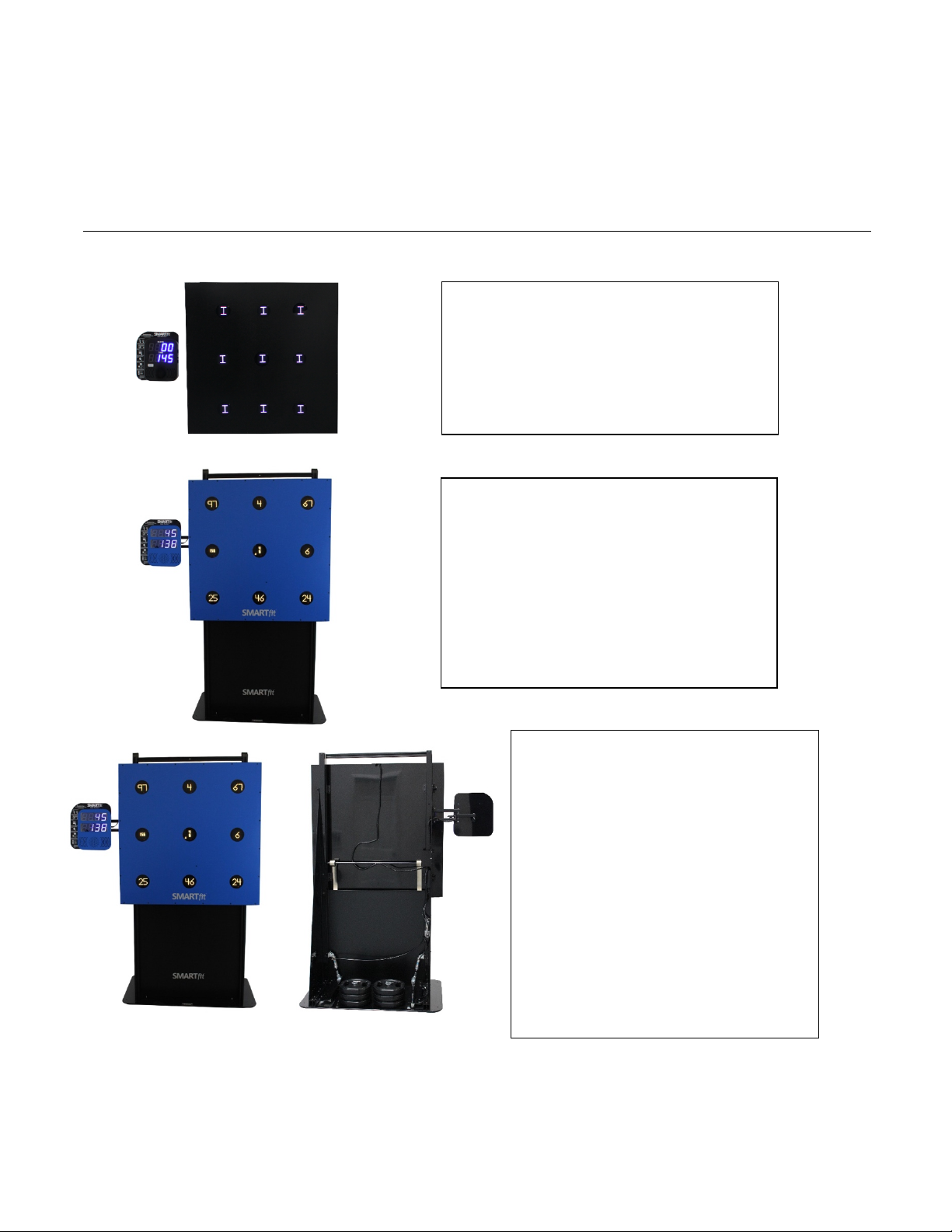

What’s in the Box
Power Requirements for the Mini System: 100-240VAC/50-60HZ/3Amp, receptacle
SMARTfit Mini On-Frame
1. One Interactive 46’’x 46’’ Station
2. 9 Multi-Functional Targets
3. AC CPU controller
4. Six 22 lb. Rubber Coated Weights
5. Adjustable height system (range
from floor to 6’)
SMARTfit Mini On-Wall
1. One Interactive 46’’x 46’’ Station
2. 9 Multi-Functional Targets
3. AC CPU controller
SMARTfit Mini On-Frame Portable
1. One Interactive 46’’x 46’’
Station
2. 9 Multi-Functional Targets
3. AC CPU controller
4. Six 22 lb. Rubber Coated
Weights
5. Adjustable height system
(range from floor to 6’)
6. Pneumatic lift kit for
portability.
7
Assembly Instructions
Visit the following links for detailed assembly instructions. If you have any questions or need assistance
give our Customer Service a call at 1-800-900-8542 x 116, between the hours of 9:00 a.m. and 4:30
p.m. PST, Monday thru Friday
Mini On-Wall Assembly Instructions: https://www.youtube.com/watch?v=DskOyKvhqzY
Mini On-Frame Assembly Instructions:
https://smartfitinc.com/wp-content/uploads/2018/02/Min-On-Frame-Installation.pdf
On-Frame Portable Assembly Instructions: https://www.youtube.com/watch?v=DskOyKvhqzY
SMARTfit Mini 9 Operating Instructions

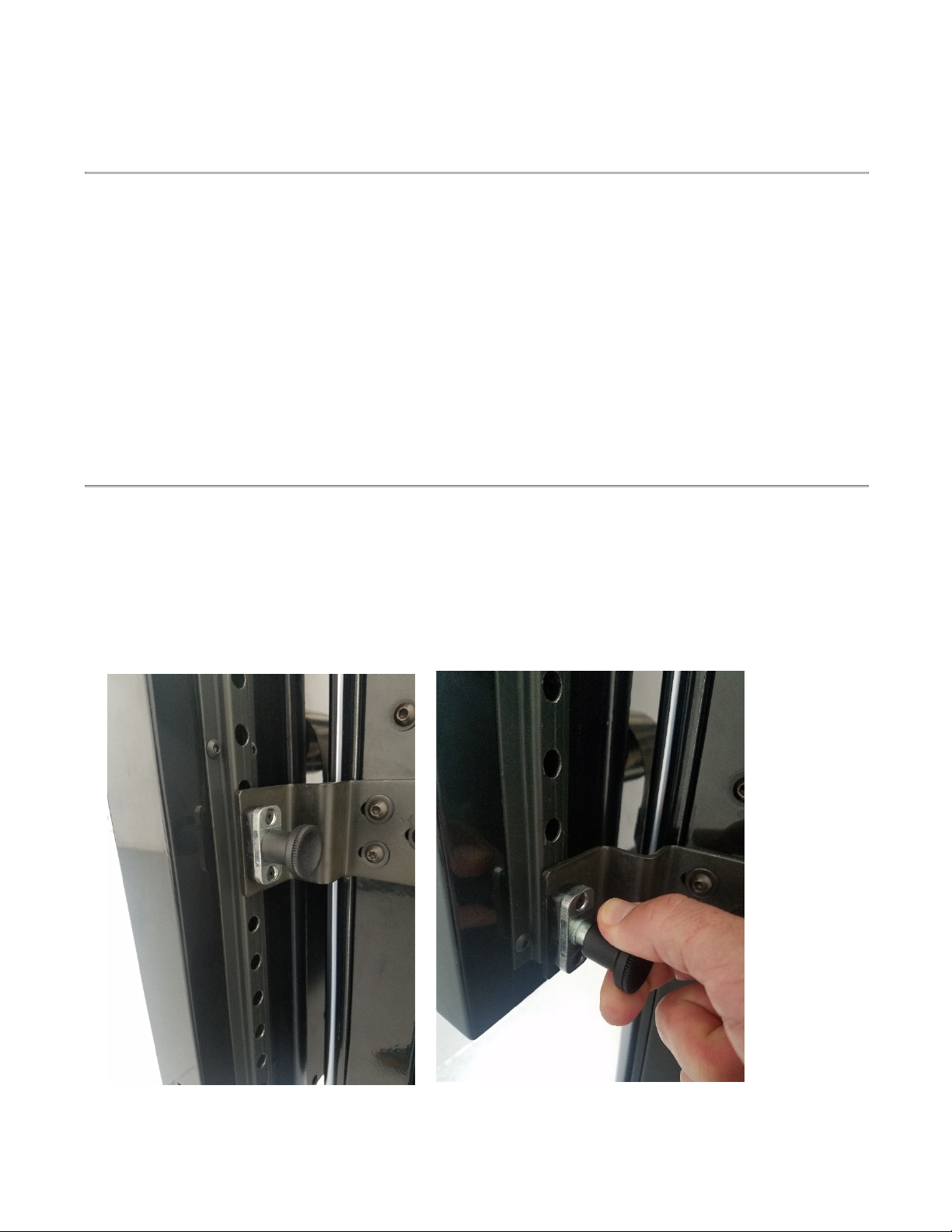

ADJUSTING THE PANEL HEIGHT (On-Frame and On-Frame Portable Systems)
The brake system is located on the left post behind the panel. (See photo below)
To adjust the panel height, pull the brake knob and move the panel to the desired height.
Release the knob to engage the brake and lock it into desired position.
8
Powering On Your SMARTfit Mini System
1. Locate the Power and Target Ports on
the CPU.
2. Plug in the Target Wire as shown in the
picture. Use the top target wire port on
the CPU.
3. Plug in the Power Cord as shown in the
picture.
4. Turn the toggle switch to the On
position.
5. Your CPU is now ready for play!
9

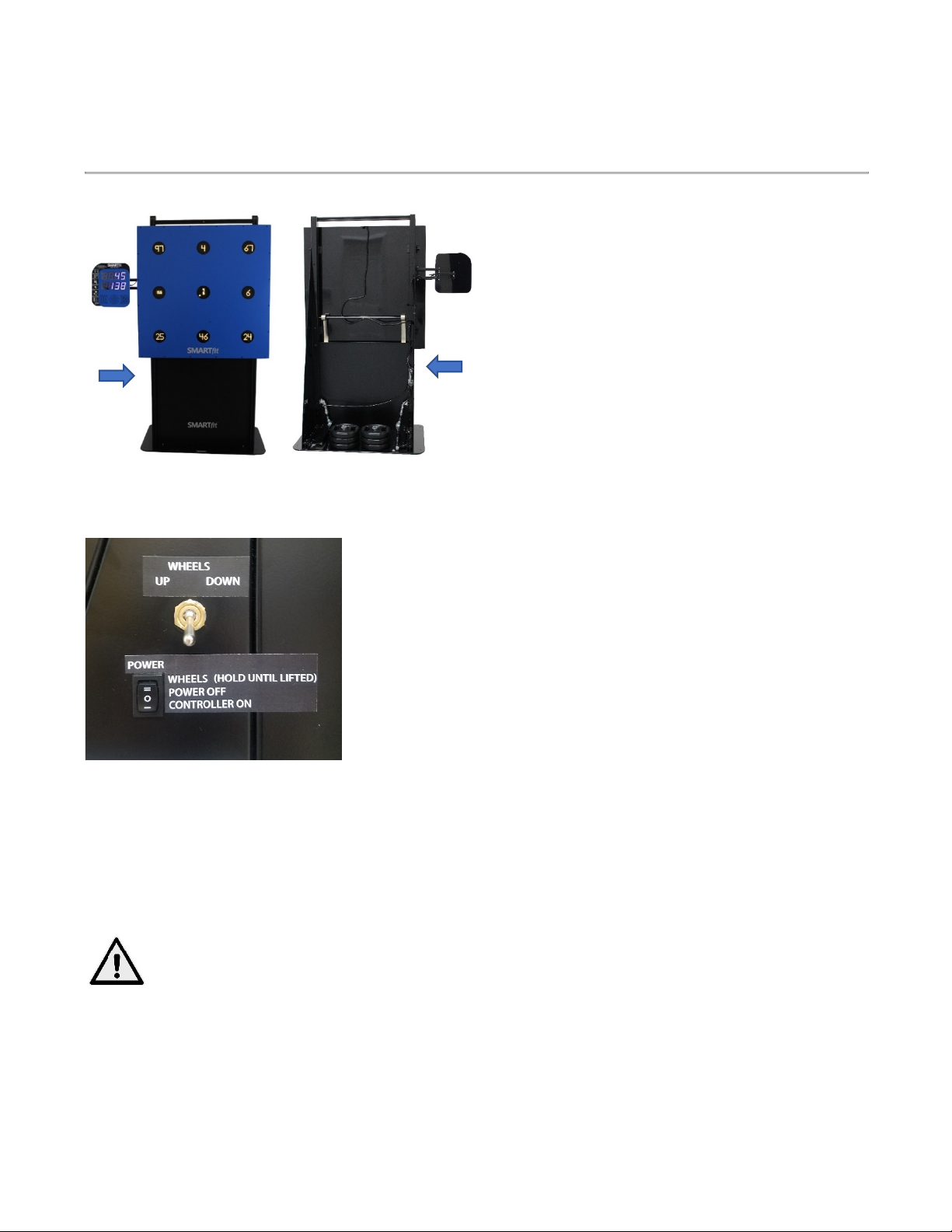

Wheel Kit Operation
The Mini On-Frame Portable comes with a
pneumatic lift kit and wheels built into the frame
for easy portability.
Locate the single rocker switch that is labeled
Controller On. Set the switch to the center
position (Off). Plug the power cord into an outlet.
Note: The power supply will adjust to any voltage
between 100 and 240 VAC/50-60Hz. All electrical
devices are low voltage DC devices and are powered by the single power supply.
To power the system on, push the rocker switch down so that it is
in the Controller On position.
To power the system off, push the rocker switch to the center
position in the Power Off position.
To use the wheel kit, flip the Wheels Up/Down toggle switch to Up.
Now press and hold the top of the Power switch in the “Wheels”
position for approximately 15 seconds. When you release the
switch, the compressor will stop.
Now unplug the power cord and the system can be easily be moved to another location.
When the system is in the desired location, plug the power cord into an outlet. Flip the Wheels toggle
switch to the down position and the wheels with retract.
Caution! Ensure nothing is underneath the base plate when you’re lowering
the system. Failure to do so could cause serious injury.
