SmarTerminal Smart Compact SMP-3000 Manuel utilisateur
RFID Gun reader
for SmartCompact
User Manual
SmarTerminal Computers, Inc.
Ver 0.931, SEP 2007
Page 1 2/1/2008
Disclaimer
SmarTerminal and SmartCompact are registered trademarks of
Sammi Information Systems Co., Ltd.
All other brand names, product names, or trademarks belong to their respective
holders.
Head Quarters
Sammi Information Systems Co.,Ltd.
103-15, Galwor –dong, Yongsan-Gu, Seoul, Korea
Tel. 82 -2-790-5508 / Fax. 82-2-790-5509
Email. [email protected]
Web. www.sammicomputer.co.kr
Us Office
SmartTerminal Computers, Inc.
5200 Orange Ave. Suite 212
Cypress, CA90630
Tel. 1-714-761-5300 Fax. 1-562-252-8272
Email. [email protected]
Web. www.smarterminal.com
Page 2 2/1/2008
Table of Contents
Introduction....................................................................................................................................... 4
Chapter 1 Get to know more about RFID Gun reader................................................................... 5
1.1 Make sure you have everything ....................................................................................... 5
1.2 Appearance ........................................................................................................................ 6
1.2.1 Front side .................................................................................................................... 6
1.2.2 Rear side...................................................................................................................... 6
1.2.3 Top side ....................................................................................................................... 8
1.2.4 Bottom side................................................................................................................. 8
1.2.5 Left side....................................................................................................................... 8
1.2.6 Right side .................................................................................................................... 9
1.2.7 With Protective rubber cover .................................................................................... 9
Chapter 2 Power settings and connections ................................................................................ 10
2.1 Remove / Install batteries in RFID Gun reader.............................................................. 10
2.2 Battery charging using power adapter.......................................................................... 11
2.2.1 Charging with AC/DC adapter ................................................................................. 11
2.2.2 Charging with Battery charger................................................................................ 12
Chapter 3 Setting up SmartCompact RFID Gun reader.............................................................. 13
3.1 How to set CAB Files in SmartCompact........................................................................ 13
3.2 How to connect SmartCompact to RFID Gun reader................................................... 16
3.3 How to remove SmartCompact from RFID Gun reader................................................ 17
Chapter 4 Using RFID Gun reader................................................................................................ 18
4.1 How to operate RFID Gun reader................................................................................... 18
4.1.1 How to install program files in SmartCompact........................................................... 18
4.1.2 How to operate RFID Gun reader ................................................................................. 21
Appendix A...................................................................................................................................... 23
RFID Gun reader Specification Highlights............................................................................... 23
Appendix B...................................................................................................................................... 24
Version Table............................................................................................................................... 24
Page 3 2/1/2008
Introduction
This quick reference guide allows you to use all the advanced features of SmartCompact effectively.
Please go through it once before using SmartCompact handheld terminal.
User's Information
Cautions
Modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
FCC compliance Information
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and 2. This device must accept any interference
received. Including interference that may cause undesired operation.
Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio Frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver- Connect the equipment into an outlet on a
circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
RF exposure statement
"To maintain compliance with FCC's RF exposure guidelines, this equipment should be installed and
operated with minimum distance 20cm between the radiator and your body. Use only the supplied antenna."
Page 4 2/1/2008
Chapter 1 Get to know more about RFID Gun reader
1.1 Make sure you have everything
9RFID Gun reader main unit (UHF)
9Standard battery pack (2200 mAH Li-ion)
Optional accessories
9Spare battery pack (2200 mAH Li-ion)
93 pack battery charger – under development
9AC/DC adapter
9Protective rubber cover
Page 5 2/1/2008
1.2 Appearance
1.2.1 Front side

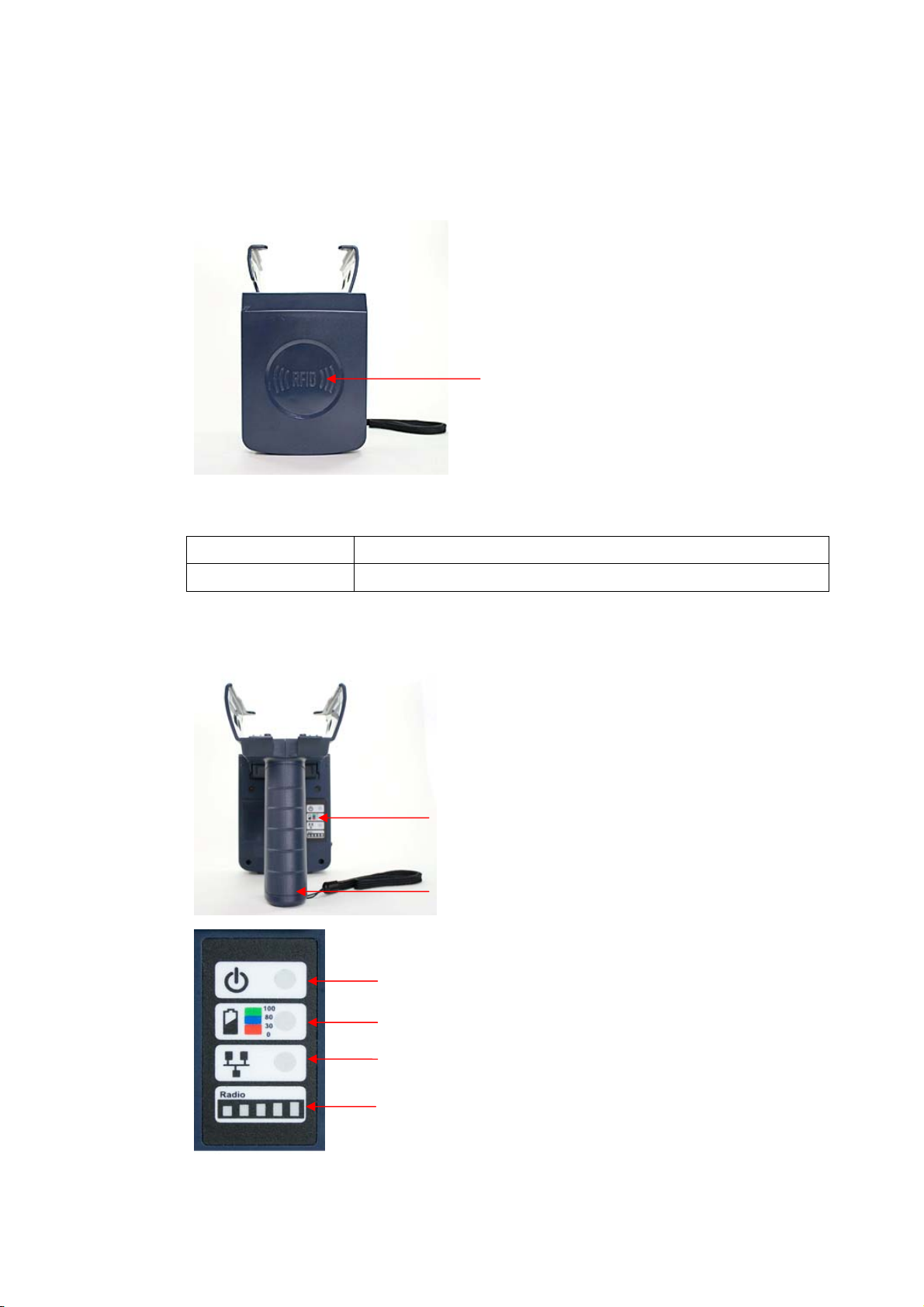

UHF antenna
Features and description
Features Function / Description
RFID Antenna RFID antenna is located in front side of Gun reader
1.2.2 Rear side
LED
Display
Gun handle
Power LED
Battery Capacity
Communication LED
RF Strength LED (1 ~ 5)
Rear panel features
Page 6 2/1/2008
Name Function
Power LED Shows green light for 5 seconds when user triggers the gun
Battery capacity LED Shows battery capacity status (see below table for details)
Communication LED When IrDAcommunication is successful between Gun reader and
SmartCompact, Communication LED shows green light (blinking)
as user triggers the gun.
RF Strength LED Shows RFID power level from 1~5
LED color change according to battery capacity
Name Function
0 ~ 30% charged : red
30 ~ 80% charged : blue
80 ~ 100% charged : green (fully charged)
Page 7 2/1/2008
1.2.3 Top side
Screws for attaching
to SmartCompact
1.2.4 Bottom side

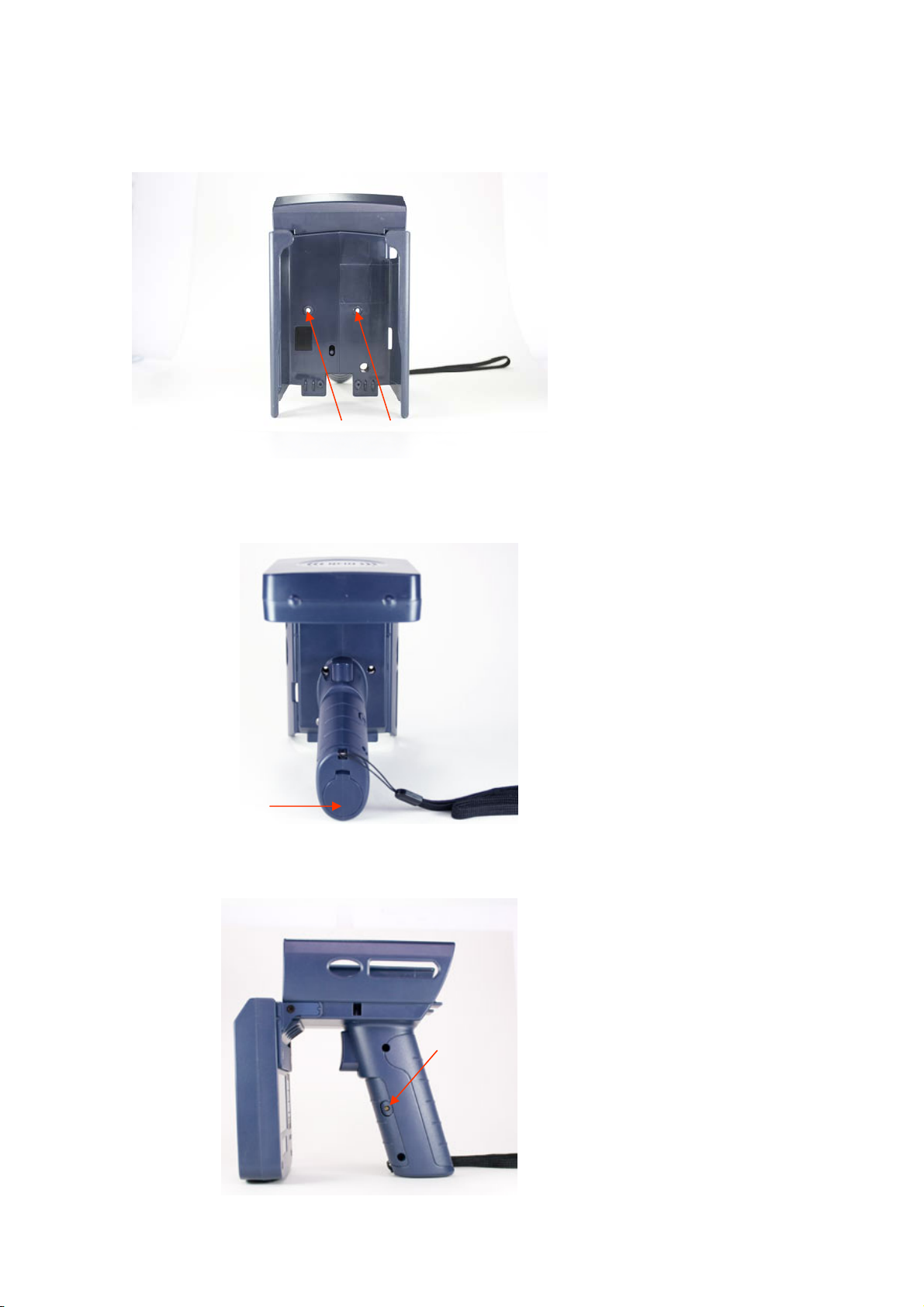

2200mAH battery
1.2.5 Left side
Battery out switch
Page 8 2/1/2008
nd description
Features Function / Description
Features a
Battery out button To take out battery, user should push this button.

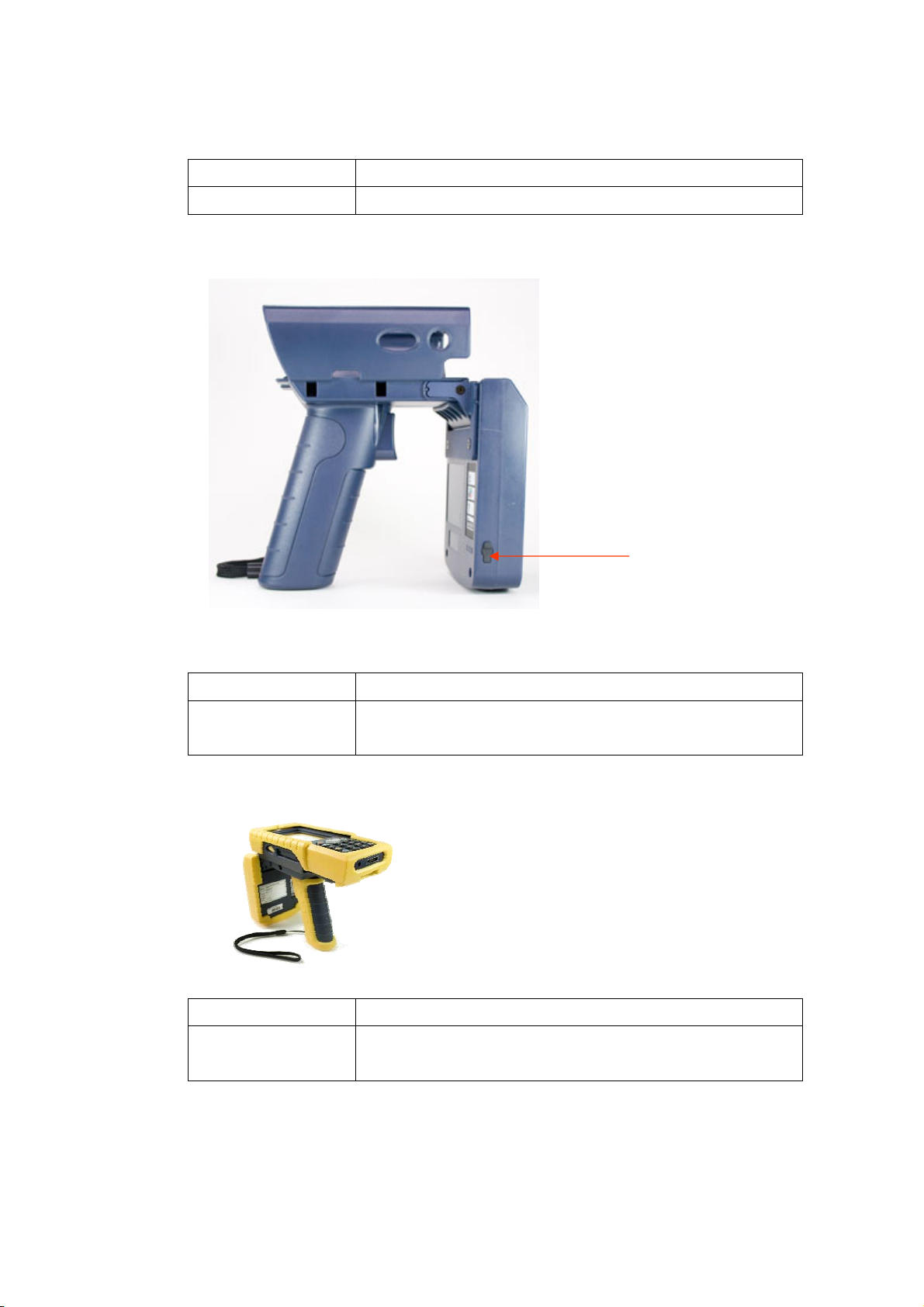

1.2.6 Right side
Features and description
Features Function / Description
DC input jack To charge RFID reader, user should connectAC/DC adapter
to this DC input jack.
1.2.7 With Protective rubber cover
Features and description
ction / Description
Features Fun
Protective rubber vibration, user can additionally
cover
To protect from shock and
cover SmartCompact and/or RFID Gun reader.
DC input jack
Page 9 2/1/2008
Chapter 2 Power settings and connections
2.1 Remove / Install batteries in RFID Gun reader

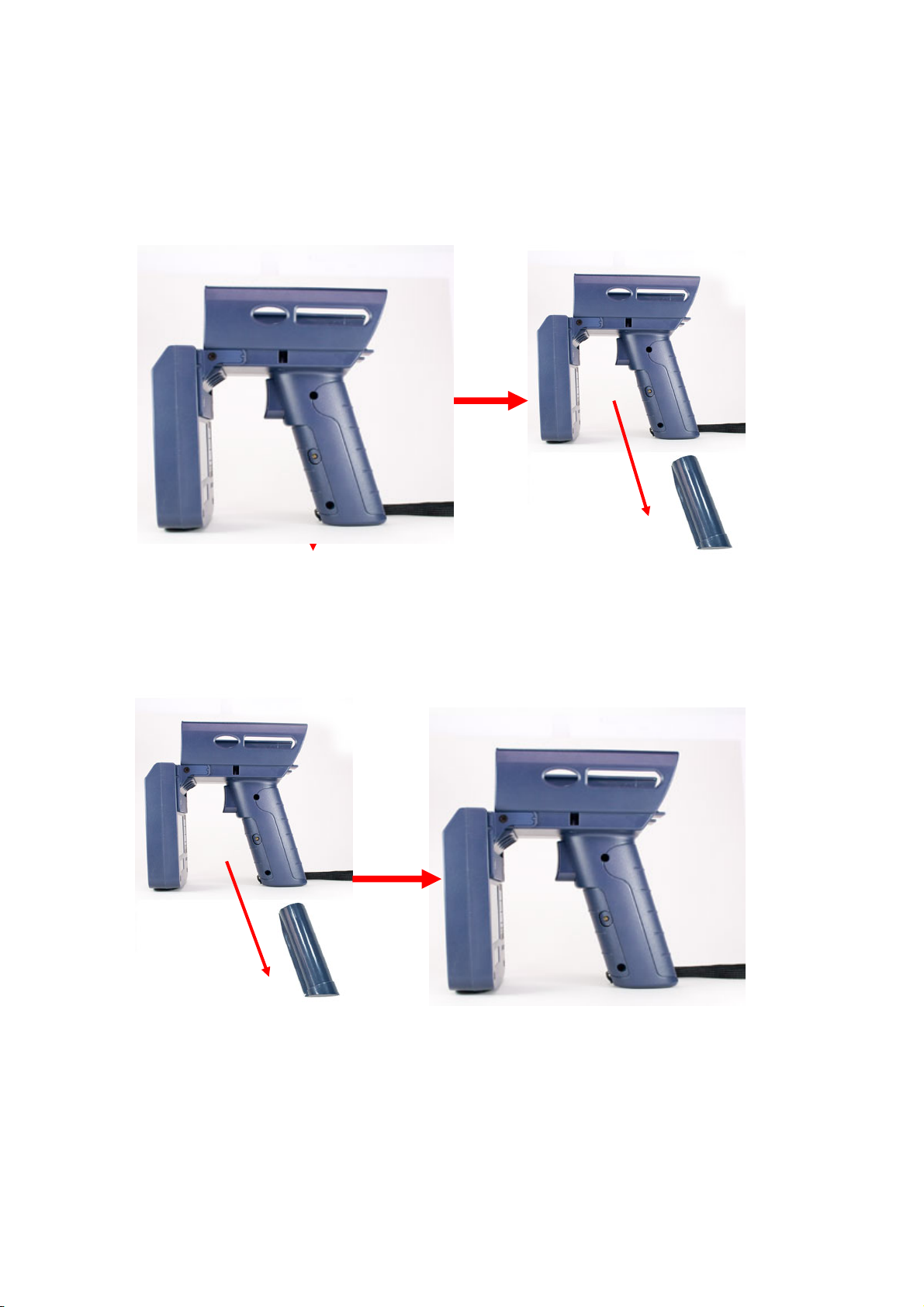

ress the battery out button and remove battery in below direction:
Push and secure the battery in the gun reader until hearing a click sound:
P
battery out button
Page 10 2/1/2008
